AHS-6/8-TLC

Printer Friendly
Available
AHS-6/8-TLC
AHS-6/8-TLC AHS-6/8-TLC AHS-6/8-TLC

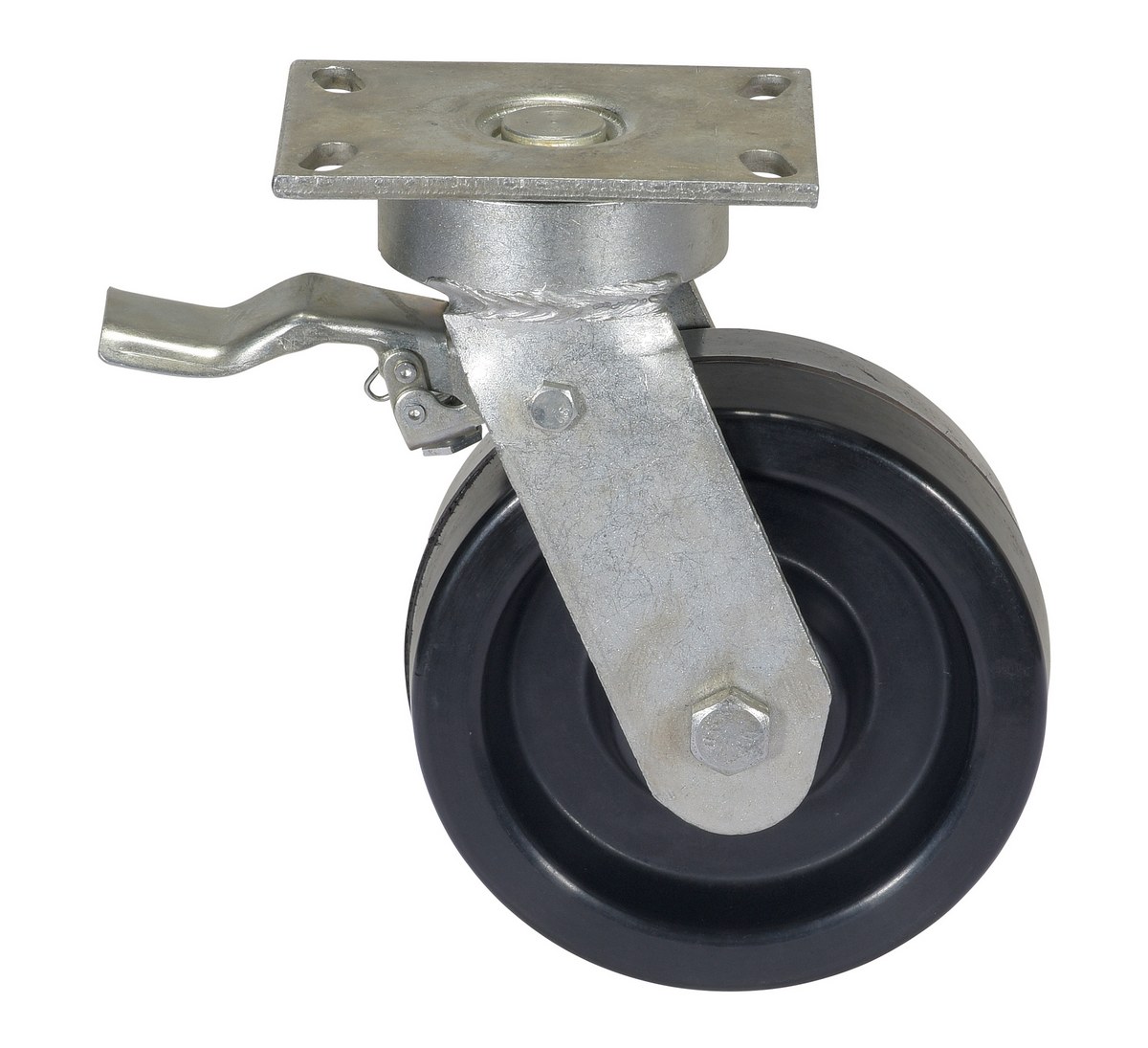

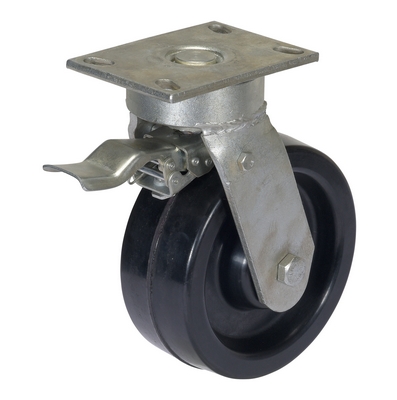

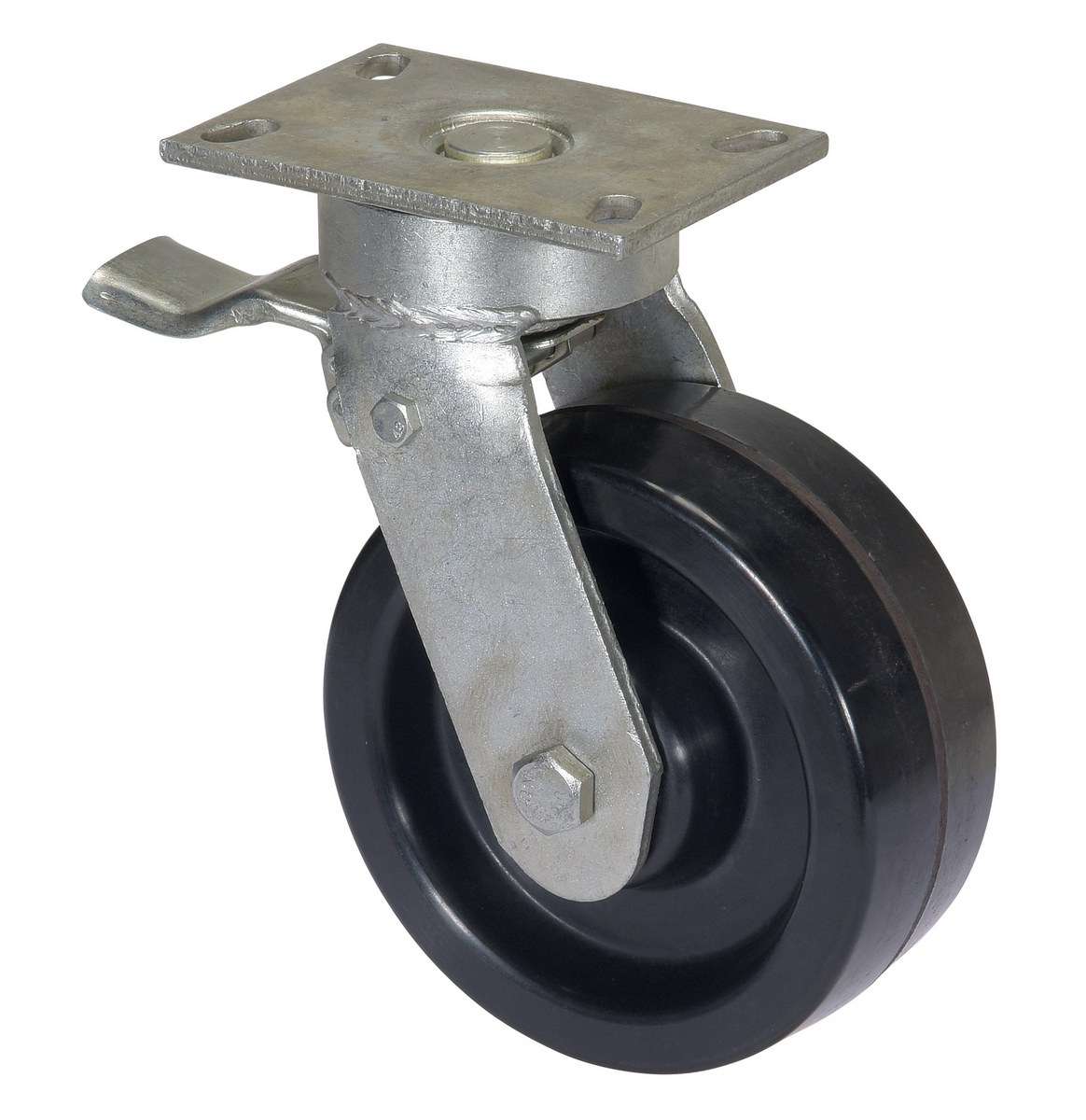

Phenolic Total Locking Swivel Casters 8 In. x 3 In. For Steel Gantry Cranes 4,000 Lb. / 6,000 Lb. / 8,000 Lb. Capacity

Steel Gantry crane total locking caster set provides a number of benefits to an already worthwhile gantry crane. The durable construction generates a smooth roll with limited jostling. Simple to install with pre drilled mounting holes. Please verify your gantry crane plate size before ordering, to avoid fit issues.

  • Total locking caster set for holding a gantry crane in place
  • Works with steel gantry crane for maximum capacity
  • Glass-filled nylon in order to hold greater loads
  • Set includes four (4) swivel casters for even maneuverability
Assembled Wt.(lbs.): 53 Assembled Size: 3"W x 8"L x 8"H

Total Ship Wt.(lbs.): 71 (only 1 package) Package 1 Size: 13"W x 17"D x 13"H Color: Black

Capacity (lb.): 4,000 / 6,000 / 8,000 Caster Material: Phenolic Caster Type: Swivel Total Lock
Set (qty.): 4 Caster Diameter/Width (in.): 8 x 3 Plate Size Width/Length (in.): 4-1/2 x 6-1/4
Compatible With: Vestil 6k and 8k Capacity Gantry Cranes Compatible With: Vestil 4k Capacity Gantry Cranes (after 2022)

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: AHS-6/8-TLC
Available
AHS-6/8-TLC

Phenolic Total Locking Swivel Casters 8 In. x 3 In. For Steel Gantry Cranes 4,000 Lb. / 6,000 Lb. / 8,000 Lb. Capacity

Steel Gantry crane total locking caster set provides a number of benefits to an already worthwhile gantry crane. The durable construction generates a smooth roll with limited jostling. Simple to install with pre drilled mounting holes. Please verify your gantry crane plate size before ordering, to avoid fit issues.

  • Total locking caster set for holding a gantry crane in place
  • Works with steel gantry crane for maximum capacity
  • Glass-filled nylon in order to hold greater loads
  • Set includes four (4) swivel casters for even maneuverability
Dimensions: 3"W x 8"L x 8"H Sell UOM: -- Color: Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 71 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Capacity (lb.): 4,000 / 6,000 / 8,000 Caster Material: Phenolic Caster Type: Swivel Total Lock
Set (qty.): 4 Caster Diameter/Width (in.): 8 x 3 Plate Size Width/Length (in.): 4-1/2 x 6-1/4
Compatible With: Vestil 6k and 8k Capacity Gantry Cranes Compatible With: Vestil 4k Capacity Gantry Cranes (after 2022)
