Product Family Overview


Fifth Wheel Steer Trailers
SERIES: FWST

Fifth Wheel Steer Trailers feature steering that resembles children's little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14" square steel plates sandwich a UHMW disk, secured by a 1-1/4" kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into "trains" to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation. Custom deck sizes and hardwood decks available, contact factory.

  • Fifth wheel steer trailer is engineered for power towing
  • Trailer comes standard with drop forged loop handle and square fifth wheel
  • Features a low friction wear pad and precision thrust bearing
  • Use in industrial applications for optimal results

Fifth Wheel Steer Trailers feature steering that resembles children's little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14" square steel plates sandwich a UHMW disk, secured by a 1-1/4" kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into "trains" to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation. Custom deck sizes and hardwood decks available, contact factory.

  • Fifth wheel steer trailer is engineered for power towing
  • Trailer comes standard with drop forged loop handle and square fifth wheel
  • Features a low friction wear pad and precision thrust bearing
  • Use in industrial applications for optimal results

Additional Models In This Family

FWST-36-4PNU

model FWST-36-4PNU

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

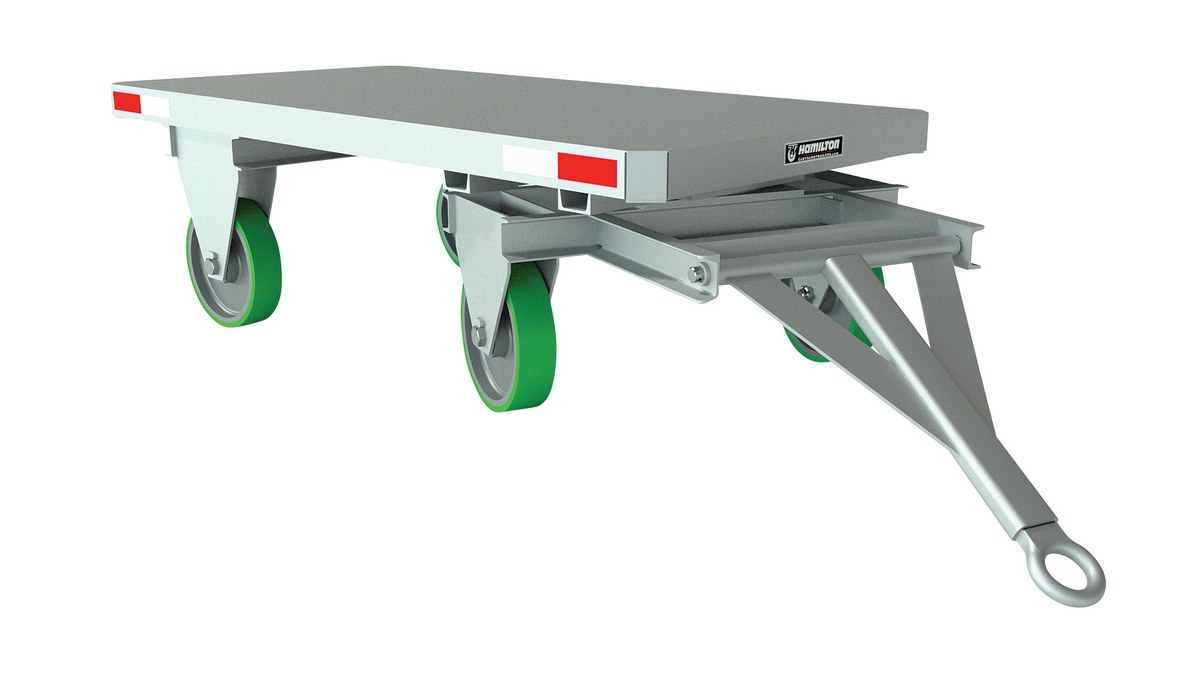

FWST-36-4P FWST-36-4P1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Polyurethane Wheels 36 In. x 72 In. 5000 Lb. Capacity GrayUniform Capacity (lb.): 5000
Deck Gauge: 12
615

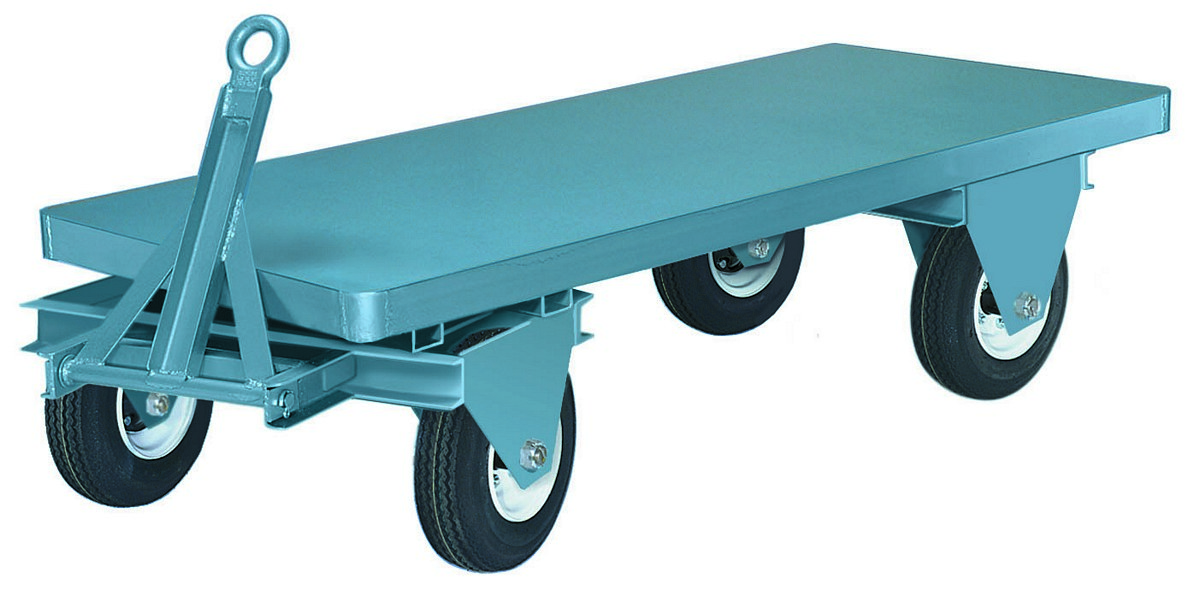

FWST-36-4PNU FWST-36-4PNU1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Pneumatic Wheels 36 In. x 72 In. 4500 Lb. Capacity GrayUniform Capacity (lb.): 4,500
Deck Gauge: 12
615

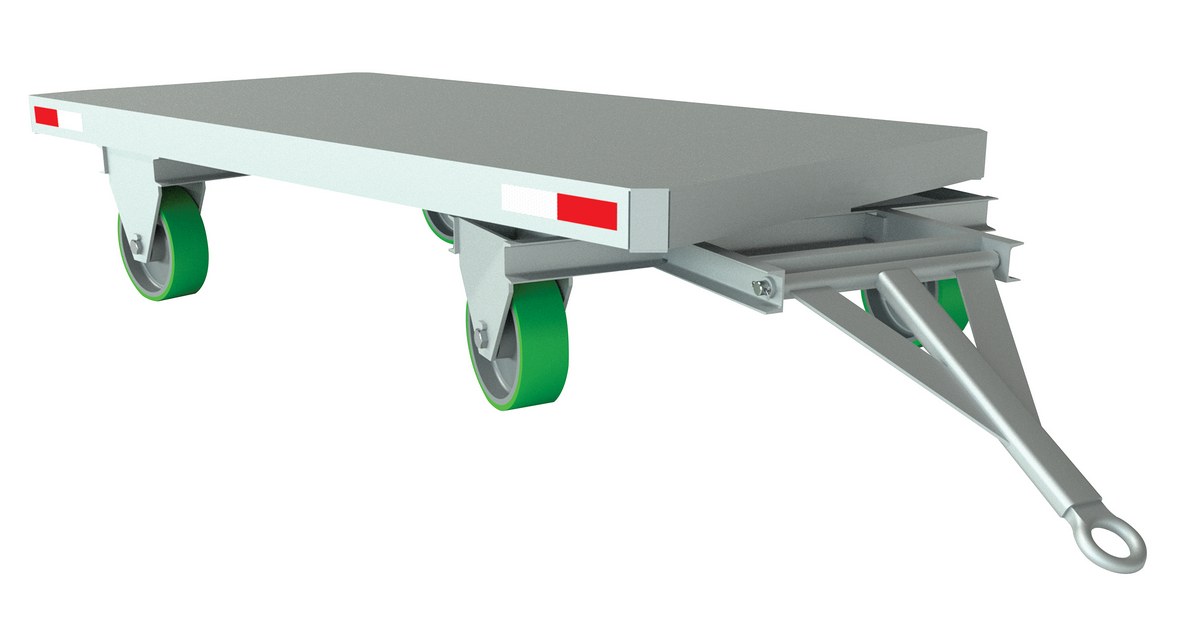

FWST-48-10P FWST-48-10P1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
720
FWST-48-10PNU FWST-48-10PNU1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
720

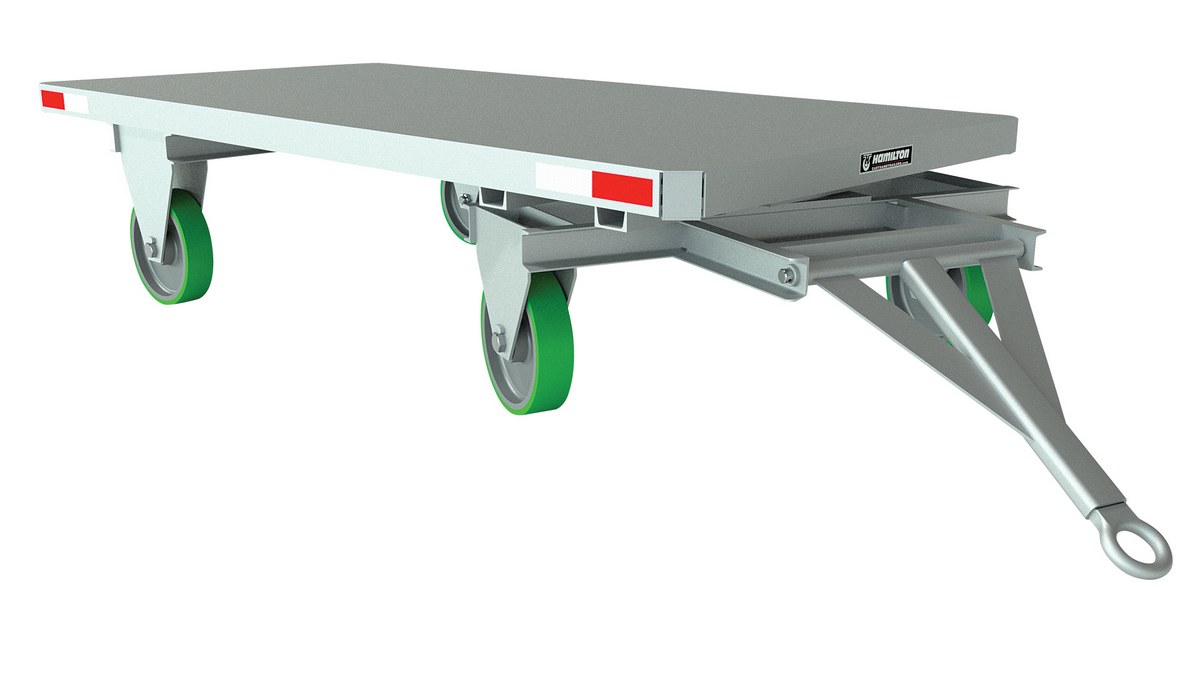

FWST-48-4P FWST-48-4P1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 5000 Lb. Capacity GrayUniform Capacity (lb.): 5,000
Deck Gauge: 12
455
FWST-48-4PNU FWST-48-4PNU1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 4500 Lb. Capacity GrayUniform Capacity (lb.): 4,500
Deck Gauge: 12
455

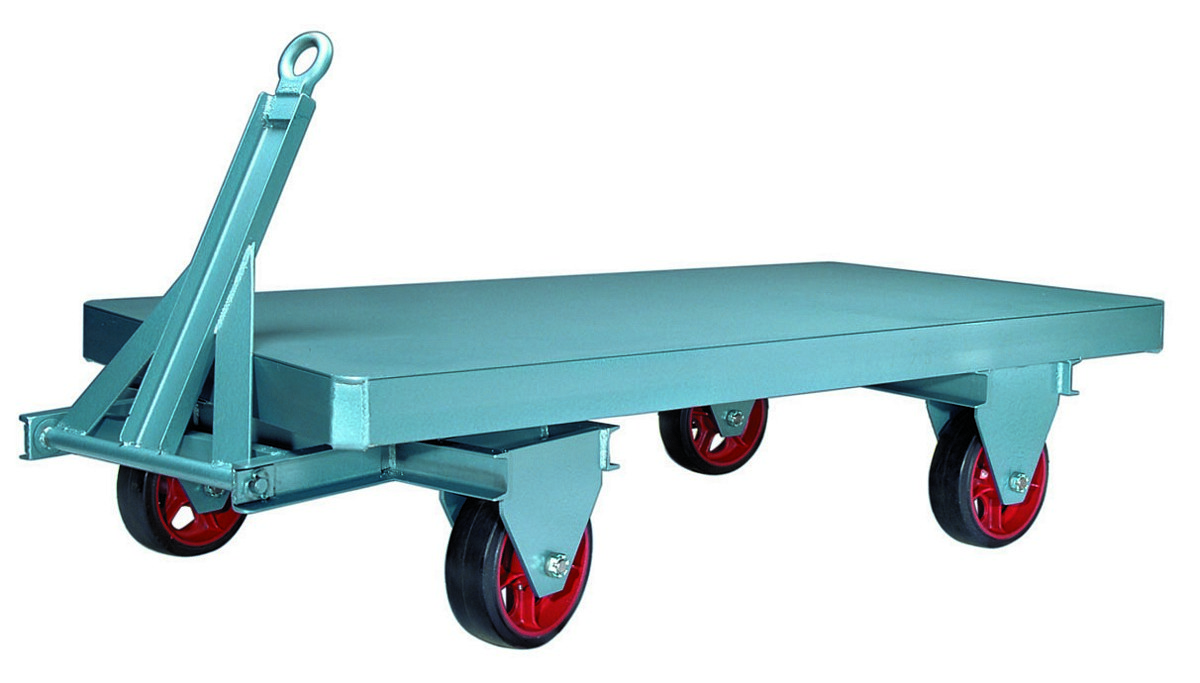

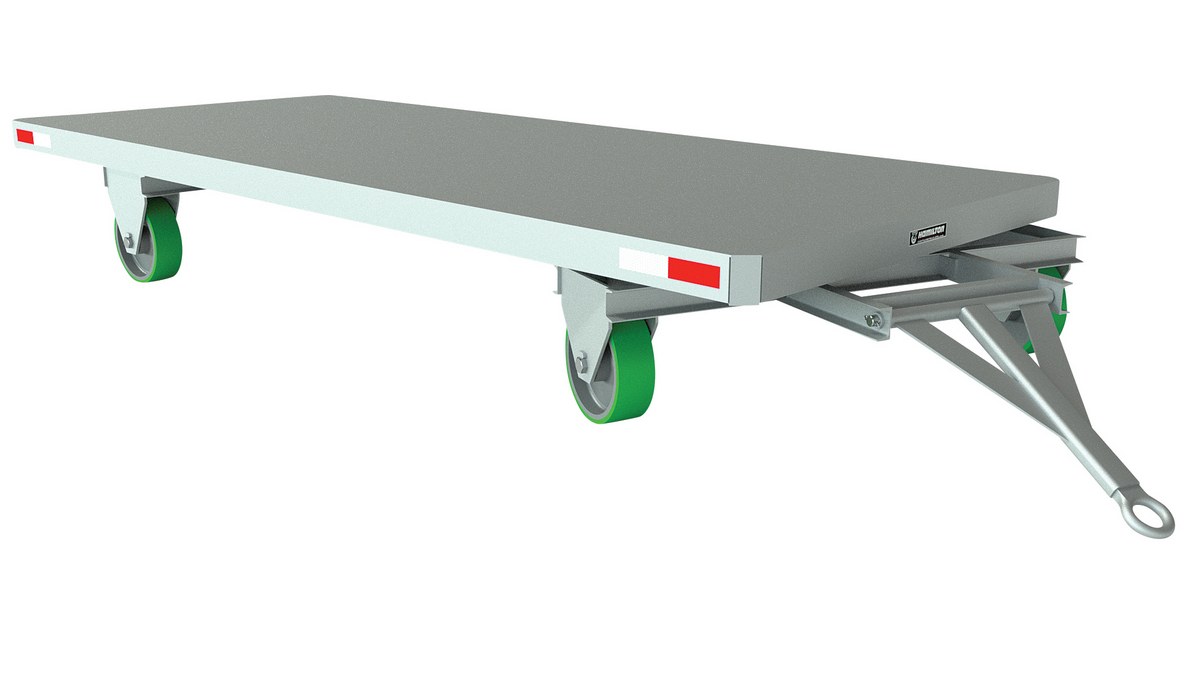

FWST-512-10P FWST-512-10P1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Polyurethane Wheels 60 In. x 144 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
1440
FWST-512-10PNU FWST-512-10PNU1 Year Limited WarrantySteel Fifth Wheel Steer Trailer with Pneumatic Wheels 60 In. x 144 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
1440

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

FWST-36-4P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Deck Gauge: 12
Uniform Capacity (lb.): 5000
Deck Gauge: 12

FWST-36-4PNU
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Uniform Capacity (lb.): 4,500
Deck Gauge: 12

FWST-48-10P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7

FWST-48-10PNU
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7

FWST-48-4P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Deck Gauge: 12
Uniform Capacity (lb.): 5,000
Deck Gauge: 12

FWST-48-4PNU
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,500
Deck Gauge: 12
Uniform Capacity (lb.): 4,500
Deck Gauge: 12

FWST-512-10P
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7

FWST-512-10PNU
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Deck Gauge: 7
Uniform Capacity (lb.): 10,000
Deck Gauge: 7

Fifth Wheel Steer Trailers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


FWST-36-4PNU

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Fifth Wheel Steer Trailers




Fifth Wheel Steer Trailers feature steering that resembles children's little red wagons. These industrial workhorses move heavy loads around plants and distribution centers. 14" square steel plates sandwich a UHMW disk, secured by a 1-1/4" kingpin, comprising the massive fifth-wheel assembly. Equipped with proper couplers, fifth wheel steer trailers can be connected into "trains" to move even larger loads of merchandise. Front and rear axles are precisely located for optimal steering and load accommodation. Custom deck sizes and hardwood decks available, contact factory.

  • Fifth wheel steer trailer is engineered for power towing
  • Trailer comes standard with drop forged loop handle and square fifth wheel
  • Features a low friction wear pad and precision thrust bearing
  • Use in industrial applications for optimal results


Model # Description Attributes Net Wt.
(lbs)
FWST-36-4P FWST-36-4PSteel Fifth Wheel Steer Trailer with Polyurethane Wheels 36 In. x 72 In. 5000 Lb. Capacity GrayUniform Capacity (lb.): 5000
Deck Gauge: 12
615
FWST-36-4PNU FWST-36-4PNUSteel Fifth Wheel Steer Trailer with Pneumatic Wheels 36 In. x 72 In. 4500 Lb. Capacity GrayUniform Capacity (lb.): 4,500
Deck Gauge: 12
615
FWST-48-10P FWST-48-10PSteel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
720
FWST-48-10PNU FWST-48-10PNUSteel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
720
FWST-48-4P FWST-48-4PSteel Fifth Wheel Steer Trailer with Polyurethane Wheels 48 In. x 96 In. 5000 Lb. Capacity GrayUniform Capacity (lb.): 5,000
Deck Gauge: 12
455
FWST-48-4PNU FWST-48-4PNUSteel Fifth Wheel Steer Trailer with Pneumatic Wheels 48 In. x 96 In. 4500 Lb. Capacity GrayUniform Capacity (lb.): 4,500
Deck Gauge: 12
455
FWST-512-10P FWST-512-10PSteel Fifth Wheel Steer Trailer with Polyurethane Wheels 60 In. x 144 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
1440
FWST-512-10PNU FWST-512-10PNUSteel Fifth Wheel Steer Trailer with Pneumatic Wheels 60 In. x 144 In. 10000 Lb. Capacity GrayUniform Capacity (lb.): 10,000
Deck Gauge: 7
1440
