Product Family Overview

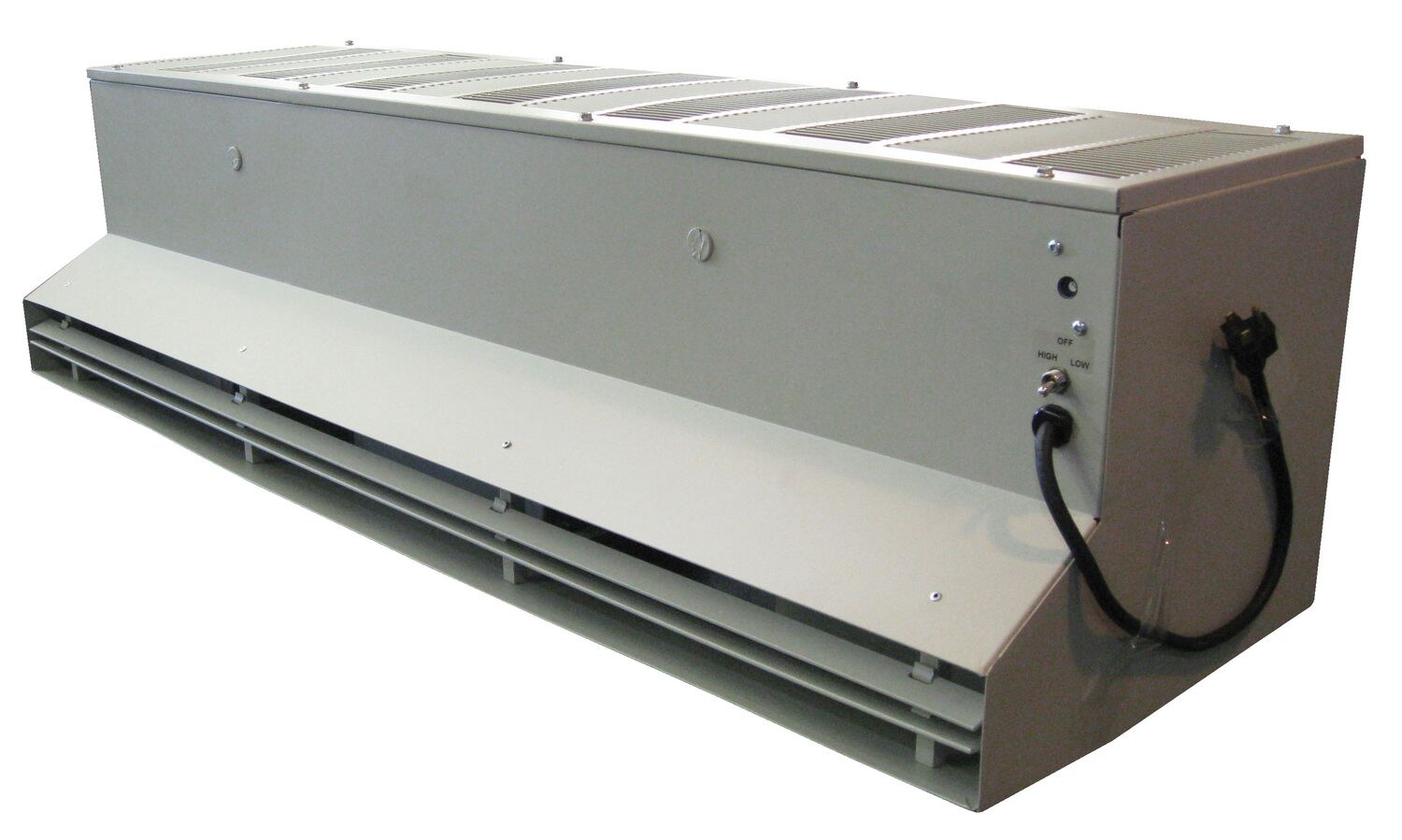

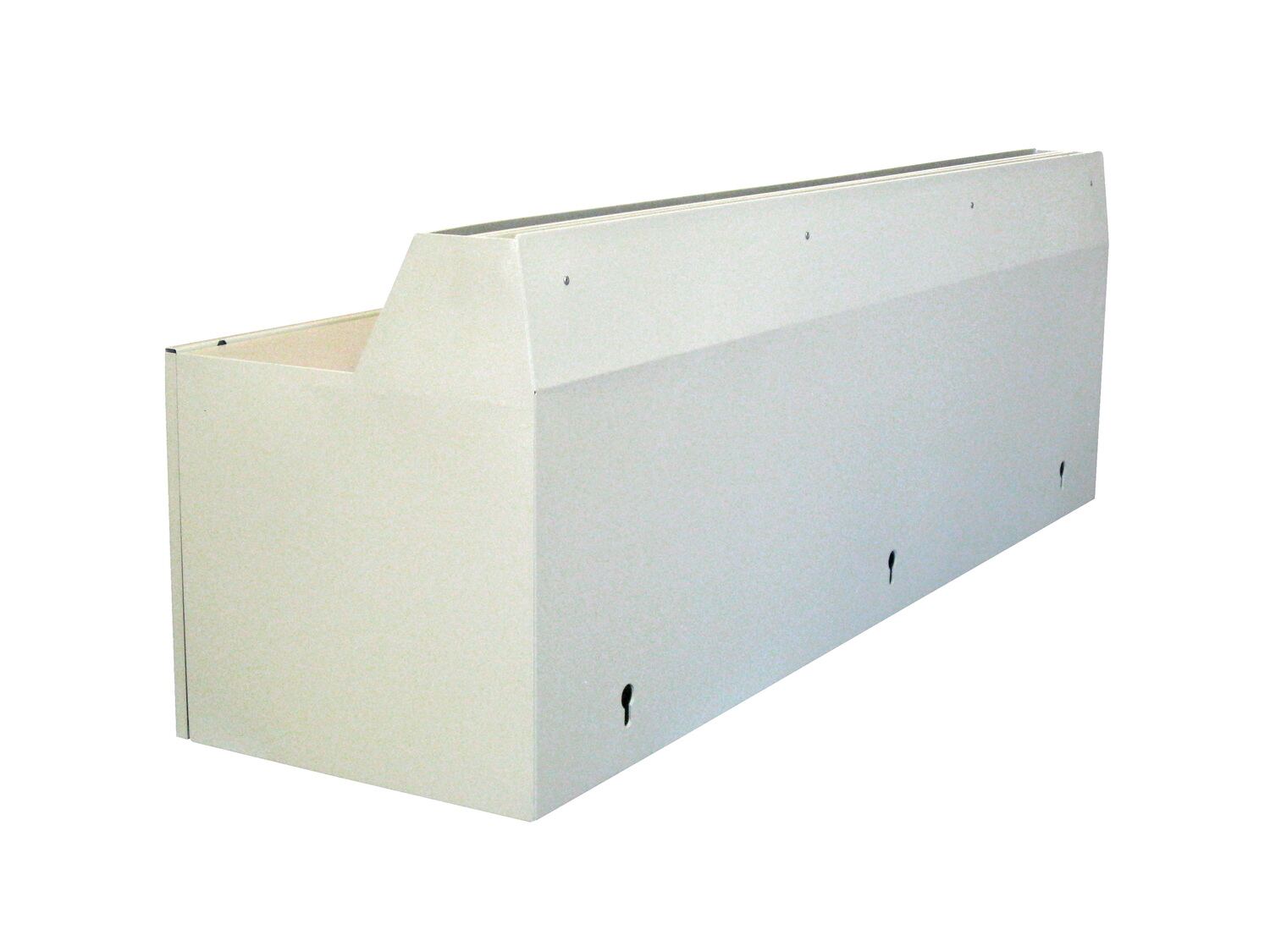

Variable Speed Air Curtains
SERIES: ACURT

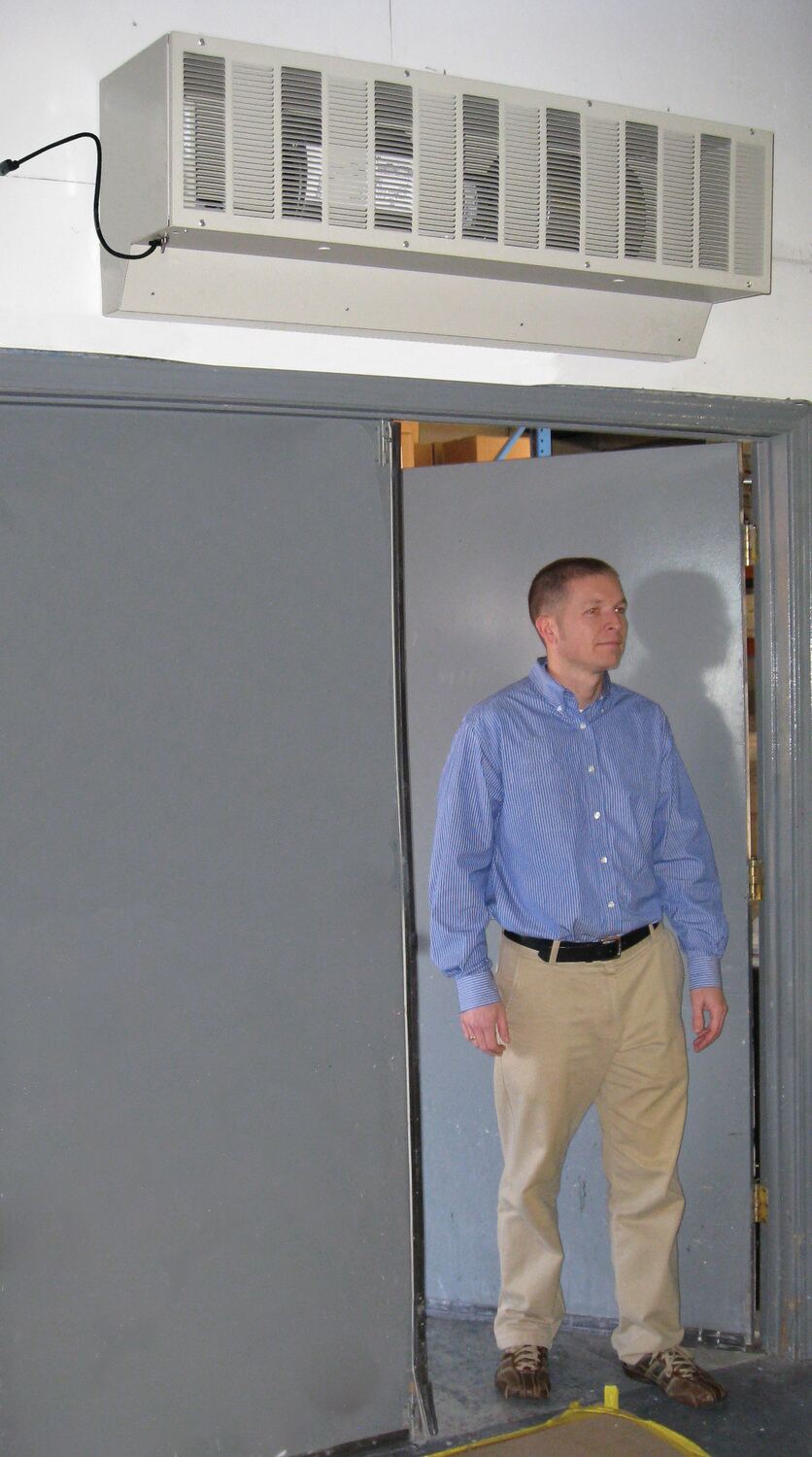

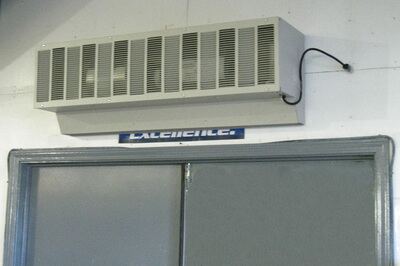

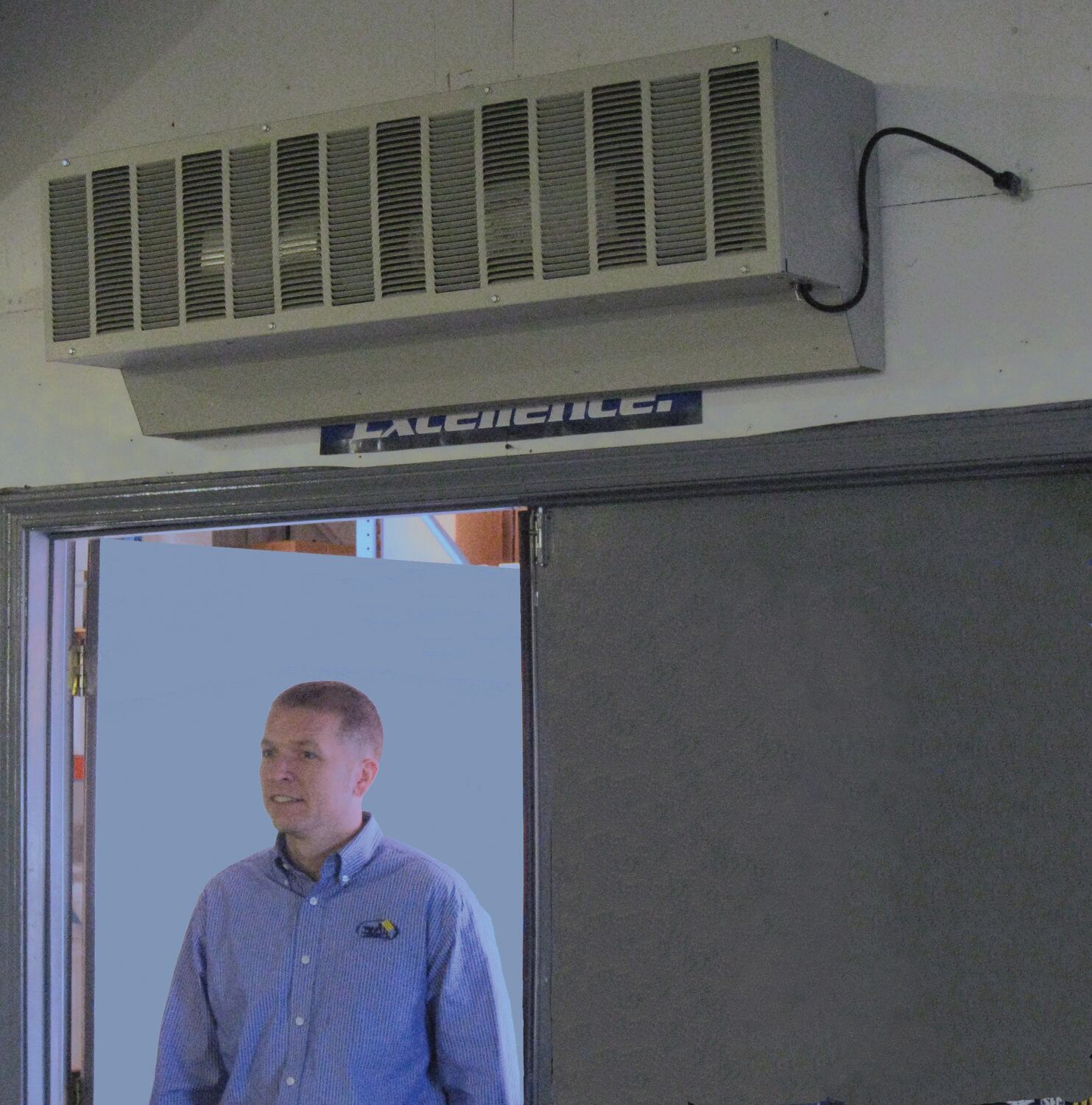

These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life

These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.

  • Heavy duty motor provides use in rugged conditions
  • Curtain design prevents loss of cool air and maintains a clean environment
  • Thermal over load design protects motor
  • Permanently lubricated motors provide long life

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ACURT-108 ACURT-1081 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 108 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2276
ACURT-120 ACURT-1201 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 120 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2279
ACURT-36 ACURT-361 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 36 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2154
ACURT-48 ACURT-481 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 48 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2255
ACURT-60 ACURT-601 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 60 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
180
ACURT-72 ACURT-721 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 72 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2188
ACURT-96 ACURT-961 Year Limited WarrantySteel Heavy Duty Variable Speed Air Curtain 96 In. x 12 In. 3/4 Horsepower BeigeSteel Gauge: 20
Motor Horsepower: 3/4
2232

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

ACURT-108
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-72
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

ACURT-96
Unit:
Size: W x L x H
Weight:
Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Variable Speed Air Curtains PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: Is there an option to blow warm air instead of cool air with the air curtain ?

A: There is not an option on the air curtain to blow warm air.


Q: Can the air curtain be installed outside ?

A: The air curtain is designed for indoor use only.
