Product Family Overview

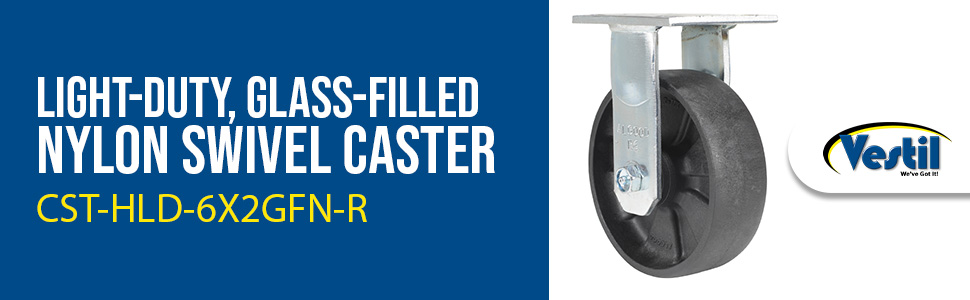

Upgraded Glass Filled Nylon, Light Duty (RX) Casters
SERIES: CST-HLD-GFN

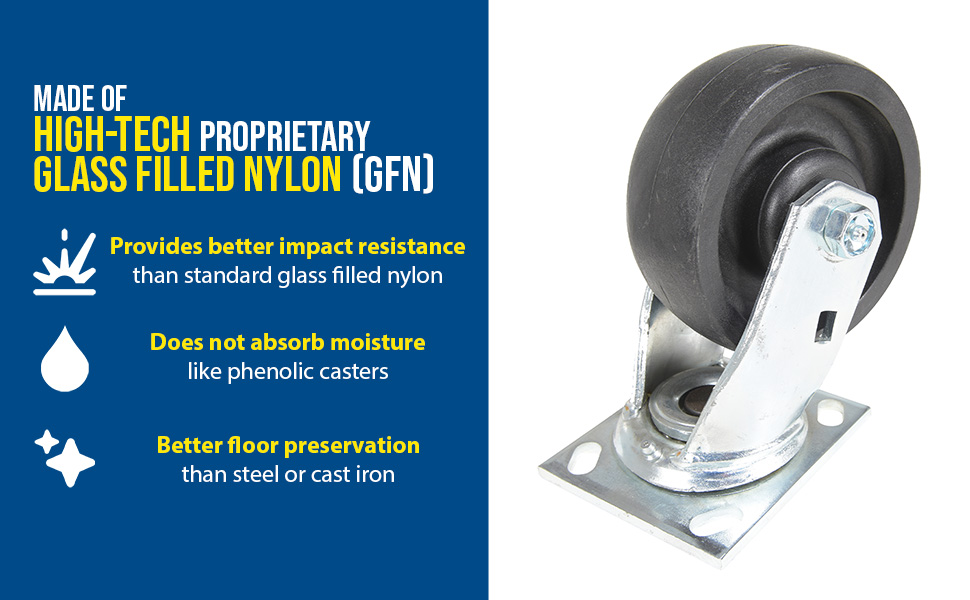

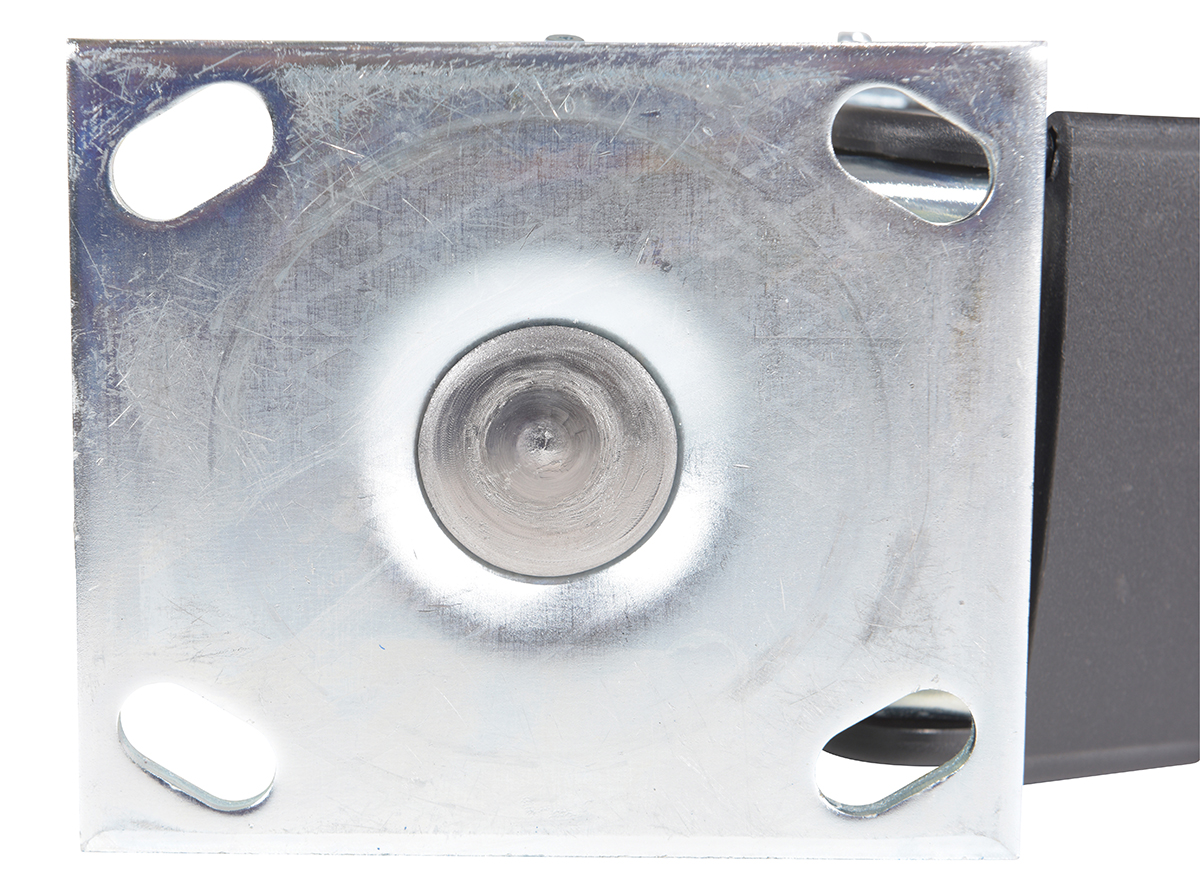

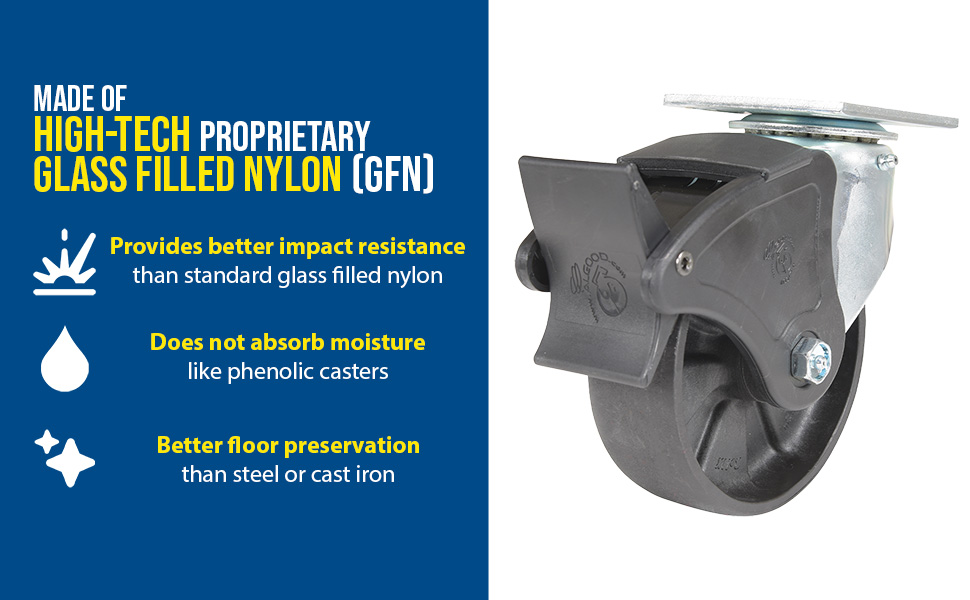

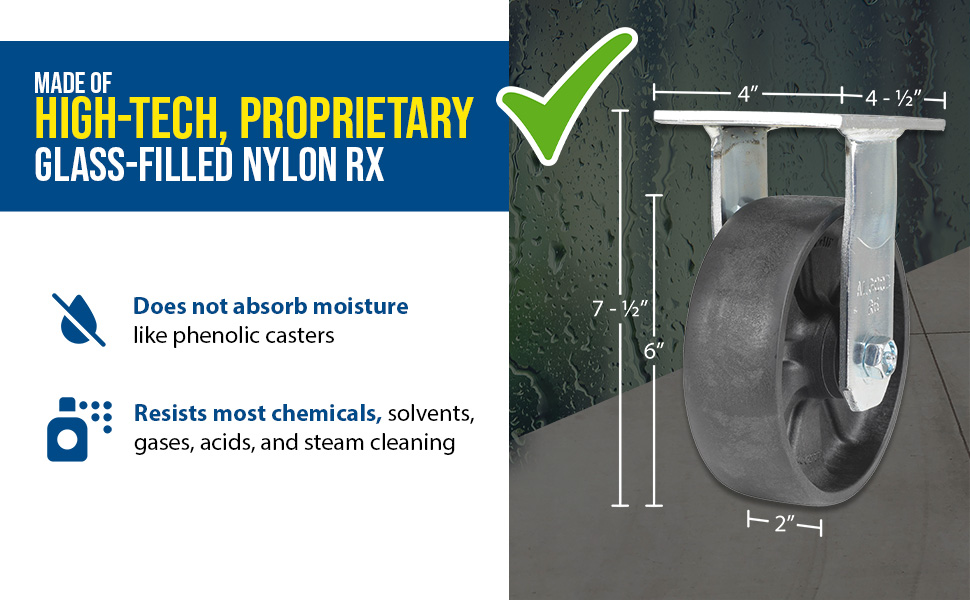

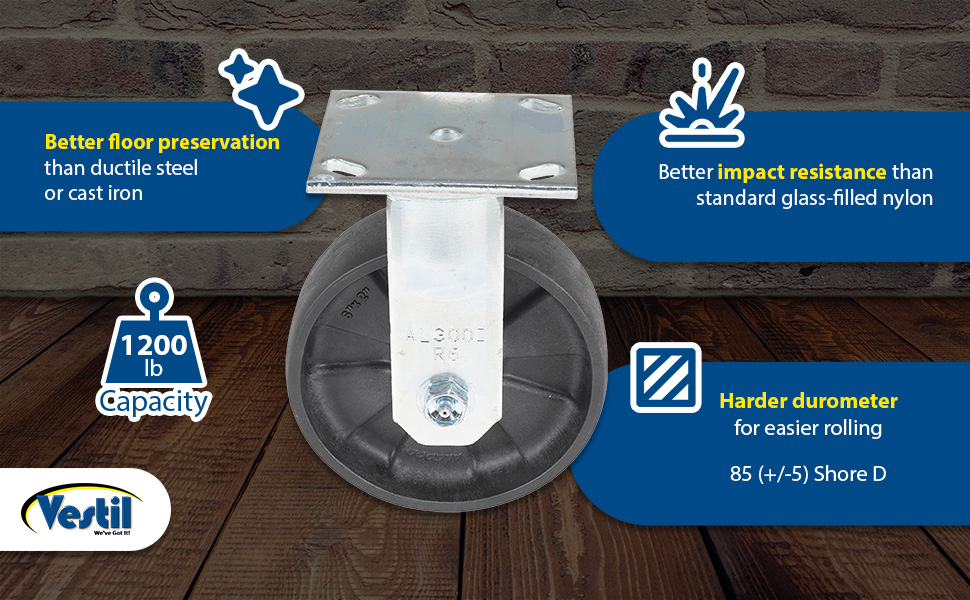

Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon.


  • Non-Marking
  • Absorbs Impact
  • Moisture Resistant
  • Harder Durometer Allows For Easier Rollability
  • Enviromentally Friendly
  • Ball Bearing

Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon.


  • Non-Marking
  • Absorbs Impact
  • Moisture Resistant
  • Harder Durometer Allows For Easier Rollability
  • Enviromentally Friendly
  • Ball Bearing

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

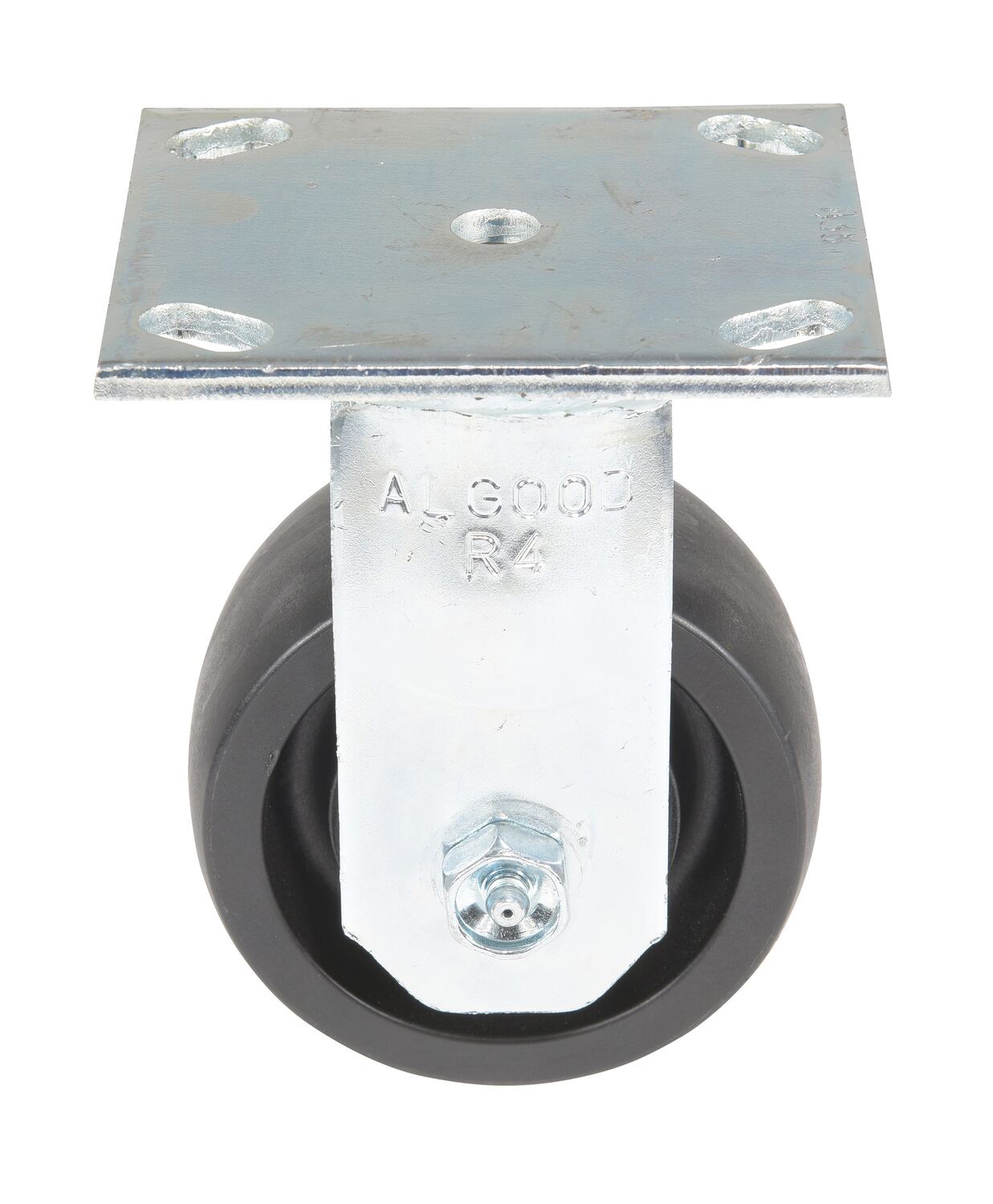

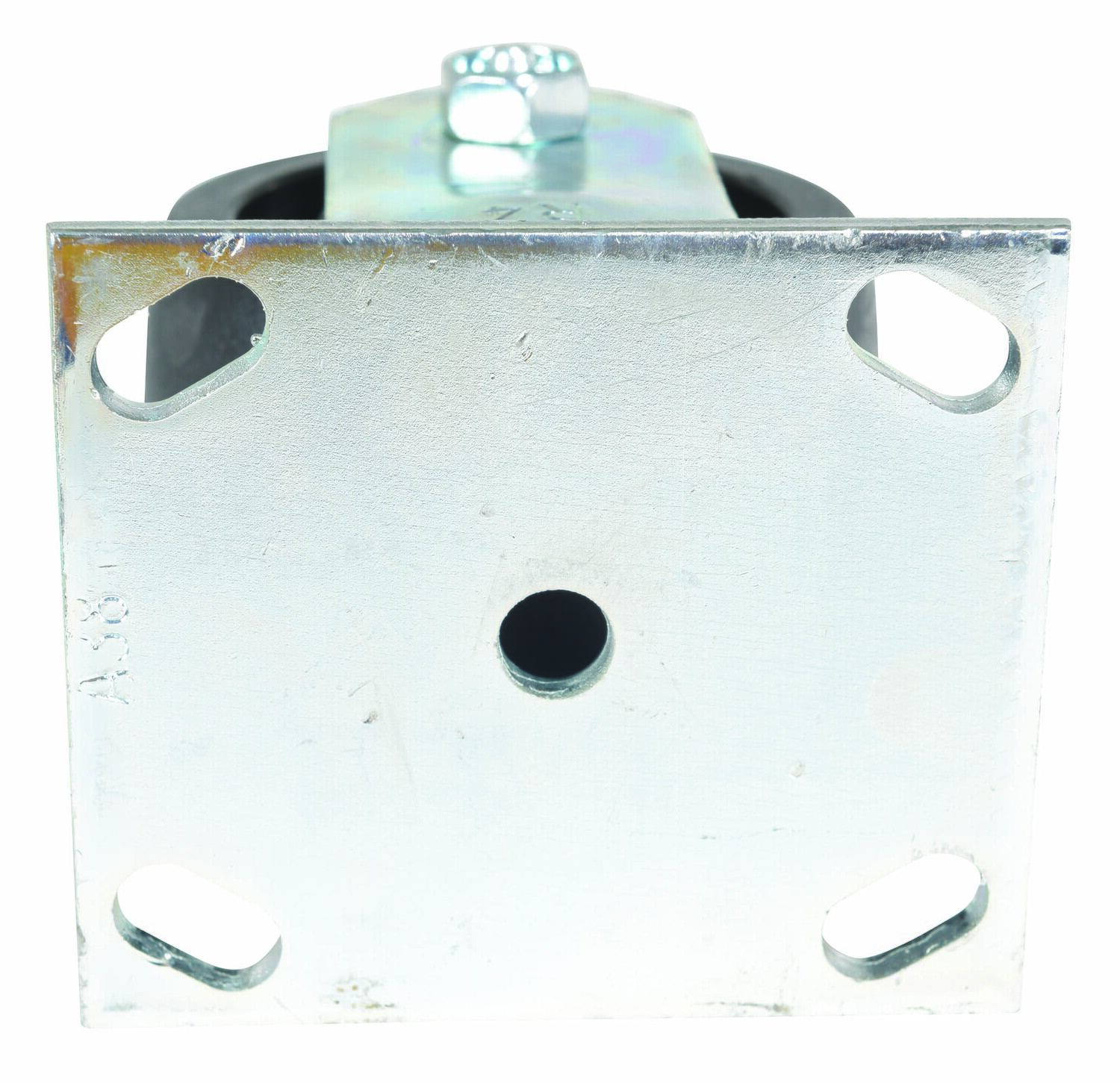

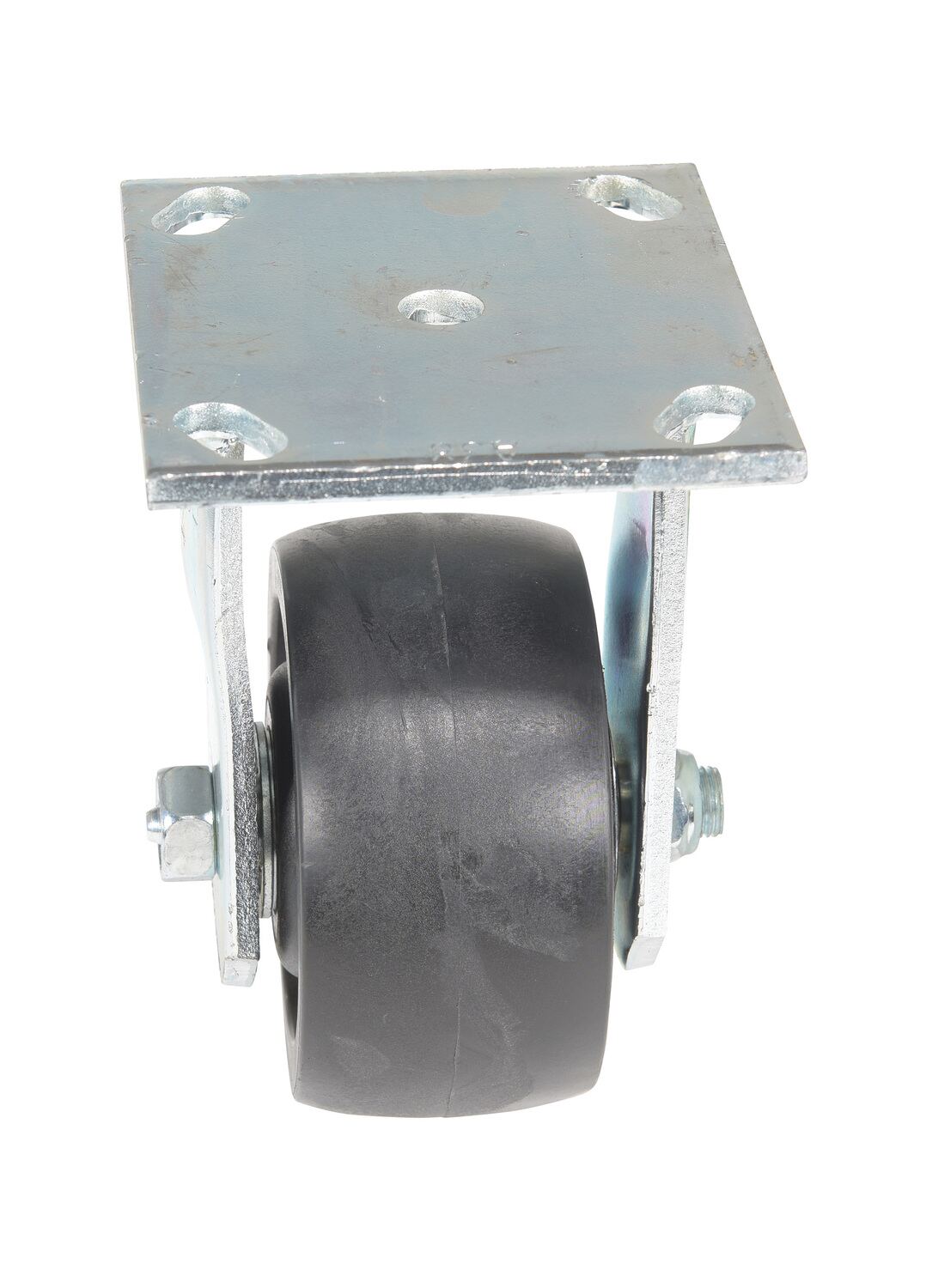

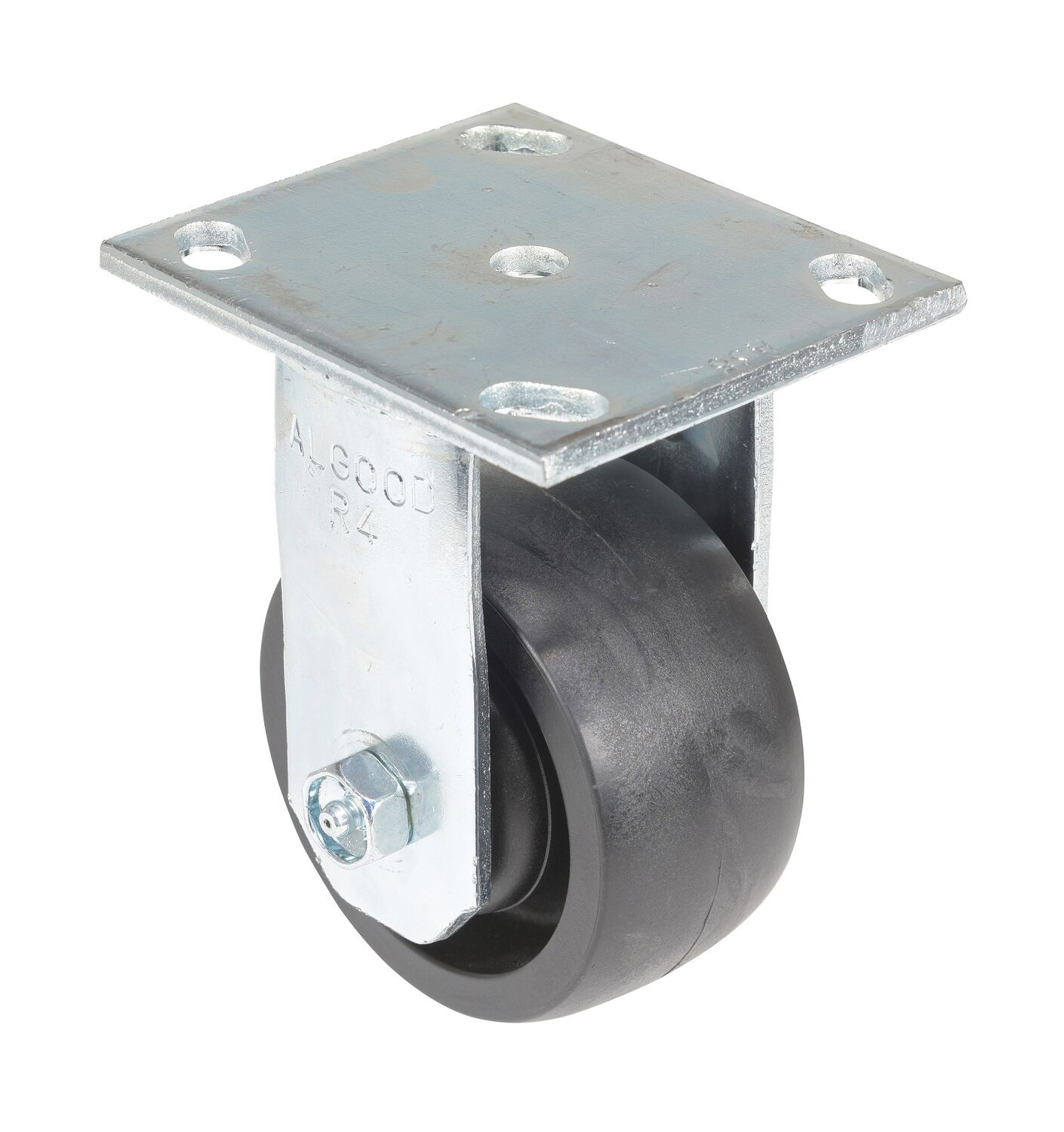

CST-HLD-4X2GFN-R CST-HLD-4X2GFN-R3 YEARS Limited Warranty4 x 2RIGID12005-3/4 4 x 4-1/23.56

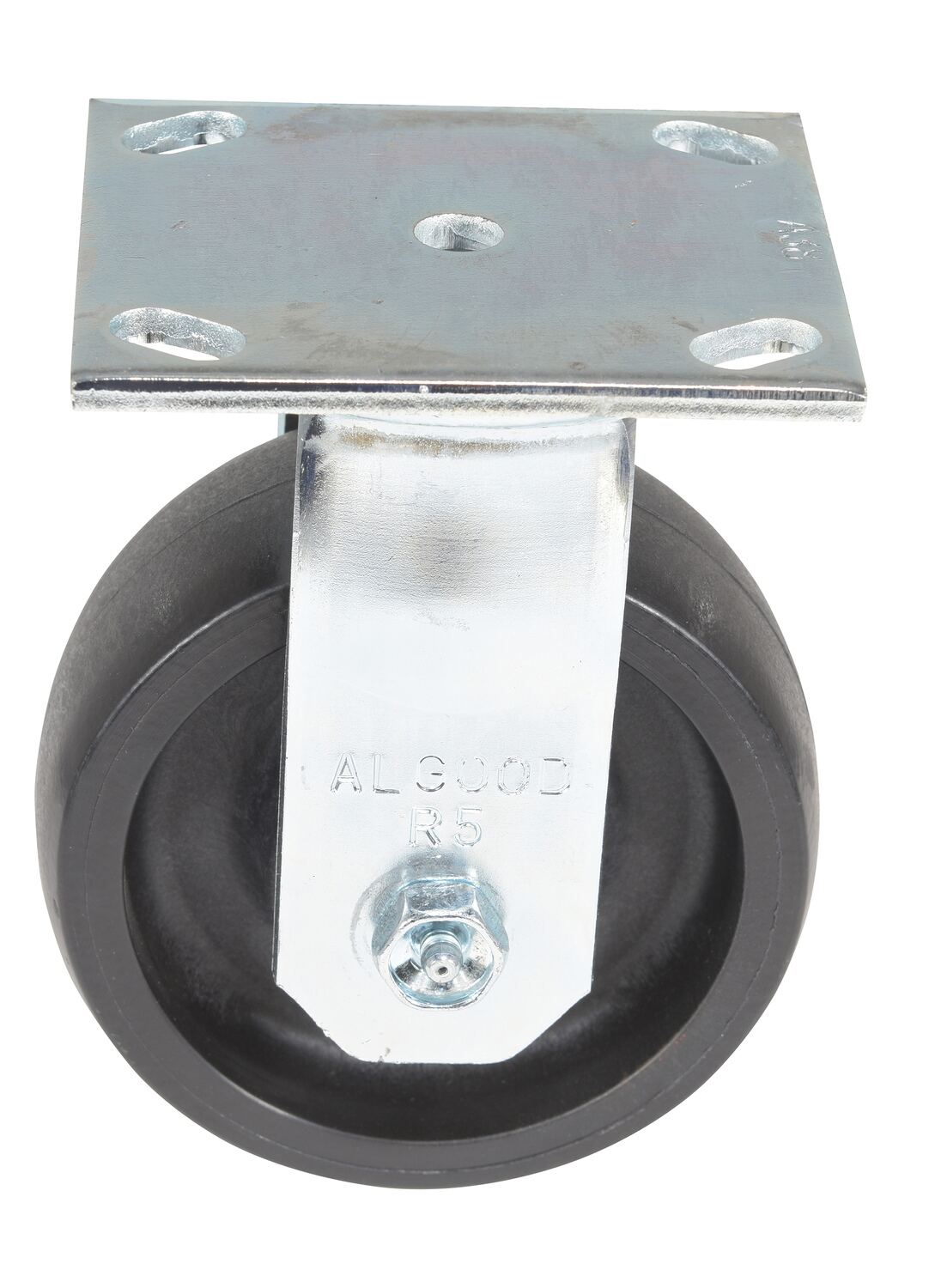

CST-HLD-5X2GFN-R CST-HLD-5X2GFN-R3 YEARS Limited Warranty5 x 2RIGID12006-1/2 4 x 4-1/23.96

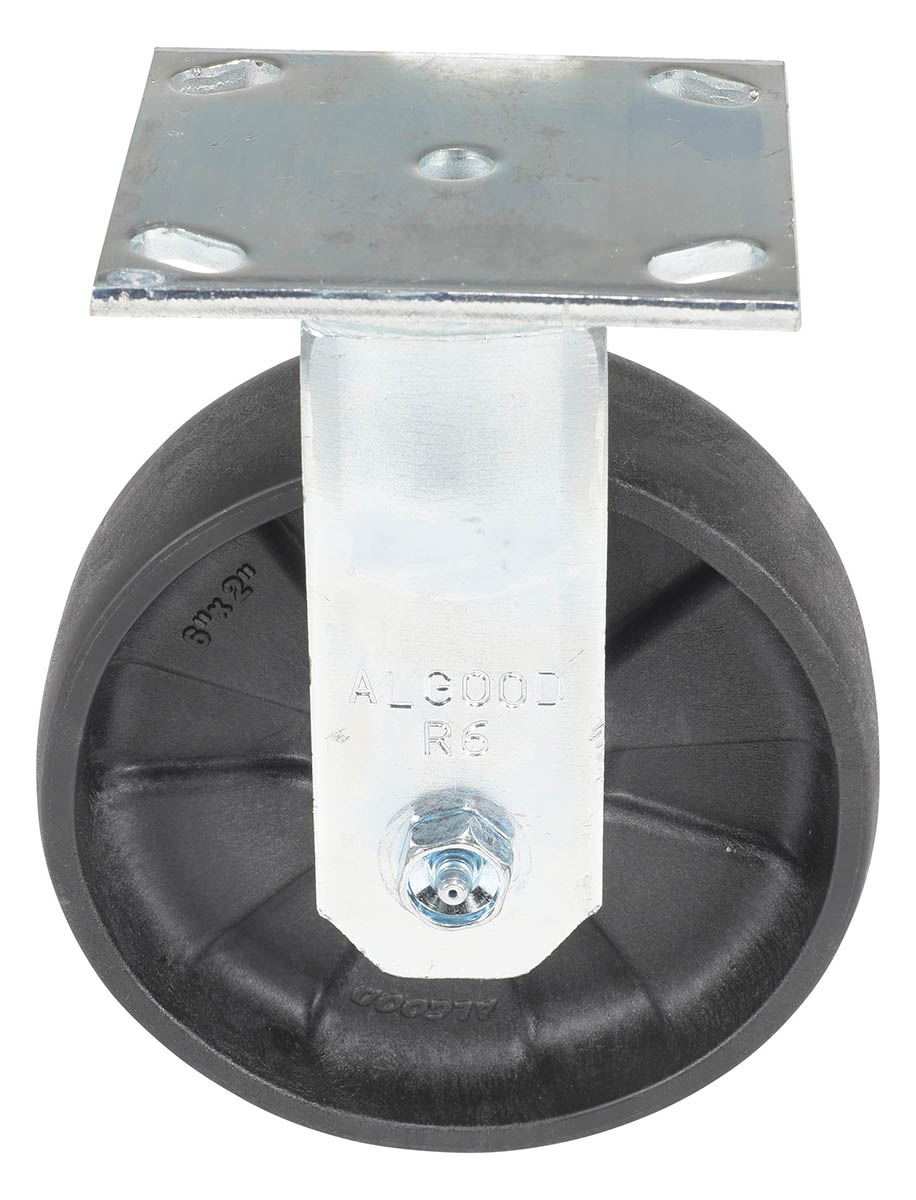

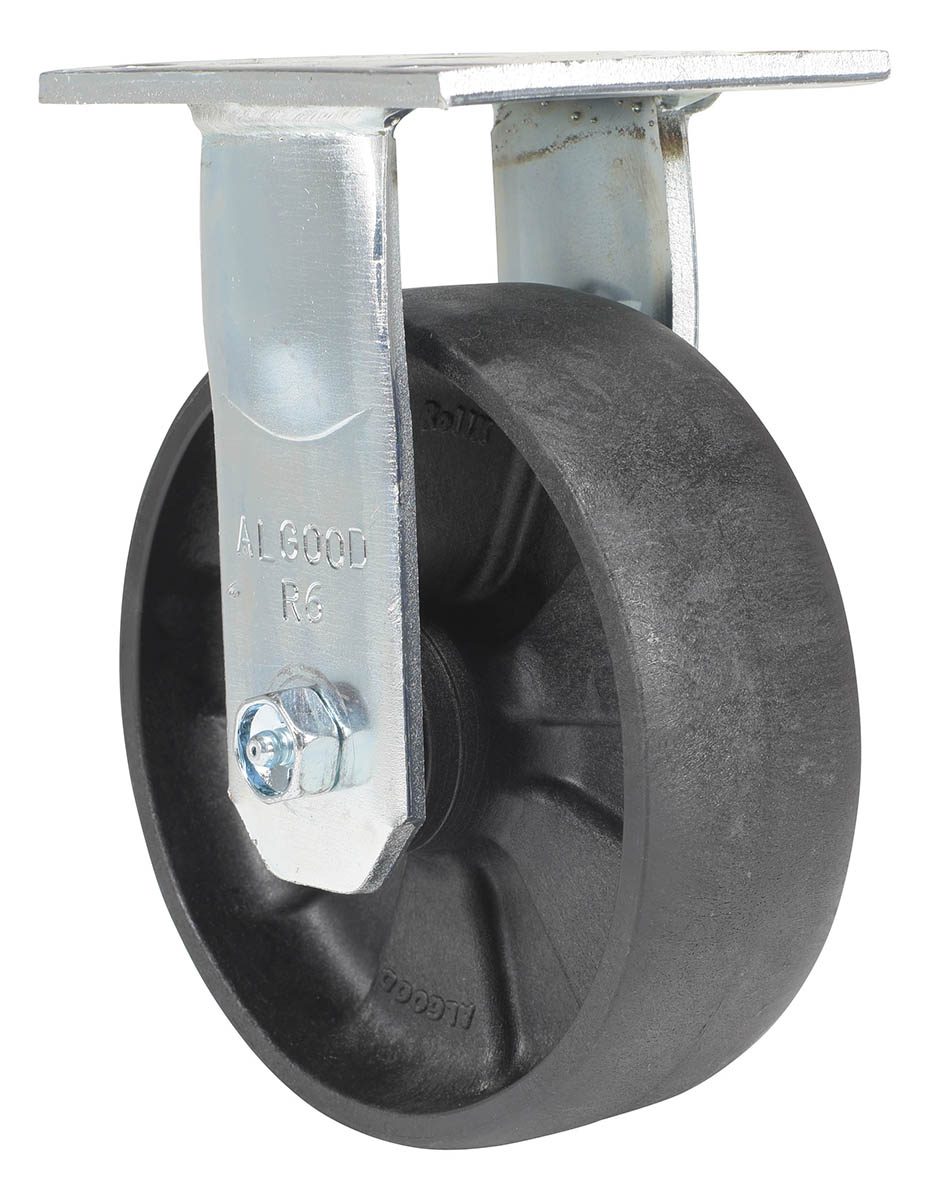

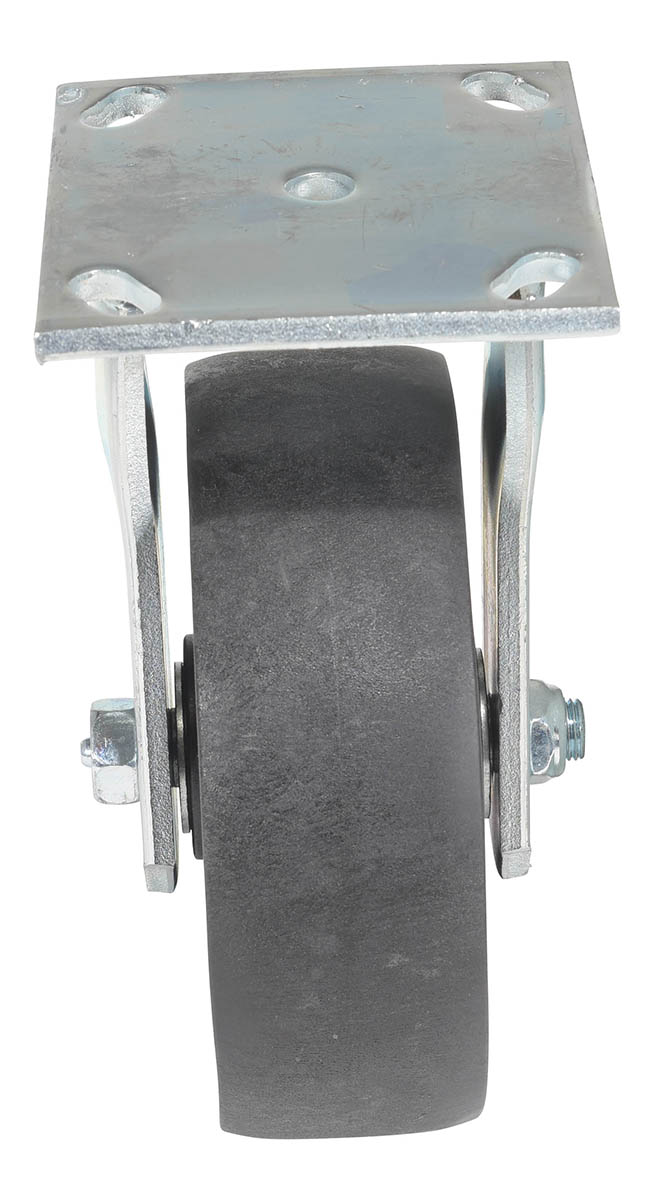

CST-HLD-6X2GFN-R CST-HLD-6X2GFN-R3 YEARS Limited Warranty6 x 2RIGID12007-1/2 4 x 4-1/24.02

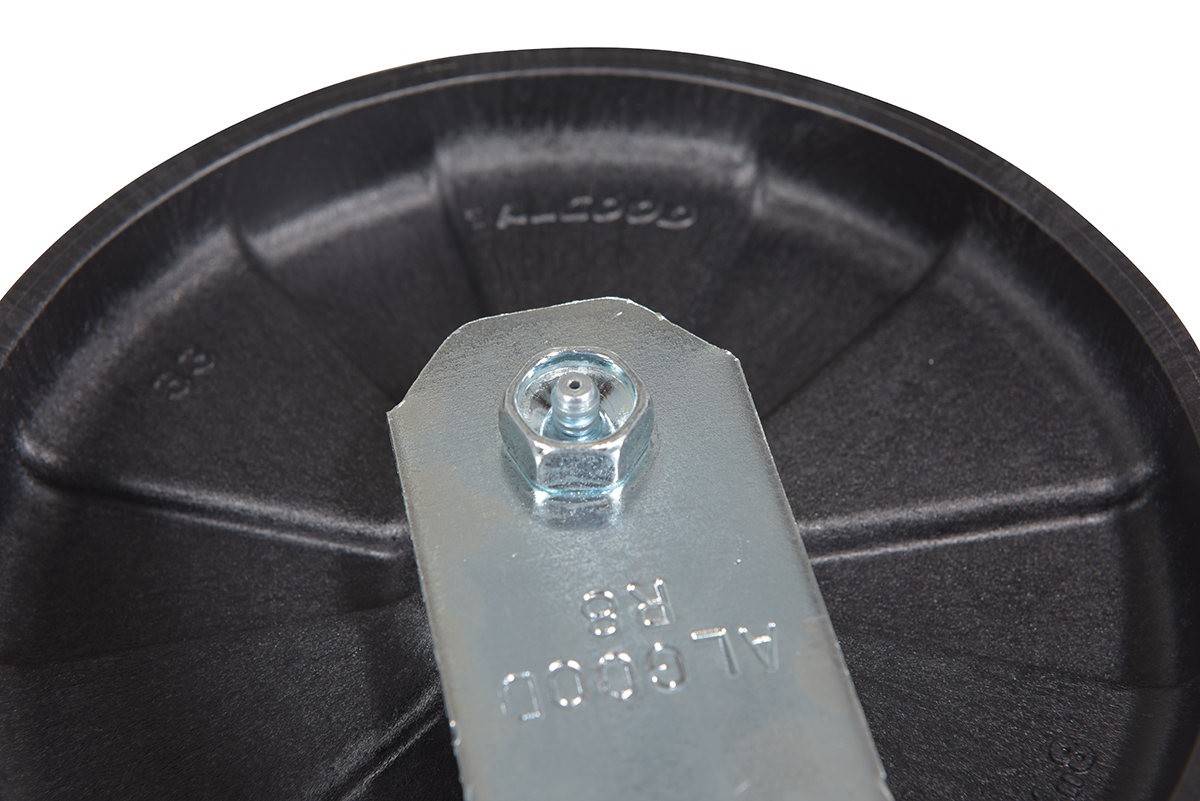

CST-HLD-8X2GFN-R CST-HLD-8X2GFN-R3 YEARS Limited Warranty8 x 2RIGID12009-1/2 4 x 4-1/24.9

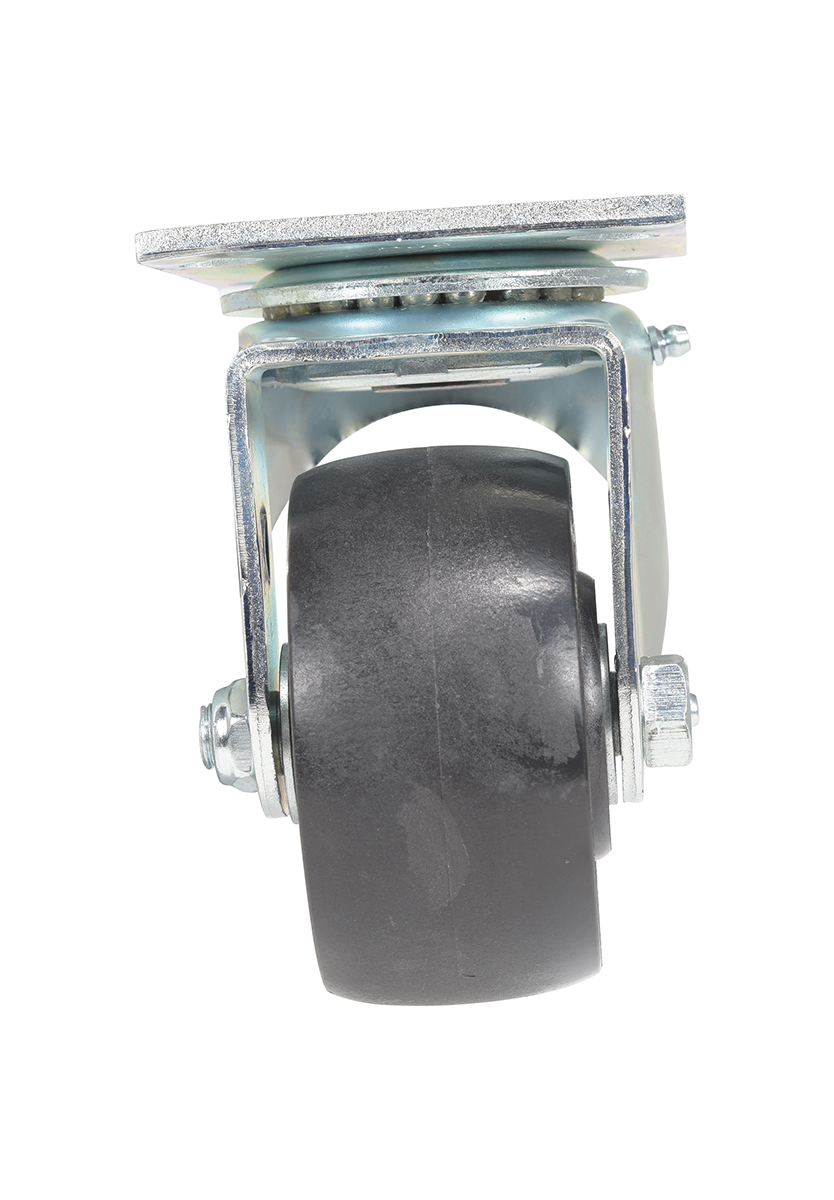

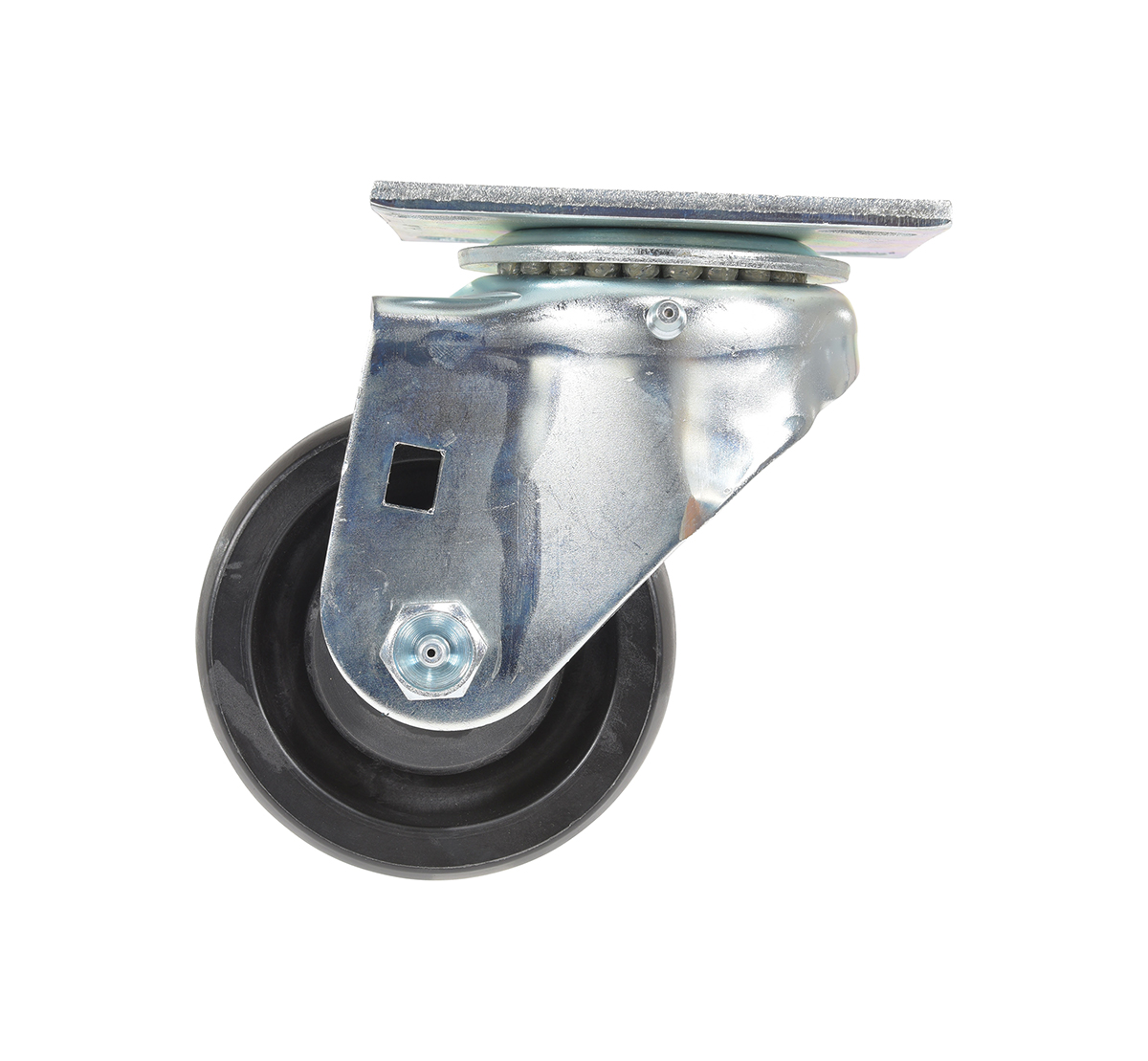

CST-HLD-4X2GFN-S CST-HLD-4X2GFN-S3 YEARS Limited Warranty4 x 2SWIVEL12005-3/4 4 x 4-1/24.68

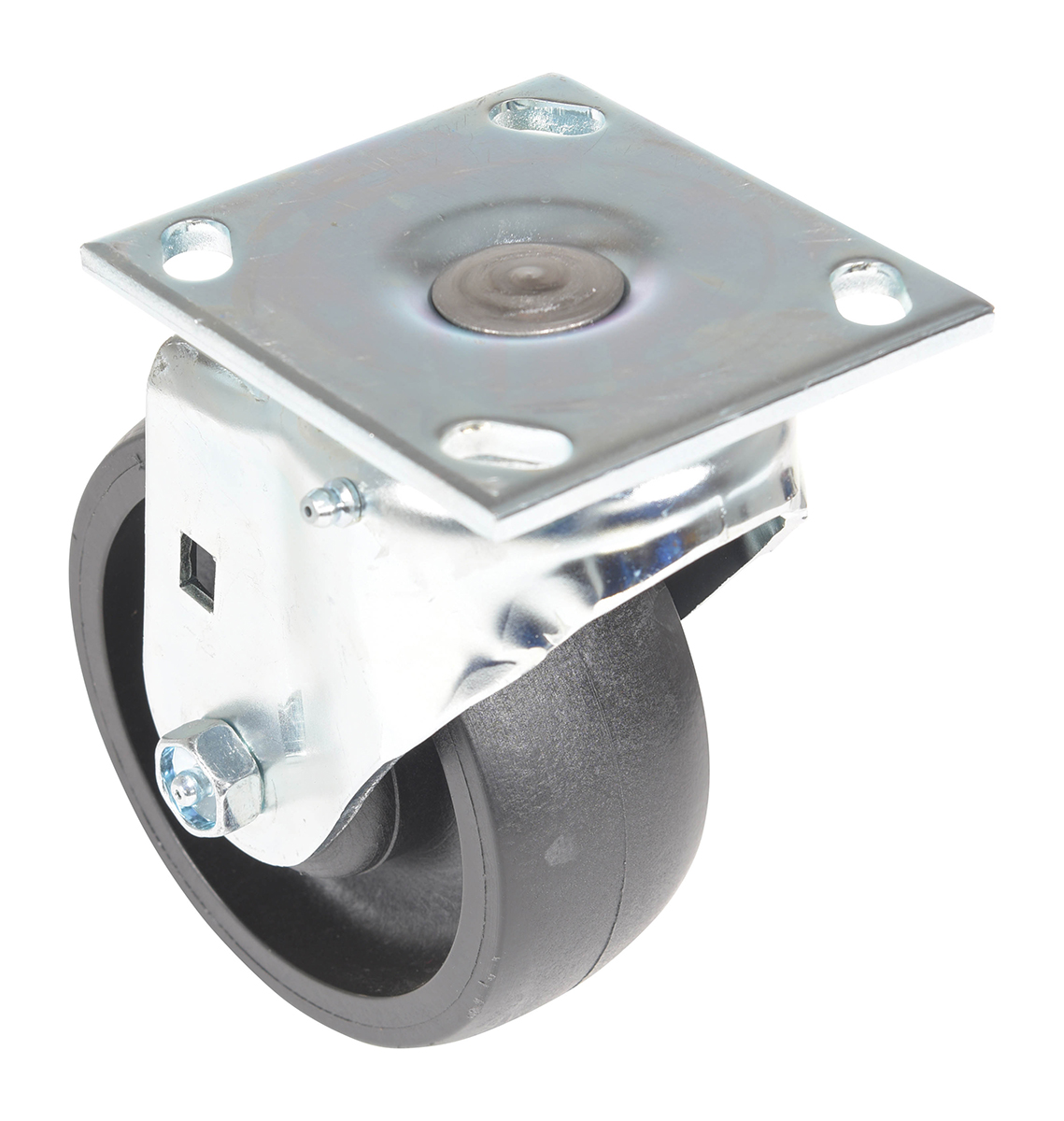

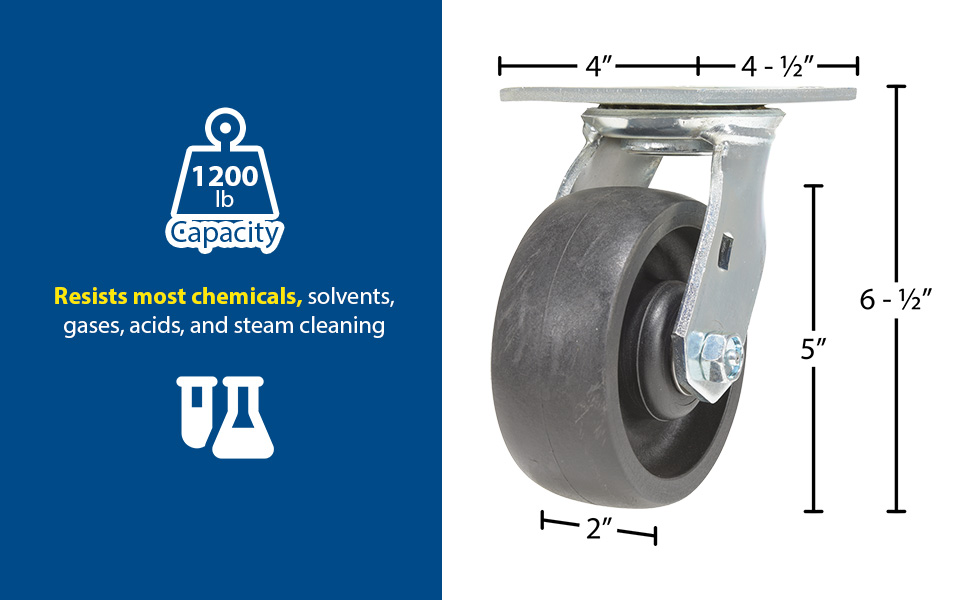

CST-HLD-5X2GFN-S CST-HLD-5X2GFN-S3 YEARS Limited Warranty5 x 2SWIVEL12006-1/2 4 x 4-1/25.03

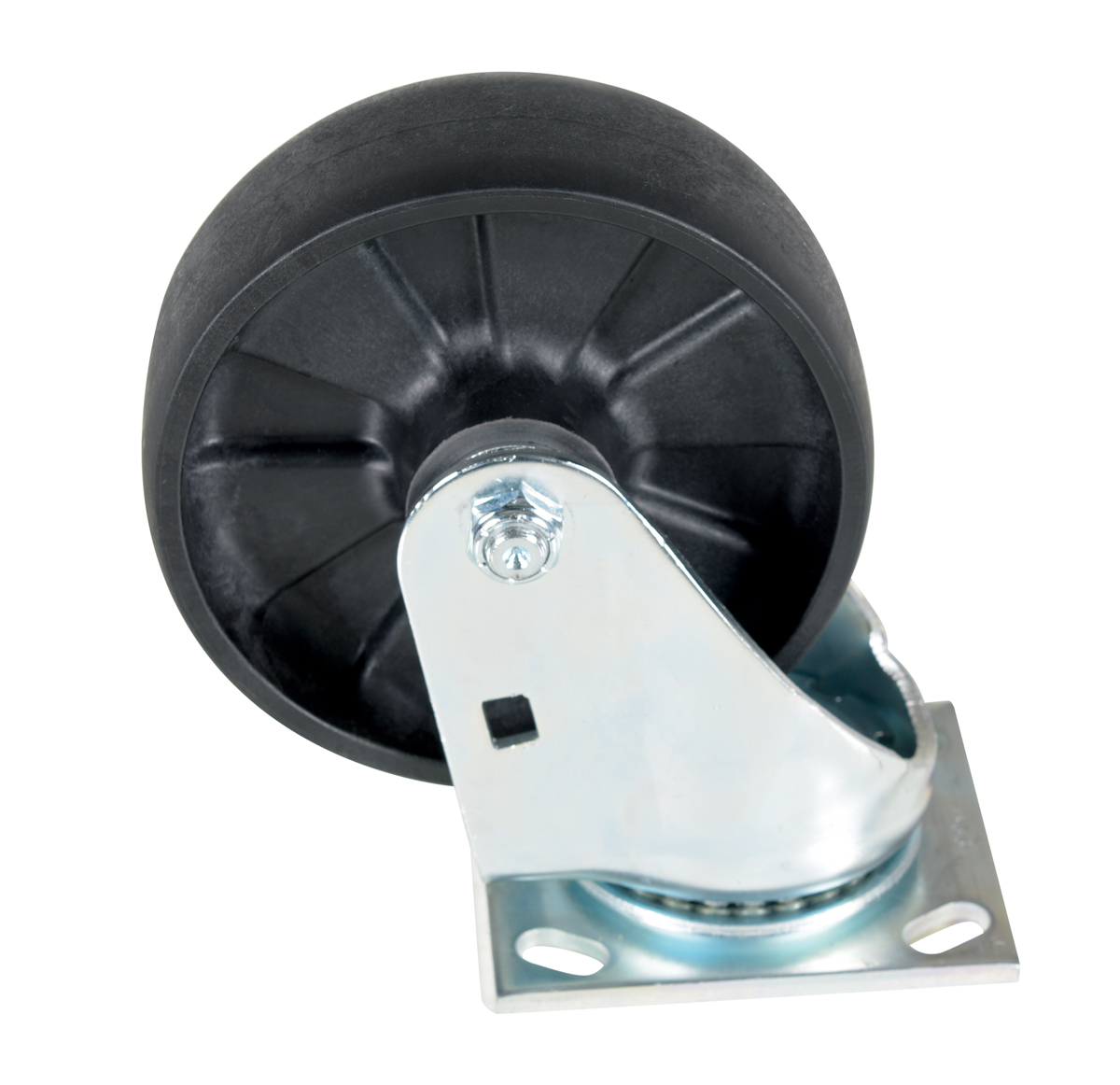

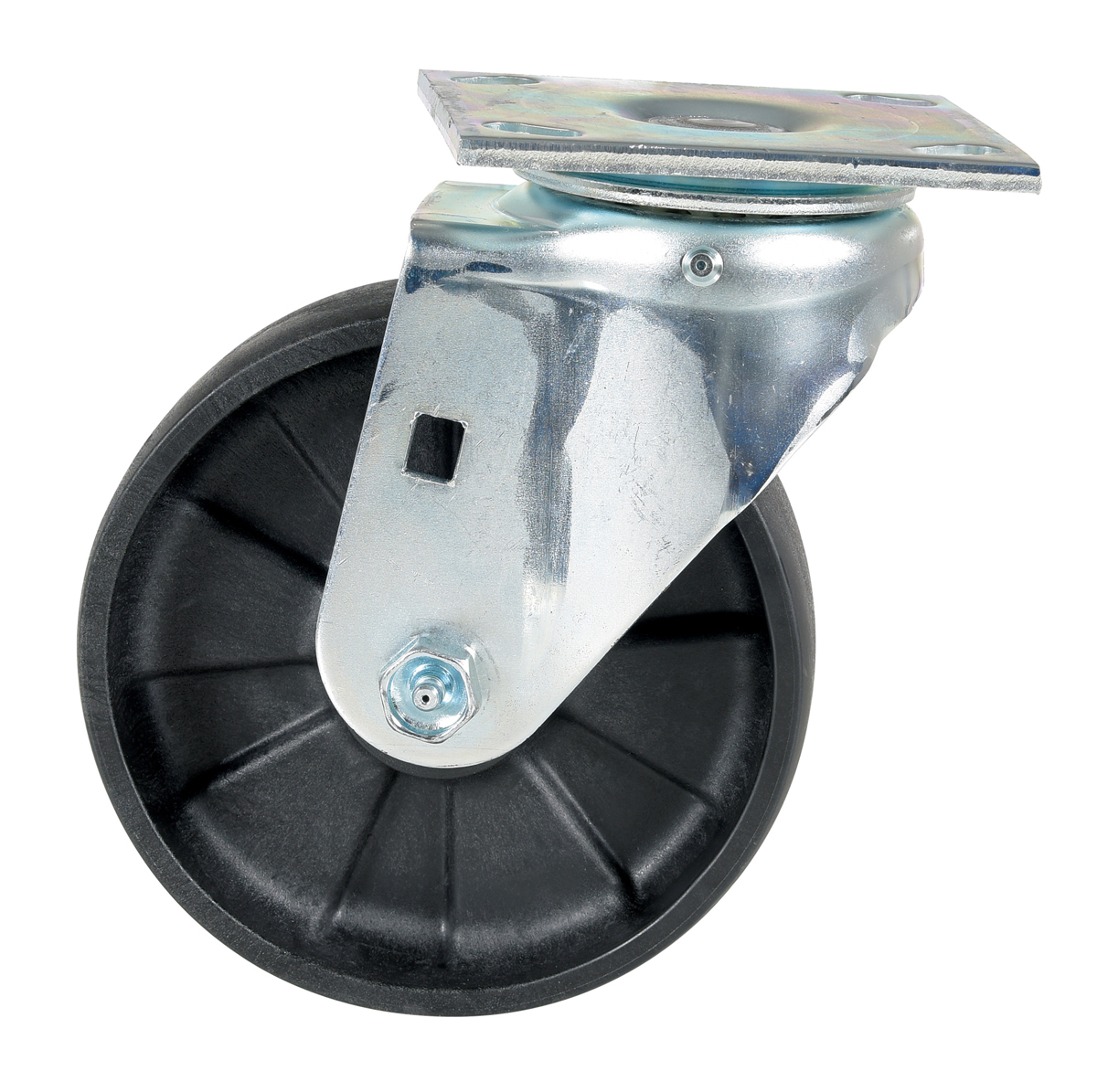

CST-HLD-6X2GFN-S CST-HLD-6X2GFN-S3 YEARS Limited Warranty6 x 2SWIVEL12007-1/2 4 x 4-1/25.16
CST-HLD-8X2GFN-S CST-HLD-8X2GFN-S3 YEARS Limited Warranty8 x 2SWIVEL12009-1/2 4 x 4-1/25.97

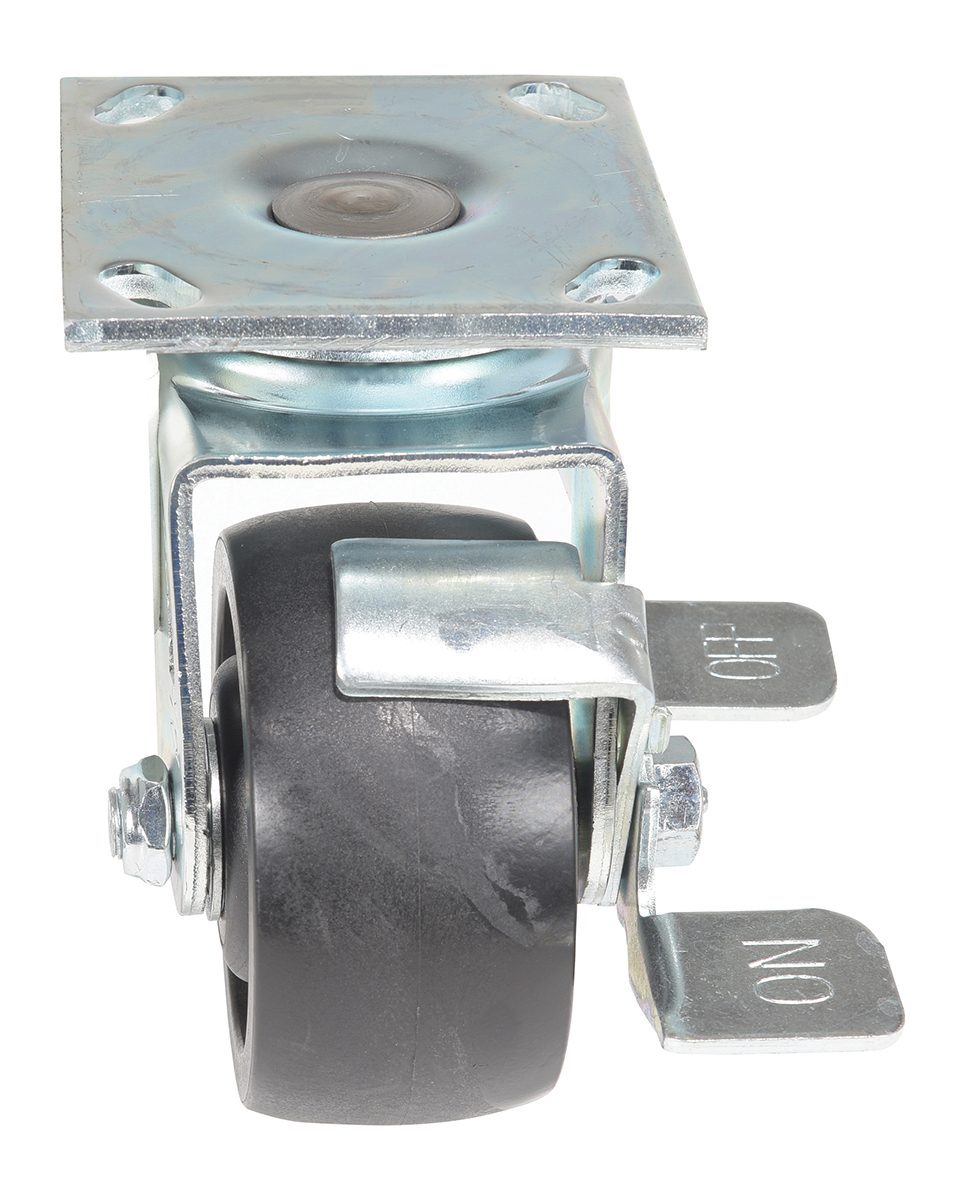

CST-HLD-4X2GFN-SWB CST-HLD-4X2GFN-SWB3 YEARS Limited Warranty4 x 2SWIVEL W/BRAKE12005-3/4 4 x 4-1/25.06

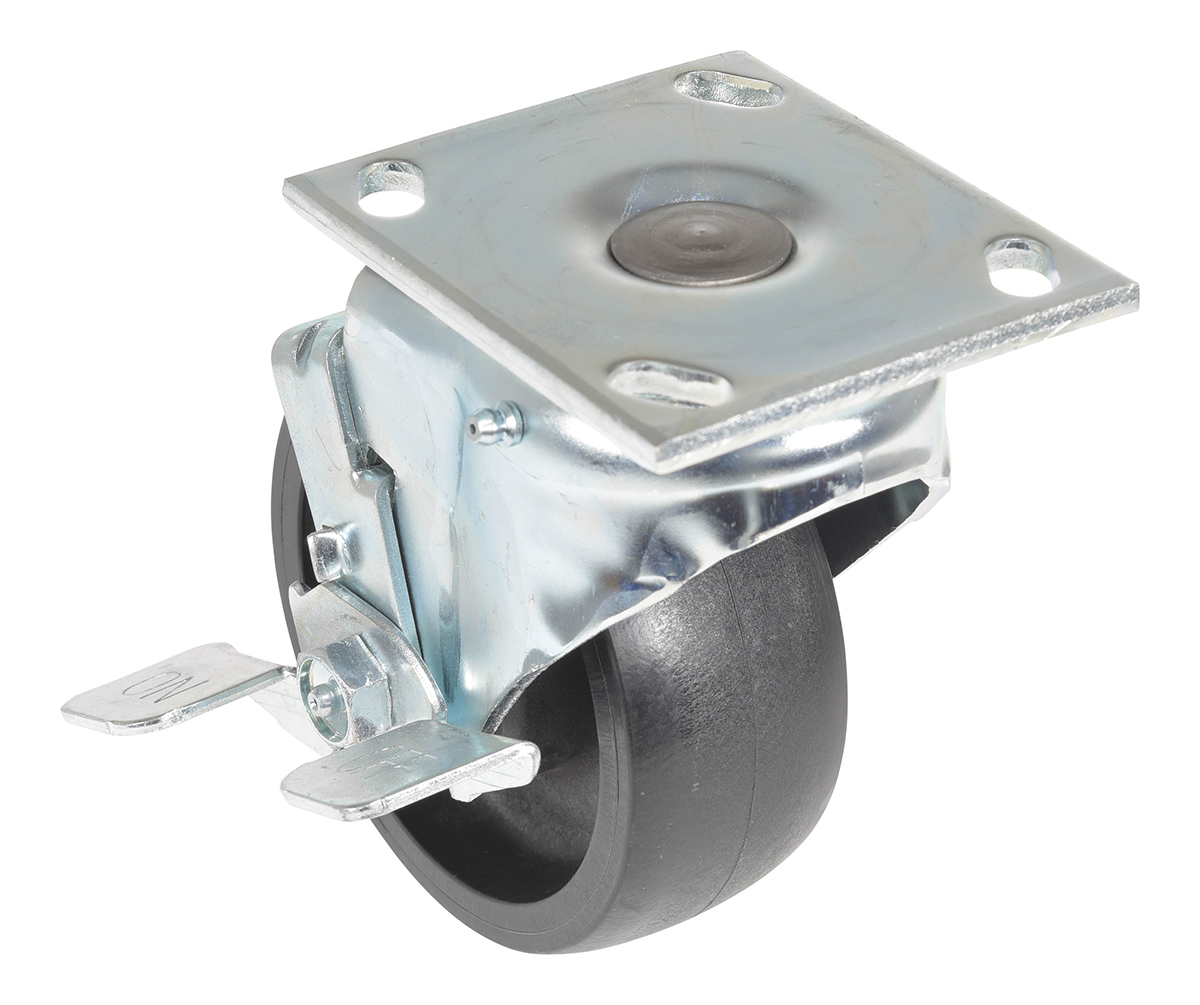

CST-HLD-5X2GFN-SWB CST-HLD-5X2GFN-SWB3 YEARS Limited Warranty5 x 2SWIVEL W/BRAKE12006-1/2 4 x 4-1/25.42

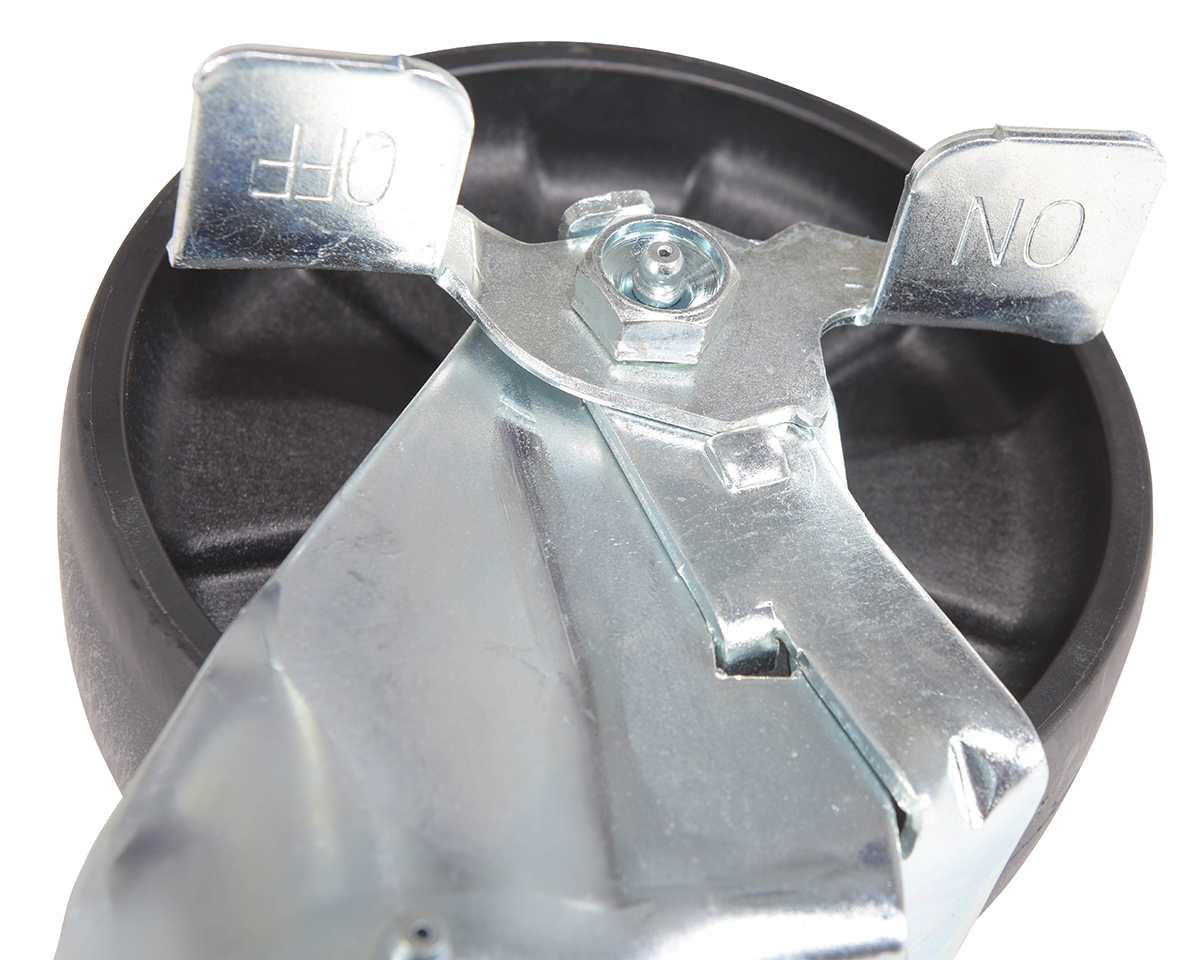

CST-HLD-6X2GFN-SWB CST-HLD-6X2GFN-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE12007-1/2 4 x 4-1/25.54
CST-HLD-8X2GFN-SWB CST-HLD-8X2GFN-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE12009-1/2 4 x 4-1/26.41

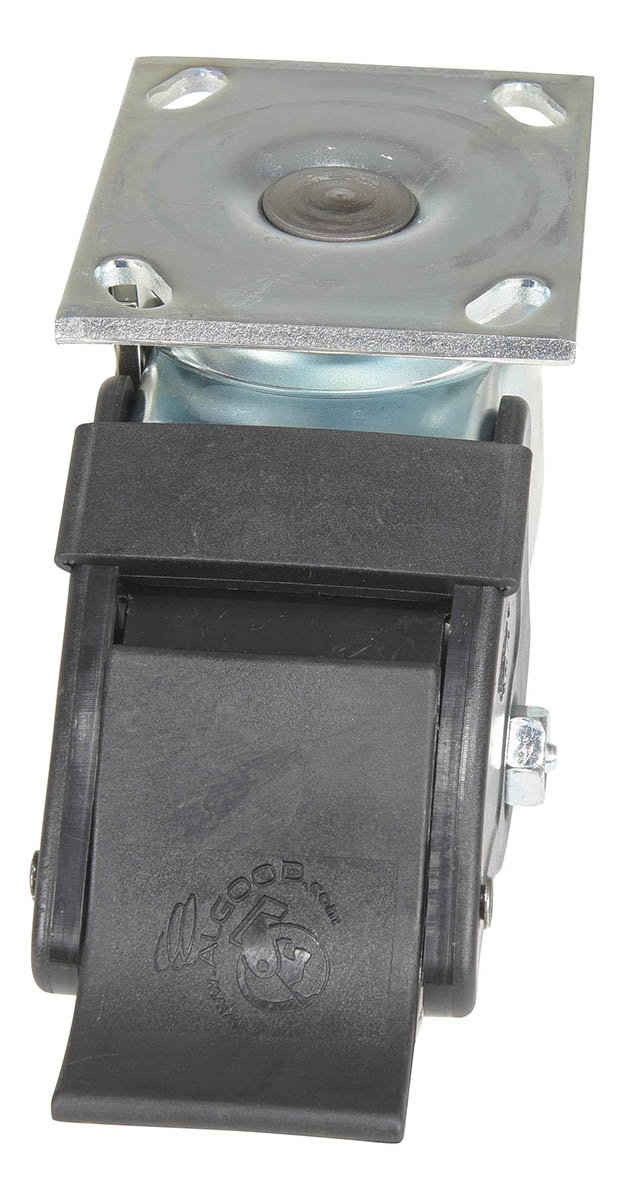

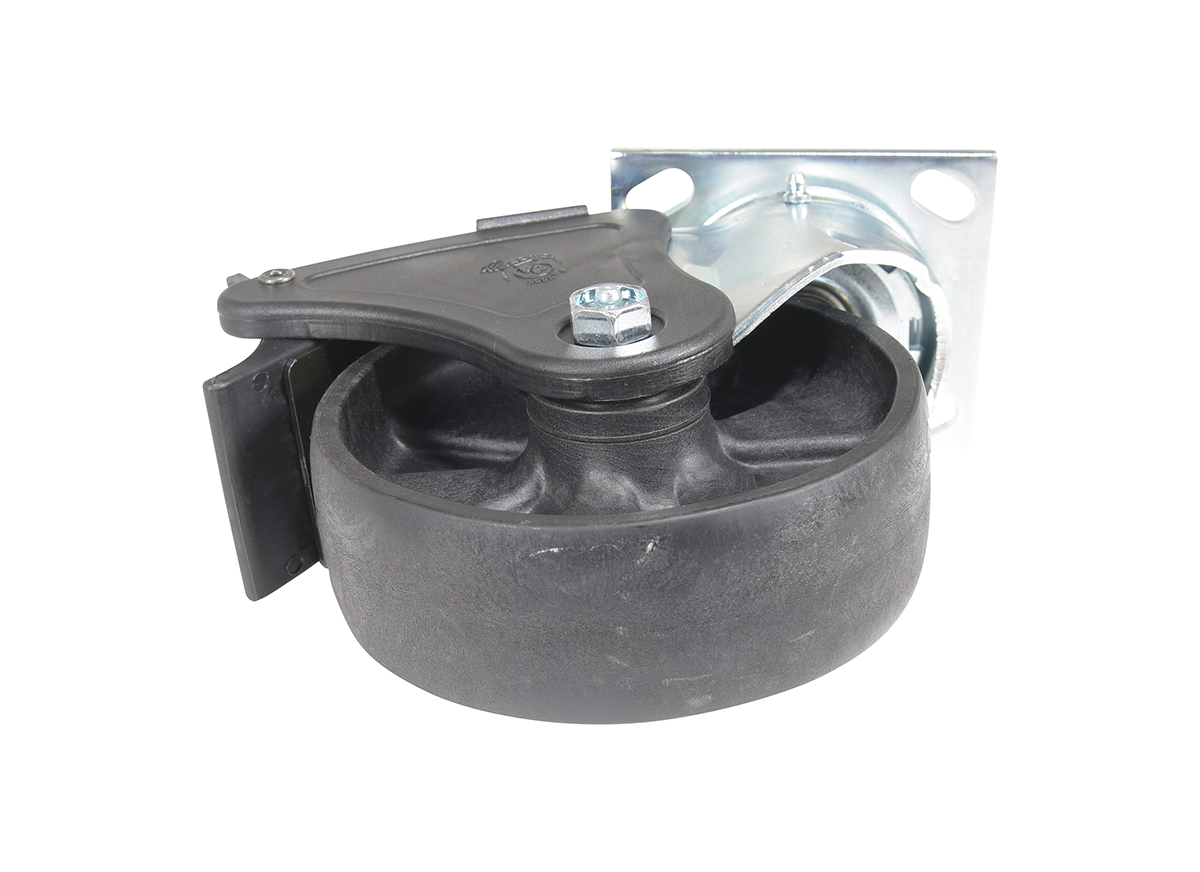

CST-HLD-5X2GFN-SWTB1 CST-HLD-5X2GFN-SWTB13 YEARS Limited Warranty5 x 2Swivel w/Total Brake12006-1/2 4 x 4-1/25.73

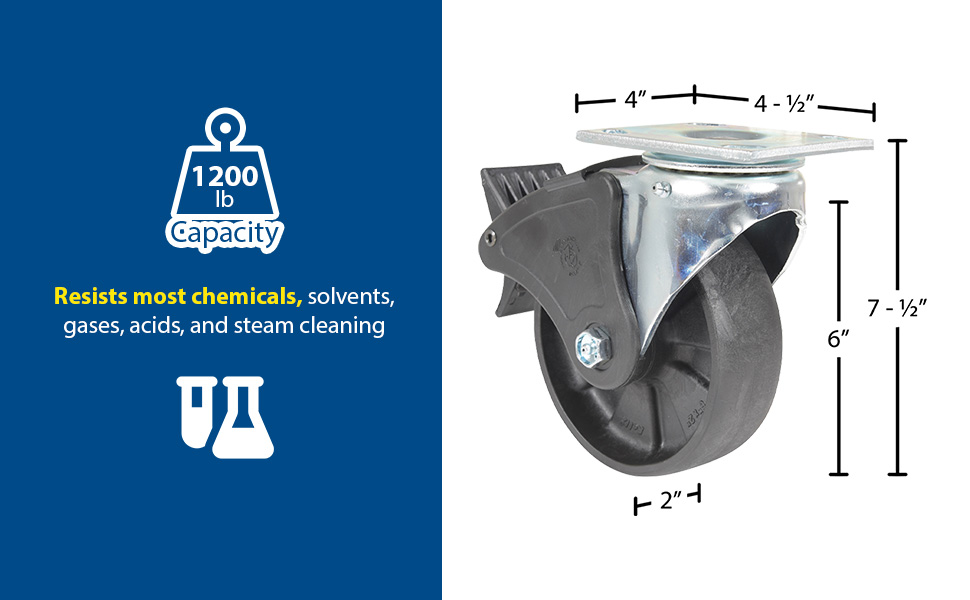

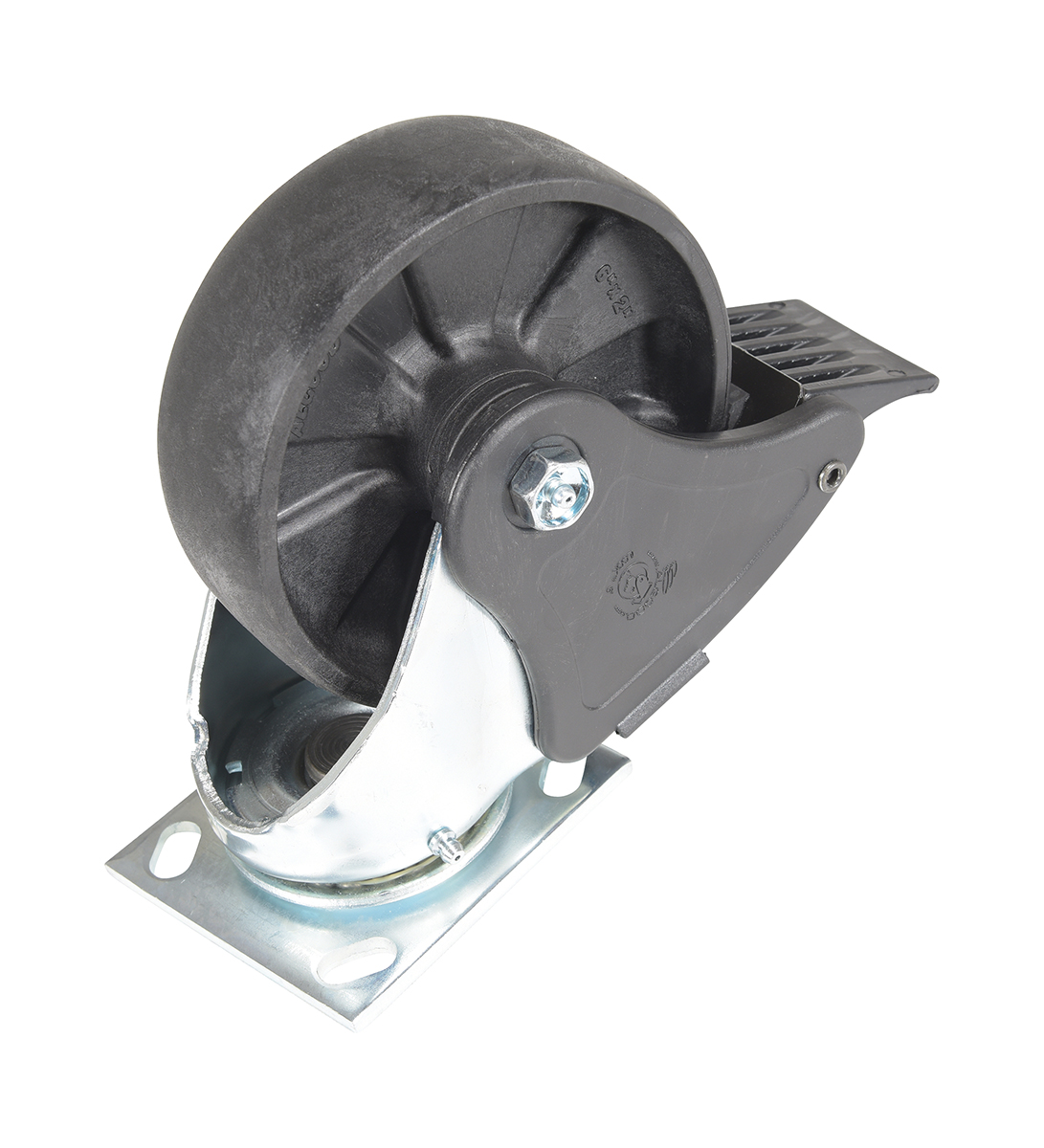

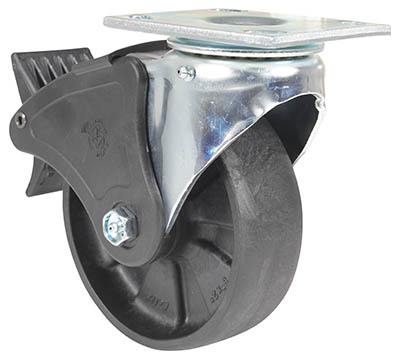

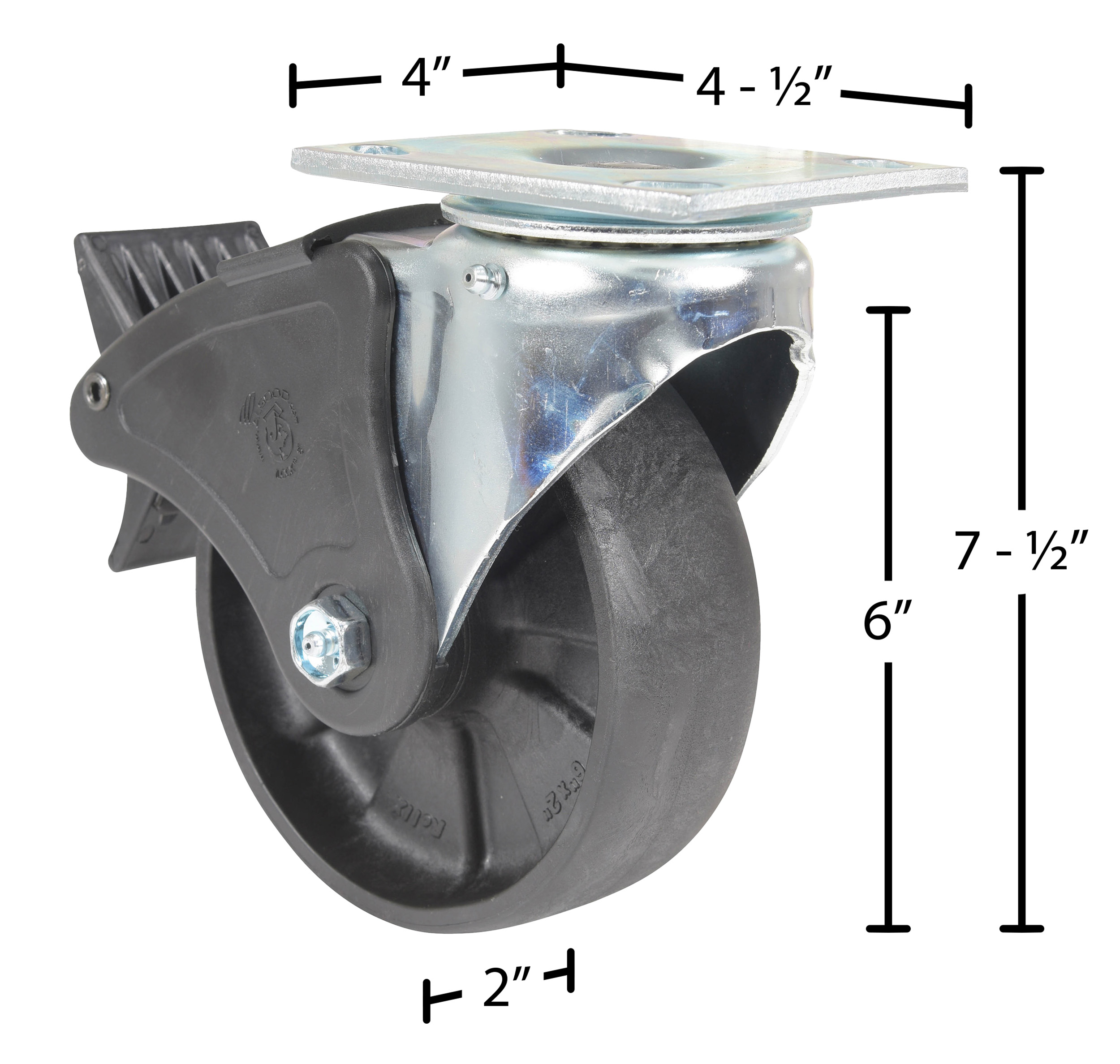

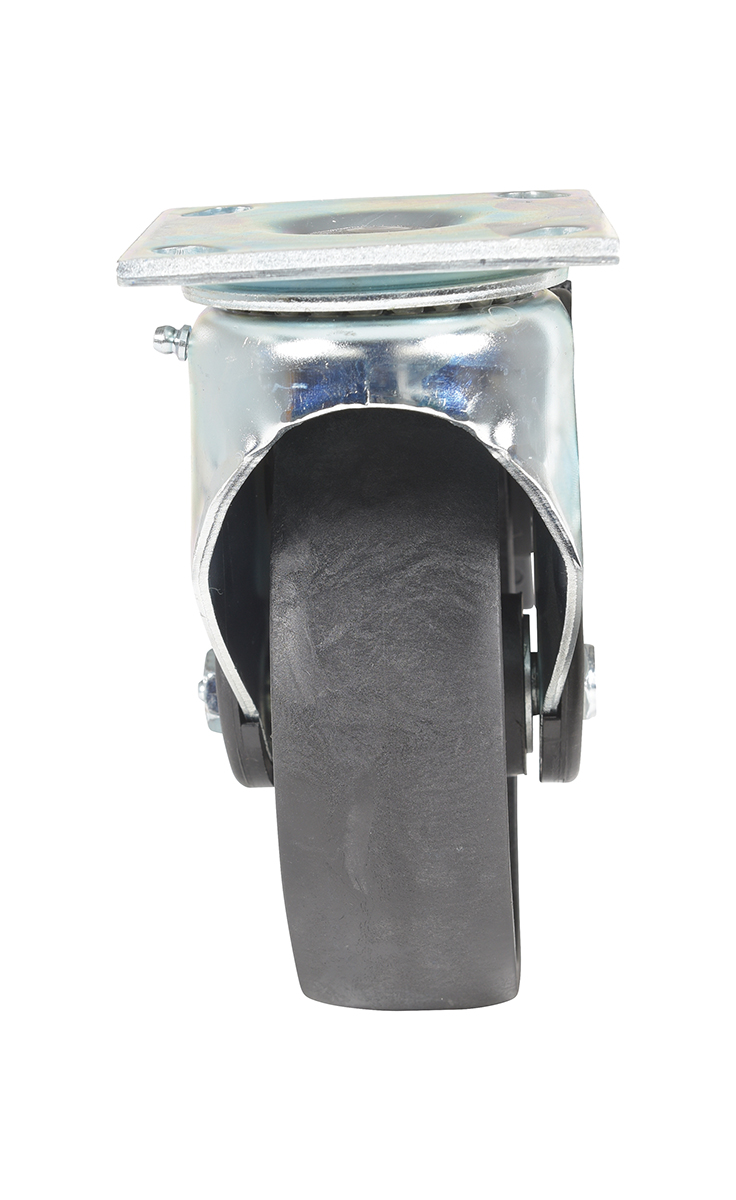

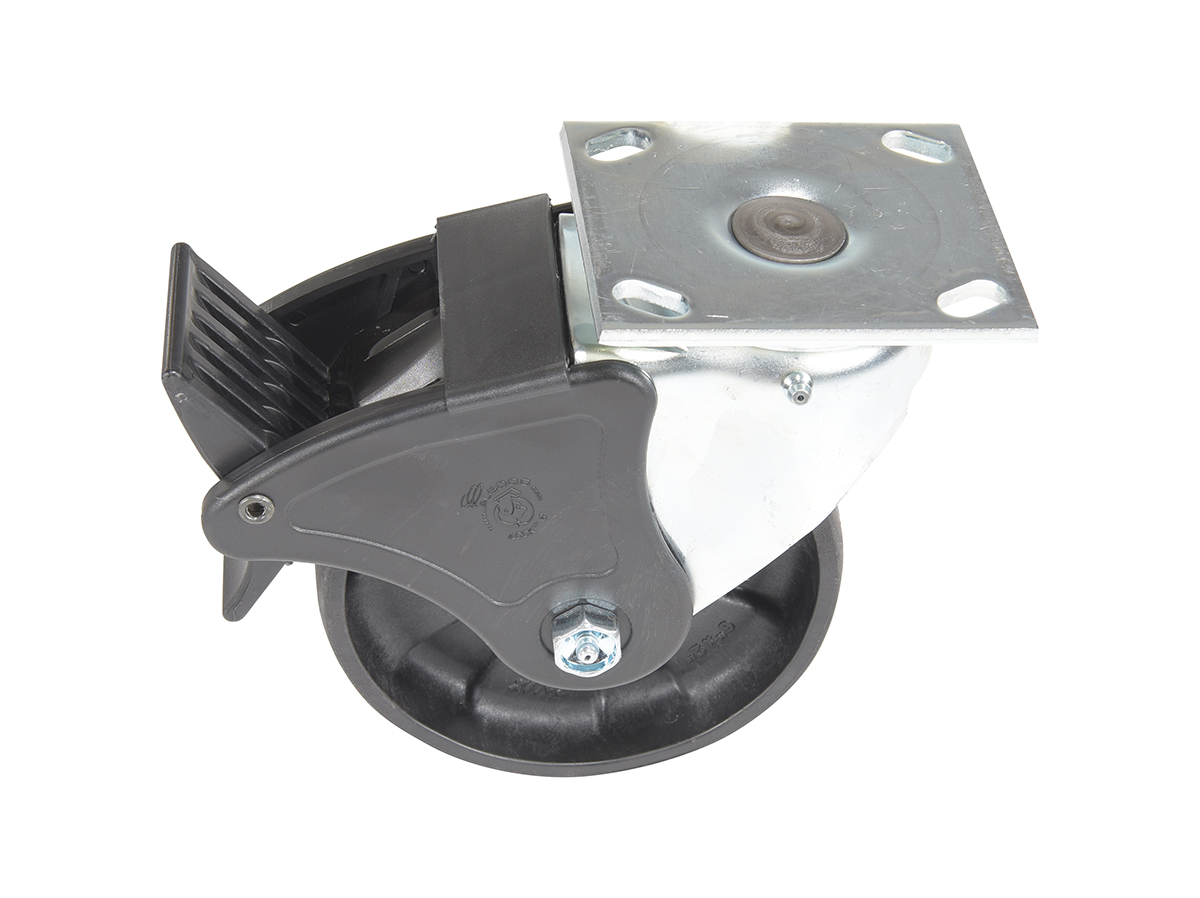

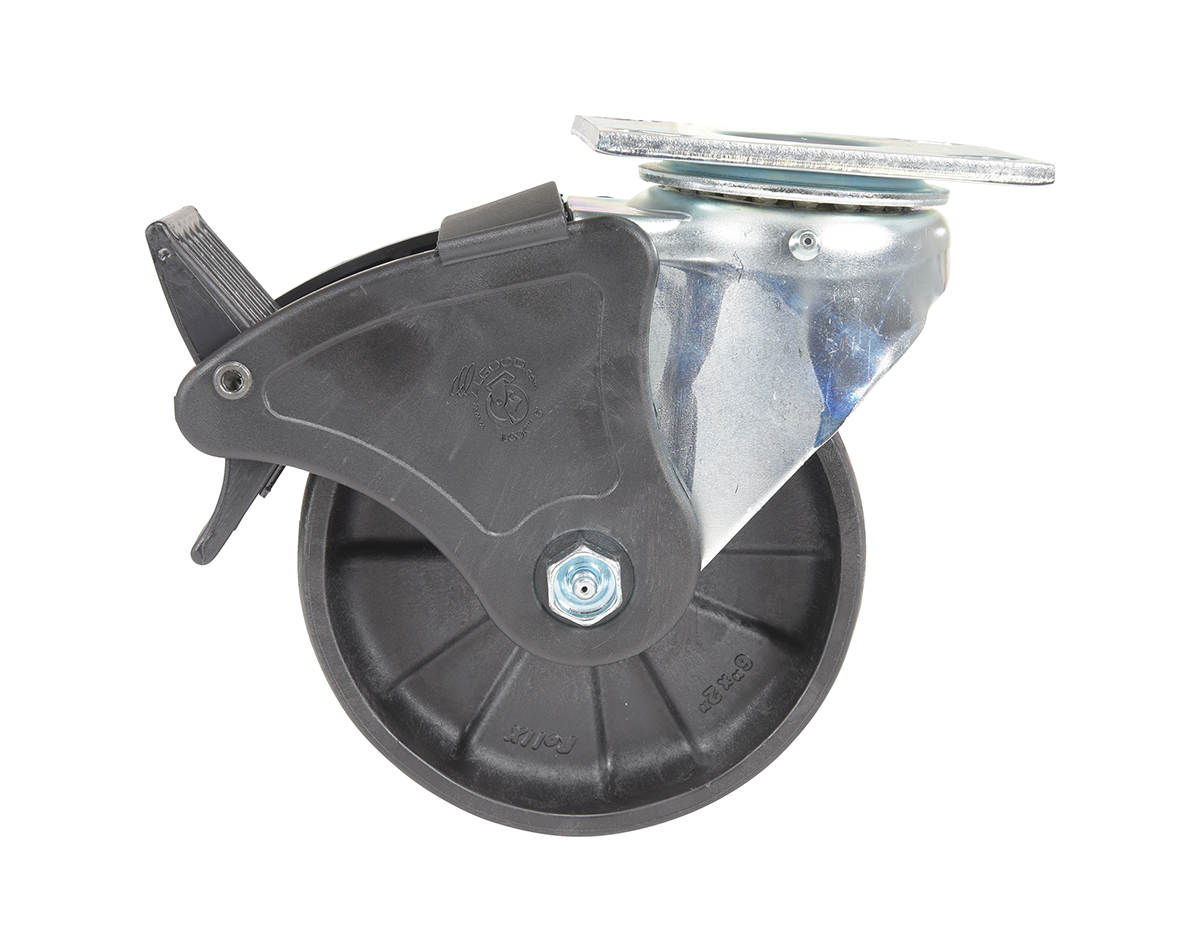

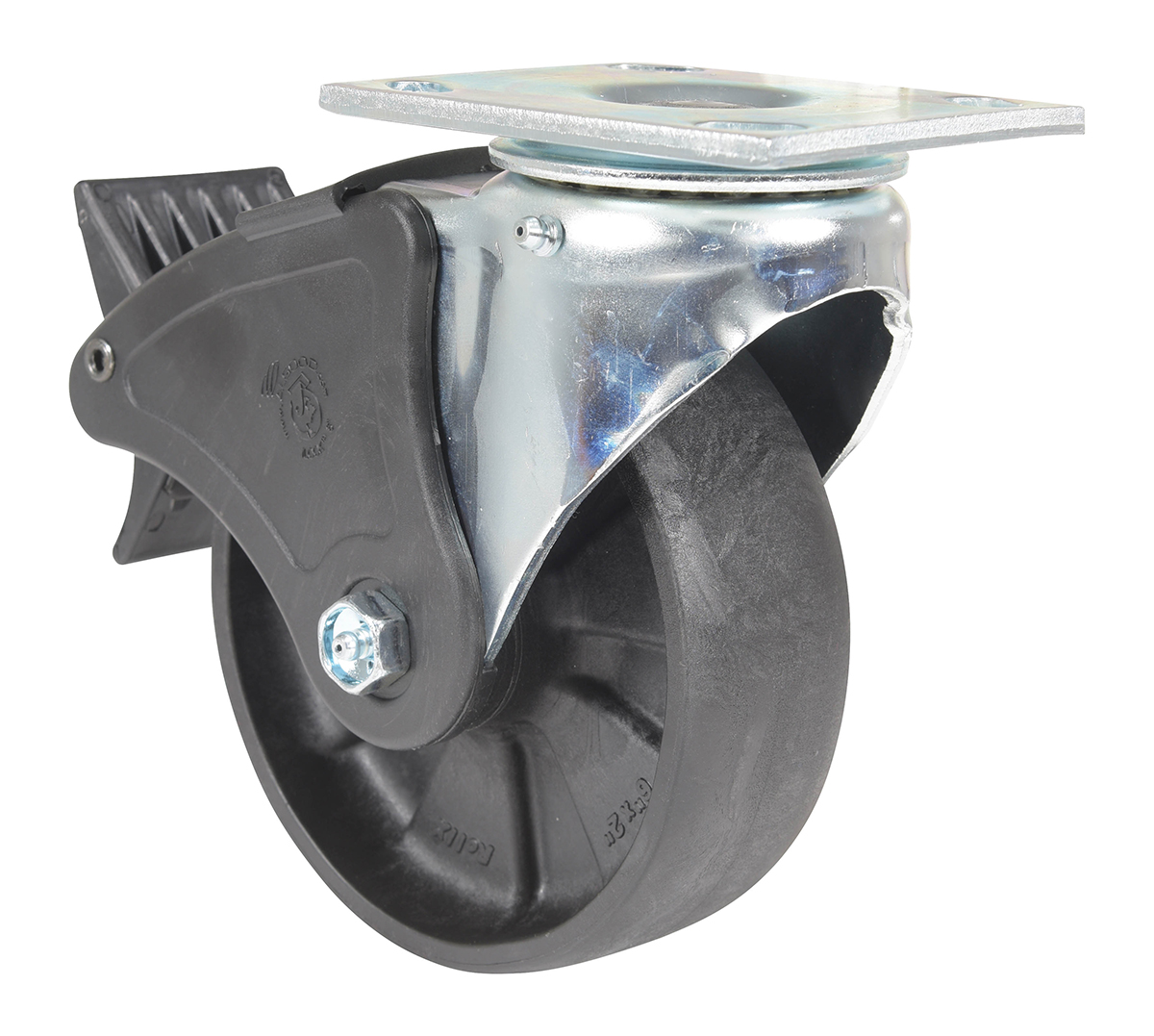

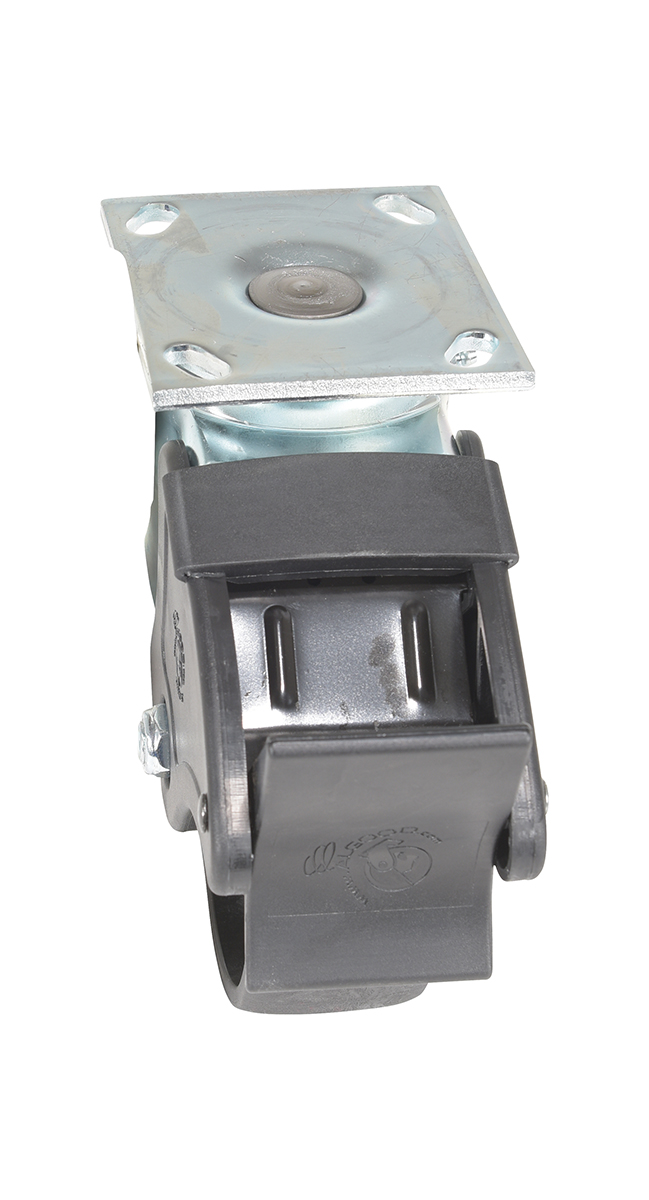

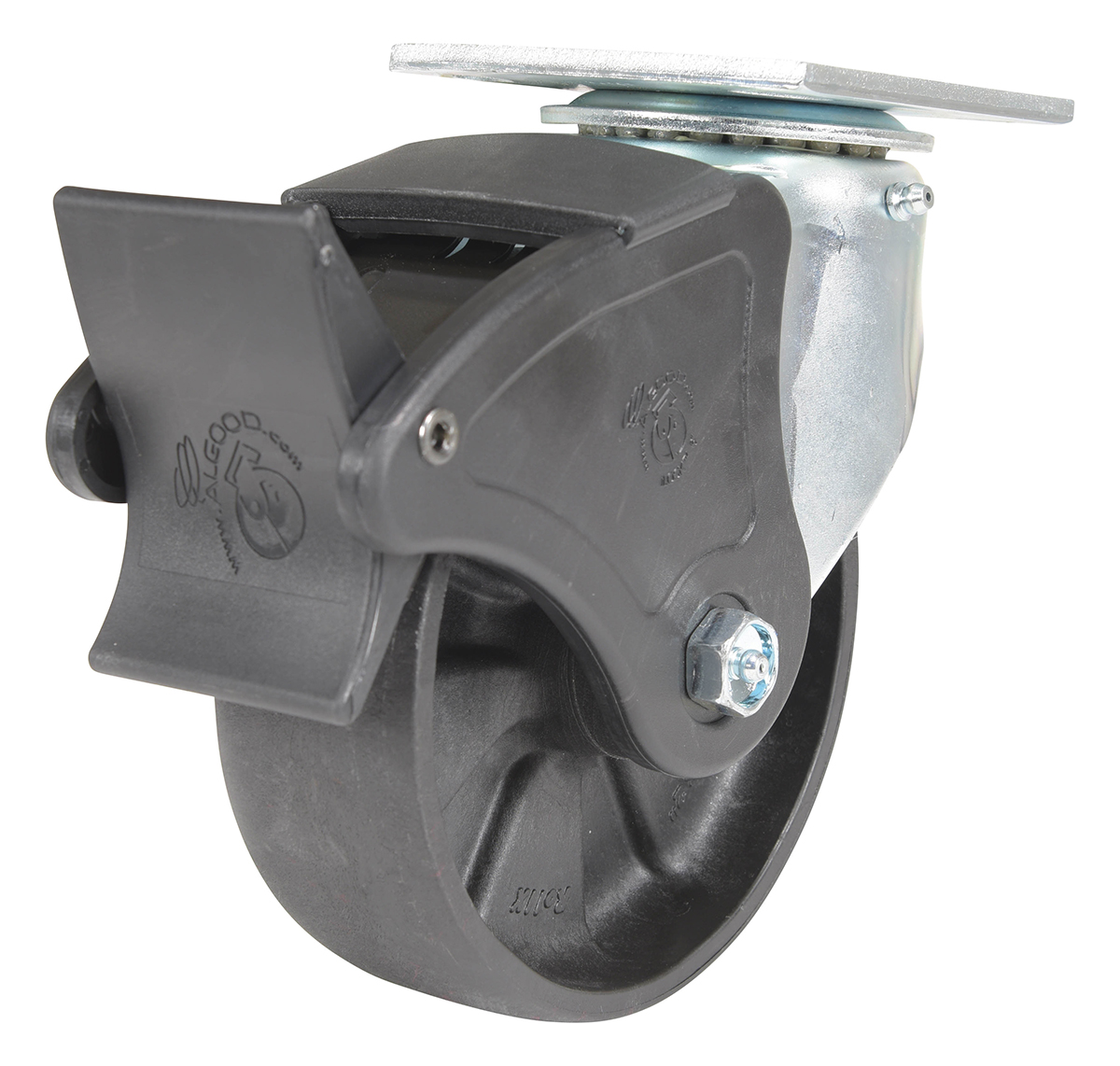

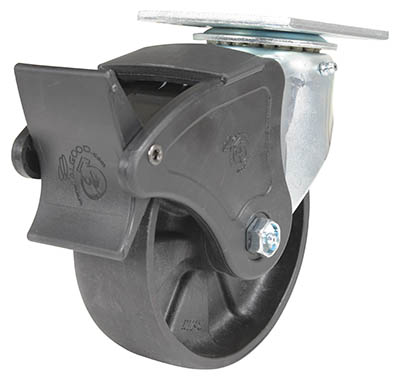

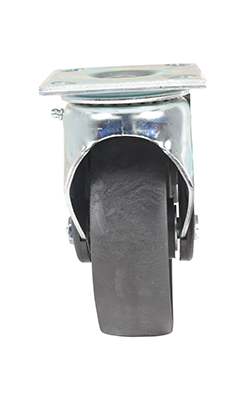

CST-HLD-6X2GFN-SWTB1 CST-HLD-6X2GFN-SWTB13 YEARS Limited Warranty6 x 2Swivel w/Total Brake12007-1/2 4 x 4-1/25.83

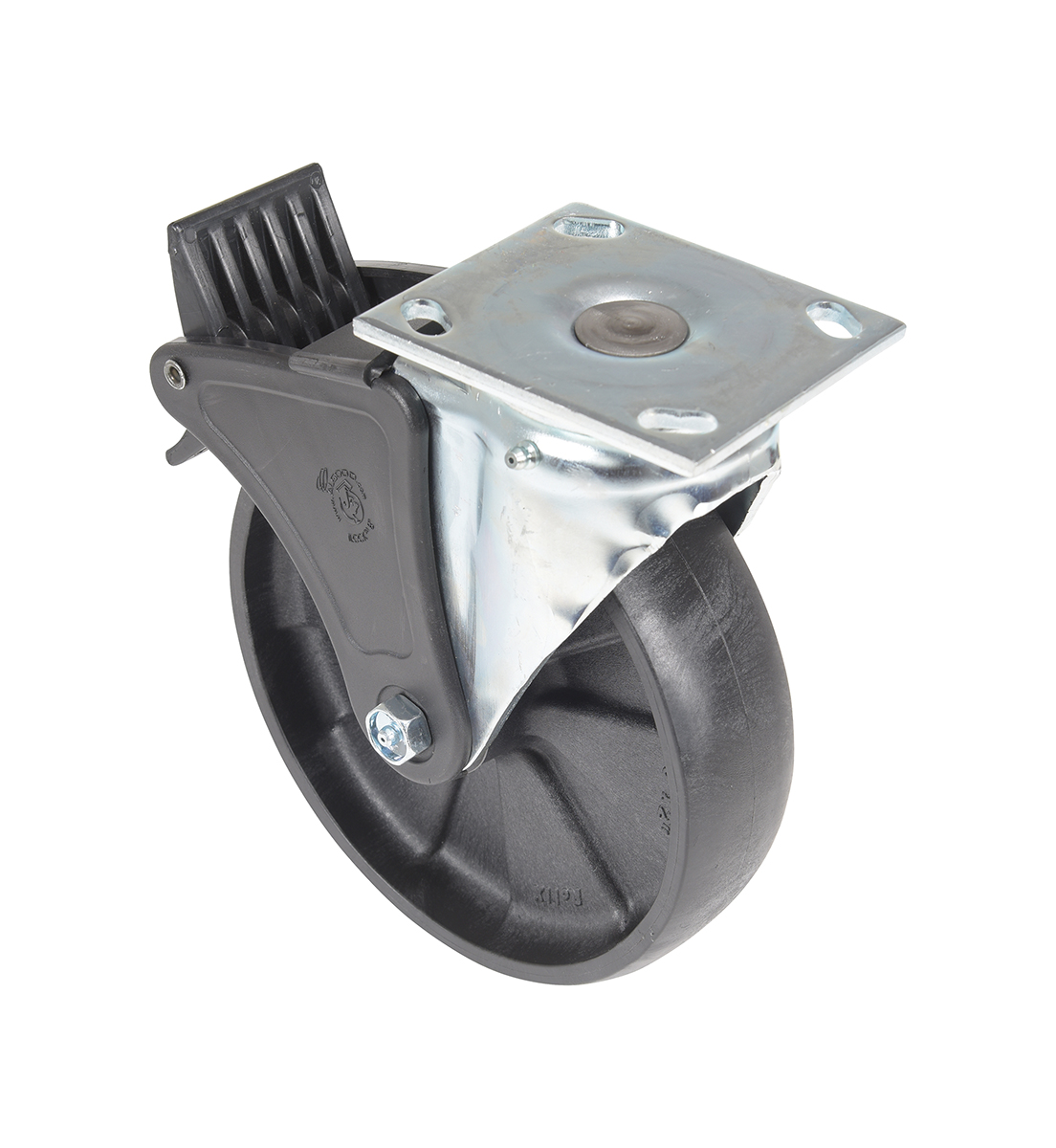

CST-HLD-8X2GFN-SWTB1 CST-HLD-8X2GFN-SWTB13 YEARS Limited Warranty8 x 2Swivel w/Total Brake12009-1/2 4 x 4-1/26.71

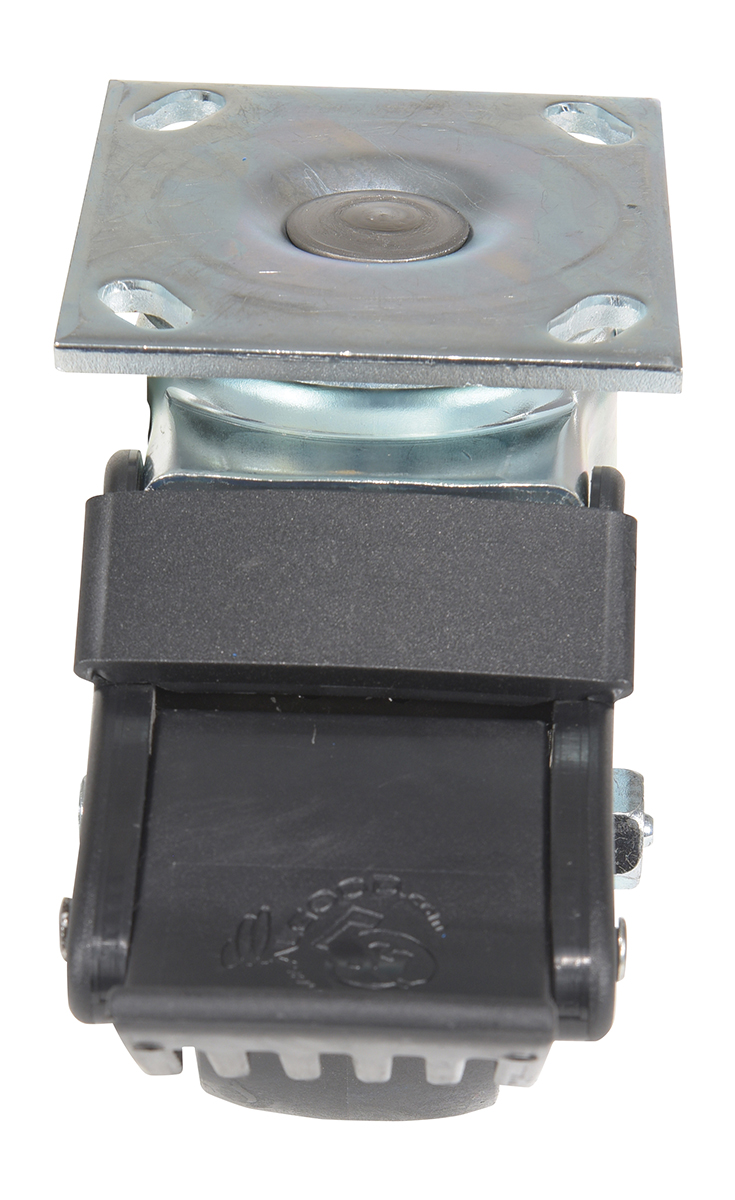

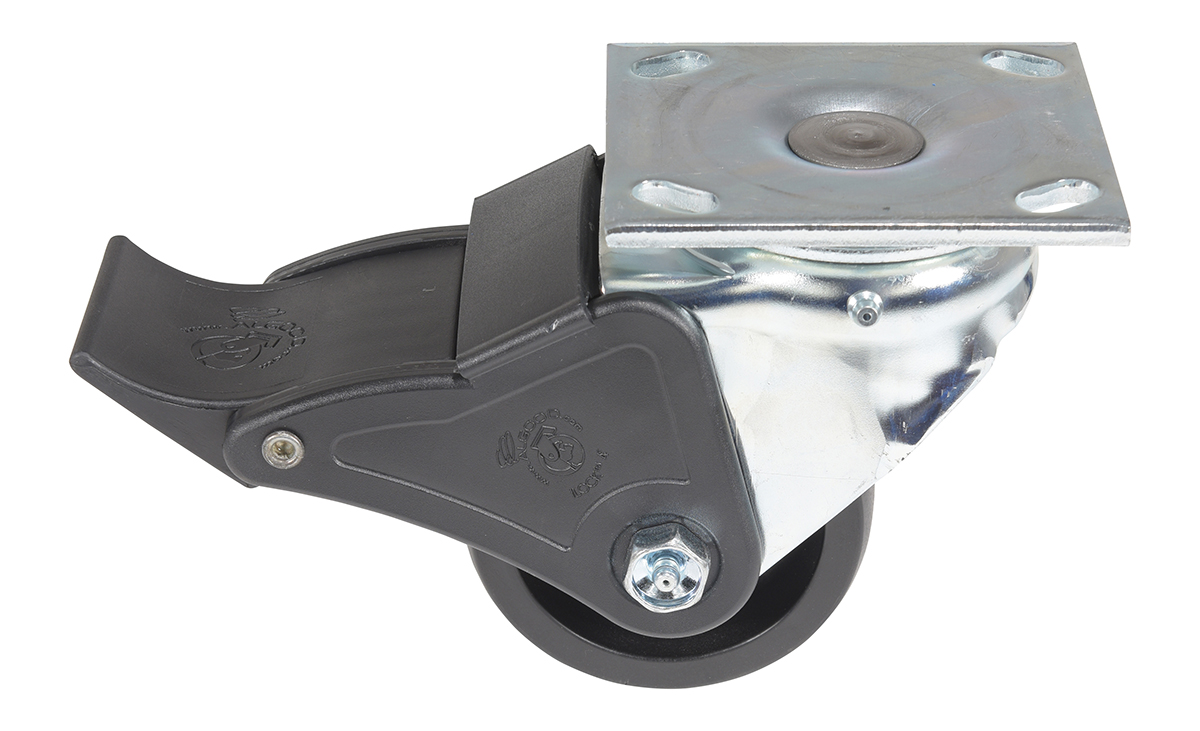

CST-HLD-4X2GFN-SWTB1 CST-HLD-4X2GFN-SWTB13 YEARS Limited Warranty4 x 2SWTB112005-3/4 4 x 4-1/25.34

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Upgraded Glass Filled Nylon, Light Duty (RX) Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Upgraded Glass Filled Nylon, L...




Made of high-tech proprietary glass filled nylon (RX). Provides better impact resistance than standard glass filled nylon. Does not absorb moisture like phenolic, and offers better floor preservation than steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 x 4-1/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is glass filled nylon.


  • Non-Marking
  • Absorbs Impact
  • Moisture Resistant
  • Harder Durometer Allows For Easier Rollability
  • Enviromentally Friendly
  • Ball Bearing


No Model Numbers Associated To This Product Page
