FEATURED Pallet Master/Servers

model: PMPS-50-AIR

Pallet Master/Servers

SERIES: PMPS 9Products 4Options

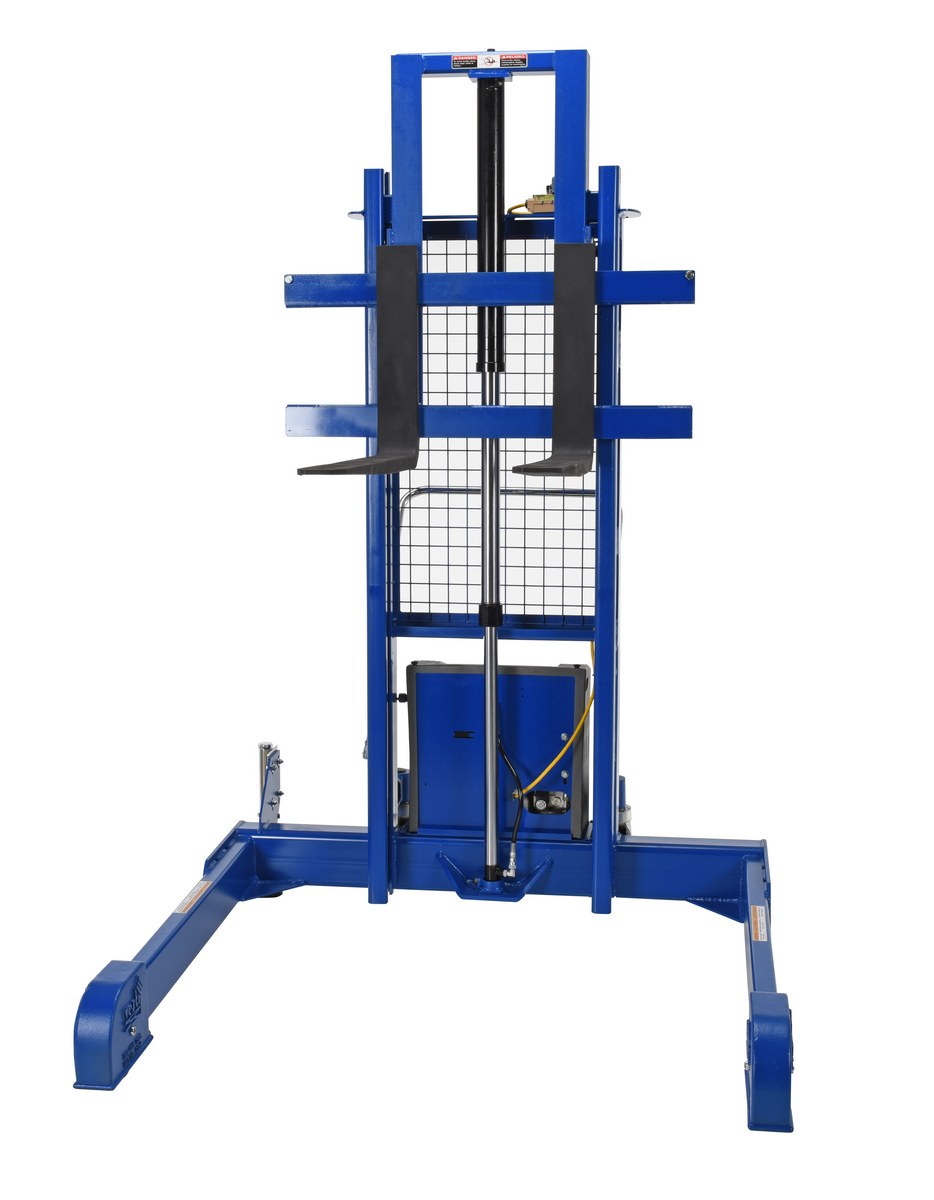

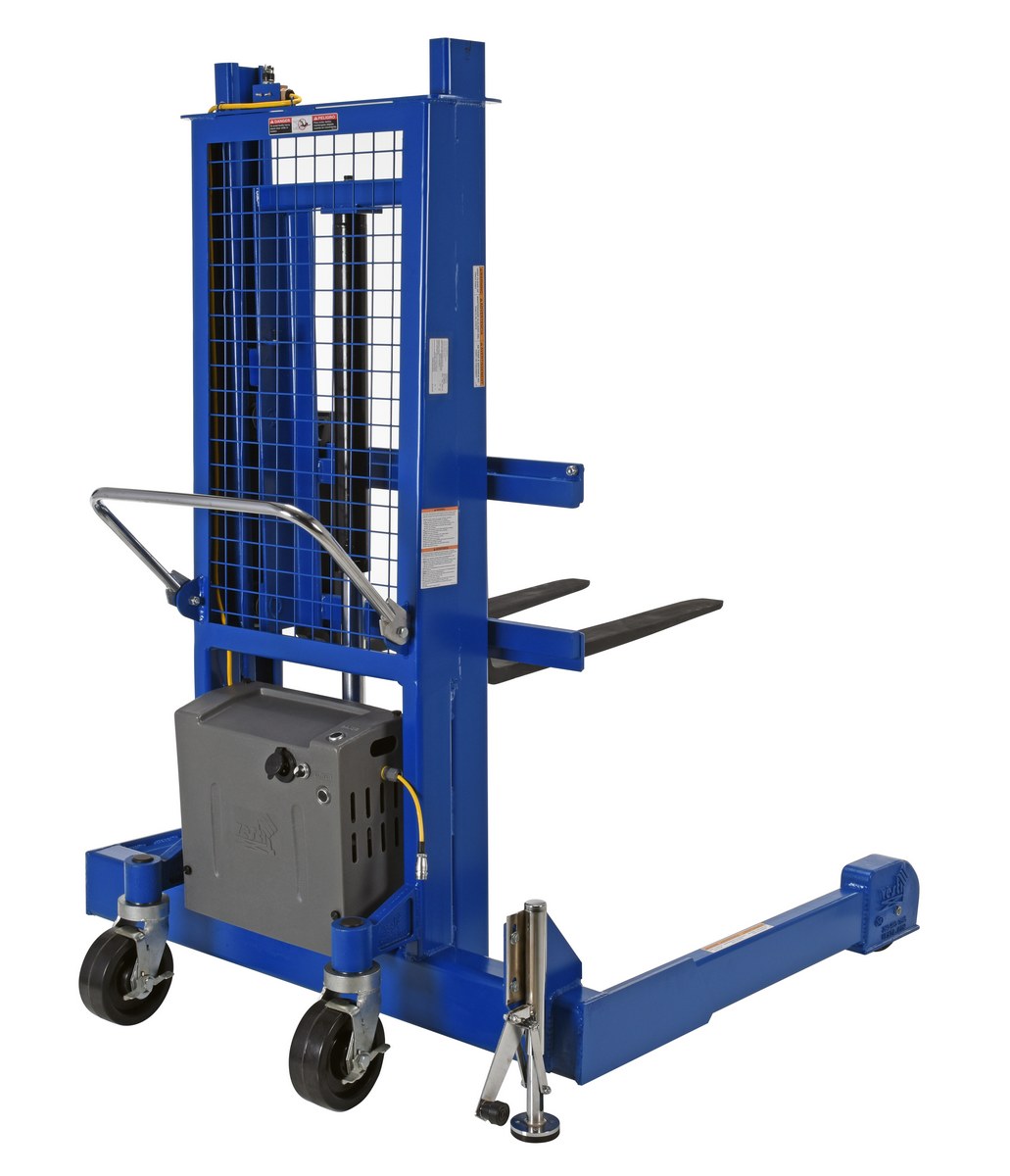

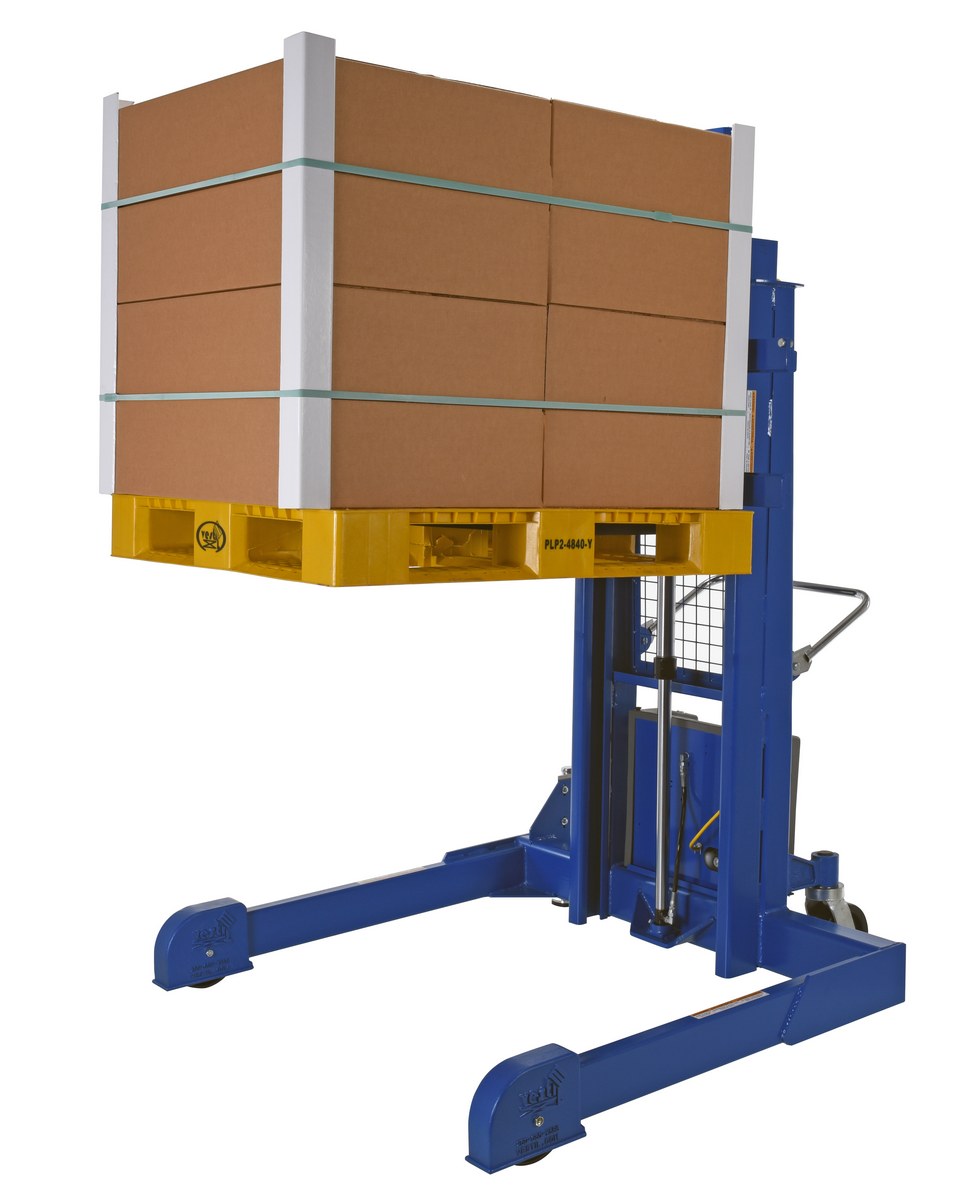

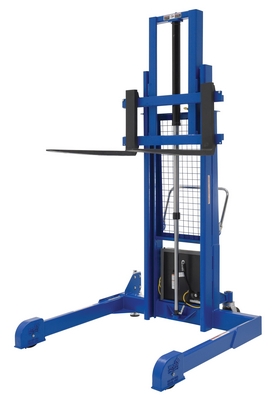

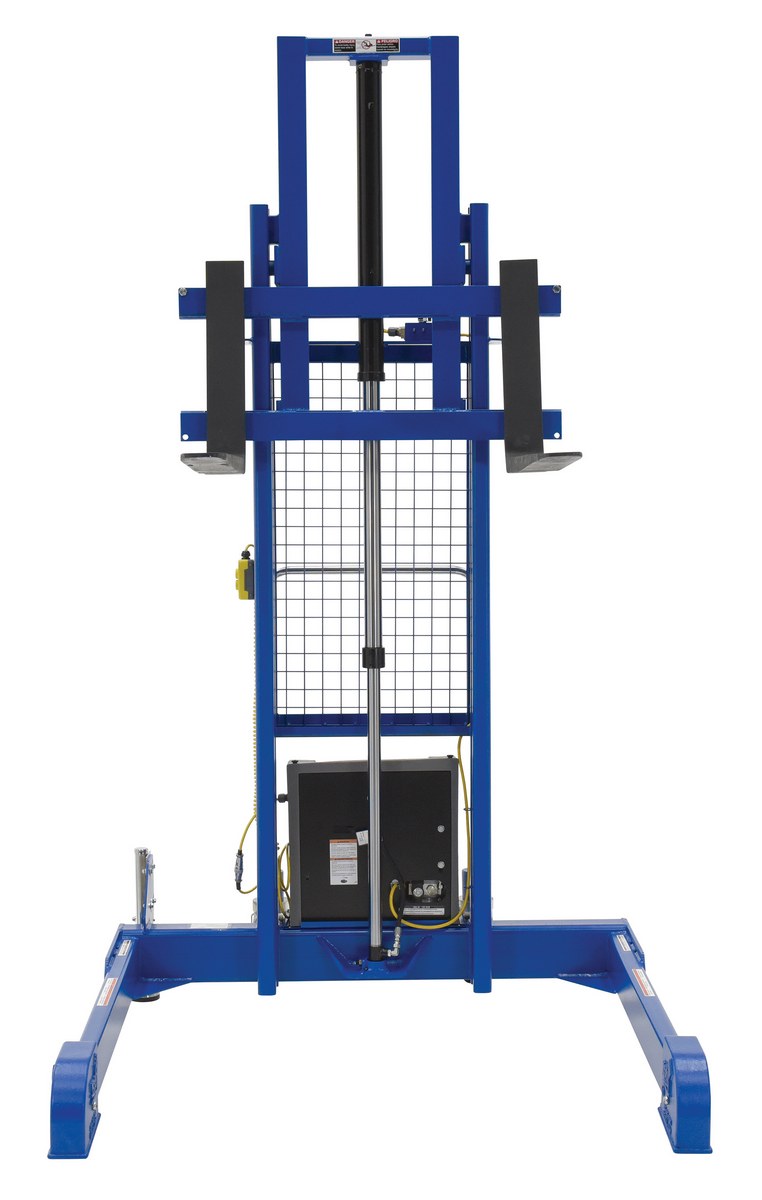

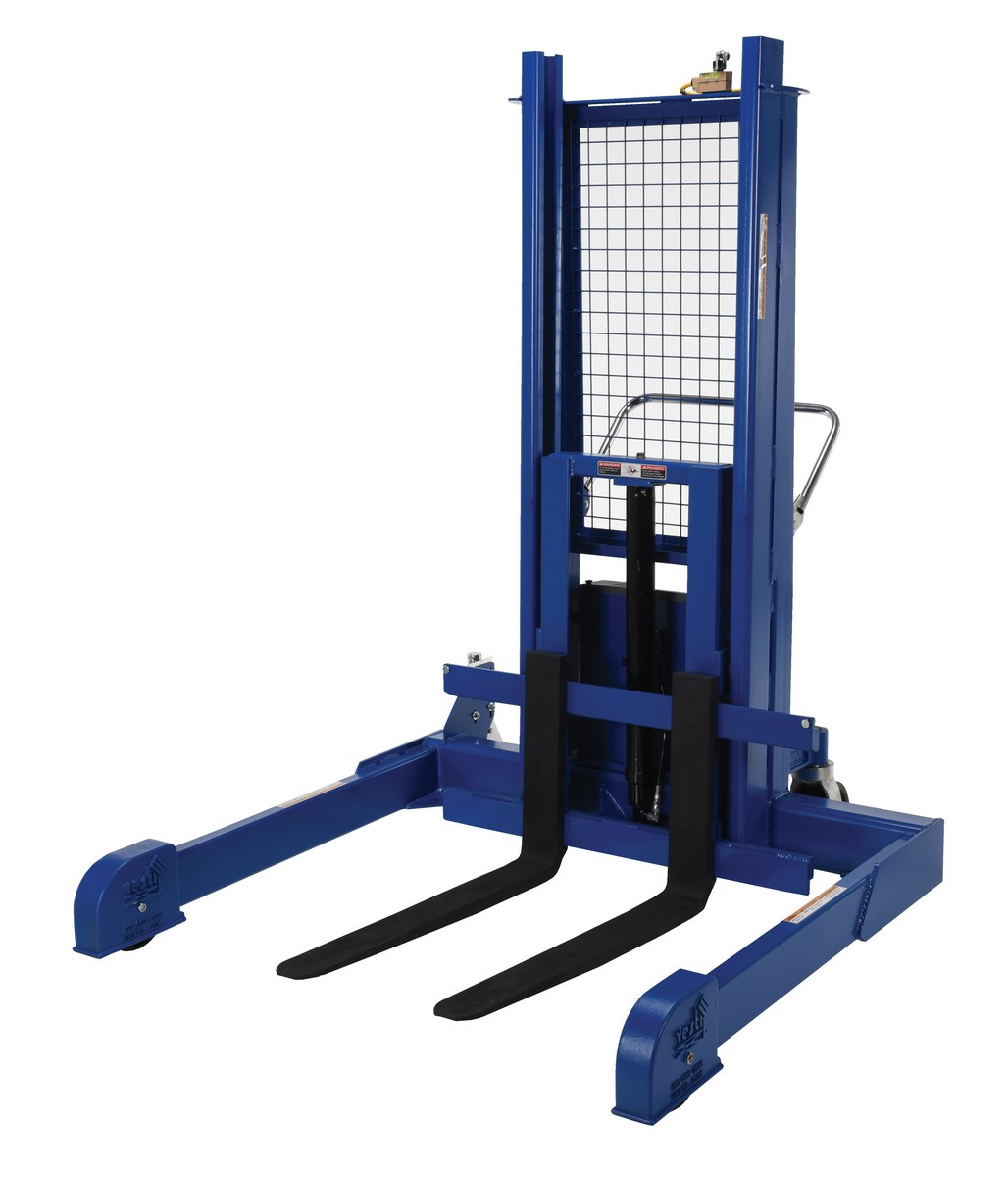

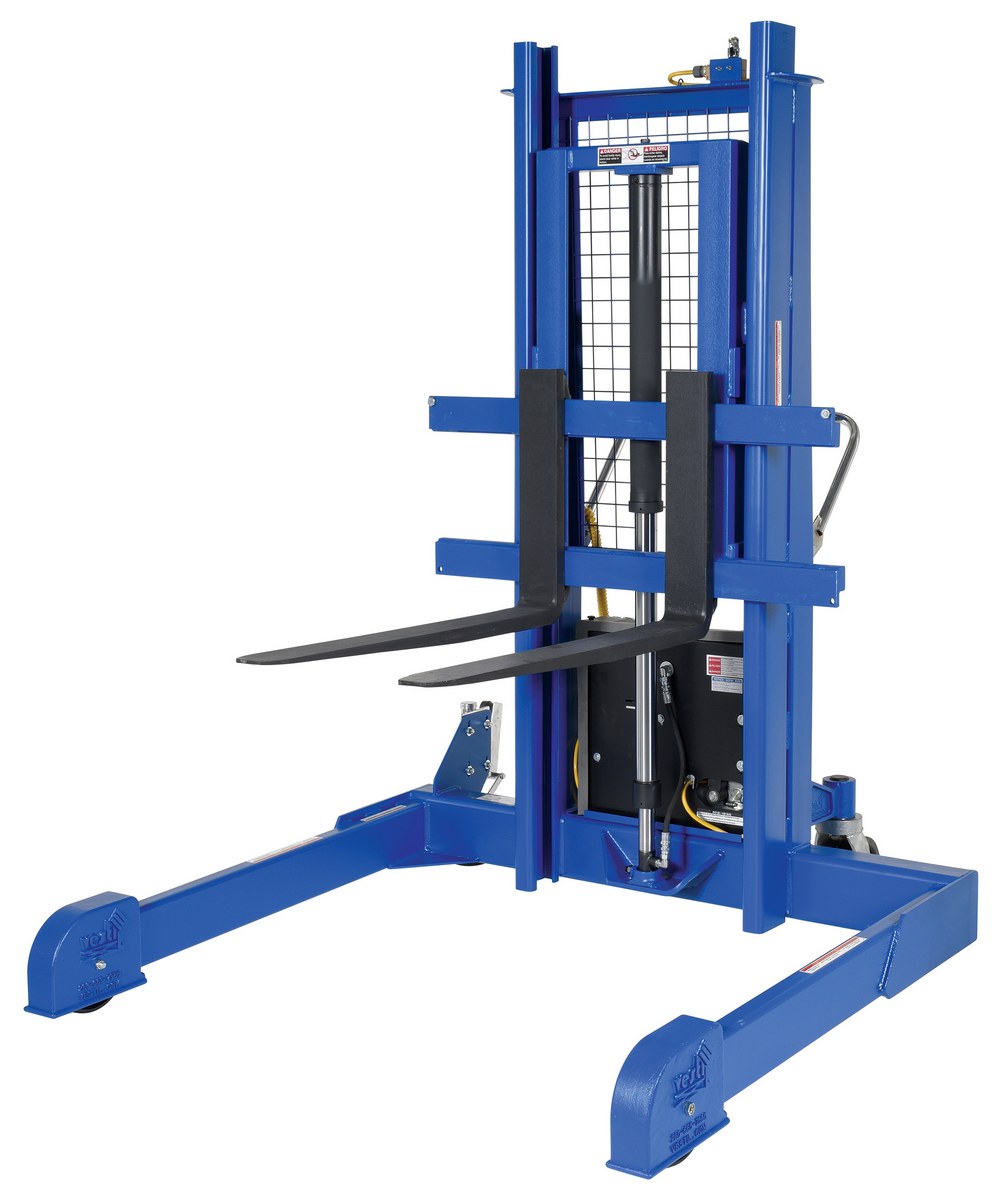

The Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36".

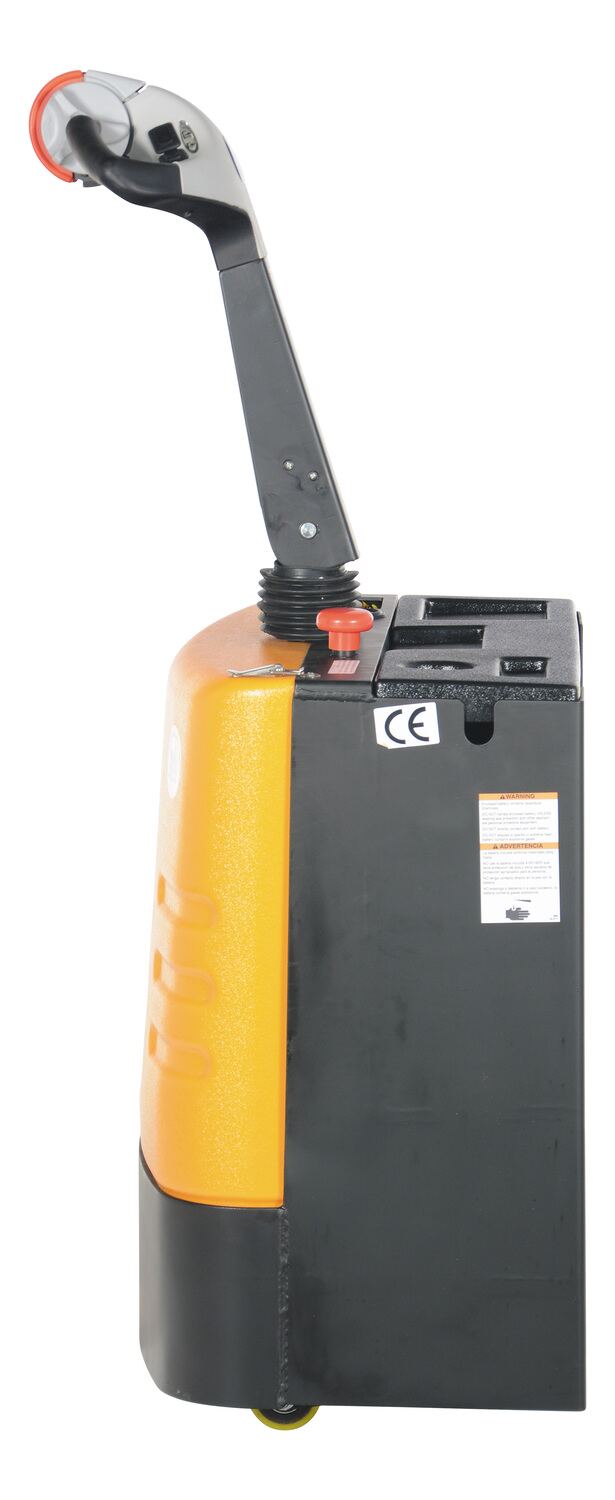

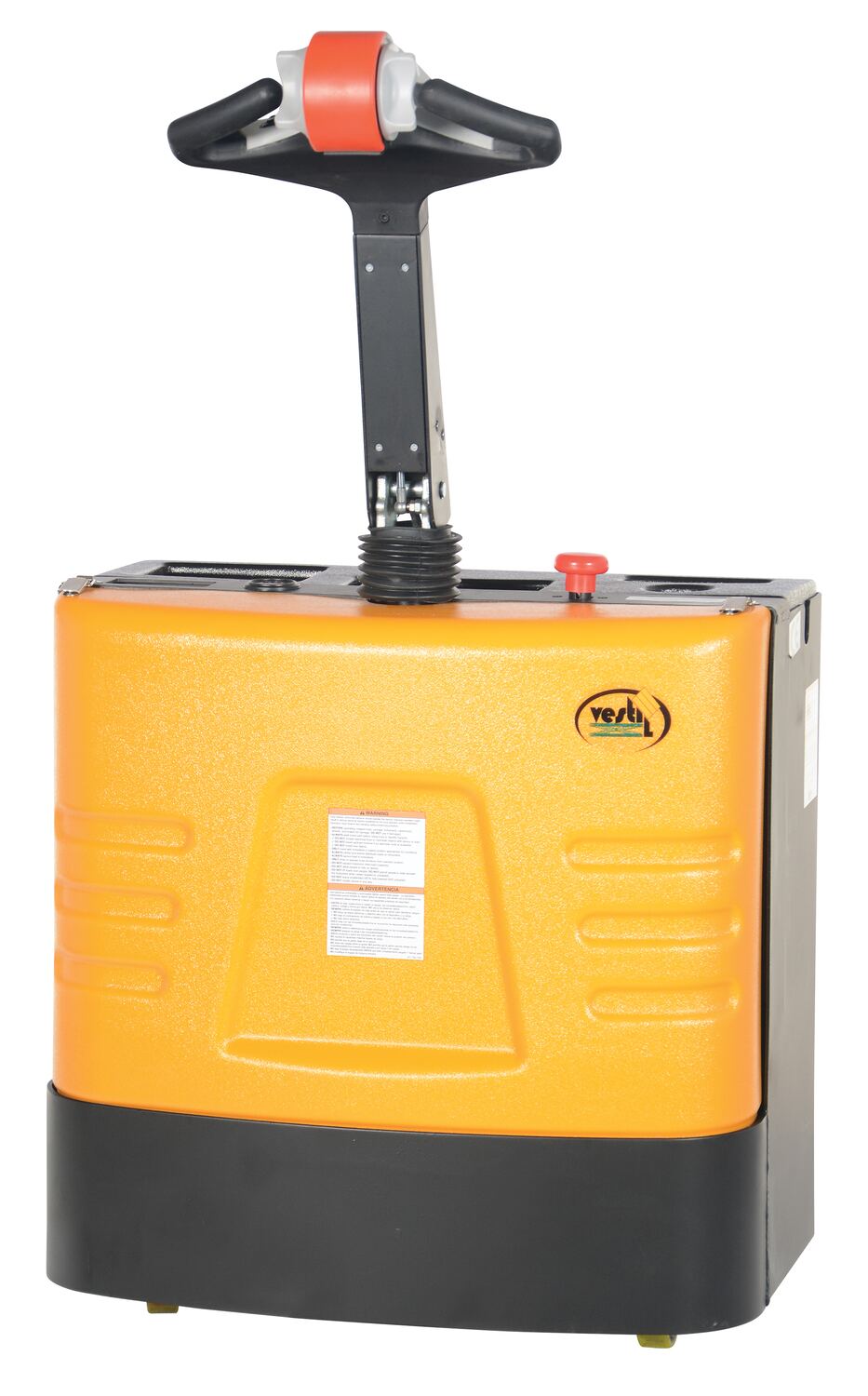

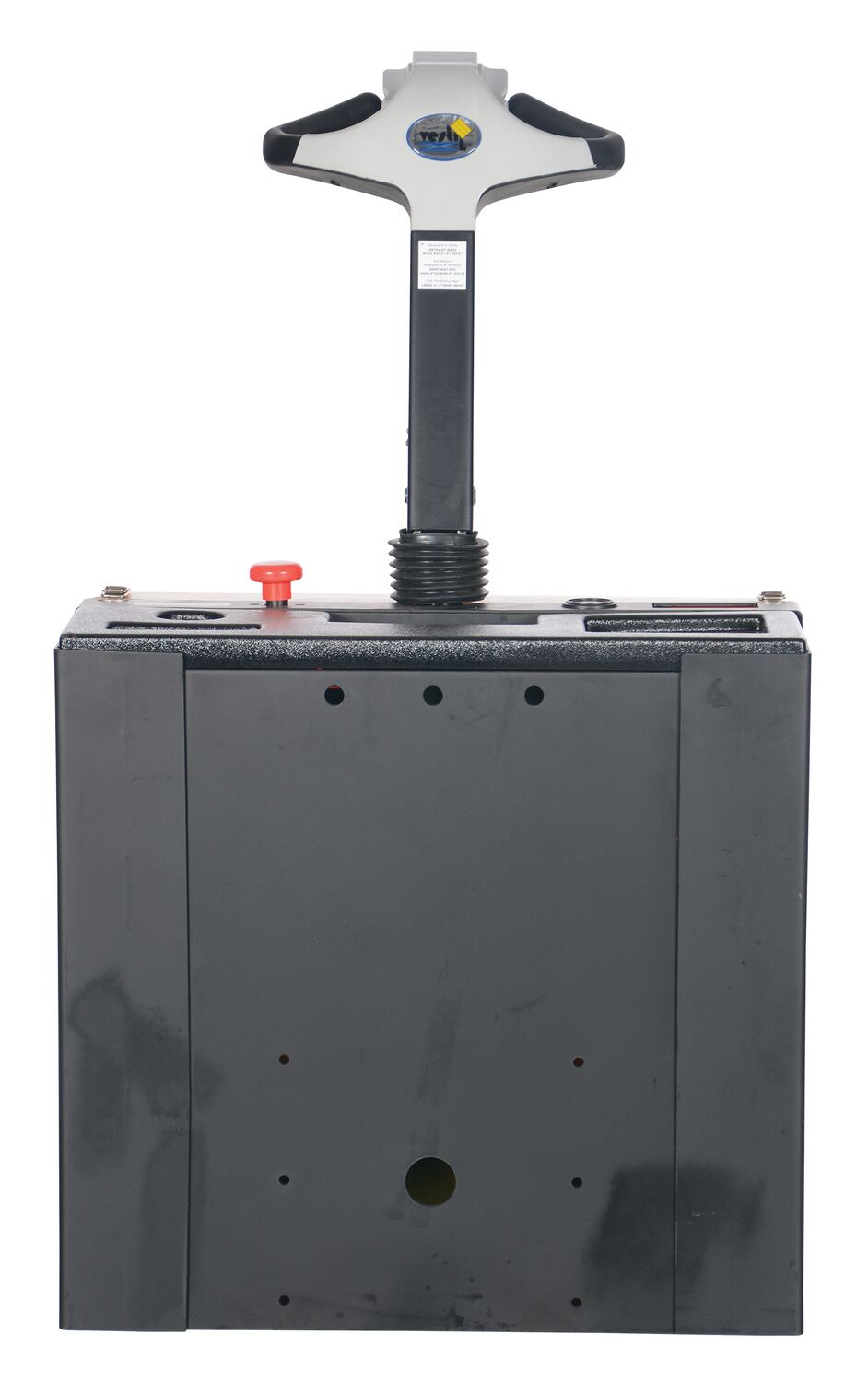

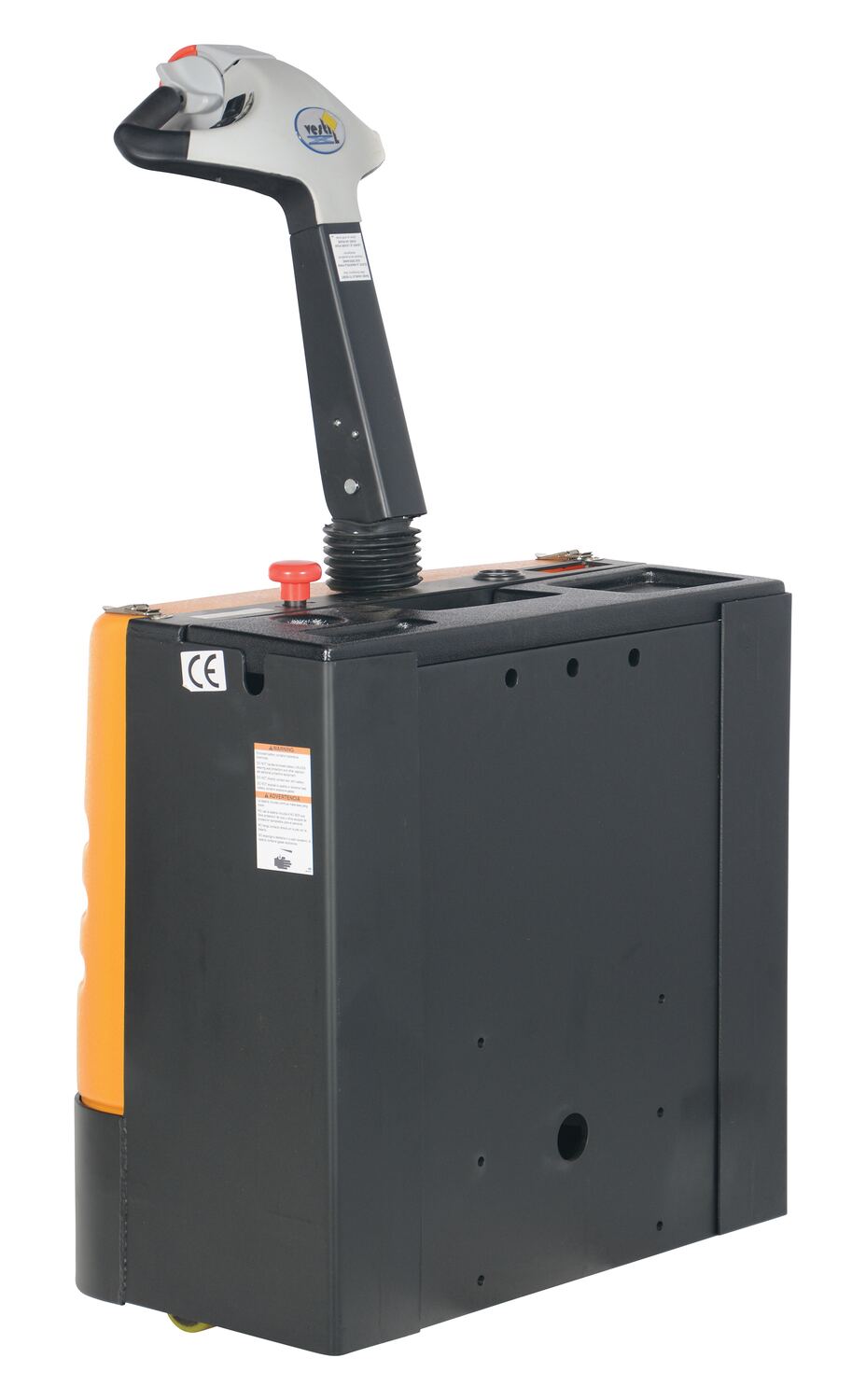

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

Suffix-AC is 115V 1 phase power with a push-button hand control
Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.

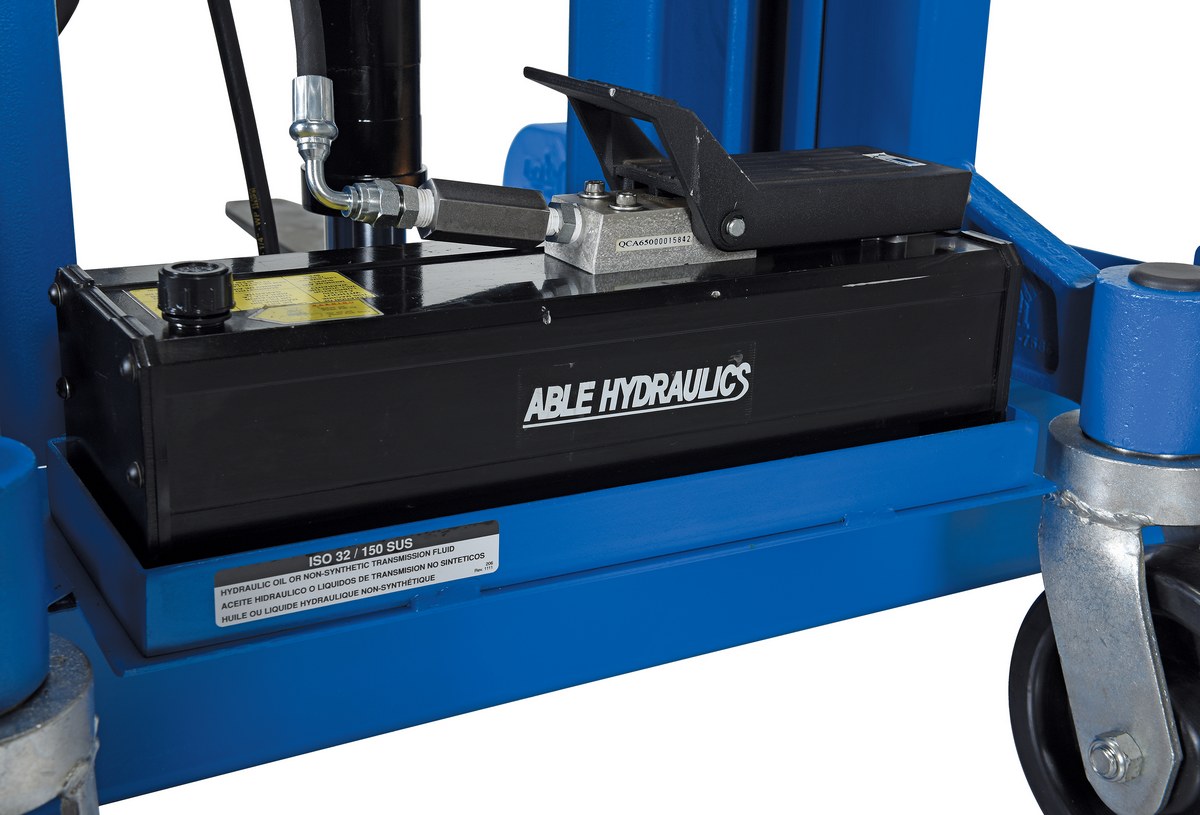

Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Pallet Master/Servers

model: PMPS-50-AIR

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.
PMPS-48FORK		Steel 48 In. Length Forks For PMPS Models Black	90 Days Limited Warranty	200
PMPS-DCR		Factory Installed Steel Drum Carrier/Rotator 800 Lb. Capacit…	1 Year Limited Warranty	239
PMPS-PTDS-E		Factory Installed Power Traction Drive System For Pallet Mas…	1 Year Limited Warranty	517

HCP-2642		Optional Hand Control Pedestal

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

3

LL-PMPS, MANUAL

AUTOSHIFTER, MANUAL

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

6

Testing Certificates

9

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

6

Other PDFs

0

No other PDFs for this product family.

Print Friendly

Related or Similar Products:

More From Stackers

Rough Terrain Stacker

Rough Terrain Stacker

Counter-Balanced Powered Drive Lifts

Counter-Balanced Powered Drive Lifts

Variable Speed Drive Double Mast Fully Powered Stacker

Variable Speed Drive Double Mast Fully Powered Stacker

Powered All Terrain Stackers and Pallet Trucks

Powered All Terrain Stackers and Pallet Trucks

Semi-Electric Powered Drum Gripper

Semi-Electric Powered Drum Gripper

Adjustable Powered Stacker w/ Scale

Adjustable Powered Stacker w/ Scale

Pallet Master/Servers

The Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36".

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

Suffix-AC is 115V 1 phase power with a push-button hand control
Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.
Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Narrow Mast Stackers with Powered Drive and Powered Lift | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Model #		Description	Attributes	Net Wt. (lbs)

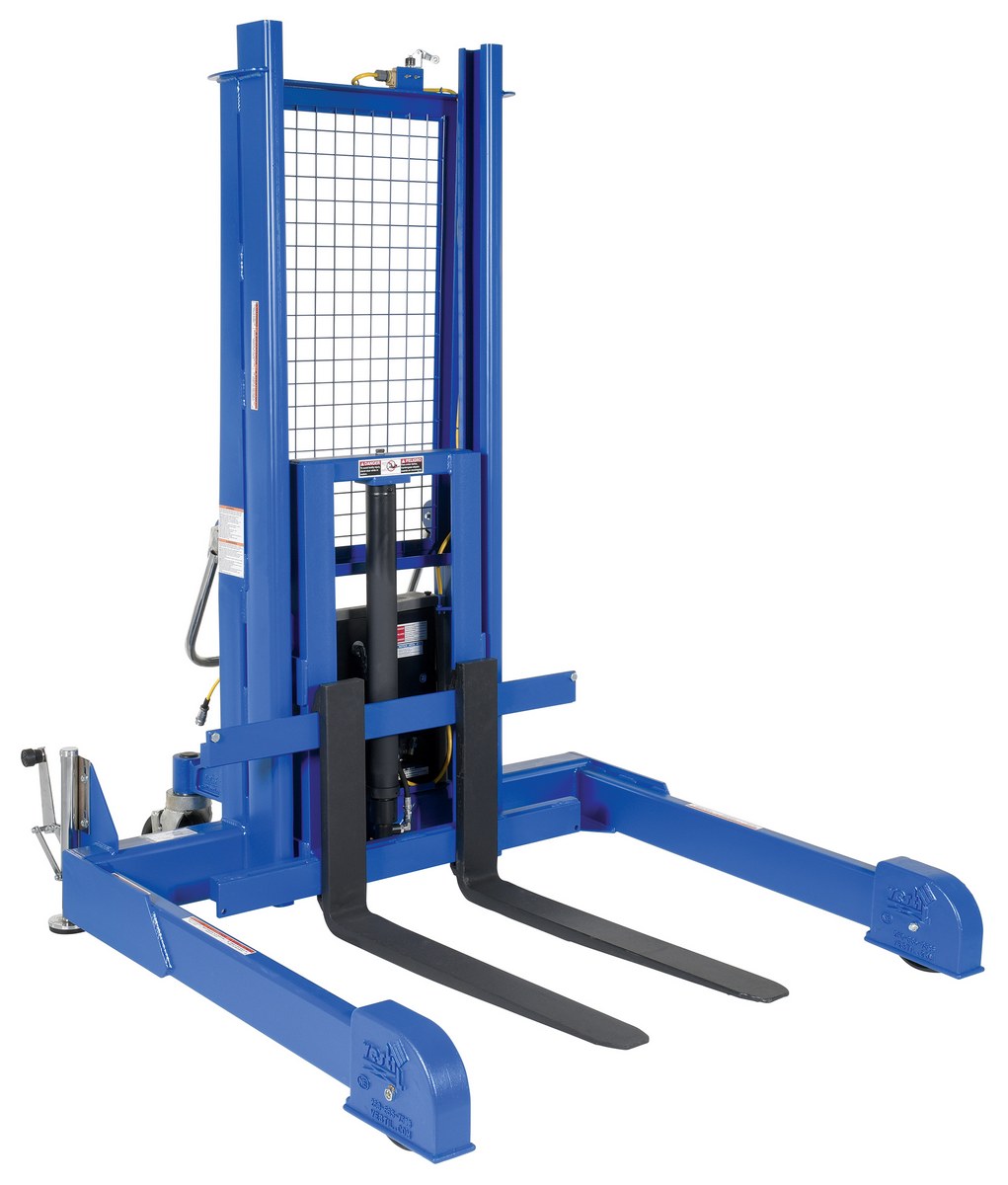

PMPS-50-AC		Steel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: 115V AC	1055

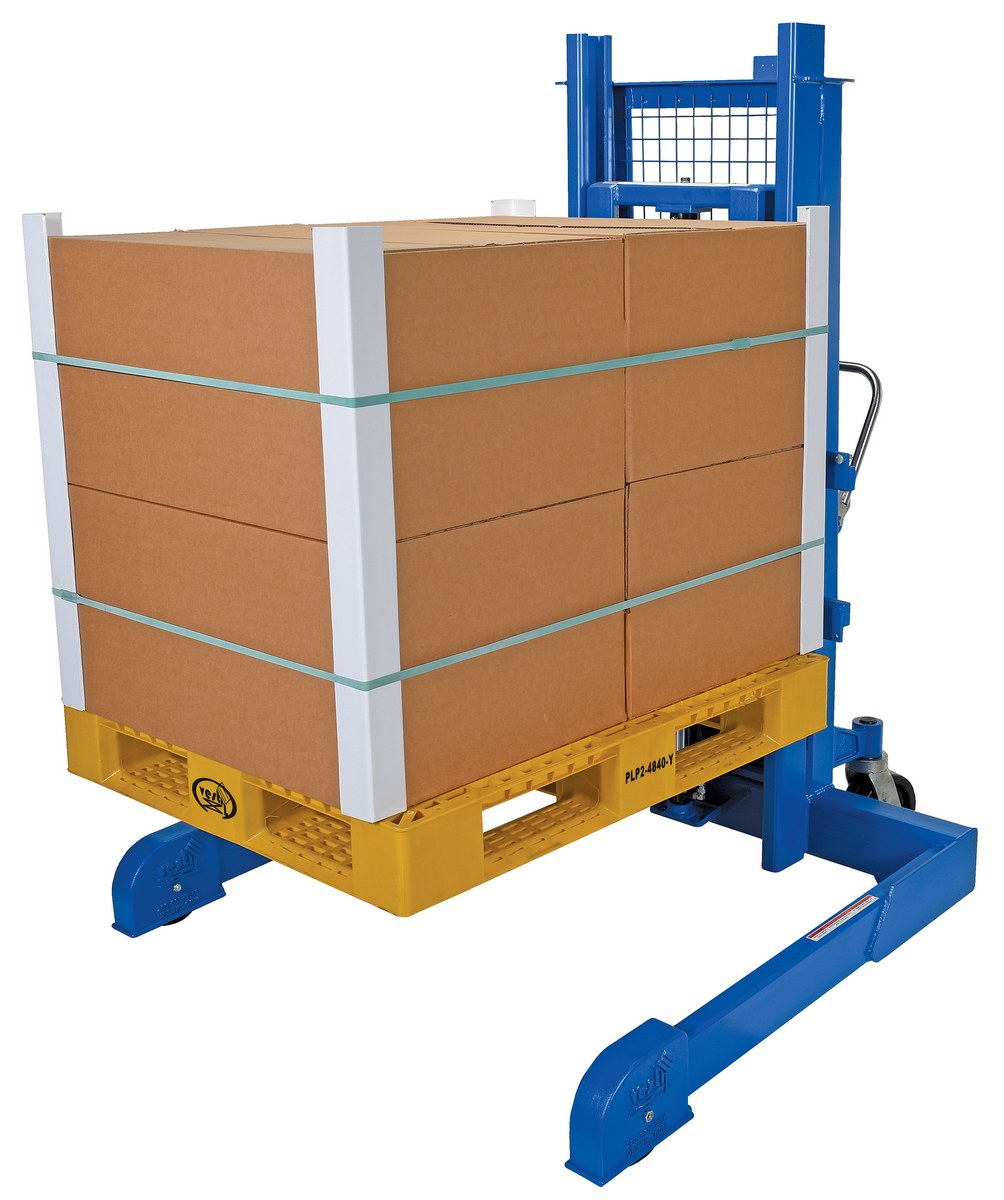

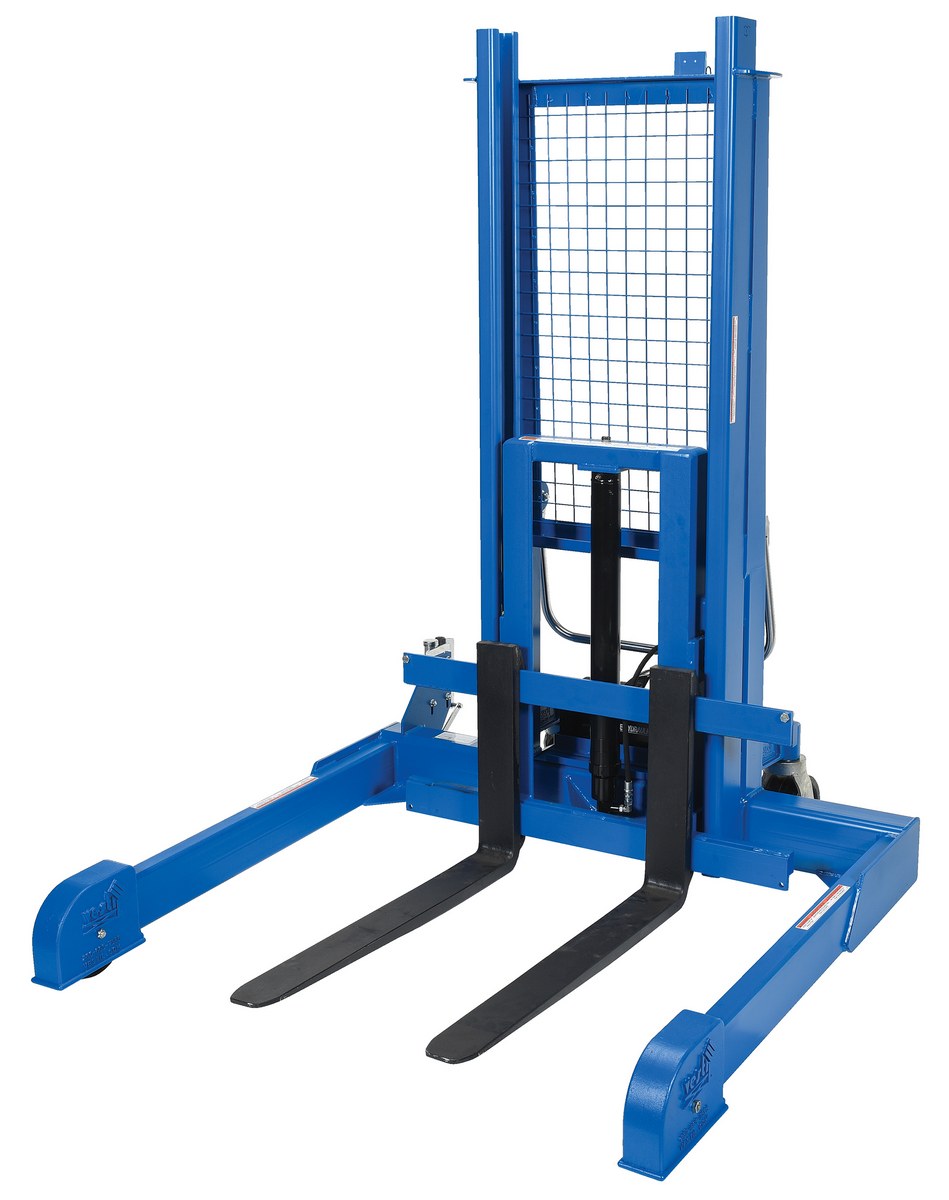

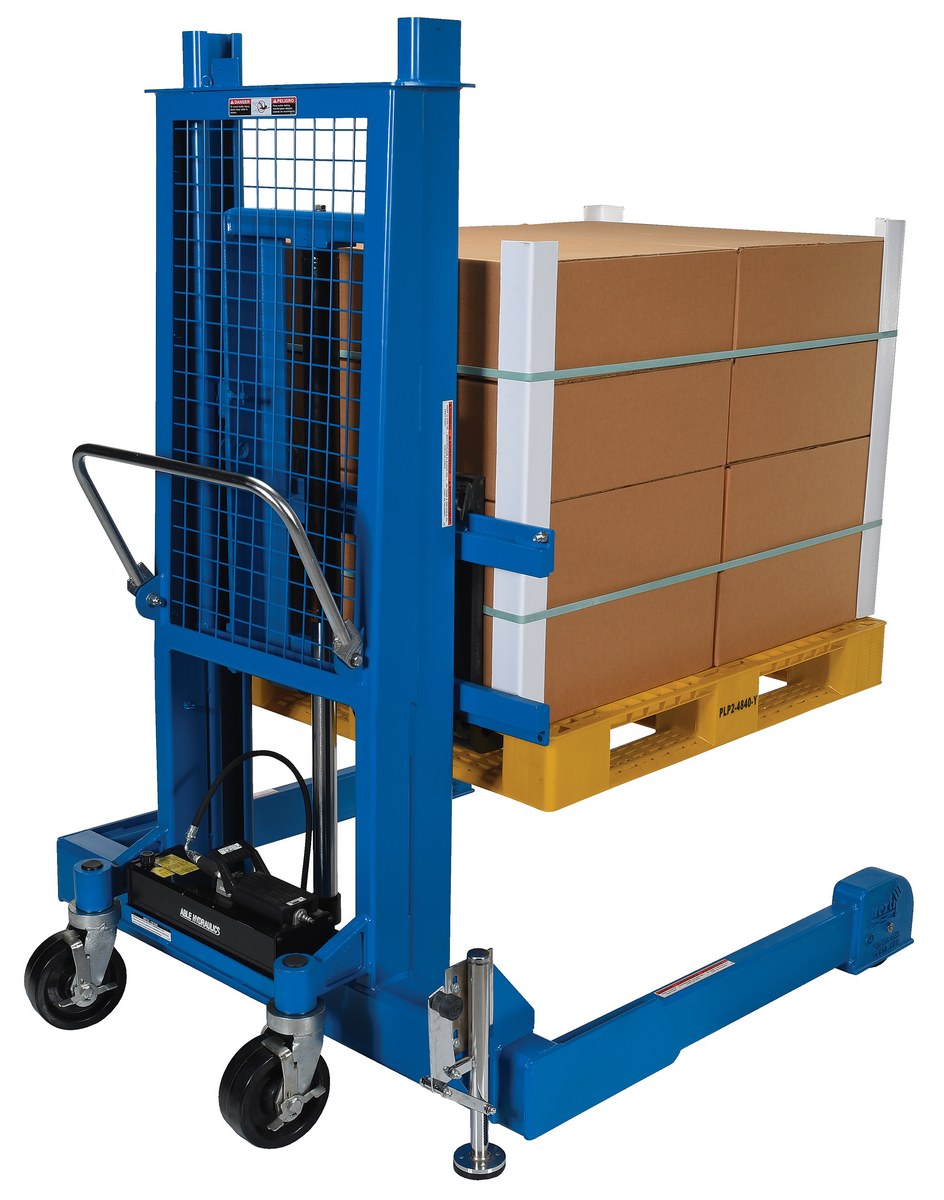

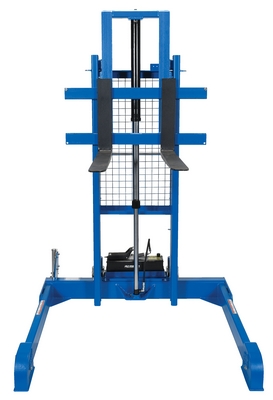

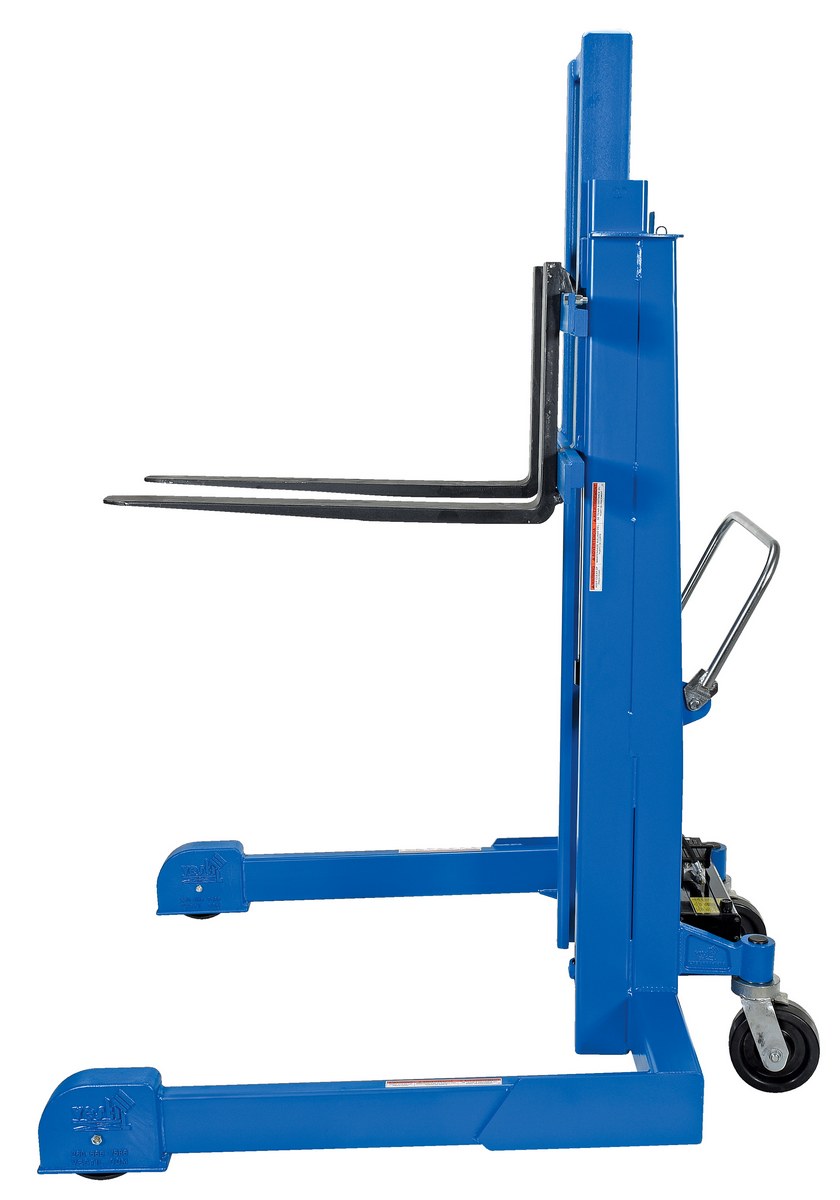

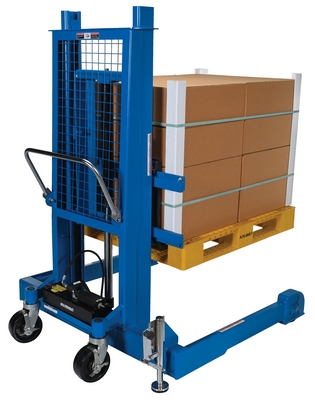

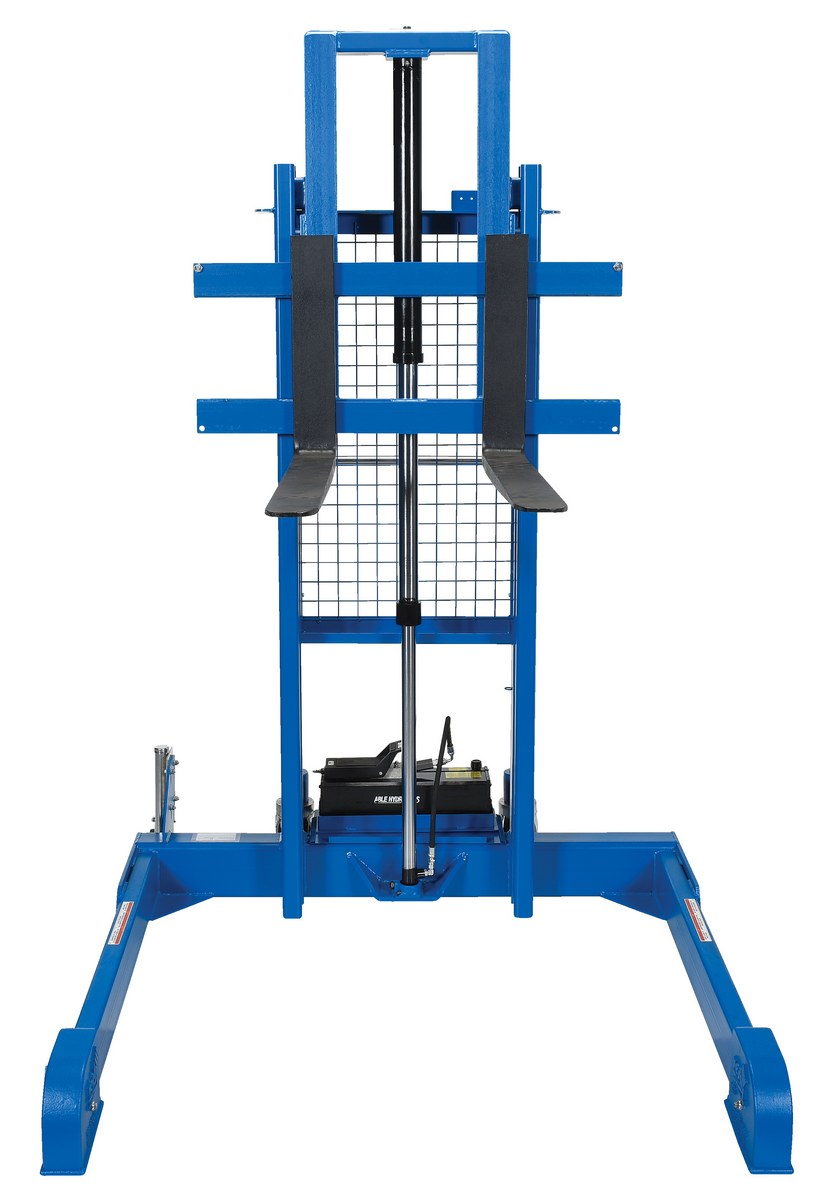

PMPS-50-AIR		Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: Reciprocating Air/Oil	962

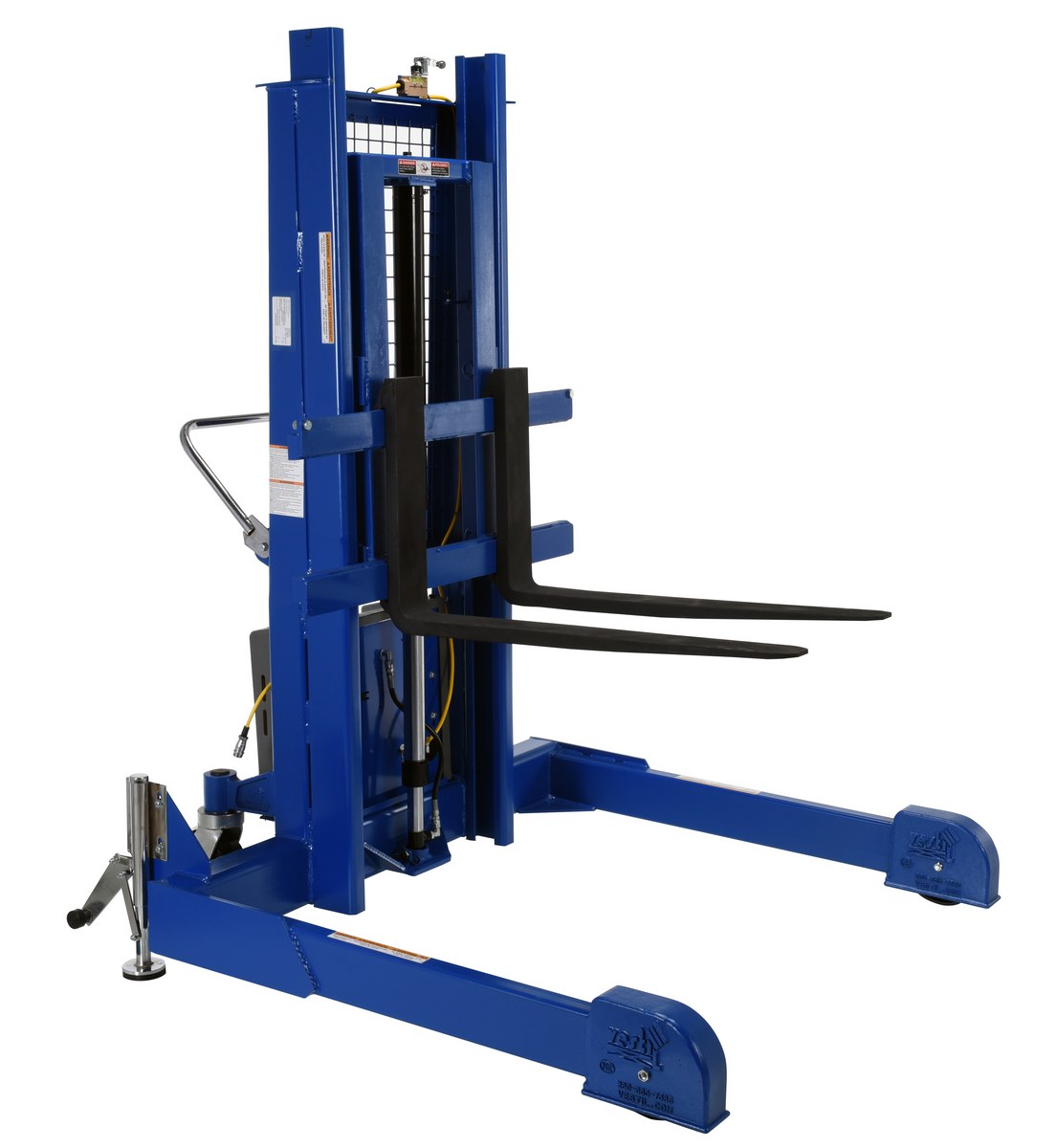

PMPS-50-DC		Steel Pallet Master/Server Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: (1) 12V DC	1173

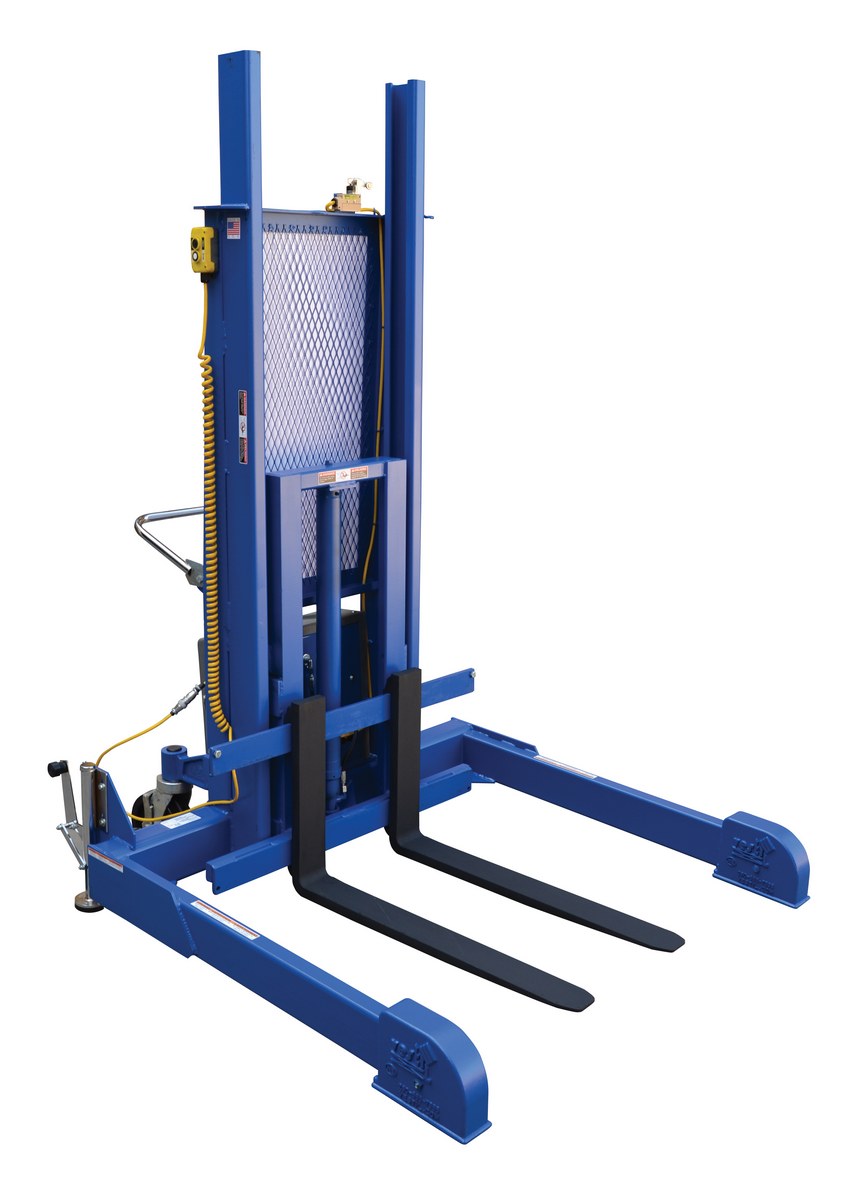

PMPS-60-AC		Steel Pallet Master/Server Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: 115V AC	1065

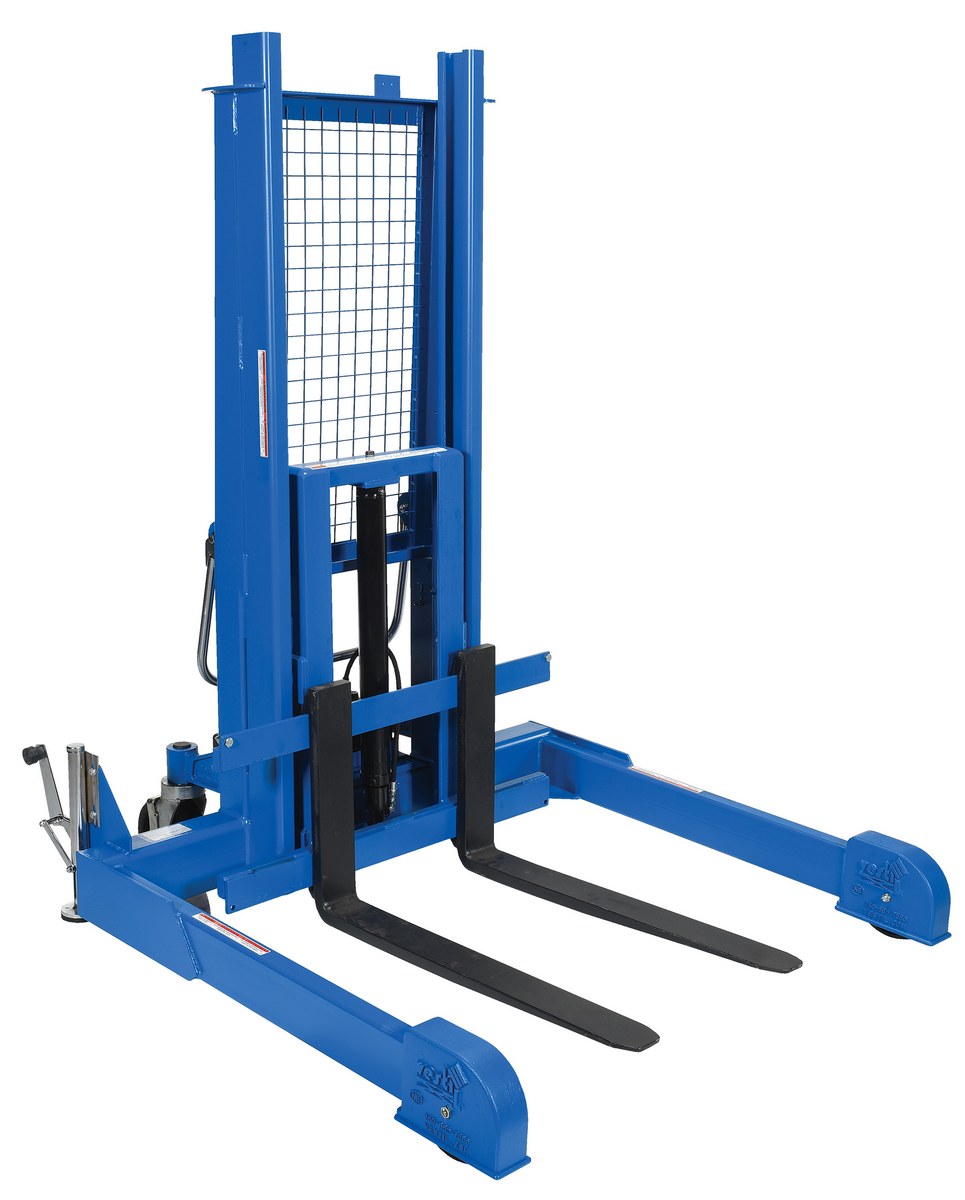

PMPS-60-AIR		Steel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: Reciprocating Air/Oil	1029

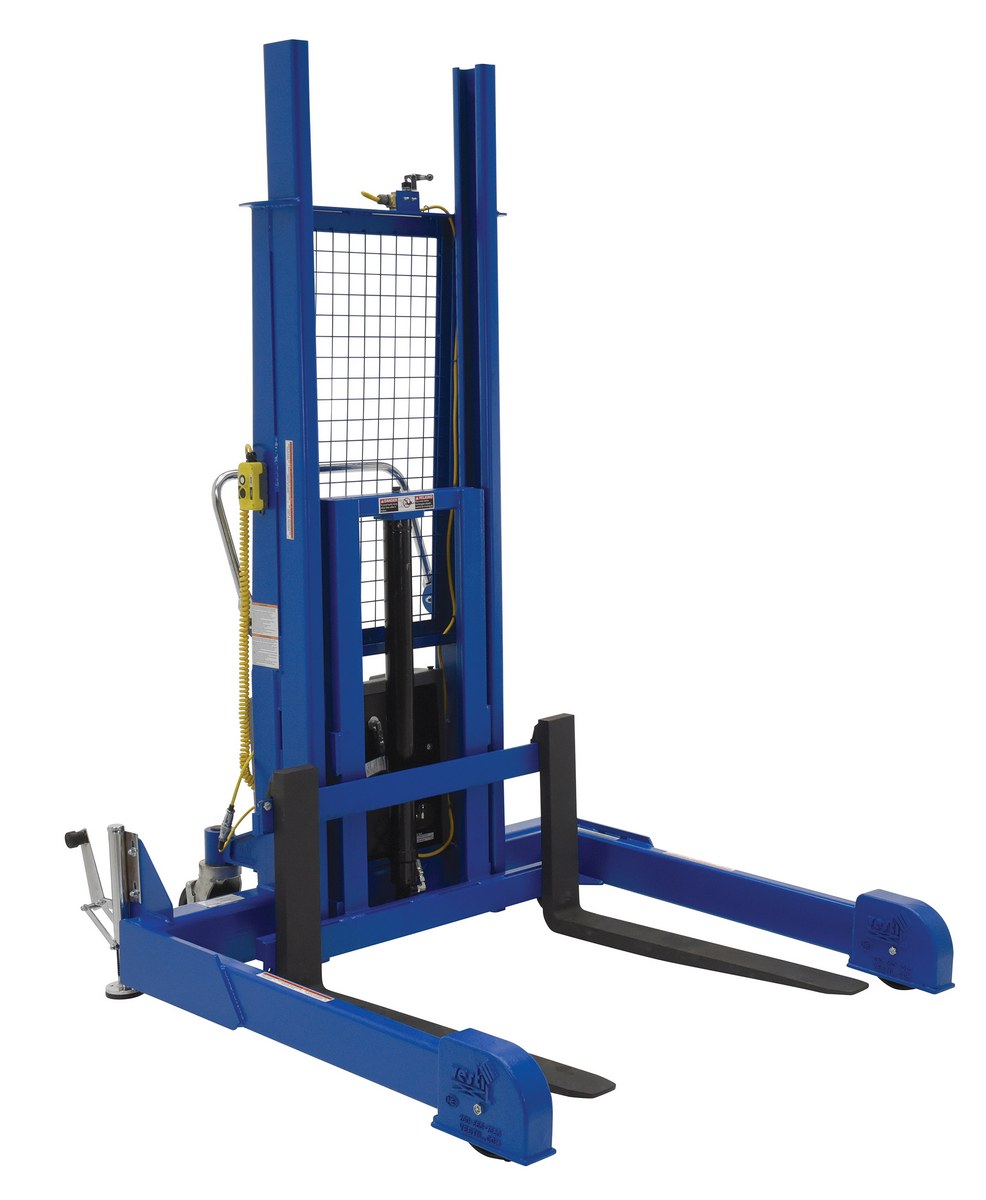

PMPS-60-DC		Steel Pallet Master/Server Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Operation: (1) 12V DC	1060

Options

HCP-2642		Optional Hand Control Pedestal
