Product Family Overview


Hand Pallet Trucks (Pramac)
SERIES: PMC-PM5

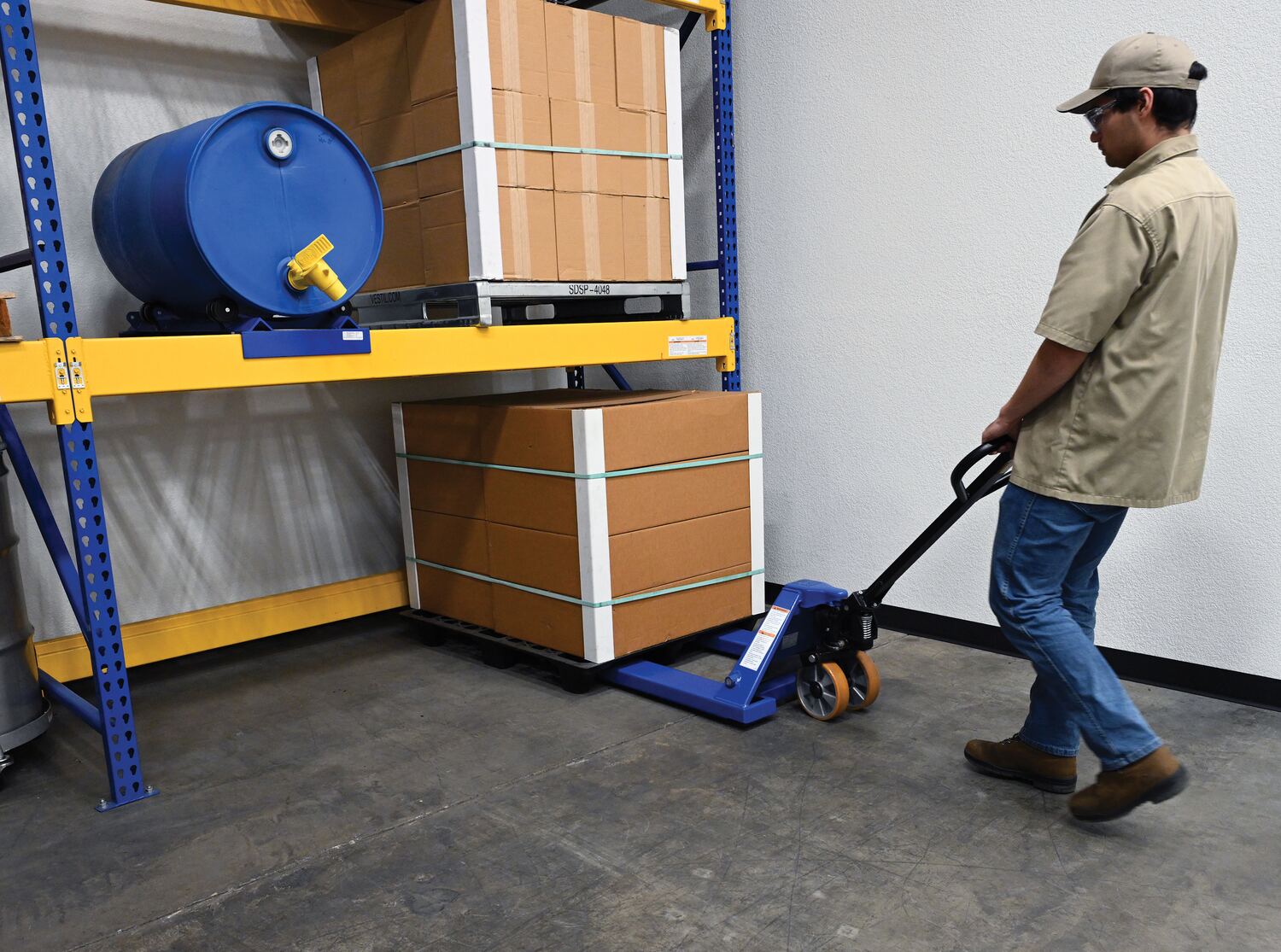

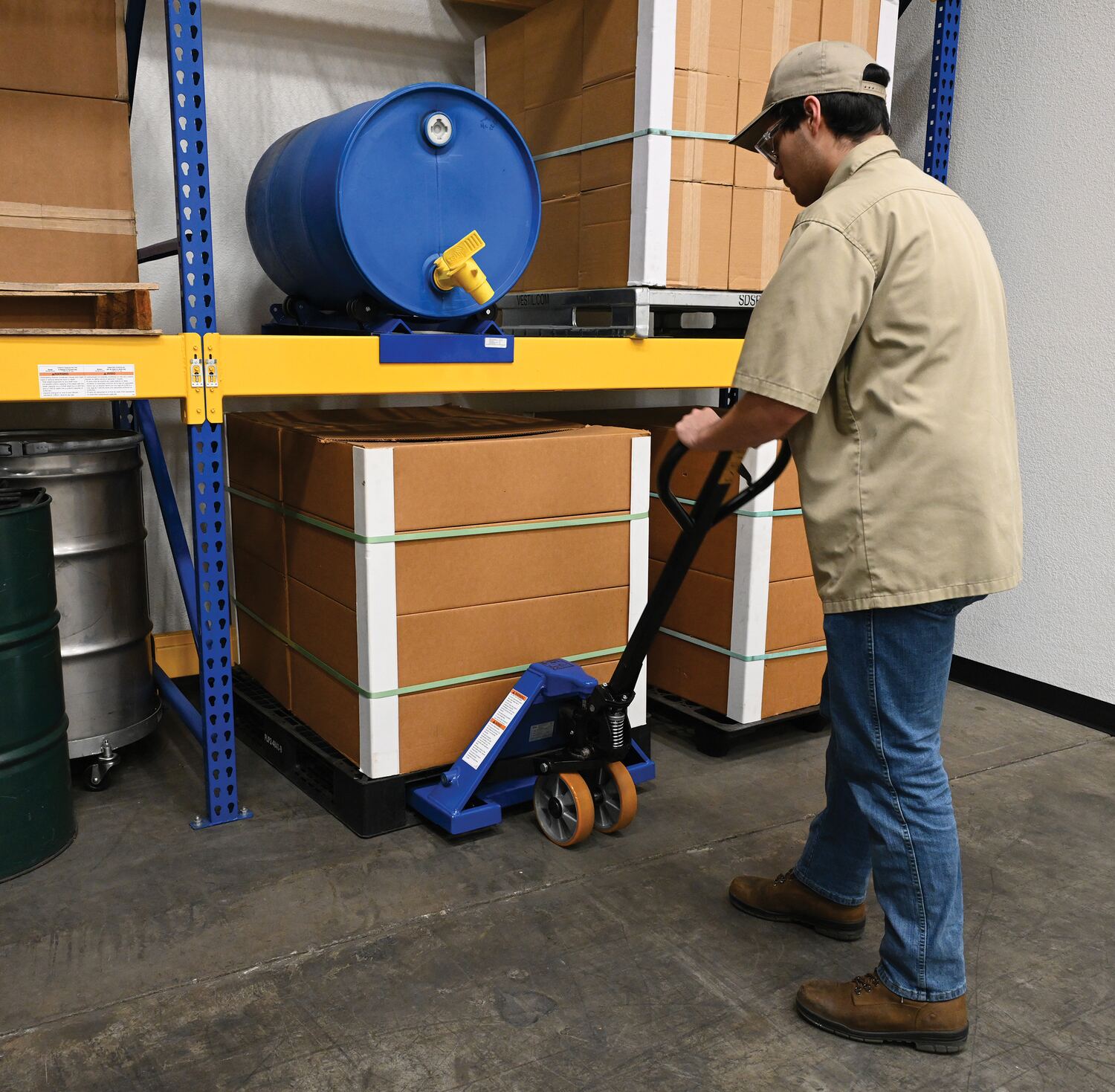

Easy to maneuver in tight spaces. Offers a combination of light frame and rollers with self-lubricating ball bearings. Handle is ergonomically designed for operator comfort, reducing lifting and rolling effort. Supplemental rollers allow an easier entrance and a quicker exit from the closed pallets. Features robotically welded frames for consistent strength. Easy to assemble handle.

  • Compact design allows maneuvering in small areas
  • Transports products smoothly on rollers
  • Strong construction promotes longevity
  • Load capacity for restriction for safety

Check Out Vestil's Other Pramac Products:


Electric Stackers

High Lift Trucks

Electric Pallet Truck

Pallet Truck with Digital Scale

Manual & Electric Stackers

Easy to maneuver in tight spaces. Offers a combination of light frame and rollers with self-lubricating ball bearings. Handle is ergonomically designed for operator comfort, reducing lifting and rolling effort. Supplemental rollers allow an easier entrance and a quicker exit from the closed pallets. Features robotically welded frames for consistent strength. Easy to assemble handle.

  • Compact design allows maneuvering in small areas
  • Transports products smoothly on rollers
  • Strong construction promotes longevity
  • Load capacity for restriction for safety

Check Out Vestil's Other Pramac Products:


Electric Stackers

High Lift Trucks

Electric Pallet Truck

Pallet Truck with Digital Scale

Manual & Electric Stackers

Additional Models In This Family

PMC-PM5-1632

model PMC-PM5-1632

PMC-PM5-2748-N

model PMC-PM5-2748-N

Comparison
- Pramac Hand Pallet Truck Our Full Featured Pallet Truck
# of pump to lift 4,315 lbs. (1,957 kgs): 17-18 pumps (pump piston size -30.00mm) 14-15 pumps (pump piston size -38.00mm)
Ease of Pump: Easy to pump up around 20-25 lbs pump up force. Harder to pump up around 35-40 pump up force
Number of pumps without load: 20 pumps 20 pumps
Start up - Pull force: 115-120 lbs. 100 - 110 lbs.
Sustained pull force: 75-100 lbs. 100-110 lbs
Push force: 80-90 lbs. 80-90 lbs.
Service range: 3-1/8"-7-5/8" 3" - 7-5/8"
Fork Size: 6" 7"
Net weight: 154 lbs. 176 lbs.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PMC-PM5-1632 PMC-PM5-16321 Year Limited WarrantySteel Pramac Mini Hand Pallet Truck Hand Pump 46 In. x 15-3/4 In. x 46 In. 5500 Lb. Capacity Blue/BlackUniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
149

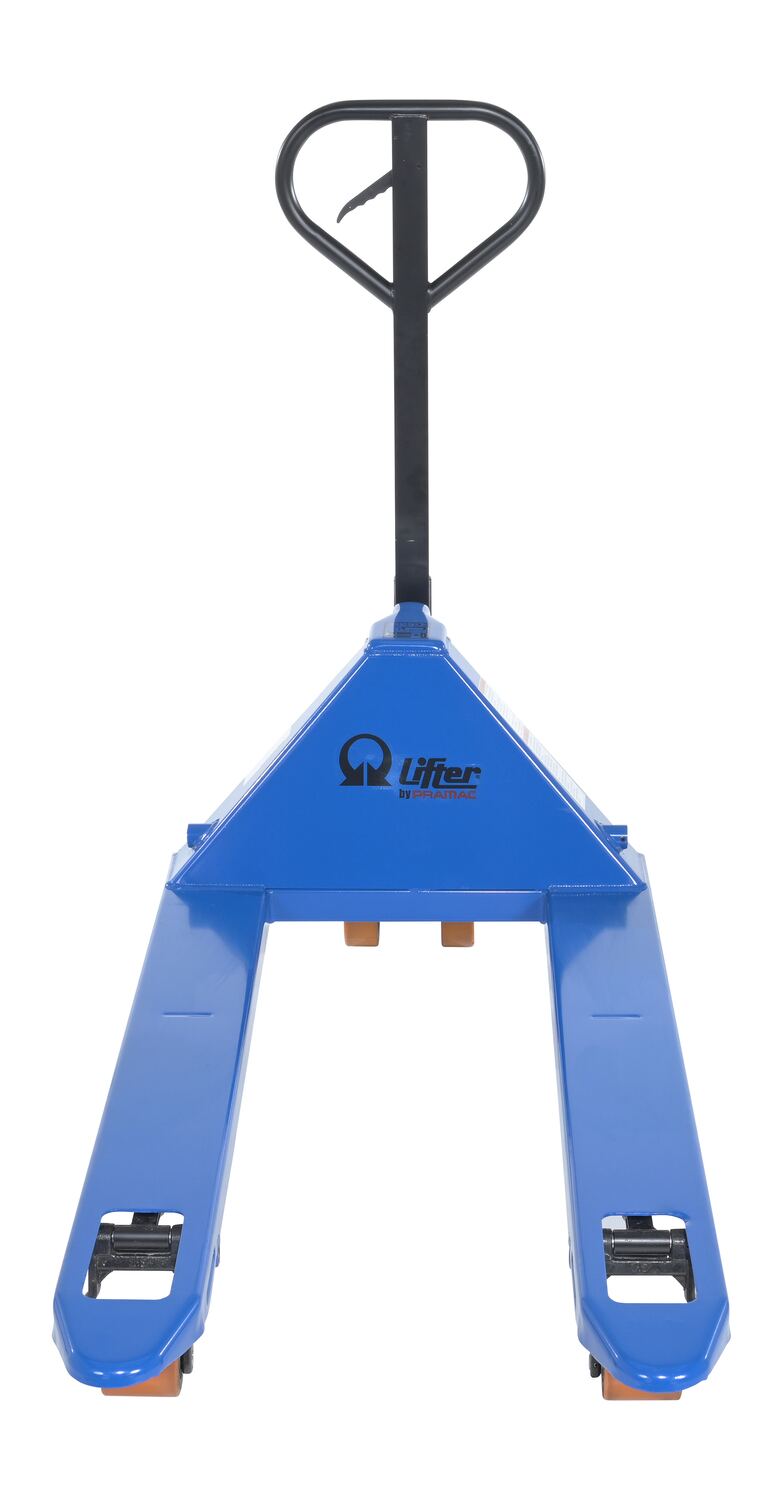

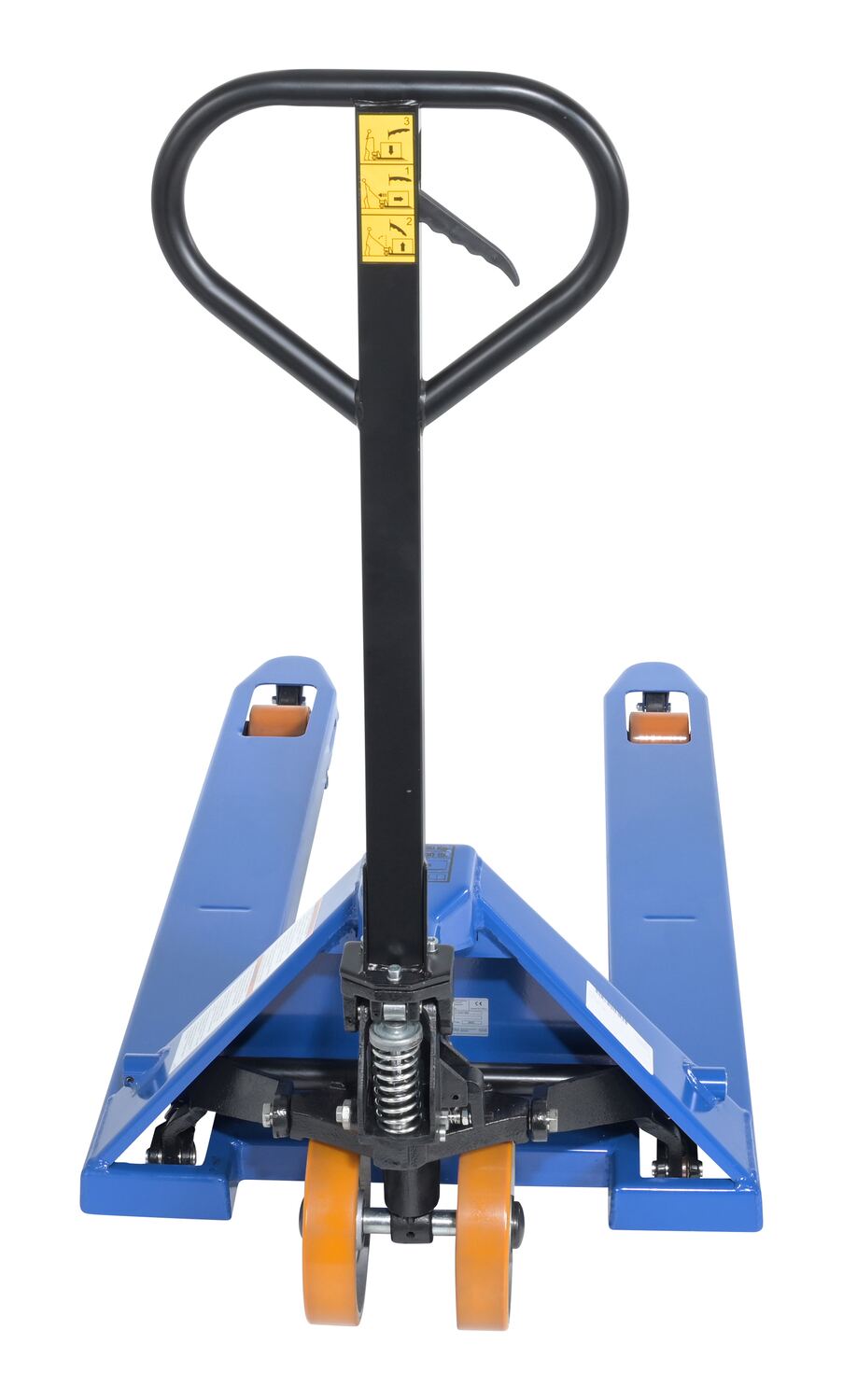

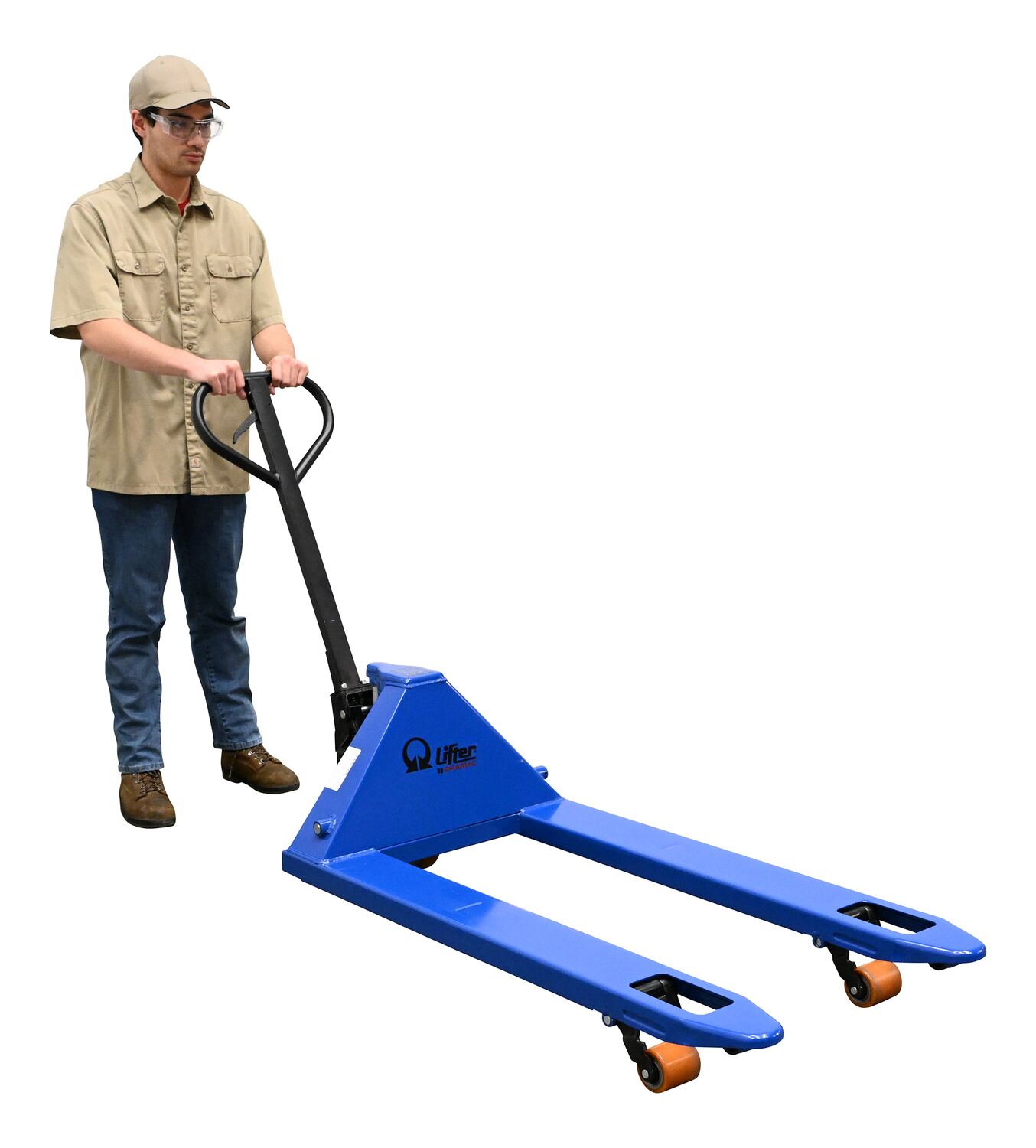

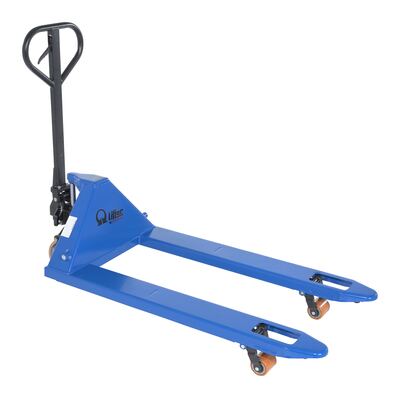

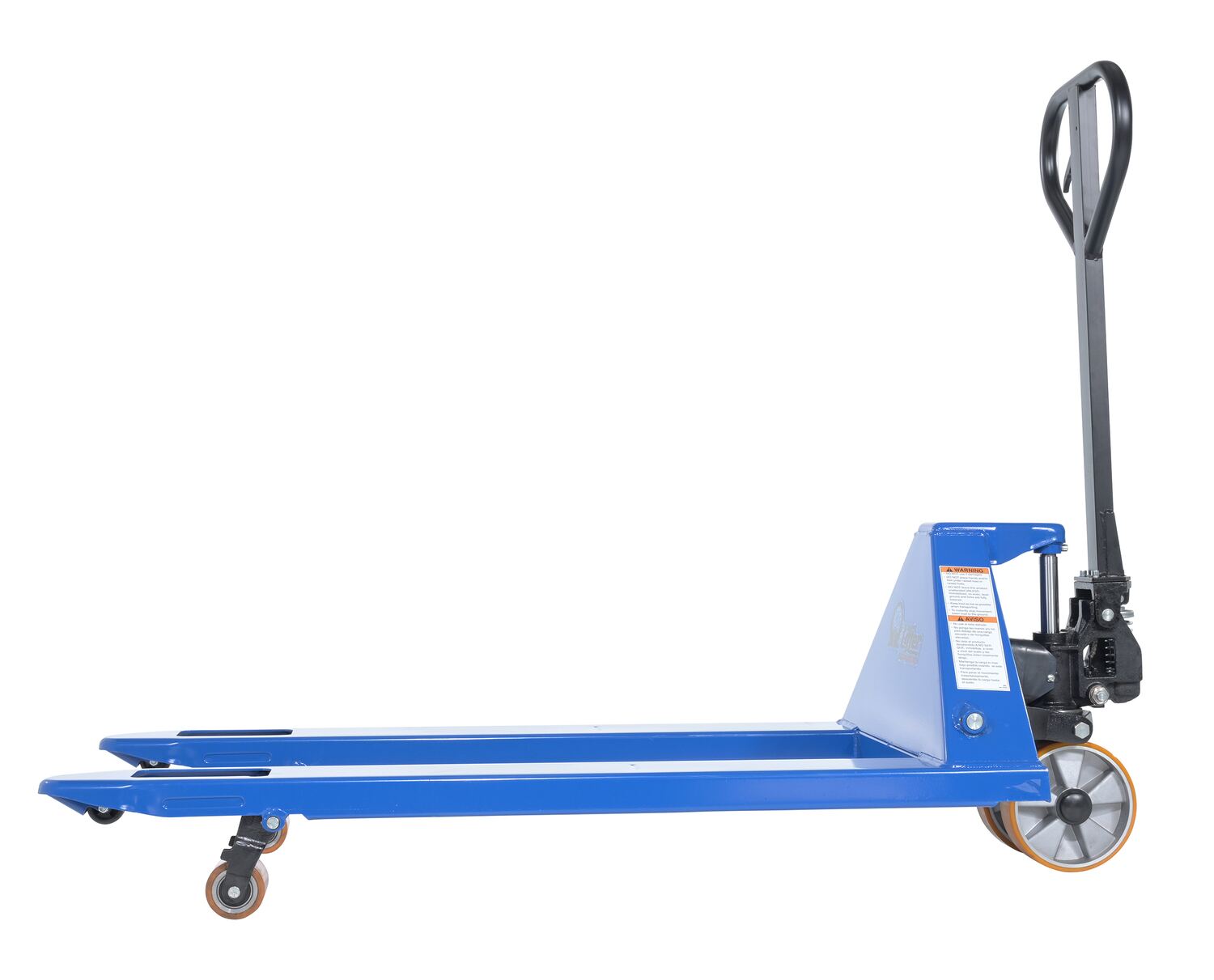

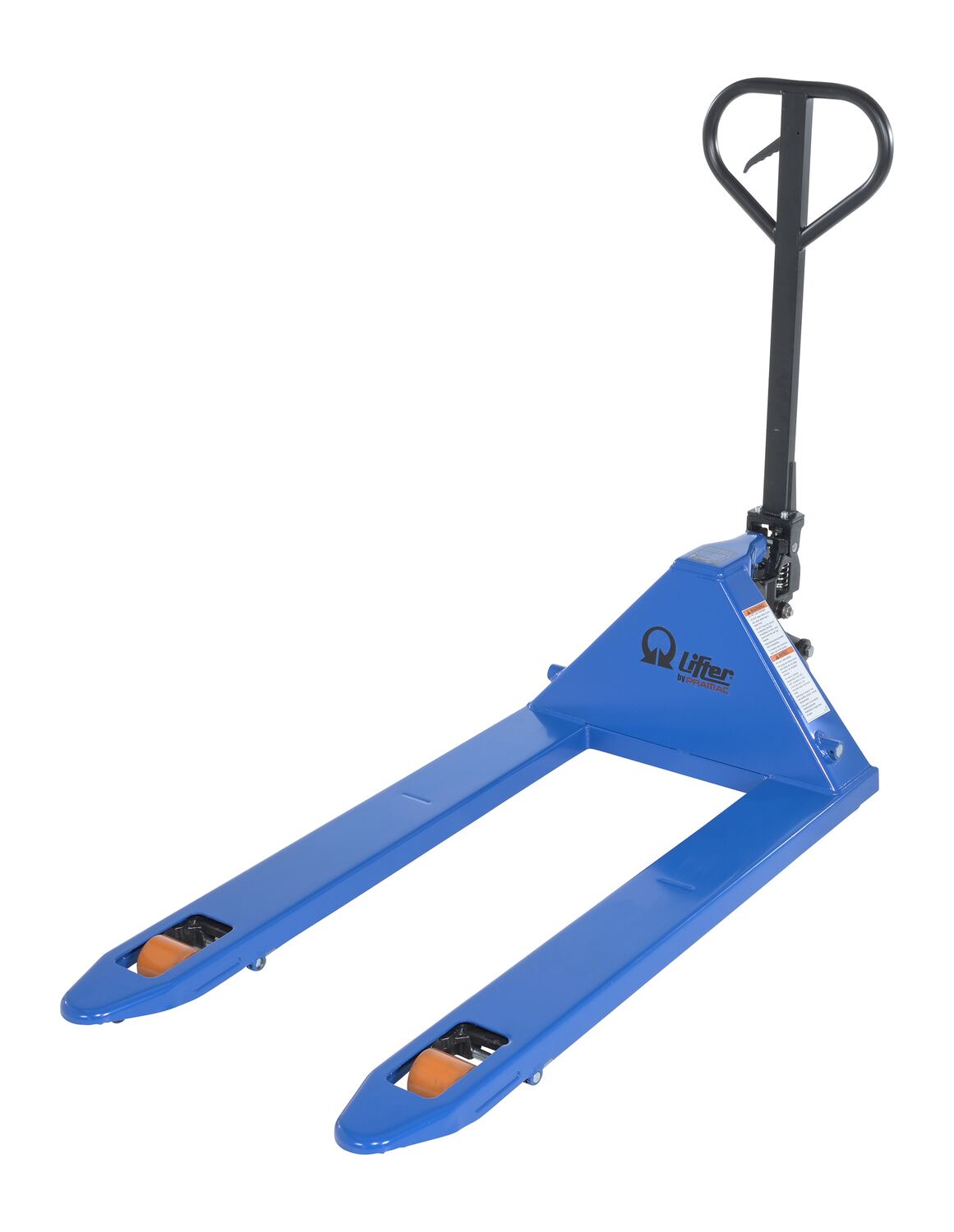

PMC-PM5-2748 PMC-PM5-27481 Year Limited WarrantySteel Pramac Mini Hand Pallet Truck with Polyurethane Wheel 72 In. x 28-11/16 In. x 56 In. 5500 Lb. Capacity Blue/BlackUniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
215

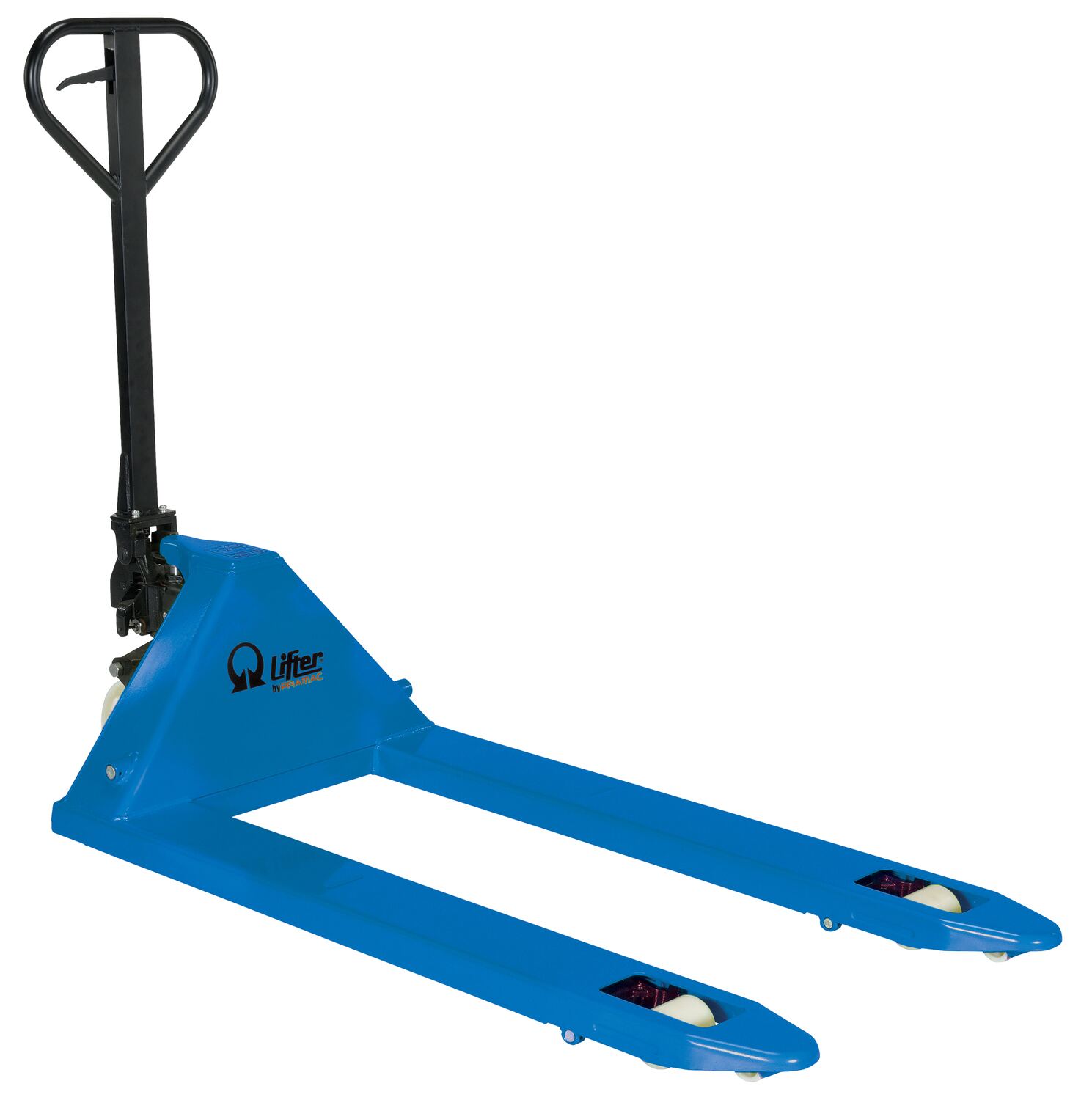

PMC-PM5-2748-N PMC-PM5-2748-N1 Year Limited WarrantySteel Pramac Mini Hand Pallet Truck with Nylon Wheel 62-3/16 In. x 26-3/4 In. x 48-1/2 In. 5500 Lb. Capacity Blue/BlackUniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
215

* *COLOR CHANGE** New Color: Blue (Old Color: Lime Green)

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PMC-PM5-1632
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8

PMC-PM5-2748
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8

PMC-PM5-2748-N
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8
Uniform Capacity (lb.): 5500
Lowered Height (in.): 3-3/8

Hand Pallet Trucks (Pramac) PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


PMC-PM5-1632

PMC-PM5-2748

PMC-PM5-2748-N

SDS Sheets

Hydraulic Oil SDS Sheet for: PMC-PM5-1632

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the turning radius of model PMC-PM5-1632?

A: The turning radius of PMC-PM5-1632 is 200 degrees.
