Product Family Overview


Hook Plates
SERIES: LM-HP*

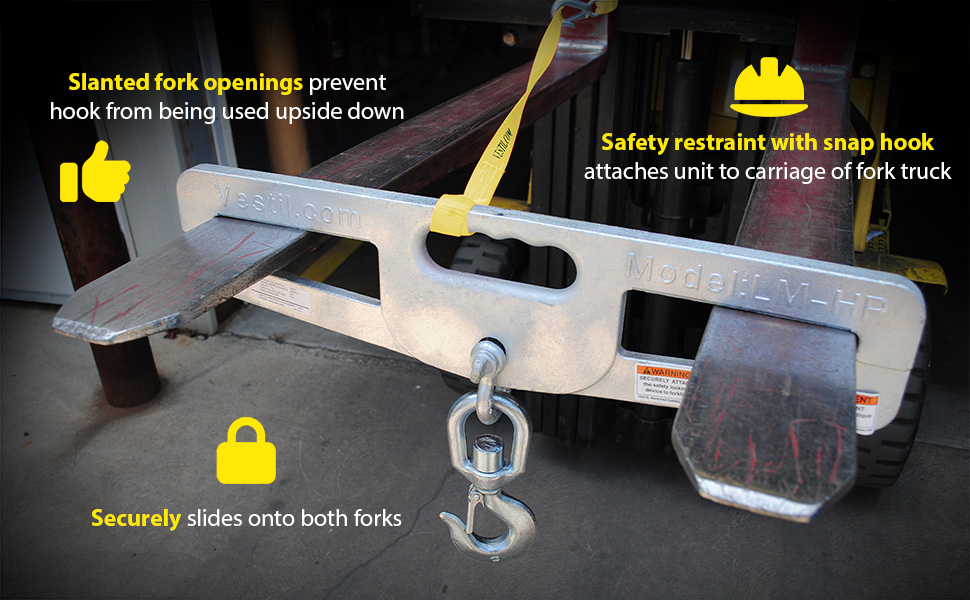

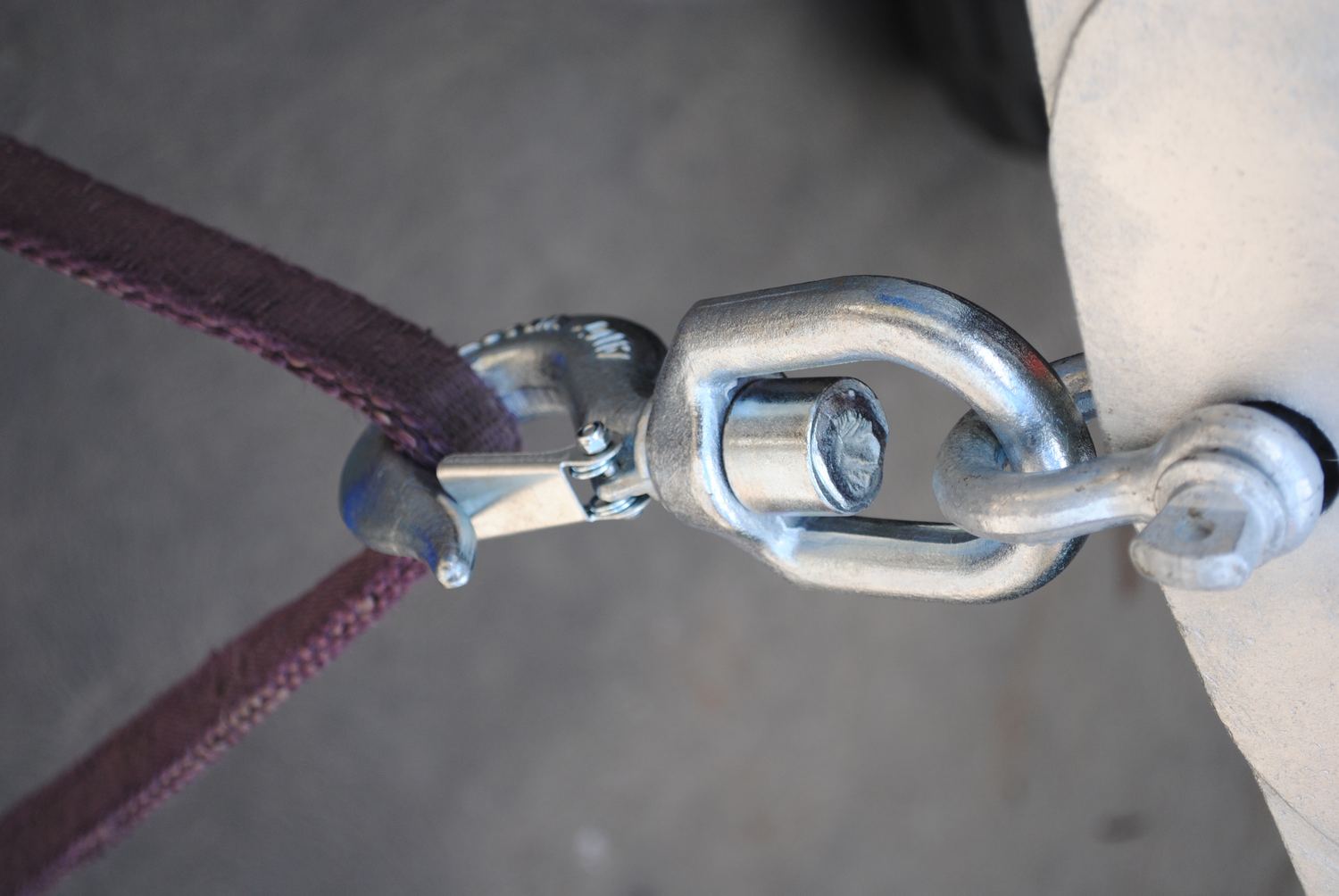

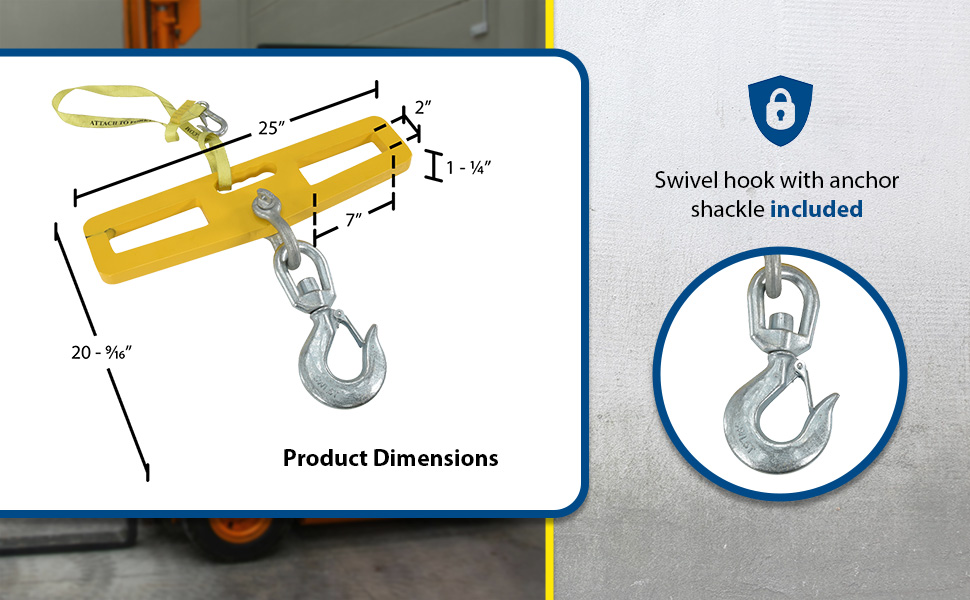

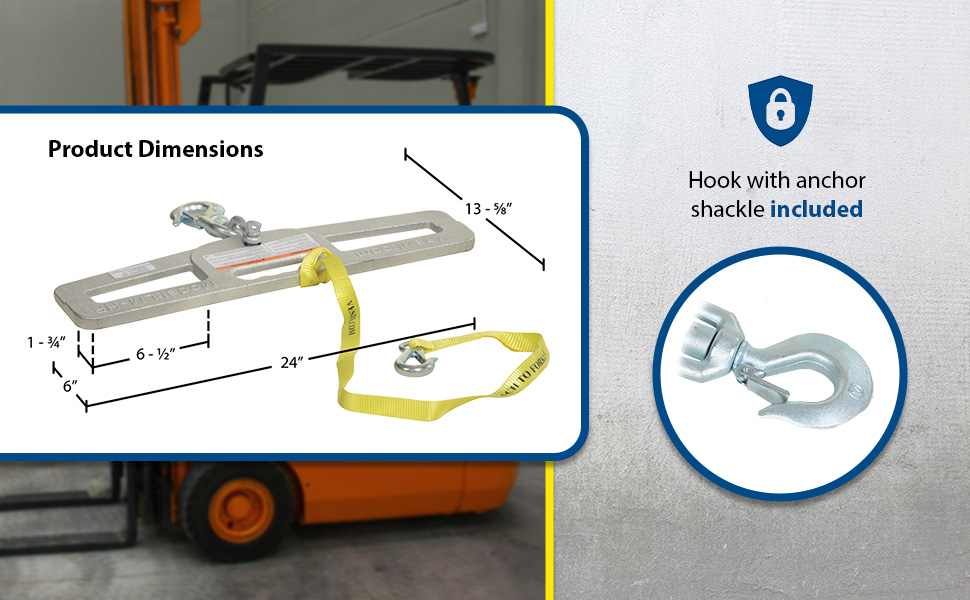

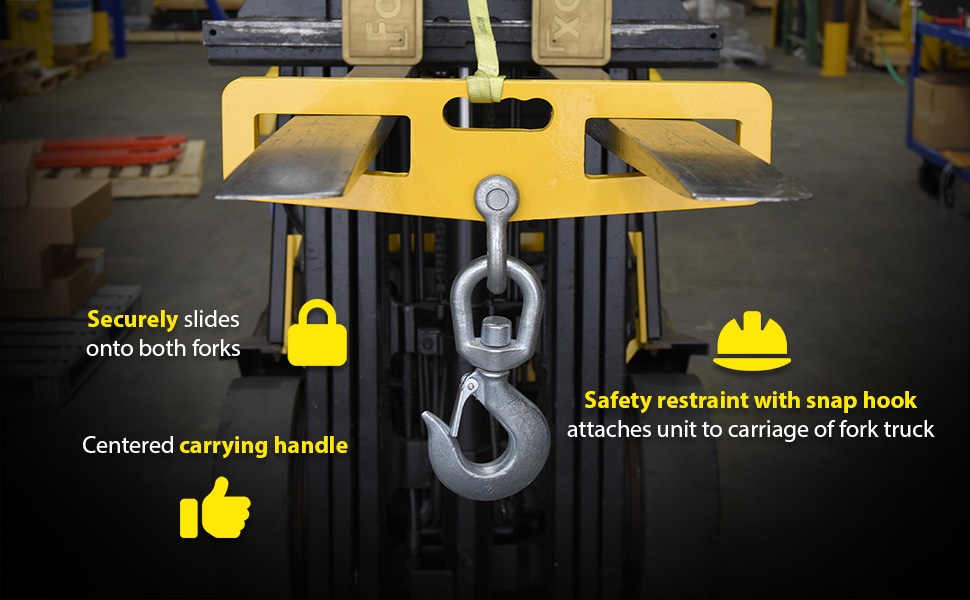

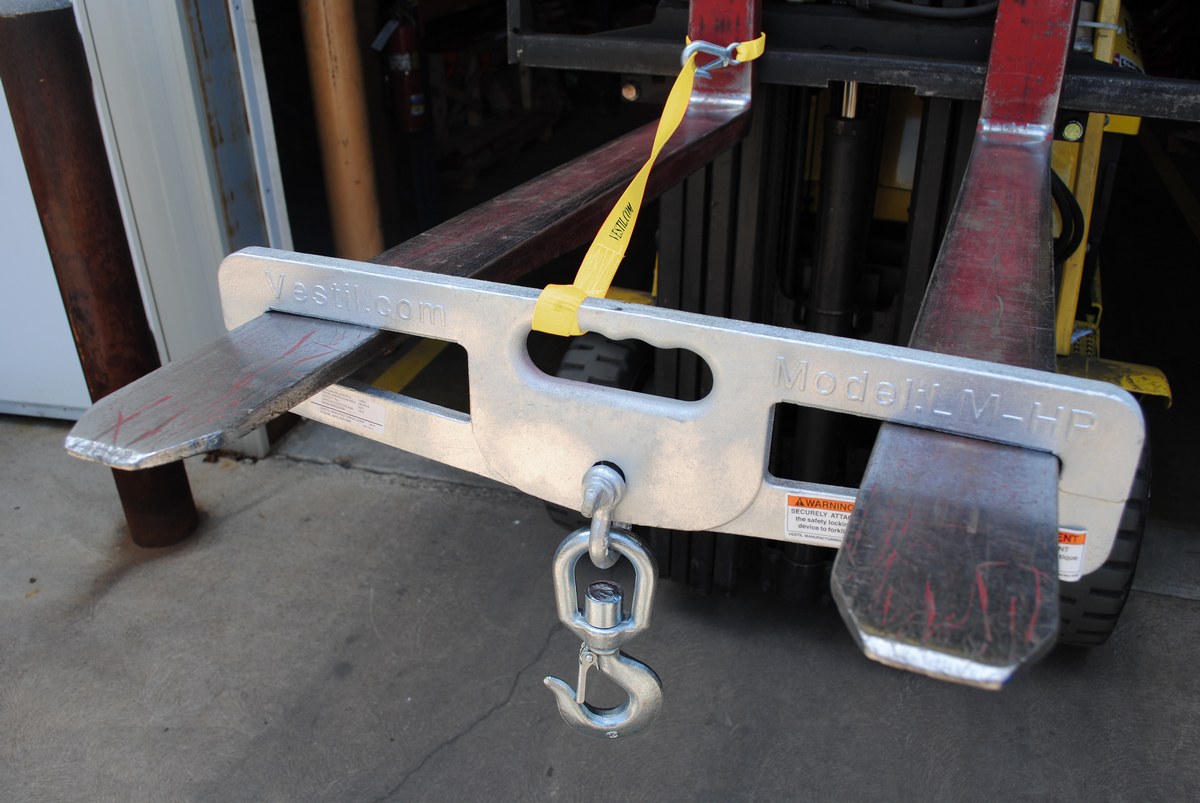

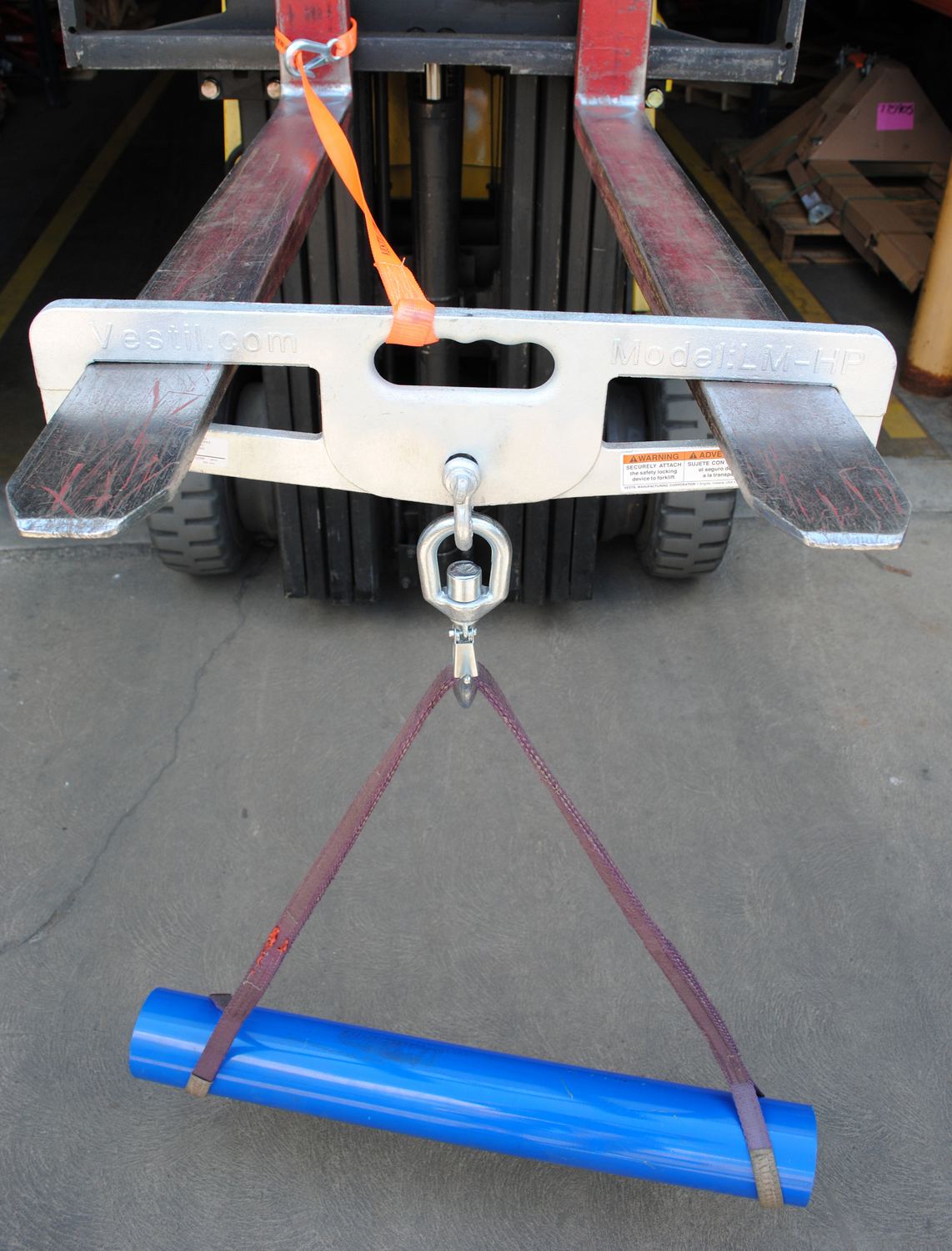

Hook Plates enable any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings measuring 6-1/2" wide by 1-3/4" high to prevent the hook plate from being used upside down. A hook with anchor shackle is included. A safety restraint secures the unit to the fork truck. Model LM-HP10-SL has fork openings measuring 7"x2" and includes a swivel lifting hook with a latch.

Hook Plates enable any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings measuring 6-1/2" wide by 1-3/4" high to prevent the hook plate from being used upside down. A hook with anchor shackle is included. A safety restraint secures the unit to the fork truck. Model LM-HP10-SL has fork openings measuring 7"x2" and includes a swivel lifting hook with a latch.

Additional Models In This Family

LM-HP4-R

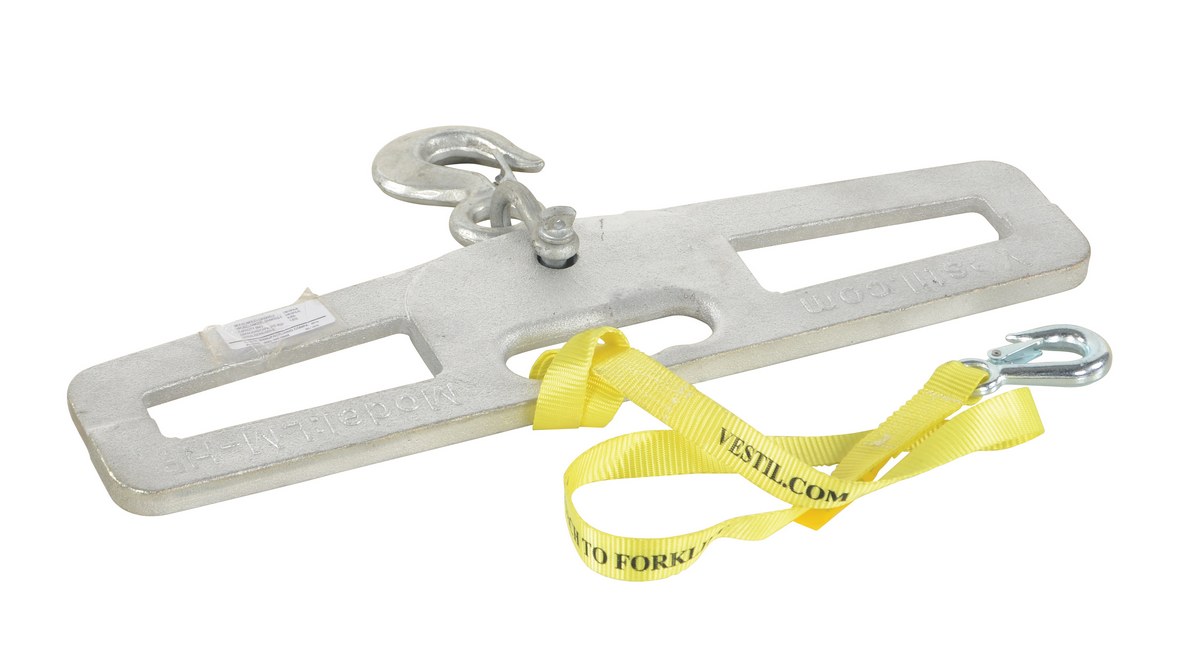

model LM-HP4-R

LM-HP6-S

model LM-HP6-S

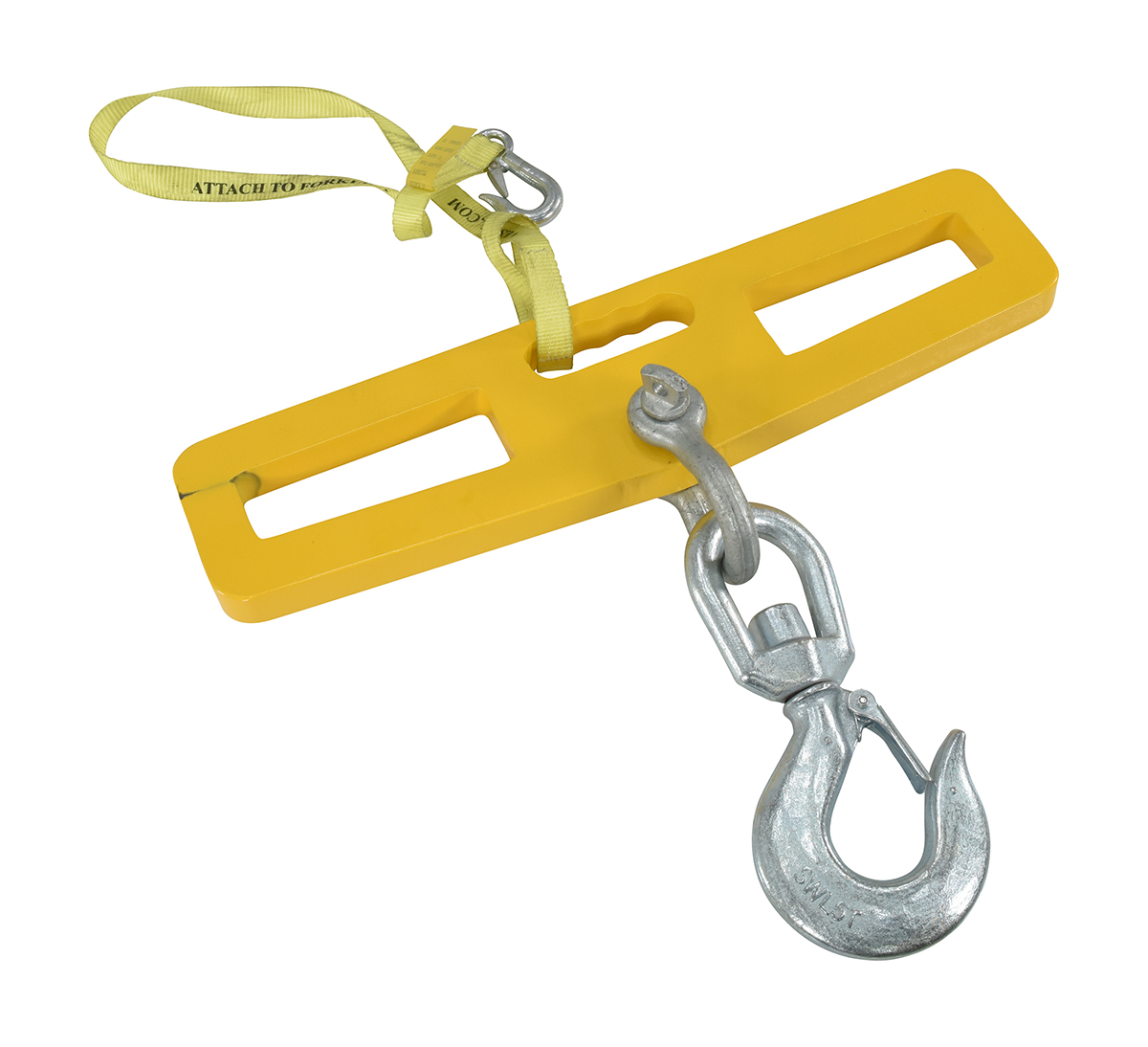

LM-HP10-SL

model LM-HP10-SL

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LM-HP10-SL LM-HP10-SL90 Days Limited WarrantySteel Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity YellowUniform Capacity (lb.): 10,000
Fork Pocket WxH (in.): 7x2
52
LM-HP4-R LM-HP4-R90 Days Limited WarrantySteel Fork Truck Hook Plate Rigid 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Height without Hook (in.): 6
23

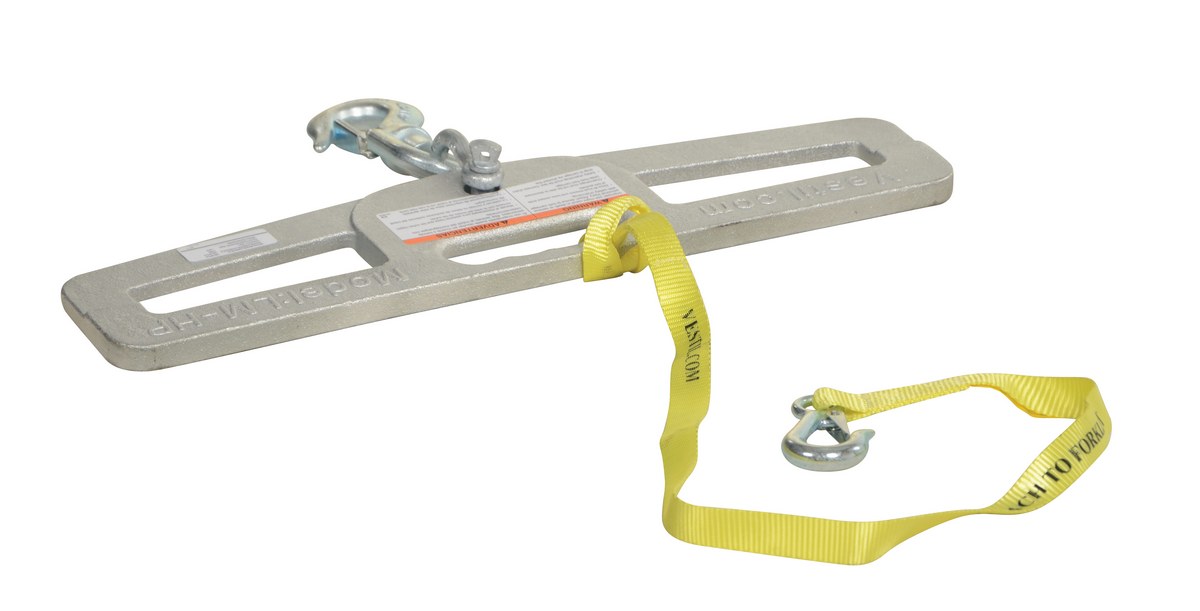

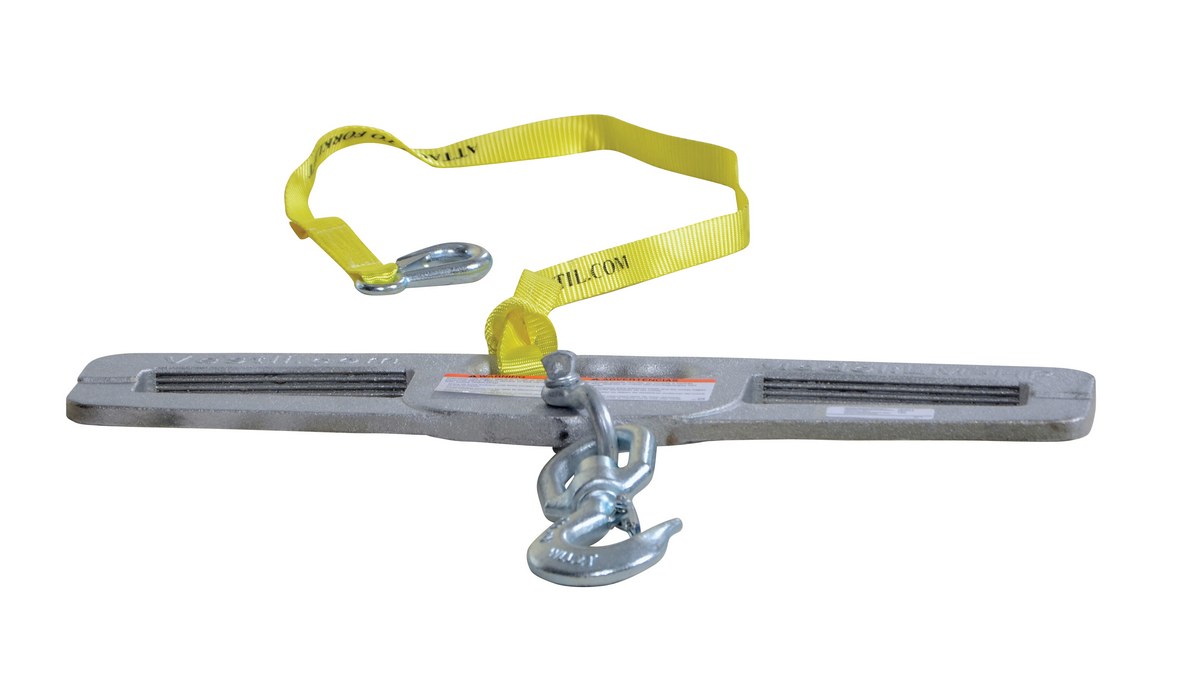

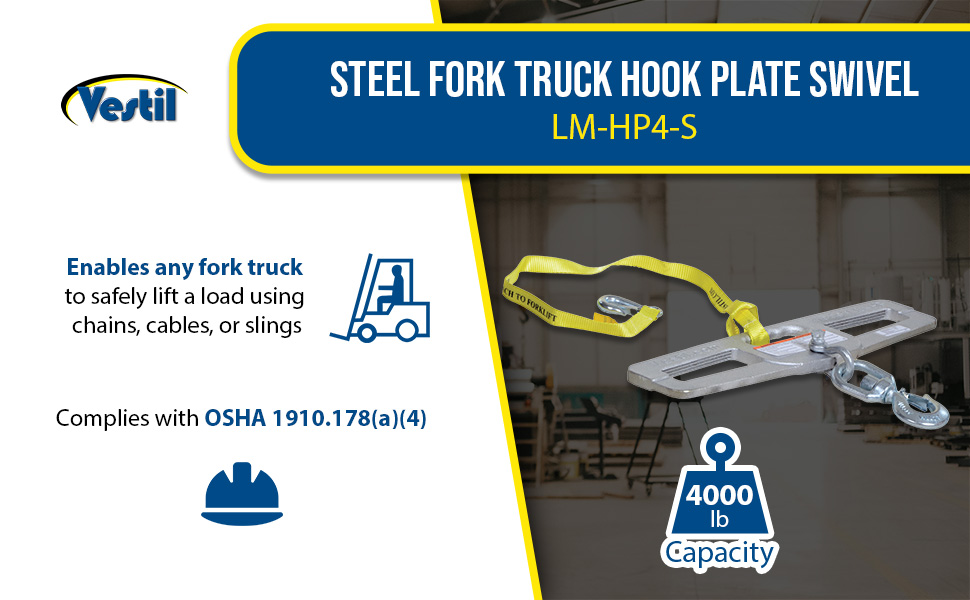

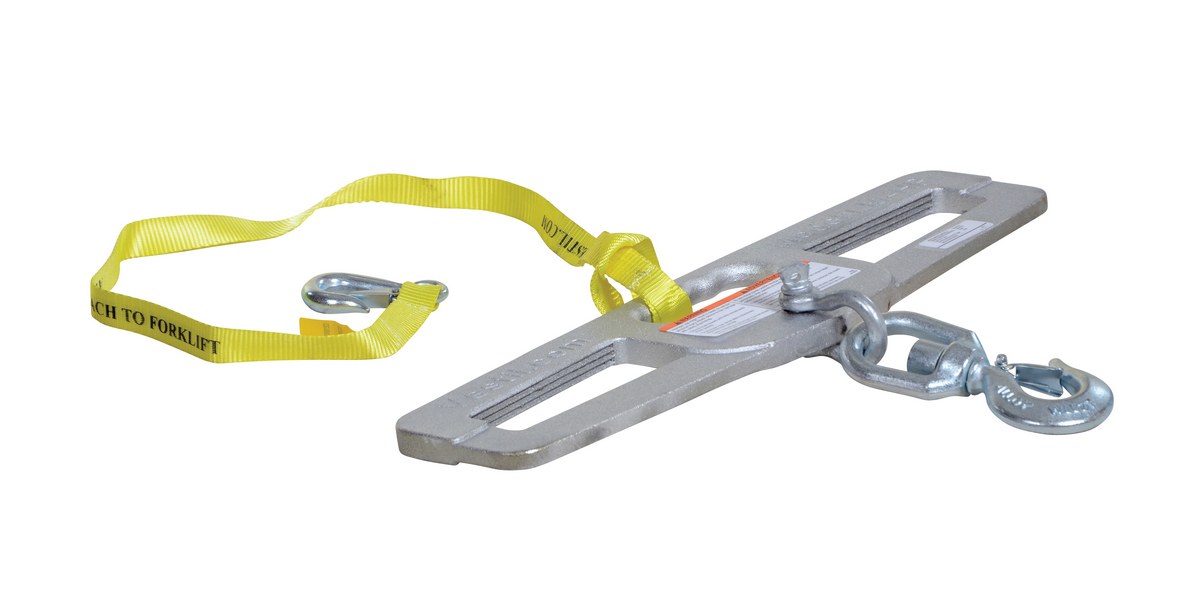

LM-HP4-S LM-HP4-S90 Days Limited WarrantySteel Fork Truck Hook Plate Swivel 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Height without Hook (in.): 6
22

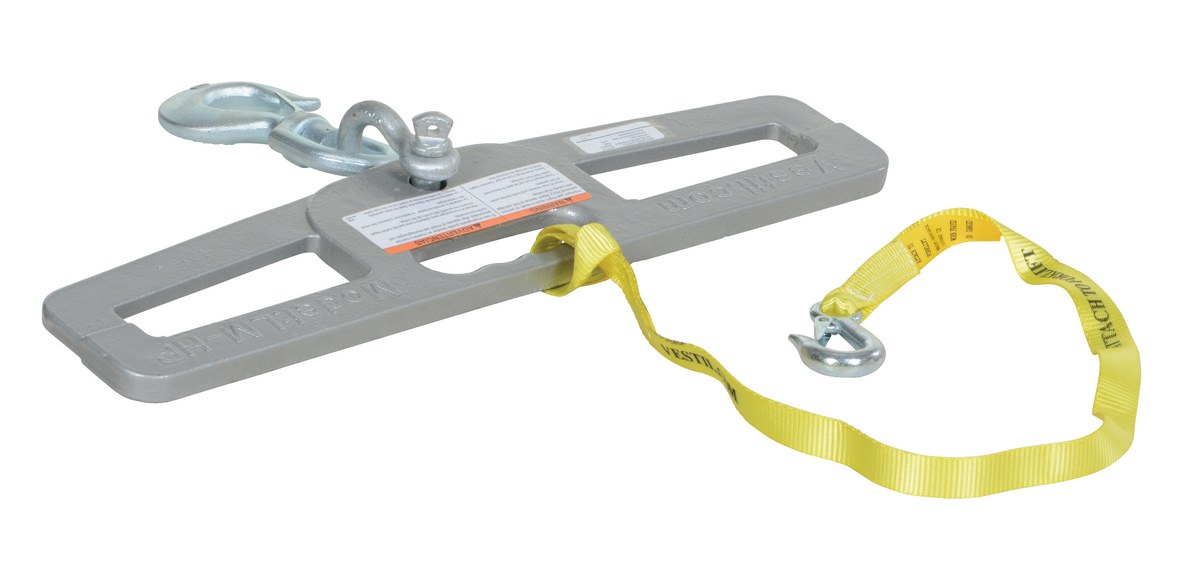

LM-HP6-S LM-HP6-S90 Days Limited WarrantySteel Fork Truck Hook Plate Swivel 6,000 Lb. Capacity SilverUniform Capacity (lb.): 6,000
Height without Hook (in.): 6
25

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

LM-HP10-SL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Fork Pocket WxH (in.): 7x2
Uniform Capacity (lb.): 10,000
Fork Pocket WxH (in.): 7x2

LM-HP4-R
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Height without Hook (in.): 6
Uniform Capacity (lb.): 4,000
Height without Hook (in.): 6

LM-HP4-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Height without Hook (in.): 6
Uniform Capacity (lb.): 4,000
Height without Hook (in.): 6

LM-HP6-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Height without Hook (in.): 6
Uniform Capacity (lb.): 6,000
Height without Hook (in.): 6

Hook Plates PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


LM-HP10-SL

LM-HP4-R

LM-HP4-S

LM-HP6-S

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the size of opening of the hook?

A: The hook opening measurers 7/8".


Q: What is the length of the strap?

A: The strap is 48" long.
