Hand Chain Hoists

Print Friendly

Model Chart
PDF's
Image Gallery
FEATURED Hand Chain Hoists

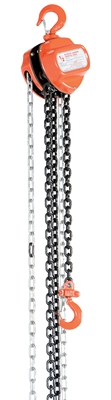

model: HCH-1-20

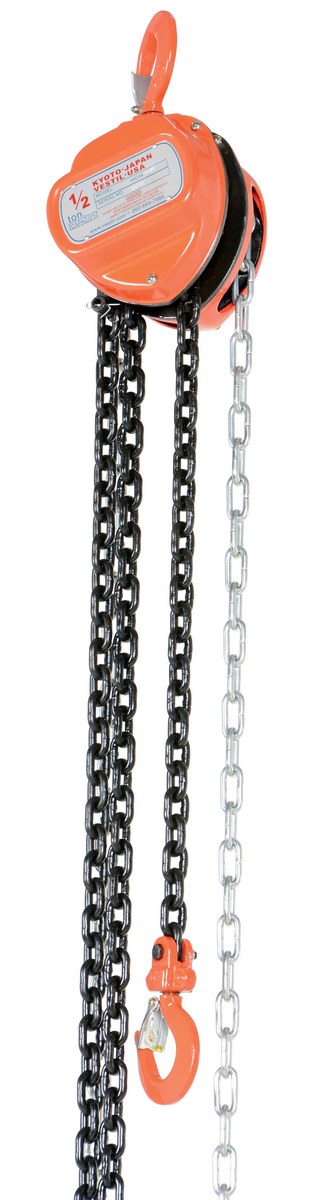

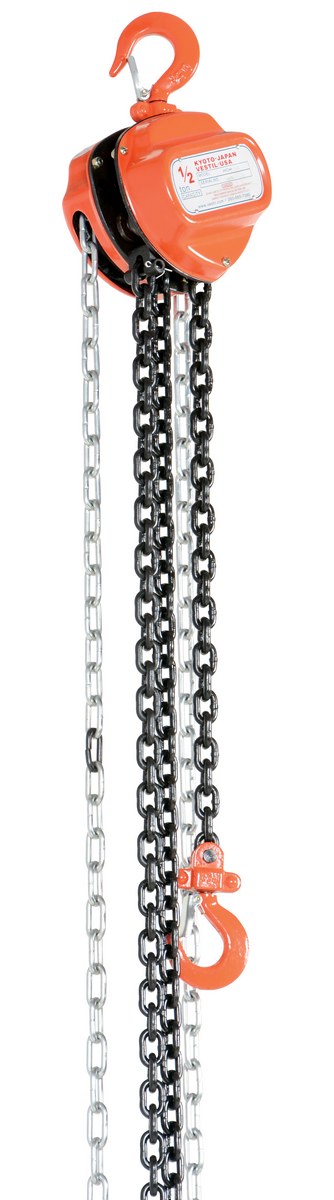

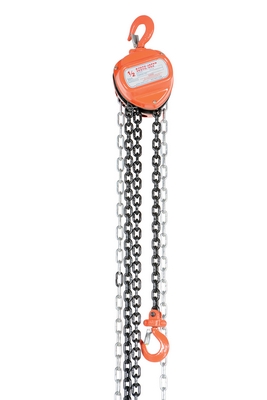

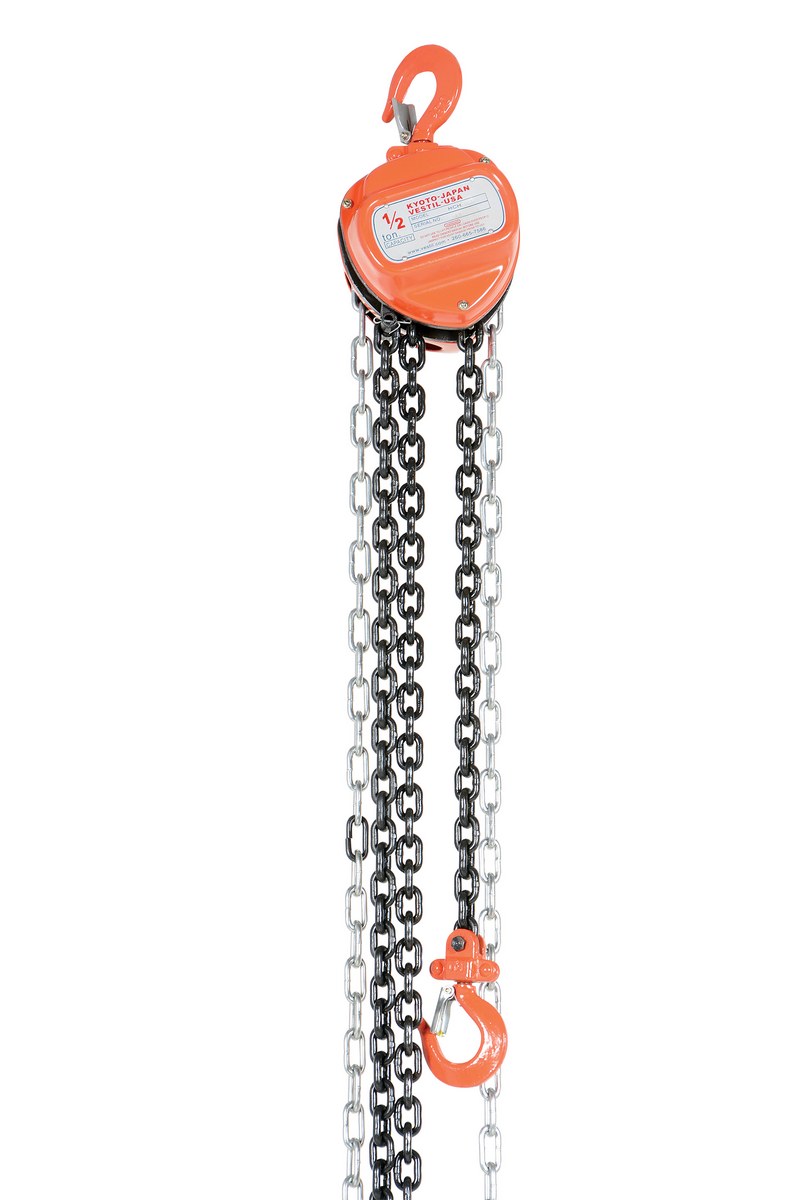

HCH-1-20_A.jpg HCH-1-20_B.jpg HCH-1-20_C.jpg HCH-1-20_D.jpg More Images +
Hand Chain Hoists
SERIES: HCH   18Products
Quick Ship

Manual Hand Chain Hoists for Industrial Overhead Lifting

Manual hand chain hoists provide portable, dependable lifting for warehouses, maintenance departments, fabrication shops, construction sites, repair areas, and industrial workstations. Their compact design and low headroom make them useful in confined spaces where powered lifting equipment may not be practical or available.

Controlled Manual Lifting

Hand chain operation gives users steady load control for vertical lifting applications. Enclosed double ratchet pawls with a self-adjusting disc brake support reliable holding power, while hardened two-stage gears help provide smooth operation during demanding material handling tasks.

Durable Industrial Construction

High quality steel components, grade 80 black load chain tempered to ISO 3077, and forged steel upper and lower hooks with safety latches provide strength for rugged use. Each hoist is designed with a safety factor of four times rated capacity and individually tested at 150 percent of rated capacity.

Capacities and Lift Lengths

This family includes capacities from 1,000 lb. to 10,000 lb. with standard lift heights of 10 feet, 15 feet, and 20 feet. Headroom varies by capacity, helping users select the right hoist for available clearance. These hand chain hoists meet ANSI B30.16-2003 requirements and offer a practical solution for reliable manual overhead lifting.

Hand Chain Hoists

model: HCH-1-20

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

HCH-1-10
HCH-1-15
HCH-1-20

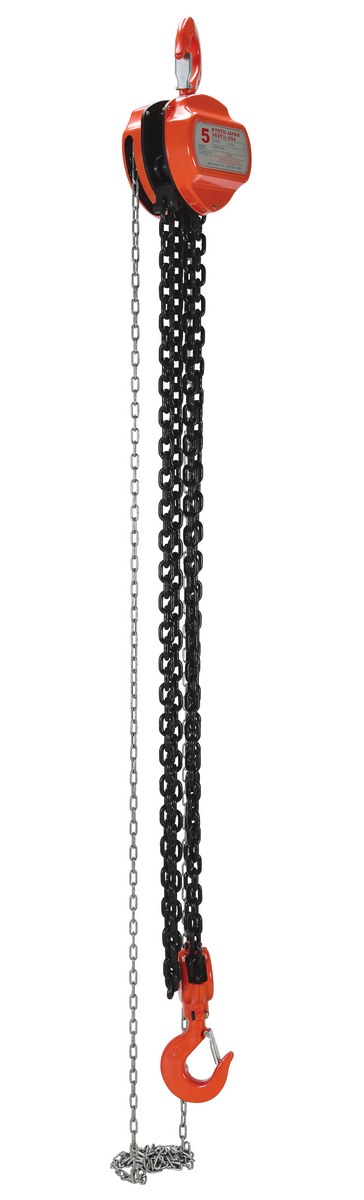

HCH-10-10
HCH-10-15
HCH-10-20
HCH-2-10
HCH-2-15
HCH-2-20

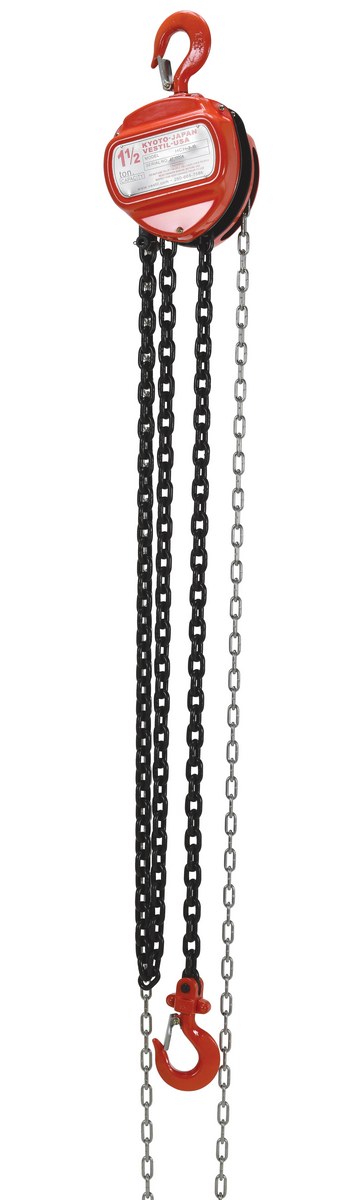

HCH-3-10

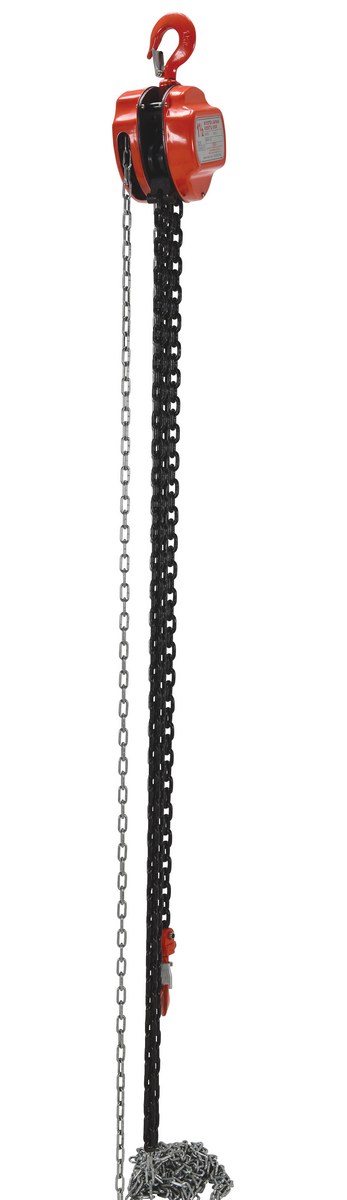

HCH-3-15
HCH-3-20
HCH-4-10
HCH-4-15

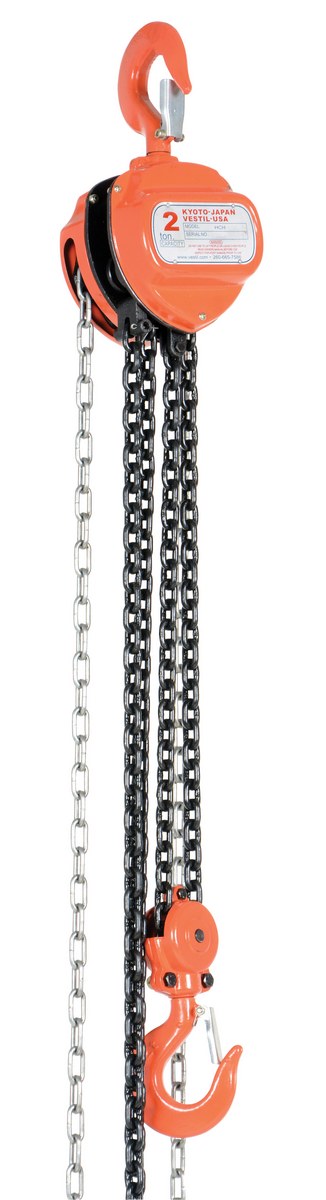

HCH-4-20
HCH-6-10
HCH-6-15
HCH-6-20
PDFs will open in a new window when clicked.

Owner's Manuals

1
HCH, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

1
HCH-4-10
Open Drawing

Testing Certificates

18
HCH-1-10
Open Certificate
HCH-1-15
Open Certificate
HCH-1-20
Open Certificate
HCH-10-10
Open Certificate
HCH-10-15
Open Certificate
HCH-10-20
Open Certificate
HCH-2-10
Open Certificate
HCH-2-15
Open Certificate
HCH-2-20
Open Certificate
HCH-3-10
Open Certificate
HCH-3-15
Open Certificate
HCH-3-20
Open Certificate
HCH-4-10
Open Certificate
HCH-4-15
Open Certificate
HCH-4-20
Open Certificate
HCH-6-10
Open Certificate
HCH-6-15
Open Certificate
HCH-6-20
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

18
HCH-1-10
HCH
Open Label PDF
HCH-1-15
HCH
Open Label PDF
HCH-1-20
HCH
Open Label PDF
HCH-10-10
HCH
Open Label PDF
HCH-10-15
HCH
Open Label PDF
HCH-10-20
HCH
Open Label PDF
HCH-2-10
HCH
Open Label PDF
HCH-2-15
HCH
Open Label PDF
HCH-2-20
HCH
Open Label PDF
HCH-3-10
HCH
Open Label PDF
HCH-3-15
HCH
Open Label PDF
HCH-3-20
HCH
Open Label PDF
HCH-4-10
HCH
Open Label PDF
HCH-4-15
HCH
Open Label PDF
HCH-4-20
HCH
Open Label PDF
HCH-6-10
HCH
Open Label PDF
HCH-6-15
HCH
Open Label PDF
HCH-6-20
HCH
Open Label PDF

Other PDFs

0
No other PDFs for this product family.

Enhanced Product Content

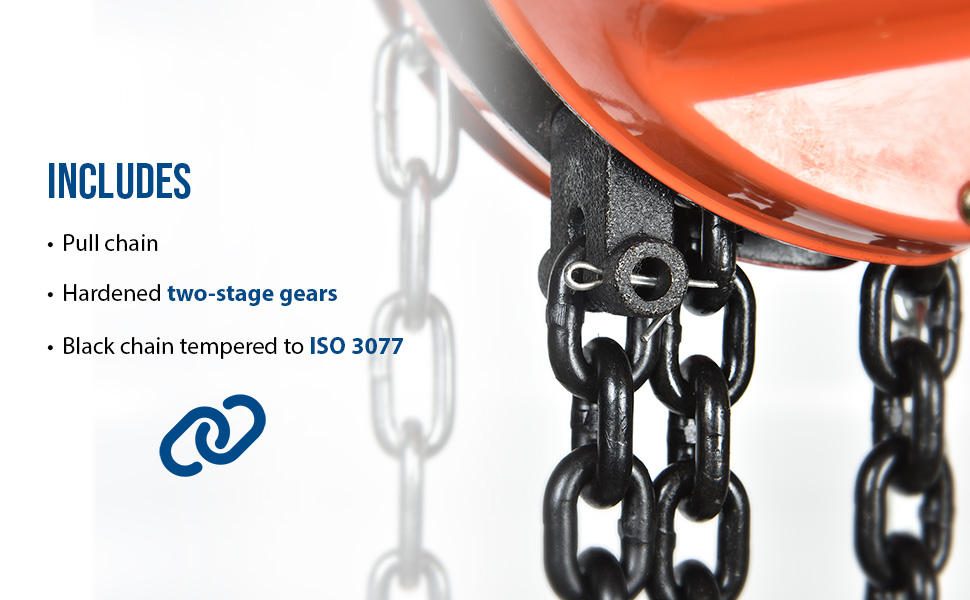

HCH-2-15

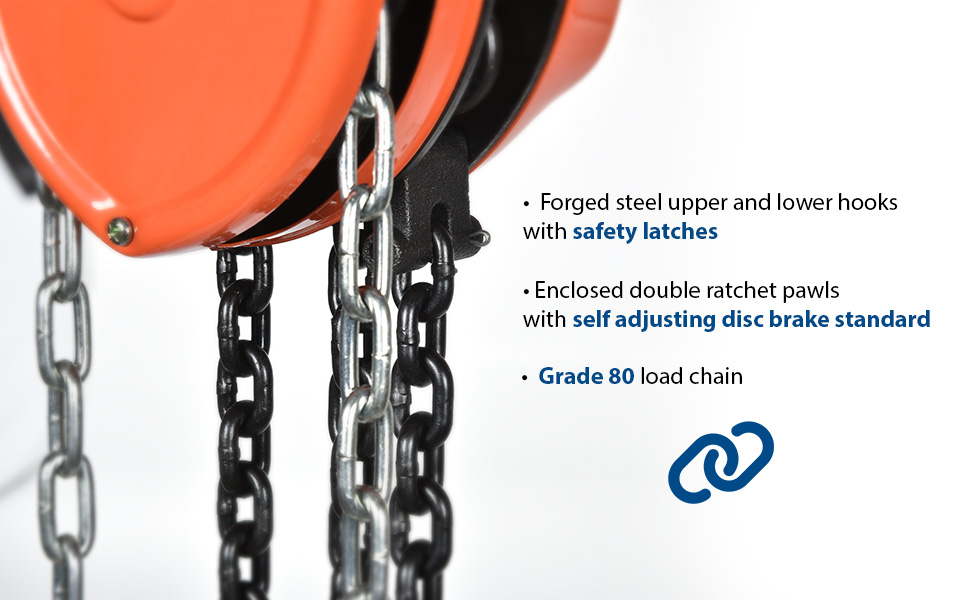

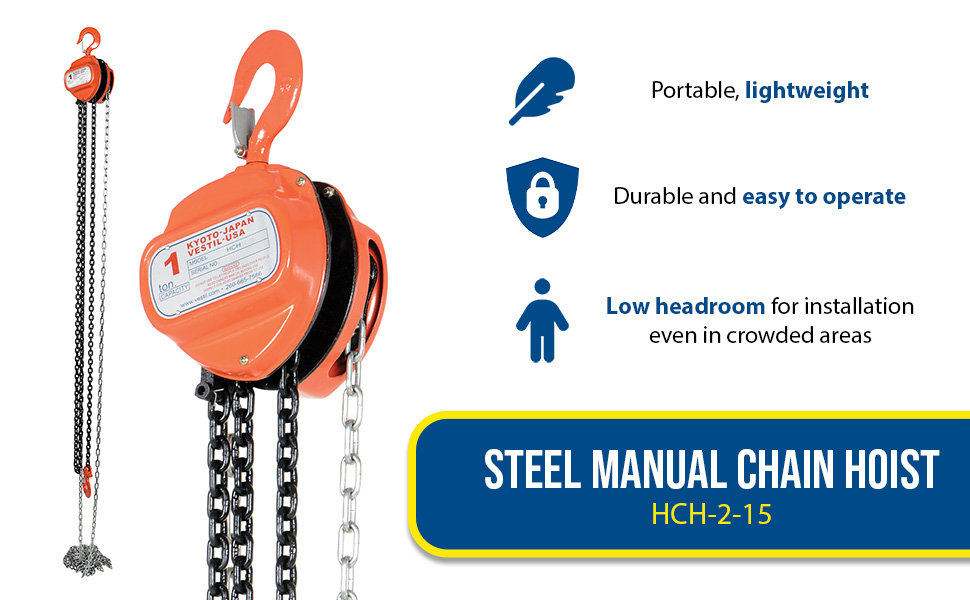

HCH-2-15 HCH-2-15 A+ Content - 4
HCH-2-15 HCH-2-15 A+ Content - 3
HCH-2-15 HCH-2-15 A+ Content - 2
HCH-2-15 HCH-2-15 A+ Content - 1

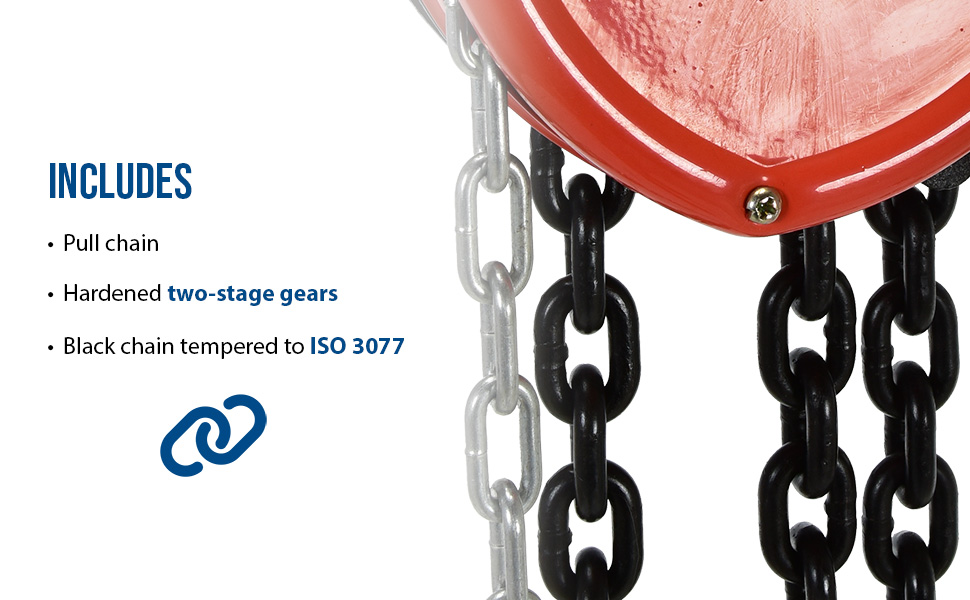

HCH-3-10

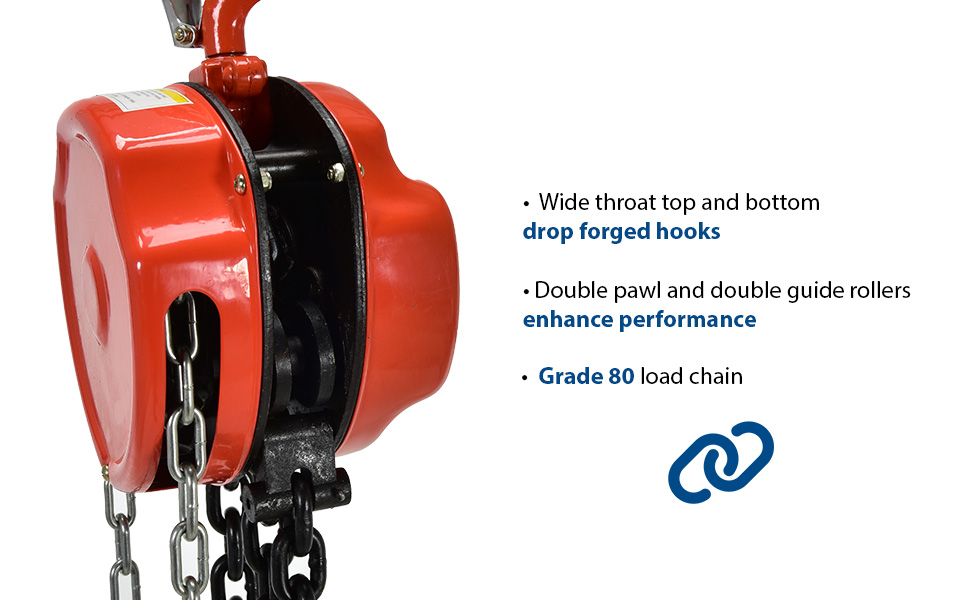

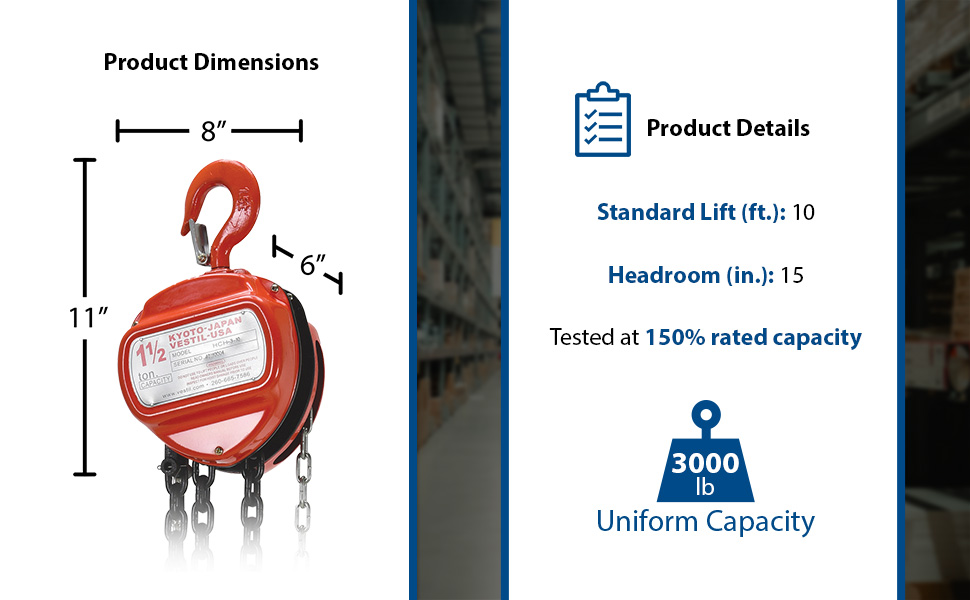

HCH-3-10 HCH-3-10 A+ Content - 3
HCH-3-10 HCH-3-10 A+ Content - 2
HCH-3-10 HCH-3-10 A+ Content - 4
HCH-3-10 HCH-3-10 A+ Content - 1

Related or Similar Products:

More From Hoists & Trollies





Hand Chain Hoists




Manual Hand Chain Hoists for Industrial Overhead Lifting

Manual hand chain hoists provide portable, dependable lifting for warehouses, maintenance departments, fabrication shops, construction sites, repair areas, and industrial workstations. Their compact design and low headroom make them useful in confined spaces where powered lifting equipment may not be practical or available.

Controlled Manual Lifting

Hand chain operation gives users steady load control for vertical lifting applications. Enclosed double ratchet pawls with a self-adjusting disc brake support reliable holding power, while hardened two-stage gears help provide smooth operation during demanding material handling tasks.

Durable Industrial Construction

High quality steel components, grade 80 black load chain tempered to ISO 3077, and forged steel upper and lower hooks with safety latches provide strength for rugged use. Each hoist is designed with a safety factor of four times rated capacity and individually tested at 150 percent of rated capacity.

Capacities and Lift Lengths

This family includes capacities from 1,000 lb. to 10,000 lb. with standard lift heights of 10 feet, 15 feet, and 20 feet. Headroom varies by capacity, helping users select the right hoist for available clearance. These hand chain hoists meet ANSI B30.16-2003 requirements and offer a practical solution for reliable manual overhead lifting.


Model # Description Attributes Net Wt.
(lbs)

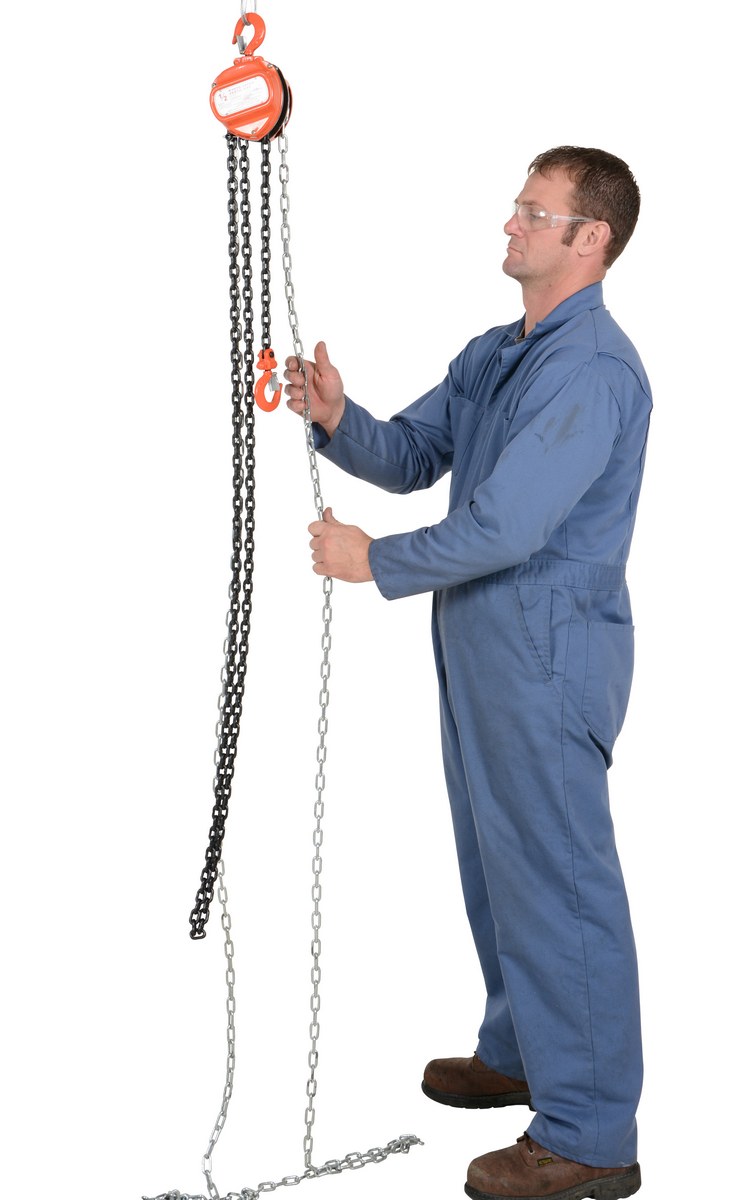

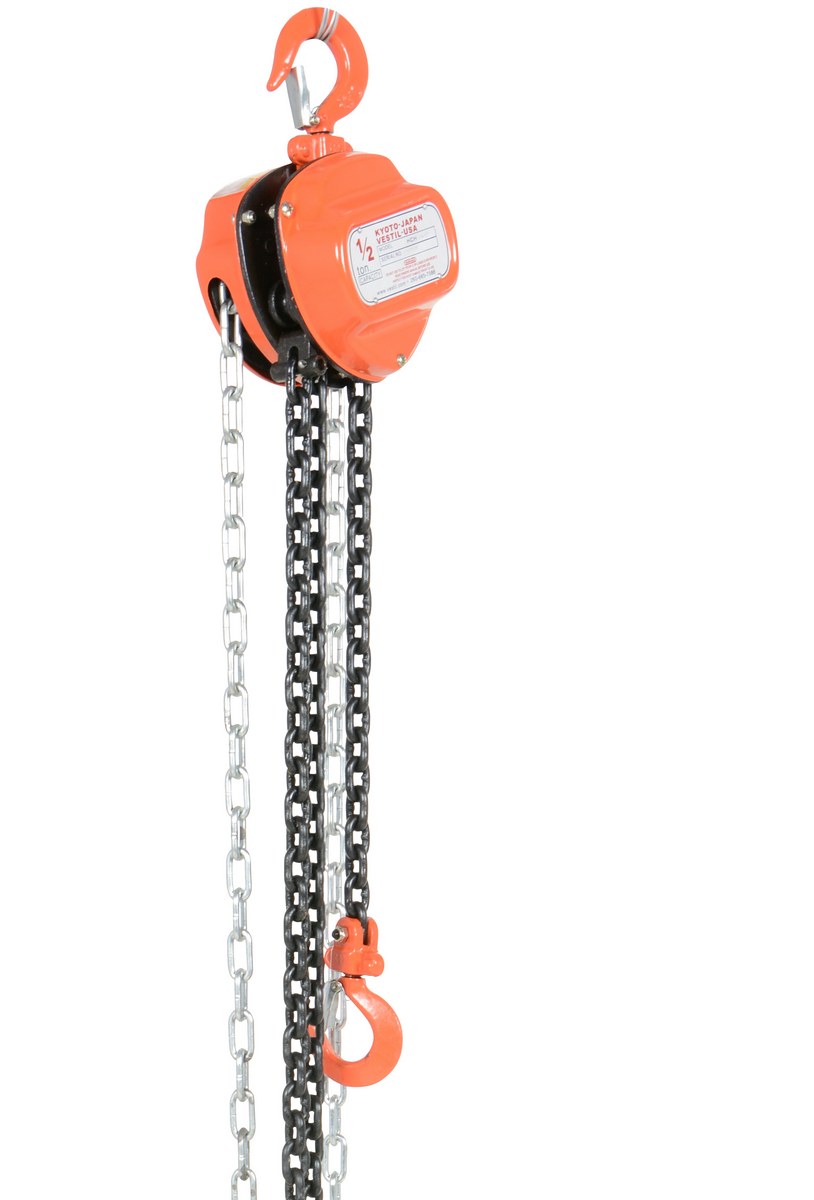

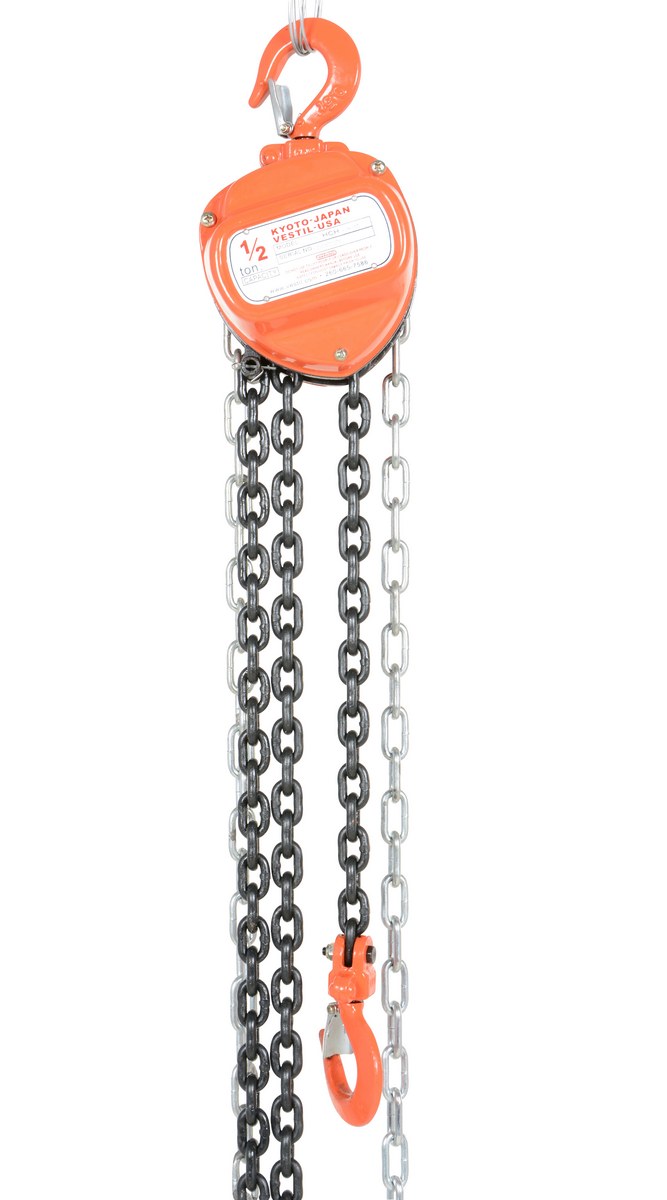

HCH-1-10 HCH-1-10Steel Manual Chain Hoist 10 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 10		24

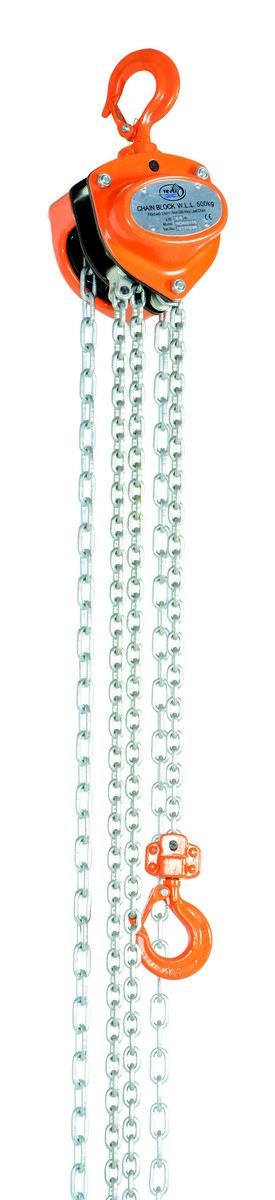

HCH-1-15 HCH-1-15Steel Manual Chain Hoist 15 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 15		28

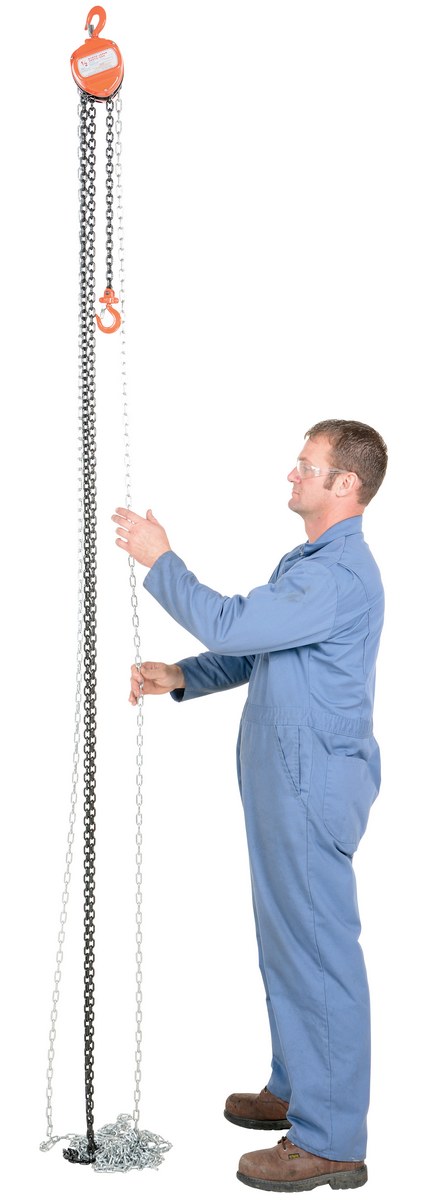

HCH-1-20 HCH-1-20Steel Manual Chain Hoist 20 Ft. Lift 1,000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Standard Lift (ft.): 20		32

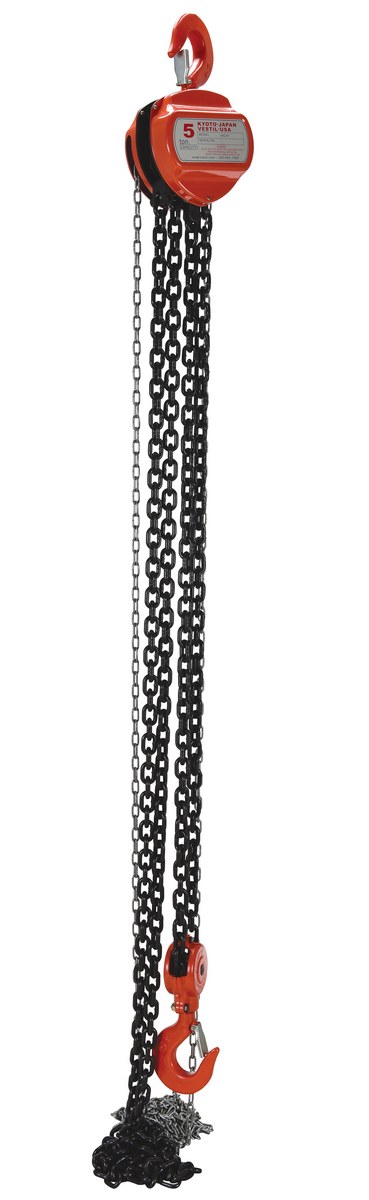

HCH-10-10 HCH-10-10Steel Manual Chain Hoist 10 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Standard Lift (ft.): 10		111
HCH-10-15 HCH-10-15Steel Manual Chain Hoist 15 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Standard Lift (ft.): 15		117

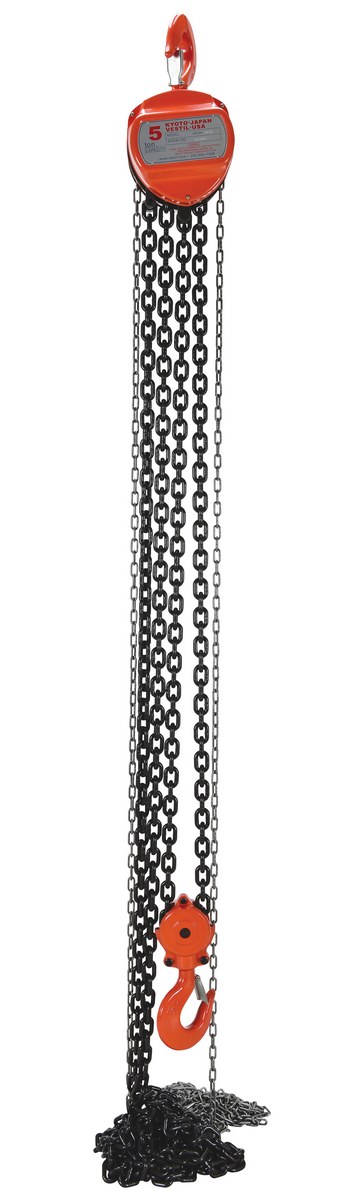

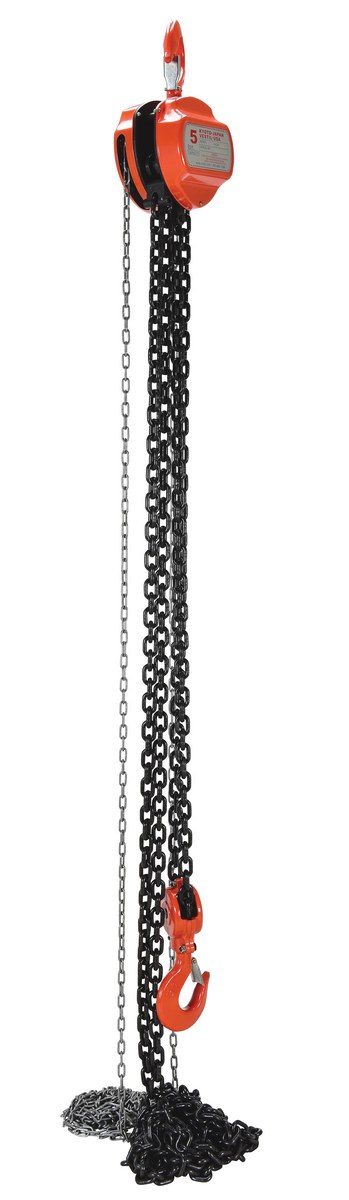

HCH-10-20 HCH-10-20Steel Manual Chain Hoist 20 Ft. Lift 10,000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Standard Lift (ft.): 20		176

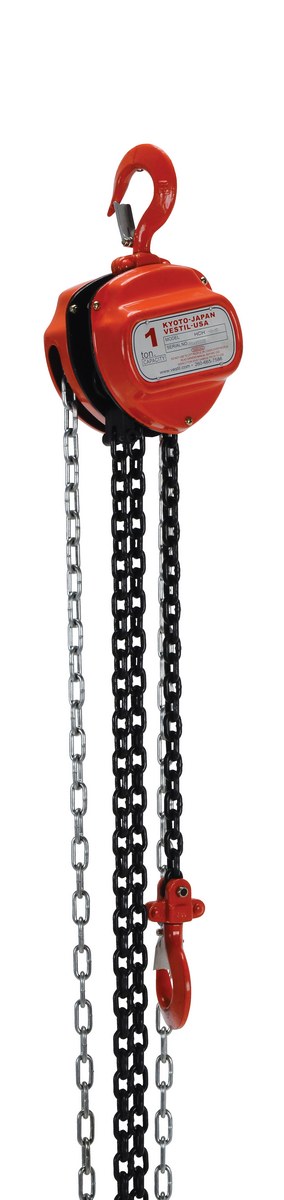

HCH-2-10 HCH-2-10Steel Manual Chain Hoist 10 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 10		26

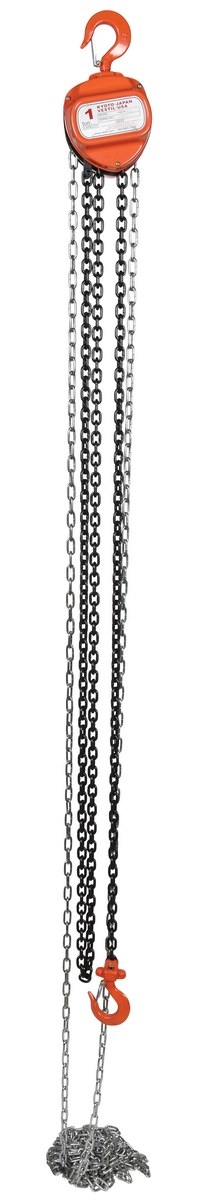

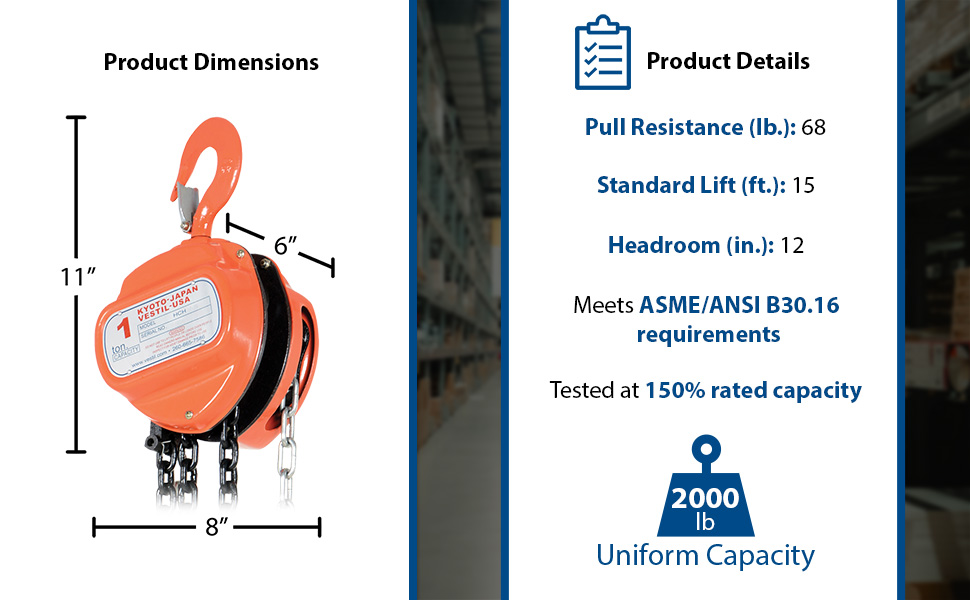

HCH-2-15 HCH-2-15Steel Manual Chain Hoist 15 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 15		32

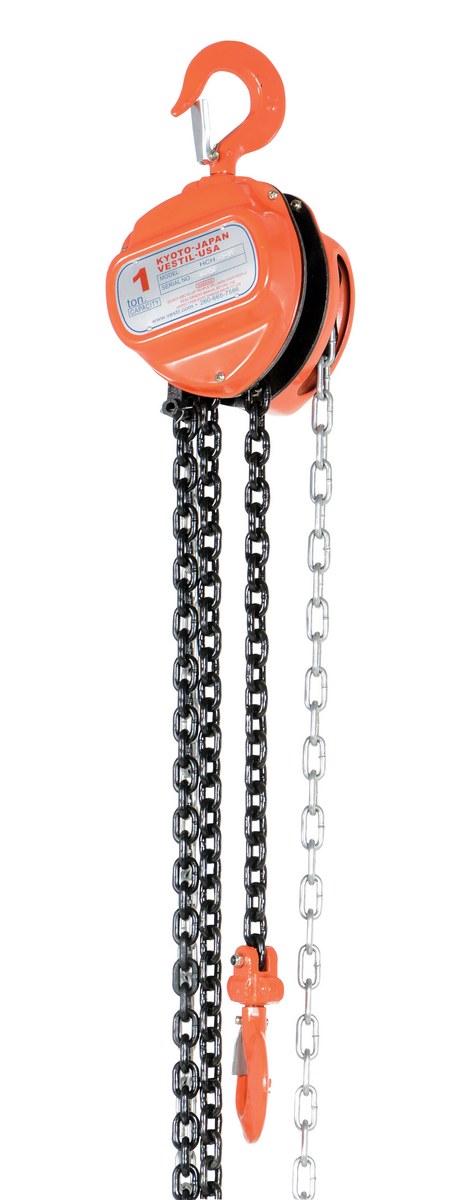

HCH-2-20 HCH-2-20Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Standard Lift (ft.): 20		37

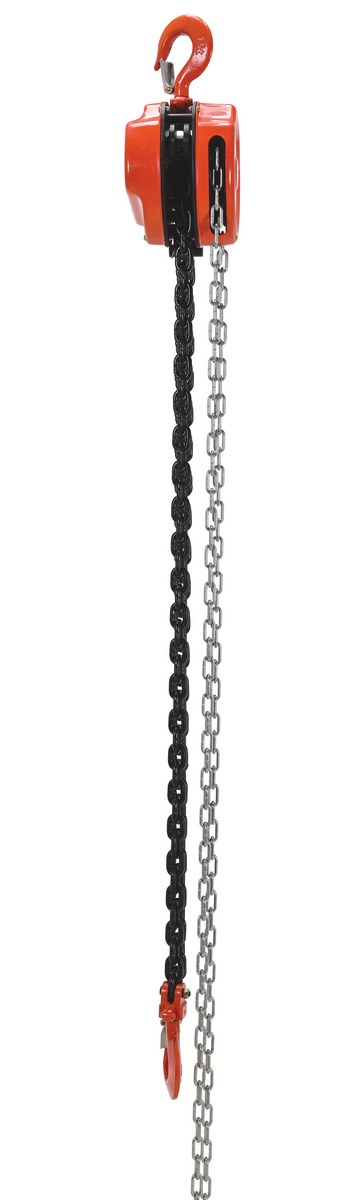

HCH-3-10 HCH-3-10Steel Manual Chain Hoist 10 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 10		43

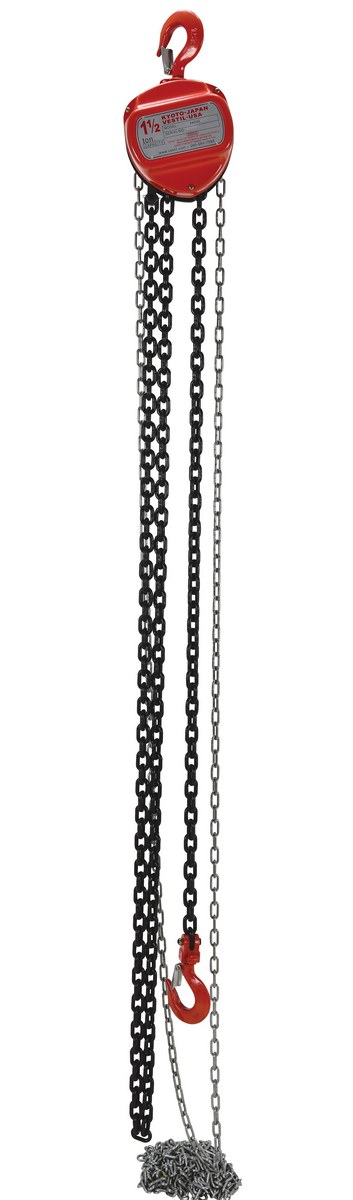

HCH-3-15 HCH-3-15Steel Manual Chain Hoist 15 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 15		49

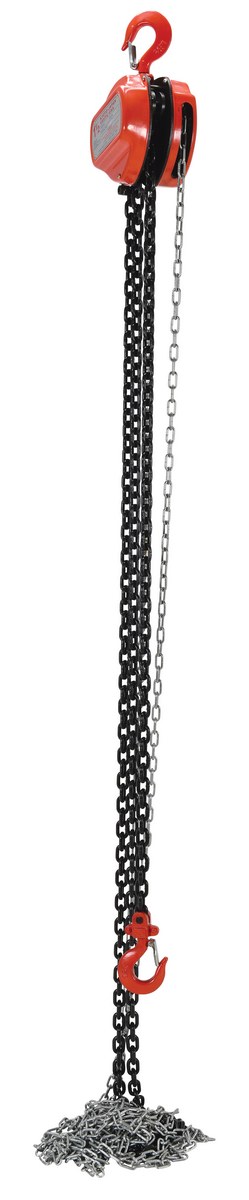

HCH-3-20 HCH-3-20Steel Manual Chain Hoist 20 Ft. Lift 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 20		53

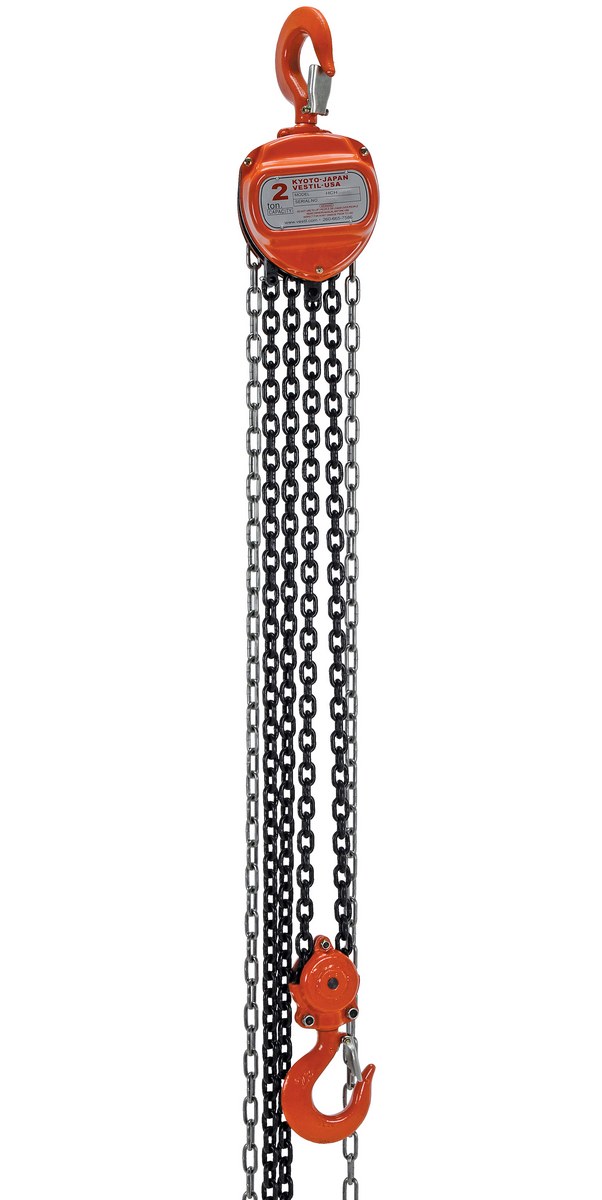

HCH-4-10 HCH-4-10Steel Manual Chain Hoist 10 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 10		33

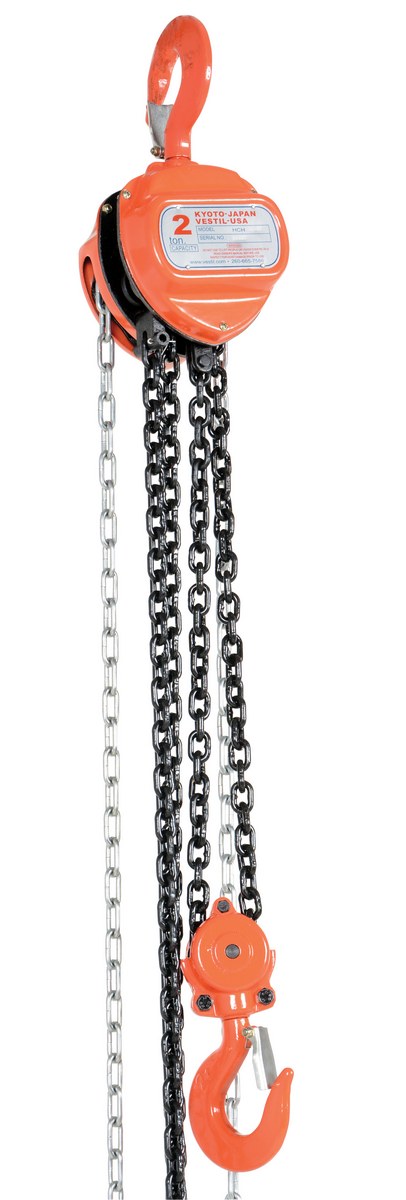

HCH-4-15 HCH-4-15Steel Manual Chain Hoist 15 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 15		41

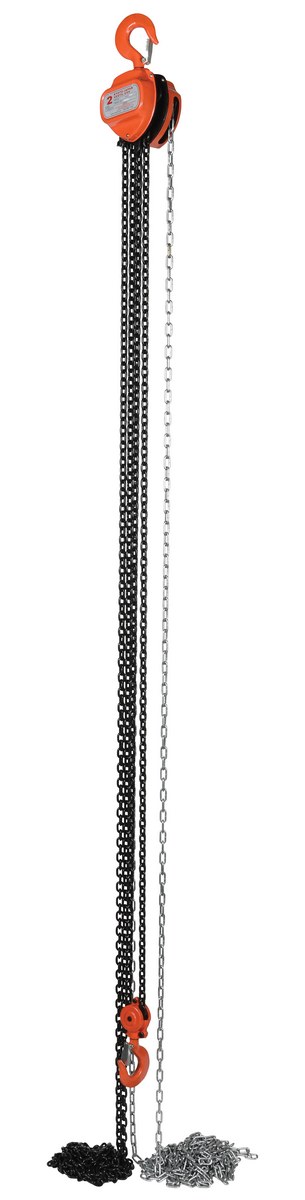

HCH-4-20 HCH-4-20Steel Manual Chain Hoist 20 Ft. Lift 4,000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Standard Lift (ft.): 20		50

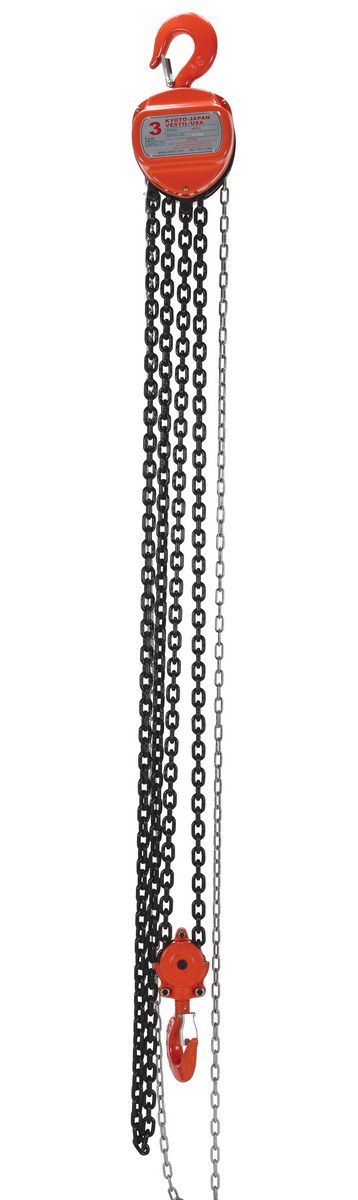

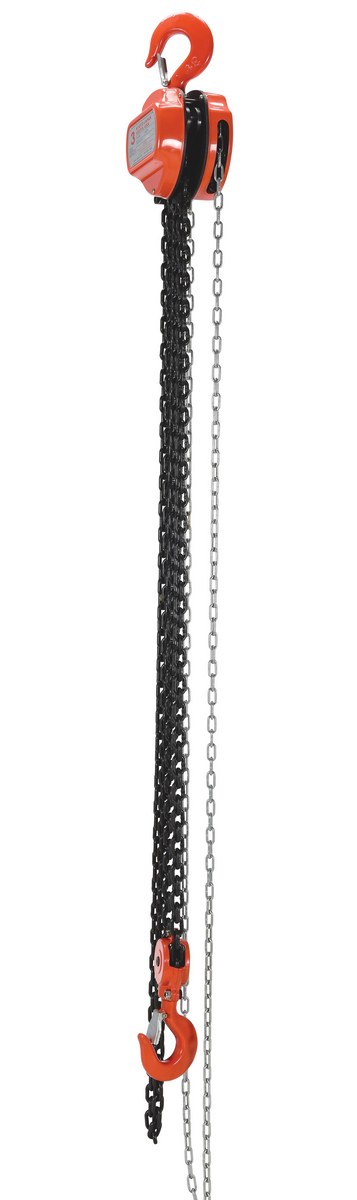

HCH-6-10 HCH-6-10Steel Manual Chain Hoist 10 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 10		59

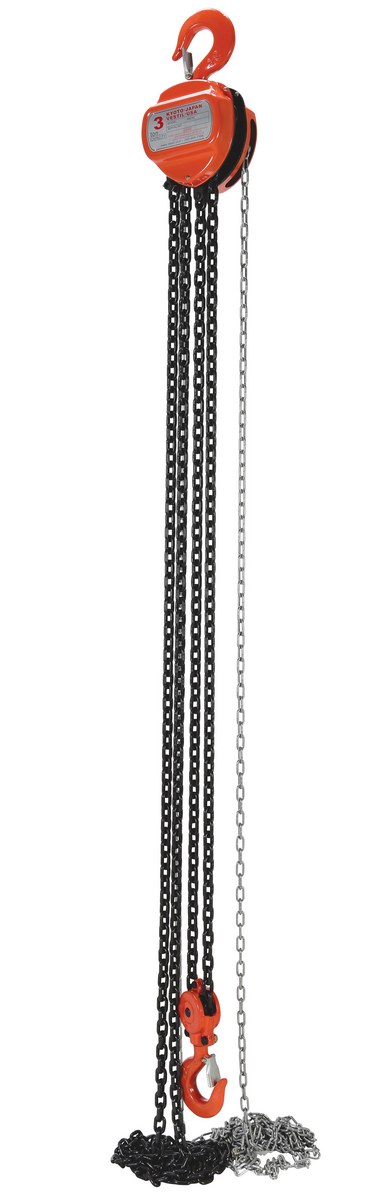

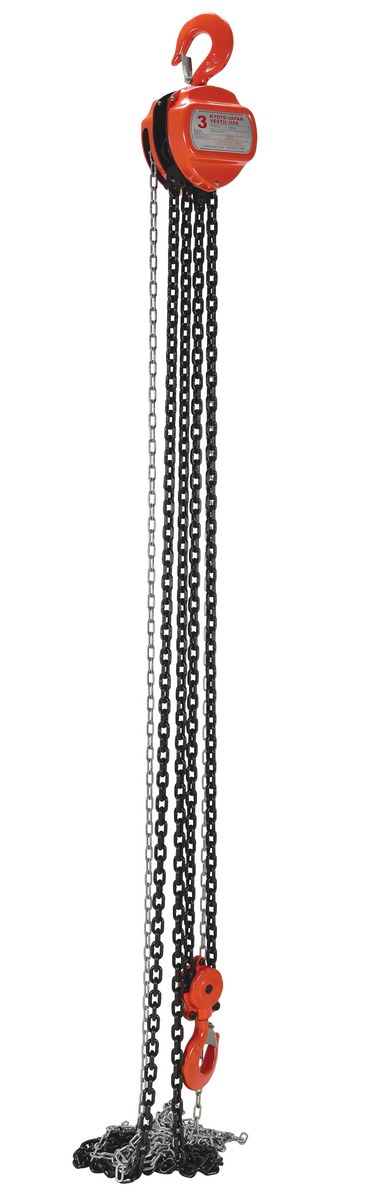

HCH-6-15 HCH-6-15Steel Manual Chain Hoist 15 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 15		64

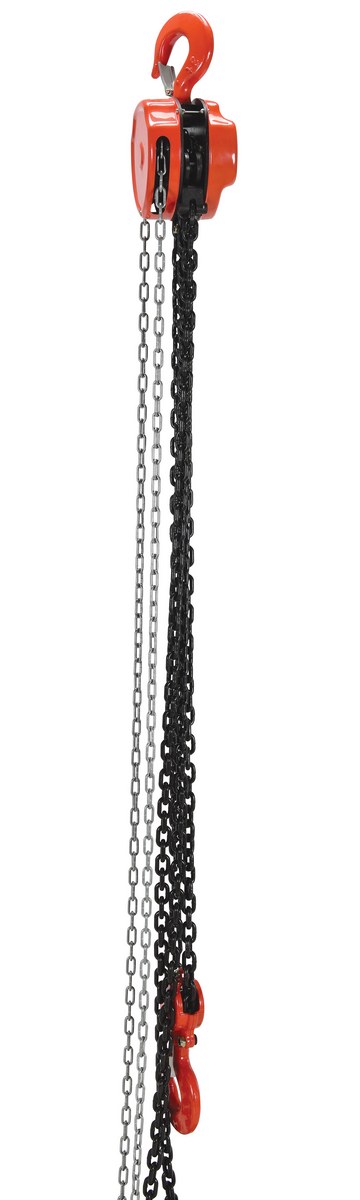

HCH-6-20 HCH-6-20Steel Manual Chain Hoist 20 Ft. Lift 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 20		132
