Offset Steel Bollards

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
OBOL-35-4.5_D.jpg OBOL-35-4.5_A.jpg OBOL-35-4.5_B.jpg OBOL-35-4.5_C.jpg
Offset Steel Bollards

model: OBOL-35-4.5



Featured Protective Barriers


Heavy Duty Parking Hoops
Decorative Aluminum Bollard
Traffic Cones
Stainless Steel Corner Guards
Chain & Attachments for Bollards
Traffic Cone Cart
Galvanized Folding Gates
Foam Edge Guards
Plastic Interlocking Barriers
model chart

Product Family Overview

Print Friendly

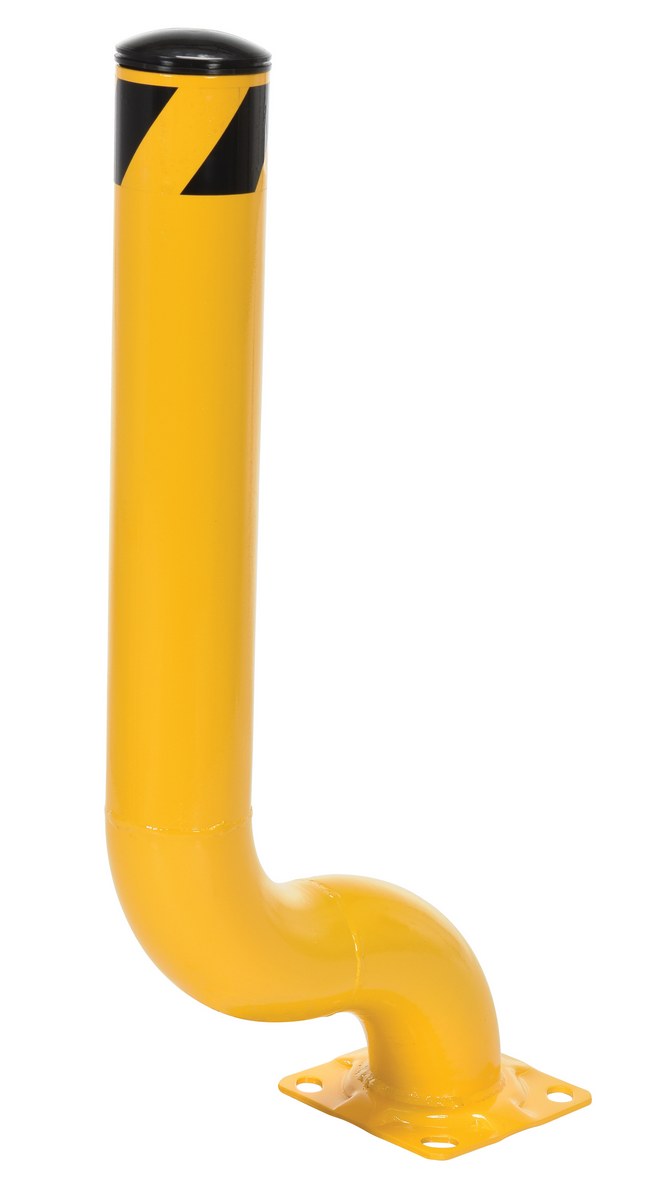

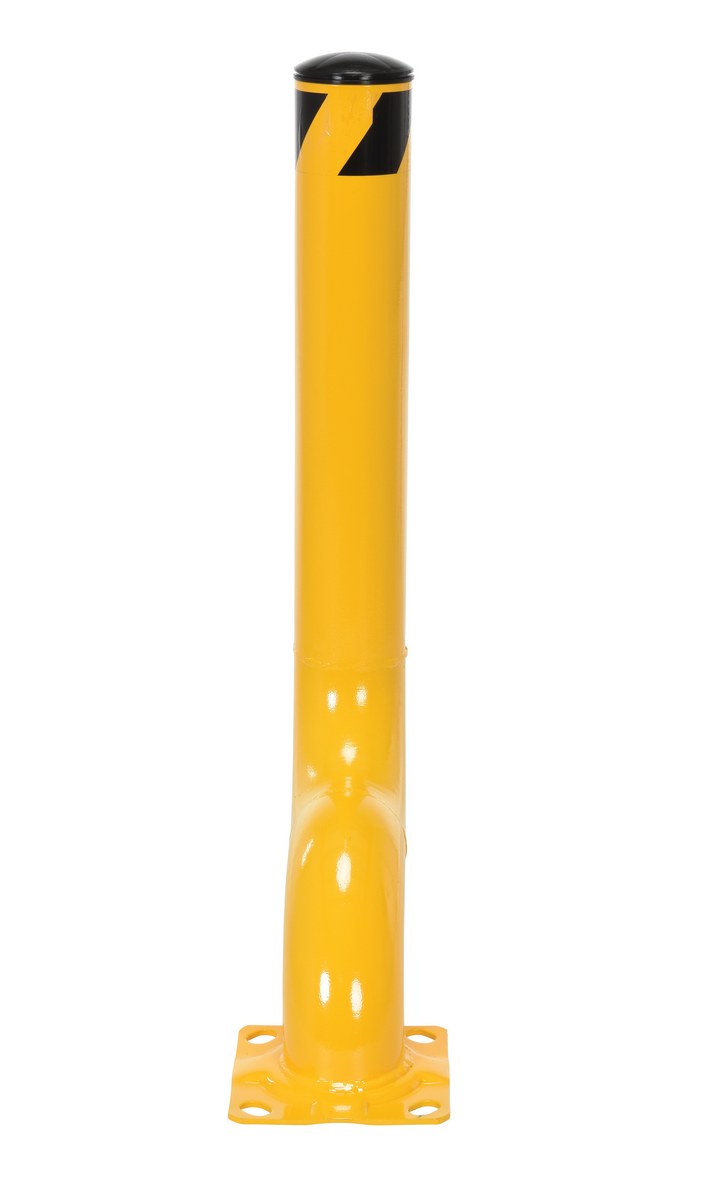

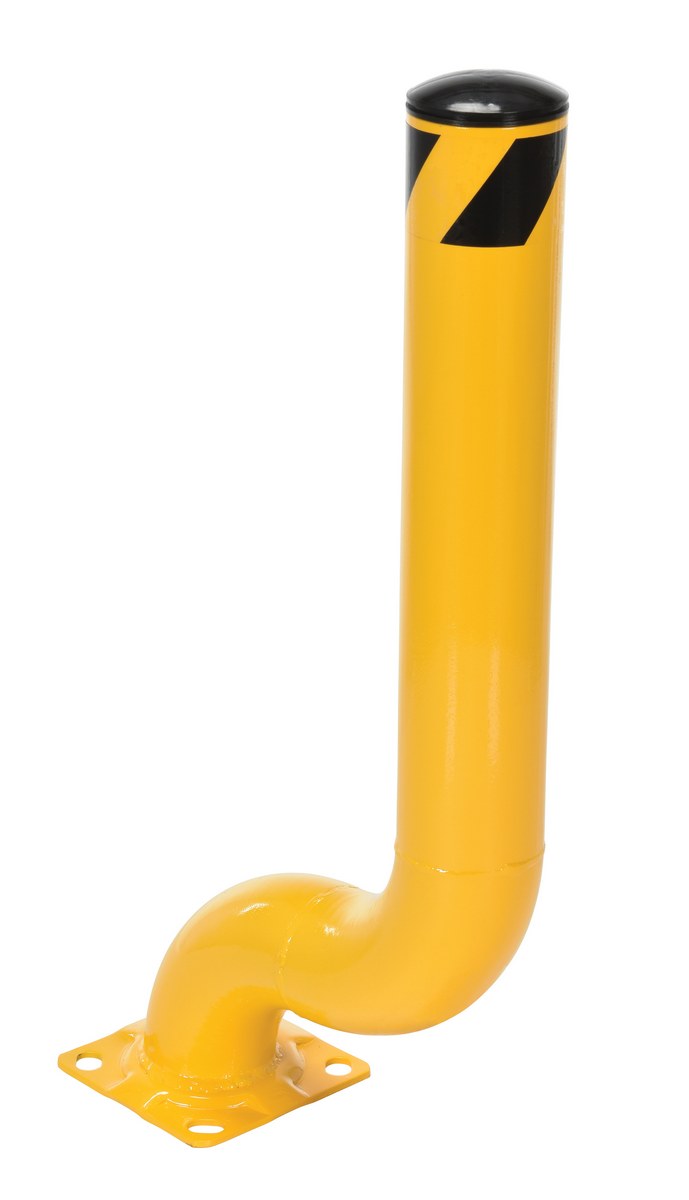

Offset Steel Bollards
SERIES: OBOL

Unique design features offset base plate that won't interfere with traffic. Base plate includes (4) pre-drilled mounting holes (mounting hardware is sold separately). Removable plastic top cap and black/yellow safety tape included. Heavy-duty welded steel construction with a powder coat safety yellow finish is standard.

  • Offset base plate that won't interfere with traffic
  • Base plate includes pre-drilled mounting holes for quick and easy installation

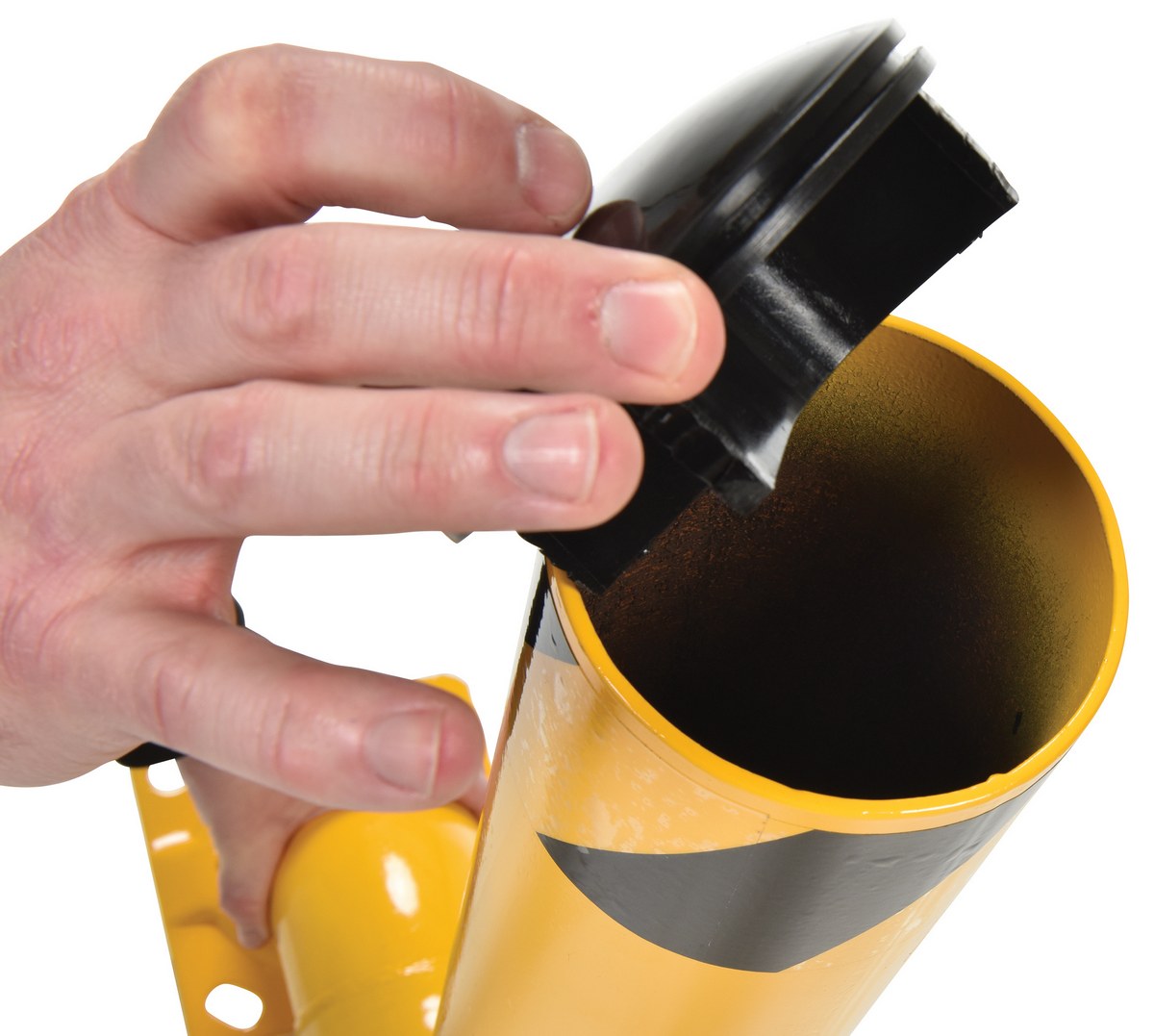

  • Includes removable plastic top caps to prevent the collection of waste
  • Features black/yellow safety tape to ensure optimal safety

Unique design features offset base plate that won't interfere with traffic. Base plate includes (4) pre-drilled mounting holes (mounting hardware is sold separately). Removable plastic top cap and black/yellow safety tape included. Heavy-duty welded steel construction with a powder coat safety yellow finish is standard.

  • Offset base plate that won't interfere with traffic
  • Base plate includes pre-drilled mounting holes for quick and easy installation
  • Includes removable plastic top caps to prevent the collection of waste
  • Features black/yellow safety tape to ensure optimal safety

Other Bollards

 Garage Safety Bollard Steel Pipe Safety Bollards Ductile Iron Decorative Bollards Heavy Duty Parking Hoops

Additional Models In This Family
view entire Image Gallery

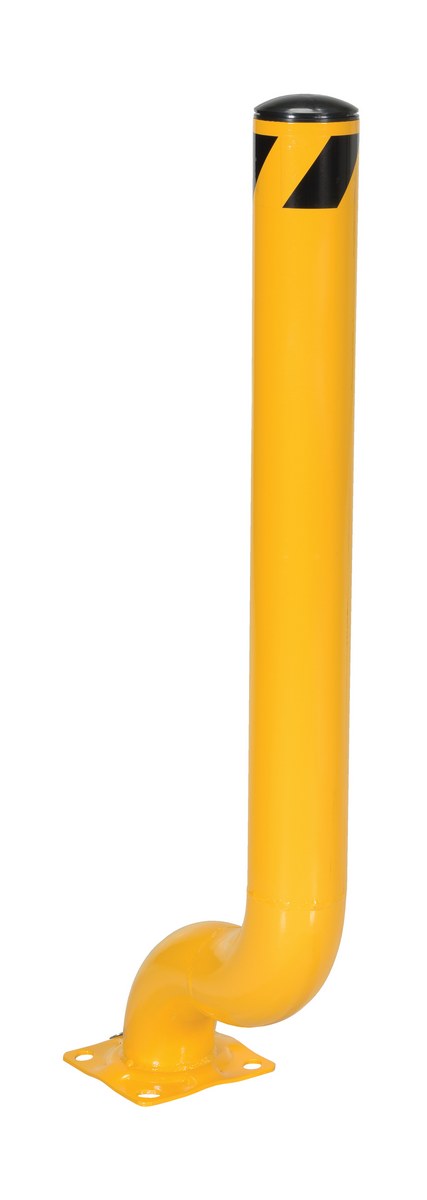

OBOL-47-4.5

model OBOL-47-4.5

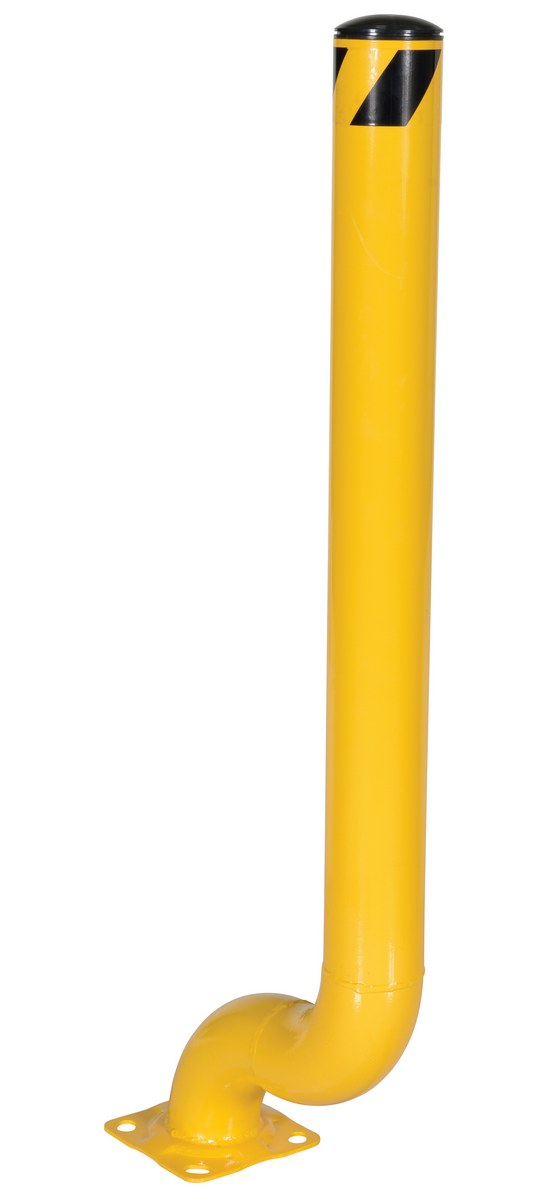

OBOL-53-4.5

model OBOL-53-4.5

AS-344-4PK

model AS-344-4PK

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
OBOL-35-4.5 OBOL-35-4.590 Days Limited WarrantySteel Offset Bollard 18-3/8 In. x 8 In. x 36-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		31
OBOL-47-4.5 OBOL-47-4.590 Days Limited WarrantySteel Offset Bollard 18-3/8 In. x 8 In. x 48-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		39
OBOL-53-4.5 OBOL-53-4.590 Days Limited WarrantySteel Offset Bollard 18-3/8 In. x 8 In. x 54-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		41

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

OBOL-35-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4

OBOL-47-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4

OBOL-53-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4
Outside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4
For More Details of the Option Click the Red Model Button
Model Image Description WT.
BOL-CAP-4.5-P BOL-CAP-4.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black 2
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4
DCBB-B-KIT Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow 2
BOL-CHAIN Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow 2
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Offset Steel Bollards PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


OBOL-35-4.5

OBOL-47-4.5

OBOL-53-4.5

Testing Certificates


OBOL-35-4.5

OBOL-47-4.5

OBOL-53-4.5

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Parking Lot Safety Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Bollard/Post Covers
Product

Bollard/Post Covers

Decorative Bollard Covers
Product

Decorative Bollard Covers

Bollard Chain Caps
Product

Bollard Chain Caps

Surface Mounted Removable Steel Pipe Safety Bollards
Product

Surface Mounted Removable Steel Pipe Safety Bollards

Movable Bollards
Product

Movable Bollards

Plastic Bollard Covers
Product

Plastic Bollard Covers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Offset Steel Bollards




Unique design features offset base plate that won't interfere with traffic. Base plate includes (4) pre-drilled mounting holes (mounting hardware is sold separately). Removable plastic top cap and black/yellow safety tape included. Heavy-duty welded steel construction with a powder coat safety yellow finish is standard.

  • Offset base plate that won't interfere with traffic
  • Base plate includes pre-drilled mounting holes for quick and easy installation
  • Includes removable plastic top caps to prevent the collection of waste
  • Features black/yellow safety tape to ensure optimal safety

Model # Description Attributes Net Wt.
(lbs)
OBOL-35-4.5 OBOL-35-4.5Steel Offset Bollard 18-3/8 In. x 8 In. x 36-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		31
OBOL-47-4.5 OBOL-47-4.5Steel Offset Bollard 18-3/8 In. x 8 In. x 48-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		39
OBOL-53-4.5 OBOL-53-4.5Steel Offset Bollard 18-3/8 In. x 8 In. x 54-1/8 In. YellowOutside Diameter (in.): 4-1/2
Inside Diameter (in.): 4-1/4		41

Options


Model Image Description WT.
BOL-CAP-4.5-P BOL-CAP-4.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black 2
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4
DCBB-B-KIT Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow 2
BOL-CHAIN Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow 2
