Product Family Overview

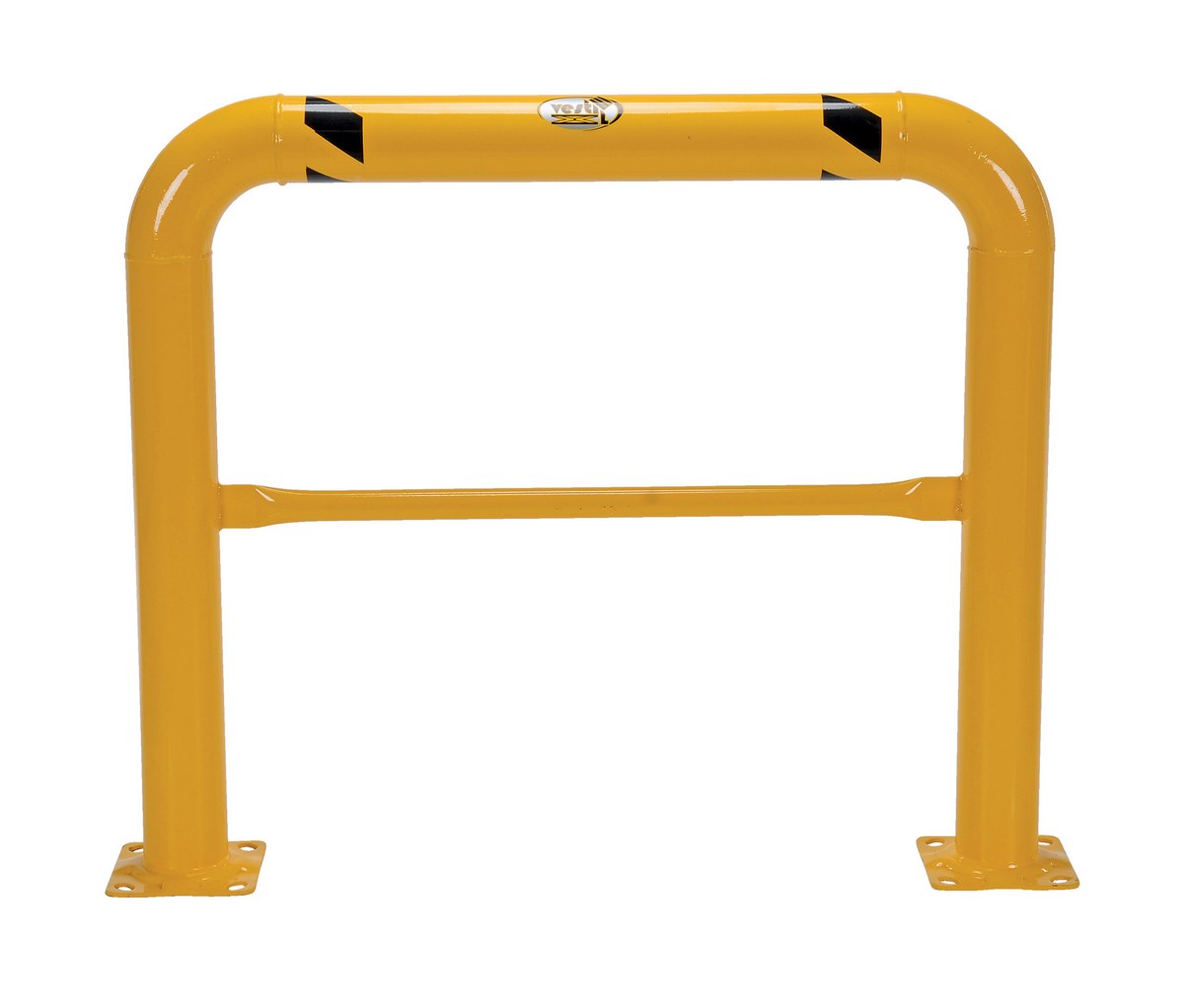

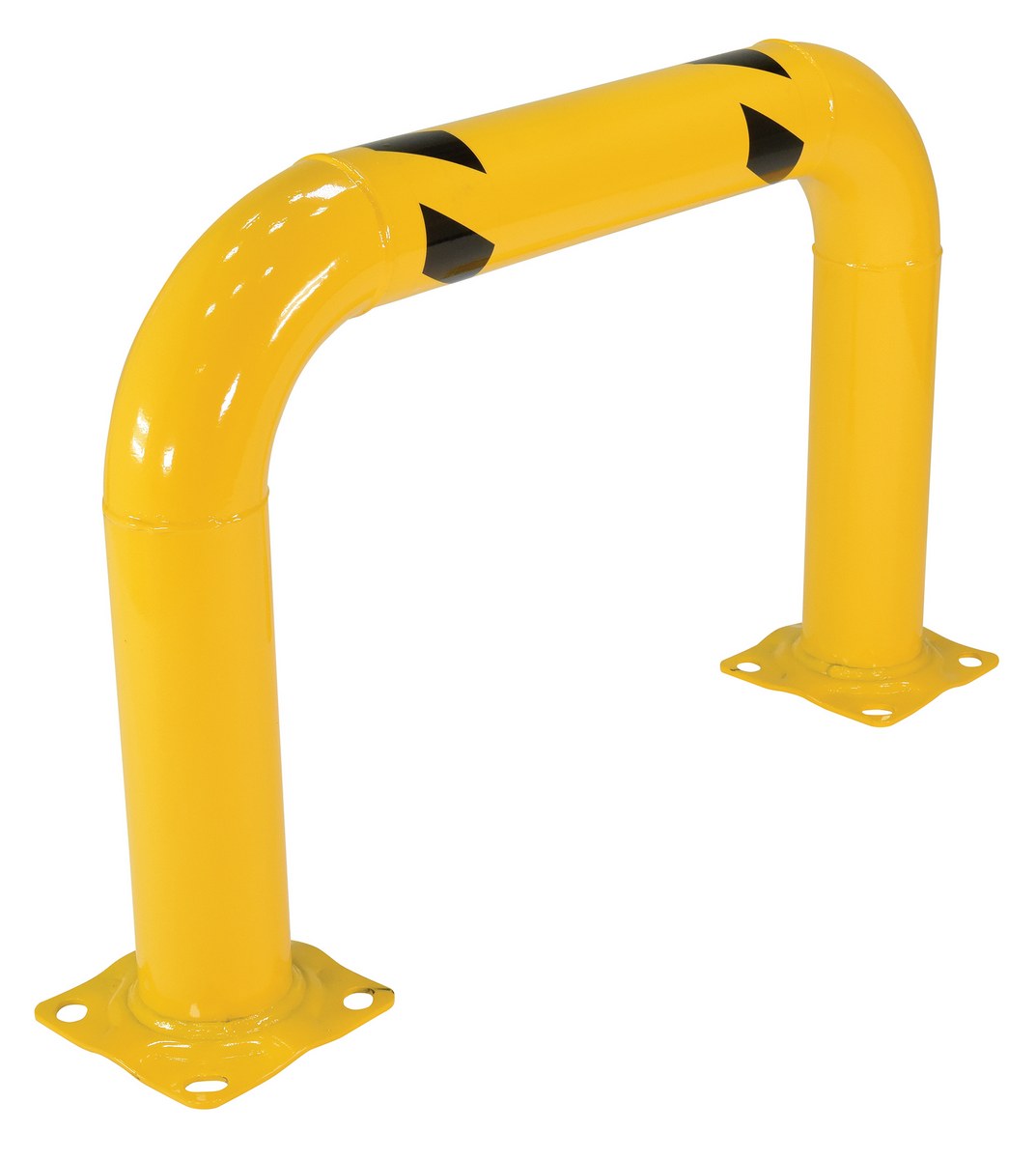

High Profile Machinery Guards
SERIES: HPRO

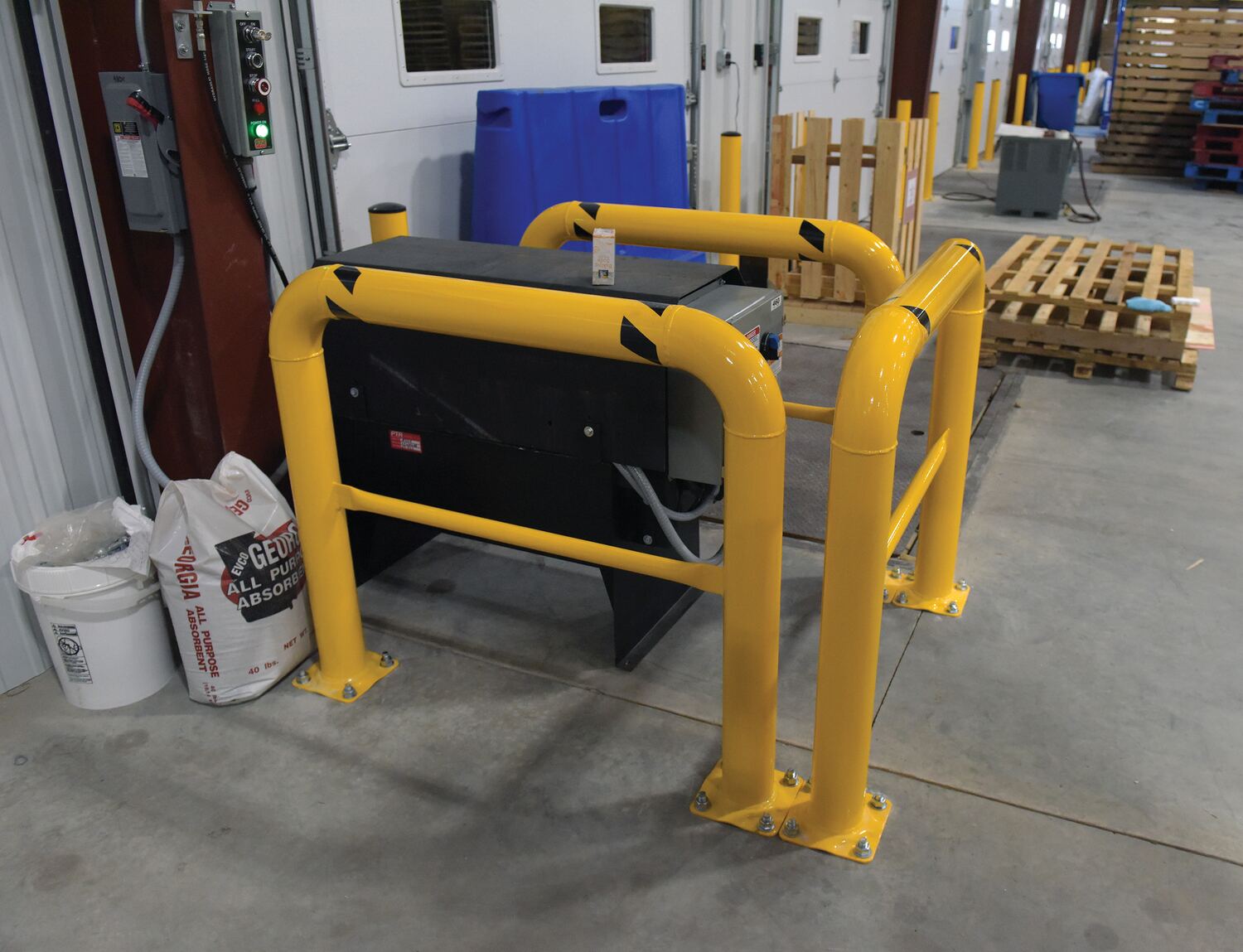

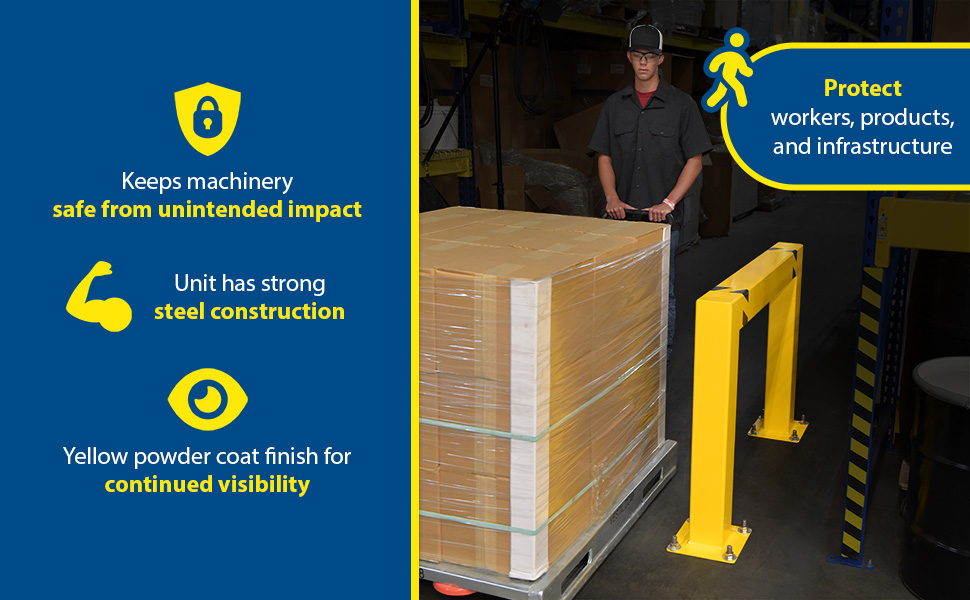

Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.

  • High profile design provides added protection to personnel and equipment

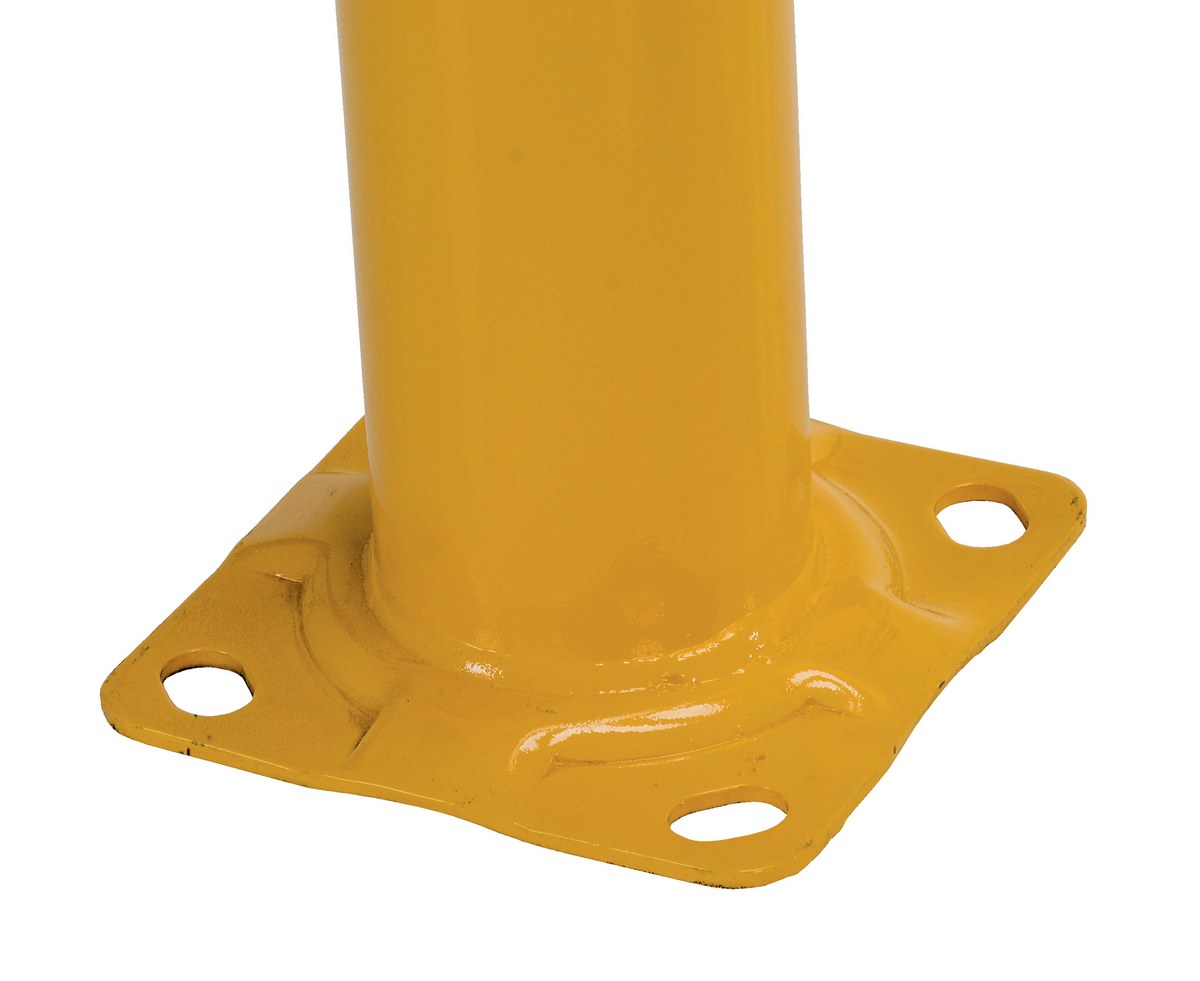

  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Powder coat yellow or Stainless Steel finish provides long lasting durable coverage
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications

Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.

  • High profile design provides added protection to personnel and equipment
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Powder coat yellow or Stainless Steel finish provides long lasting durable coverage
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

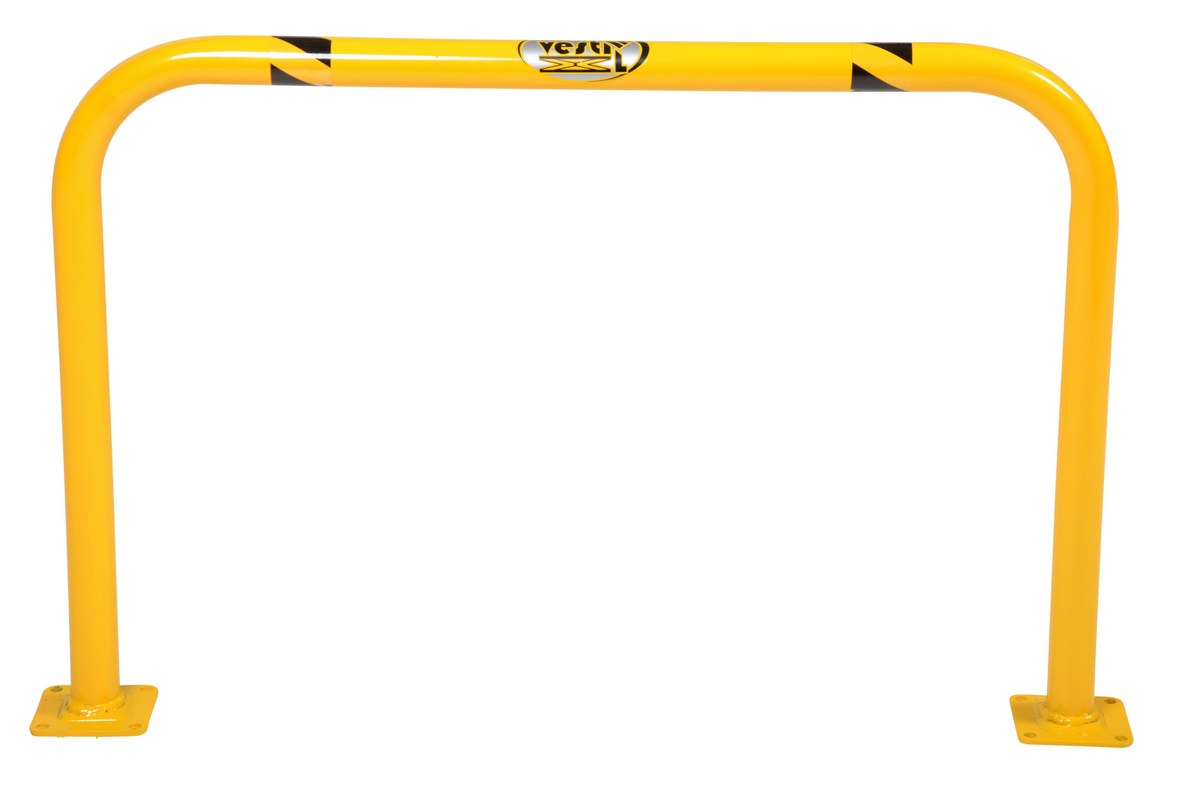

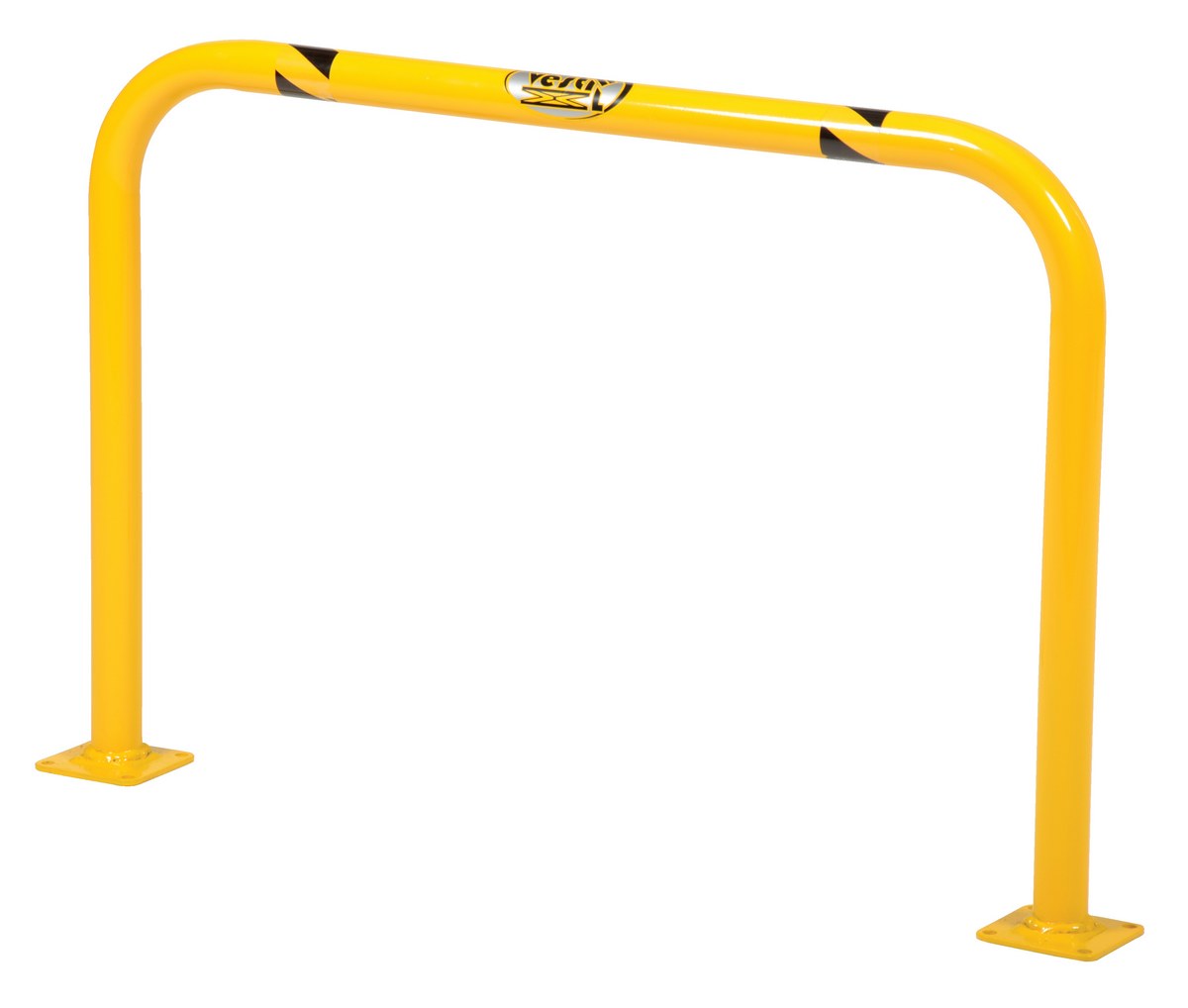

HPRO-36-24-2 HPRO-36-24-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 24 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
12

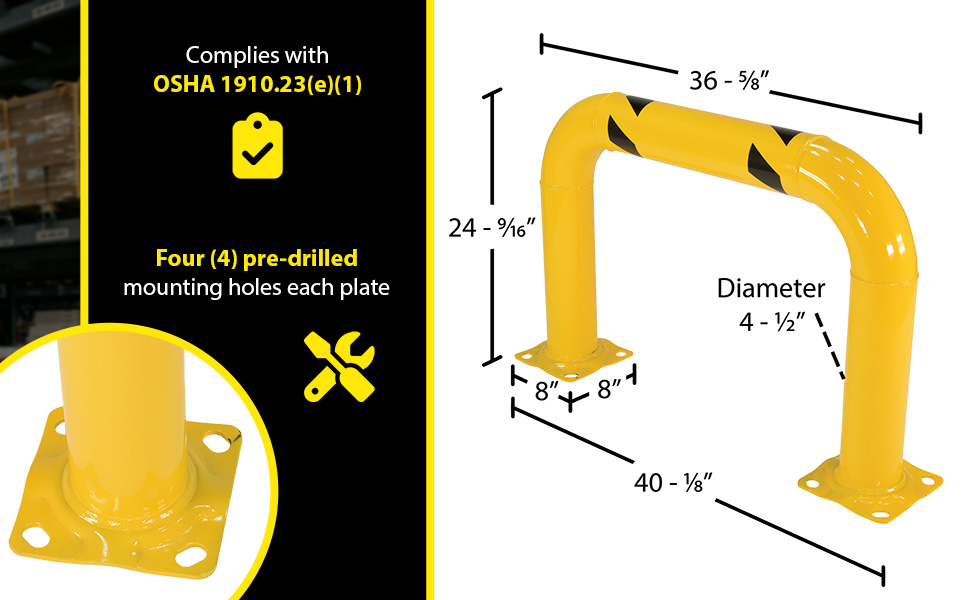

HPRO-36-24-4 HPRO-36-24-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
48

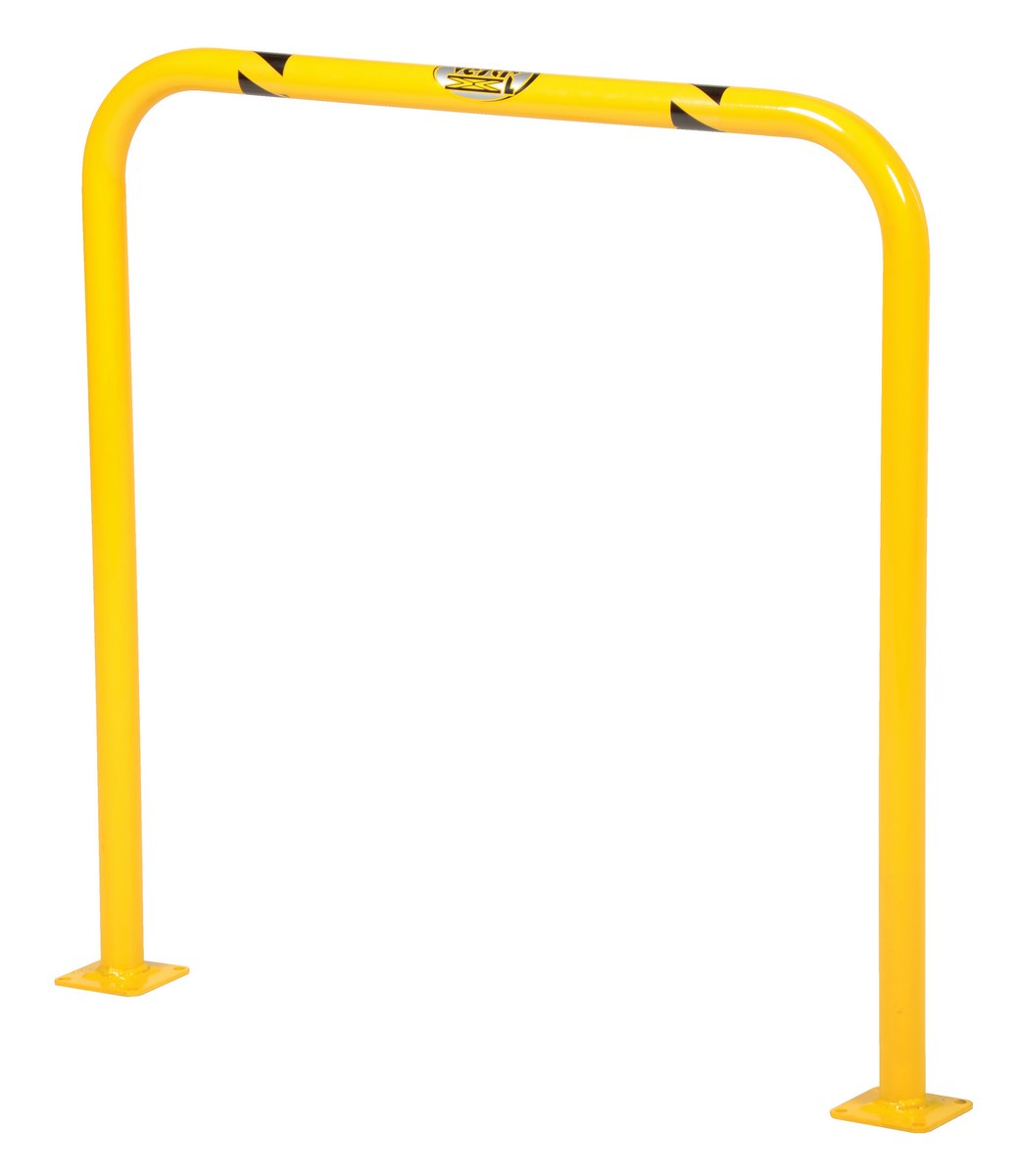

HPRO-36-36-2 HPRO-36-36-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 36 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
18

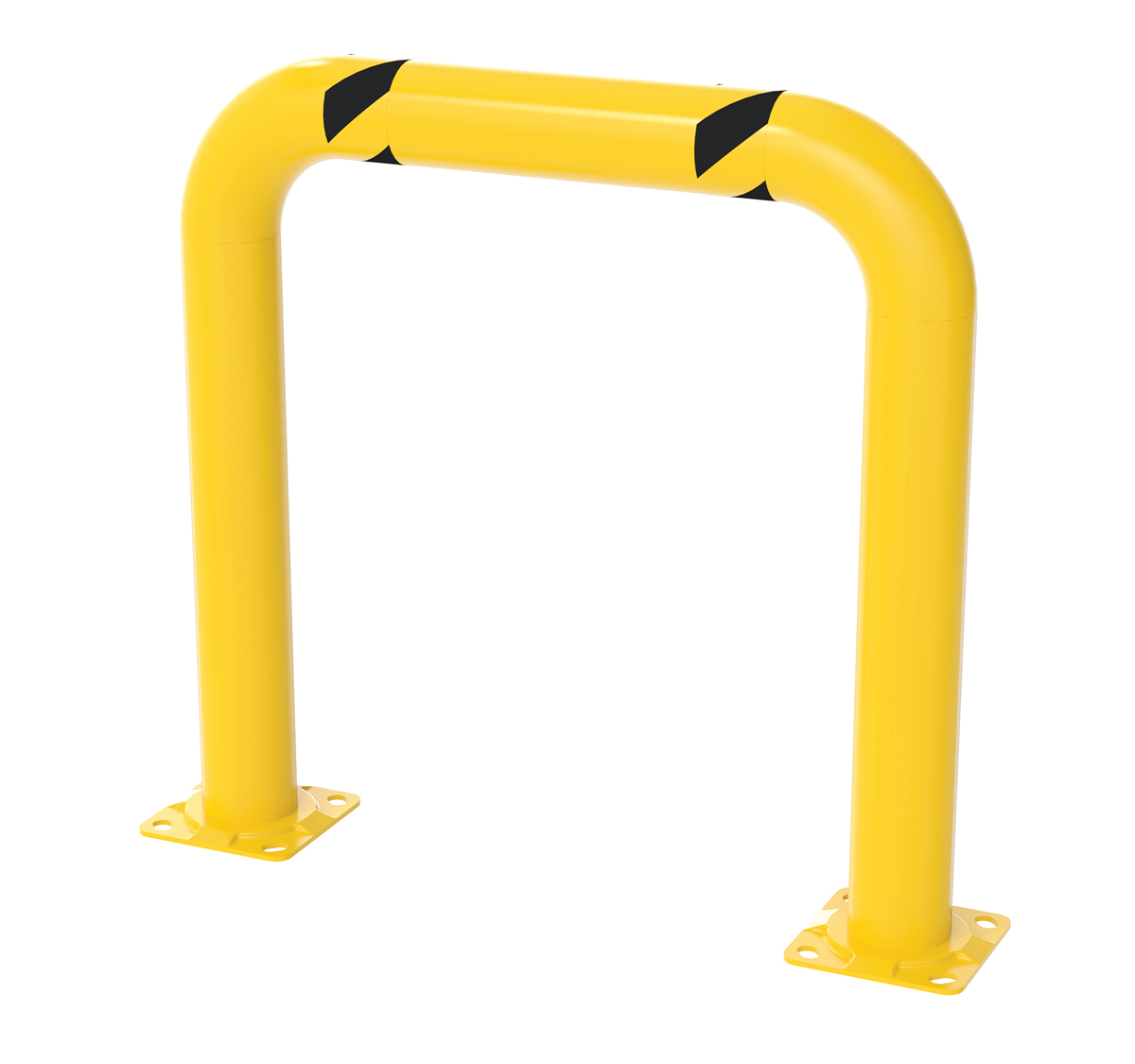

HPRO-36-36-4 HPRO-36-36-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 36 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
100

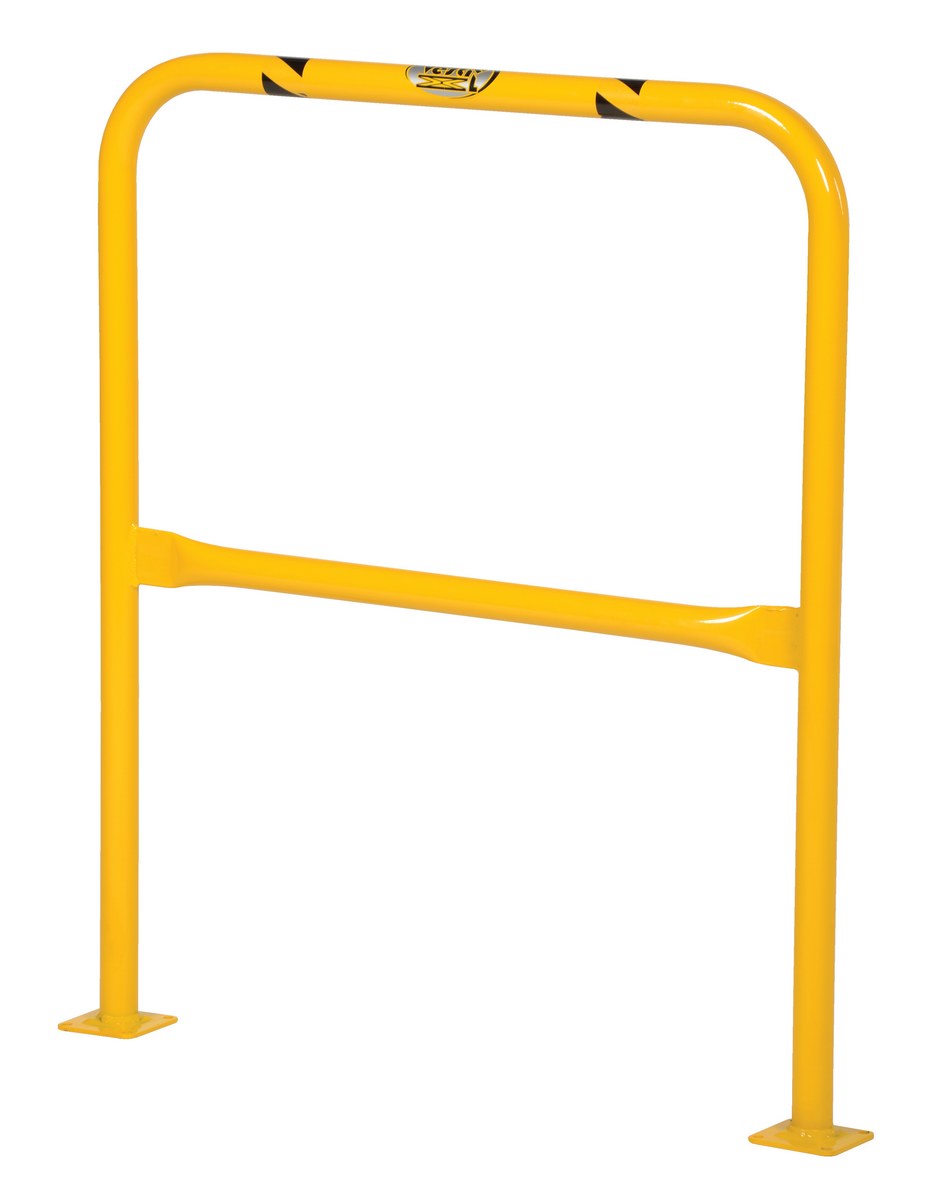

HPRO-36-42-2 HPRO-36-42-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 42 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
20

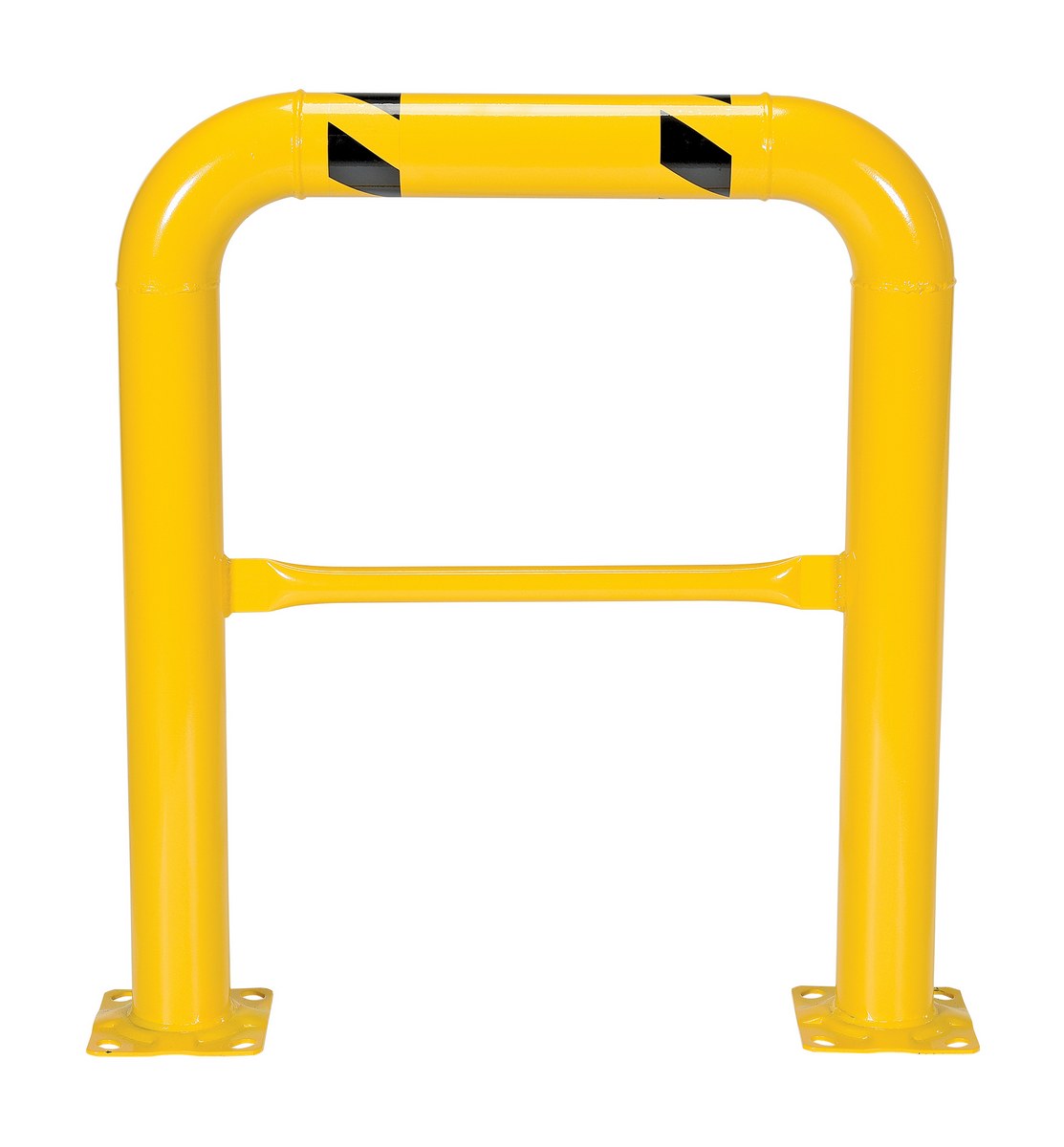

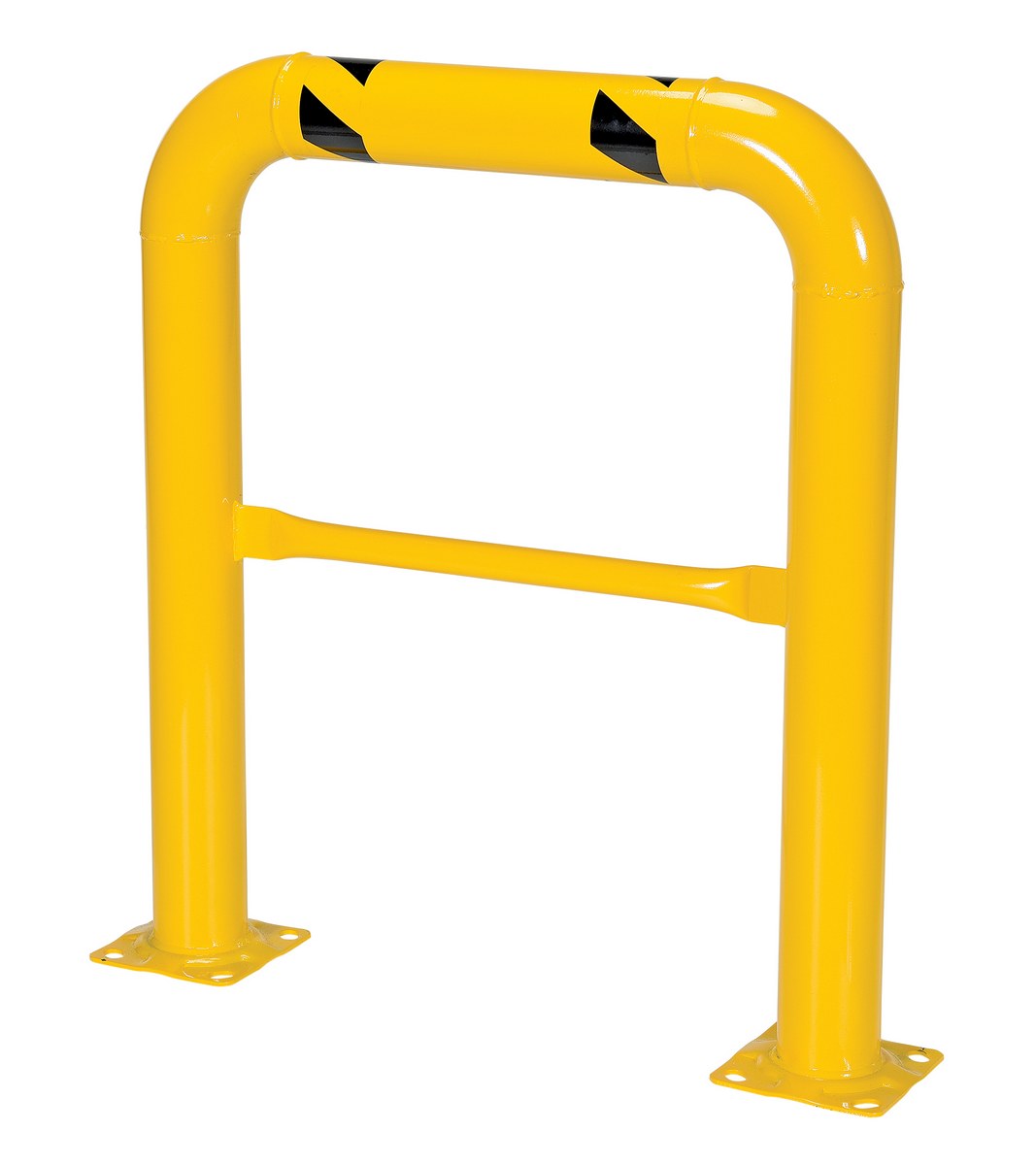

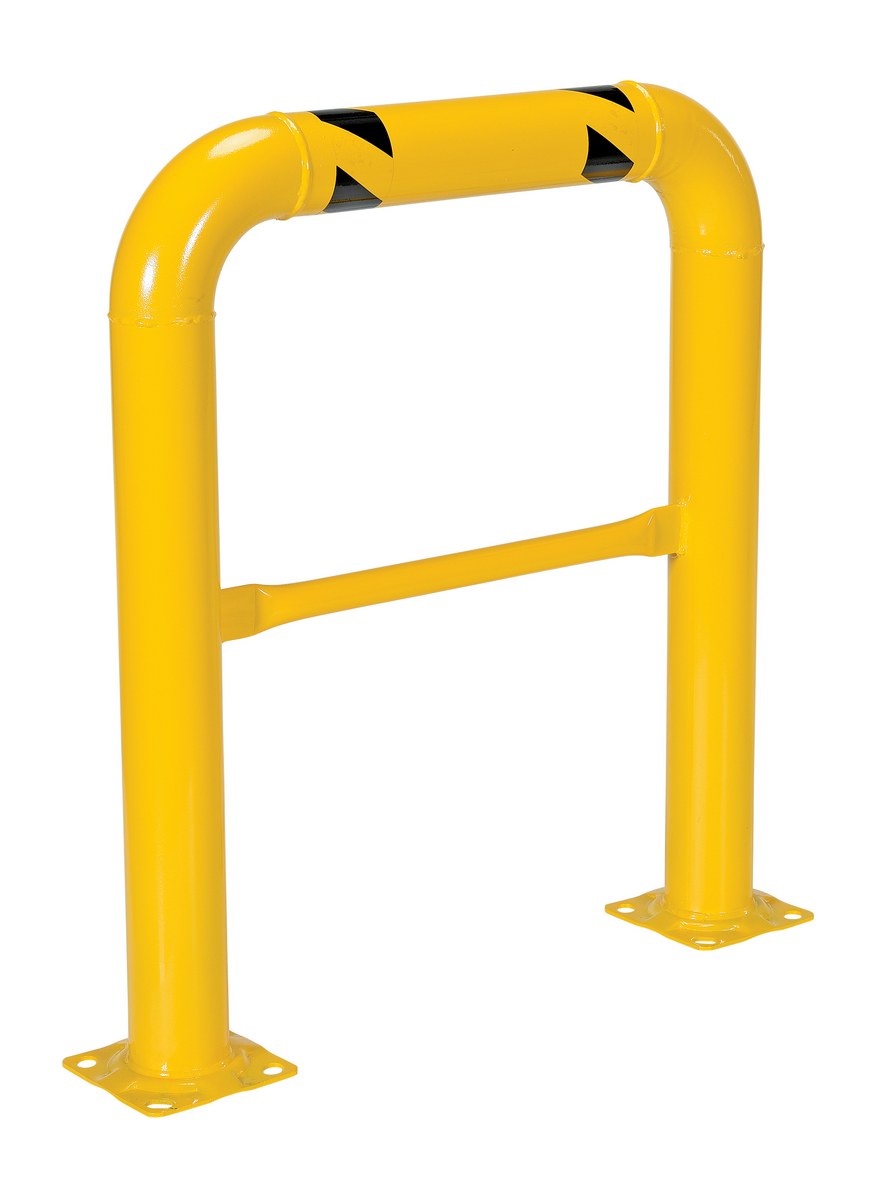

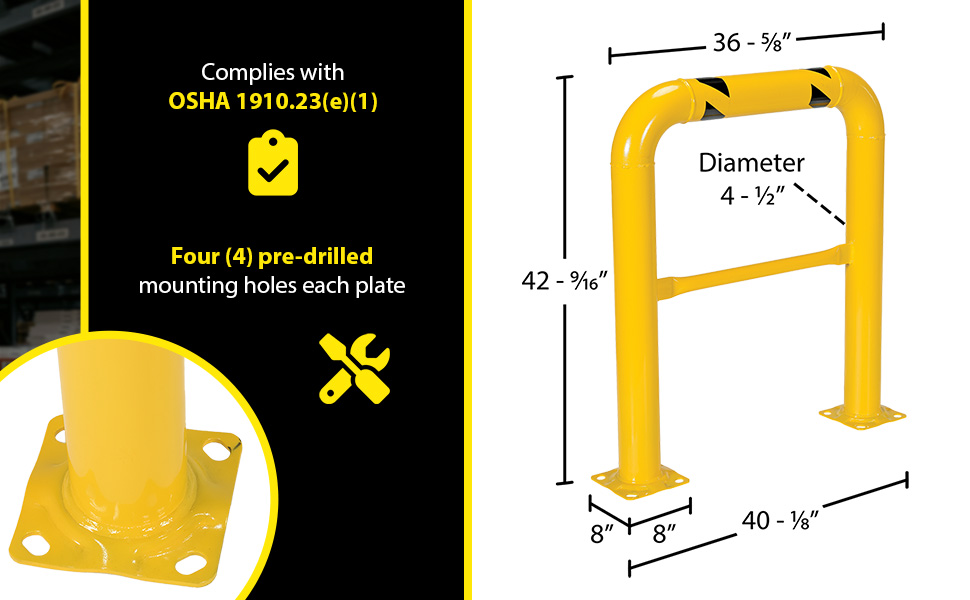

HPRO-36-42-4 HPRO-36-42-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 36 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
70

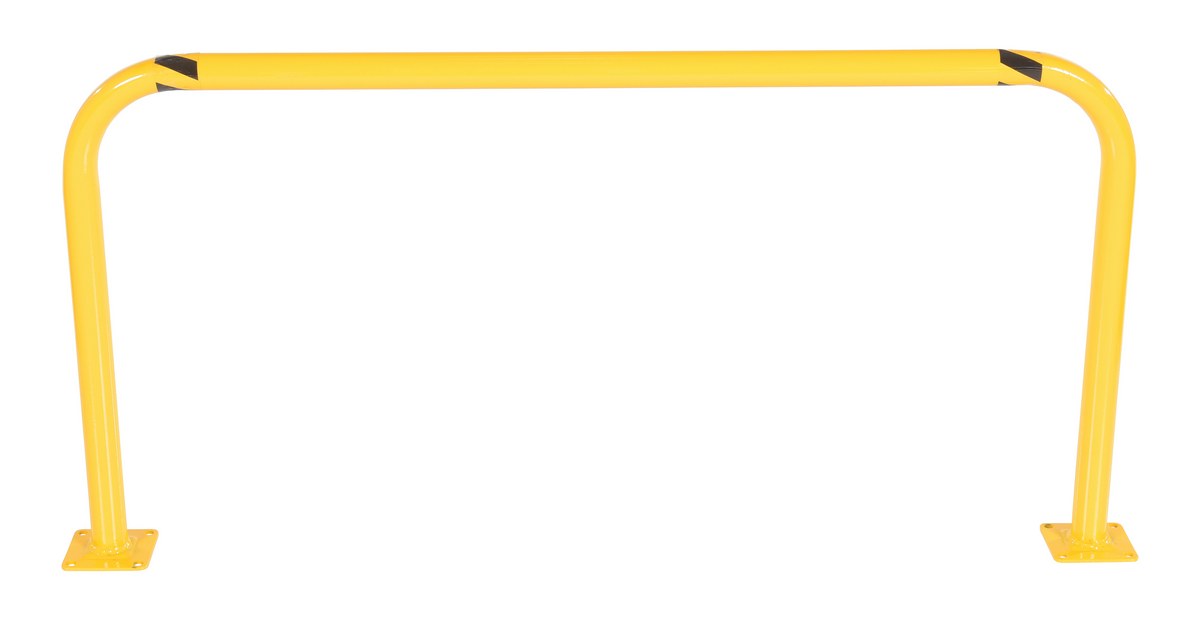

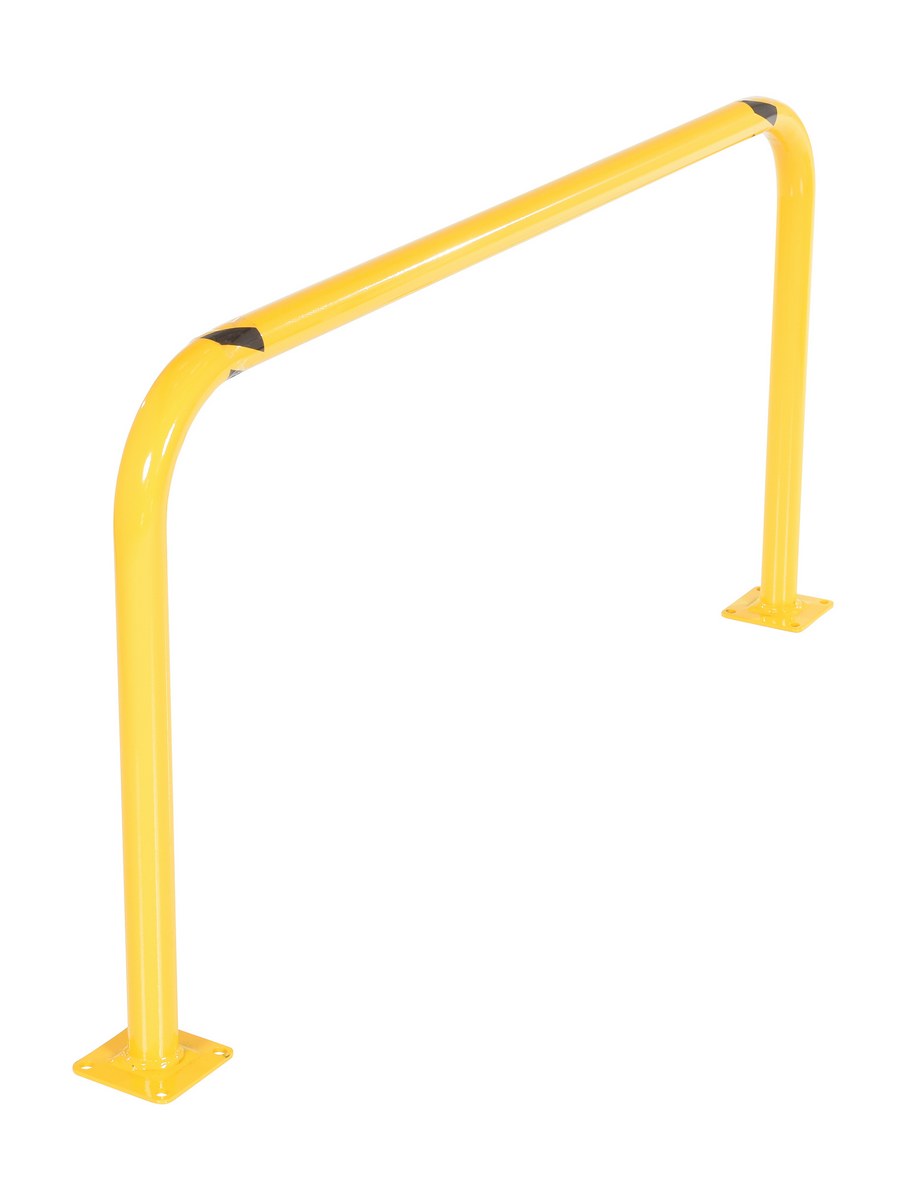

HPRO-48-24-2 HPRO-48-24-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 24 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
19

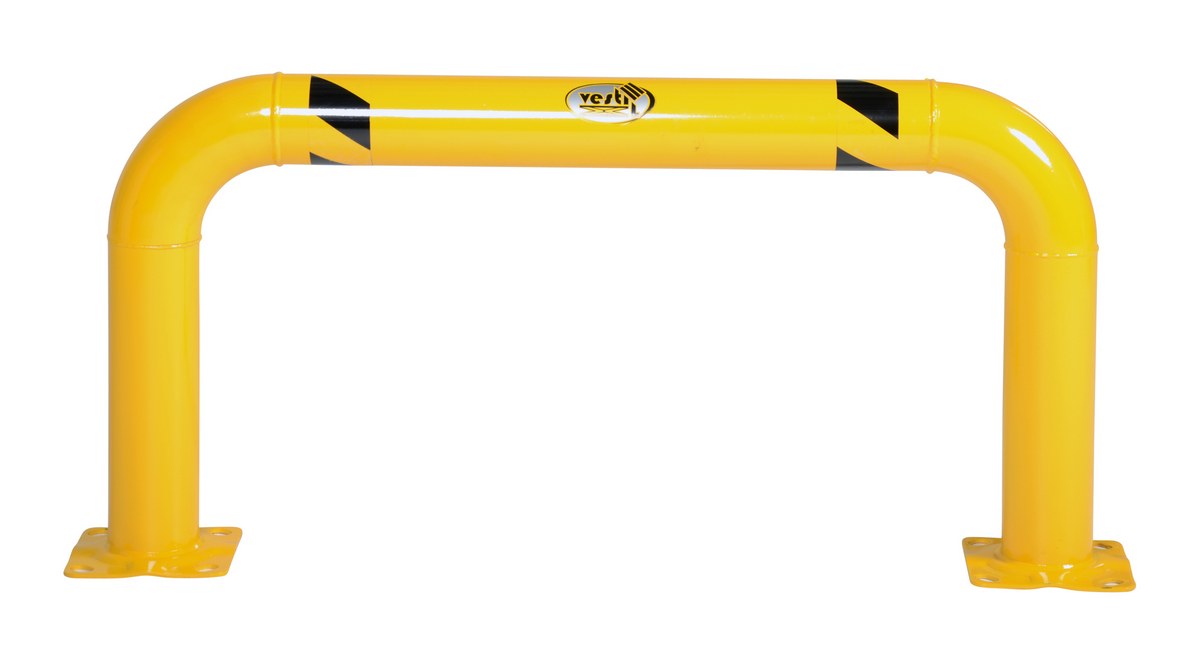

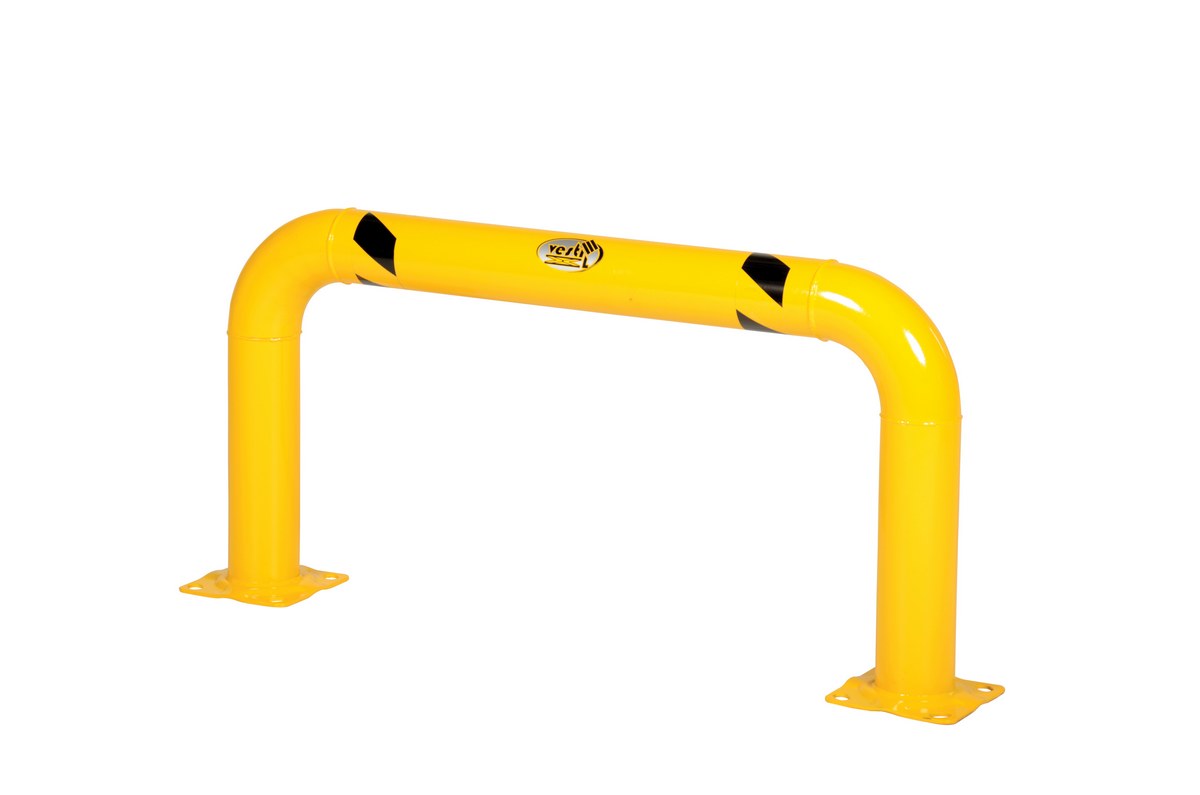

HPRO-48-24-4 HPRO-48-24-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 24 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
51

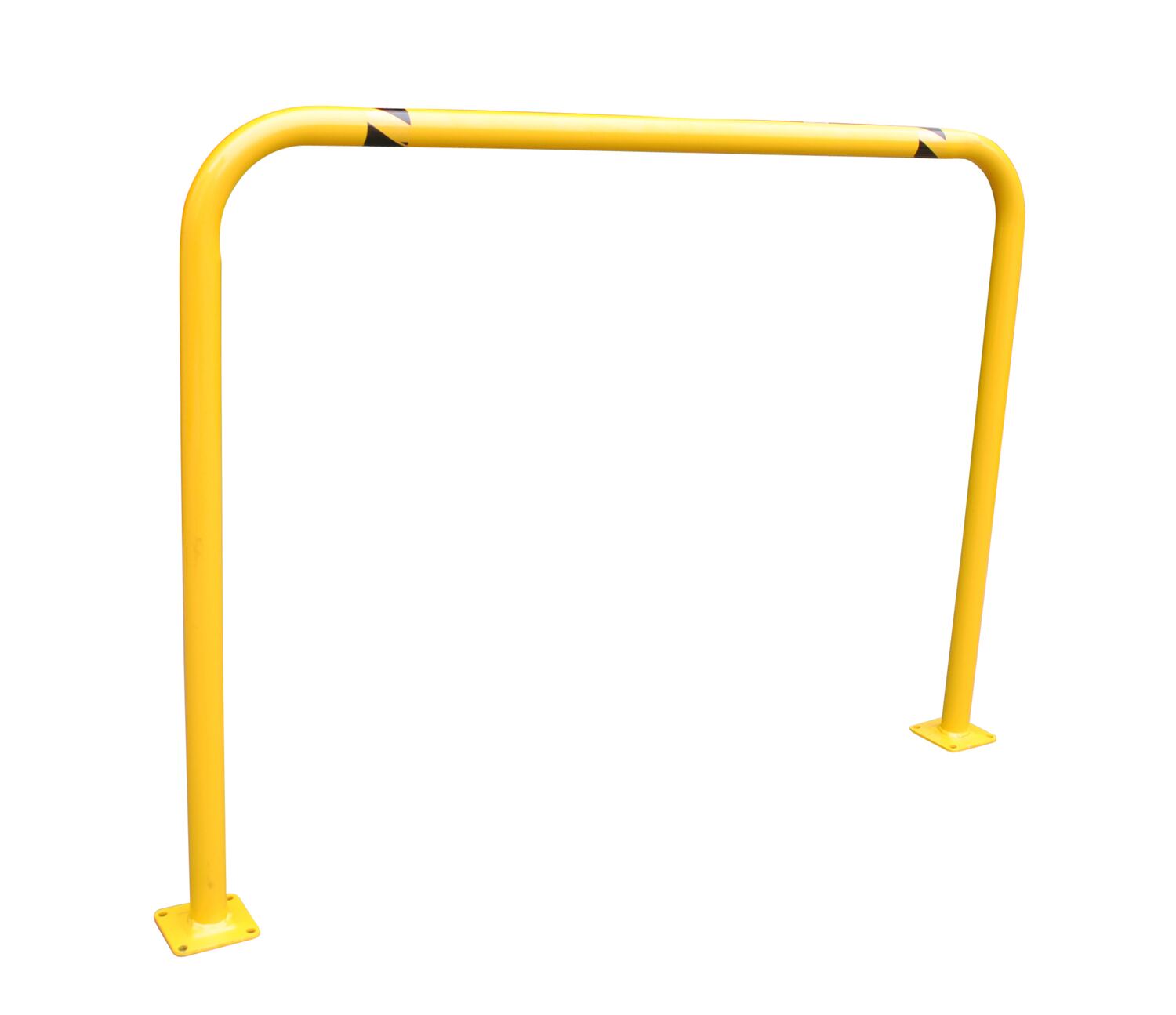

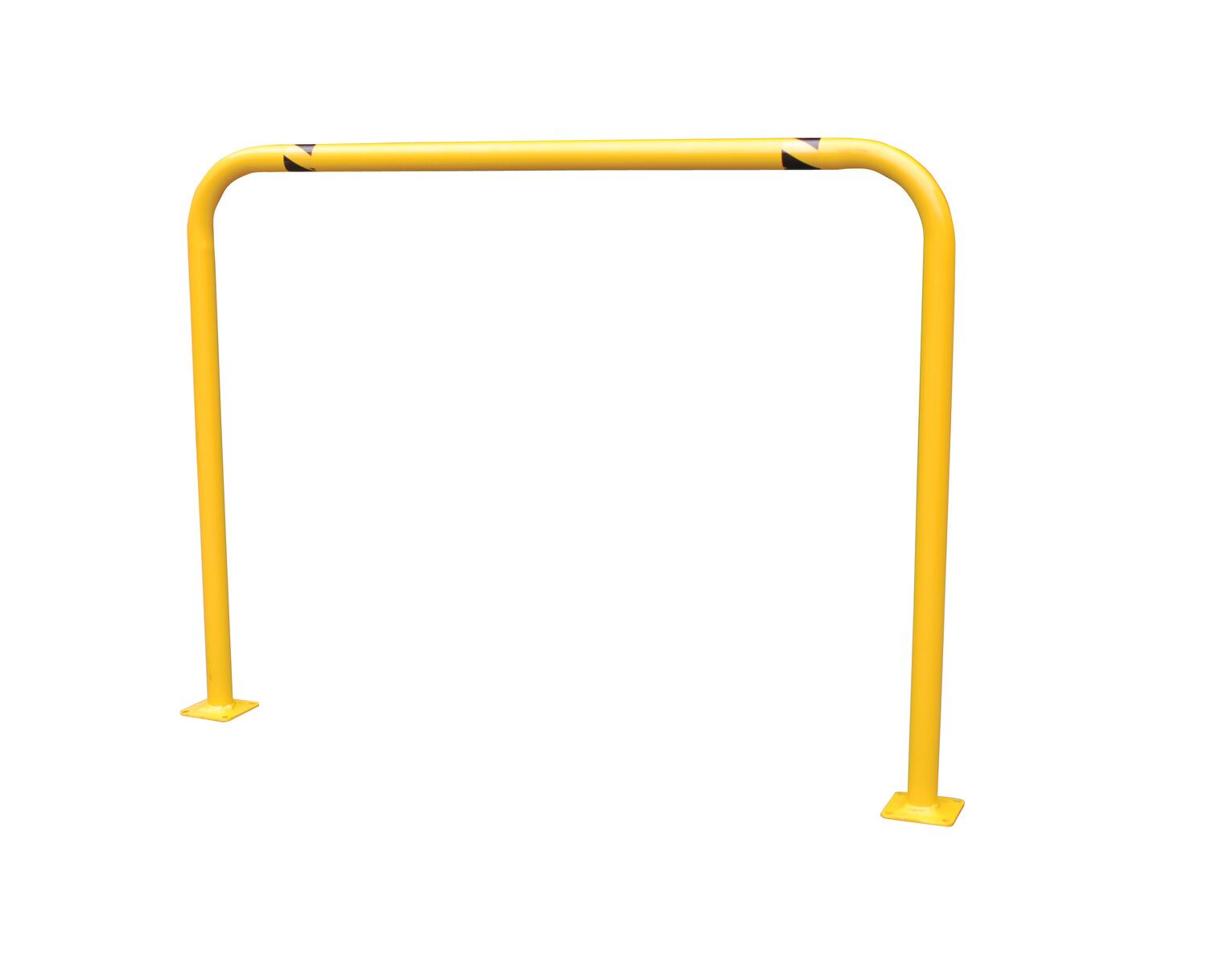

HPRO-48-36-2 HPRO-48-36-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 36 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
21

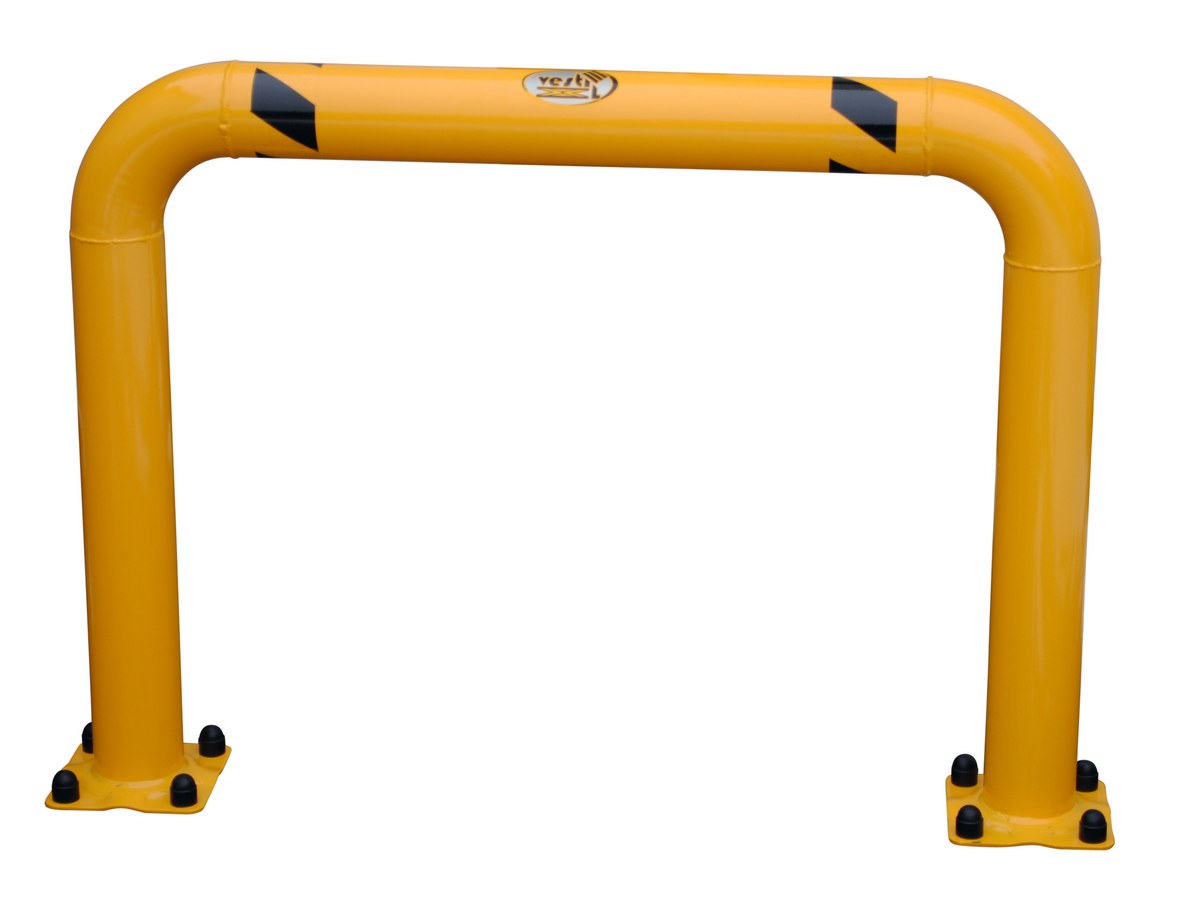

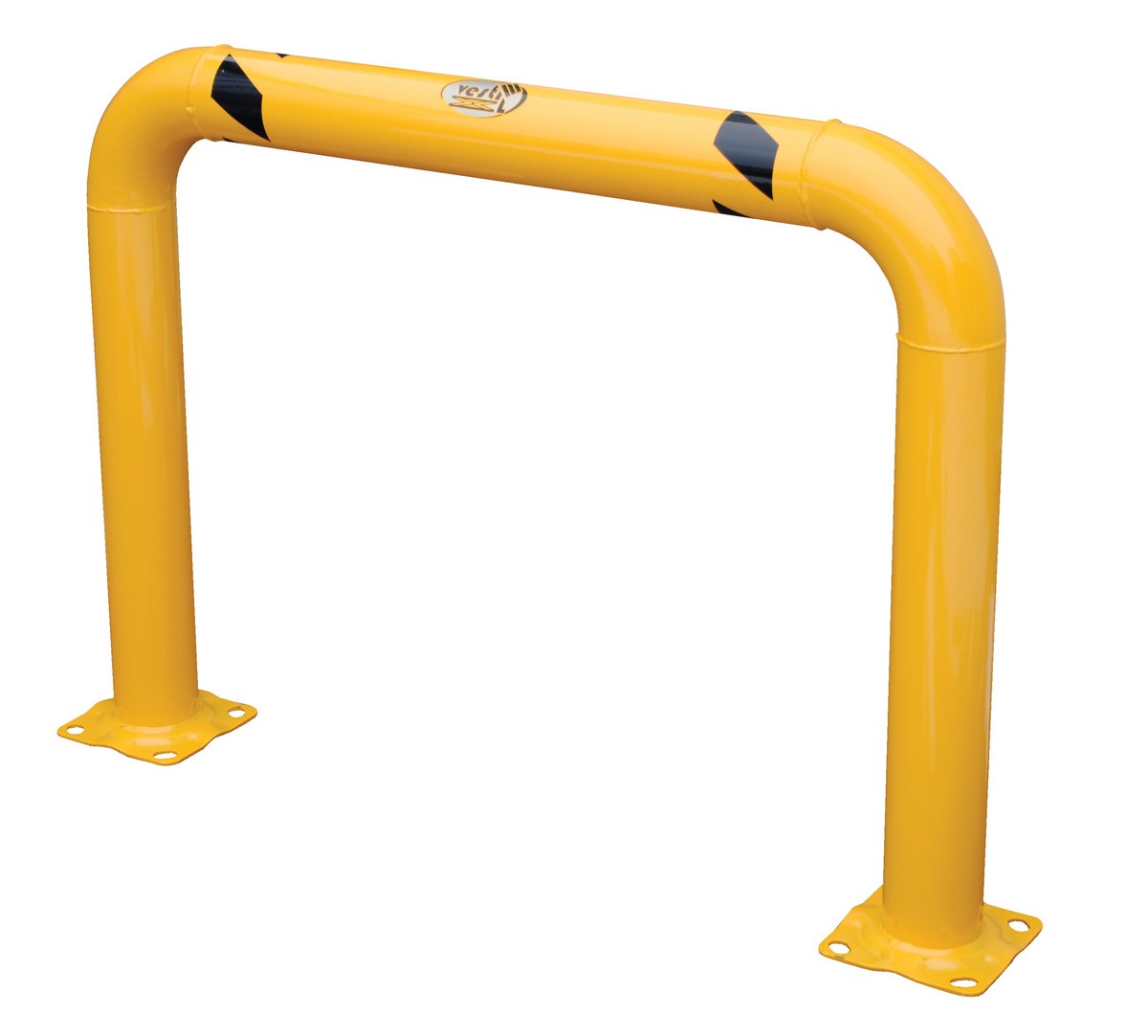

HPRO-48-36-4 HPRO-48-36-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 36 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
62

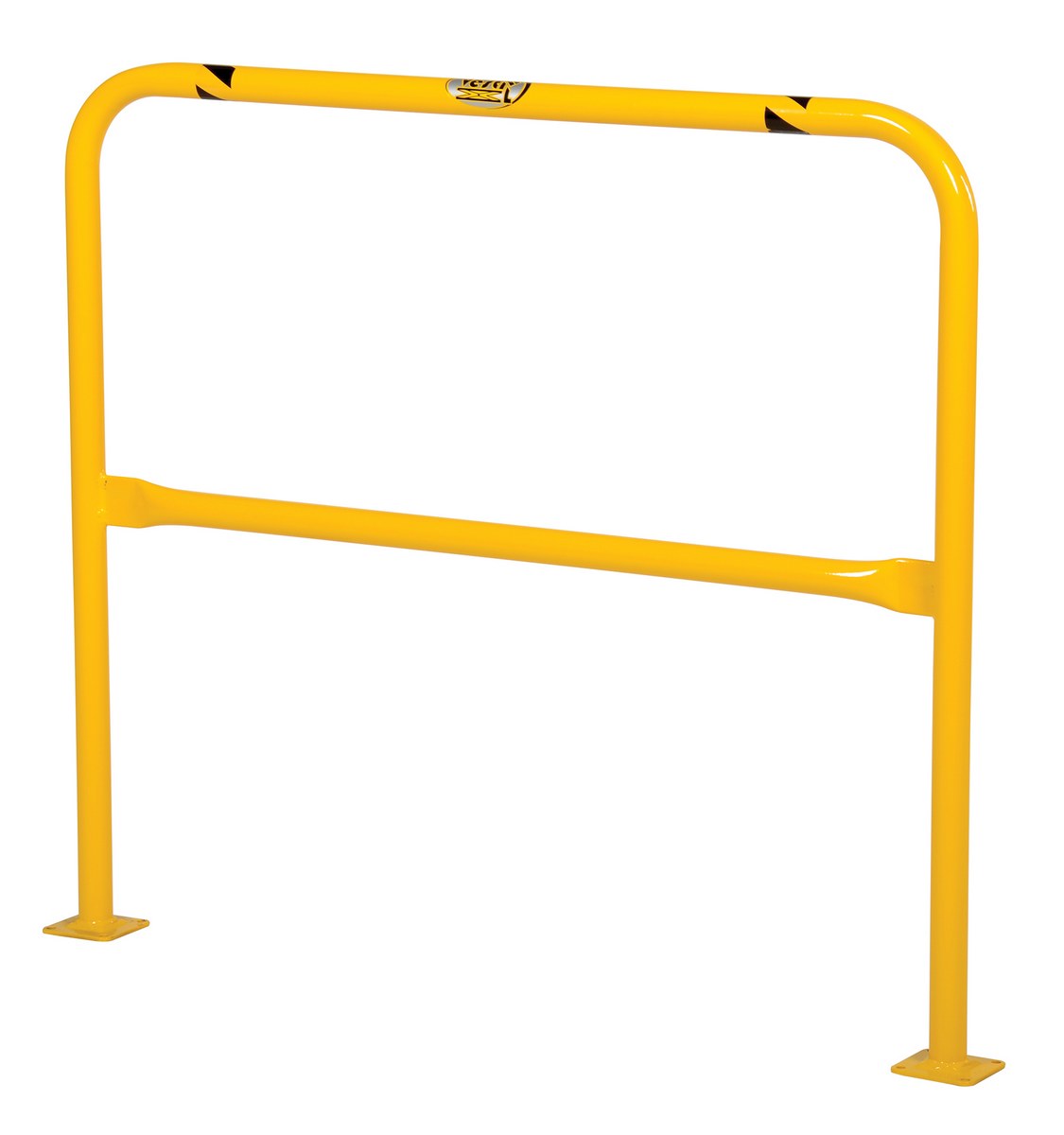

HPRO-48-42-2 HPRO-48-42-290 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 42 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
26

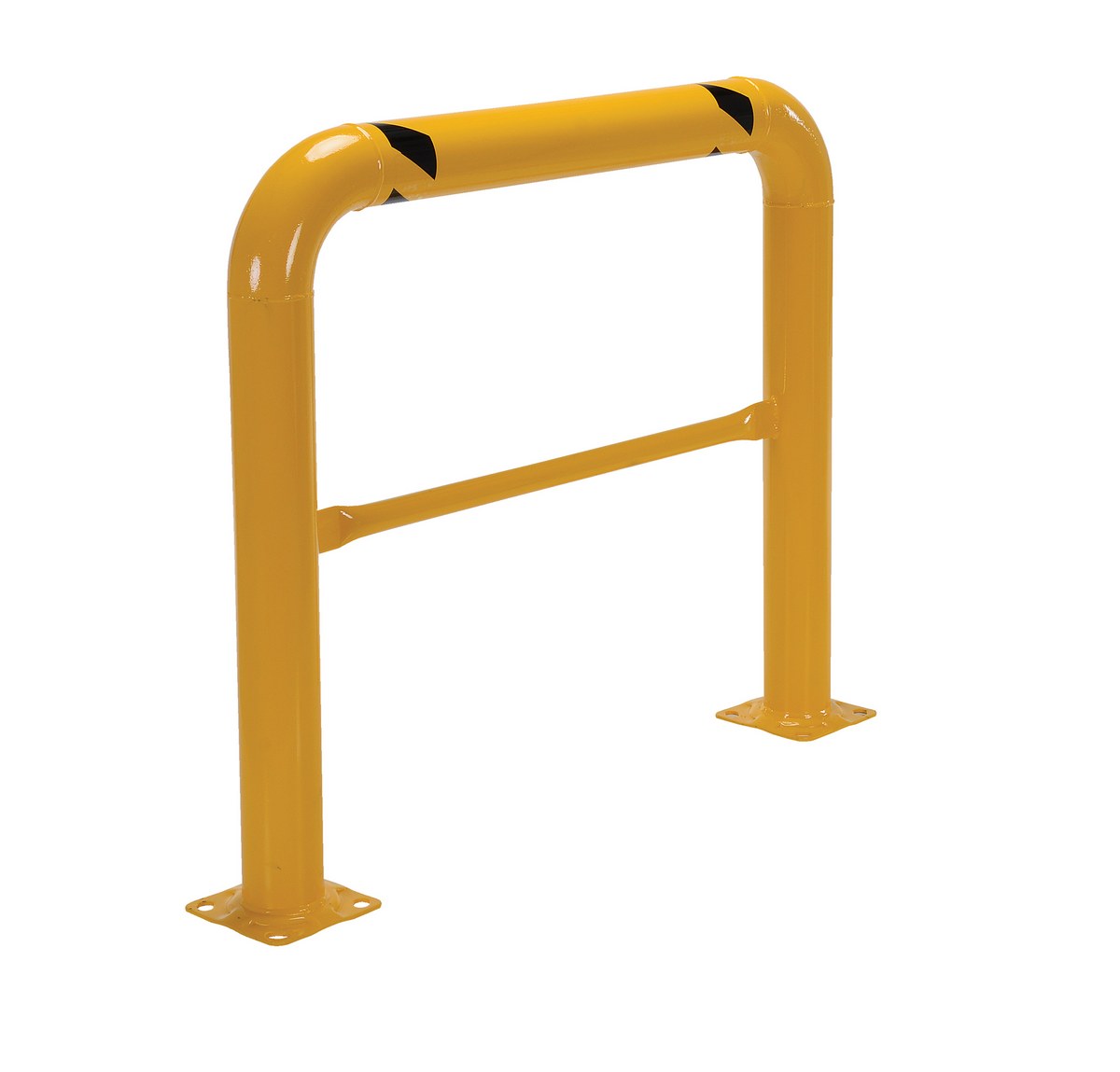

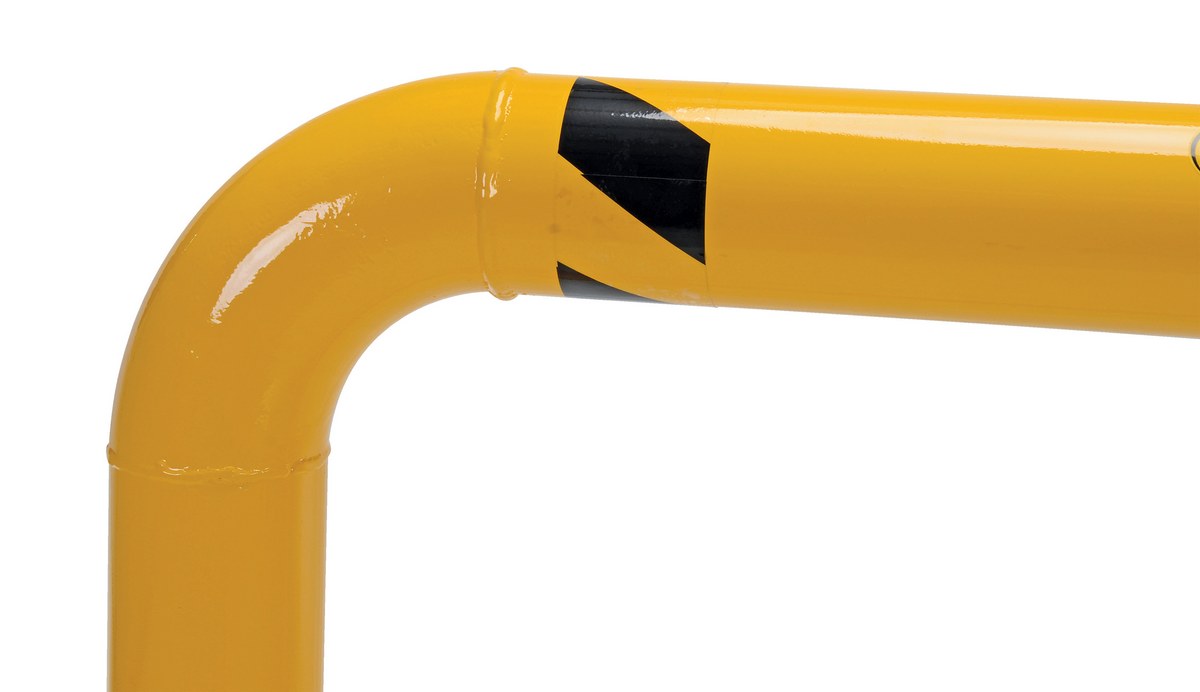

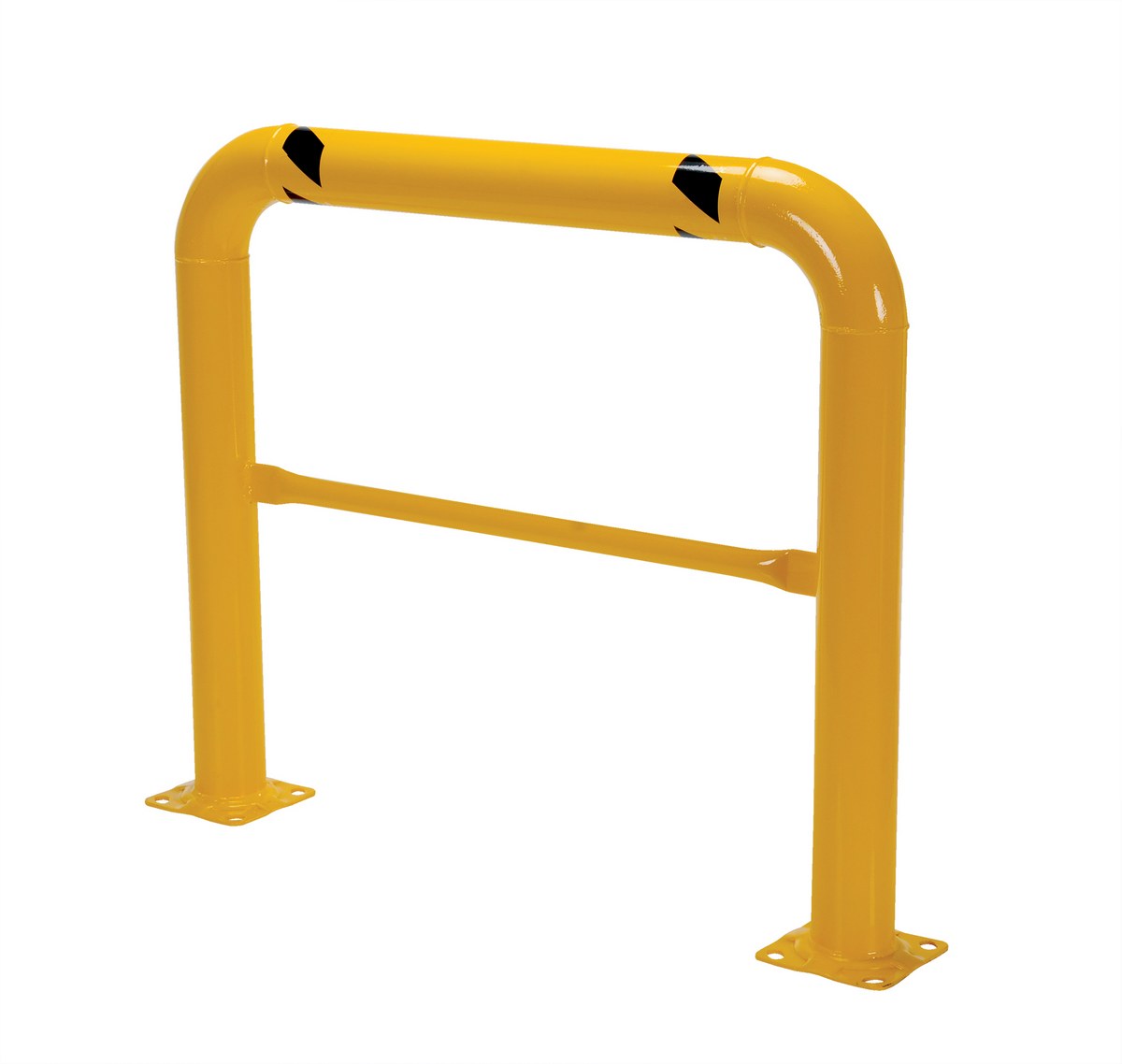

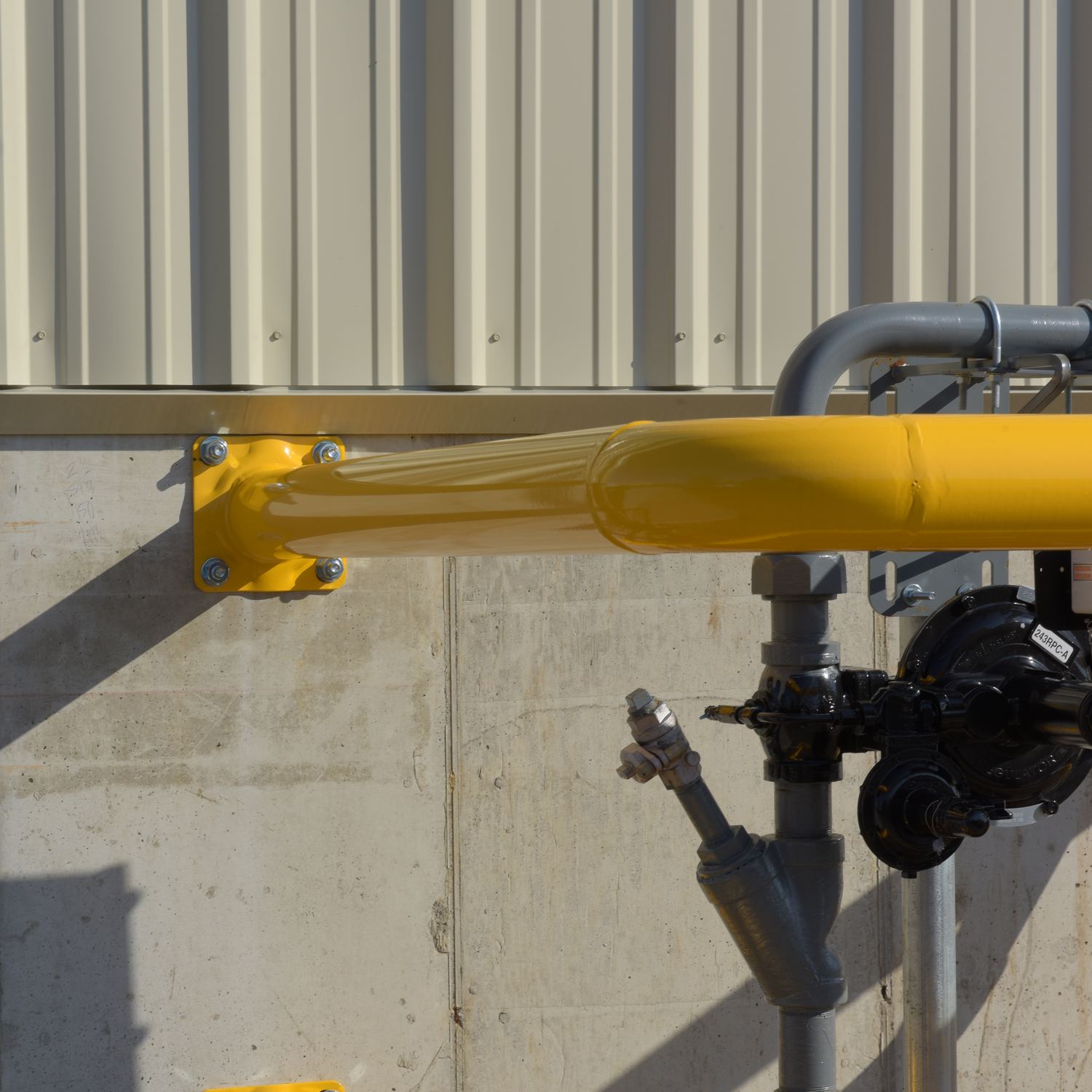

HPRO-48-42-4 HPRO-48-42-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 48 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
120

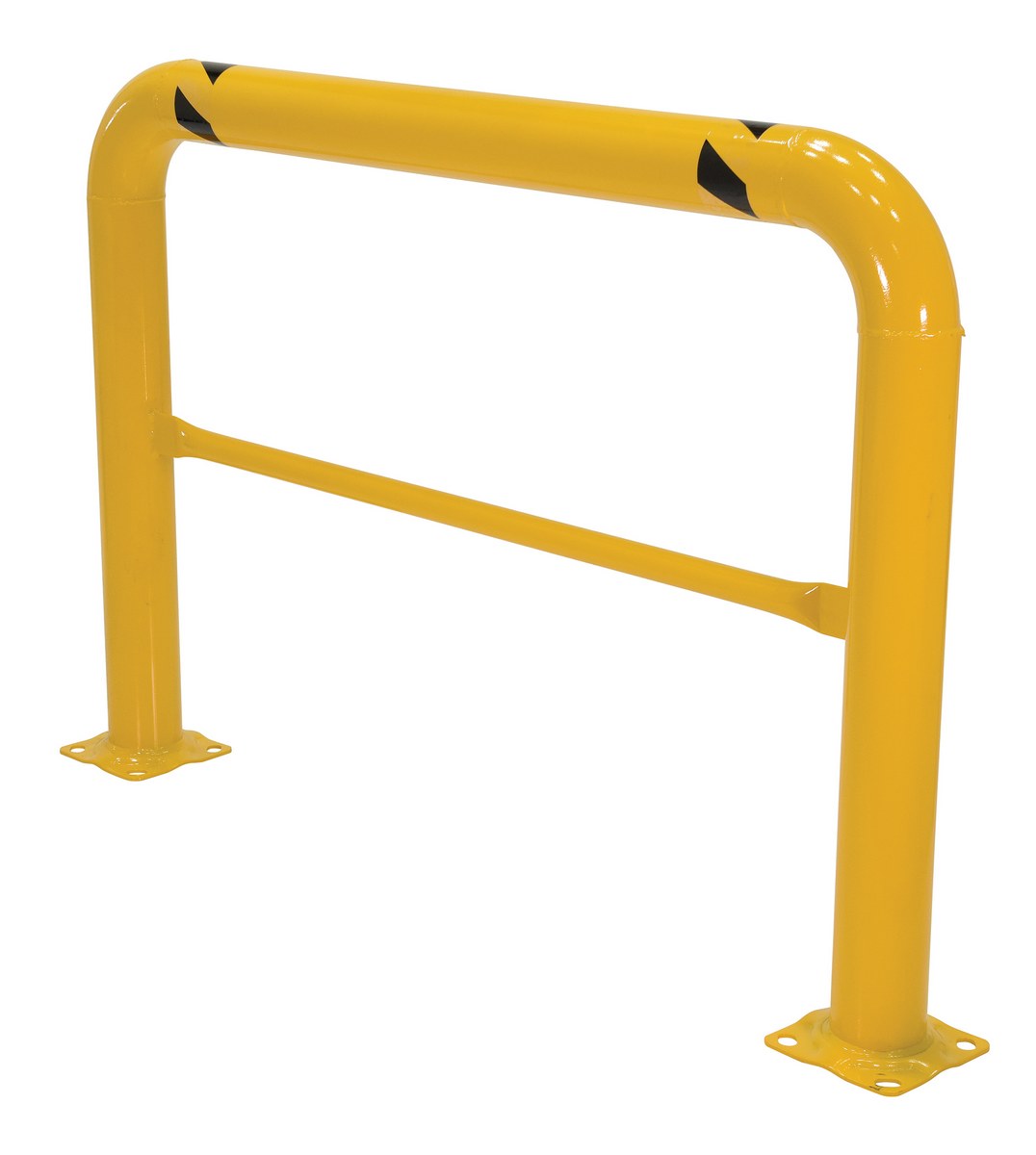

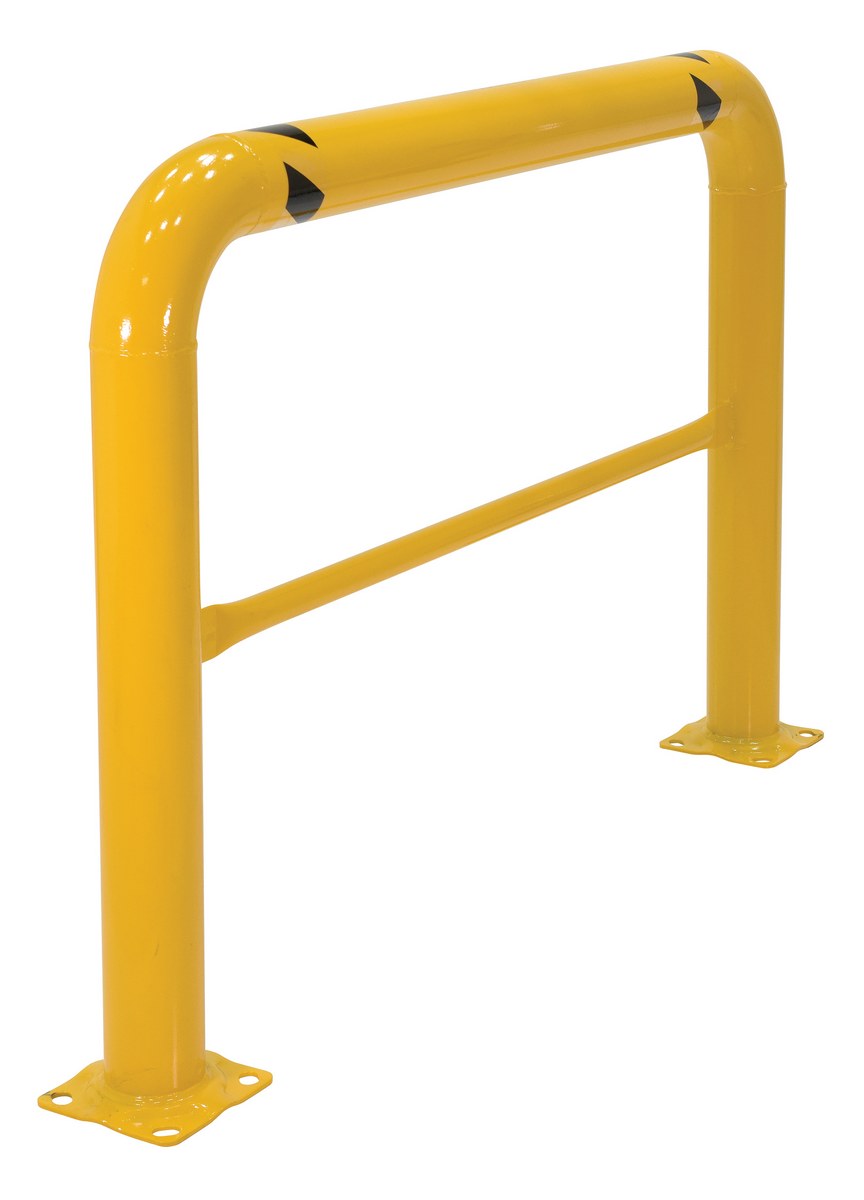

HPRO-60-42-4 HPRO-60-42-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 60 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8
126

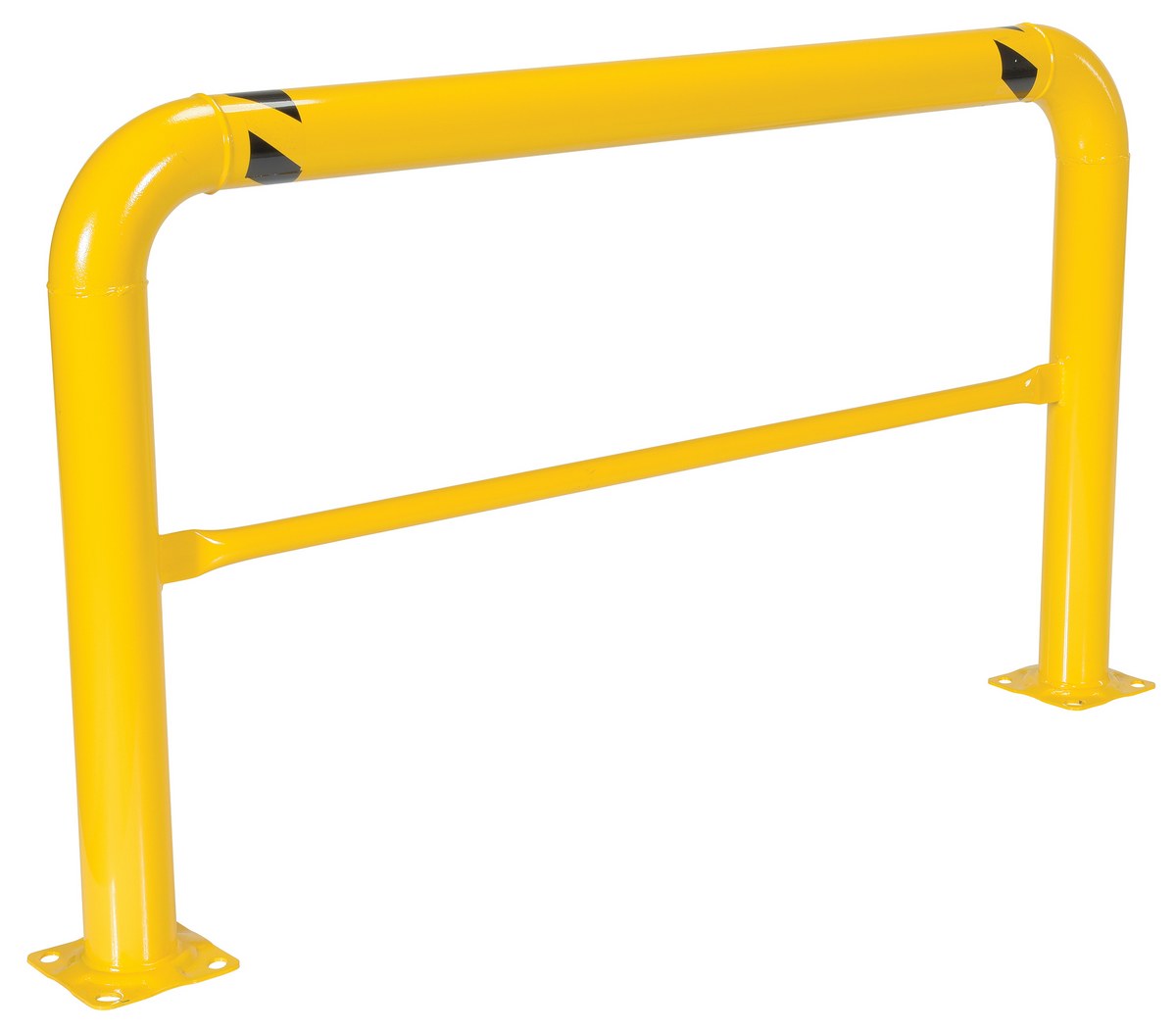

HPRO-72-42-4 HPRO-72-42-490 Days Limited WarrantySteel High Profile Machinery and Rack Guard 72 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8
129

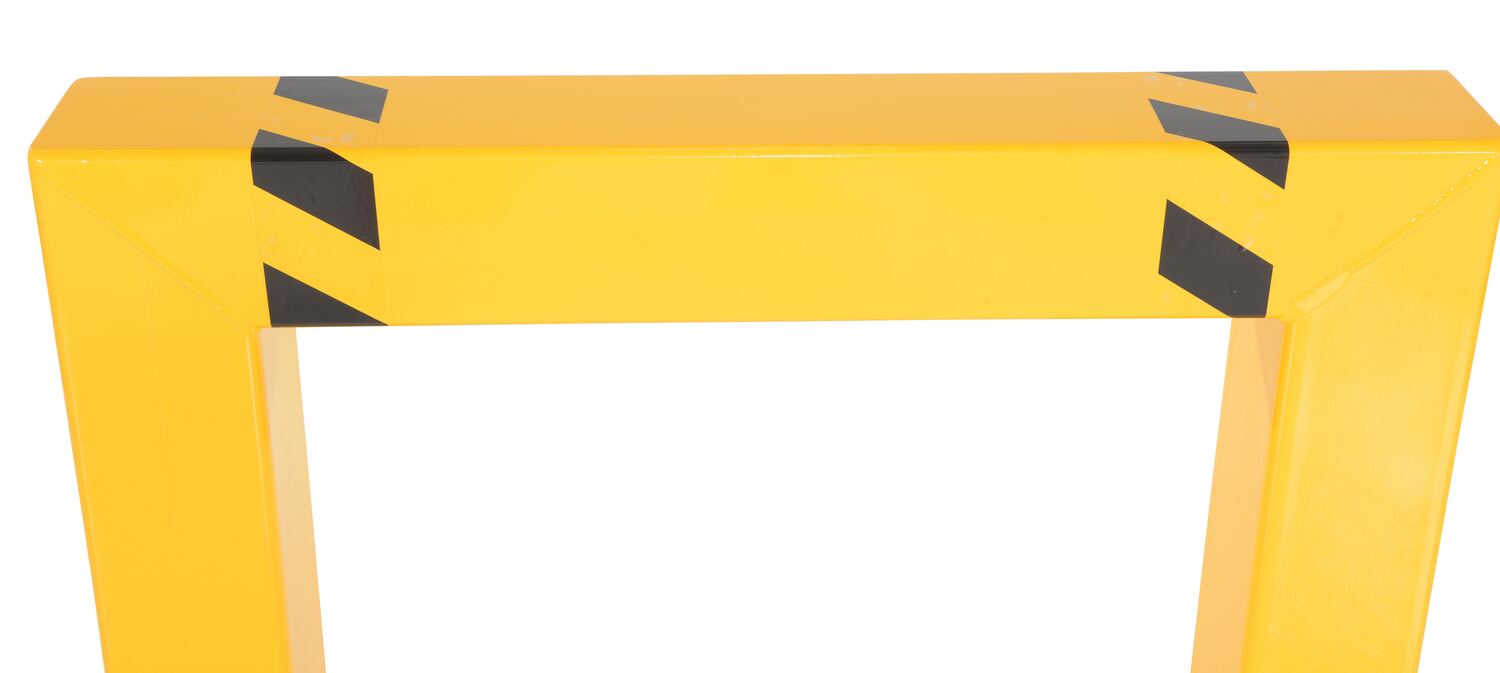

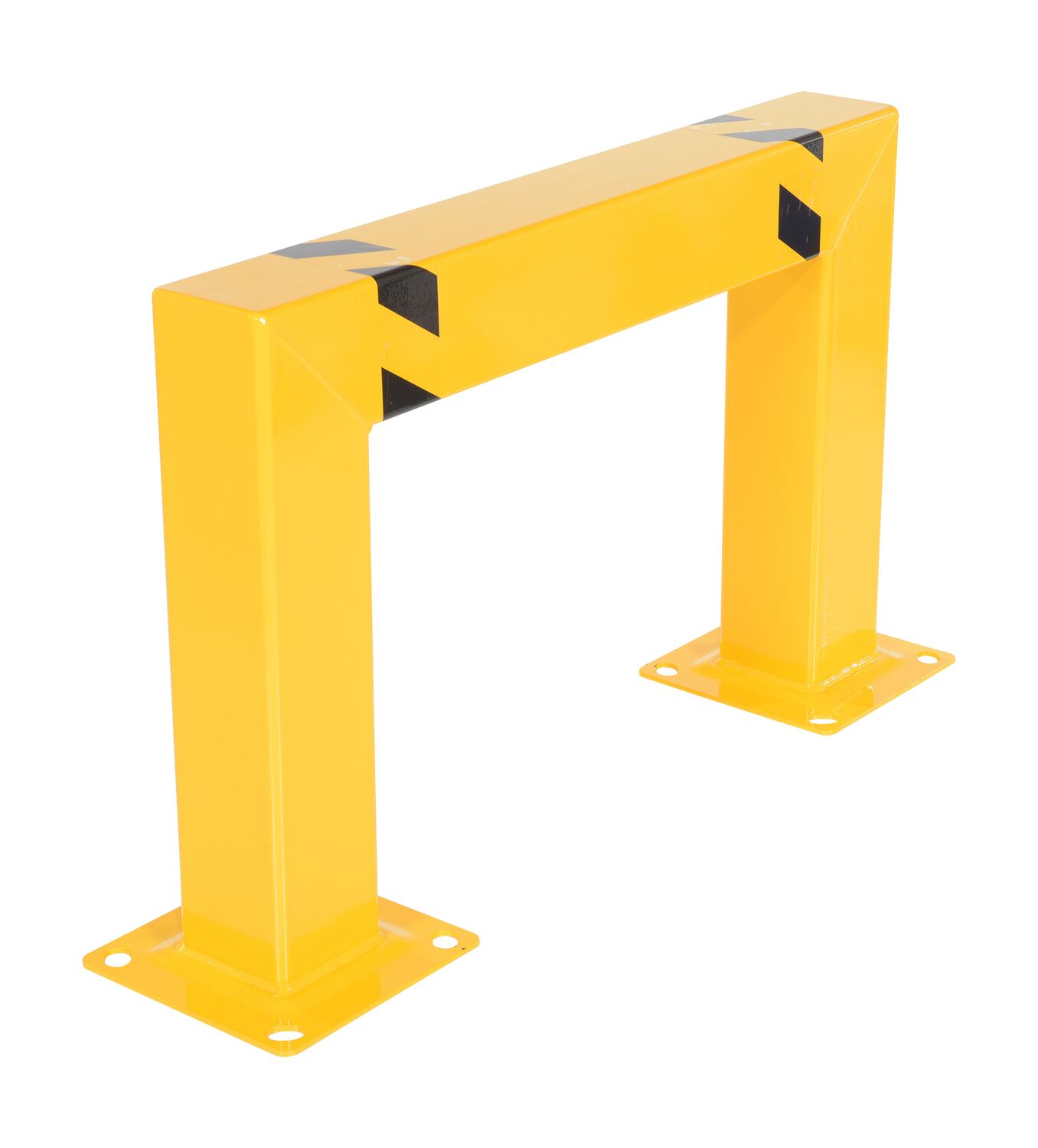

HPRO-SQ-36-24-5 HPRO-SQ-36-24-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 36 In. x 24 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
84

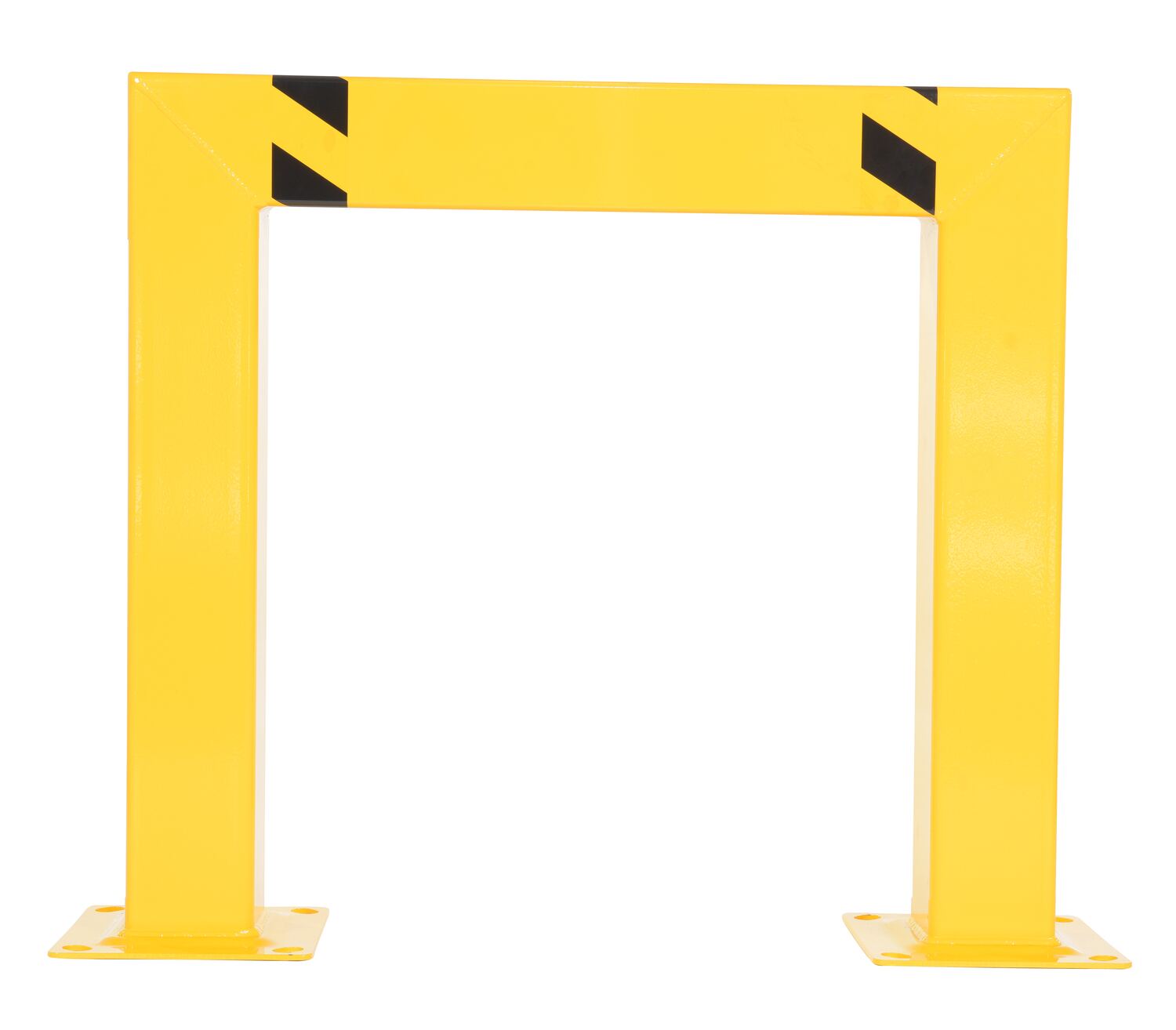

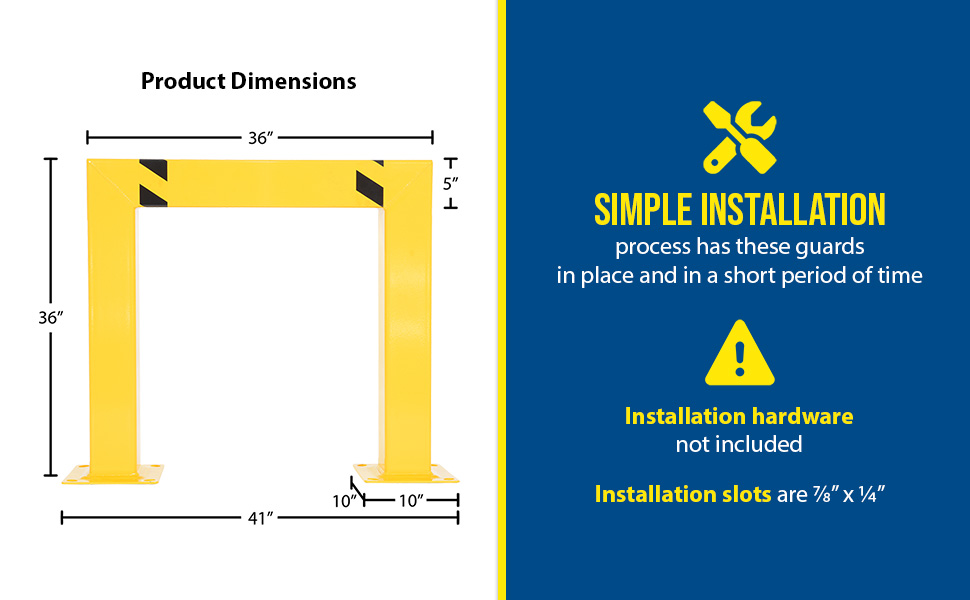

HPRO-SQ-36-36-5 HPRO-SQ-36-36-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 36 In. x 36 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
108

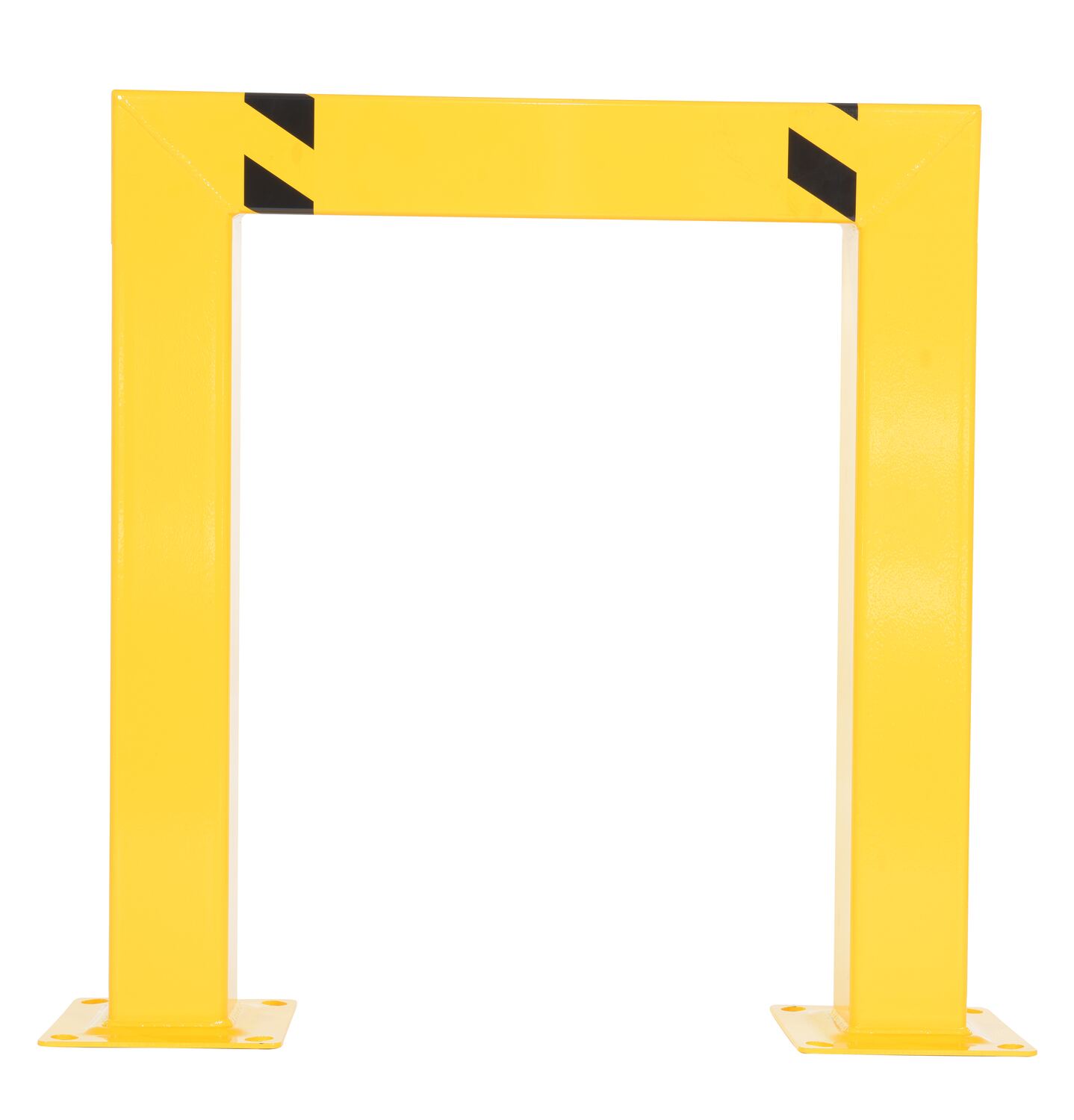

HPRO-SQ-36-42-5 HPRO-SQ-36-42-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 36 In. x 42 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
120

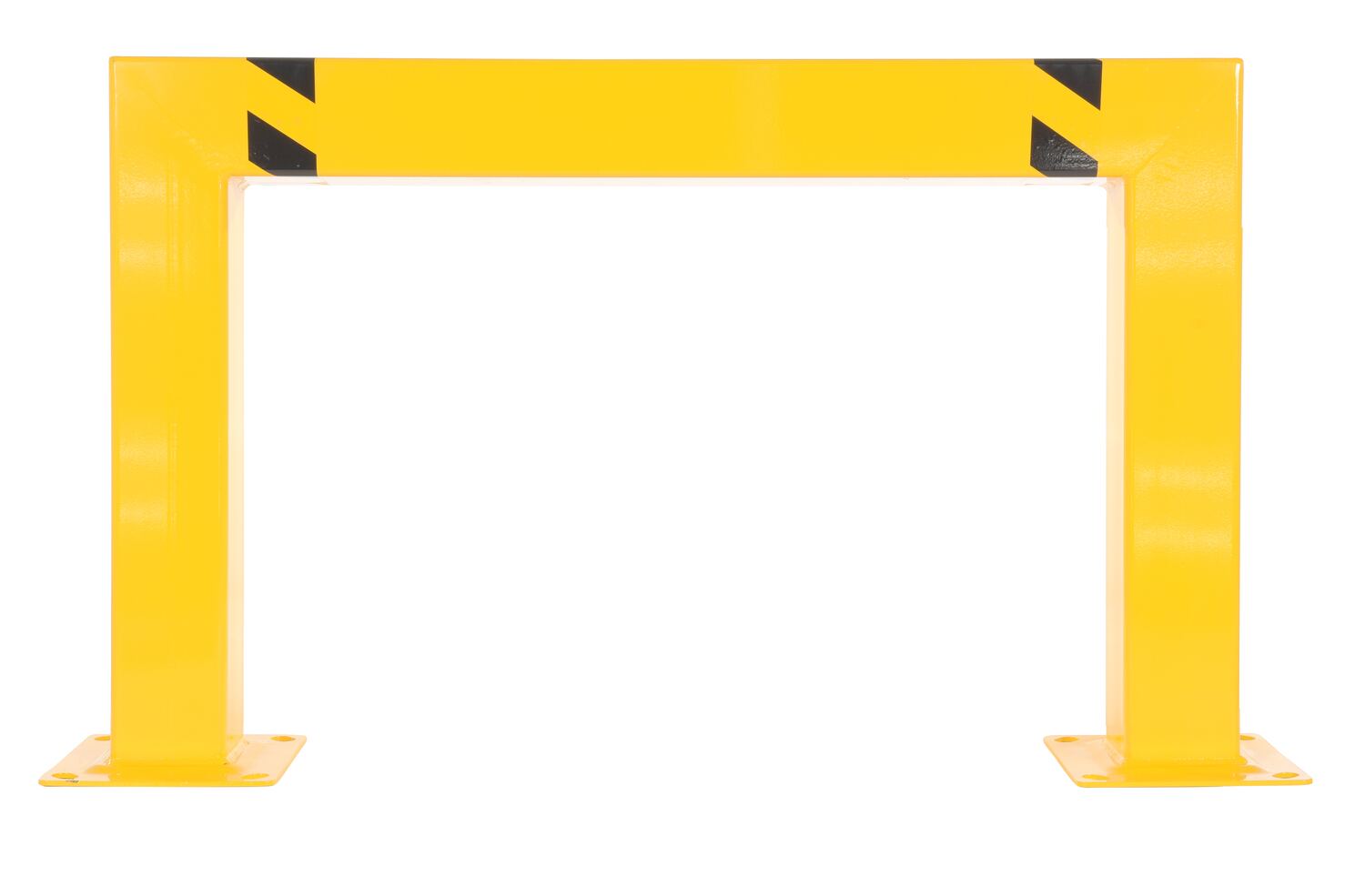

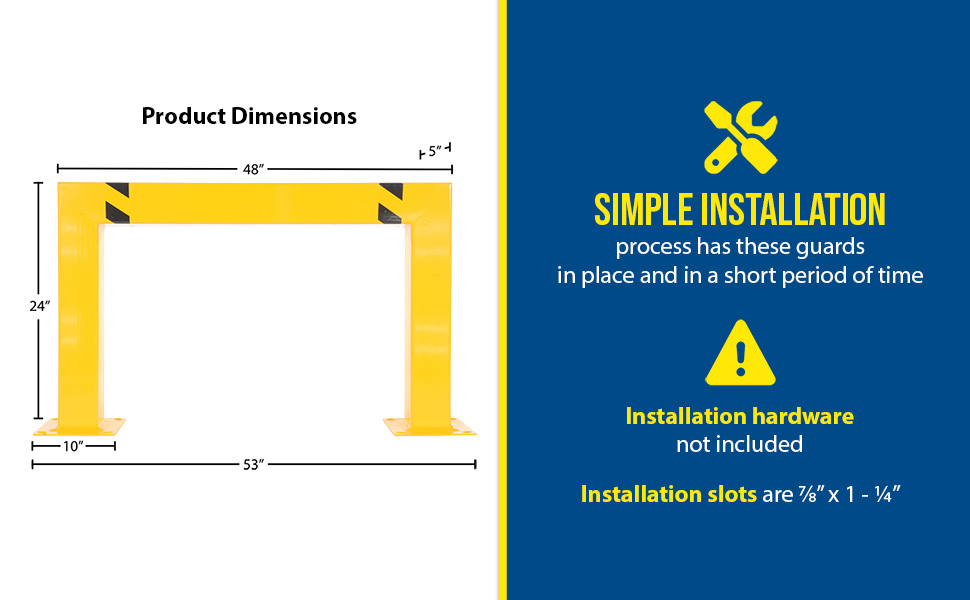

HPRO-SQ-48-24-5 HPRO-SQ-48-24-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
96

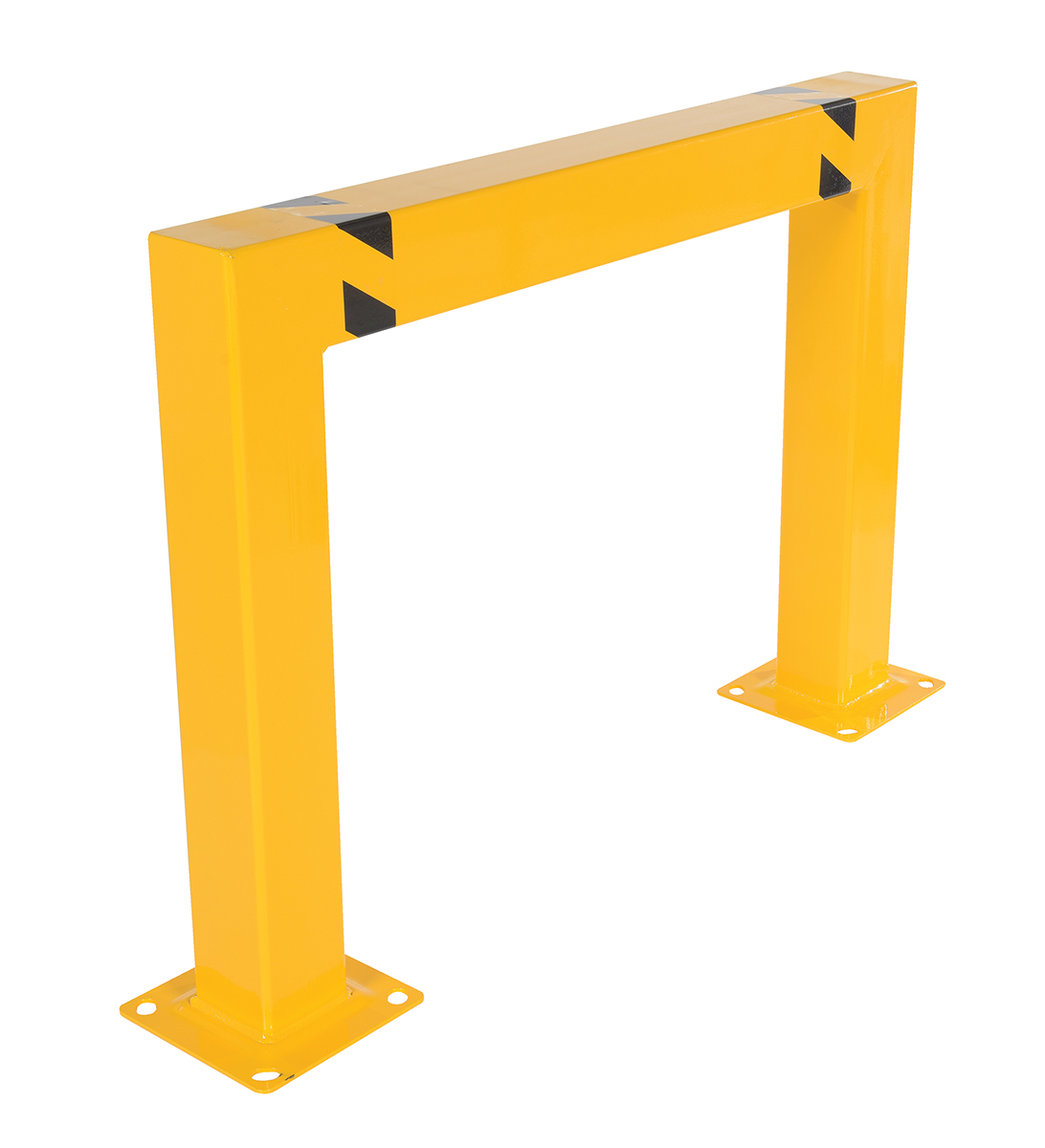

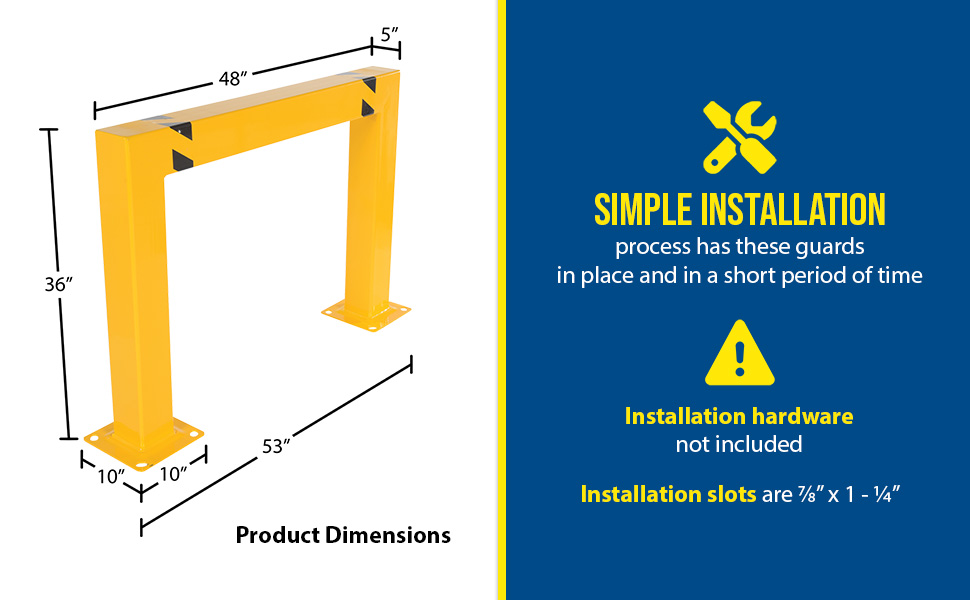

HPRO-SQ-48-36-5 HPRO-SQ-48-36-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
120

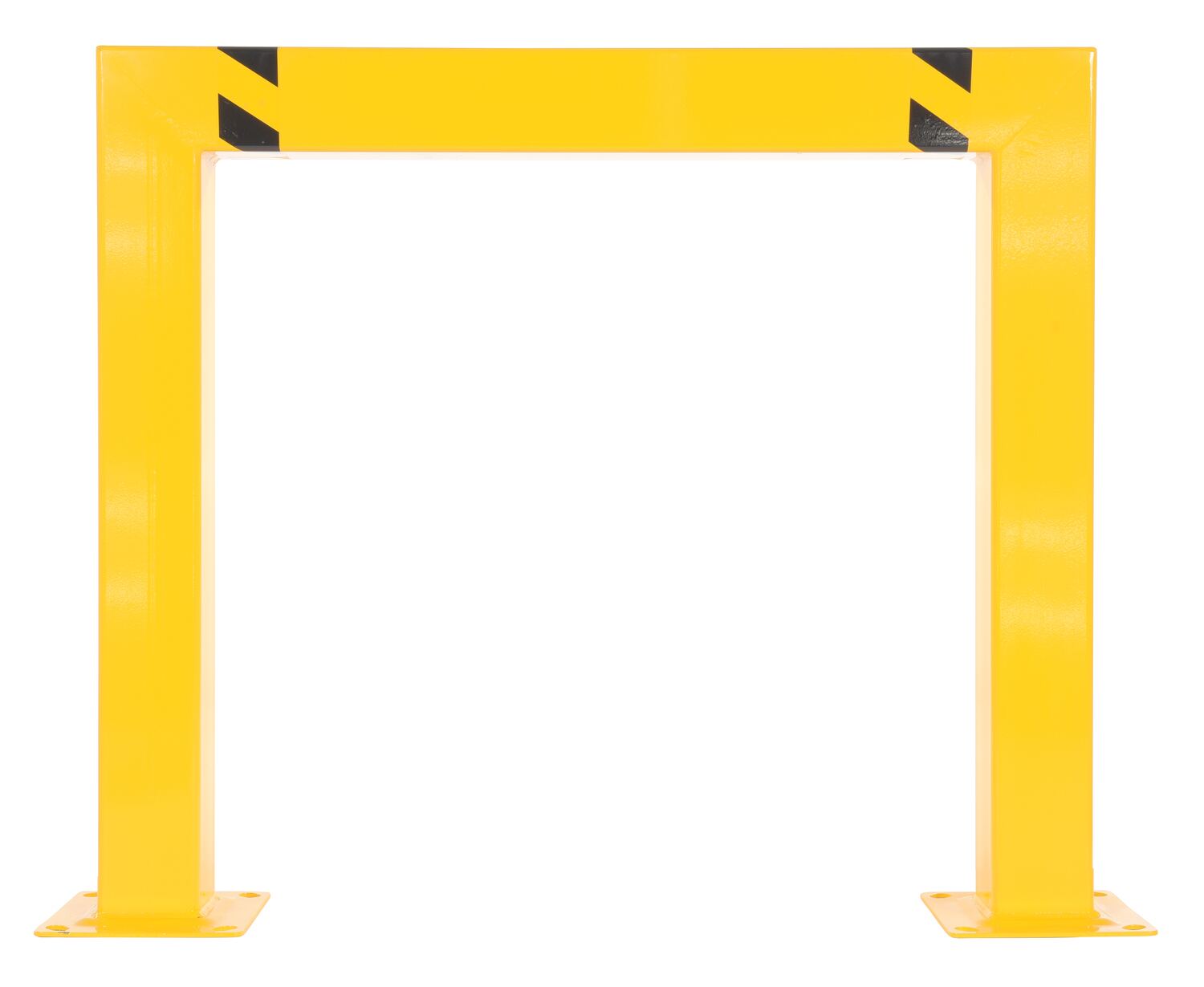

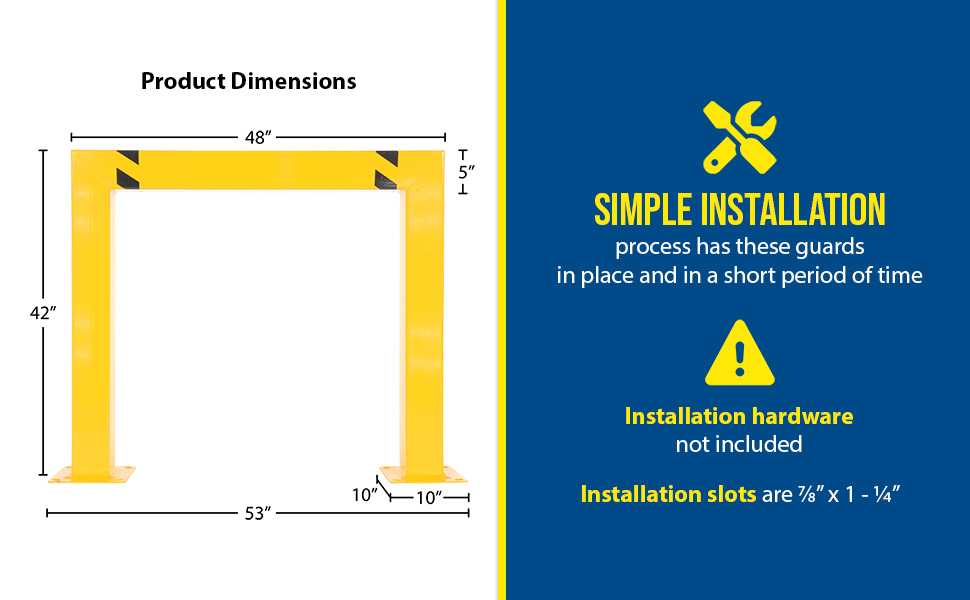

HPRO-SQ-48-42-5 HPRO-SQ-48-42-590 Days Limited WarrantySteel Square High Profile Machinery and Rack Guard 48 In. x 42 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
132

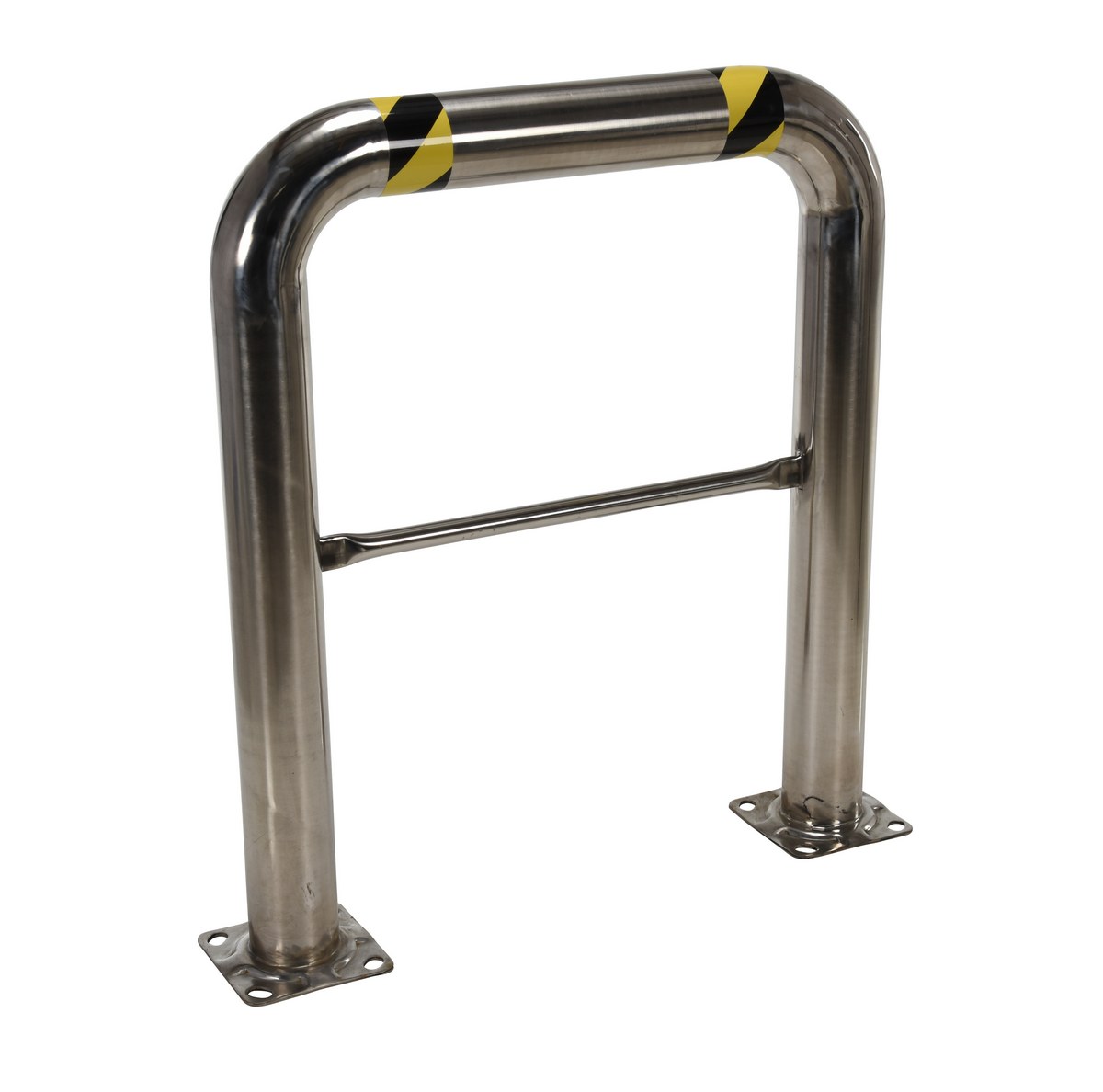

HPRO-SS-36-36-4 HPRO-SS-36-36-490 Days Limited WarrantyStainless Steel High Profile Rack Guard 36 In. x 36 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
94
HPRO-SS-36-42-4 HPRO-SS-36-42-490 Days Limited WarrantyStainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
100

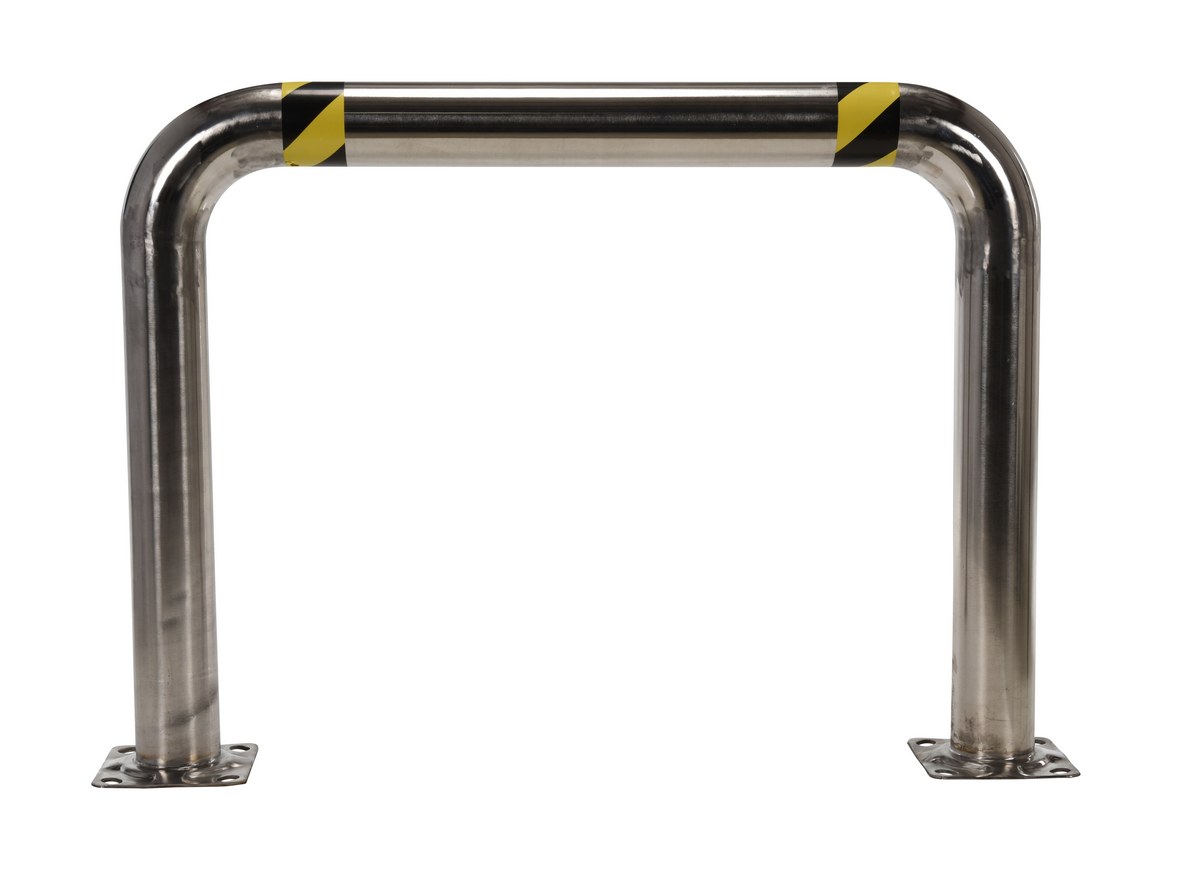

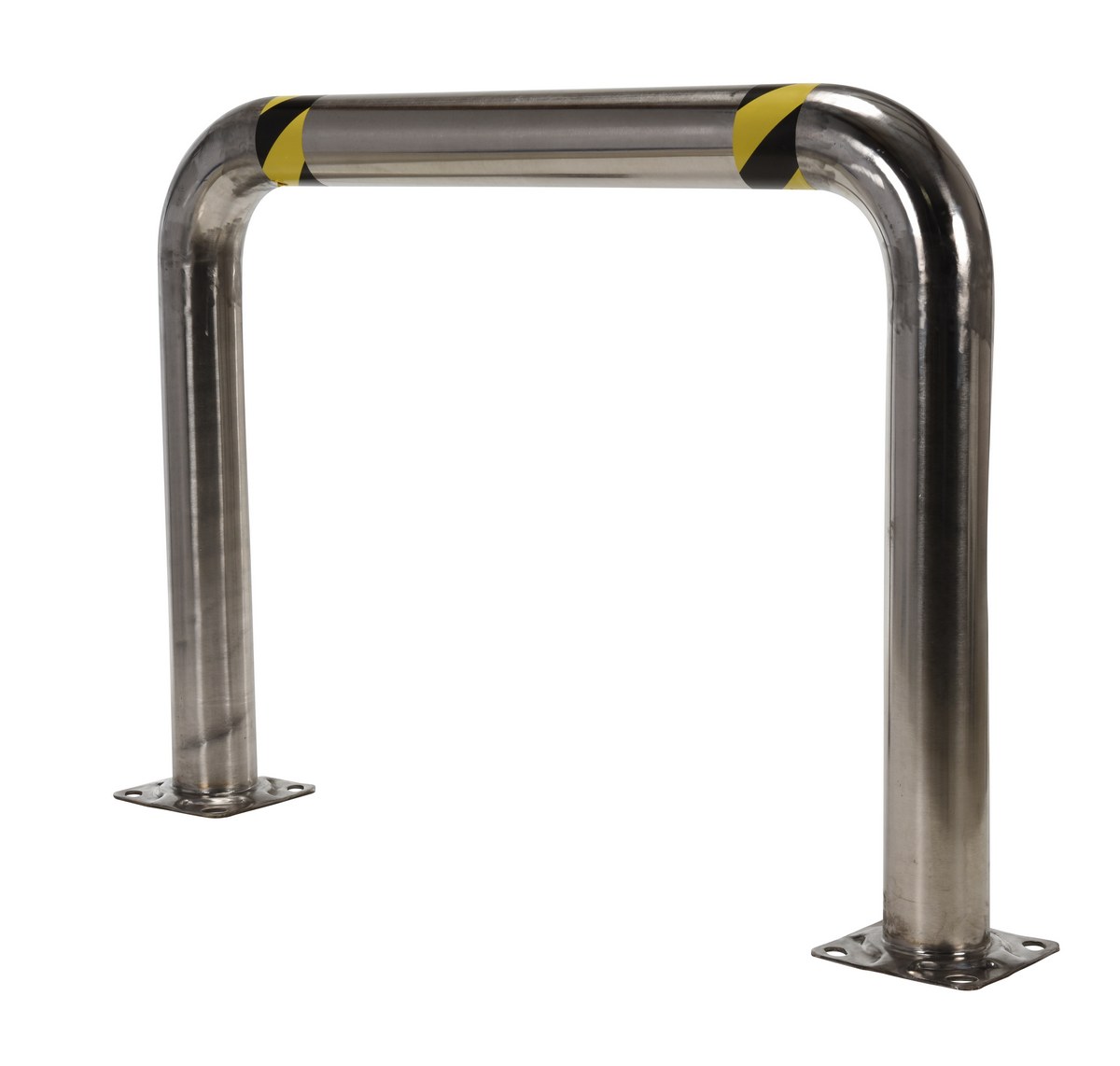

HPRO-SS-48-36-4 HPRO-SS-48-36-490 Days Limited WarrantyStainless Steel High Profile Rack Guard 48 In. x 36 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
102

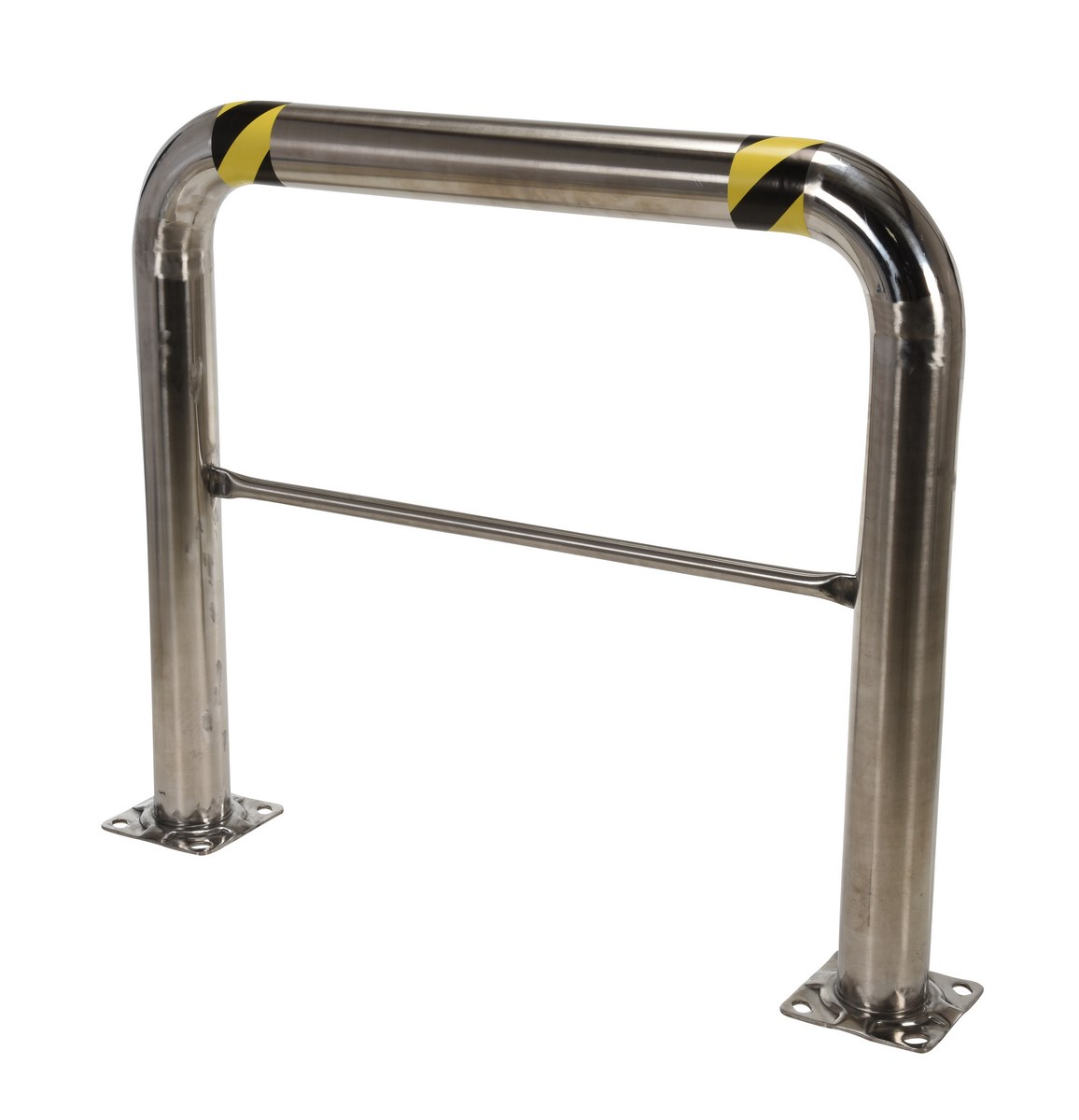

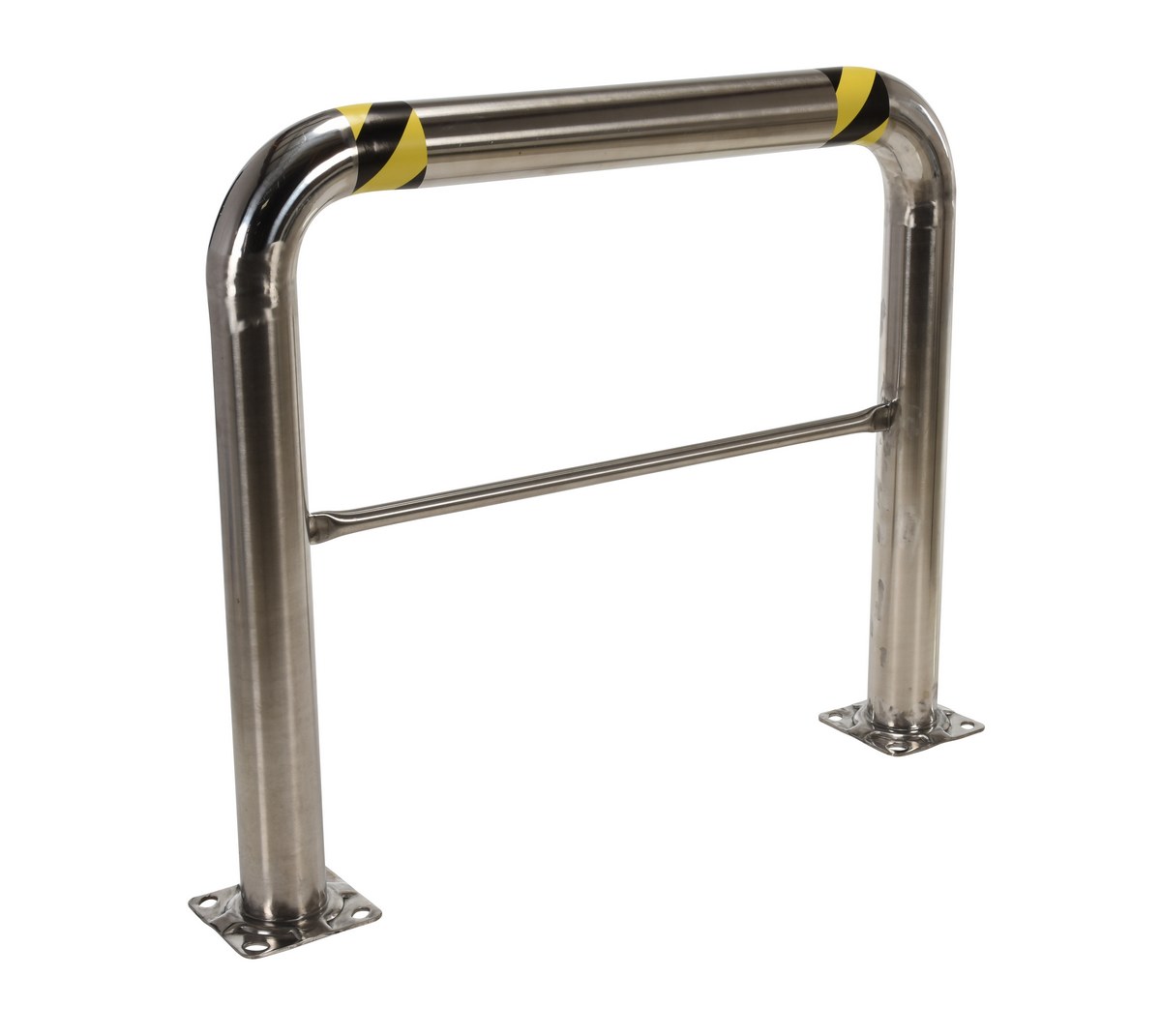

HPRO-SS-48-42-4 HPRO-SS-48-42-490 Days Limited WarrantyStainless Steel High Profile Rack Guard 48 In. x 42 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
107

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HPRO-36-24-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36

HPRO-36-24-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8

HPRO-36-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36

HPRO-36-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8

HPRO-36-42-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36
Guard Diameter (in.): 1-11/16
Guard Width (in.): 36

HPRO-36-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8

HPRO-48-24-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48

HPRO-48-24-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8

HPRO-48-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48

HPRO-48-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8

HPRO-48-42-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48
Guard Diameter (in.): 1-11/16
Guard Width (in.): 48

HPRO-48-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8

HPRO-60-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8

HPRO-72-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8
Guard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8

HPRO-SQ-36-24-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36

HPRO-SQ-36-36-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36

HPRO-SQ-36-42-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 36
Usable Width (in.): 5
Usable Length (in.): 36

HPRO-SQ-48-24-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48

HPRO-SQ-48-36-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48

HPRO-SQ-48-42-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Usable Width (in.): 5
Usable Length (in.): 48
Usable Width (in.): 5
Usable Length (in.): 48

HPRO-SS-36-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8

HPRO-SS-36-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8

HPRO-SS-48-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8

HPRO-SS-48-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
Guard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
For More Details of the Option Click the Red Model Button

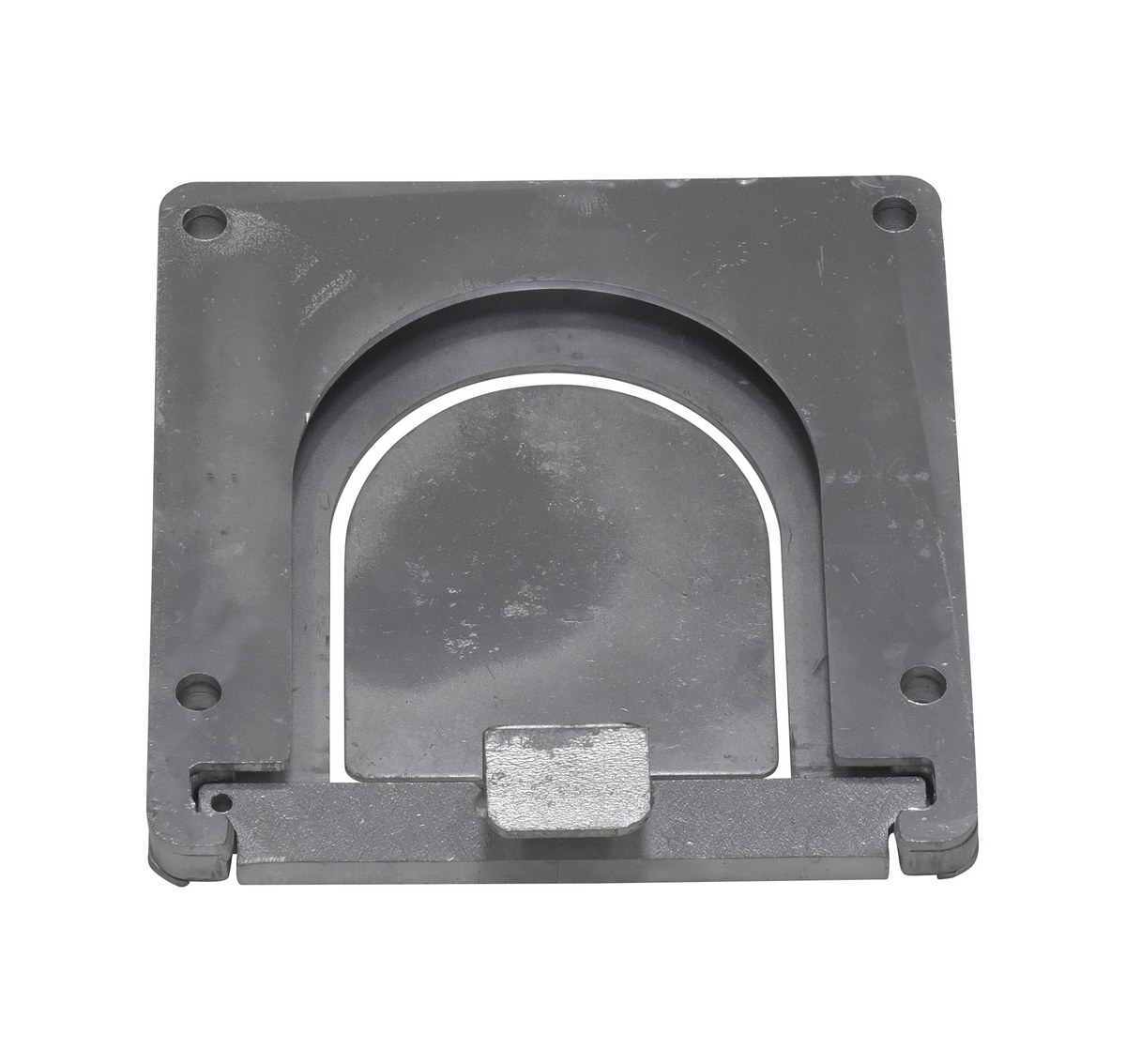

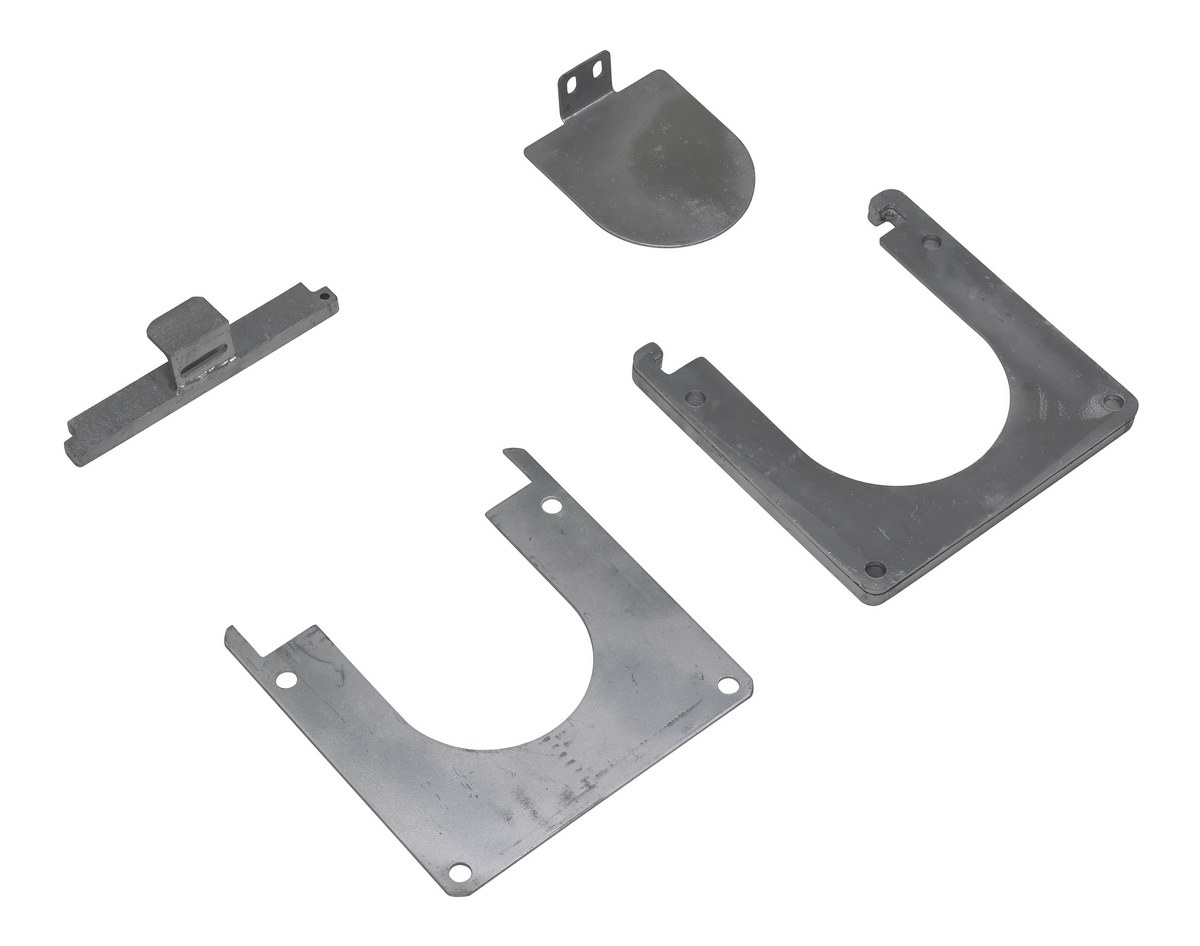

HPRO-RF-BASE HPRO-RF-BASE90 Days Limited WarrantySteel Removable Bollard Base For High Profile Machinery Guards SilverBolt Holes (qty.): 4
Usable Width (in.): 6-3/4
12
Model Image Description Wt (lbs.)
AS-383 Anchor Bolts For Concrete (1) 3/8"x 3" (1-11/16" units) 1
AS-383-4PK Anchor Bolts For Concrete (4) 3/8"x 3" (1-11/16" units) 4
AS-344 Anchor Bolts For Concrete (1) 3/4" x 4" (4-1/2" units) 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4" x 4" (4-1/2" units) 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

High Profile Machinery Guards PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HPRO-36-24-2

HPRO-36-24-4

HPRO-36-36-2

HPRO-36-36-4

HPRO-36-42-2

HPRO-36-42-4

HPRO-48-24-2

HPRO-48-24-4

HPRO-48-36-2

HPRO-48-36-4

HPRO-48-42-2

HPRO-48-42-4

HPRO-60-42-4

HPRO-72-42-4

HPRO-RF-BASE

HPRO-SQ-36-24-5

HPRO-SQ-36-36-5

HPRO-SQ-36-42-5

HPRO-SQ-48-24-5

HPRO-SQ-48-36-5

HPRO-SQ-48-42-5

HPRO-SS-36-36-4

HPRO-SS-36-42-4

HPRO-SS-48-36-4

HPRO-SS-48-42-4

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How thick are the "walls' on the HPRO-48-36-4?

A: The HPRO is made from ASTM-A-36 metal and has a wall thickness of .120". (We use 4" schedule-10 pipe to build these.) This is the same for all of our 4.5" diameter HPROs.


Q: What is the impact rating for the HPRO-48-36-4?

A: It is 4,000 lbs. force @ 4 MPH. This is the same for all of our 4.5" diameter HPROs.


Q: What is the thickness of the wall on the HPRO-36-24-2?

A: The walls are made from ASTM-A-36 metal and has a wall thickness of .109". This is the same for all of our 2" HPROs.


Q: Is there an option for a removeable base with this guard?

A: Yes. You can purchase the HPRO-RF-BASE for the HPRO-60-42-4.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





High Profile Machinery Guards




Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.

  • High profile design provides added protection to personnel and equipment
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Powder coat yellow or Stainless Steel finish provides long lasting durable coverage
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications


Model # Description Attributes Net Wt.
(lbs)
HPRO-36-24-2 HPRO-36-24-2Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
12
HPRO-36-24-4 HPRO-36-24-4Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
48
HPRO-36-36-2 HPRO-36-36-2Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
18
HPRO-36-36-4 HPRO-36-36-4Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
100
HPRO-36-42-2 HPRO-36-42-2Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 36
20
HPRO-36-42-4 HPRO-36-42-4Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
70
HPRO-48-24-2 HPRO-48-24-2Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
19
HPRO-48-24-4 HPRO-48-24-4Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
51
HPRO-48-36-2 HPRO-48-36-2Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
21
HPRO-48-36-4 HPRO-48-36-4Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
62
HPRO-48-42-2 HPRO-48-42-2Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 2 In. YellowGuard Diameter (in.): 1-11/16
Guard Width (in.): 48
26

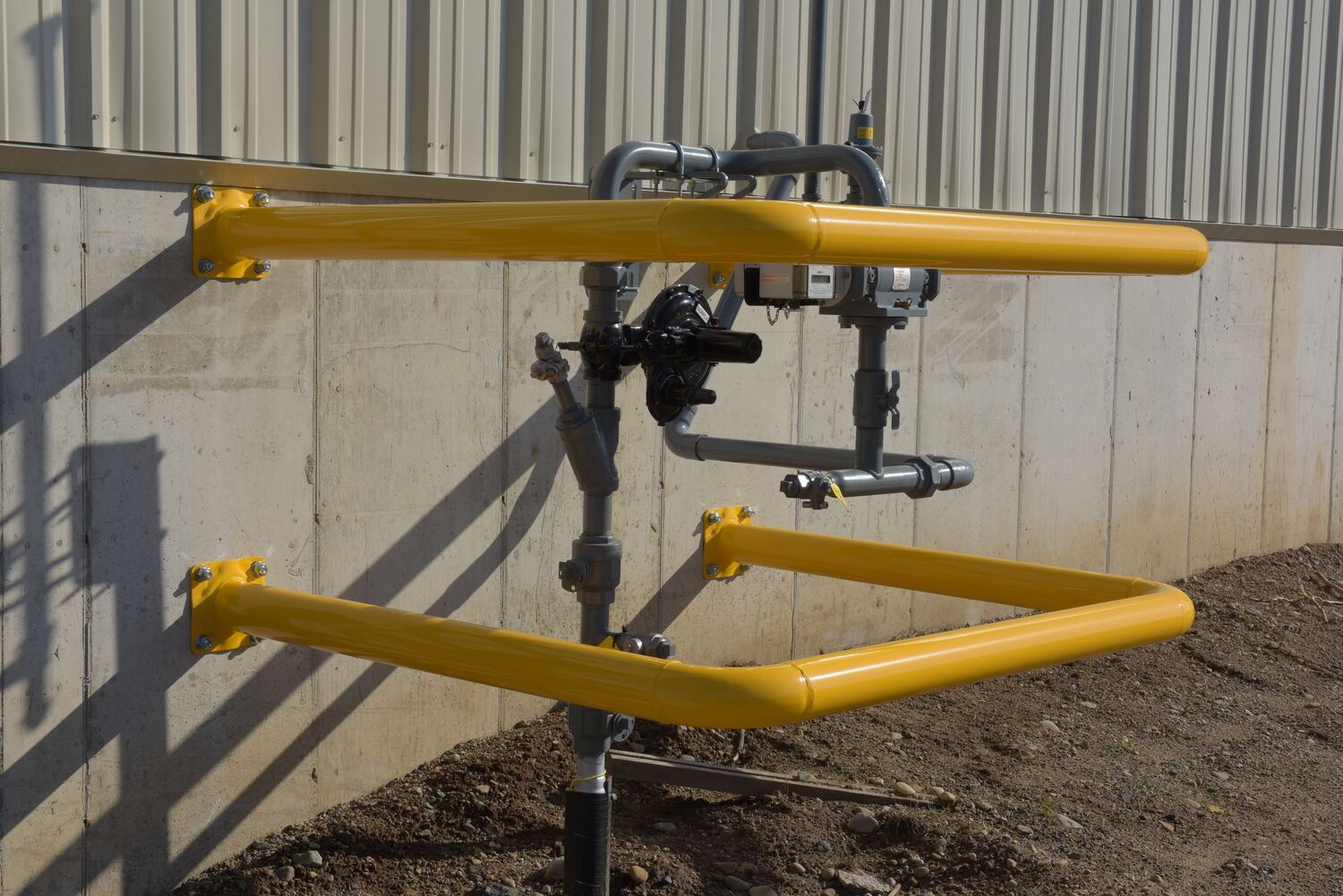

HPRO-48-42-4 HPRO-48-42-4Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 48-5/8
120
HPRO-60-42-4 HPRO-60-42-4Steel High Profile Machinery and Rack Guard 60 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 60-5/8
126
HPRO-72-42-4 HPRO-72-42-4Steel High Profile Machinery and Rack Guard 72 In. x 42 In. x 4 In. YellowGuard Diameter (in.): 4-1/2
Guard Width (in.): 72-5/8
129
HPRO-SQ-36-24-5 HPRO-SQ-36-24-5Steel Square High Profile Machinery and Rack Guard 36 In. x 24 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
84
HPRO-SQ-36-36-5 HPRO-SQ-36-36-5Steel Square High Profile Machinery and Rack Guard 36 In. x 36 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
108
HPRO-SQ-36-42-5 HPRO-SQ-36-42-5Steel Square High Profile Machinery and Rack Guard 36 In. x 42 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 36
120
HPRO-SQ-48-24-5 HPRO-SQ-48-24-5Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
96
HPRO-SQ-48-36-5 HPRO-SQ-48-36-5Steel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
120
HPRO-SQ-48-42-5 HPRO-SQ-48-42-5Steel Square High Profile Machinery and Rack Guard 48 In. x 42 In. x 5 In. YellowUsable Width (in.): 5
Usable Length (in.): 48
132
HPRO-SS-36-36-4 HPRO-SS-36-36-4Stainless Steel High Profile Rack Guard 36 In. x 36 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
94
HPRO-SS-36-42-4 HPRO-SS-36-42-4Stainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 36-5/8
100
HPRO-SS-48-36-4 HPRO-SS-48-36-4Stainless Steel High Profile Rack Guard 48 In. x 36 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
102
HPRO-SS-48-42-4 HPRO-SS-48-42-4Stainless Steel High Profile Rack Guard 48 In. x 42 In. x 4 In. SilverGuard Diameter (in.): 4-1/2
Guard Length (in.): 48-3/8
107

Options


Model Image Description Wt (lbs.)
AS-383 Anchor Bolts For Concrete (1) 3/8"x 3" (1-11/16" units) 1
AS-383-4PK Anchor Bolts For Concrete (4) 3/8"x 3" (1-11/16" units) 4
AS-344 Anchor Bolts For Concrete (1) 3/4" x 4" (4-1/2" units) 1
AS-344-4PK Anchor Bolts For Concrete (4) 3/4" x 4" (4-1/2" units) 4

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
