Product Family Overview


Dock Traffic Systems
SERIES: DTS

Our Dock Traffic Systems feature flashing red and green lights. Prevent accidents and injuries by providing clear communication between dock personnel and truck drivers. Built-in eyebrow type sun visors increase light visibility.

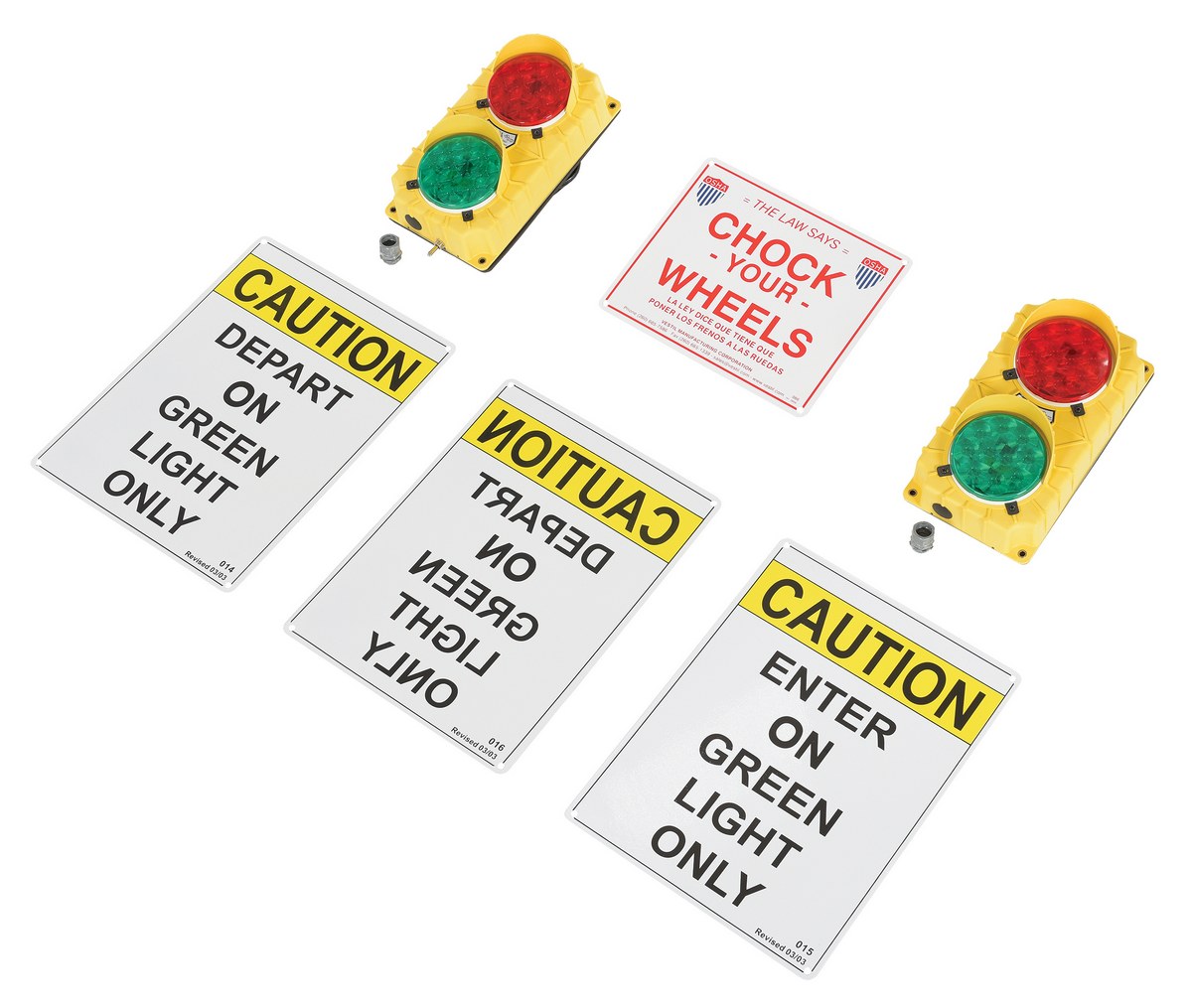

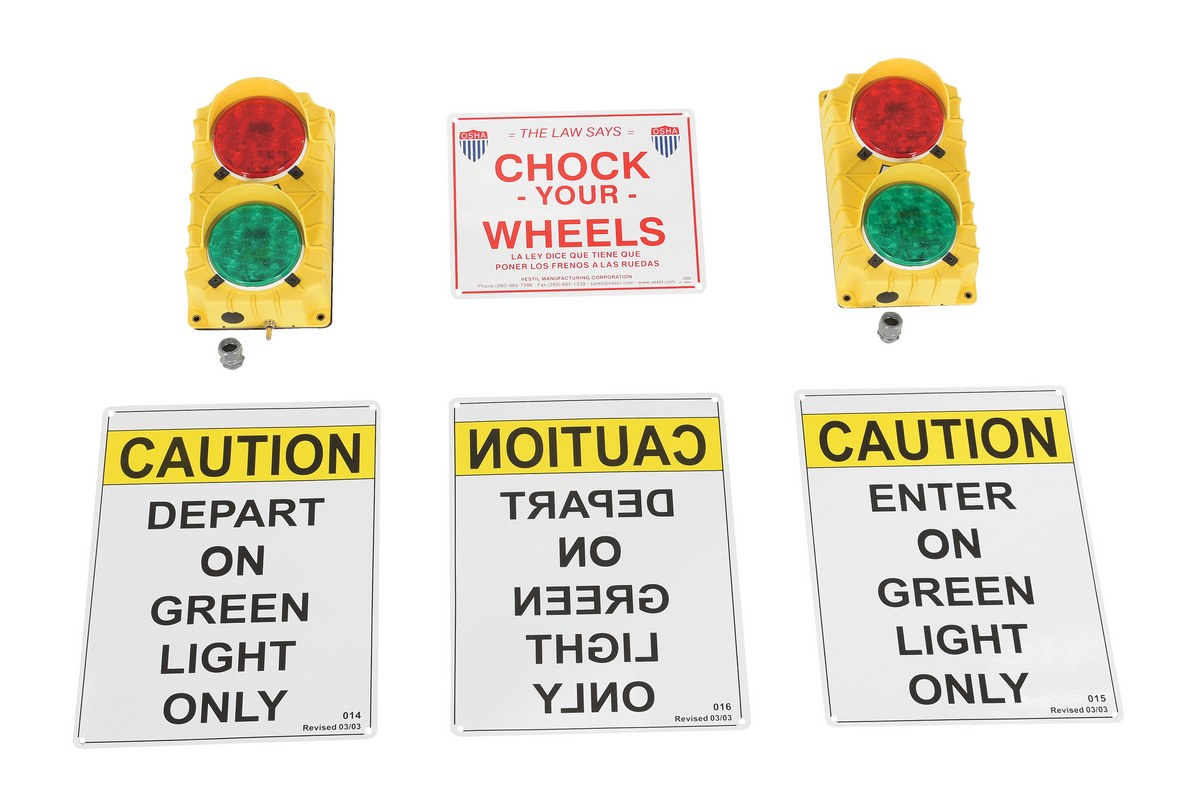

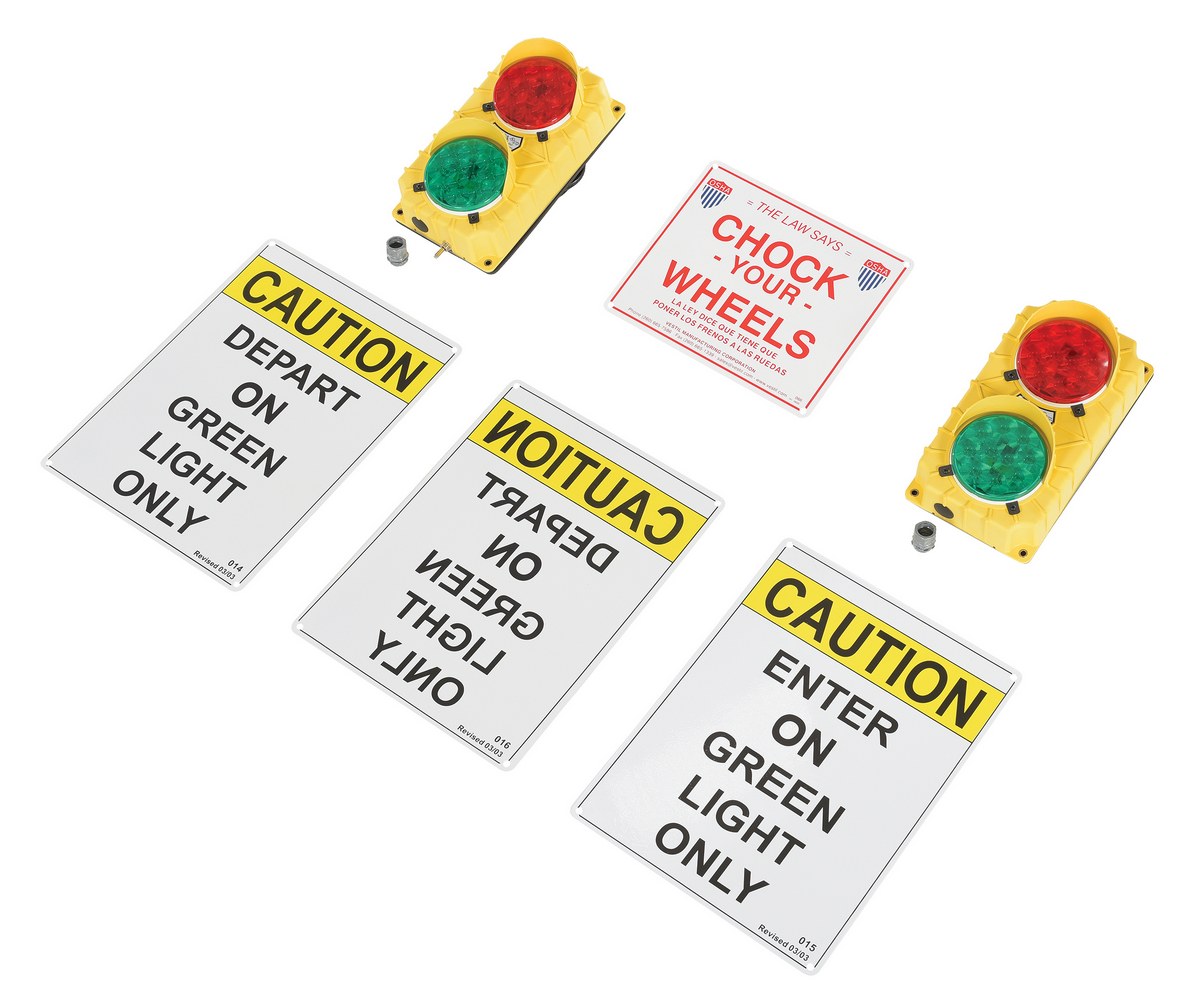

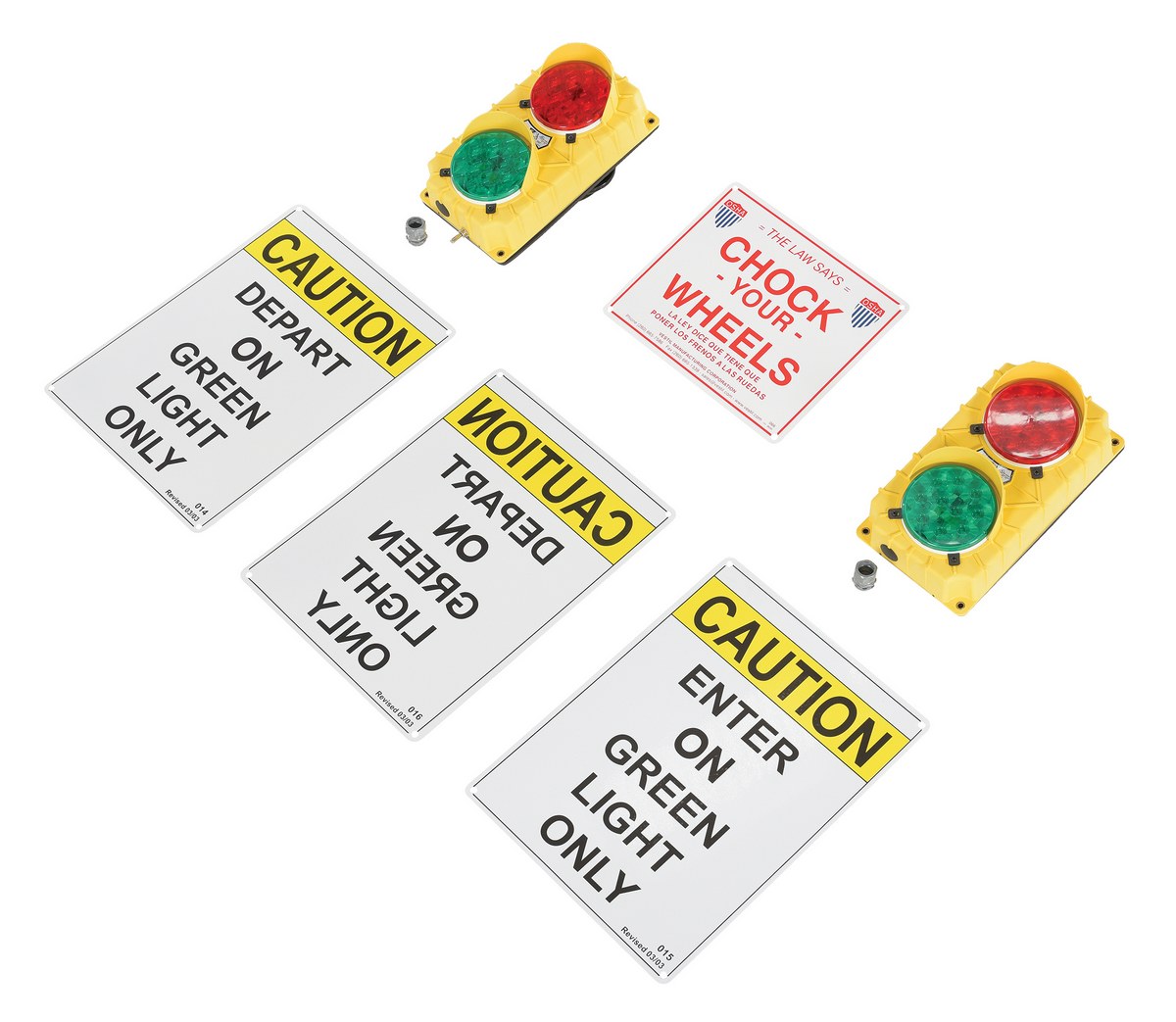

Economy, model DTS-5, comes with two (2) yellow polypropylene traffic lights, 6-1/2"W x 11-1/2"H, each having a green and a red lens. The light containing a toggle switch is placed inside the dock area for the dock attendant, and the other is placed outside for the truck driver. Four (4) signs are included. LED model never needs bulb replacements. UL and cUL certified. Dust and water resistant; IP54 rated.

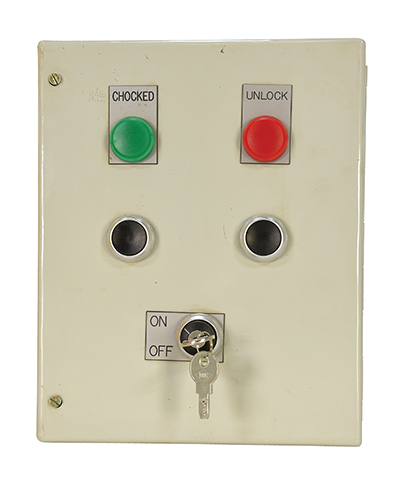

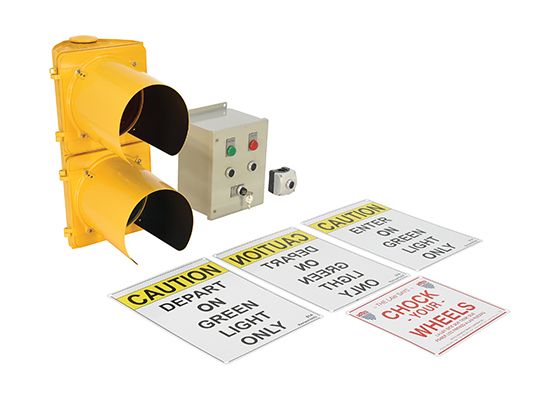

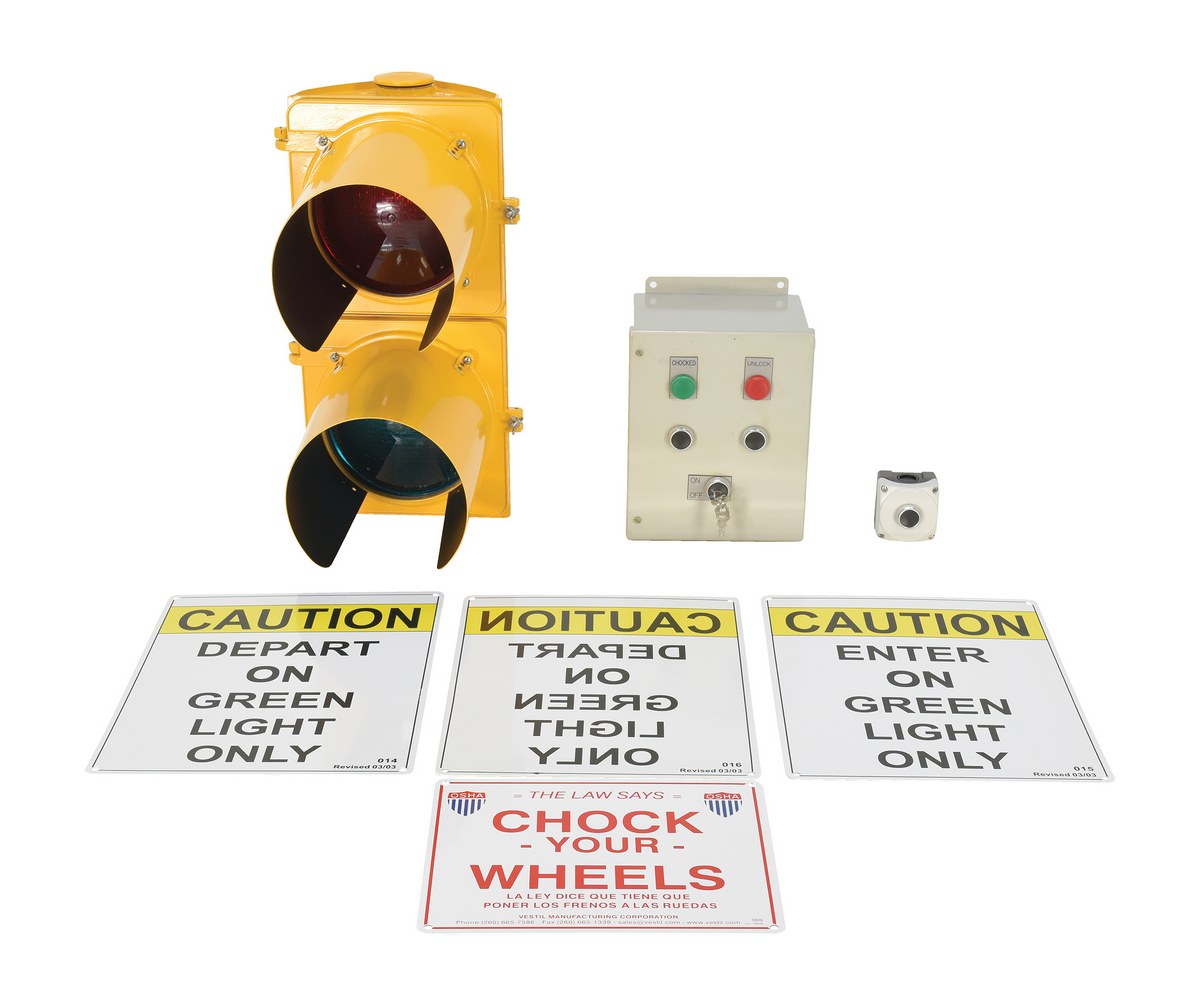

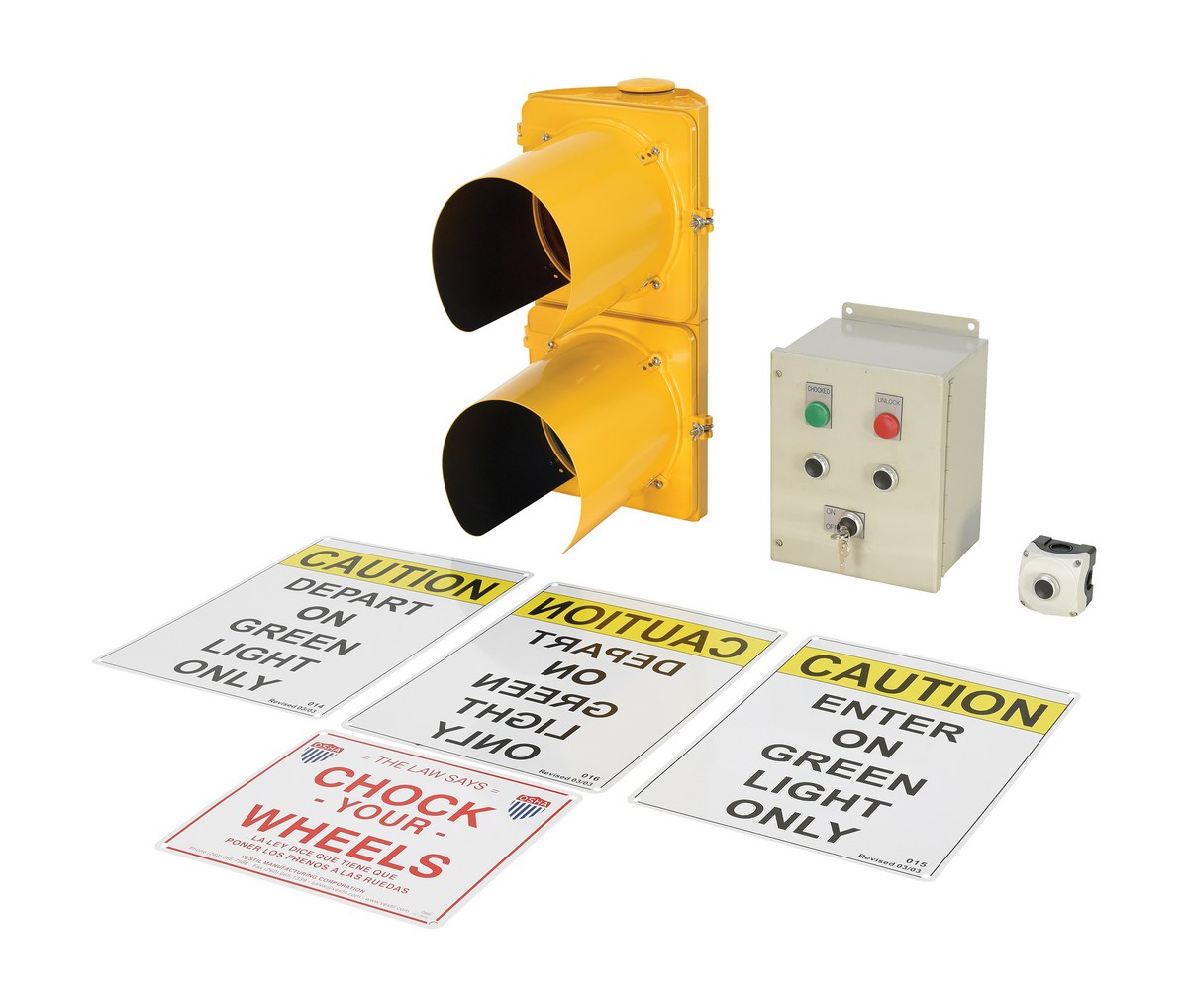

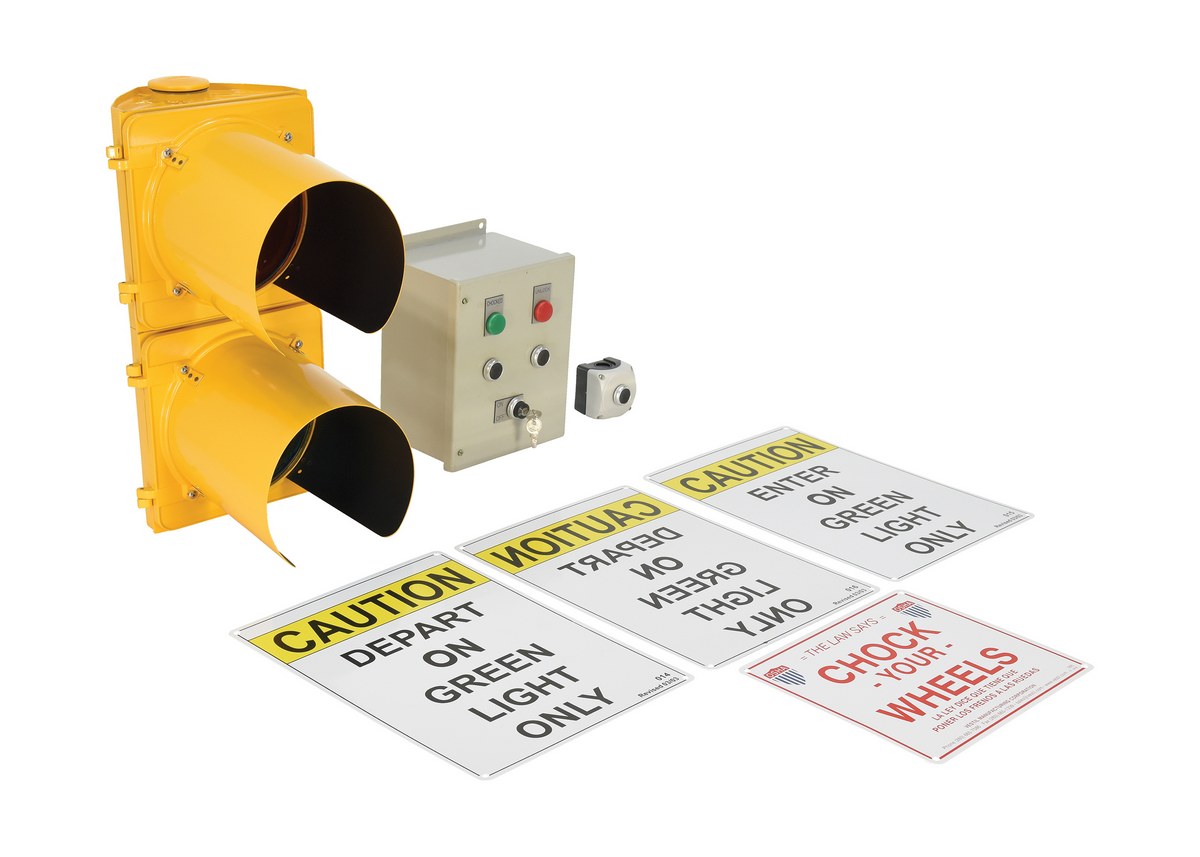

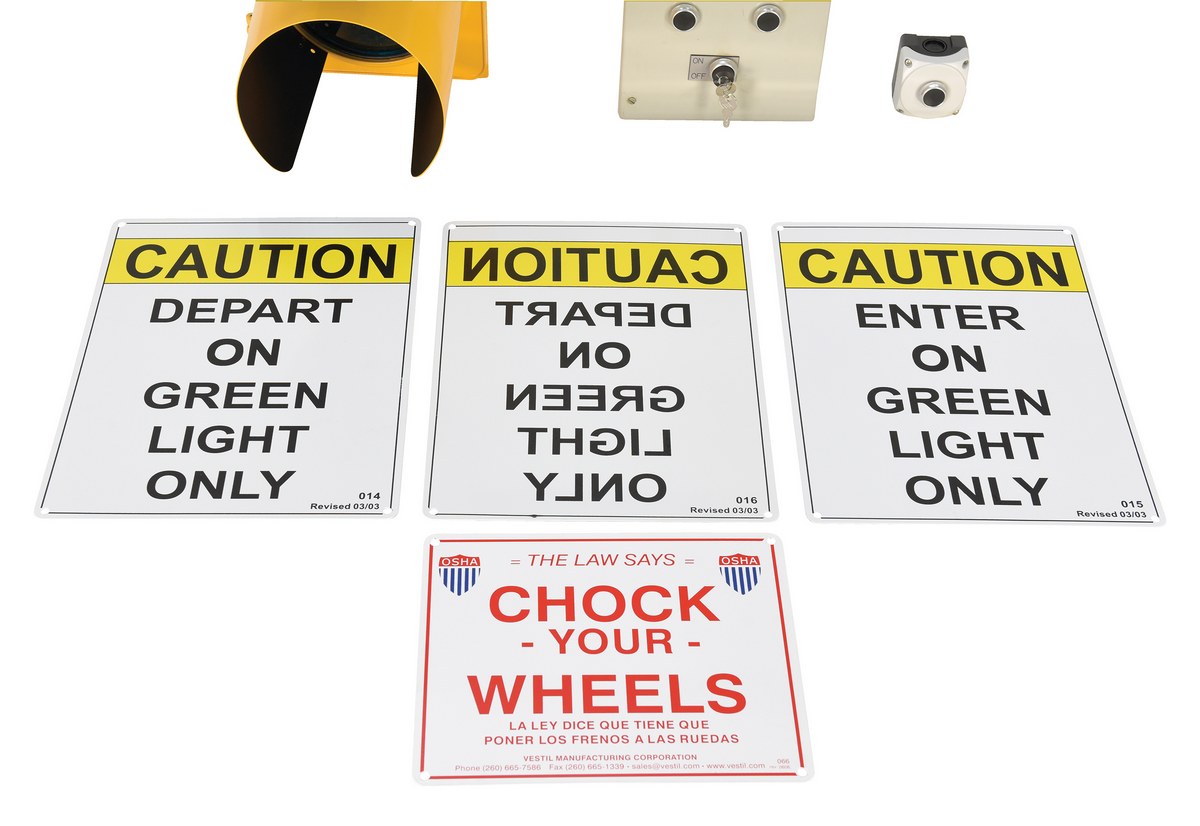

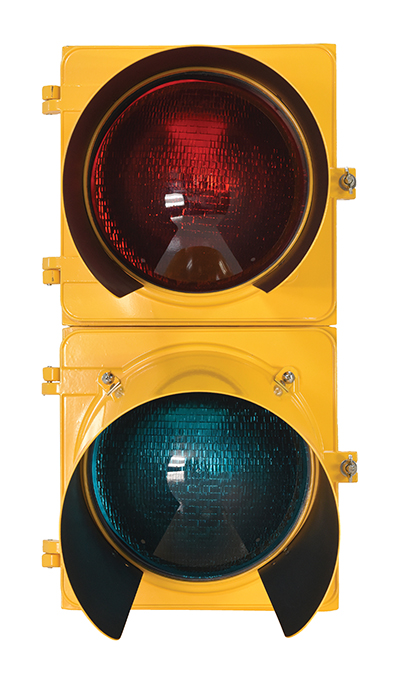

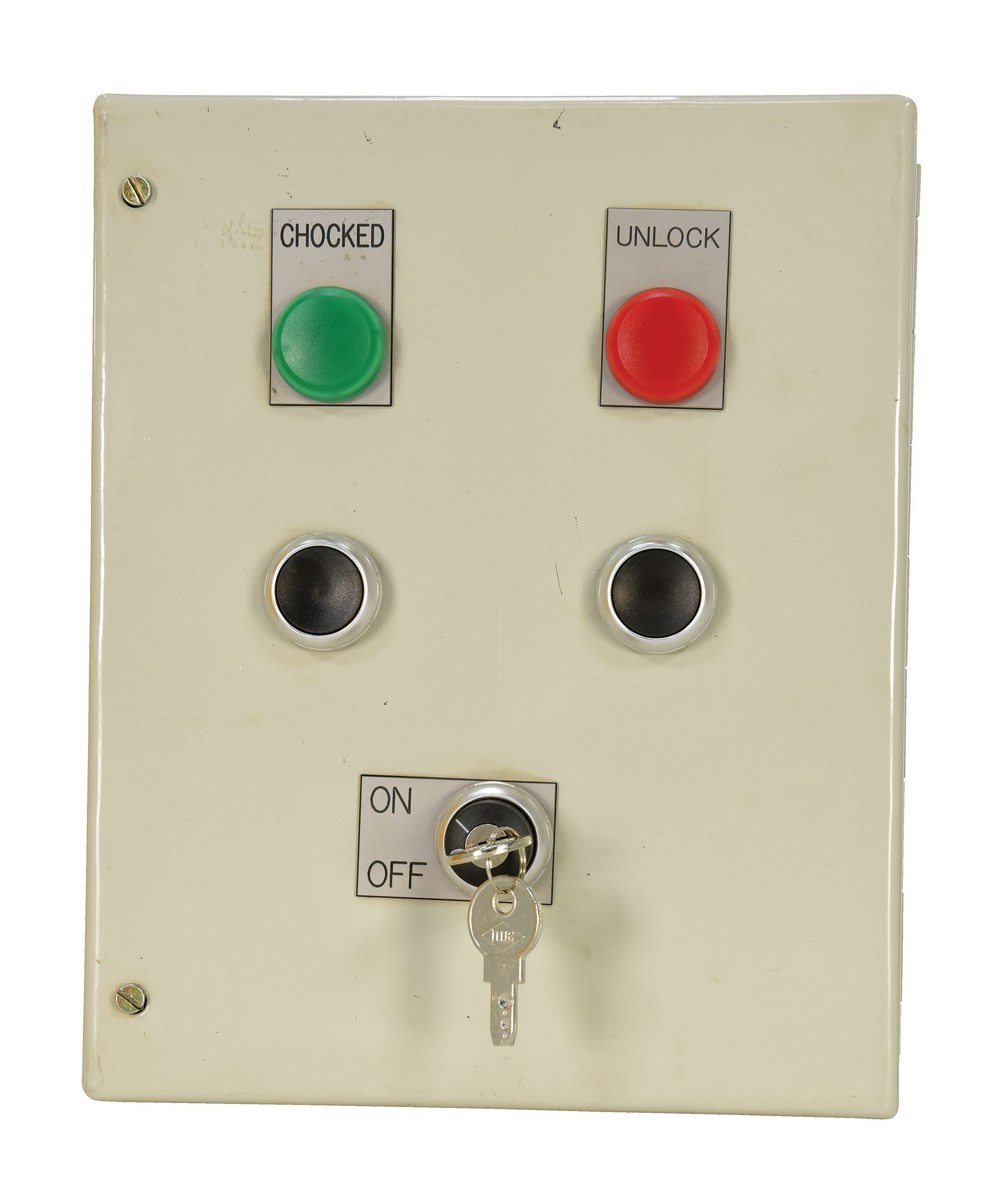

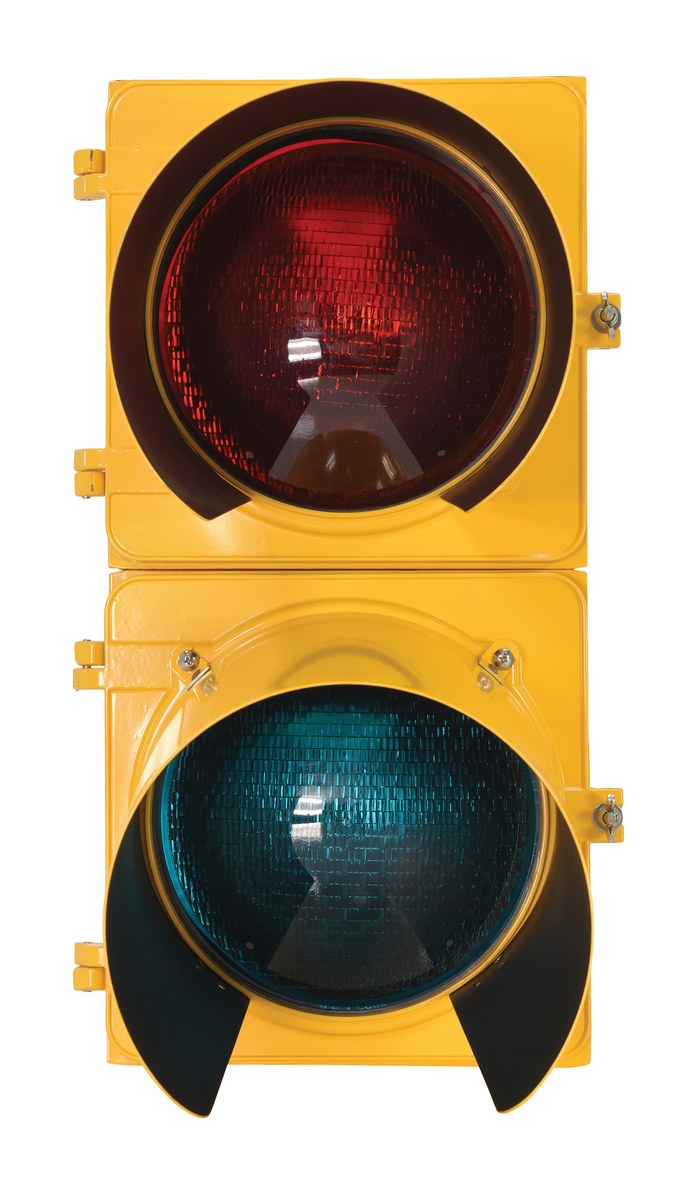

Deluxe, model DTS-10, consists of one (1) yellow aluminum traffic light with both a green and red lens (for outside), and an illuminated push-button control (for inside). Light measures 14"W x 21-3/4"H and features an 8" hood over each lens (recommended for west and south exposure). 60 Watt. 115V AC. Four (4) procedure signs are included. Features incandescent lights.

DTS-10 Sequence of Operation:
With an empty dock, the DTS-10 lights are green outside and the red inside. Once a truck driver has chocked the trailer's wheels the driver presses the outside "CHOCKED" button, which flips the outside light red and the inside light green. If the truck driver fails to press the outside button, the dock attendant can press the "CHOCKED" button at the inside control panel, if it has been affirmed that the trailer wheels are chocked. (OSHA Standard 1910.178 sections (k)(1) and (m)(7) requires that wheel chocks be placed under the rear wheels of a truck.) Once the trailer has been loaded/unloaded, the dock attendant presses the "DEPART" button to indicate that it is okay for the truck driver to remove the chocks from in front of the trailer wheels and pull away from the dock. Pressing the "DEPART" button causes the lights to turn green outside and red inside.

Our Dock Traffic Systems feature flashing red and green lights. Prevent accidents and injuries by providing clear communication between dock personnel and truck drivers. Built-in eyebrow type sun visors increase light visibility.

Economy, model DTS-5, comes with two (2) yellow polypropylene traffic lights, 6-1/2"W x 11-1/2"H, each having a green and a red lens. The light containing a toggle switch is placed inside the dock area for the dock attendant, and the other is placed outside for the truck driver. Four (4) signs are included. LED model never needs bulb replacements. UL and cUL certified. Dust and water resistant; IP54 rated.

Deluxe, model DTS-10, consists of one (1) yellow aluminum traffic light with both a green and red lens (for outside), and an illuminated push-button control (for inside). Light measures 14"W x 21-3/4"H and features an 8" hood over each lens (recommended for west and south exposure). 60 Watt. 115V AC. Four (4) procedure signs are included. Features incandescent lights.

DTS-10 Sequence of Operation:
With an empty dock, the DTS-10 lights are green outside and the red inside. Once a truck driver has chocked the trailer's wheels the driver presses the outside "CHOCKED" button, which flips the outside light red and the inside light green. If the truck driver fails to press the outside button, the dock attendant can press the "CHOCKED" button at the inside control panel, if it has been affirmed that the trailer wheels are chocked. (OSHA Standard 1910.178 sections (k)(1) and (m)(7) requires that wheel chocks be placed under the rear wheels of a truck.) Once the trailer has been loaded/unloaded, the dock attendant presses the "DEPART" button to indicate that it is okay for the truck driver to remove the chocks from in front of the trailer wheels and pull away from the dock. Pressing the "DEPART" button causes the lights to turn green outside and red inside.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DTS-10 DTS-1090 Days Limited WarrantyAluminum Dock Traffic System 22-1/2 In. x 14 In. x 21-3/4 In. YellowAC Voltage/Phase: 115/1
Watts: 60
30
DTS-5 DTS-590 Days Limited WarrantyPolypropylene Dock Traffic System 4 In. x 7-1/8 In. x 11-3/4 In. YellowAC Voltage/Phase: 115/1
Wattage (watts): 7
9

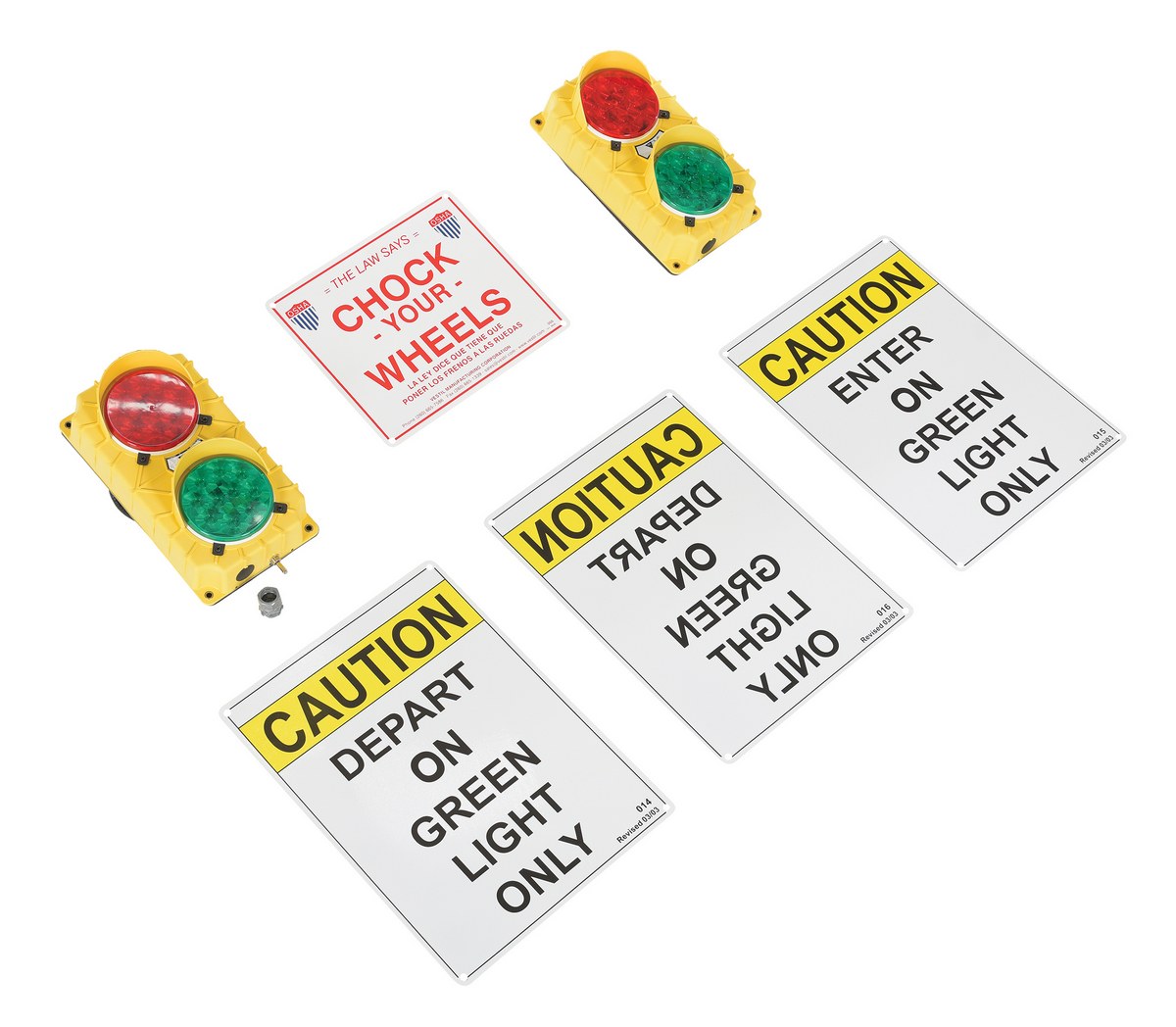

DTS-5-LED DTS-5-LED90 Days Limited WarrantyPolypropylene Dock Traffic System LED Lighted 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowAC Voltage/Phase: 115/1
Lens Diameter (in.): 4
8

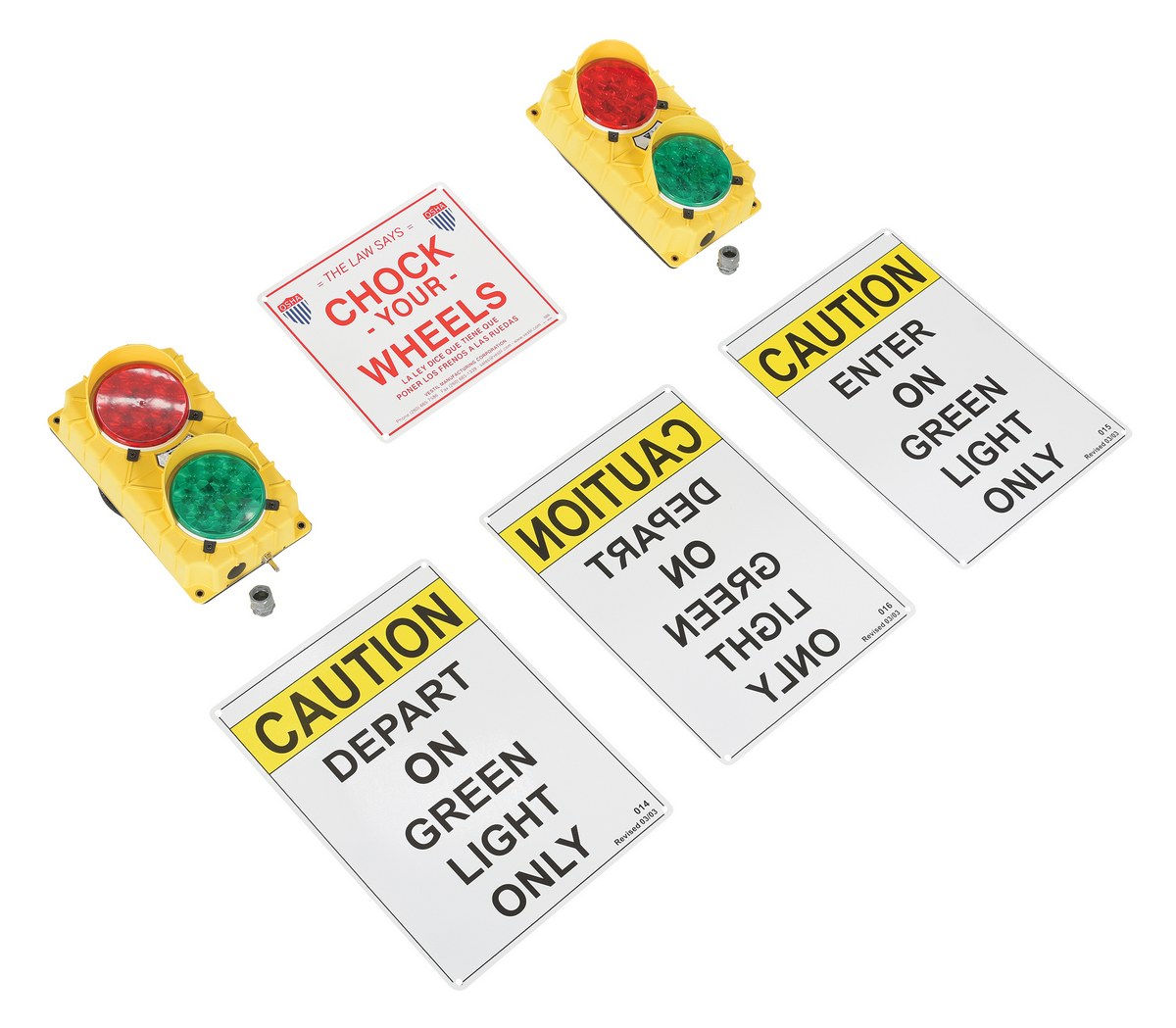

DTS-5-LED-12DC DTS-5-LED-12DC1 Year Limited WarrantyPolypropylene Traffic System Stop Go Set 12V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowDC Power: 12V
Lens Diameter (in.): 4
8

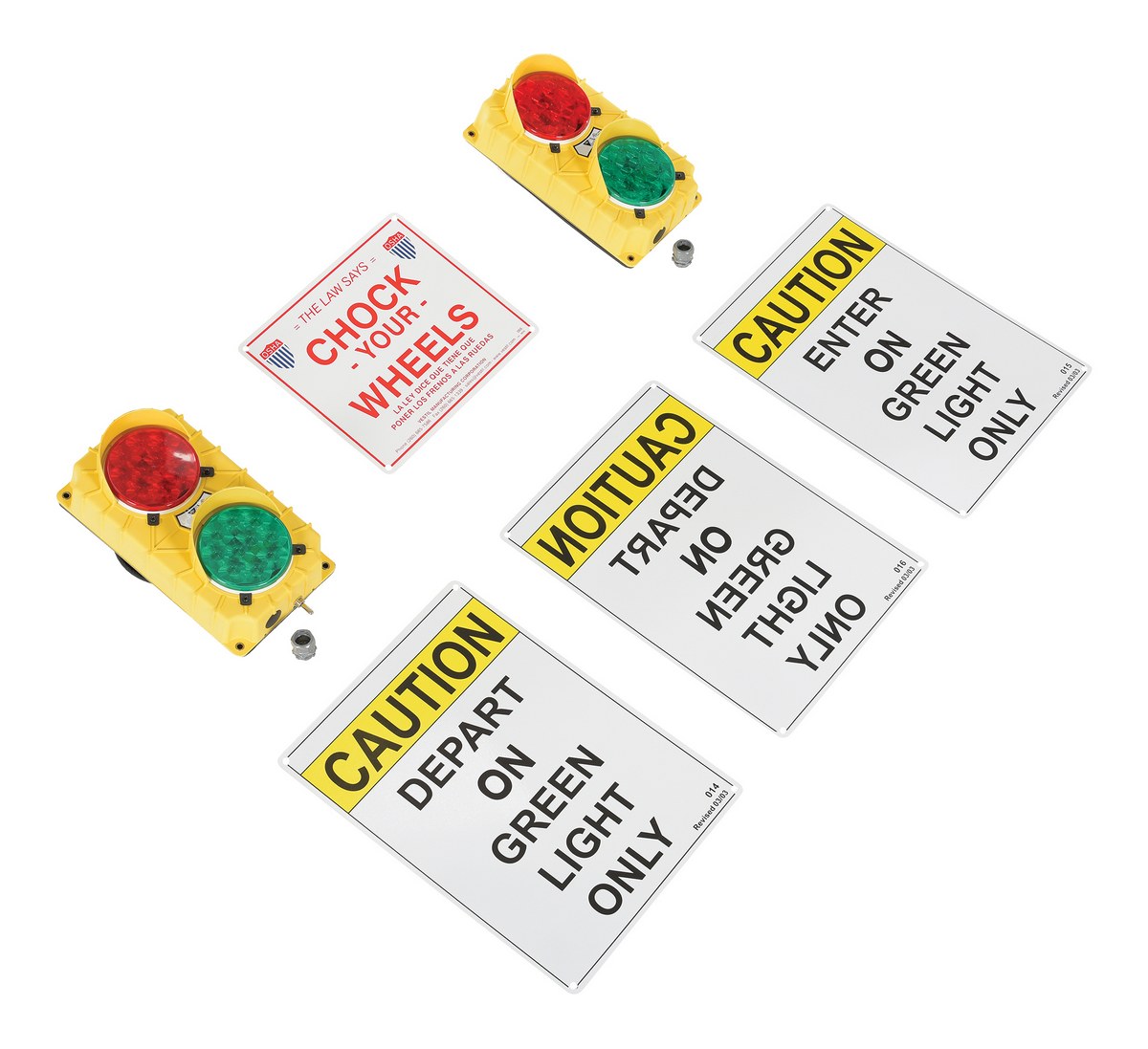

DTS-5-LED-220V DTS-5-LED-220V1 Year Limited WarrantyPolypropylene Traffic System Stop Go Set 220V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowAC Voltage/Phase: 220/1
Lens Diameter (in.): 4
8

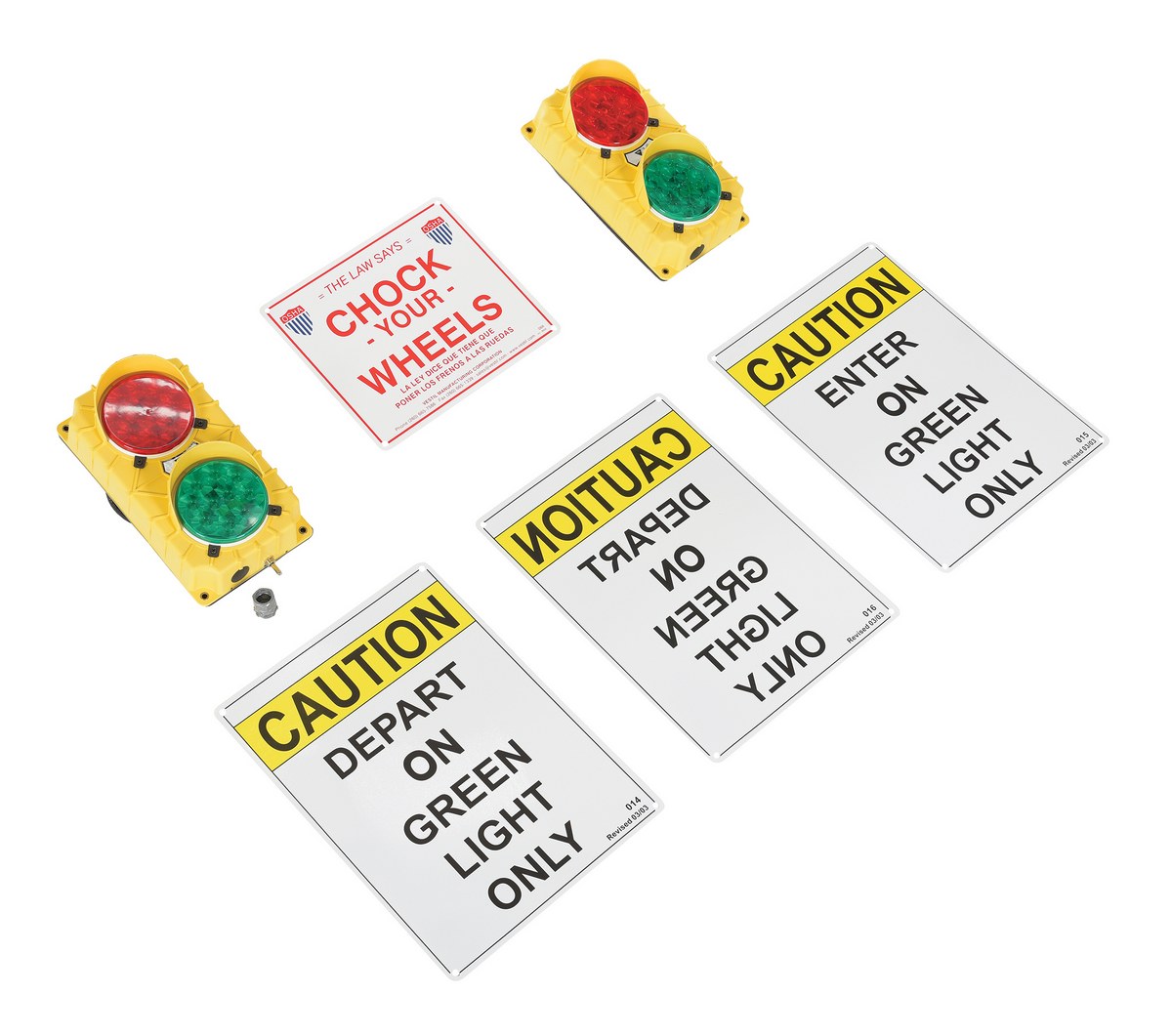

DTS-5-LED-24DC DTS-5-LED-24DC1 Year Limited WarrantyPolypropylene Traffic System Stop Go Set 24V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowDC Power: 24V
Lens Diameter (in.): 4
8

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DTS-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
AC Voltage/Phase: 115/1
Watts: 60
AC Voltage/Phase: 115/1
Watts: 60

DTS-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
AC Voltage/Phase: 115/1
Wattage (watts): 7
AC Voltage/Phase: 115/1
Wattage (watts): 7

DTS-5-LED
Unit:
Size: W x L x H
Weight:
Limited Warranty
AC Voltage/Phase: 115/1
Lens Diameter (in.): 4
AC Voltage/Phase: 115/1
Lens Diameter (in.): 4

DTS-5-LED-12DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
DC Power: 12V
Lens Diameter (in.): 4
DC Power: 12V
Lens Diameter (in.): 4

DTS-5-LED-220V
Unit:
Size: W x L x H
Weight:
Limited Warranty
AC Voltage/Phase: 220/1
Lens Diameter (in.): 4
AC Voltage/Phase: 220/1
Lens Diameter (in.): 4

DTS-5-LED-24DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
DC Power: 24V
Lens Diameter (in.): 4
DC Power: 24V
Lens Diameter (in.): 4

Dock Traffic Systems PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


DTS-10

DTS-5

DTS-5-LED-12DC

DTS-5-LED-24DC

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Dock Traffic Systems




Our Dock Traffic Systems feature flashing red and green lights. Prevent accidents and injuries by providing clear communication between dock personnel and truck drivers. Built-in eyebrow type sun visors increase light visibility.

Economy, model DTS-5, comes with two (2) yellow polypropylene traffic lights, 6-1/2"W x 11-1/2"H, each having a green and a red lens. The light containing a toggle switch is placed inside the dock area for the dock attendant, and the other is placed outside for the truck driver. Four (4) signs are included. LED model never needs bulb replacements. UL and cUL certified. Dust and water resistant; IP54 rated.

Deluxe, model DTS-10, consists of one (1) yellow aluminum traffic light with both a green and red lens (for outside), and an illuminated push-button control (for inside). Light measures 14"W x 21-3/4"H and features an 8" hood over each lens (recommended for west and south exposure). 60 Watt. 115V AC. Four (4) procedure signs are included. Features incandescent lights.

DTS-10 Sequence of Operation:
With an empty dock, the DTS-10 lights are green outside and the red inside. Once a truck driver has chocked the trailer's wheels the driver presses the outside "CHOCKED" button, which flips the outside light red and the inside light green. If the truck driver fails to press the outside button, the dock attendant can press the "CHOCKED" button at the inside control panel, if it has been affirmed that the trailer wheels are chocked. (OSHA Standard 1910.178 sections (k)(1) and (m)(7) requires that wheel chocks be placed under the rear wheels of a truck.) Once the trailer has been loaded/unloaded, the dock attendant presses the "DEPART" button to indicate that it is okay for the truck driver to remove the chocks from in front of the trailer wheels and pull away from the dock. Pressing the "DEPART" button causes the lights to turn green outside and red inside.



Model # Description Attributes Net Wt.
(lbs)
DTS-10 DTS-10Aluminum Dock Traffic System 22-1/2 In. x 14 In. x 21-3/4 In. YellowAC Voltage/Phase: 115/1
Watts: 60
30
DTS-5 DTS-5Polypropylene Dock Traffic System 4 In. x 7-1/8 In. x 11-3/4 In. YellowAC Voltage/Phase: 115/1
Wattage (watts): 7
9
DTS-5-LED DTS-5-LEDPolypropylene Dock Traffic System LED Lighted 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowAC Voltage/Phase: 115/1
Lens Diameter (in.): 4
8
DTS-5-LED-12DC DTS-5-LED-12DCPolypropylene Traffic System Stop Go Set 12V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowDC Power: 12V
Lens Diameter (in.): 4
8
DTS-5-LED-220V DTS-5-LED-220VPolypropylene Traffic System Stop Go Set 220V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowAC Voltage/Phase: 220/1
Lens Diameter (in.): 4
8
DTS-5-LED-24DC DTS-5-LED-24DCPolypropylene Traffic System Stop Go Set 24V LED 3-3/4 In. x 6-1/2 In. x 11-1/2 In. YellowDC Power: 24V
Lens Diameter (in.): 4
8
