Product Family Overview


Portable Drum Jacks
SERIES: DRUM-55

These Drum Jacks are the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. Steel construction.

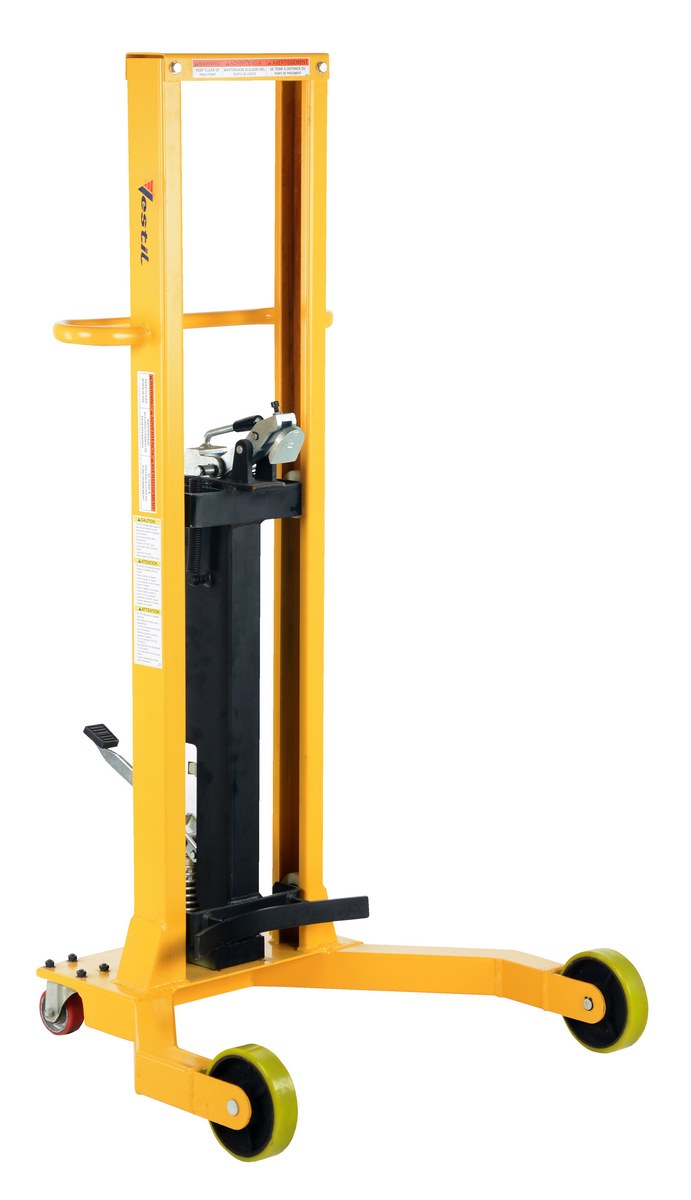

Model DRUM-55-36 accepts 55 gallon steel and fiber drums with a top lip. The front rigid wheels are 6" x 1-1/2", while the rear swivel casters are 3" x 1-1/2".

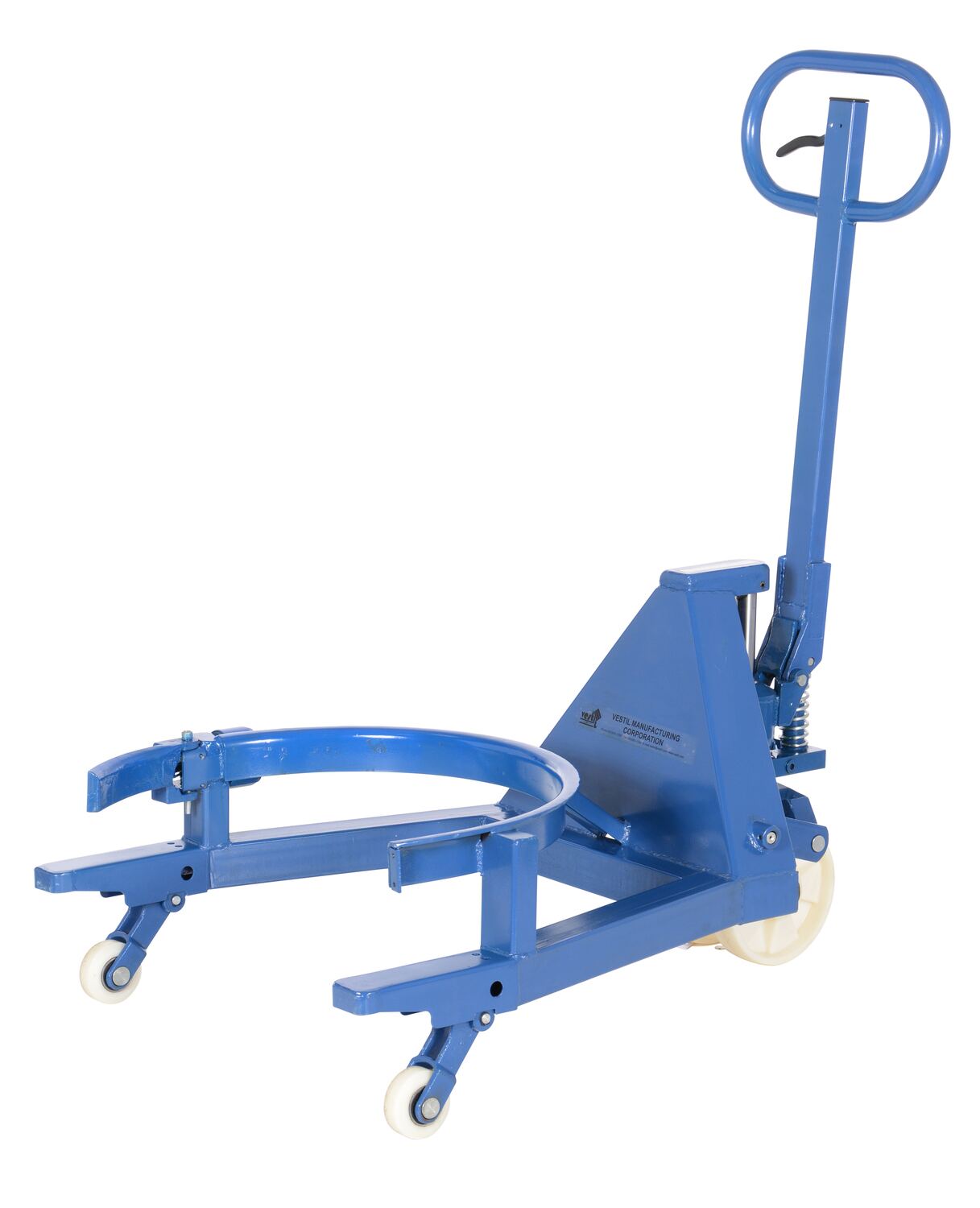

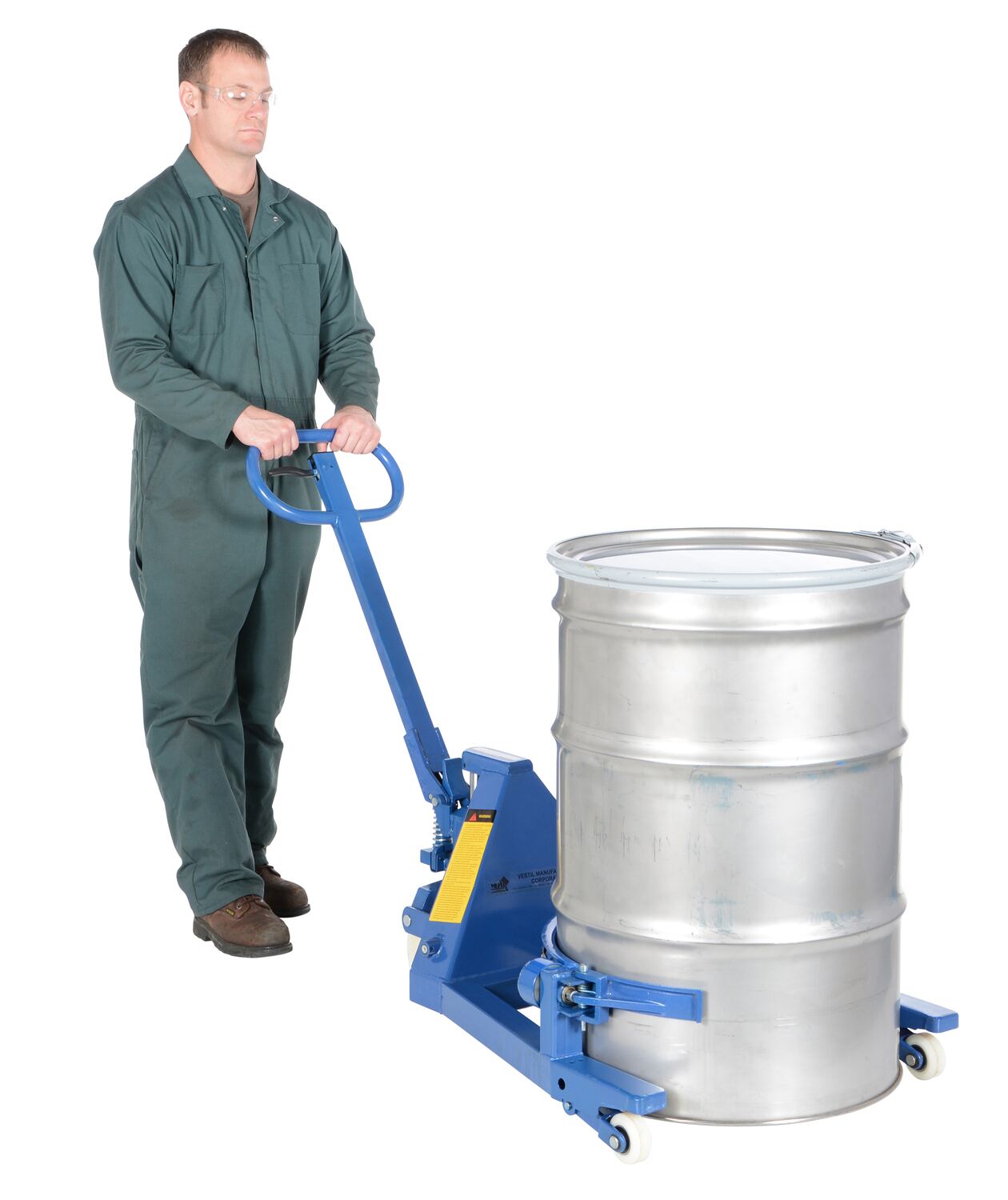

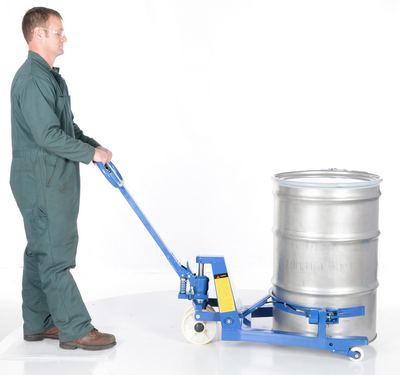

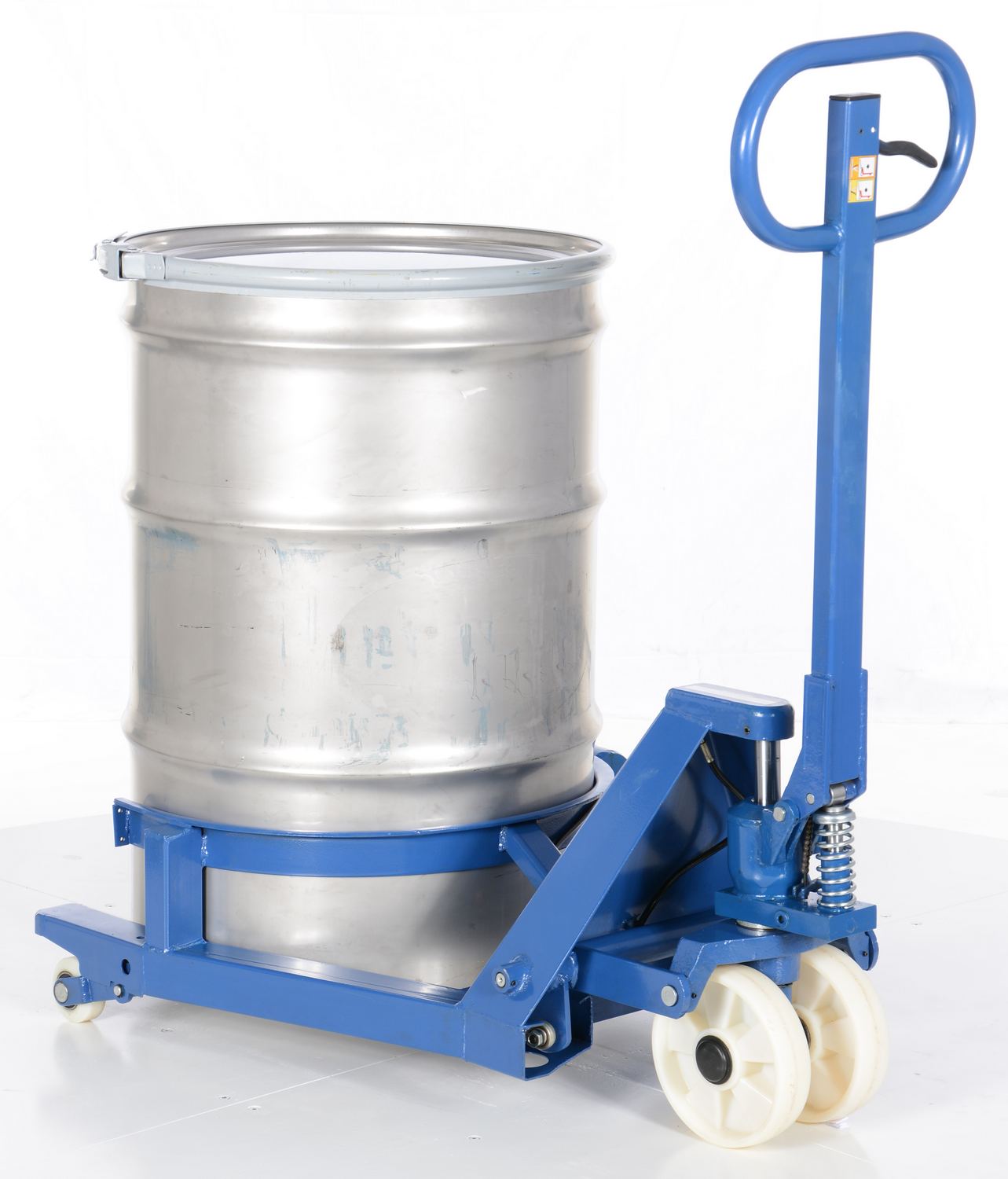

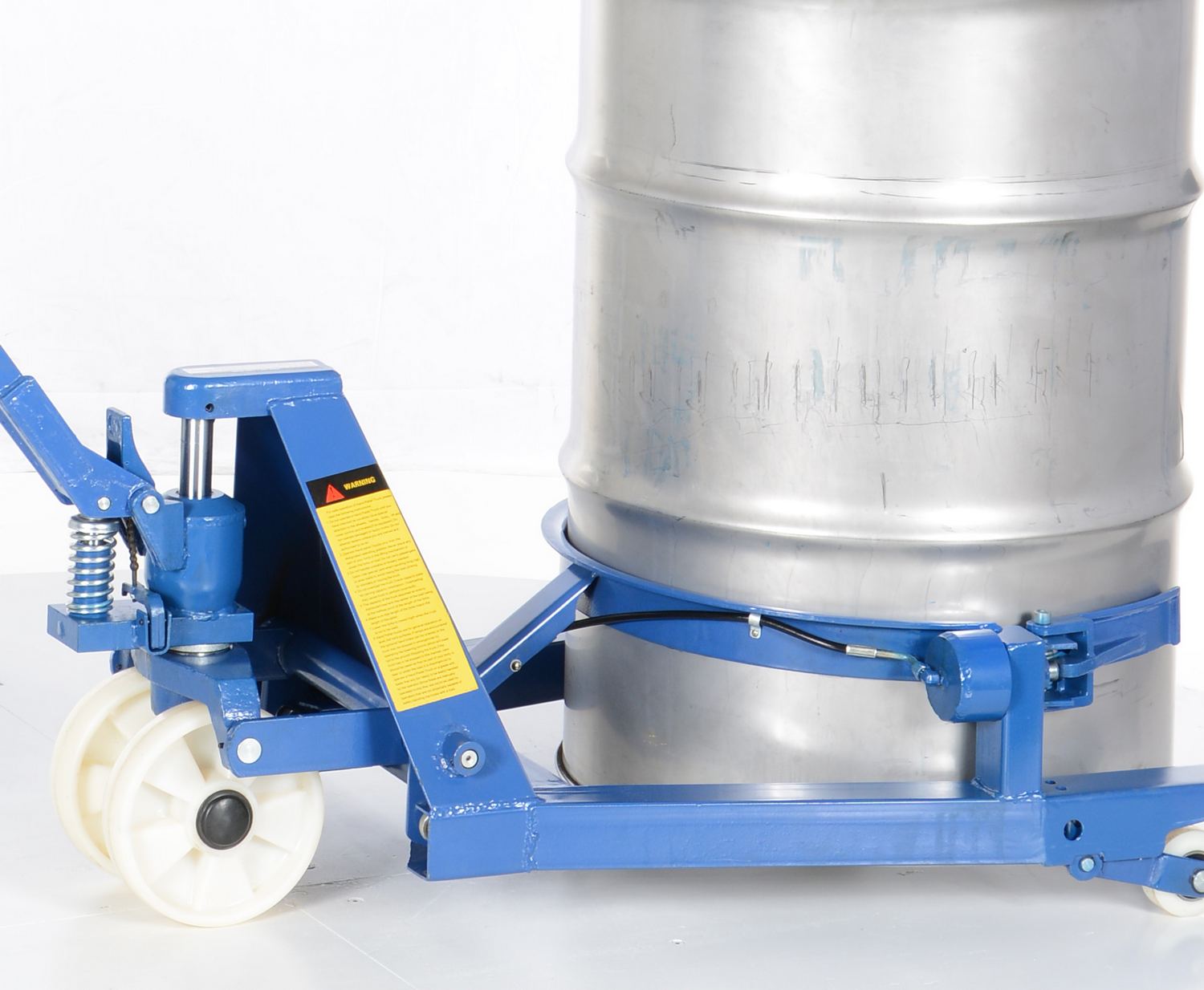

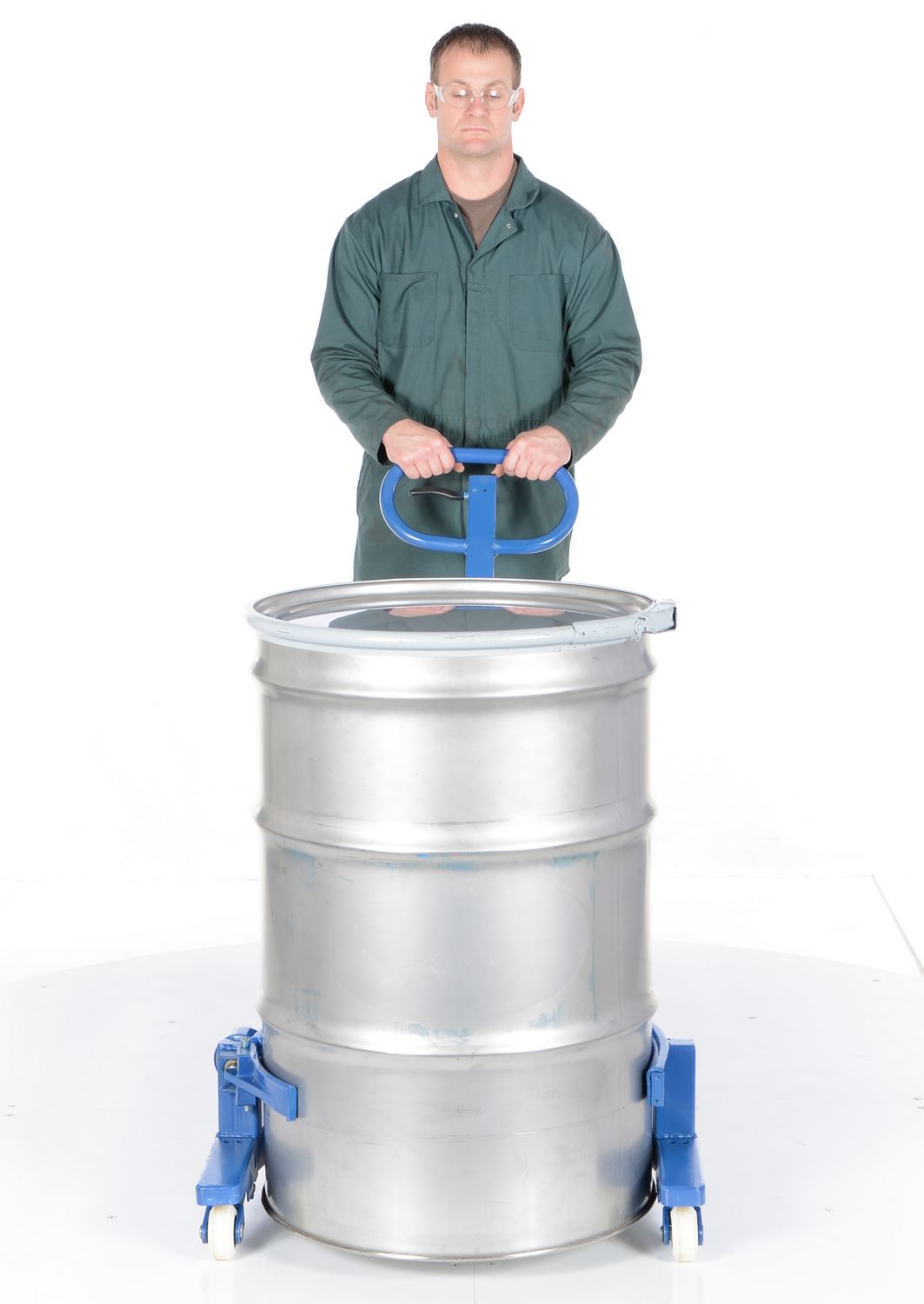

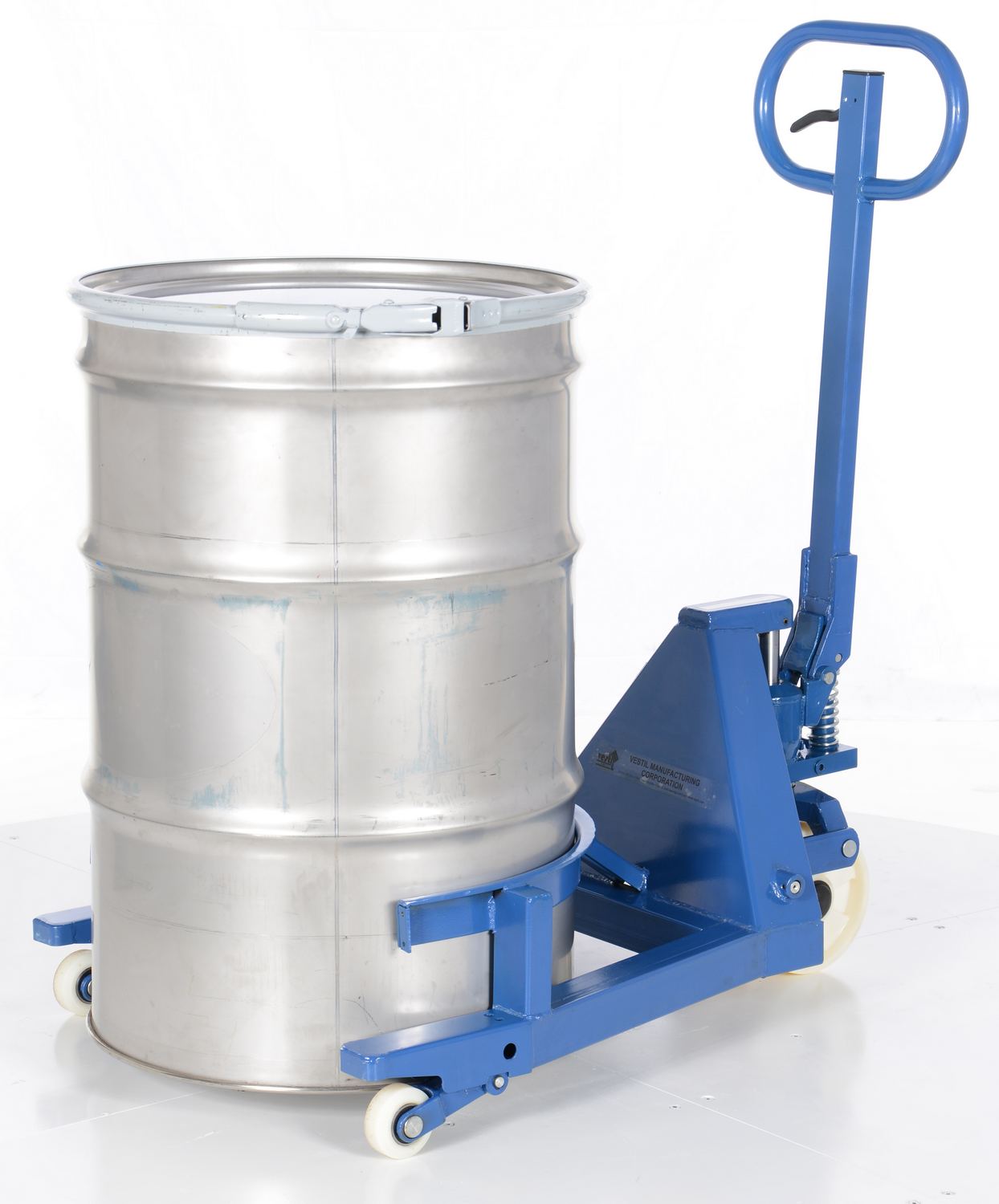

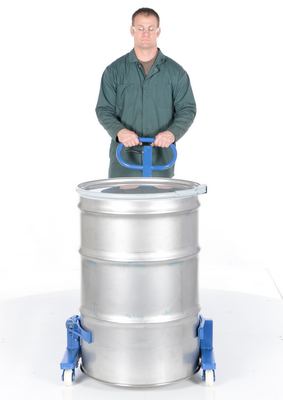

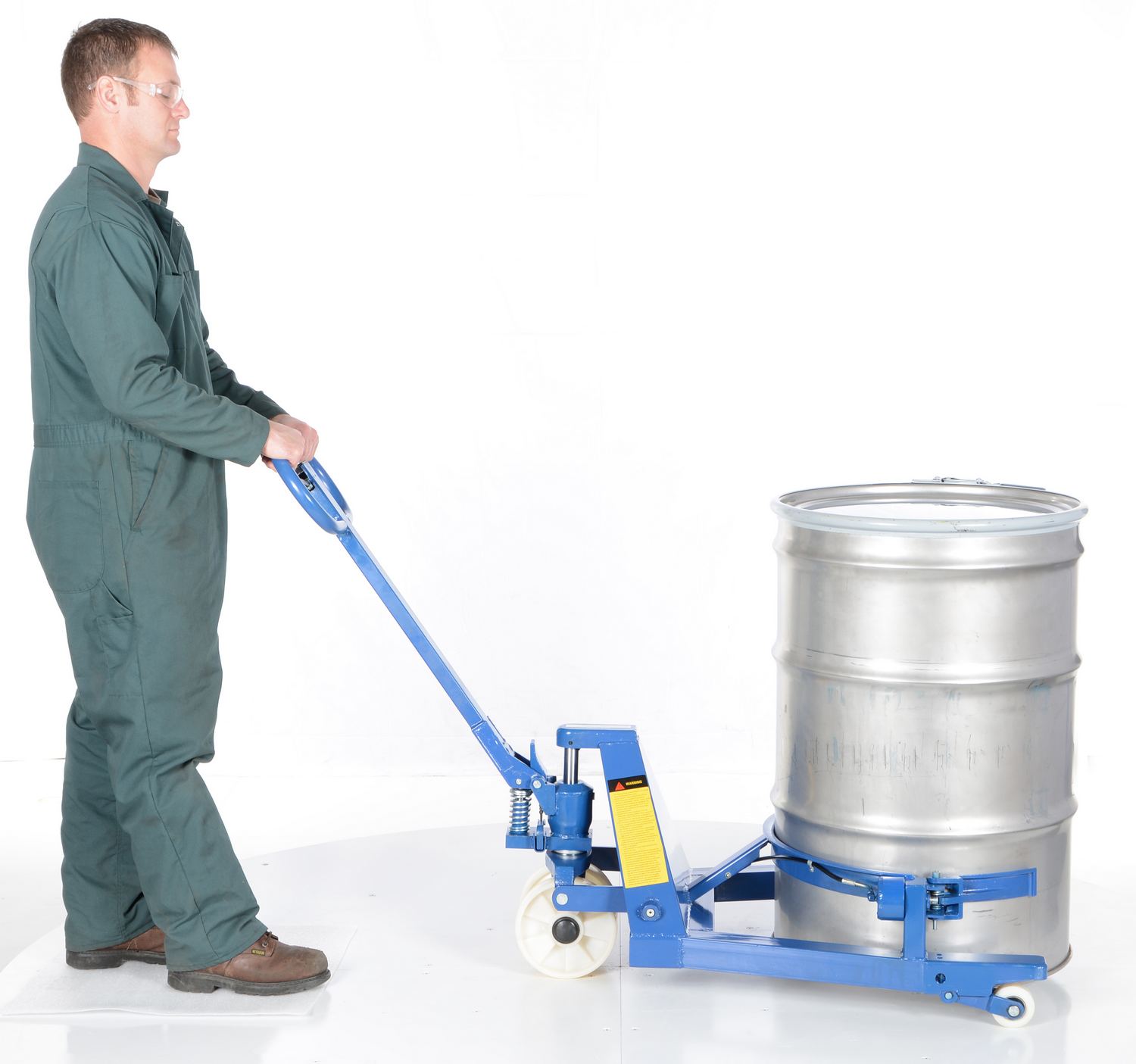

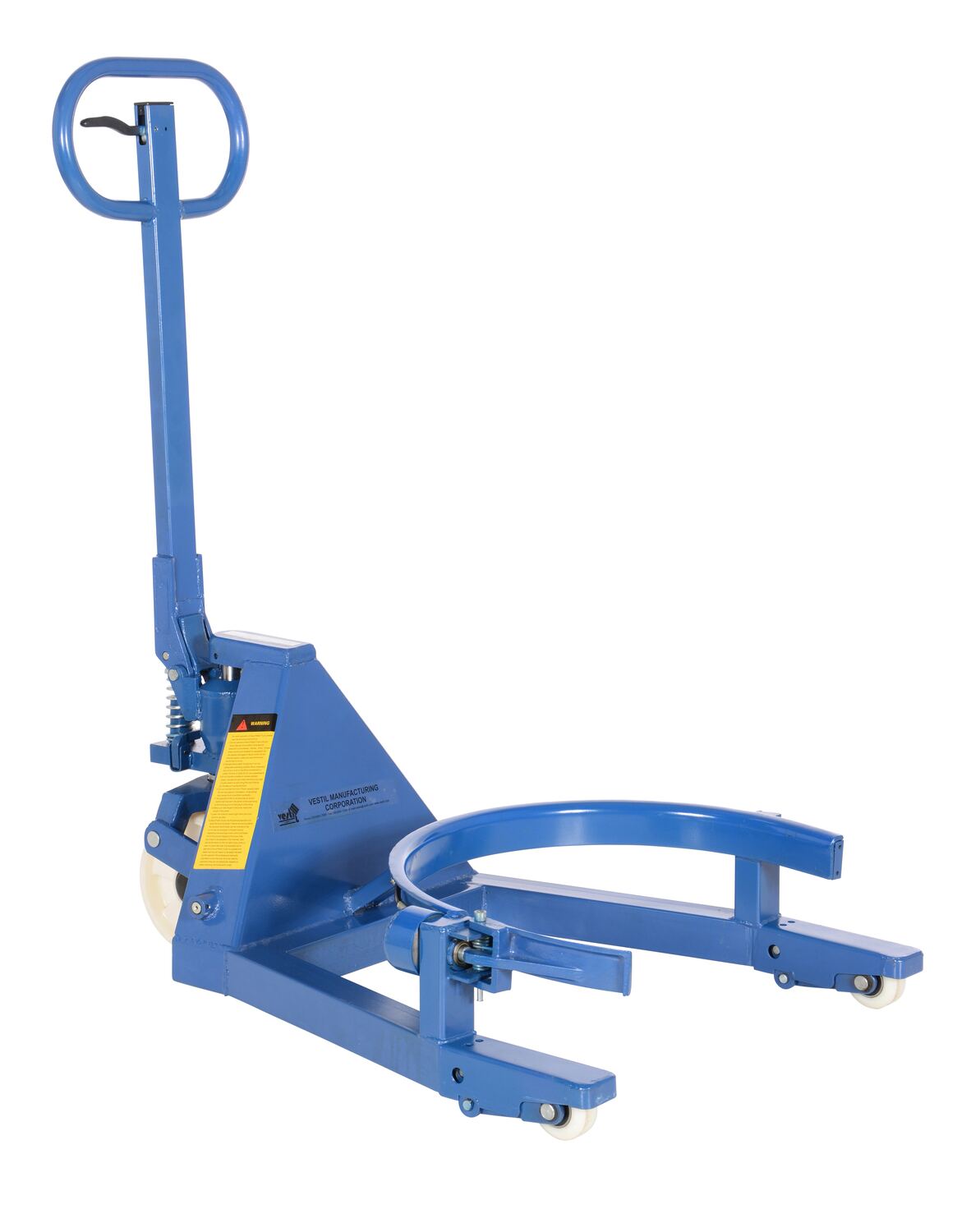

Model DRUM-55S has a unique grapple to hold 55 gallon steel drums securely into the steel saddle prior to lifting it vertically. The drum is held in this position during transit, enabling open drums to be handled without spillage.

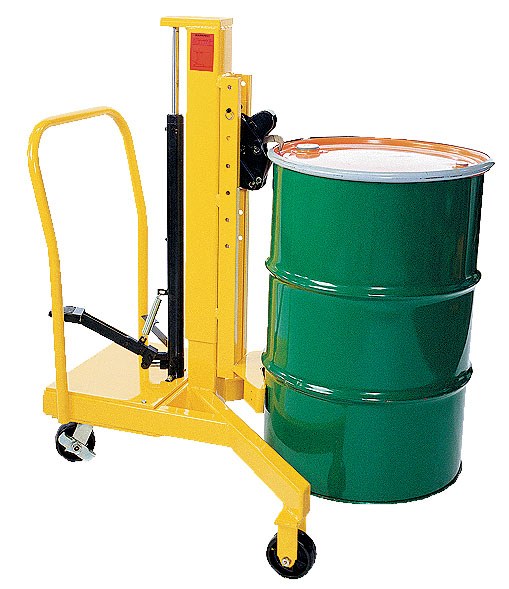

Model DRUM-55-FSP has a single clamping mechanism, which automatically latches on the drum chime when being elevated or transported. The clamping mechanism is fully adjustable for shorter height drums.

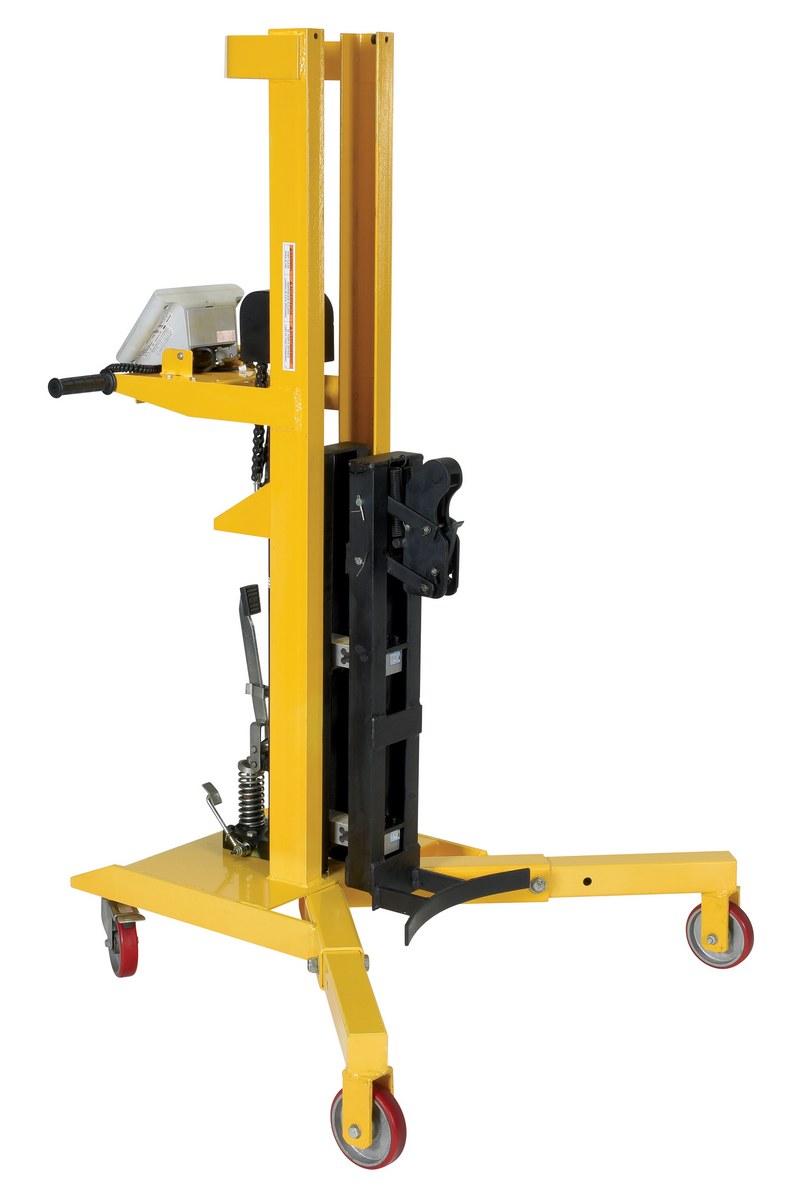

Model DRUM-55-SCL-E can lift, transport, and weigh 30, 55, and 85 gallon steel, fiber, and plastic drums. Scale head features automatic turn-off and +/-0.5 lbs. accuracy. Scale is powered with AA batteries. AC adapter included.


Check Out Our DRUM-55-SCL!

These Drum Jacks are the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. Steel construction.

Model DRUM-55-36 accepts 55 gallon steel and fiber drums with a top lip. The front rigid wheels are 6" x 1-1/2", while the rear swivel casters are 3" x 1-1/2".

Model DRUM-55S has a unique grapple to hold 55 gallon steel drums securely into the steel saddle prior to lifting it vertically. The drum is held in this position during transit, enabling open drums to be handled without spillage.

Model DRUM-55-FSP has a single clamping mechanism, which automatically latches on the drum chime when being elevated or transported. The clamping mechanism is fully adjustable for shorter height drums.

Model DRUM-55-SCL-E can lift, transport, and weigh 30, 55, and 85 gallon steel, fiber, and plastic drums. Scale head features automatic turn-off and +/-0.5 lbs. accuracy. Scale is powered with AA batteries. AC adapter included.


Check Out Our DRUM-55-SCL!

Additional Models In This Family

DRUM-55-36

model DRUM-55-36

DRUM-55-SCL-E

model DRUM-55-SCL-E

DRUM-55-FSP

model DRUM-55-FSP

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DRUM-55-36 DRUM-55-3690 Days Limited WarrantySteel Portable Drum Jack Accepts 55 Gallon Steel and Fiber Drums 500 Lb. Capacity YellowUniform Capacity (lb.): 500
Lift Height (in.): 15
161
DRUM-55-FSP DRUM-55-FSP90 Days Limited WarrantySteel Portable Drum Jack Accepts 30 and 55 Gallon Steel, Fiber, and Plastic Drums 800 Lb. Capacity YellowUniform Capacity (lb.): 800
Lift Height (in.): 20
400
DRUM-55-SCL-E DRUM-55-SCL-E90 Days Limited WarrantySteel Portable Ergonomic Drum Truck with Scale 38-5/8 In. x 35 In. x 64 In. 900 Lb. Capacity YellowUniform Capacity (lb.): 900
Lift Height (in.): 23-5/8
420
DRUM-55S DRUM-55S90 Days Limited WarrantySteel Portable Drum Jack Accepts 55 Gallon Steel Drums 660 Lb. Capacity BlueUniform Capacity (lb.): 660
Lift Height (in.): 5-1/4
152

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DRUM-55-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lift Height (in.): 15
Uniform Capacity (lb.): 500
Lift Height (in.): 15

DRUM-55-FSP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Lift Height (in.): 20
Uniform Capacity (lb.): 800
Lift Height (in.): 20

DRUM-55-SCL-E
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 900
Lift Height (in.): 23-5/8
Uniform Capacity (lb.): 900
Lift Height (in.): 23-5/8

DRUM-55S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 660
Lift Height (in.): 5-1/4
Uniform Capacity (lb.): 660
Lift Height (in.): 5-1/4

Portable Drum Jacks PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DRUM-55-36

DRUM-55-SCL-E

DRUM-55S

SDS Sheets

Hydraulic Oil SDS Sheet for: DRUM-55-36
Hydraulic Oil SDS Sheet for: DRUM-55FP
Hydraulic Oil SDS Sheet for: DRUM-55S

Other PDF's


Directory Links Of Available PDF's For All Products


Q: Is the scale suitable for wash-down? And can it measure as little as 1/2 lb.?

A: Yes, the scale is suitable for a wash-down environment and it can measure as little as 1/2 lb.


Q: Will this lift plastic drums also?

A: Holds 55 gallon steel and fiber drums with a top lip only. No, this unit will only work with steel & fiber drums with a sufficient (strong enough) top lip.
