Model Details

← All Products- ← Drum Handling Equipment- ← Cylinder Equipment -← Cylinder Dollies- CYL-D-1-PN

CYL-D-1-PN

Printer Friendly
Available
CYL-D-1-PN
CYL-D-1-PN CYL-D-1-PN CYL-D-1-PN CYL-D-1-PN CYL-D-1-PN

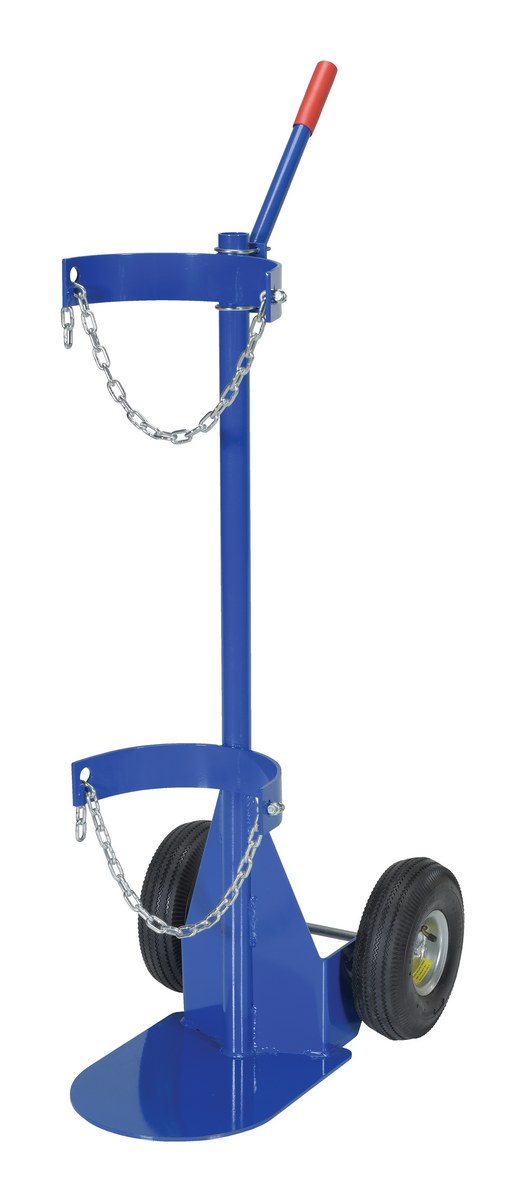

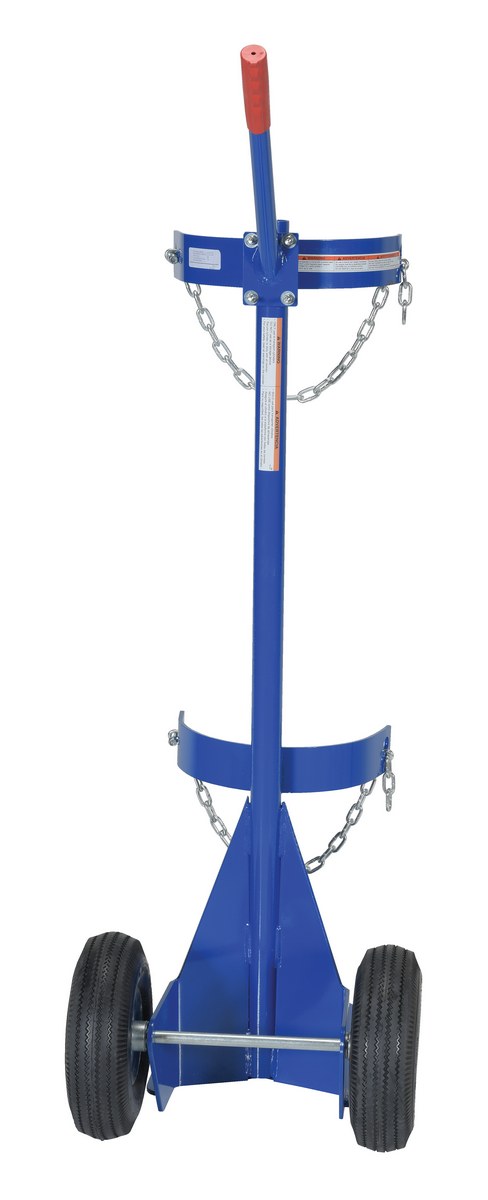

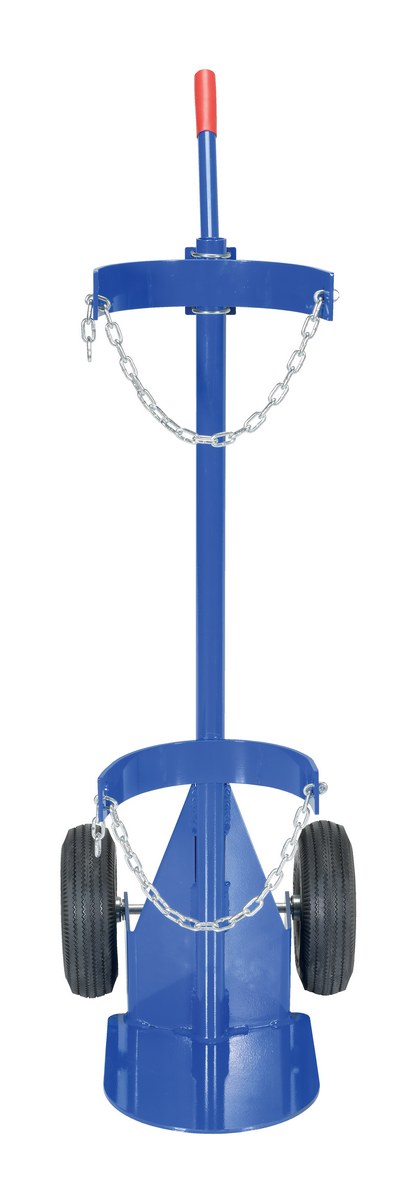

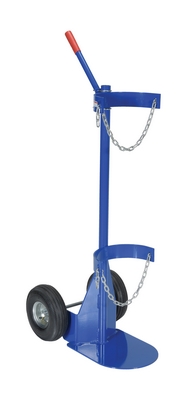

Steel Portable Economy Cylinder Lifter with Pneumatic Wheels 25-1/16 In. x 16-5/8 In. x 54 In. 500 Lb. Blue

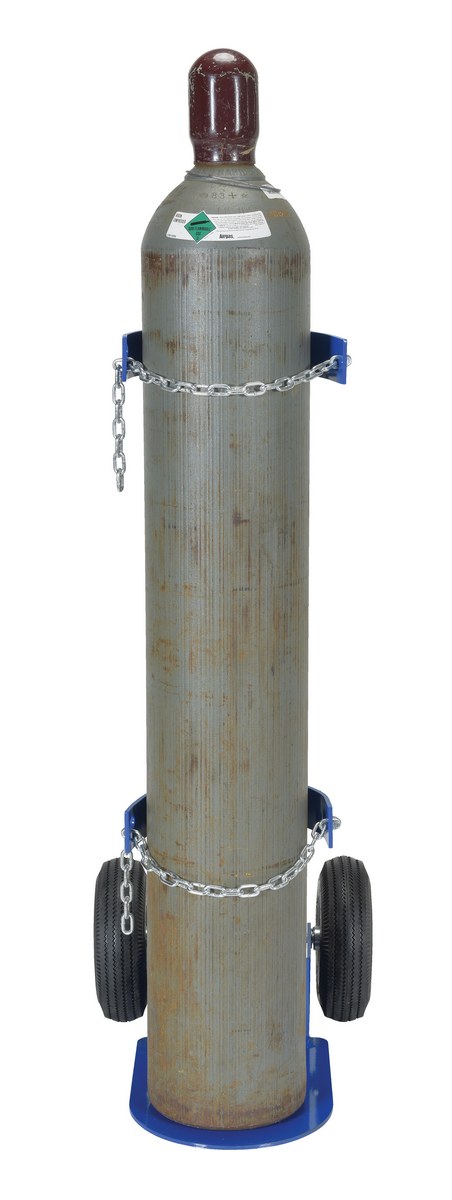

The Cylinder dolly transports cylinders from workstation to workstation. Secure the cylinder with the included restraint chains. Tilt unit back and transport.

  • Use in industrial applications for optimal results
  • Cylinder dolly transports cylinders for ideal operation
  • Includes restraint chains in order to secure cylinders for maximum efficiency
  • Features durable construction for added strength and long life
Assembled Wt.(lbs.): 55 Assembled Size: 16.625"W x 25.0625"L x 54"H

Total Ship Wt.(lbs.): 60 (only 1 package) Package 1 Size: 24"W x 60"D x 25"H Color: Blue

Uniform Capacity (lb.): 500 Maximum Cylinder Diameter (in.): 11-1/2 Nose Plate Width (in.): 12
Nose Plate Depth (in.): 15-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 3-1/2 Wheel Type: Pneumatic
Nose Plate Thickness (in.): 1/4 Overall Width (In.): 16-5/8 Overall Length (in.): 25-1/16
Overall Height (in.): 54

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: CYL-D-1-PN
Available
CYL-D-1-PN

Steel Portable Economy Cylinder Lifter with Pneumatic Wheels 25-1/16 In. x 16-5/8 In. x 54 In. 500 Lb. Blue

The Cylinder dolly transports cylinders from workstation to workstation. Secure the cylinder with the included restraint chains. Tilt unit back and transport.

  • Use in industrial applications for optimal results
  • Cylinder dolly transports cylinders for ideal operation
  • Includes restraint chains in order to secure cylinders for maximum efficiency
  • Features durable construction for added strength and long life
Dimensions: 16.625"W x 25.0625"L x 54"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 60 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 500 Maximum Cylinder Diameter (in.): 11-1/2 Nose Plate Width (in.): 12
Nose Plate Depth (in.): 15-1/2 Wheel Quantity/Diameter/Width (in.): (2) 10 x 3-1/2 Wheel Type: Pneumatic
Nose Plate Thickness (in.): 1/4 Overall Width (In.): 16-5/8 Overall Length (in.): 25-1/16
Overall Height (in.): 54
