Model Details

VHPS-550-AA-F72

Printer Friendly
VHPS-550-AA-F72

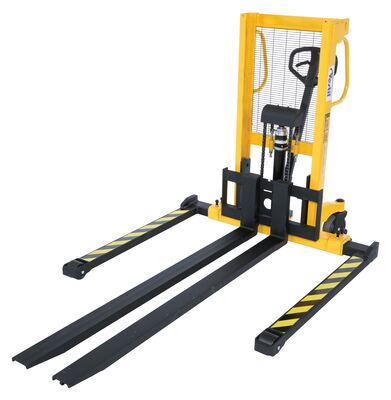

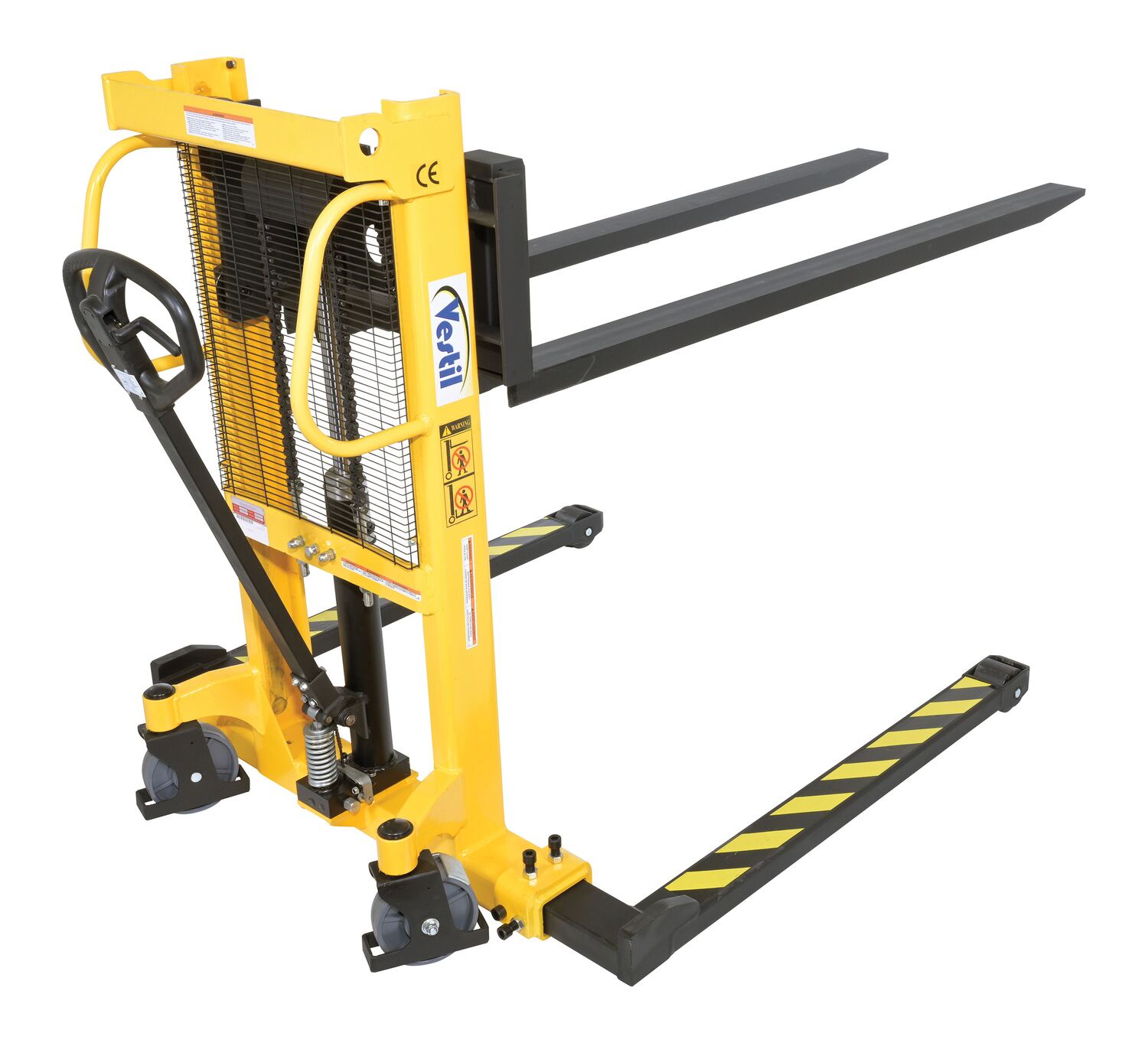

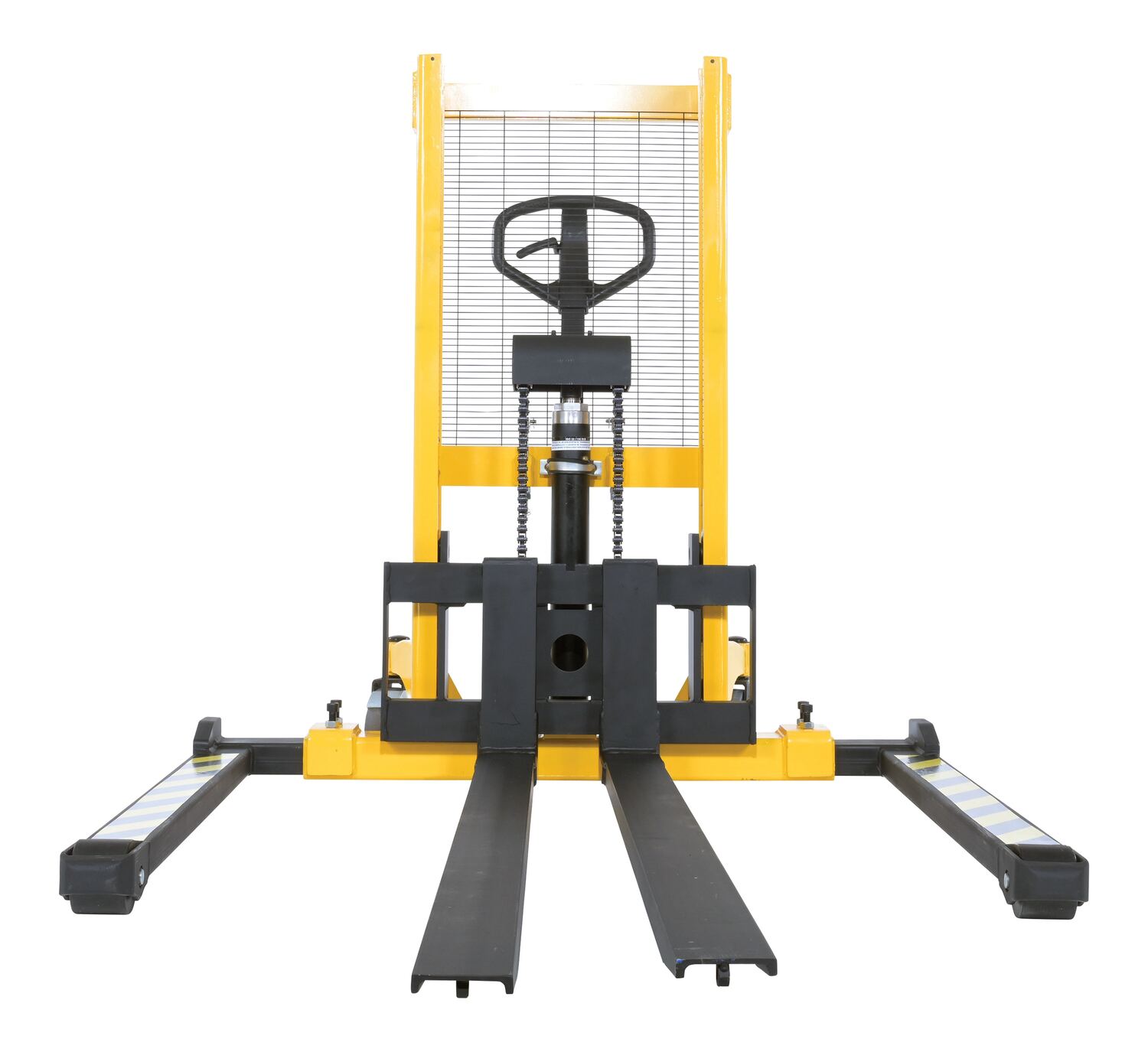

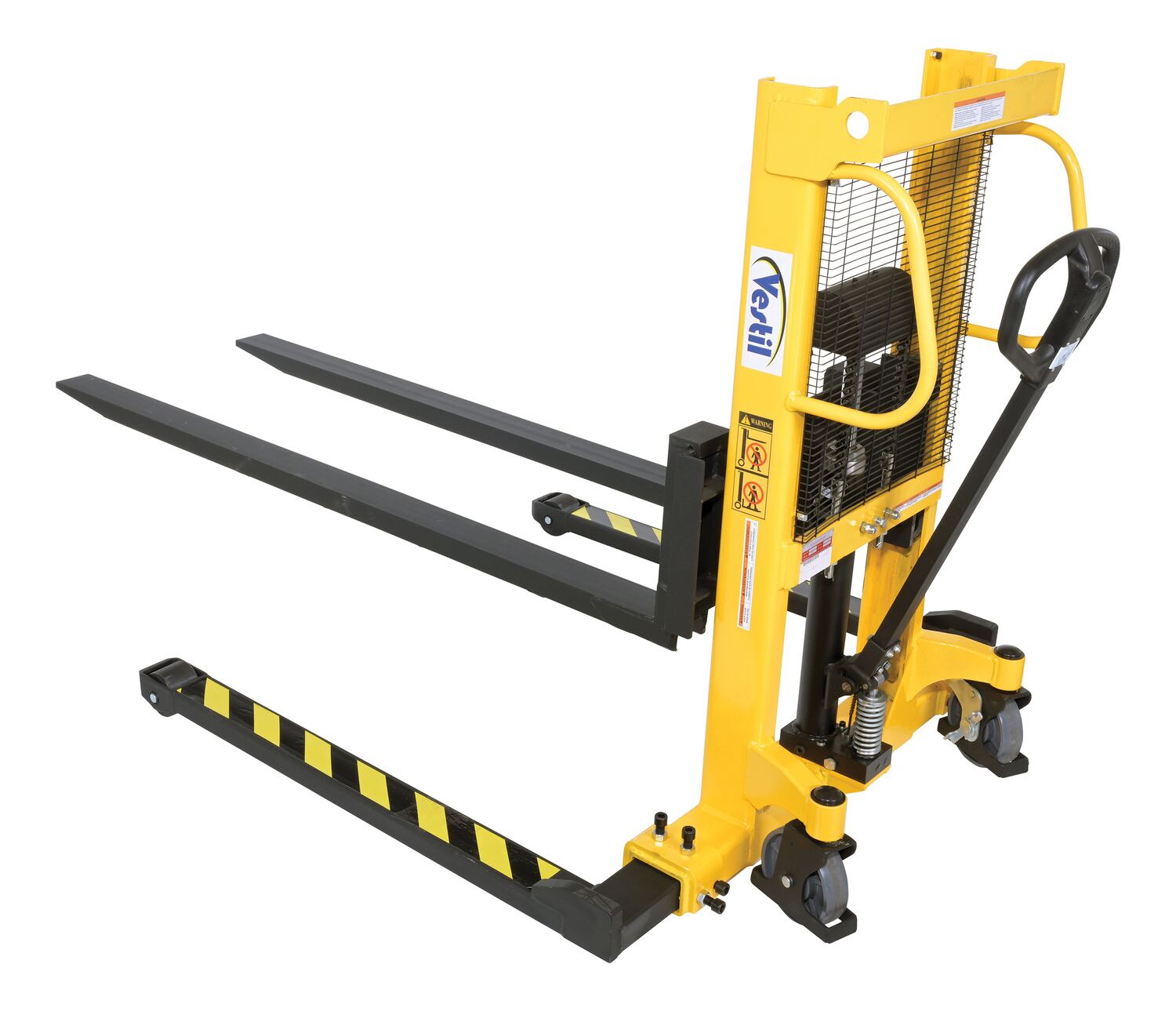

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

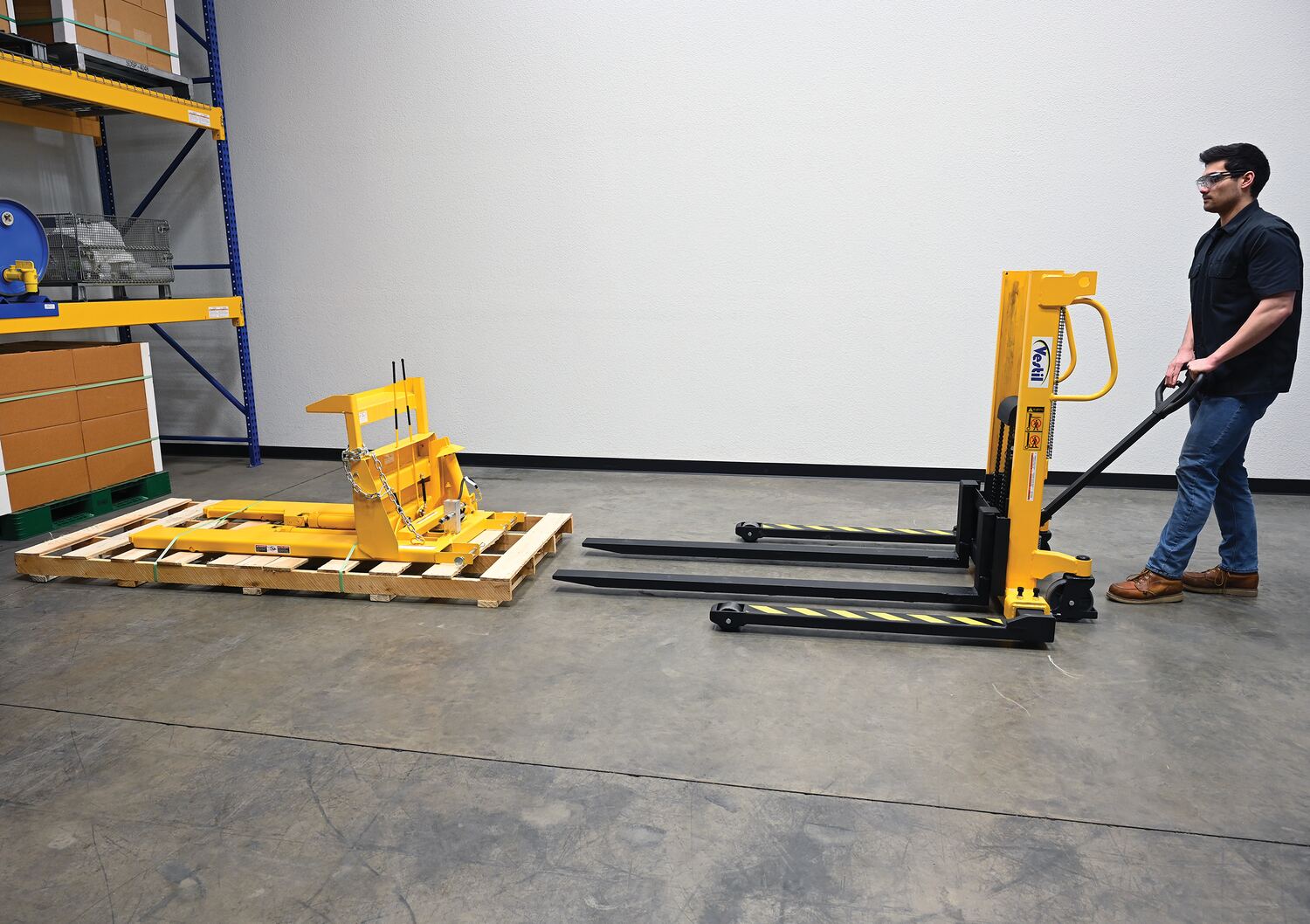

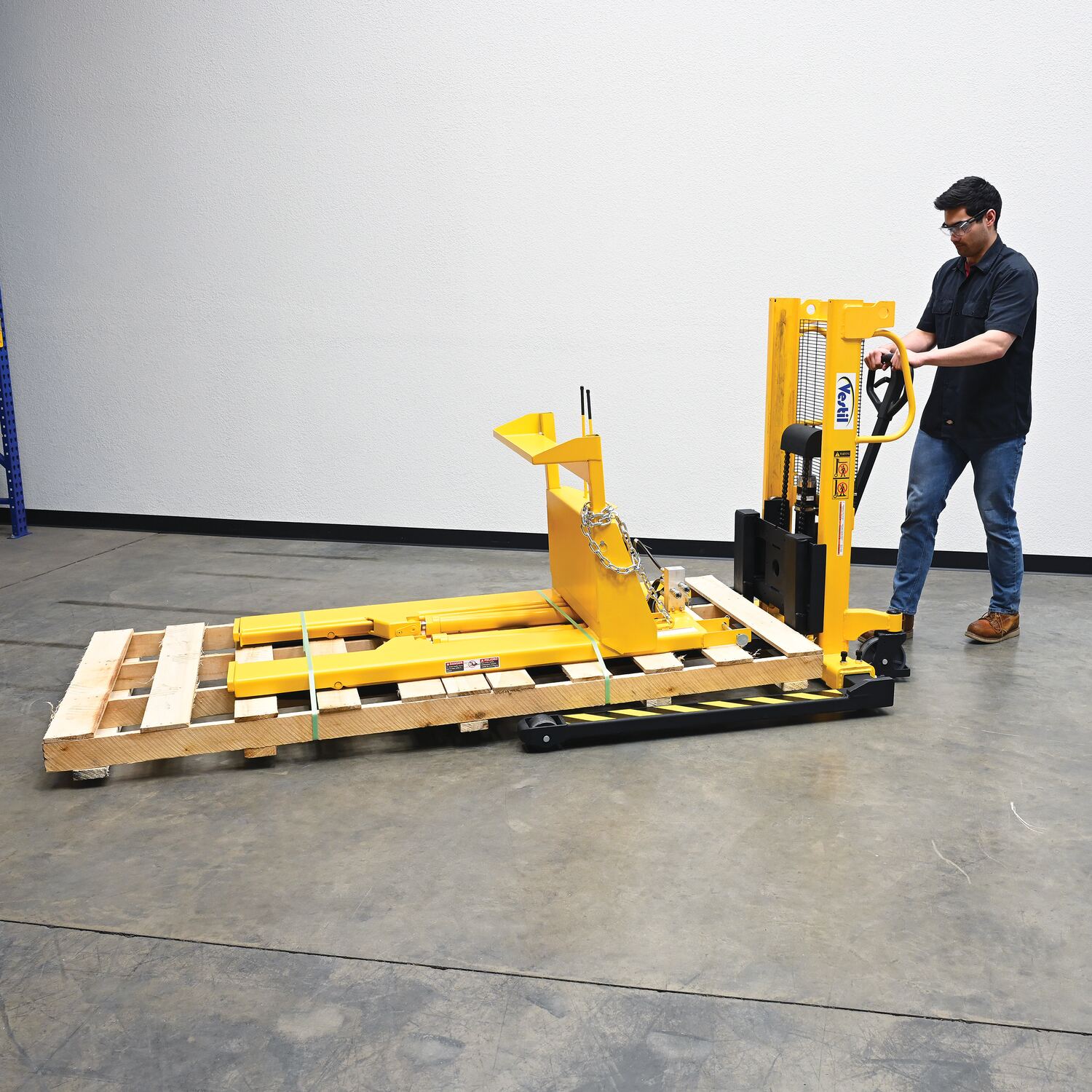

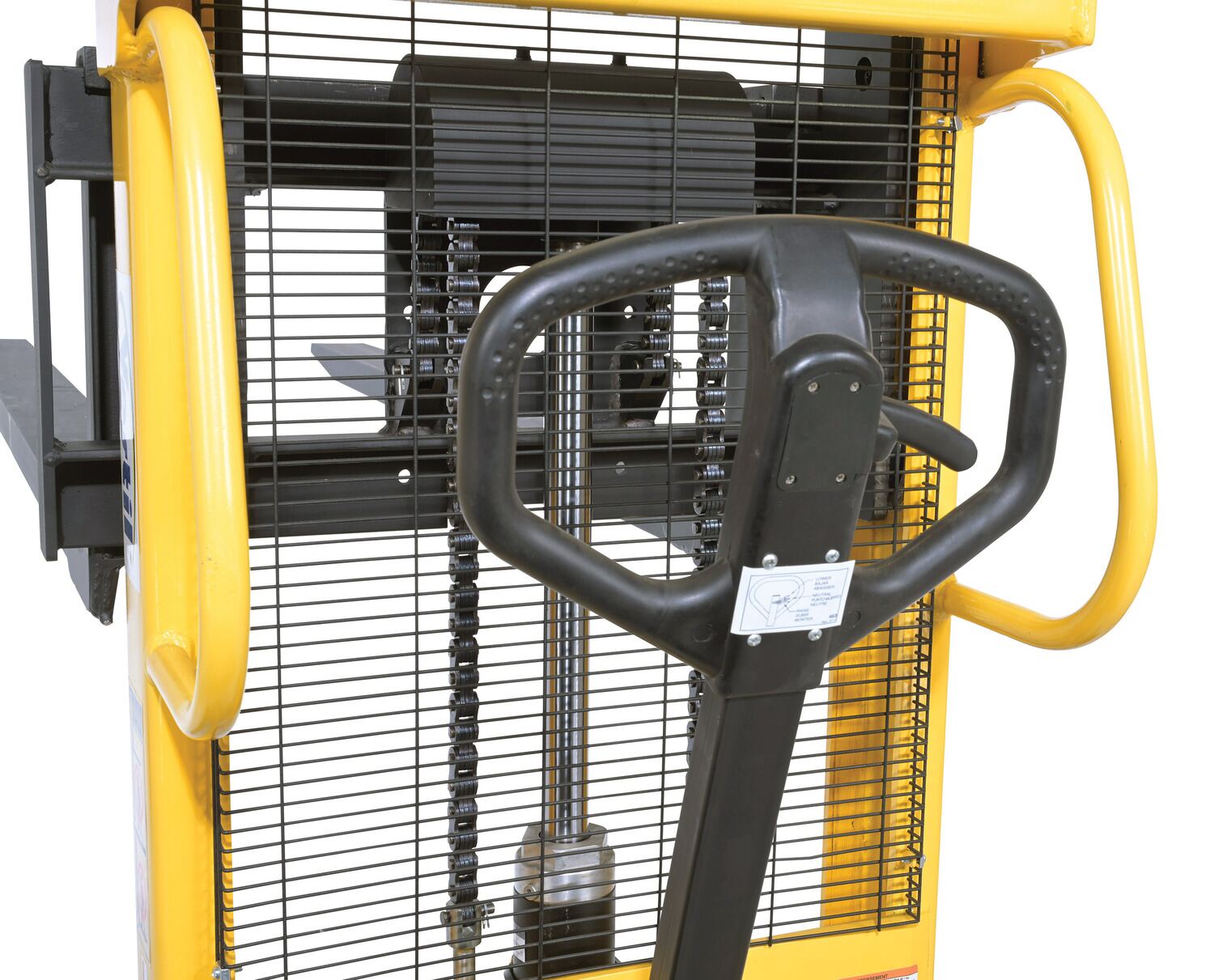

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.

  • Single mast structure

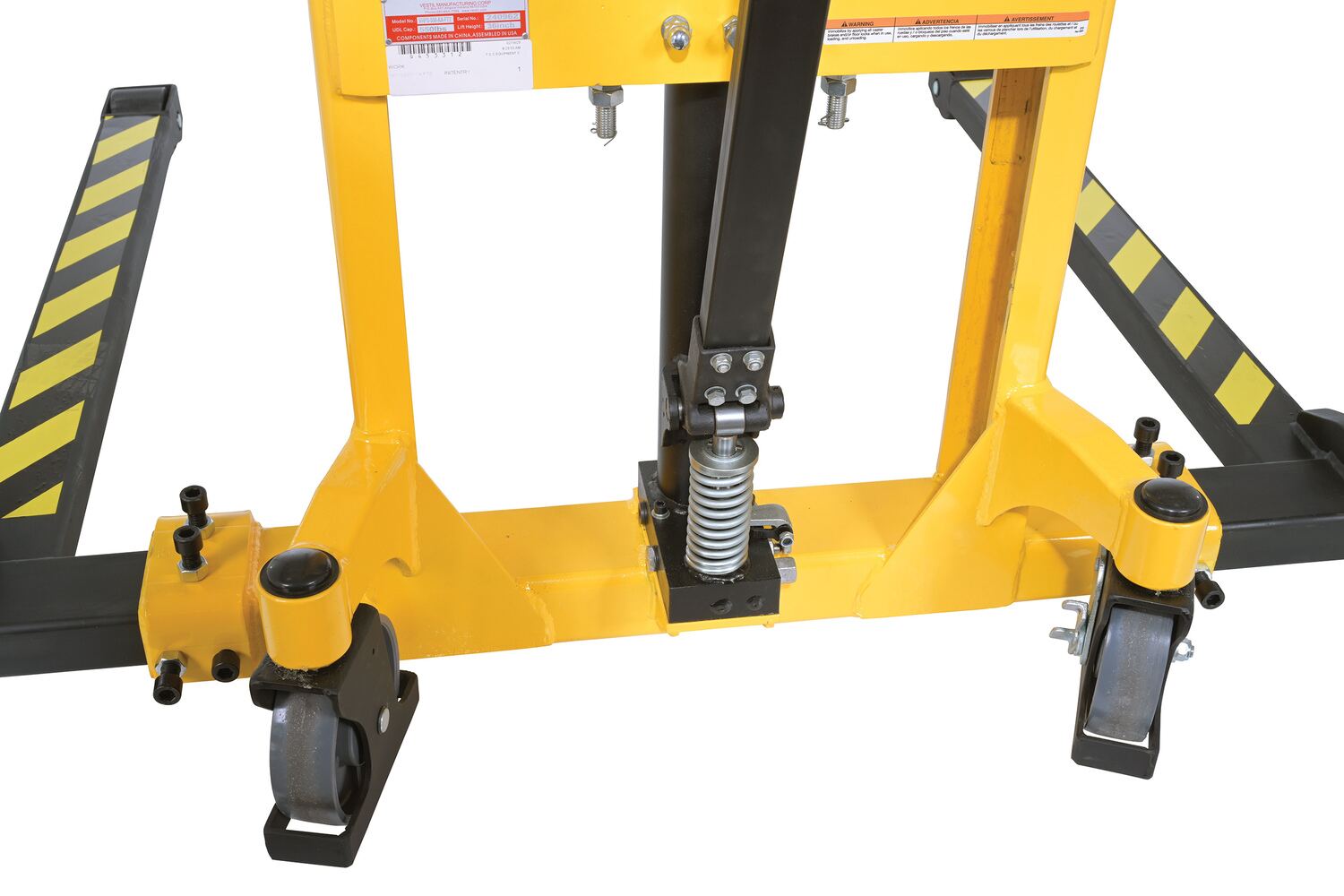

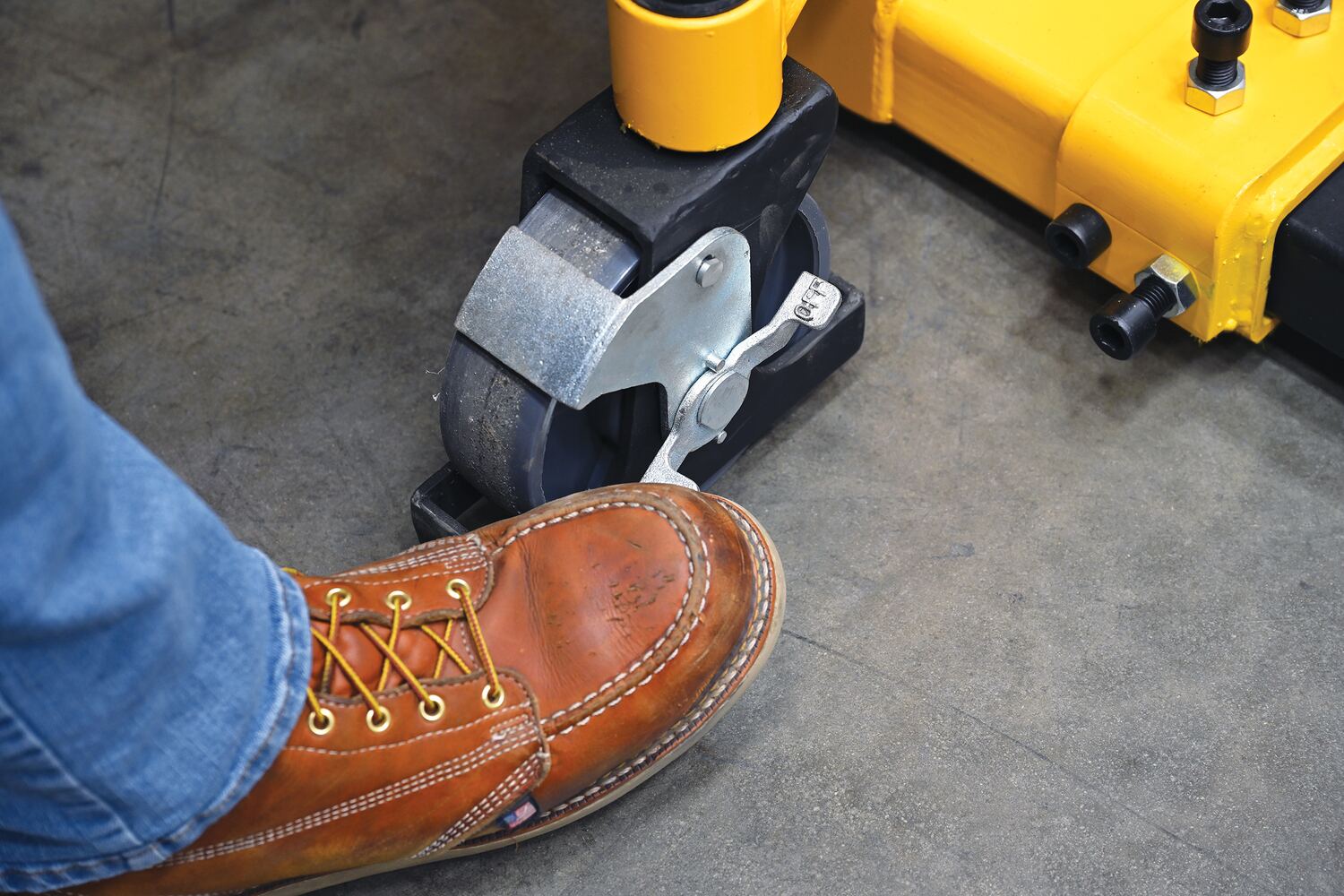

  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design

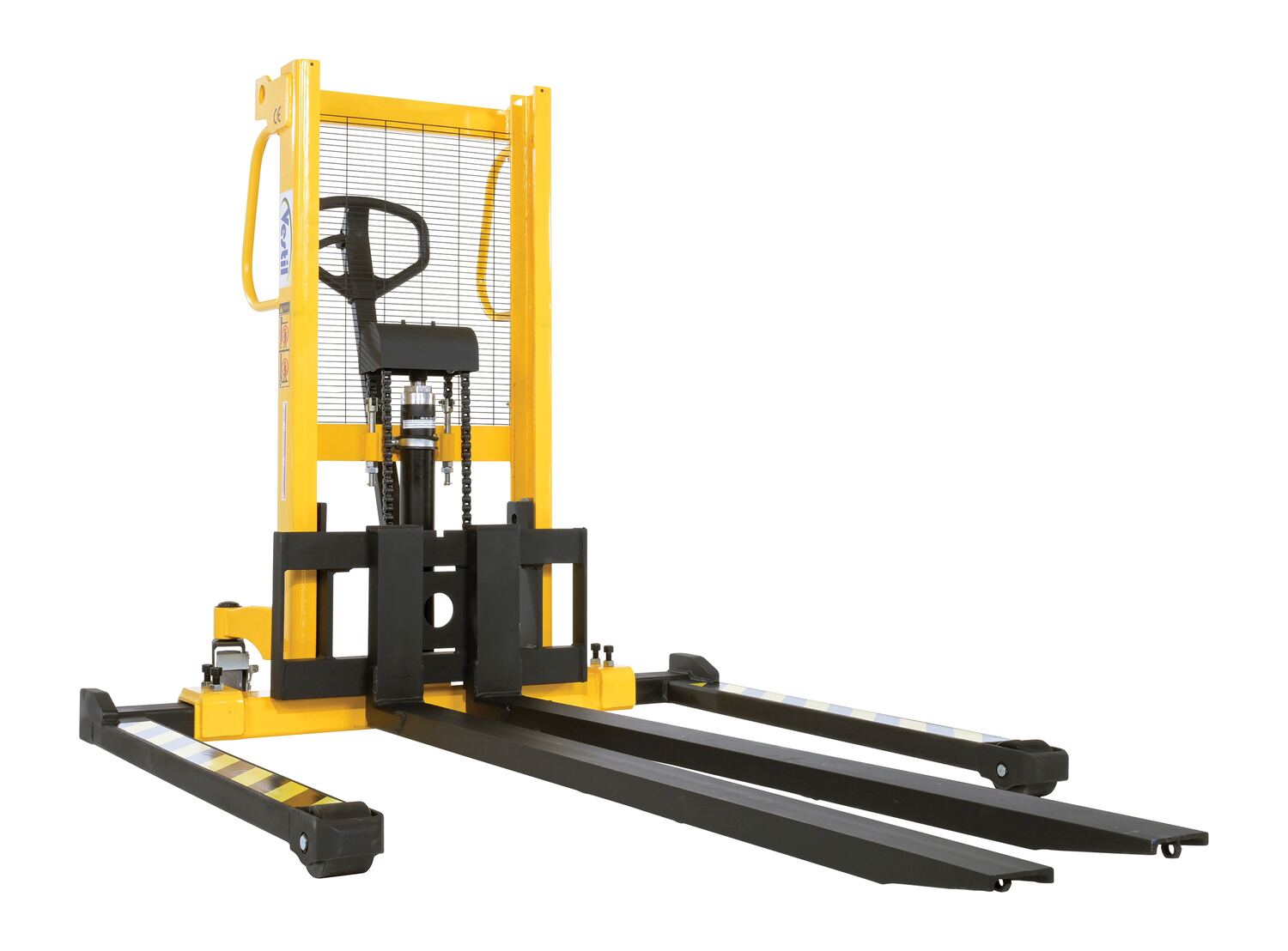

  • Adjustable forks and legs
Total Ship Wt.(lbs.): 885 (only 1 package) Size: 50"W x 93"L x 55"H Color: Black/Yellow

Uniform Capacity (Lbs.): 550 Fork Length (In.): 72 Power Source: Manual
Min. Width Between Forks (In.): 7.875 Max. Width Between Forks (In.): 26.75 Min. Wdth Beetween Legs (In.): 40.125
Max. Wdth Beetween Legs (In.): 50 Leg Width (In.): 4 Number Of Casters: 4
Rear Wheel Diameter: 7 Rear Wheel Material: Nylon Front Wheel Diameter: 4
Front Wheel Material: Nylon

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VHPS-550-AA-F72
VHPS-550-AA-F72

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.

  • Single mast structure
  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design
  • Adjustable forks and legs
Dimensions: 50"W x 93"L x 55"H Sell UOM: EA-Each Color: Black/Yellow
Material: Steel UPC: 691215379014 GTIN: 00691215379014
Warranty: -- Shipping Weight: 885 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? --
Uniform Capacity (Lbs.): 550 Fork Length (In.): 72 Power Source: Manual
Min. Width Between Forks (In.): 7.875 Max. Width Between Forks (In.): 26.75 Min. Wdth Beetween Legs (In.): 40.125
Max. Wdth Beetween Legs (In.): 50 Leg Width (In.): 4 Number Of Casters: 4
Rear Wheel Diameter: 7 Rear Wheel Material: Nylon Front Wheel Diameter: 4
Front Wheel Material: Nylon
