AIR-1500-D

Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Blue/Silver

Hydraulic Ergonomic Air Cart for Ergonomic Load Lifting and Workstation Positioning, 1,500 lb. Capacity with 47-1/2 in. x 24 in.
The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting.
Available QuickShip
Key Features
  • Reciprocating air/oil conveniently raises platform with ease
  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use
Product Image

Visual Reference

AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
AIR-1500-D
Quick Actions

Product Resources

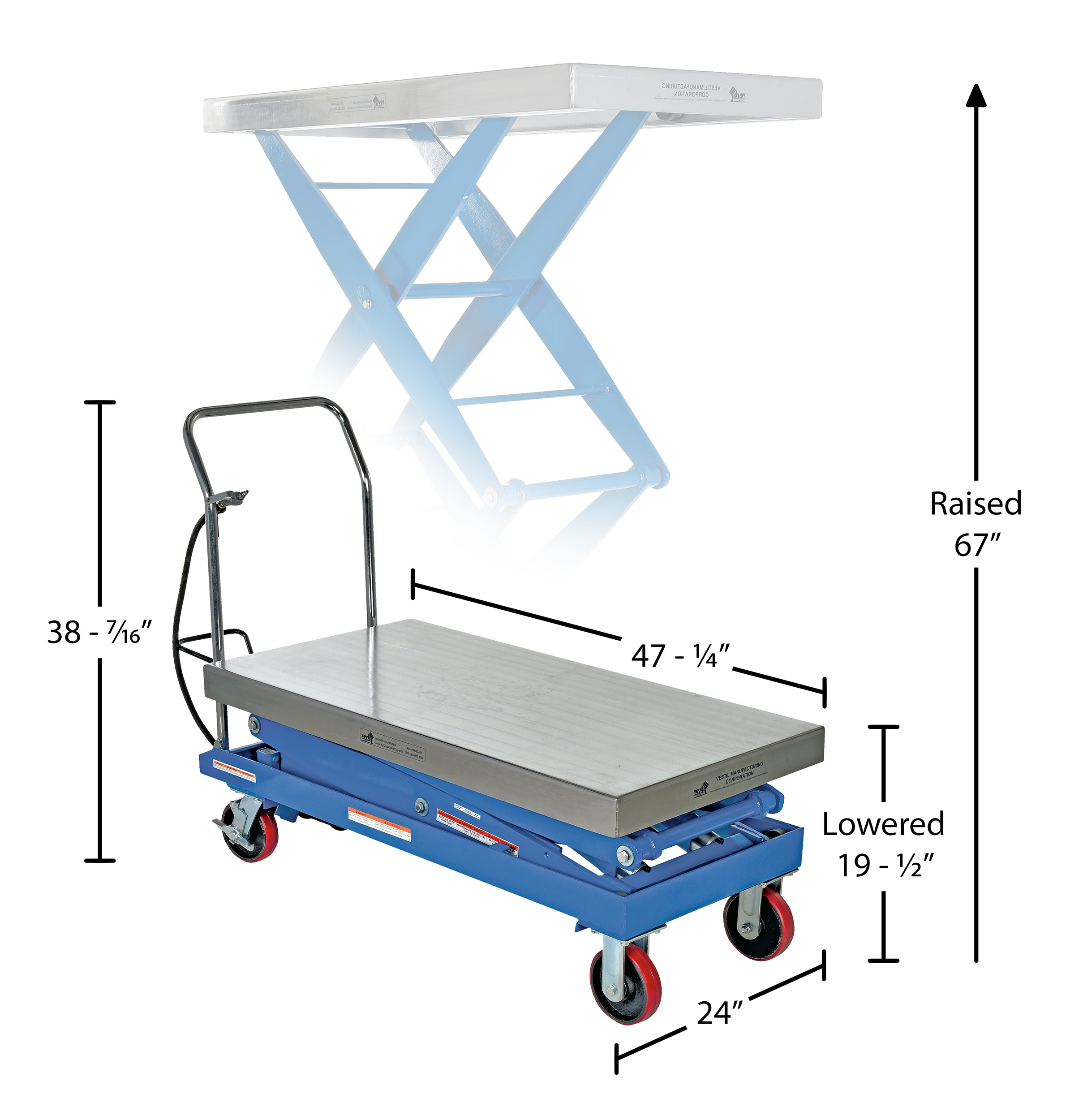

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 535 lbs
Assembled Size 24"W x 63.5"L x 39.25"H
Total Ship Weight 601 lbs
Package 1 Size 40"W x 64"D x 45"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 24
Platform Length (in.) 47-1/2
Lowered Height (in.) 19-1/2
Raised Height (in.) 67
Caster Diameter (in.) 6
Caster Width (in.) 1-1/2
Air inlet Size (in.) 3/8
PSI recommended 80-100
Operation Method Pneumatic
Tabletop Thickness (in.) 1/8
Handle Height (in.) 39-1/4
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Air Hydraulic Carts   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AIR-1500-D

AIR-1500-D

Carbon Steel Air/Hydraulic Scissor Lift Cart 47-1/2 In. x 24 In. Platform With Poly-On-Poly Casters 1,500 Lb. Capacity Blue/Silver

The air Hydraulic cart features a two speed foot pump and hand held reciprocating air/oil power to raise the platform. It utilizes the two speed foot pump for minor height adjustments and the factory air/oil power for effortless lifting.

  • Reciprocating air/oil conveniently raises platform with ease
  • Two speed foot pump raises platform when air is not available
  • Poly-on-poly wheels roll smoothly when loaded down
  • Steel construction provides solid long lasting use

Core Data

Assembled Weight: 535 Assembled Size: 24"W x 63.5"L x 39.25"H Color: Blue
Total Ship Weight: 601 Package 1 Size: 40"W x 64"D x 45"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Platform Length (in.): 47-1/2
Lowered Height (in.): 19-1/2
Raised Height (in.): 67
Caster Diameter (in.): 6
Caster Width (in.): 1-1/2
Air inlet Size (in.): 3/8
PSI recommended: 80-100
Operation Method: Pneumatic
Tabletop Thickness (in.): 1/8
Handle Height (in.): 39-1/4
