ALLPW-500-FWFL

Aluminum Low Profile Lite Load Lift With Winch Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

Aluminum Low-Profile Hand Winch Lift for Commercial and Industrial Portable Load Lifters Use, 400 lb. Capacity with 20 in. x 20 in., Silver Finish – Model ALLPW-500-FWFL
The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.
Available
Key Features
  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks
Product Image

Visual Reference

ALLPW-500-FWFL
ALLPW-500-FWFL
ALLPW-500-FWFL
ALLPW-500-FWFL
ALLPW-500-FWFL
ALLPW-500-FWFL
ALLPW-500-FWFL
Quick Actions

Product Resources

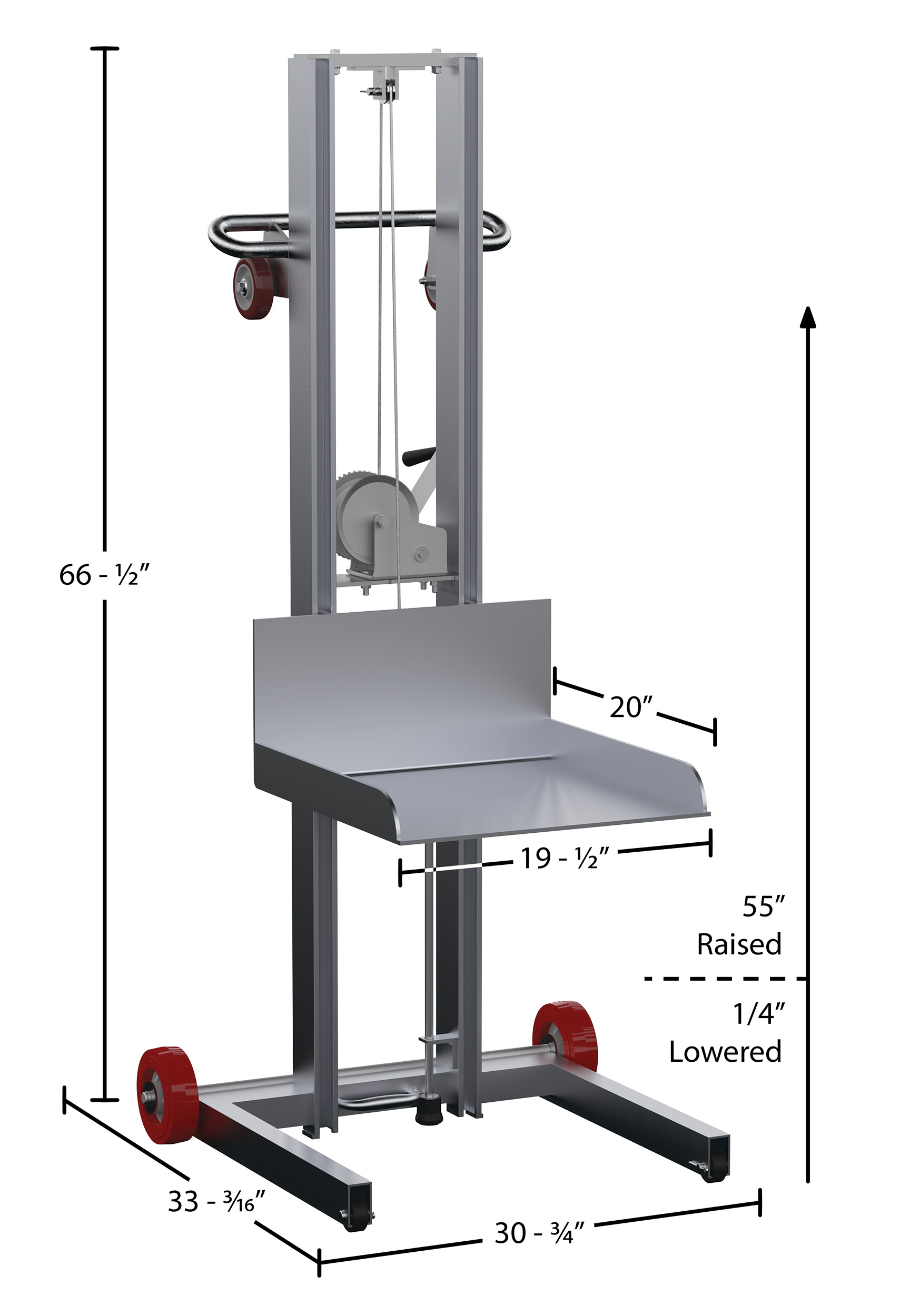

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 93 lbs
Assembled Size 30.75"W x 33.1875"L x 66.5"H
Total Ship Weight 103 lbs
Package 1 Size 40"W x 48"D x 72"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 400
Platform Width (in.) 19-1/2
Platform Length (in.) 20
Lowered Height (in.) 1/4
Raised Height (in.) 55
Lift per Winch Rotation (in.) 1
Horizontal Load Center (in.) 10
Side Lip Height (in.) 2
Profile Low
Operation Hand Winch
Rear Wheel Qty./Diameter/Width (in.) (2) 6 x 2
Rear Wheel Material Poly on Poly
Rear Wheel Type Rigid
Front Caster Qty./Diameter (in.) (2) 2 x 7/8
Front Caster Material Semi Steel
Front Caster Type Rigid
Handle Caster Qty./Diameter/Width (in.) (2) 4 x 1-1/4
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   LLW, LLPW, ALLW, ALLPW Light Load Lifters Use and Maintenance Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ALLPW-500-FWFL

ALLPW-500-FWFL

Aluminum Low Profile Lite Load Lift With Winch Fixed Wheels and Manual Floor Lock 20 In. x 20 In. Platform 400 Lb. Capacity Silver

The Lite load lift is ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems. The unit is easy to operate with a hand winch operation and aluminum construction. The unit rolls smoothly on poly-on-poly rear wheels and semi-steel front wheels. Located on the handle are two rollers to ease loading into delivery trucks. Unit also includes a floor lock for stability when not in use. The floor lock is engaged with a simple press of the foot.

  • Aluminum construction provides long lasting rugged use
  • Easy to operate lift system makes lifting products to ergonomic heights simple
  • Two front and two rear wheel design conveniently rolls when loaded
  • Two rollers on handle provide easy unit loading into delivery trucks

Core Data

Assembled Weight: 93 Assembled Size: 30.75"W x 33.1875"L x 66.5"H Color: Silver
Total Ship Weight: 103 Package 1 Size: 40"W x 48"D x 72"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
Platform Length (in.): 20
Lowered Height (in.): 1/4
Raised Height (in.): 55
Lift per Winch Rotation (in.): 1
Horizontal Load Center (in.): 10
Side Lip Height (in.): 2
Profile: Low
Operation: Hand Winch
Rear Wheel Qty./Diameter/Width (in.): (2) 6 x 2
Rear Wheel Material: Poly on Poly
Rear Wheel Type: Rigid
Front Caster Qty./Diameter (in.): (2) 2 x 7/8
Front Caster Material: Semi Steel
Front Caster Type: Rigid
Handle Caster Qty./Diameter/Width (in.): (2) 4 x 1-1/4
