ATS-9-56-HDG

Galvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Silver

Galvanized Warehouse Stair for Safer Elevated Access in Industrial Work Areas, 350 lb. Capacity with 81-5/8 in. x 23-1/2 in. x 150-1/4 in.
Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.
Available Non-Returnable
Key Features
  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish
Product Image

Visual Reference

ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
ATS-9-56-HDG
Quick Actions

Product Resources

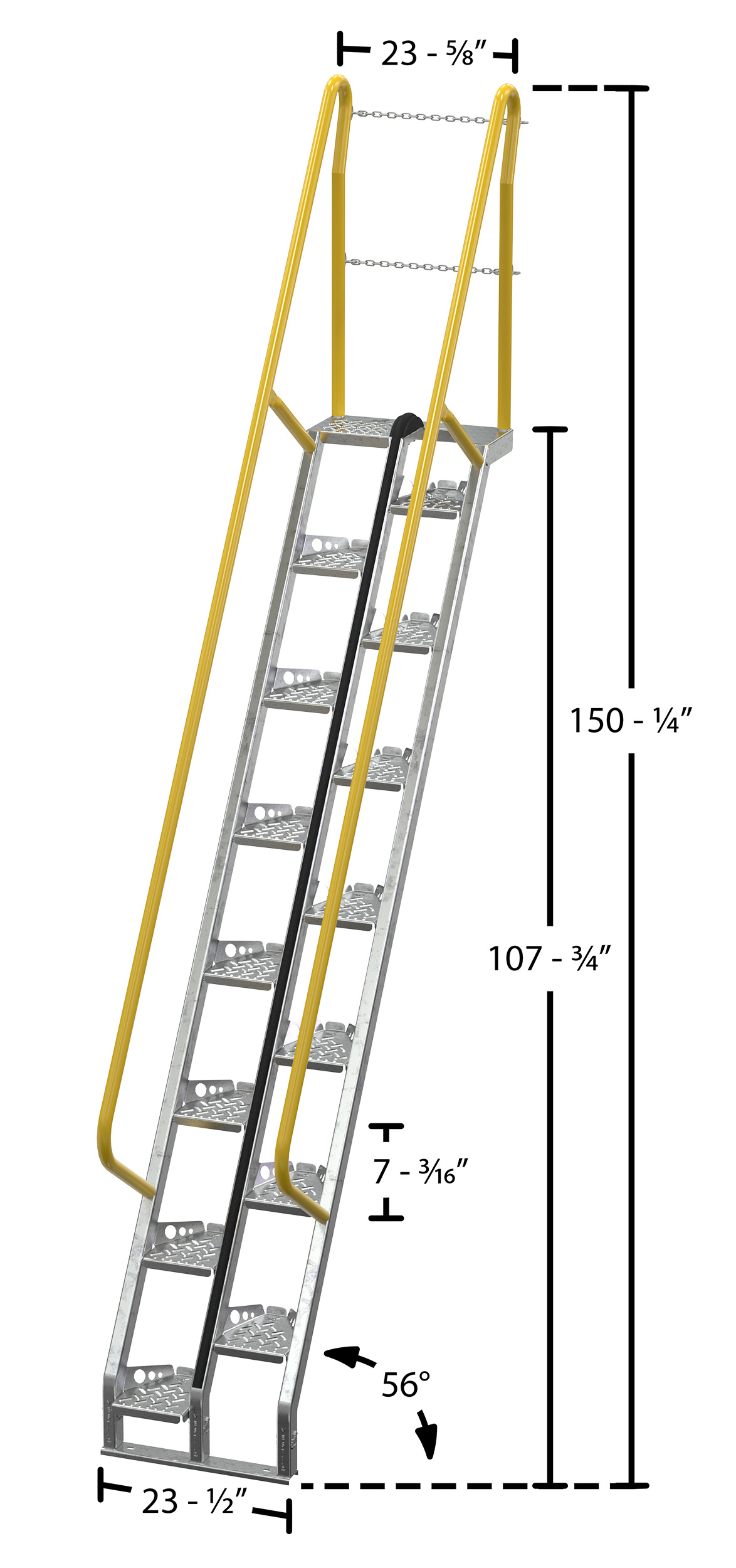

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 229 lbs
Assembled Size 23.5"W x 81.625"L x 150.25"H
Total Ship Weight 284 lbs
Package 1 Size 30"W x 145"D x 16"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 350
Number of Steps 15
Top Step Height (in.) 107-3/4
Step Angle (degrees) 56
Safety Chain (in.) 3/16
Top Step Depth (in.) 9-3/4
Top Step Width (in.) 23-5/8
Step (excluding top step) Depth (in.) 10-1/2
Step (excluding top step) Width (in.) 9-1/8
Step Height Spacing (in.) 7-3/16
Handrail Height (in.) 18-5/8
OSHA 29 CFR 1910.25(e`)
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Alternating Tread Stairs   Label Page PDF   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ATS-9-56-HDG

ATS-9-56-HDG

Galvanized Alternate Tread Stair 56 Degrees 81-5/8 In. x 23-1/2 In. x 150-1/4 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.

  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish

Core Data

Assembled Weight: 229 Assembled Size: 23.5"W x 81.625"L x 150.25"H Color: Silver
Total Ship Weight: 284 Package 1 Size: 30"W x 145"D x 16"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 350
Number of Steps: 15
Top Step Height (in.): 107-3/4
Step Angle (degrees): 56
Safety Chain (in.): 3/16
Top Step Depth (in.): 9-3/4
Top Step Width (in.): 23-5/8
Step (excluding top step) Depth (in.): 10-1/2
Step (excluding top step) Width (in.): 9-1/8
Step Height Spacing (in.): 7-3/16
Handrail Height (in.): 18-5/8
OSHA: 29 CFR 1910.25(e`)
