  All Products   Industrial Ladders   Ladders   Aluminum Cross-Over Ladders COL-AL-3-26-44
COL-AL-3-26-44

Aluminum Crossover Ladder 3 Step 60 x 29-1/8 In. Platform 500 Lb. Capacity Silver

Aluminum Cross Over Ladder for Safer Elevated Access in Industrial Work Areas, 500 lb. Capacity with 29-1/8 in., Silver Finish – Model COL-AL-3-26-44
In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.
Available Non-Returnable
Key Features
  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail
Product Image

Visual Reference

COL-AL-3-26-44
COL-AL-3-26-44
COL-AL-3-26-44
COL-AL-3-26-44
COL-AL-3-26-44
COL-AL-3-26-44
COL-AL-3-26-44
Quick Actions

Product Resources

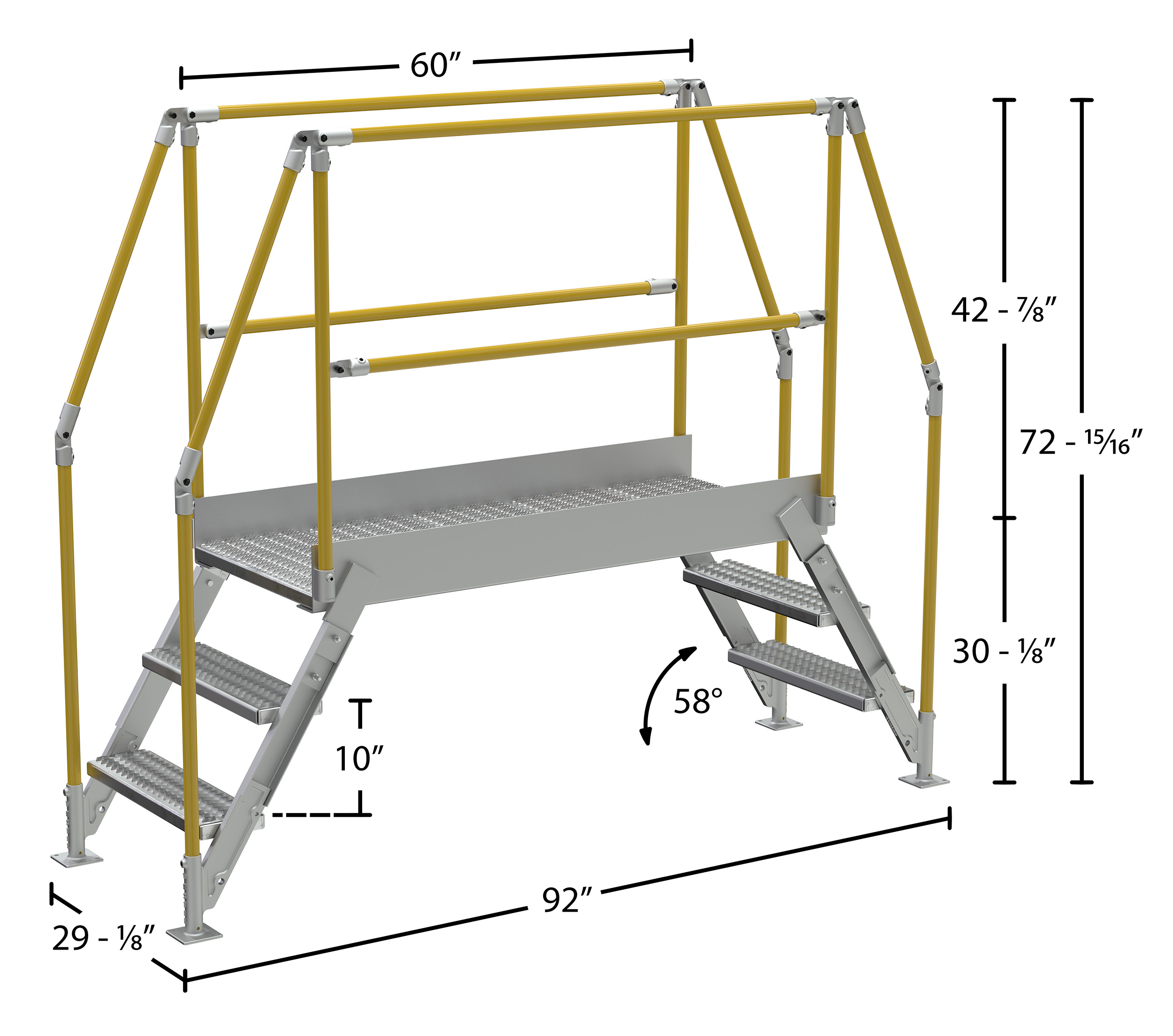

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 260 lbs
Assembled Size 29.25"W x 90.5"L x 73"H
Total Ship Weight 300 lbs
Package 1 Size 48"W x 72"D x 30"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Step Angle 58 Degrees
Step Spacing 10"
Top Step (HxWxD) 30"x26"x60"
Other Step (WxD) 26"x7"
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Cross-Over Ladders   Label Page PDF   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: COL-AL-3-26-44

COL-AL-3-26-44

Aluminum Crossover Ladder 3 Step 60 x 29-1/8 In. Platform 500 Lb. Capacity Silver

In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.

  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail

Core Data

Assembled Weight: 260 Assembled Size: 29.25"W x 90.5"L x 73"H Color: Silver
Total Ship Weight: 300 Package 1 Size: 48"W x 72"D x 30"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Step Angle: 58 Degrees
Step Spacing: 10"
Top Step (HxWxD): 30"x26"x60"
Other Step (WxD): 26"x7"
