CRF-108

Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver

Fork Lift Carpet Ram for Commercial and Industrial Rug Rams & Carpet Poles Use, 2,500 lb. Capacity with 108 in.
The fork mounted rug ram is ideal for the warehouse and maintenance establishments. The construction is strong and durable throughout a lifetime of use. A chain is included for enhanced security while connecting to the transporting vehicle. The ram is finished to a smooth texture to minimize edges during transport.
Out of Stock QuickShip
Key Features
  • Rug ram/carpet pole is used for transporting rolls of carpet
  • Tapered tip makes for high strength, rotation, and a replaceable pole
  • Fork mounted rug ram has a safety restraint included to secure unit to fork truck
  • Made from steel in order to hold greater capacities
Product Image

Visual Reference

CRF-108
CRF-108
CRF-108
Quick Actions

Product Resources

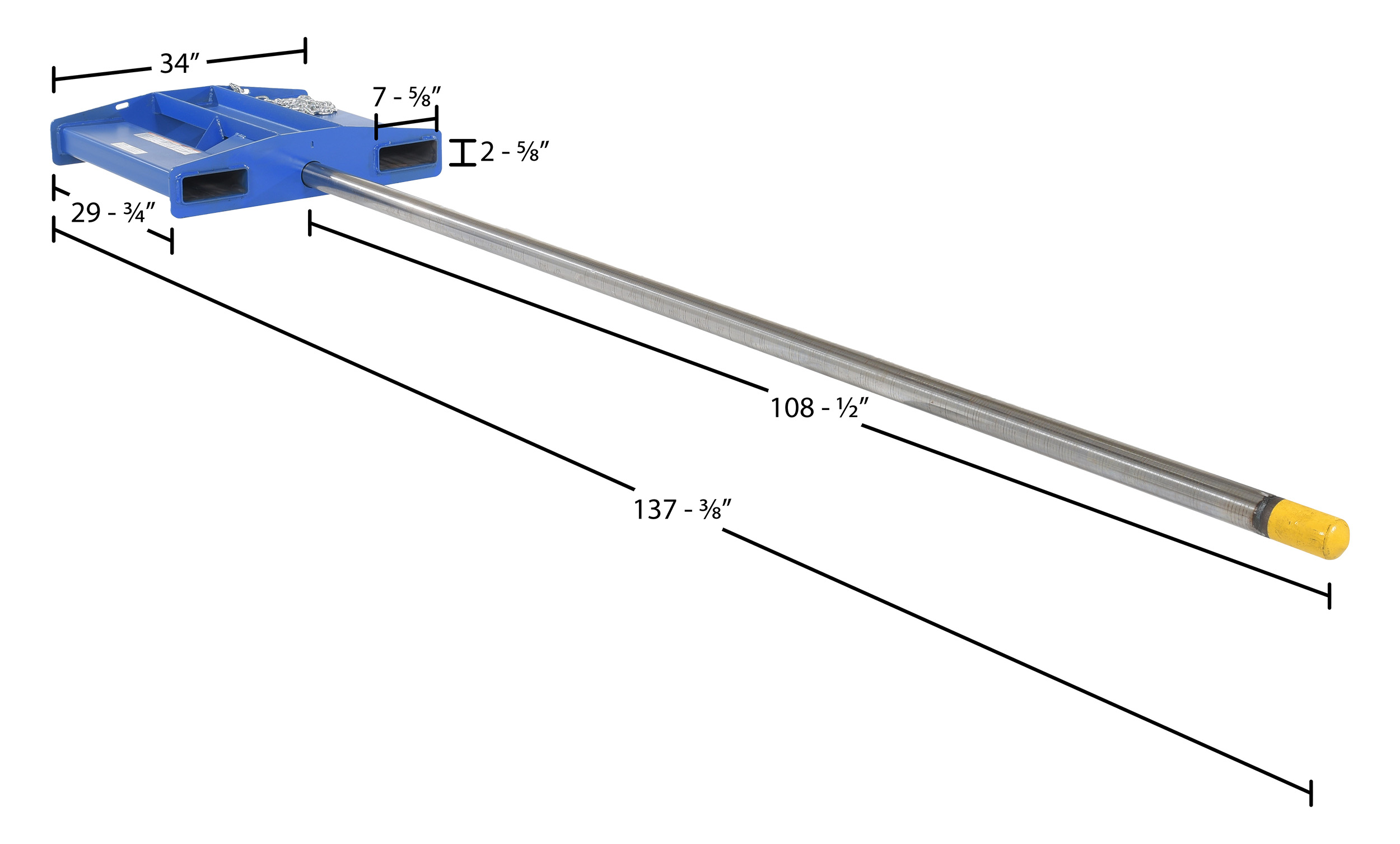

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 377 lbs
Assembled Size 34"W x 137.375"L x 7.25"H
Total Ship Weight 389 lbs
Package 1 Size 34"W x 137.375"D x 7.25"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 2,500
Pole Diameter (in.) 2-3/4
Pole Length (in.) 108-1/2
Mount Style Fork
Fork Pocket Center (in.) 24
Usable Fork Pocket Width (in.) 7-5/8
Usable Fork Pocket Height (in.) 2-5/8
Overall Length (in.) 137-3/8
Overall Width (in.) 34
Overall Height (in.) 7-1/4
Vertical Center of Gravity (in.) 3-1/16
Horizontal Center of Gravity (in.) 48-1/8
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CRF series carpet poles instruction manuals   Label Page PDF   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CRF-108

CRF-108

Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver

The fork mounted rug ram is ideal for the warehouse and maintenance establishments. The construction is strong and durable throughout a lifetime of use. A chain is included for enhanced security while connecting to the transporting vehicle. The ram is finished to a smooth texture to minimize edges during transport.

  • Rug ram/carpet pole is used for transporting rolls of carpet
  • Tapered tip makes for high strength, rotation, and a replaceable pole
  • Fork mounted rug ram has a safety restraint included to secure unit to fork truck
  • Made from steel in order to hold greater capacities

Core Data

Assembled Weight: 377 Assembled Size: 34"W x 137.375"L x 7.25"H Color: Blue
Total Ship Weight: 389 Package 1 Size: 34"W x 137.375"D x 7.25"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Pole Length (in.): 108-1/2
Mount Style: Fork
Fork Pocket Center (in.): 24
Usable Fork Pocket Width (in.): 7-5/8
Usable Fork Pocket Height (in.): 2-5/8
Overall Length (in.): 137-3/8
Overall Width (in.): 34
Overall Height (in.): 7-1/4
Vertical Center of Gravity (in.): 3-1/16
Horizontal Center of Gravity (in.): 48-1/8
