  All Products   Cast Iron/ Steel   Metal Alloy/ Cast Iron Casters CST-MA-6X2-SWB
CST-MA-6X2-SWB

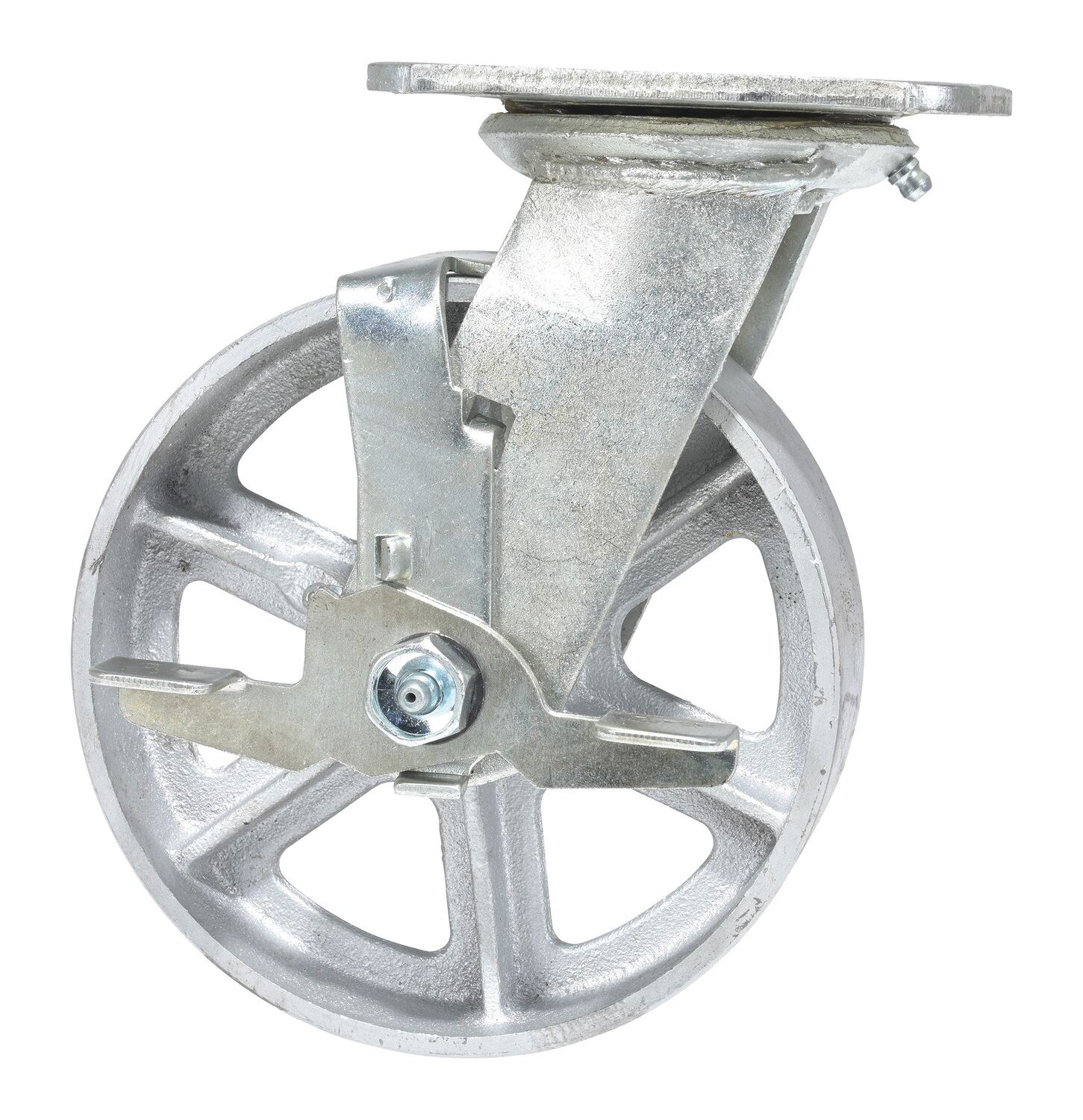

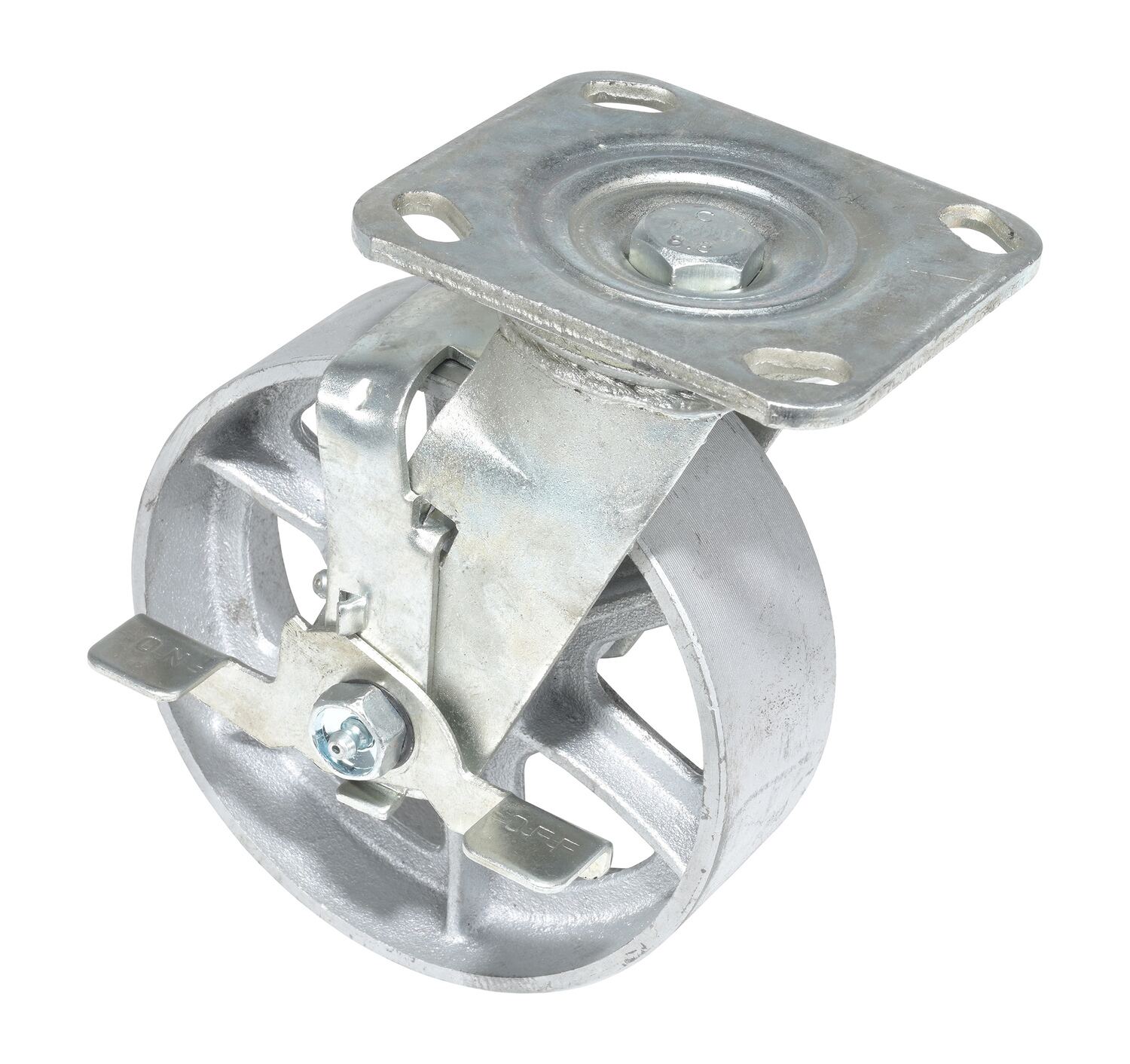

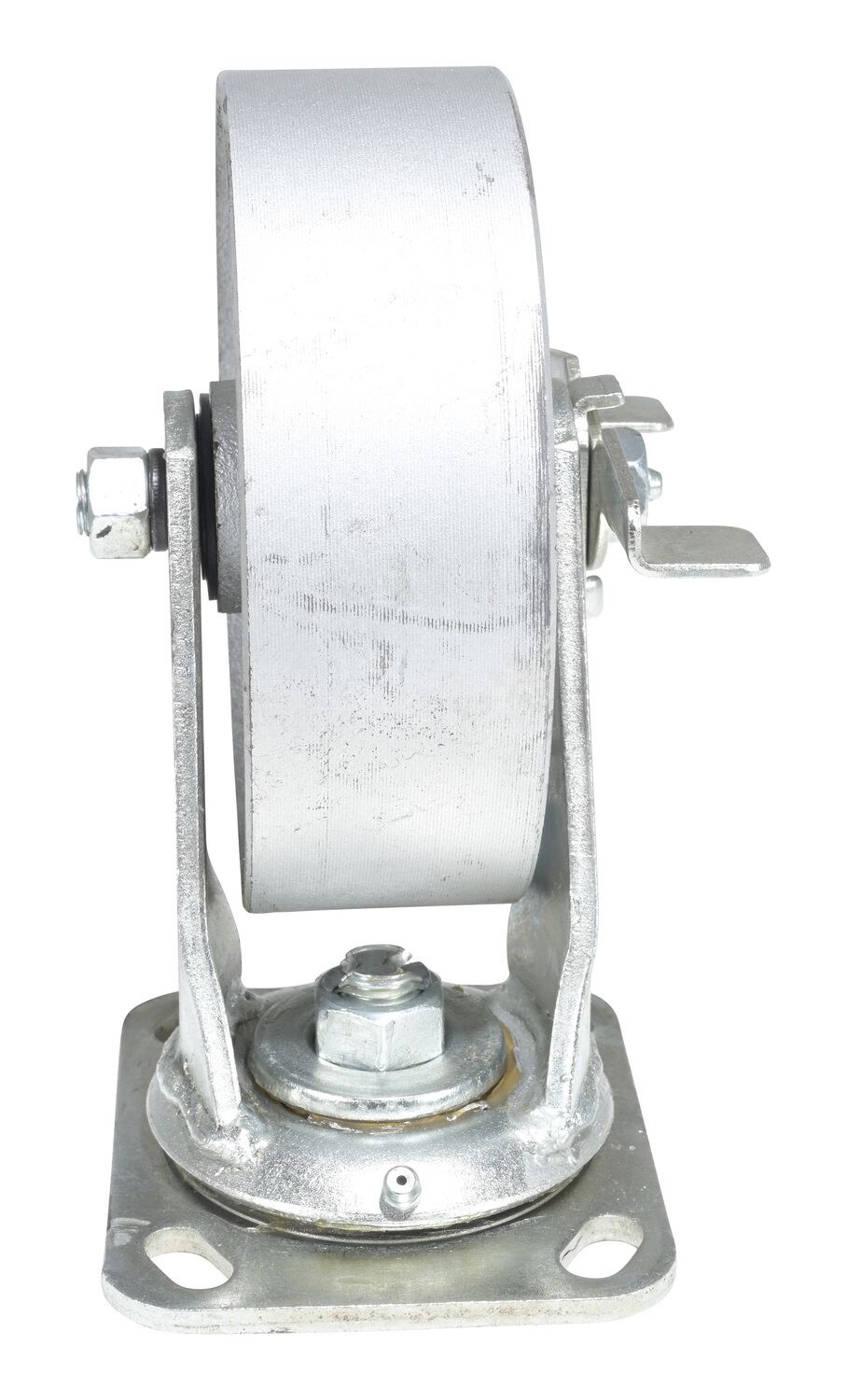

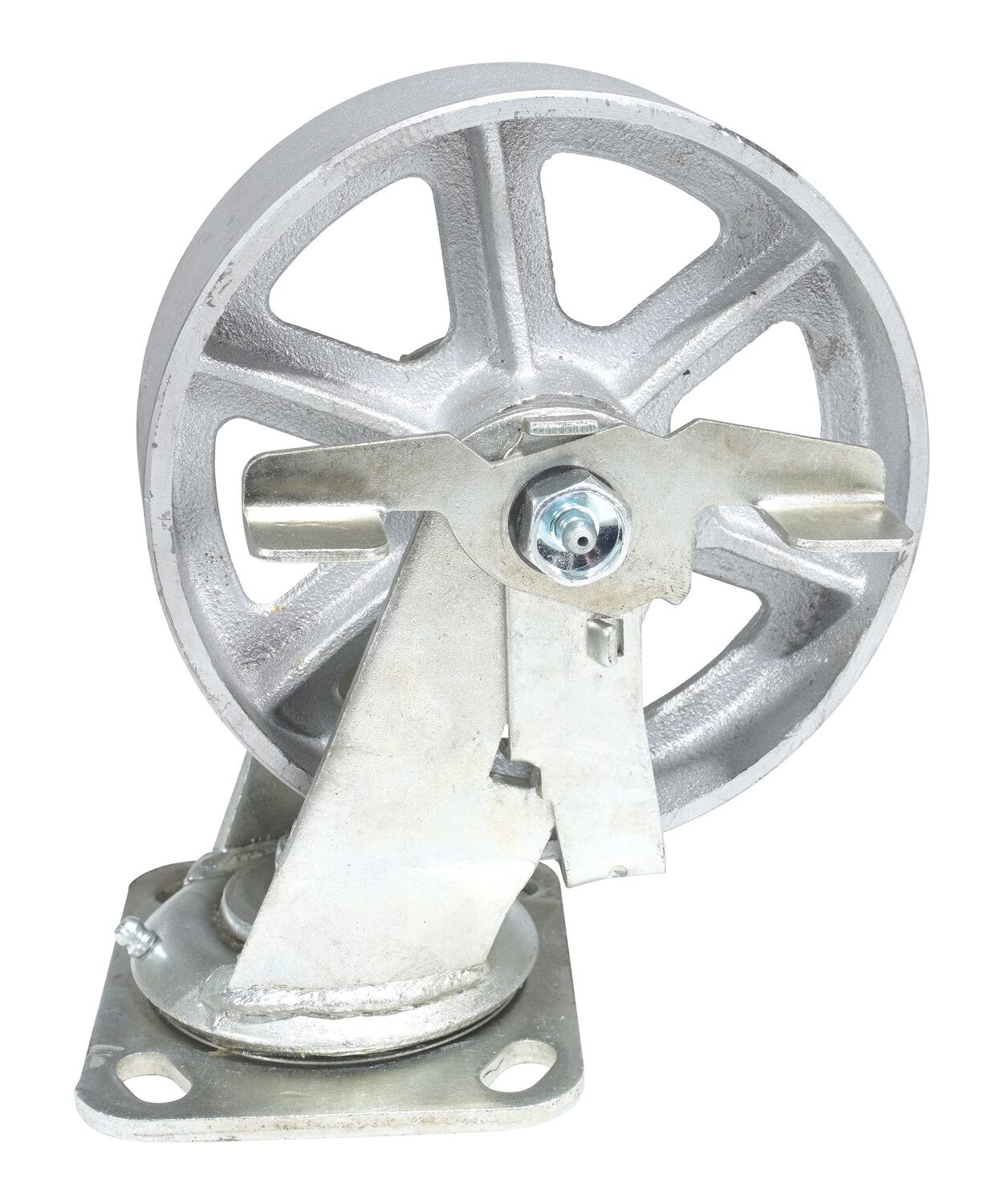

Cast Iron/Metal Alloy Swivel w/ Brake Caster 6 In. Diameter x 2 In. Width 1,200 Lb. Capacity Silver

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Silver tread color. Mounting hardware not included.
Available Ships from Angola, Indiana 46703 QuickShip
Key Features
  • Robust load capacity
  • Minimal rolling resistance
  • Swivel with top brake design
  • Durable cast iron construction
Product Image

Visual Reference

CST-MA-6X2-SWB
CST-MA-6X2-SWB
CST-MA-6X2-SWB
CST-MA-6X2-SWB
CST-MA-6X2-SWB
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 8.5 lbs
Assembled Size 4"W x 7.25"L x 7.5"H
Total Ship Weight 10 lbs
Package 1 Size 6"W x 8"D x 8"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Capacity (lbs.) 1,200
Caster Diameter/Width (in.) 6 x 2
Caster Material Cast Iron / Metal Alloy
Caster Type Swivel w/ Brake
Caster Mounting Type Flush / Top Plate
Top Plate Size (in.) 4-1/2 x 4
Top Plate Thickness (in.) 3/16
Caster Size 7-1/4" x 4" x 7-1/2"
Capacity 1200
Finish Silver Cast Iron
Tread Material Cast Iron/ Metal Alloy
Tread Color Silver
Core Material Cast Iron
Core Color Silver
Diameter 6"
Raceway Type .
Documents

PDFs & Product Files

  90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CST-MA-6X2-SWB

CST-MA-6X2-SWB

Cast Iron/Metal Alloy Swivel w/ Brake Caster 6 In. Diameter x 2 In. Width 1,200 Lb. Capacity Silver

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Silver tread color. Mounting hardware not included.

  • Robust load capacity
  • Minimal rolling resistance
  • Swivel with top brake design
  • Durable cast iron construction

Core Data

Assembled Weight: 8.5 Assembled Size: 4"W x 7.25"L x 7.5"H Color: Silver
Total Ship Weight: 10 Package 1 Size: 6"W x 8"D x 8"H Freight: Parcel

Specifications

Capacity (lbs.): 1,200
Caster Diameter/Width (in.): 6 x 2
Caster Material: Cast Iron / Metal Alloy
Caster Type: Swivel w/ Brake
Caster Mounting Type: Flush / Top Plate
Top Plate Size (in.): 4-1/2 x 4
Top Plate Thickness (in.): 3/16
