  All Products   Drum Handling Equipment   Dollies for Drums & Pails   Tilting Drum Dollies DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT

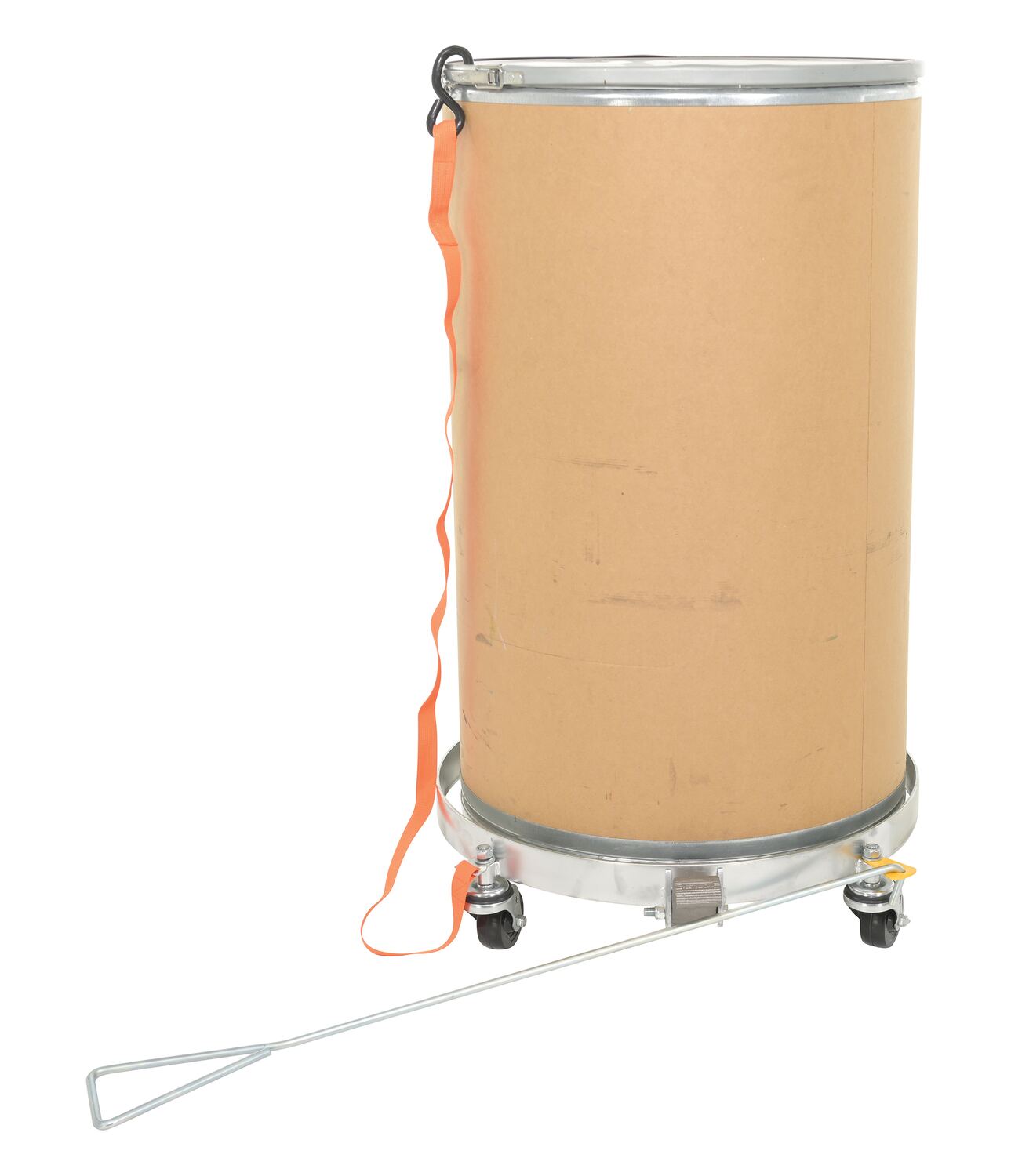

Steel Mobile Tilting Drum Dolly with Handle 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 1000 Lb. Capacity Silver

Barrel Dolly for Moving Loads Through Warehouses and Production Areas, 1,000 lb. Capacity with 30-7/8 in. x 30-7/8 in. x 6-1/4 in – Model DRUM-DRH-HR-TLT
The tilting drum dolly is ideal for manufacturing and industrial facilities. The dolly creates an ergonomically friendly way of transporting 55 gallon drums. The steel construction design is lightweight, yet strong, for use in the harshest of environments, while, the hard rubber casters provide a smooth transition from work station to work station. The tilting feature is foot operated and is locked into place for secure handling during extraction.
Available QuickShip
Key Features
  • Tilting drum dolly creates an ergonomic way of transporting 55-gallon drums for ideal operation
  • Includes a handle that is lightweight and strong for maximum efficiency

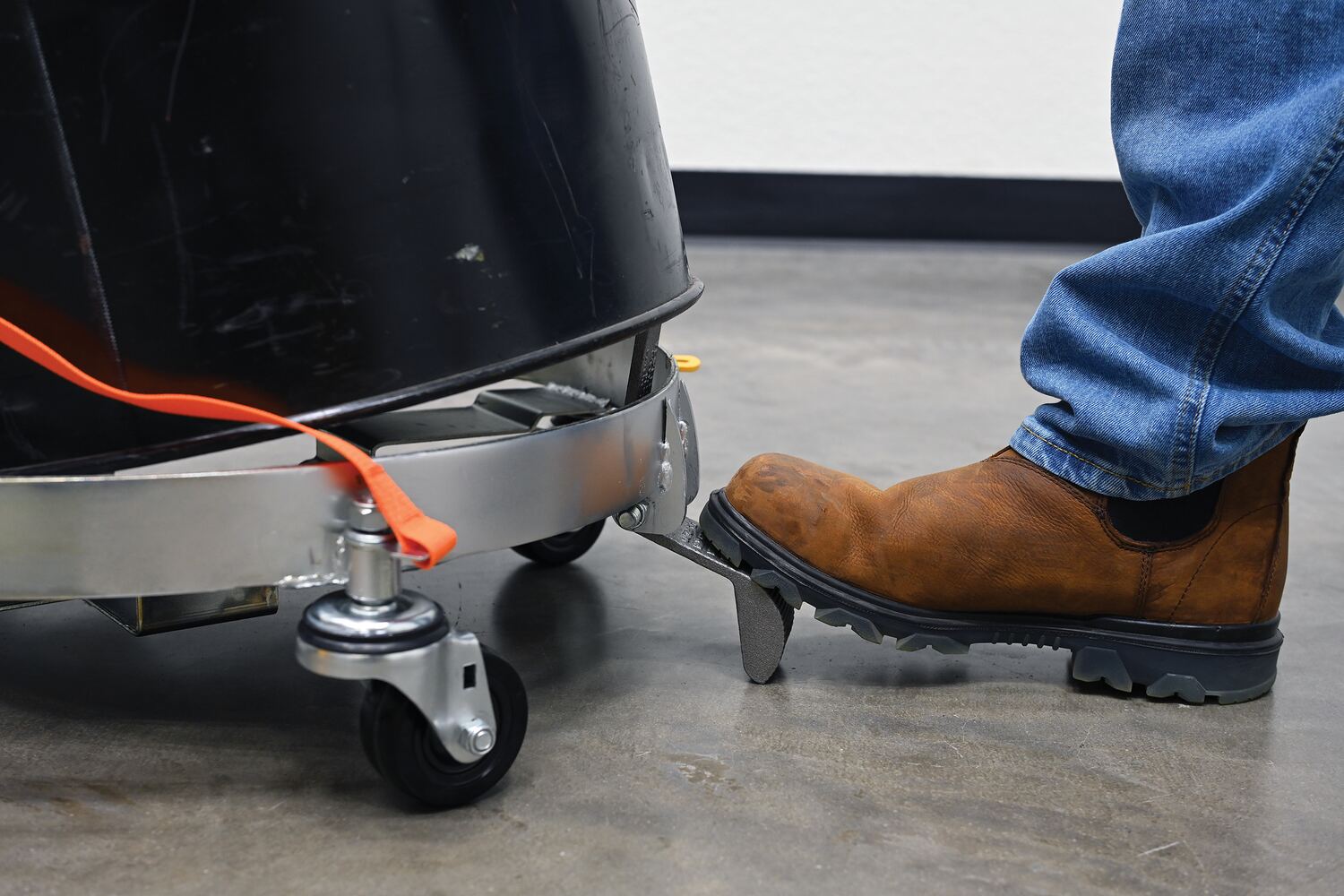

  • Includes a foot operated tilting feature which is ideal for ergonomic drum handling

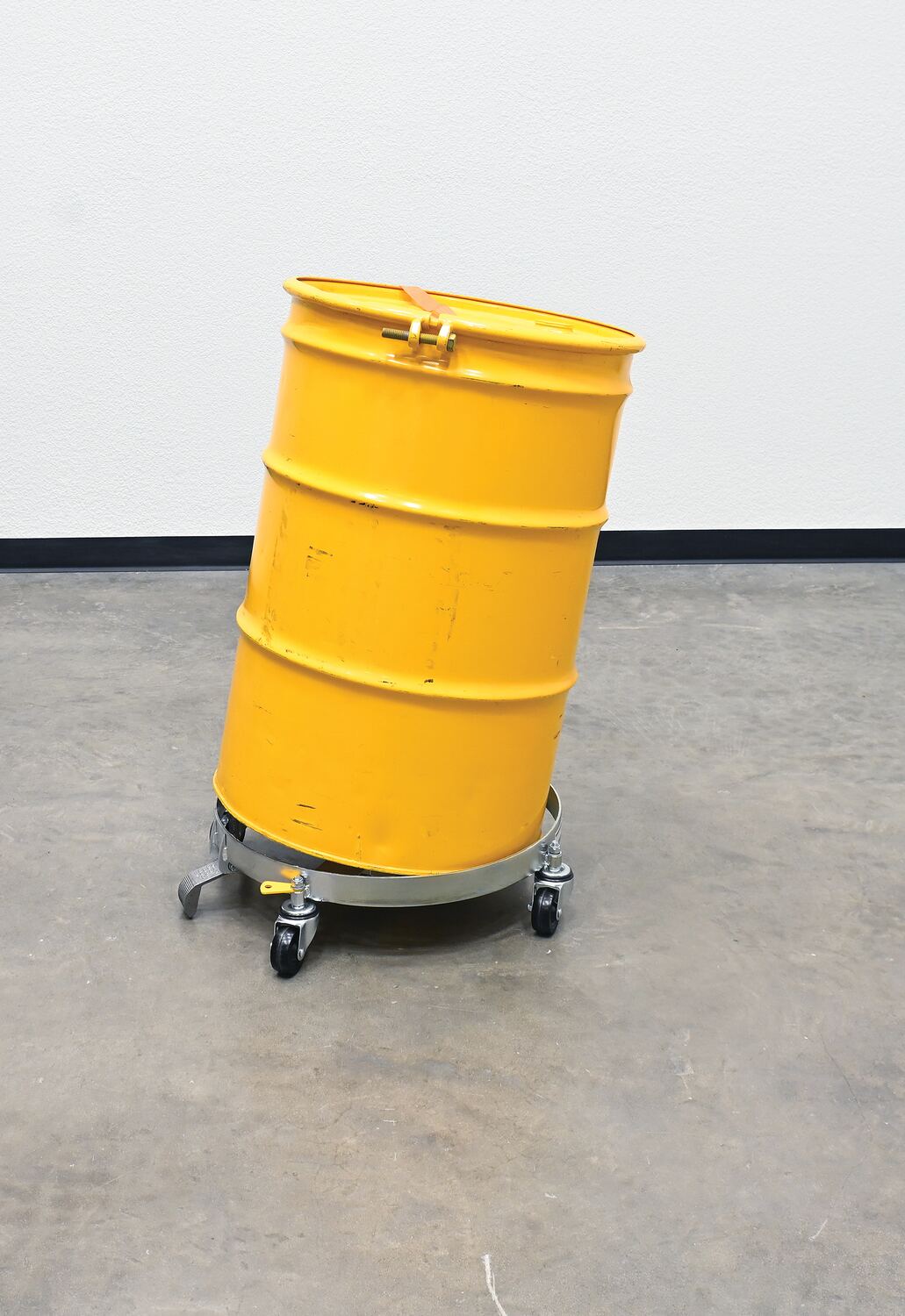

  • Tilt feature can be locked into place for secure handling during extraction
Product Image

Visual Reference

DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
DRUM-DRH-HR-TLT
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 27 lbs
Assembled Size 30.875"W x 30.875"L x 6.25"H
Total Ship Weight 27 lbs
Package 1 Size 25"W x 25"D x 7"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Uniform Tilt Capacity (lb.) 200
Tilt (degree) 10

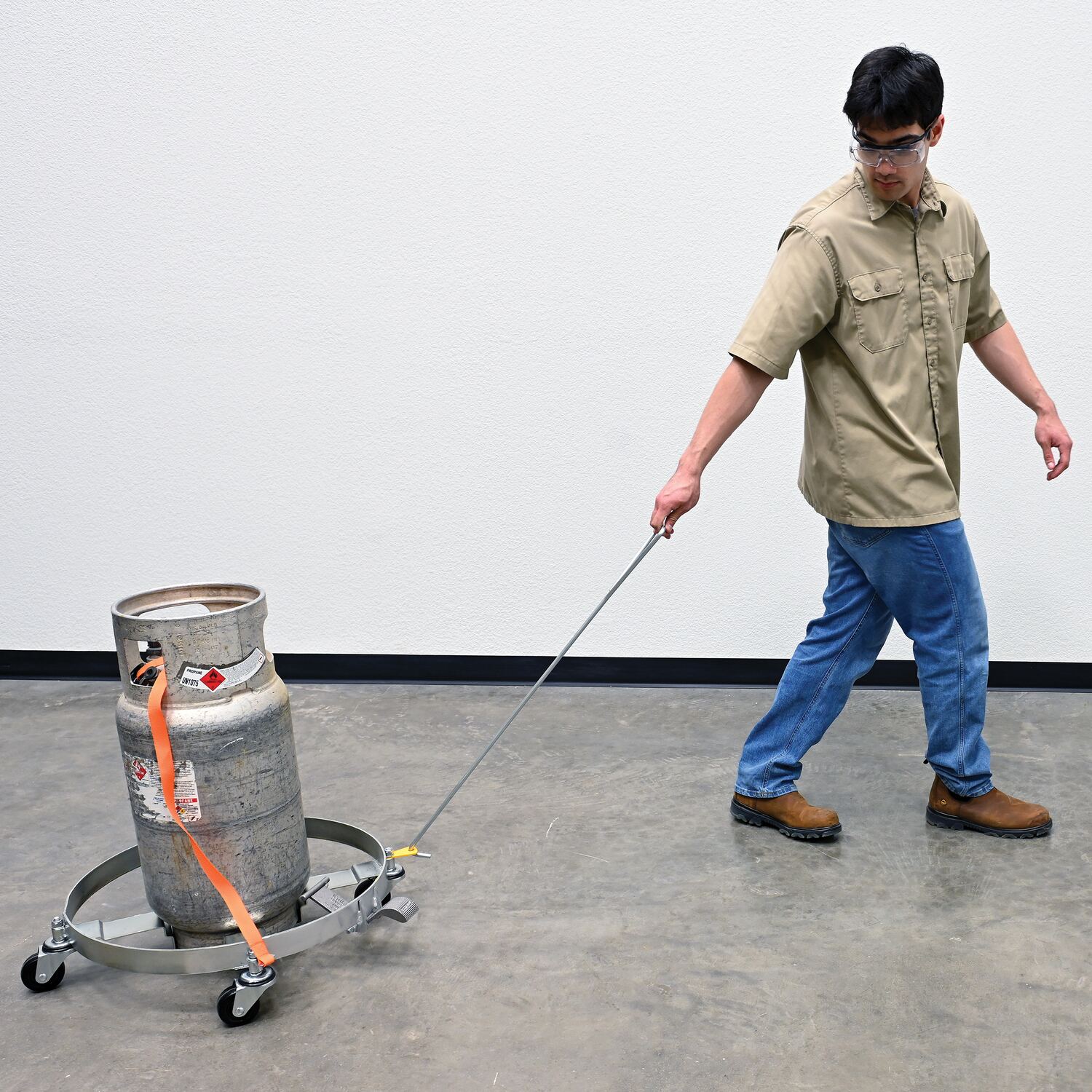

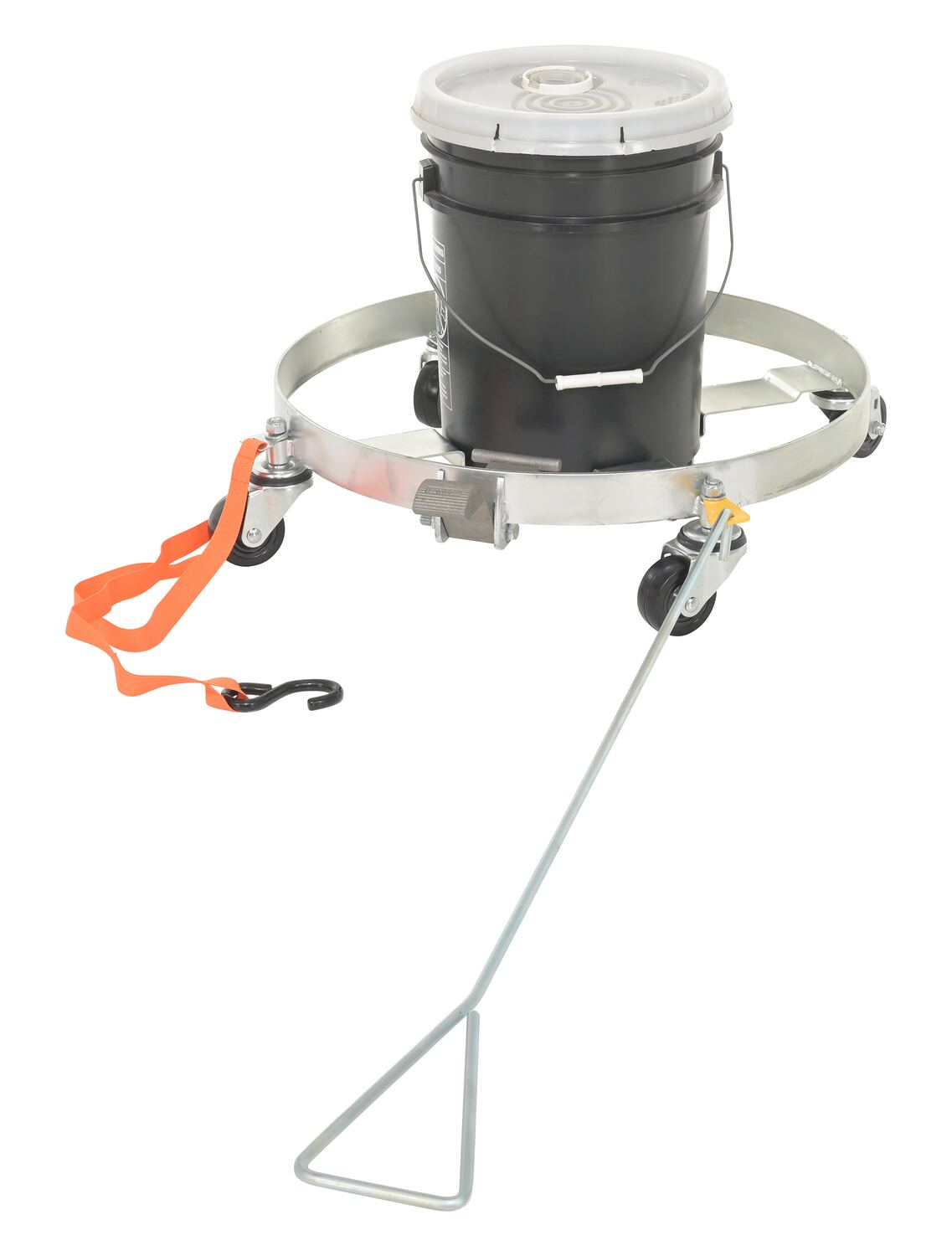

Transports 5-gallon pail, 30 & 55-gallon drums
Caster Quantity/Diameter/Width (in.) (4) 3 x 1-1/4
Caster Material Hard Rubber
Inside Diameter (in.) 23-1/2
Handle Length (in.) 36
Lip Height (in.) 1-7/8
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-DRH-HR-TLT

DRUM-DRH-HR-TLT

Steel Mobile Tilting Drum Dolly with Handle 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 1000 Lb. Capacity Silver

The tilting drum dolly is ideal for manufacturing and industrial facilities. The dolly creates an ergonomically friendly way of transporting 55 gallon drums. The steel construction design is lightweight, yet strong, for use in the harshest of environments, while, the hard rubber casters provide a smooth transition from work station to work station. The tilting feature is foot operated and is locked into place for secure handling during extraction.

  • Tilting drum dolly creates an ergonomic way of transporting 55-gallon drums for ideal operation
  • Includes a handle that is lightweight and strong for maximum efficiency
  • Includes a foot operated tilting feature which is ideal for ergonomic drum handling
  • Tilt feature can be locked into place for secure handling during extraction

Core Data

Assembled Weight: 27 Assembled Size: 30.875"W x 30.875"L x 6.25"H Color: Silver
Total Ship Weight: 27 Package 1 Size: 25"W x 25"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Uniform Tilt Capacity (lb.): 200
Tilt (degree): 10
Transports: 5-gallon pail, 30 & 55-gallon drums
Caster Quantity/Diameter/Width (in.): (4) 3 x 1-1/4
Caster Material: Hard Rubber
Inside Diameter (in.): 23-1/2
Handle Length (in.): 36
Lip Height (in.): 1-7/8
