  All Products   Drum Handling Equipment   Dollies for Drums & Pails   Multi-Purpose Dollies DRUM-QUAD-H
DRUM-QUAD-H

Steel Multipurpose Drum Dolly 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 900 Lb. Capacity Silver

Barrel Dolly for Moving Loads Through Warehouses and Production Areas, 900 lb. Capacity with 30-7/8 in. x 30-7/8 in. x 6-1/4 in.
This multi-purpose quad drum dolly has a high polished bright zinc finish for corrosion resistance. The dolly comes with a nylon pull strap that helps in transporting down aisles or over thresholds. Rubber-coated hook allows strap to hook on top of drum for storage.
Available QuickShip
Key Features
  • Unique multi-purpose design can be used in many drum applications
  • Nylon pull strap helps transport down aisles or over thresholds
  • Rubber-coated hook allows strap to hook on top of drum for storage
  • Solid steel construction offers long lasting rugged use
Product Image

Visual Reference

DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
DRUM-QUAD-H
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 23 lbs

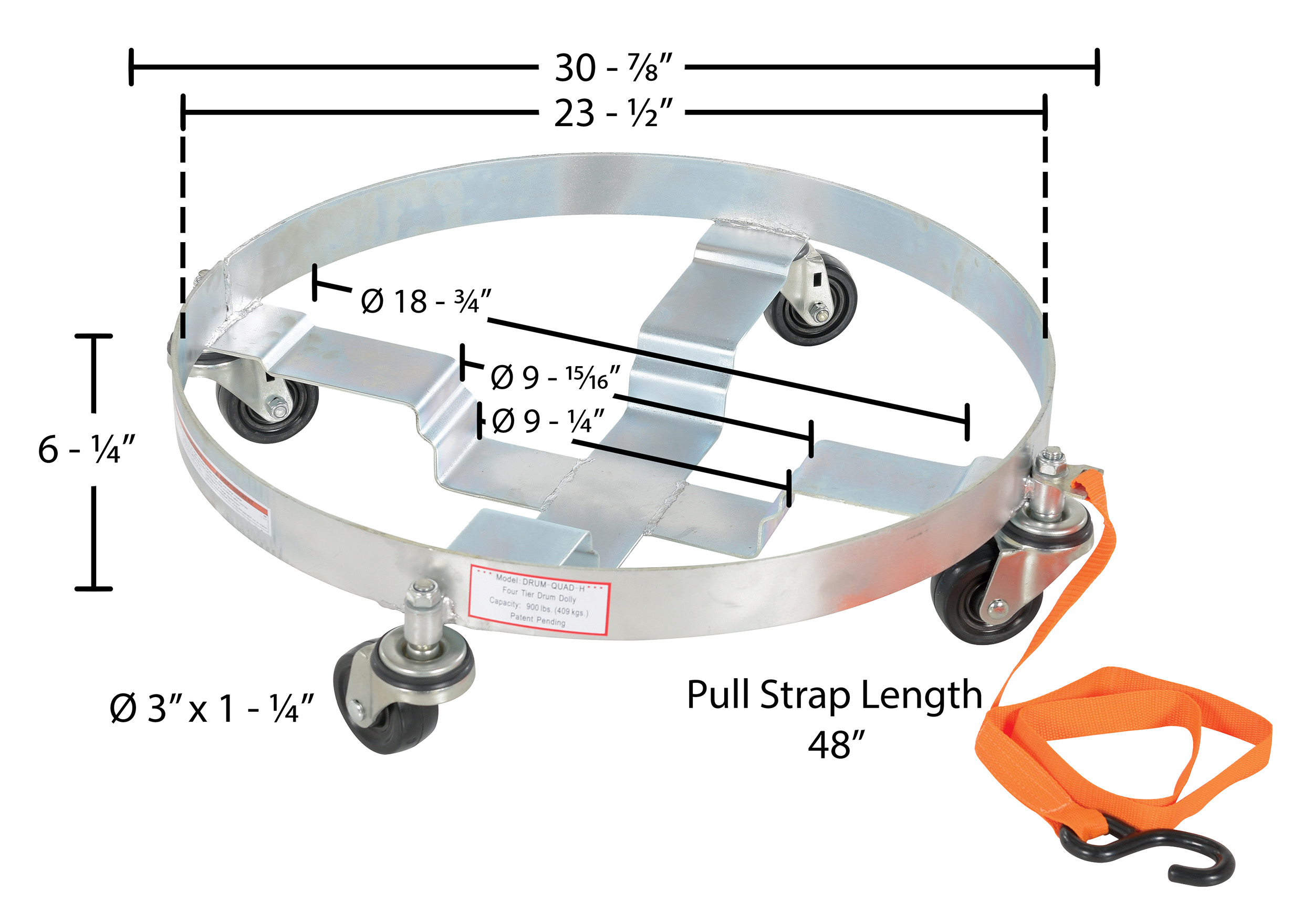

Assembled Size 30.875"W x 30.875"L x 6.25"H
Total Ship Weight 22 lbs
Package 1 Size 25"W x 25"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 900
Transports 5-gallon pail, 30 & 55-gallon drums, LP gas tank
Pull Strap Length (in.) 48
Inside Diameter (in.) 23-1/2
Swivel Caster Quantity/Diameter/Width (in.) (4) 3 x 1-1/4
Swivel Caster Material Hard Rubber
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DRUM QUAD Series Multi-Purpose Drum Dollies Manual   DRUM-TRI-C, DRUM-TRI-H, DRUM-QUAD-C, DRUM-QUAD-H Drum Dollies MANUAL   Label Page PDF   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-QUAD-H

DRUM-QUAD-H

Steel Multipurpose Drum Dolly 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 900 Lb. Capacity Silver

This multi-purpose quad drum dolly has a high polished bright zinc finish for corrosion resistance. The dolly comes with a nylon pull strap that helps in transporting down aisles or over thresholds. Rubber-coated hook allows strap to hook on top of drum for storage.

  • Unique multi-purpose design can be used in many drum applications
  • Nylon pull strap helps transport down aisles or over thresholds
  • Rubber-coated hook allows strap to hook on top of drum for storage
  • Solid steel construction offers long lasting rugged use

Core Data

Assembled Weight: 23 Assembled Size: 30.875"W x 30.875"L x 6.25"H Color: Silver
Total Ship Weight: 22 Package 1 Size: 25"W x 25"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 900
Transports: 5-gallon pail, 30 & 55-gallon drums, LP gas tank
Pull Strap Length (in.): 48
Inside Diameter (in.): 23-1/2
Swivel Caster Quantity/Diameter/Width (in.): (4) 3 x 1-1/4
Swivel Caster Material: Hard Rubber
