HYD-10-AS

Steel Portable Two Speed Foot Pump Hefti-Lift 36 In. x 70 In. 880 Lb. Capacity Blue

Portable Manual Foot Pump Lift for Commercial and Industrial Portable Load Lifters Use, 880 lb. Capacity with 36 in. x 70 in.
The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.
Available
Key Features
  • Removable platform allows operation requiring forks
  • Quick lift for precise distance control
  • Robust material for long life
  • Smooth surface for transferring a variety of objects
Product Image

Visual Reference

HYD-10-AS
HYD-10-AS
HYD-10-AS
Quick Actions

Product Resources

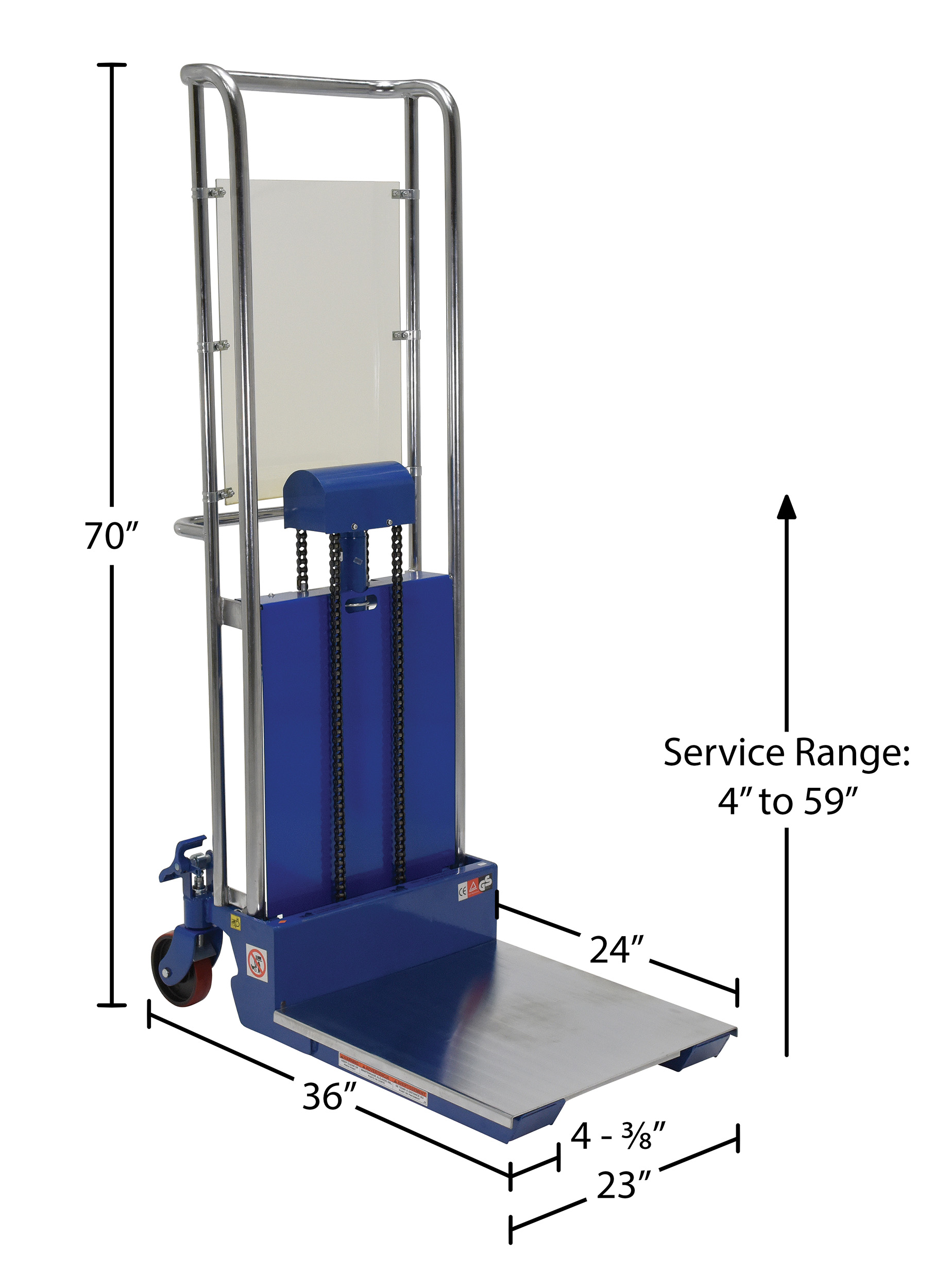

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 286 lbs
Assembled Size 23"W x 36"L x 70"H
Total Ship Weight 321 lbs
Package 1 Size 48"W x 40"D x 78"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 880
Platform Width/Length (in.) 23 x 24
Service Range (in.) 4 to 59
Operation Auto shift foot Pump
Platform Travel per Stroke (in.) 3/4
Individual Fork Width/Height (in.) 4-3/8 x 2-1/2
Fork Length (in.) 24
Overall Fork Width (in.) 21-3/4
Handle Height (in.) 42
Back Caster Quantity/Diameter/Width (in.) (2) 6 x 1-1/2
Back Caster Type Swivel
Front Caster Quantity/Diameter/Width (in.) (2) 3 x 1-1/2
Front Caster Type Rigid
Caster Material Poly-on-Steel
Outrigger Inside Dimension (in.) 14
Outrigger Outside Dimension (in.) 18-1/4
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYD-10-AS

HYD-10-AS

Steel Portable Two Speed Foot Pump Hefti-Lift 36 In. x 70 In. 880 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Removable platform allows operation requiring forks
  • Quick lift for precise distance control
  • Robust material for long life
  • Smooth surface for transferring a variety of objects

Core Data

Assembled Weight: 286 Assembled Size: 23"W x 36"L x 70"H Color: Blue
Total Ship Weight: 321 Package 1 Size: 48"W x 40"D x 78"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Service Range (in.): 4 to 59
Operation: Auto shift foot Pump
Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Height (in.): 4-3/8 x 2-1/2
Fork Length (in.): 24
Overall Fork Width (in.): 21-3/4
Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 6 x 1-1/2
Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2
Front Caster Type: Rigid
Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 14
Outrigger Outside Dimension (in.): 18-1/4
