LPC-20

Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity Blue

Plate Lifting Clamp for Commercial and Industrial Clamps & Tongs Use, 2,000 lb. Capacity with 10 in. x 3 in. x 5 in.
The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
Available QuickShip
Key Features
  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

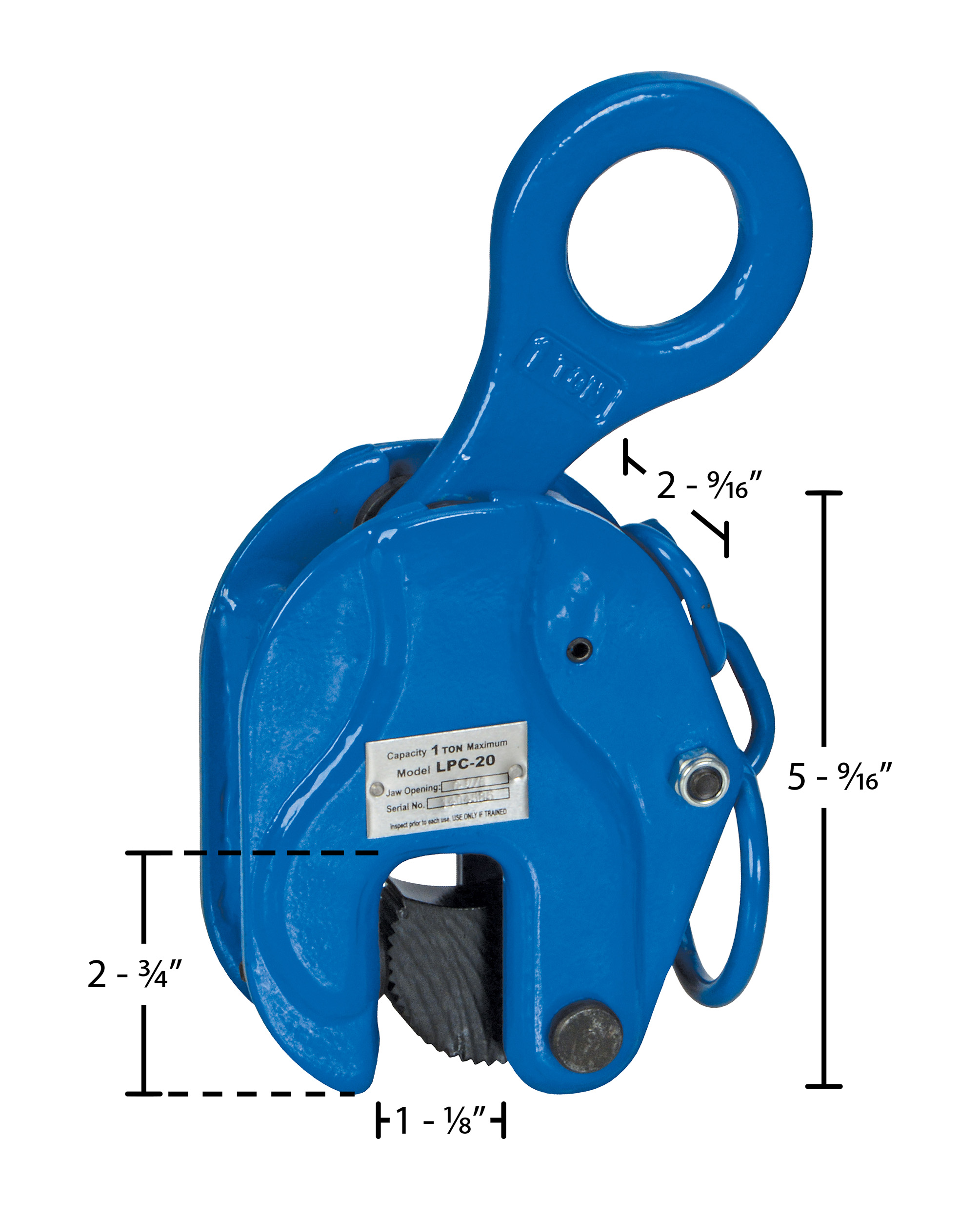

Product Image

Visual Reference

LPC-20
LPC-20
LPC-20
LPC-20
LPC-20
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 3"W x 10"L x 5"H
Total Ship Weight 9 lbs
Package 1 Size 9"W x 10"D x 7"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Working Load Limit (lb.) 2,000
Minimum Uniform Plate Weight (lb.) 400
Minimum Plate Thickness (in.) zero
Maximum Plate Thickness (in.) 0.80
Throat Depth (in.) 2.3
Bale Opening Degree (in.) 1.75
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Positive Locking Plate Clamp Manual   Label Page PDF   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: LPC-20

LPC-20

Steel Vertical Positive Locking Plate Clamp 10 In. x 3 In. x 5 In. 2000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

Core Data

Assembled Weight: 9 Assembled Size: 3"W x 10"L x 5"H Color: Blue
Total Ship Weight: 9 Package 1 Size: 9"W x 10"D x 7"H Freight: Parcel

Specifications

Uniform Working Load Limit (lb.): 2,000
Minimum Uniform Plate Weight (lb.): 400
Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 0.80
Throat Depth (in.): 2.3
Bale Opening Degree (in.): 1.75
