PEL-100A-D3

Aluminum Quick Lift DC Powered 72 In. Raised Height 125 Lb. Capacity

Aluminum DC-Powered Electric Lift Truck for Commercial and Industrial Portable Load Lifters Use, 125 lb. Capacity with 72 in. Raised Height
The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.
Out of Stock QuickShip
Key Features
  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation
Product Image

Visual Reference

PEL-100A-D3
PEL-100A-D3
PEL-100A-D3
PEL-100A-D3
PEL-100A-D3
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 158 lbs

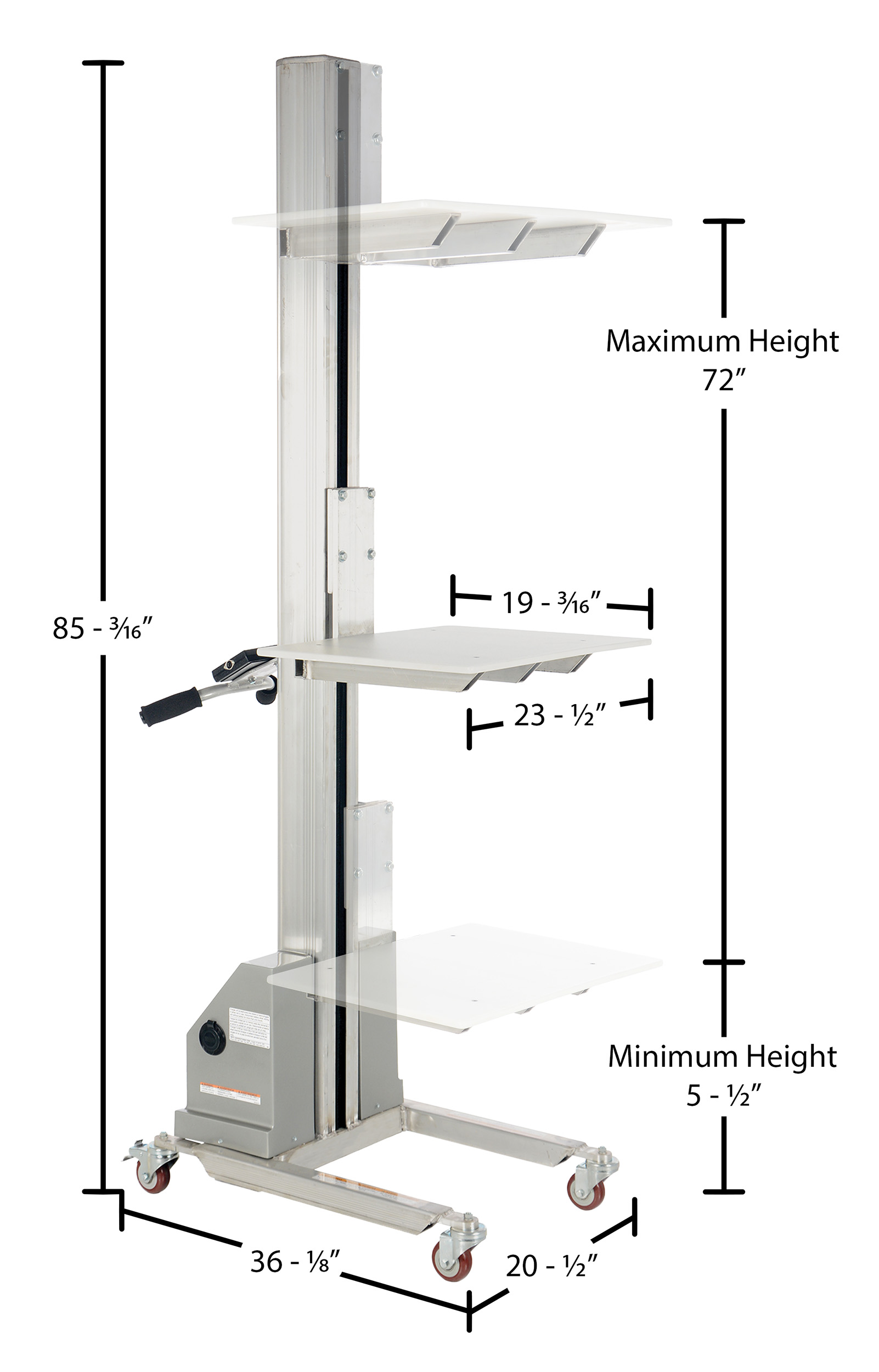

Assembled Size 23.5"W x 36.125"L x 85.1875"H
Total Ship Weight 225 lbs
Package 1 Size 40"W x 48"D x 92"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 125
Lowered Height (in.) 5-1/2
Raised Height (in.) 72
Caster Diameter (in.) 3
Caster Type (2) Swivel (2) Swivel with Brake
Caster Material Poly-on-Poly
AC Charger Voltage 115
DC Voltage 24
Platform Thickness (in.) 1/2
Horizontal Load Center (in.) 9
Platform Width (in.) 23-1/2
Platform Length (in.) 18-1/2
Lift Speed - Loaded 26" / sec
Lift Speed - Unloaded 15" / sec
Includes Fully Welded Frame
Handle Length (in.) 6
Handle Material Steel

Battery Information

Battery Depth 6
Battery Width 8
Battery Height 4
Battery Weight 20
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel & Aluminum Quick Lifts ALuminum Models PEL-88-A & PEL-100-A - Steel Models PEL-88, PEL-100, & PEL-400   Label Page PDF   Hydraulic Oil SDS   Valve-Regulated Lead Acid Battery Series SDS   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PEL-100A-D3

PEL-100A-D3

Aluminum Quick Lift DC Powered 72 In. Raised Height 125 Lb. Capacity

The DC powered quick lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.

  • DC powered battery is fast and quite
  • White HDPE platform offers durability and aesthetics
  • Chain driven platform operation provides precise positioning
  • Touch-pad control allows for easy operation

Core Data

Assembled Weight: 158 Assembled Size: 23.5"W x 36.125"L x 85.1875"H Color: Silver
Total Ship Weight: 225 Package 1 Size: 40"W x 48"D x 92"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 125
Lowered Height (in.): 5-1/2
Raised Height (in.): 72
Caster Diameter (in.): 3
Caster Type: (2) Swivel (2) Swivel with Brake
Caster Material: Poly-on-Poly
AC Charger Voltage: 115
DC Voltage: 24
Platform Thickness (in.): 1/2
Horizontal Load Center (in.): 9
Platform Width (in.): 23-1/2
Platform Length (in.): 18-1/2
Lift Speed - Loaded: 26" / sec
Lift Speed - Unloaded: 15" / sec
Includes: Fully Welded Frame
Handle Length (in.): 6
Handle Material: Steel
