PRDC-42

Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

Pallet Rack Drum Cradle for Organized Warehouse Storage and Material Support, 800 lb. Capacity with 42-1/2 in. x 15-7/8 in. x 5-5/8 in.
The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).
Available QuickShip
Key Features
  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Product Image

Visual Reference

PRDC-42
PRDC-42
PRDC-42
PRDC-42
PRDC-42
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 36 lbs

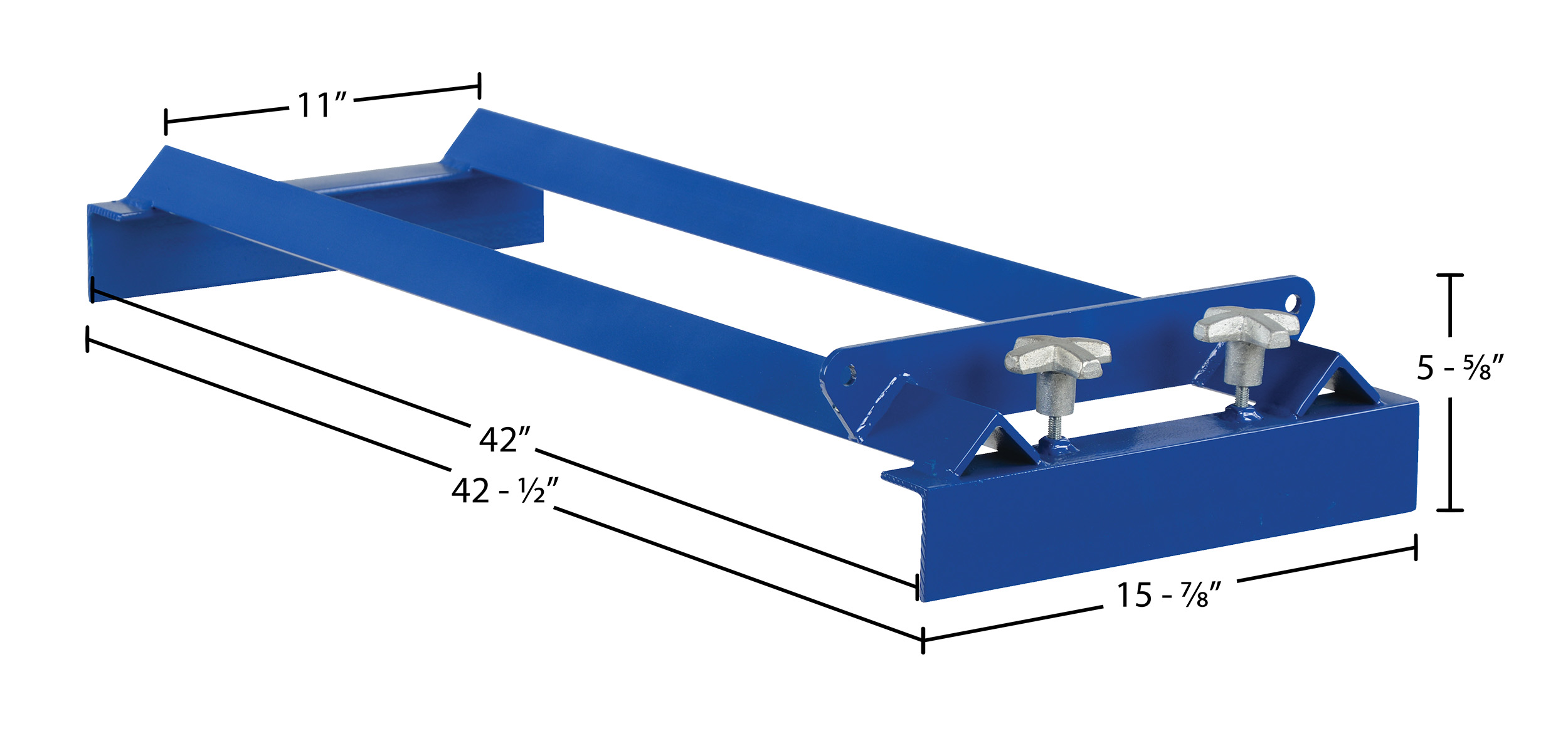

Assembled Size 15.875"W x 42.5"L x 5.625"H
Total Ship Weight 36 lbs
Package 1 Size 17"W x 45"D x 6"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 800
Acceptable Drum Size (gal.) 30 & 55
Acceptable Drum Type Steel
Acceptable Pallet Rack Depth (in.) 42
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   PRDC SERIES Pallet Rack Drum Cradle, Pallet Rack Drum Roller Cradle, Optional Drip Pan INSTRUCTION MANUAL   Label Page PDF   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PRDC-42

PRDC-42

Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

Core Data

Assembled Weight: 36 Assembled Size: 15.875"W x 42.5"L x 5.625"H Color: Blue
Total Ship Weight: 36 Package 1 Size: 17"W x 45"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 42
