  All Products   Ergonomic Solutions   Stackers   Manual & Electric Stackers VHPS-2000-AA-35
VHPS-2000-AA-35

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic Hand Pump Stacker for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity with 35 in.
Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.
Out of Stock QuickShip
Key Features
  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity
Product Image

Visual Reference

VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
Quick Actions

Product Resources

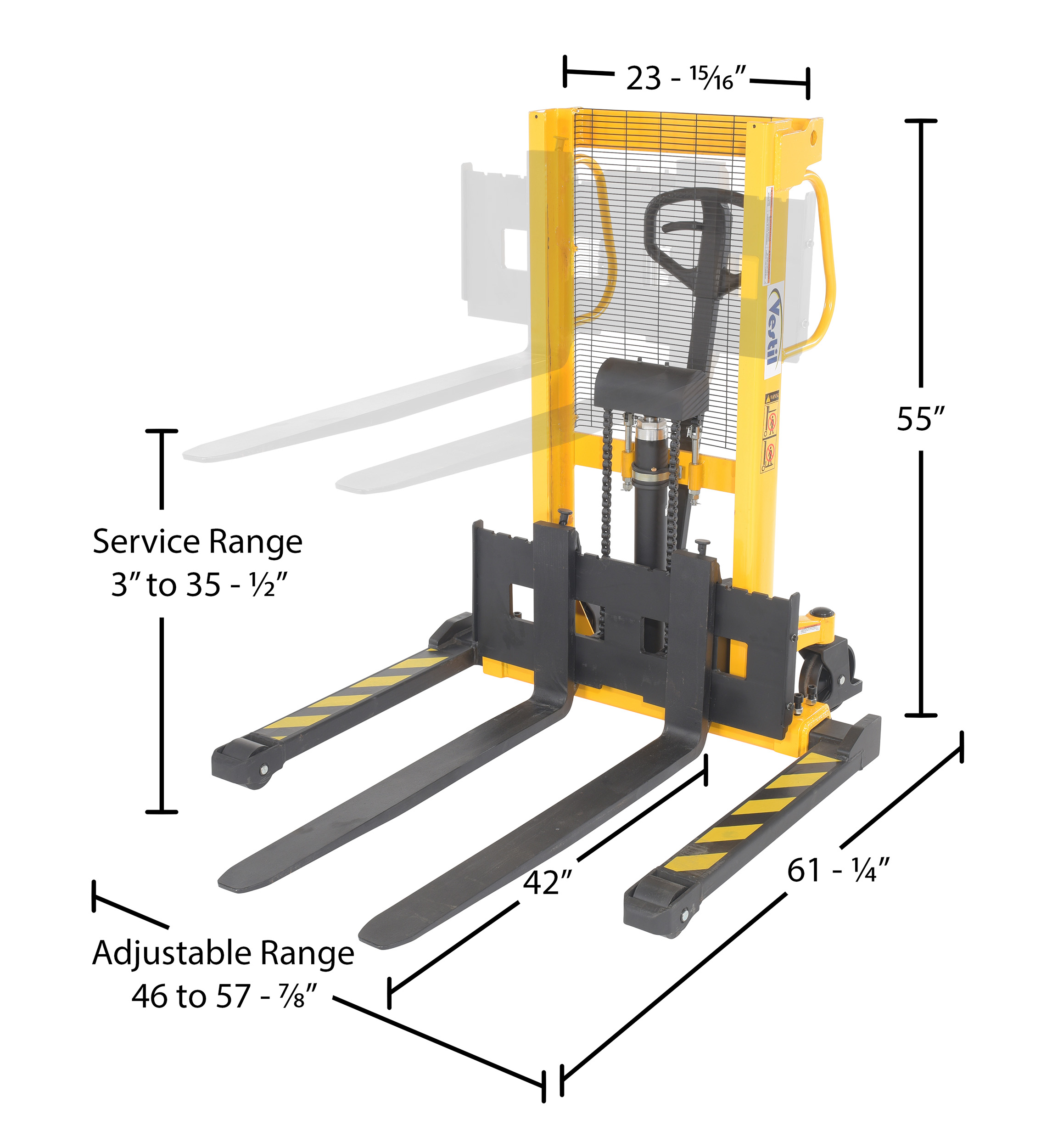

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 515 lbs
Assembled Size 57.875"W x 61.25"L x 55"H
Total Ship Weight 764 lbs
Package 1 Size 60"W x 73"D x 60"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Service Range (in.) 3 to 35-1/2
Fork Length (in.) 42
Fork Width (in.) 3-15/16
Adjustable Straddle Leg Range (in.) 46 to 57-7/8 (OD)
Adjustable Fork Spacing Range (in.) 7-7/8 to 26-3/4 (OD)
Mast Single
Operation Hand Pump
Rear Caster Quantity/Diameter/Width (in.) (2) 7 x 2
Rear Caster Material Poly on Steel
Front Caster Quantity/Diameter/Width (in.) (2) 4 x 2.91
Front Caster Material Poly on Steel
Pumps to Raise to Max Height (qty.) 40
Stroke per Pump (in.) 7/8
Time to Lower w/o Load (sec.) 10
Time to Lower w/ Load (sec.) 11.25
Overall Mast Height (in.) 55
Steering Wheel Size (in.) 7 x 2
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   "OPERATION & SERVICE MANUAL MANUAL HAND PUMP STACKER MODEL: VHPS-2000-AA & VHPS-2000-FF"   Label Page PDF   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHPS-2000-AA-35

VHPS-2000-AA-35

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity

Core Data

Assembled Weight: 515 Assembled Size: 57.875"W x 61.25"L x 55"H Color: Black / Yellow
Total Ship Weight: 764 Package 1 Size: 60"W x 73"D x 60"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Service Range (in.): 3 to 35-1/2
Fork Length (in.): 42
Fork Width (in.): 3-15/16
Adjustable Straddle Leg Range (in.): 46 to 57-7/8 (OD)
Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4 (OD)
Mast: Single
Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Material: Poly on Steel
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2.91
Front Caster Material: Poly on Steel
Pumps to Raise to Max Height (qty.): 40
Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 10
Time to Lower w/ Load (sec.): 11.25
Overall Mast Height (in.): 55
Steering Wheel Size (in.): 7 x 2
