Product Family Overview

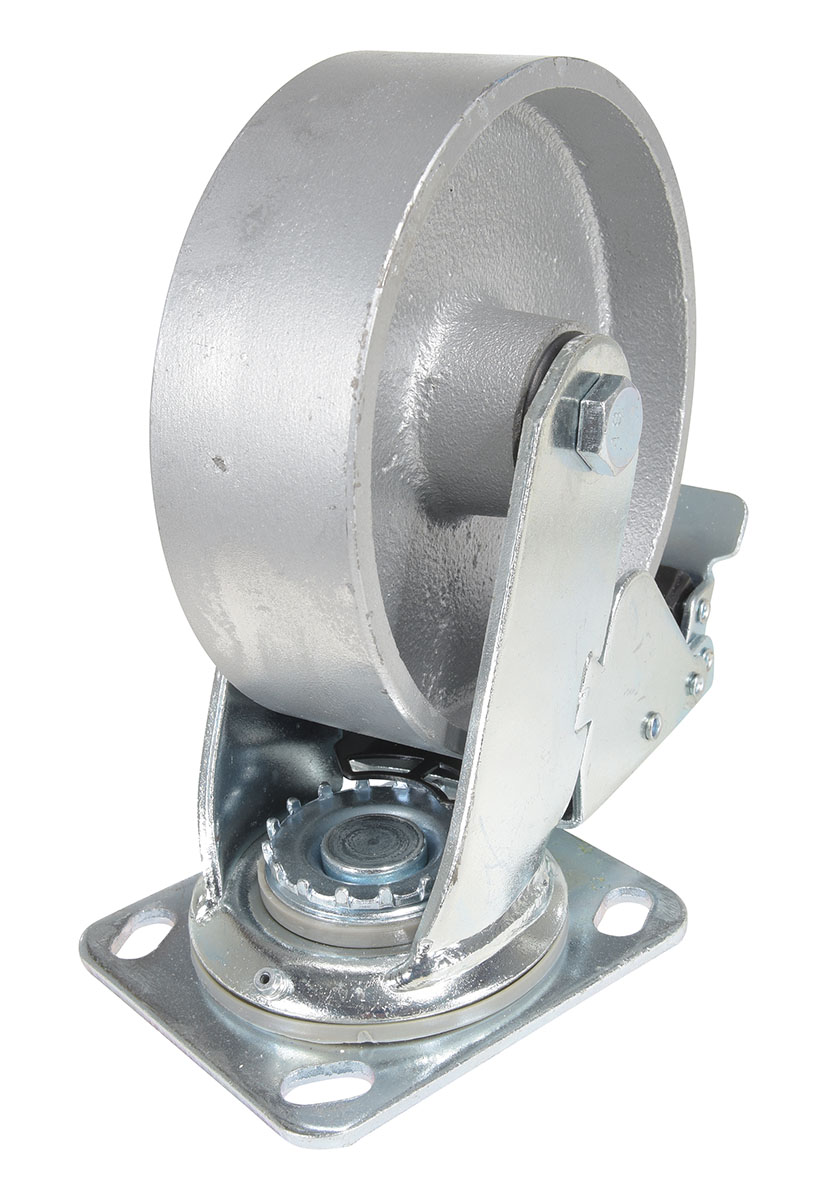

Cast Iron/ Semi-Steel Casters
SERIES: CST-VE-CI

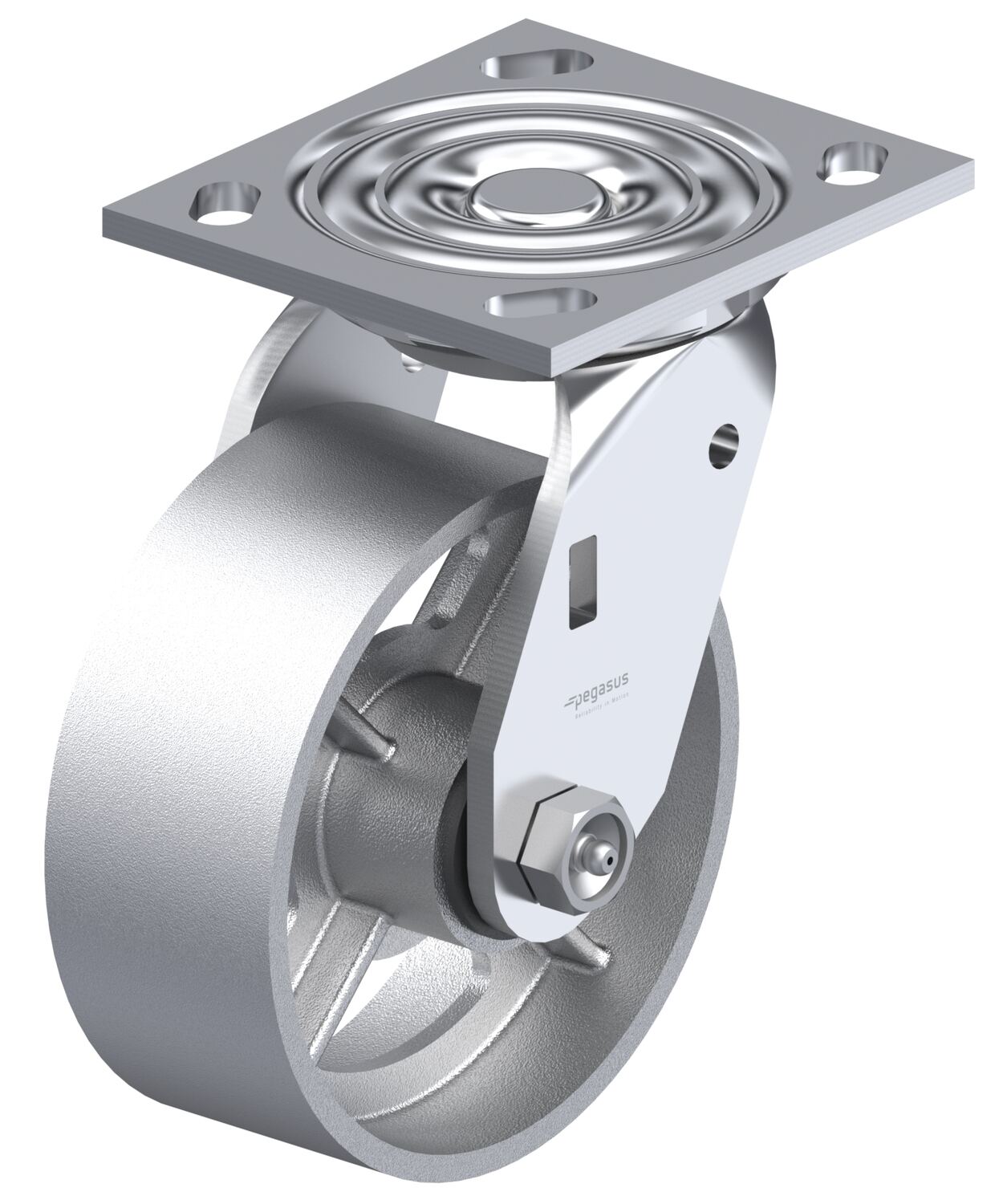

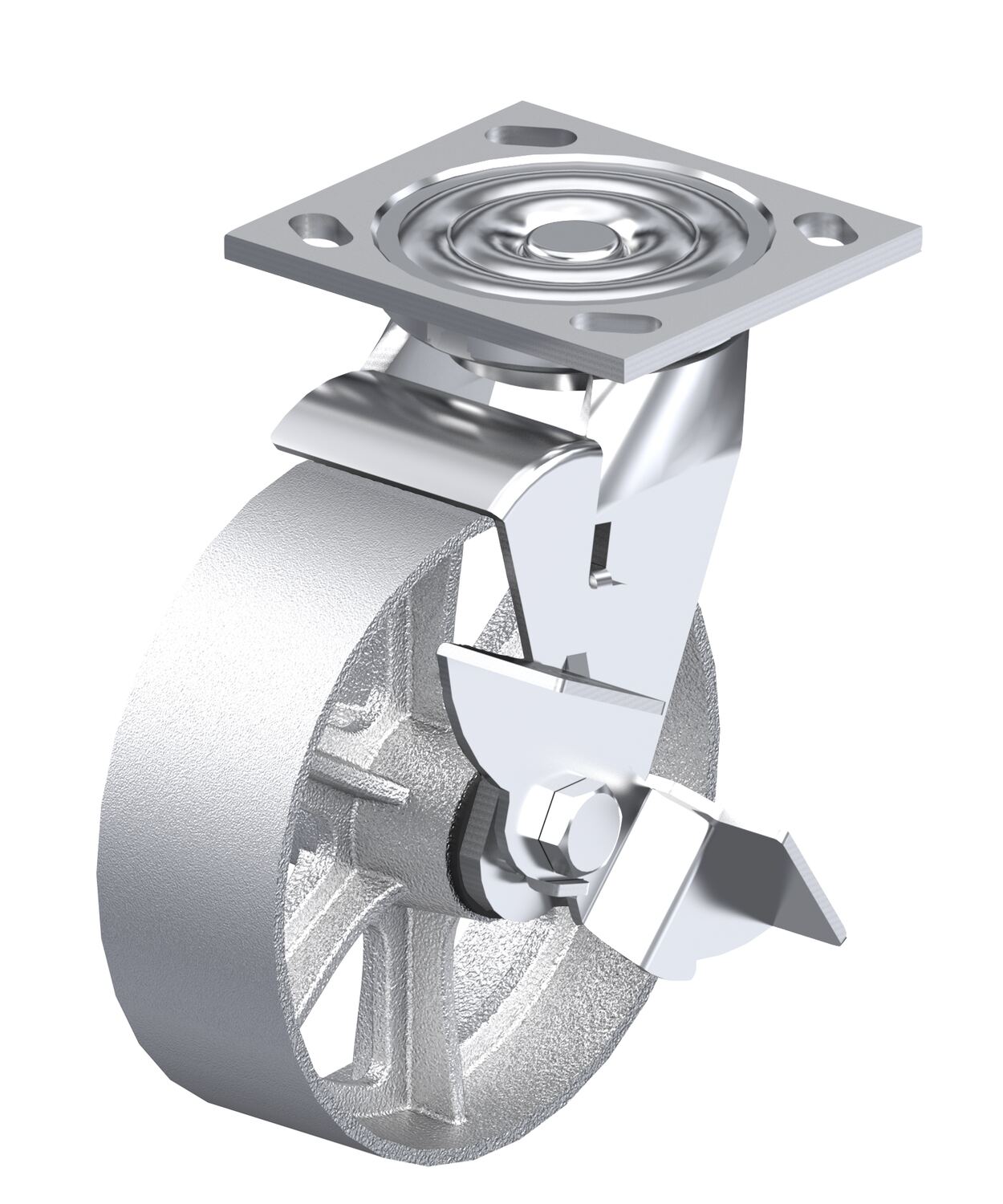

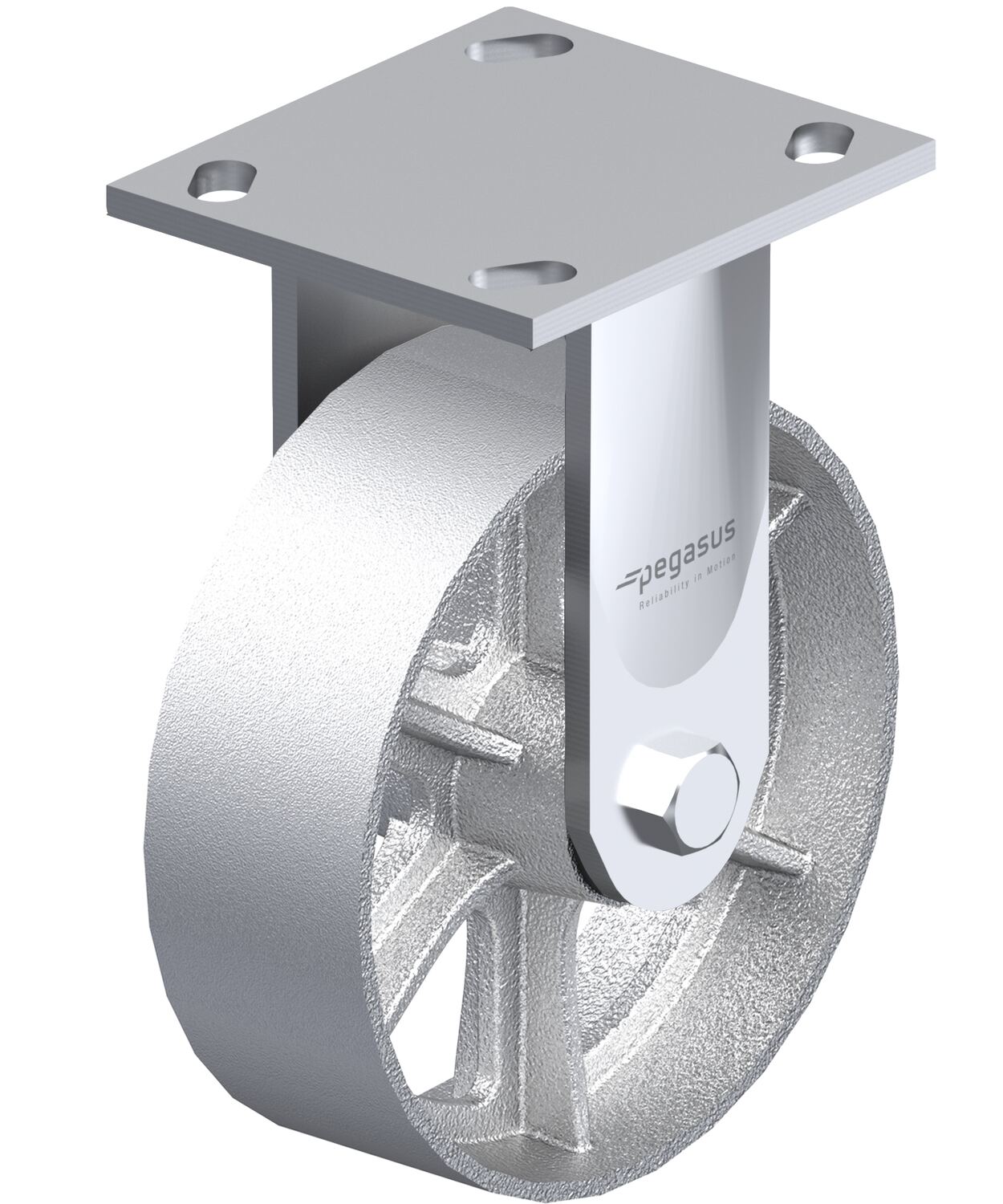

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish

Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish

Additional Models In This Family

CST-VE-4X2CI-SWTB

model CST-VE-4X2CI-SWTB

CST-VE-5X2CI-SWTB

model CST-VE-5X2CI-SWTB

CST-VE-8X2CI-S

model CST-VE-8X2CI-S

CST-VE-8X2CI-SWTB

model CST-VE-8X2CI-SWTB

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)
CST-VE-4X2CI-R CST-VE-4X2CI-R1YEAR Limited Warranty4 x 2RIGID11025-5/8 4 x 4-1/25.2
CST-VE-5X2CI-R CST-VE-5X2CI-R1YEAR Limited Warranty5 x 2RIGID13226-1/2 4 x 4-1/26.1
CST-VE-6X2CI-R CST-VE-6X2CI-R1YEAR Limited Warranty6 x 2RIGID15437-1/2 4 x 4-1/25.93
CST-VE-8X2CI-R CST-VE-8X2CI-R1 YEAR Limited Warranty8 x 2RIGID17609-1/2 4 x 4-1/28.72
CST-VE-4X2CI-S CST-VE-4X2CI-S1YEAR Limited Warranty4 x 2SWIVEL11025-5/8 4 x 4-1/26
CST-VE-5X2CI-S CST-VE-5X2CI-S1YEAR Limited Warranty5 x 2SWIVEL13226-1/2 4 x 4-1/27
CST-VE-6X2CI-S CST-VE-6X2CI-S1YEAR Limited Warranty6 x 2SWIVEL15437-1/2 4 x 4-1/28.2
CST-VE-8X2CI-S CST-VE-8X2CI-S1 YEAR Limited Warranty8 x 2SWIVEL17609-1/2 4 x 4-1/29.82
CST-VE-4X2CI-SWTB CST-VE-4X2CI-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE11005-1/2 4 x 4-1/26.55
CST-VE-5X2CI-SWTB CST-VE-5X2CI-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE13206-1/2 4 x 4-1/27.48

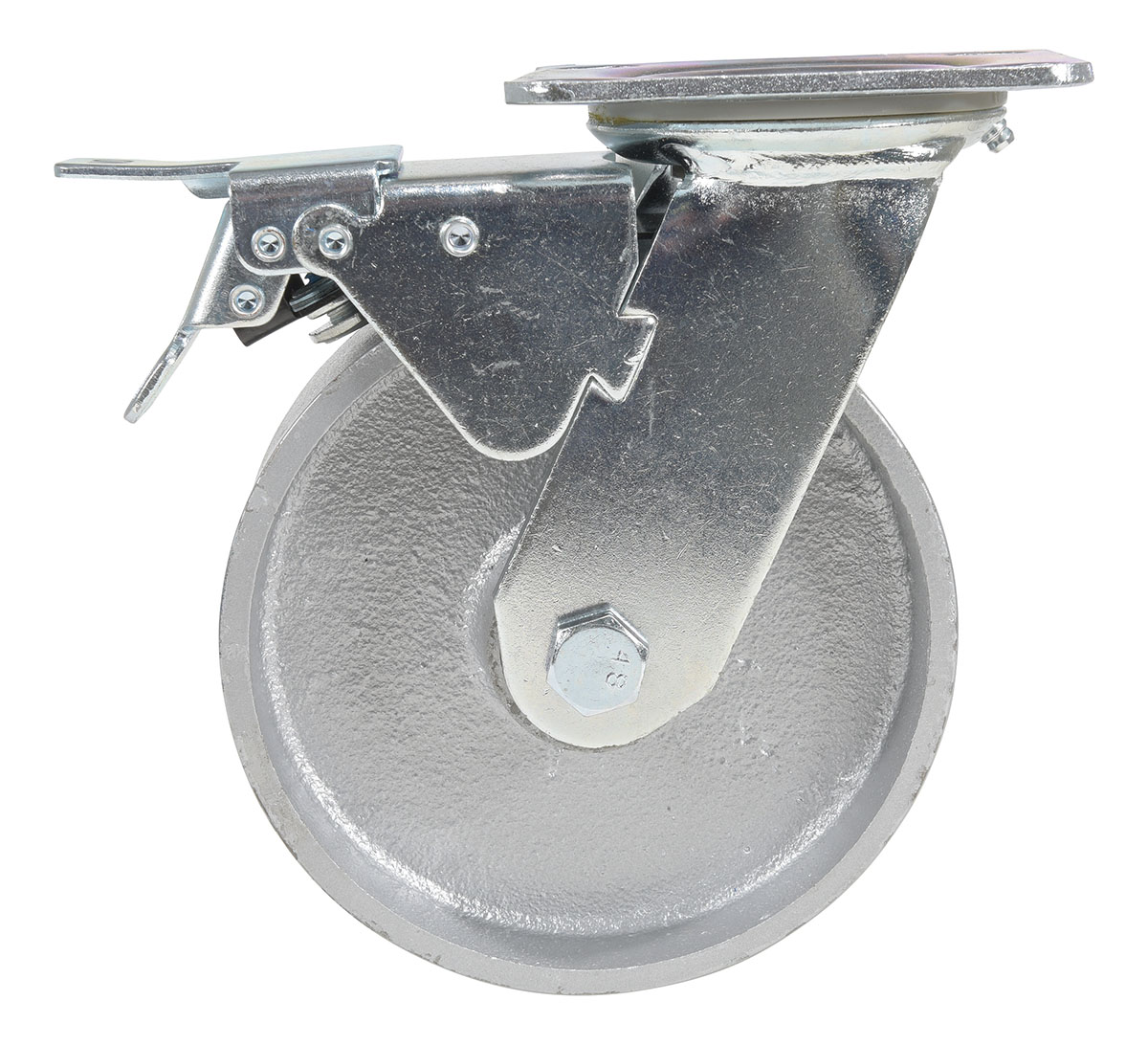

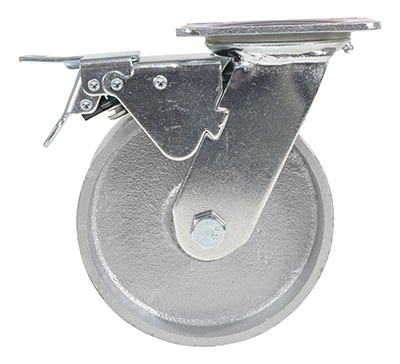

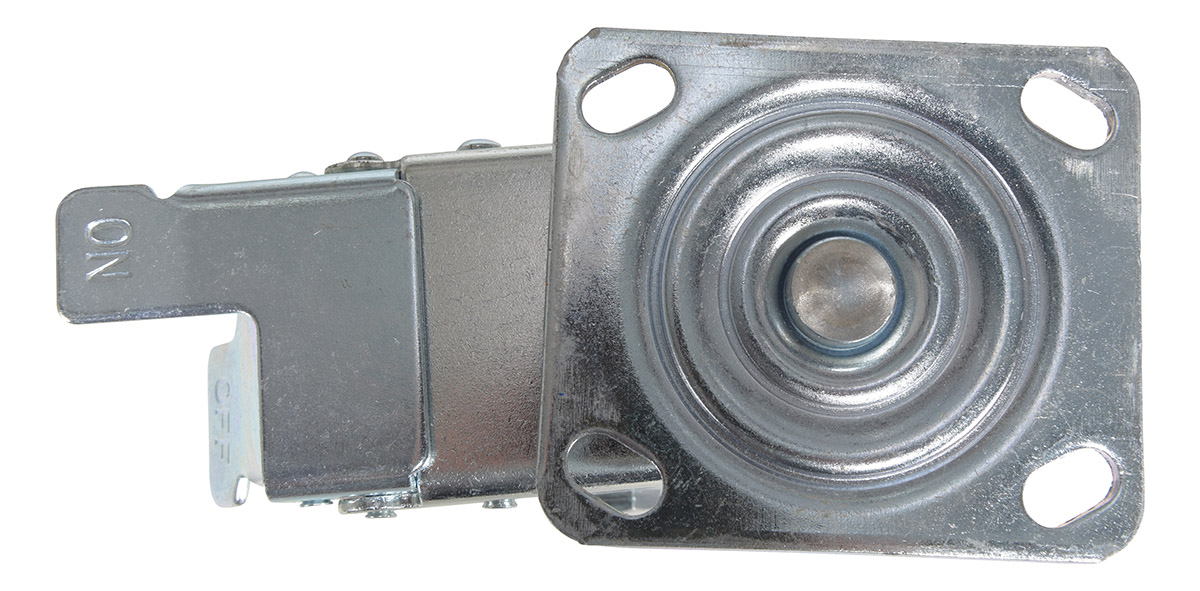

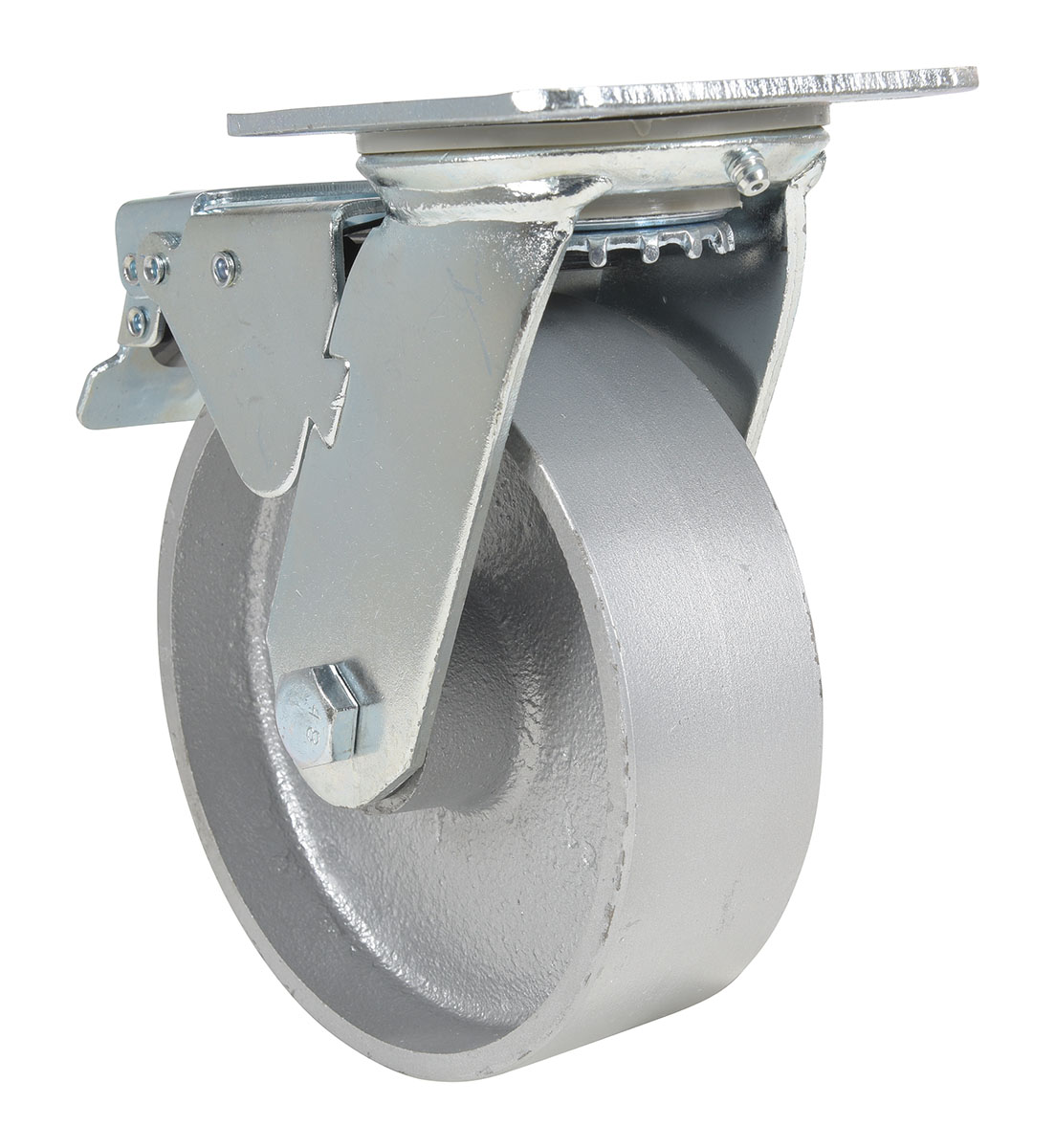

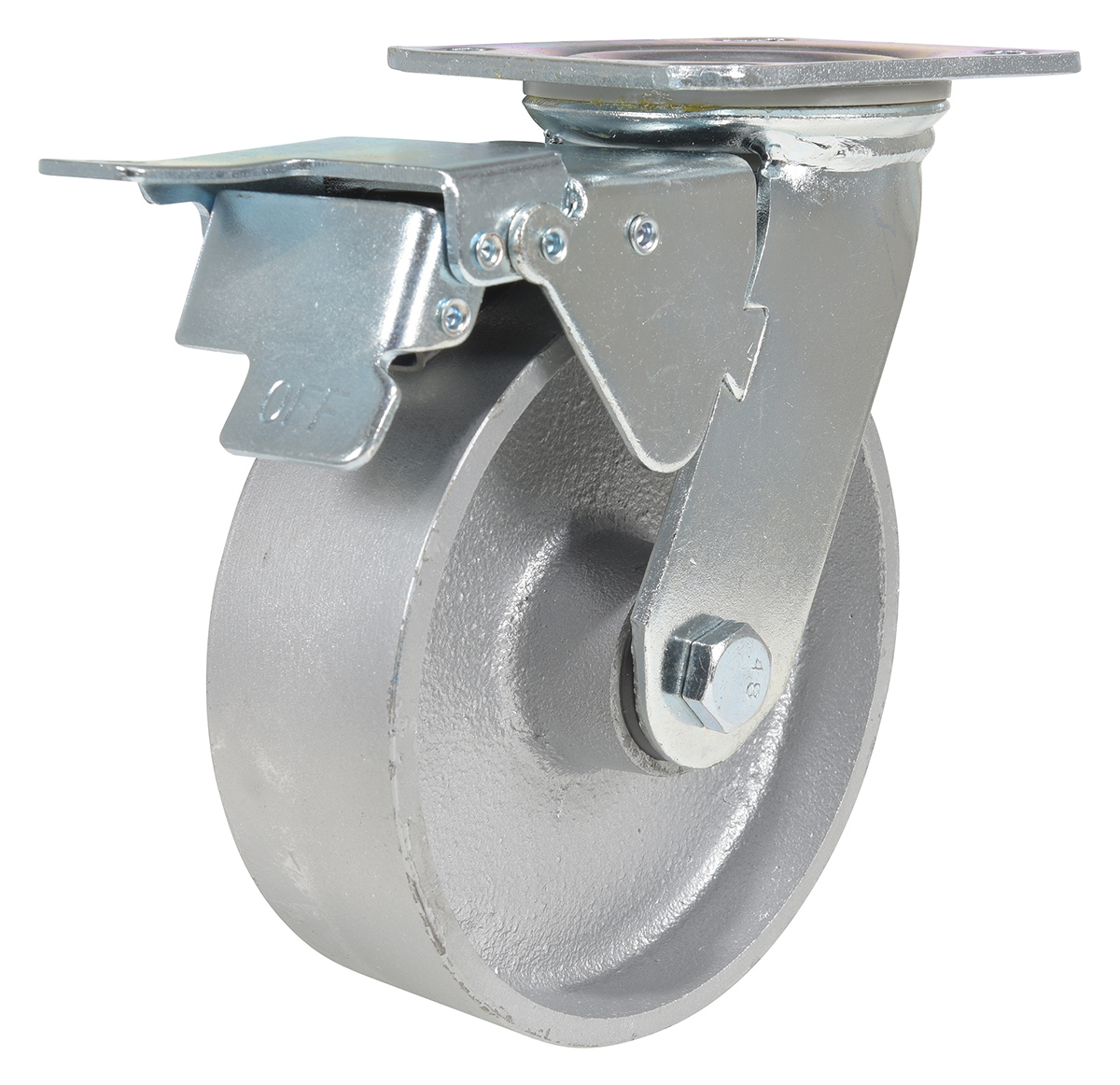

CST-VE-6X2CI-SWTB CST-VE-6X2CI-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE15407-1/2 4 x 4-1/28.81
CST-VE-8X2CI-SWTB CST-VE-8X2CI-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE17609-1/2 4 x 4-1/211

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Cast Iron/ Semi-Steel Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2CI-R

CST-VE-4X2CI-S

CST-VE-4X2CI-SWTB

CST-VE-5X2CI-R

CST-VE-5X2CI-S

CST-VE-5X2CI-SWB

CST-VE-5X2CI-SWTB

CST-VE-6X2CI-R

CST-VE-6X2CI-S

CST-VE-6X2CI-SWB

CST-VE-6X2CI-SWTB

CST-VE-8X2CI-R

CST-VE-8X2CI-S

CST-VE-8X2CI-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Cast Iron/ Semi-Steel Casters




Cast iron casters are a cost efficient way of getting industrial carts and dollies back to running smoothly. The units are abrasion resistant even when transporting substantial weight. Swivel model allows the user to change directions and maintain increased control over the device. Simple attachment for immediate use upon installation. Gray tread color.

  • Bearing dust cover seals
  • Hardened bearing raceway
  • Double welds on inside & outside of fork mounts
  • Roller bearing
  • Anti-corrosive & rust resistant zinc plated finish


No Model Numbers Associated To This Product Page
