Product Family Overview


Heavy-Duty Plate/Slab Dollies
SERIES: PLDL-HD

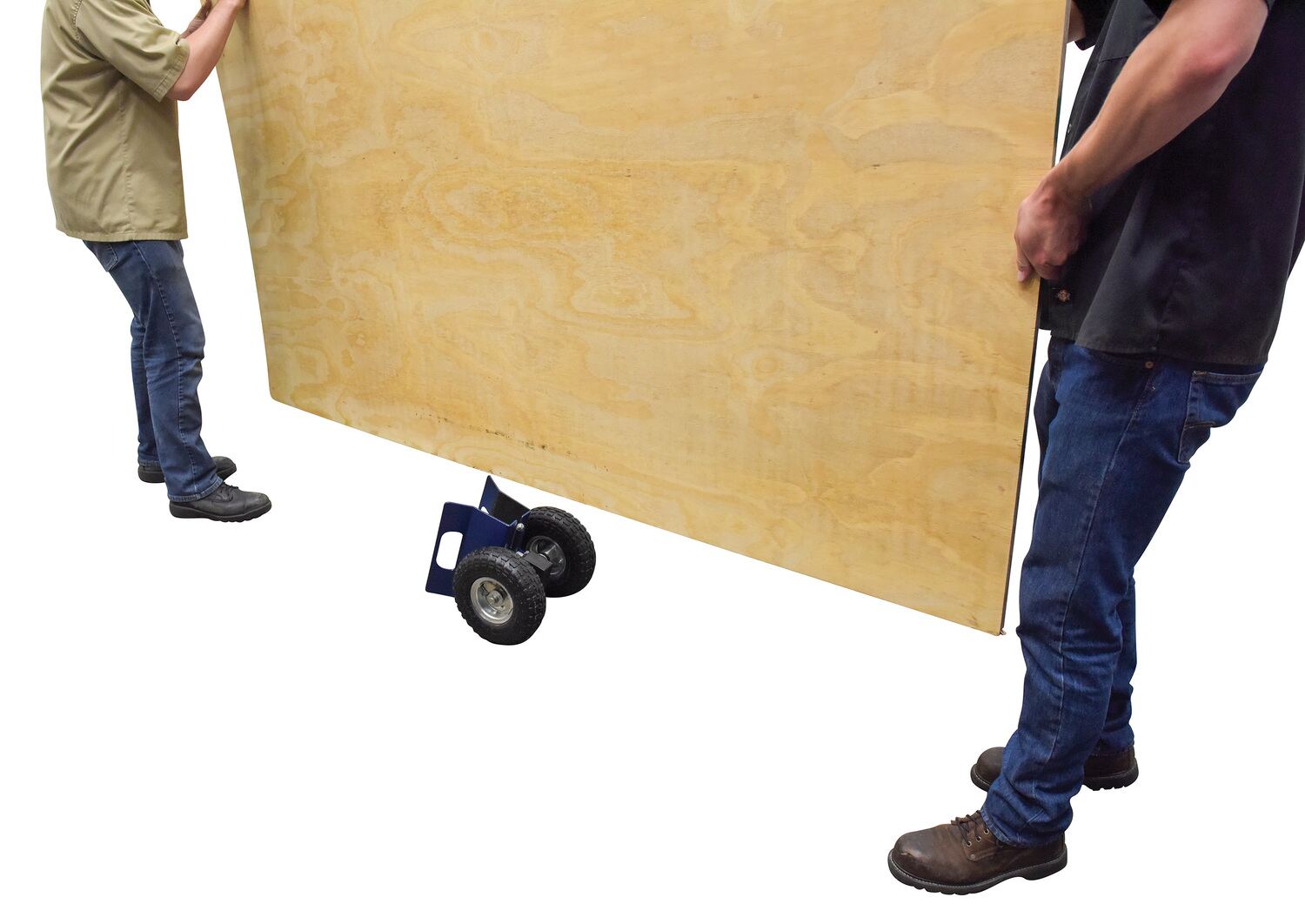

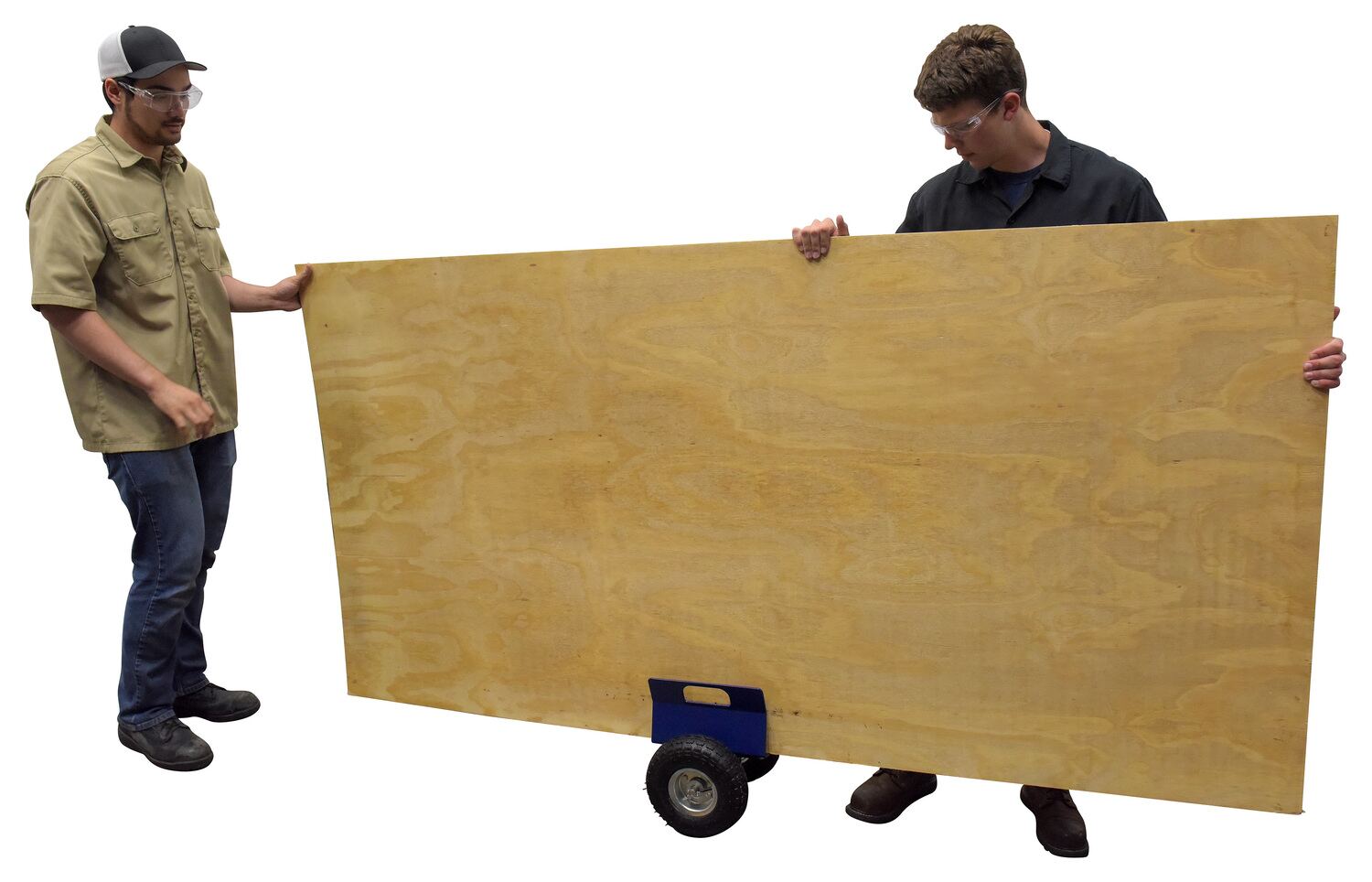

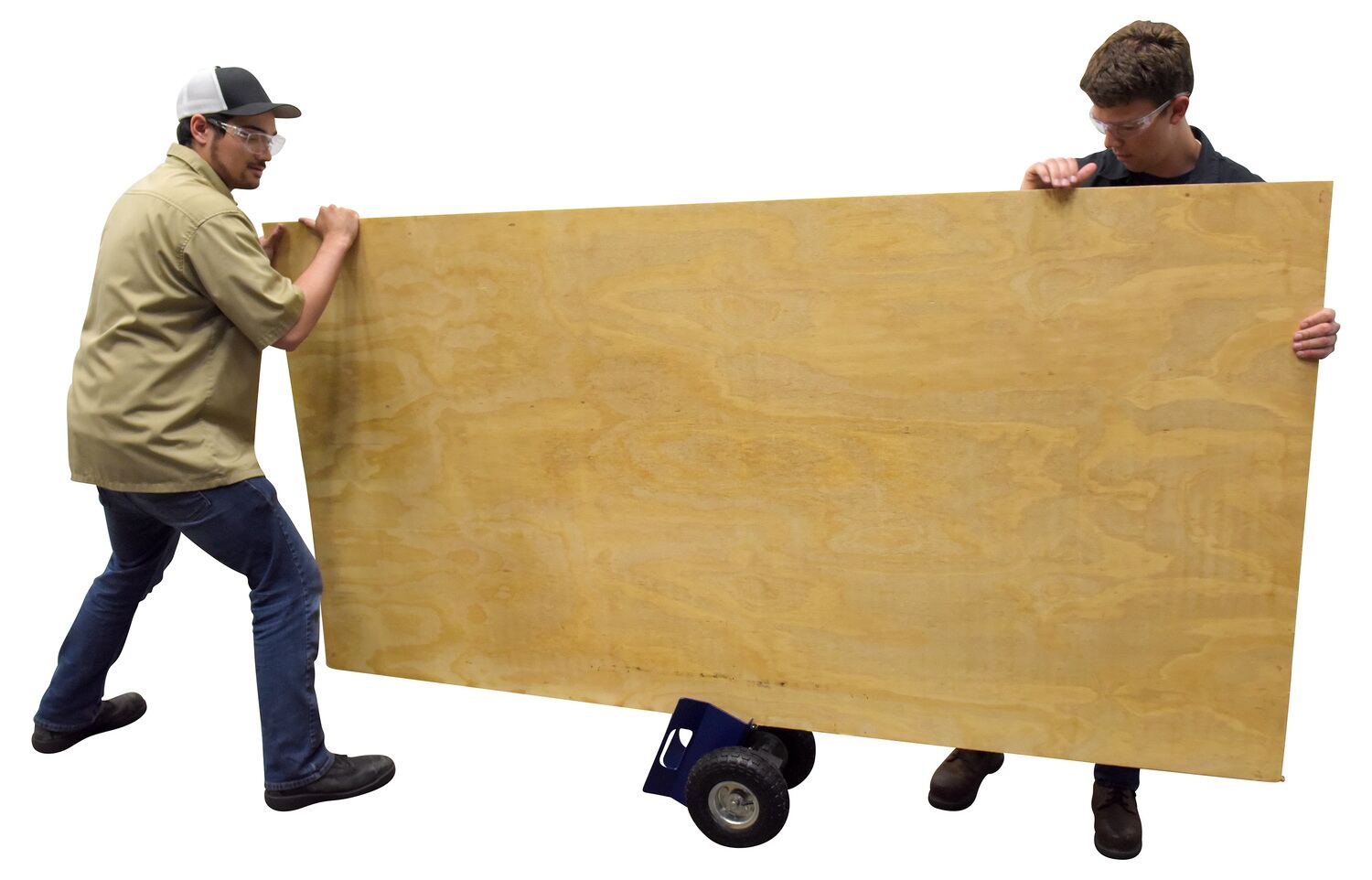

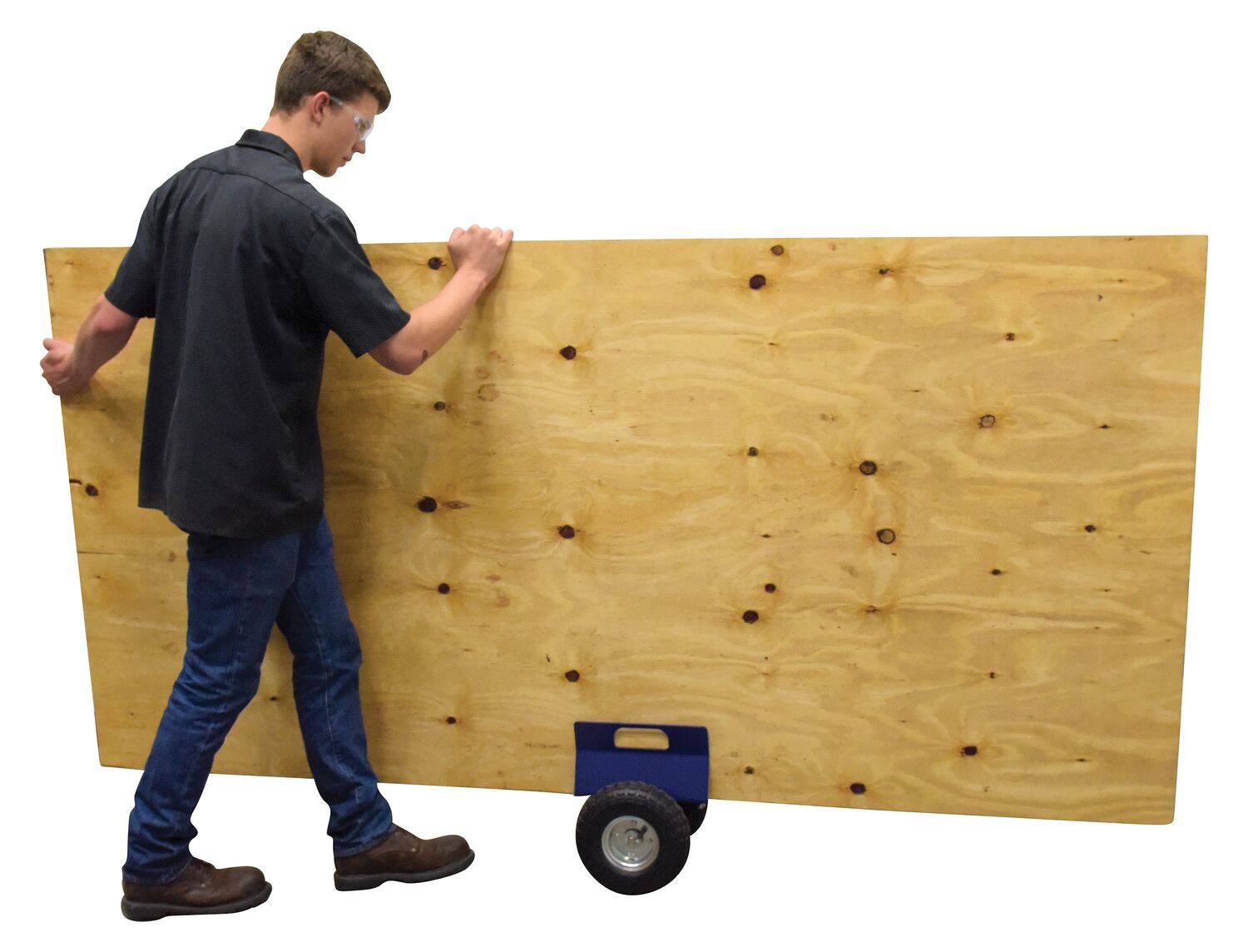

Heavy-duty plate/slab dolly with auto-clamp feature. Unique design grips plate/slab when weight is added. Opening for use with maximum 4" thick plate/slab. Hand holds are great for carrying. Strap (not included) can also be hooked to hand holds. Several different caster types to choose from.Steel construction with padded inside.

  • Unique design grips when weight is added
  • Auto clamp design provides added security
  • Heavy duty design easily lifts the heaviest loads
  • Caster diameter makes maneuvering simple

Heavy-duty plate/slab dolly with auto-clamp feature. Unique design grips plate/slab when weight is added. Opening for use with maximum 4" thick plate/slab. Hand holds are great for carrying. Strap (not included) can also be hooked to hand holds. Several different caster types to choose from.Steel construction with padded inside.

  • Unique design grips when weight is added
  • Auto clamp design provides added security
  • Heavy duty design easily lifts the heaviest loads
  • Caster diameter makes maneuvering simple

Additional Models In This Family

PLDL-HD-4-8GFN

model PLDL-HD-4-8GFN

PLDL-HD-4-8MR

model PLDL-HD-4-8MR

PLDL-HD-4-8PS

model PLDL-HD-4-8PS

PLDL-HD-4-10FF

model PLDL-HD-4-10FF

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

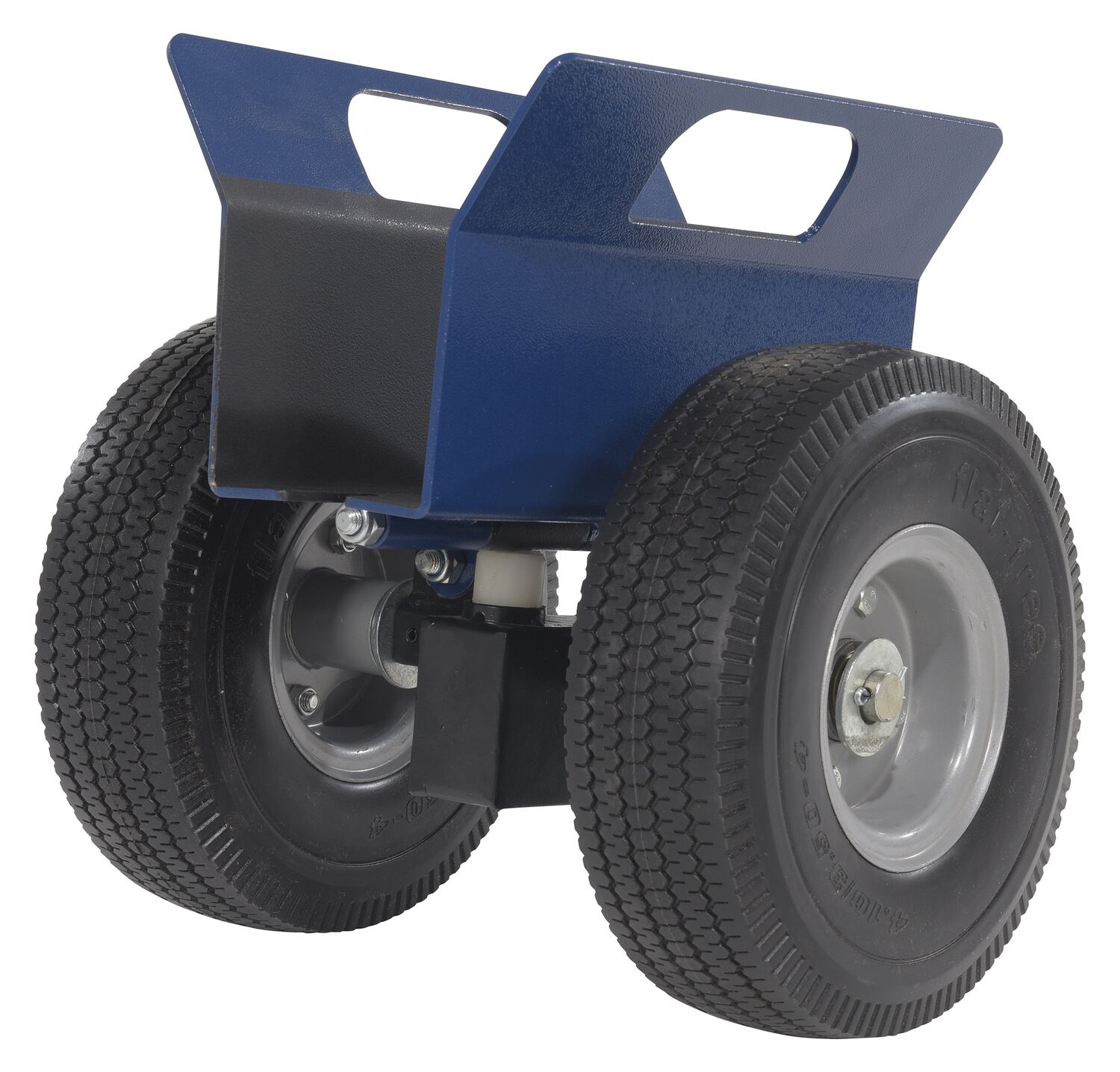

PLDL-HD-4-10FF PLDL-HD-4-10FF30 Days Limited WarrantySteel Heavy Duty Adjustable Panel Dolly With Foam Filled Wheels 12 In x 12-13/16 In x 13-1/4 In 500 Lb. Capacity BlueUniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
23

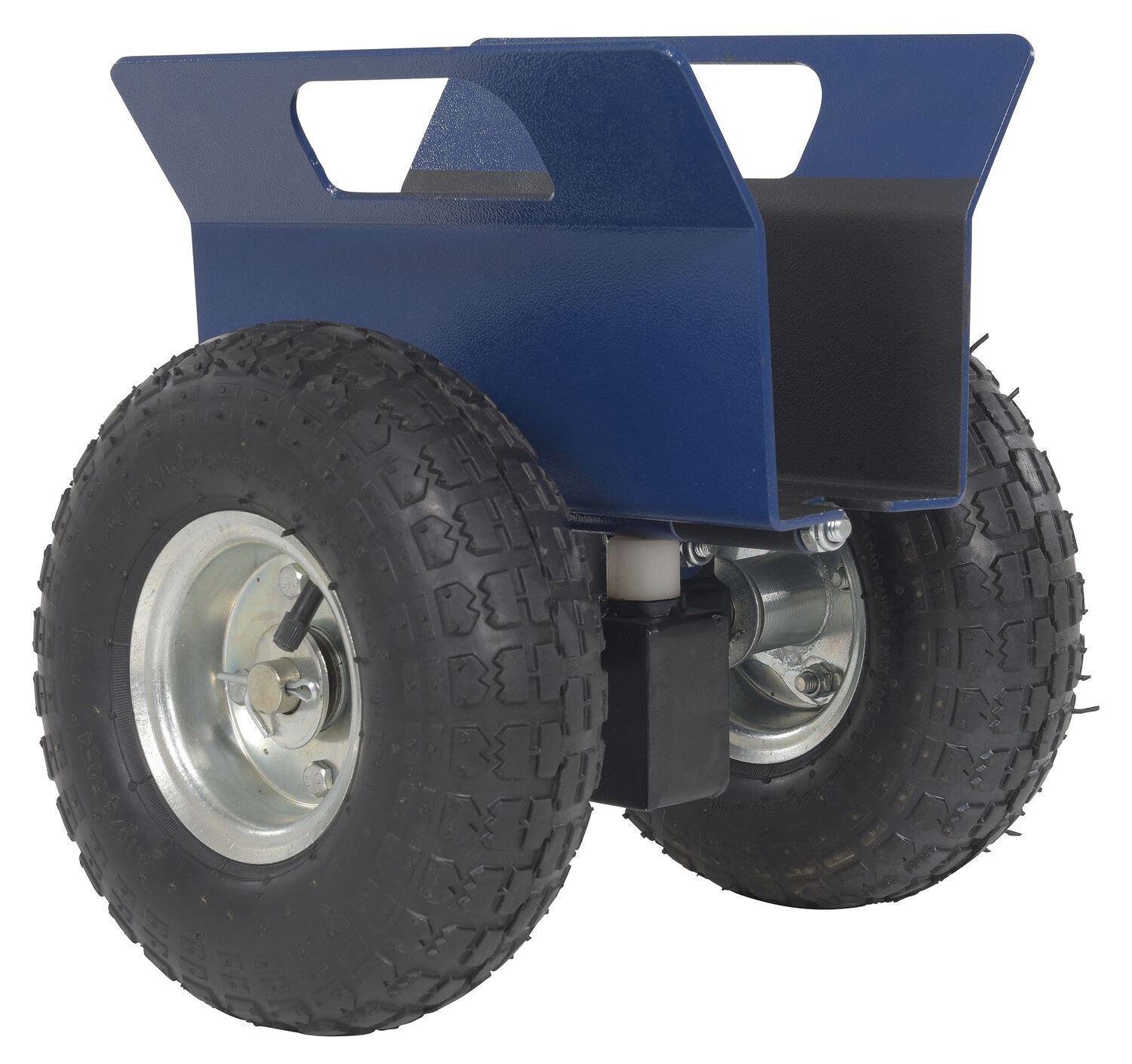

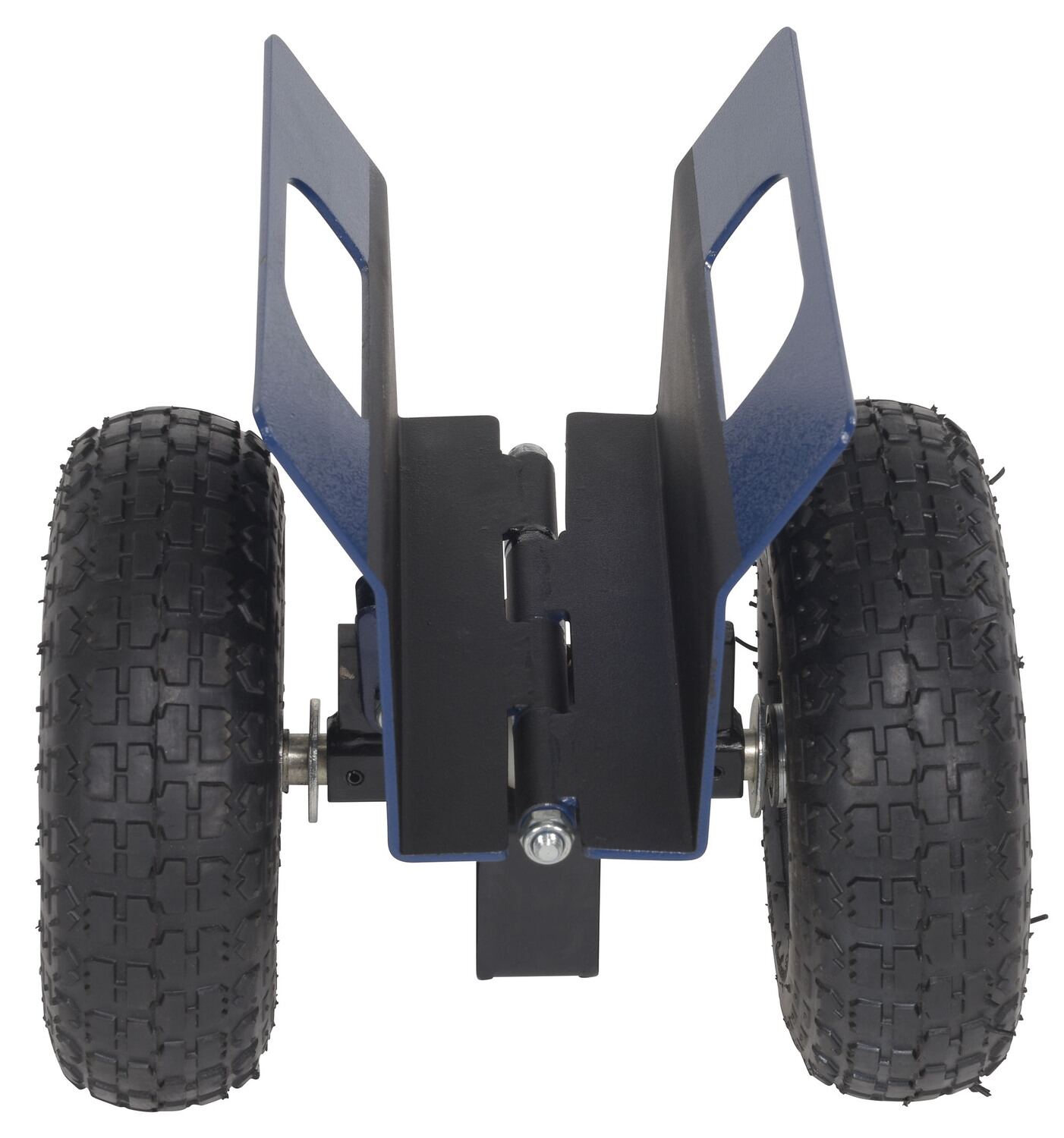

PLDL-HD-4-10PN PLDL-HD-4-10PN30 Days Limited WarrantySteel Heavy Duty Adjustable Panel Dolly Pneumatic Wheels 12 In x 12-15/16 In x 13-1/4 In 750 Lb. Capacity BlueUniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
24

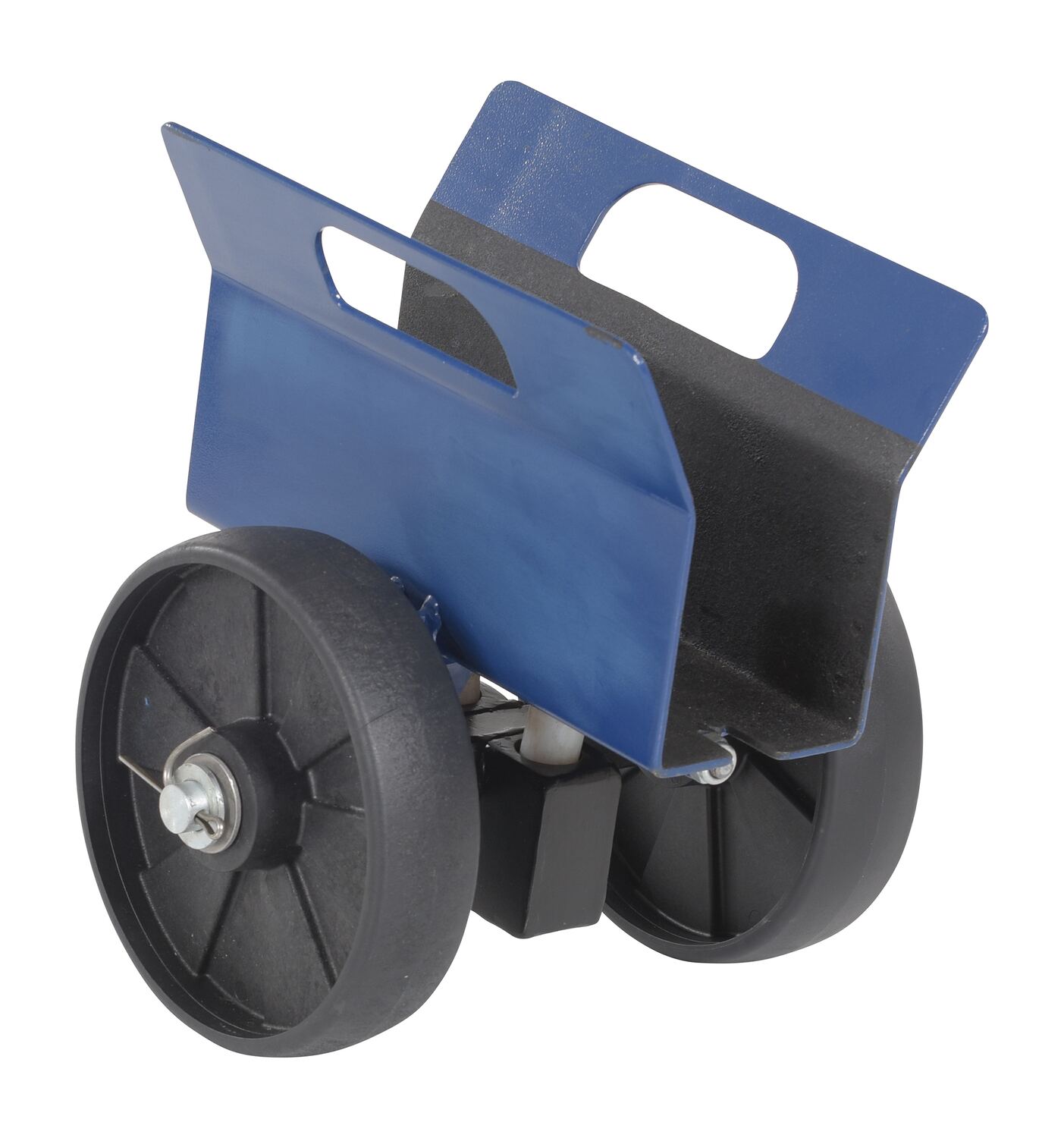

PLDL-HD-4-8GFN PLDL-HD-4-8GFN30 Days Limited WarrantySteel Heavy Duty Adjustable Panel Dolly With Glass Filled Nylon Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity BlueUniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
24

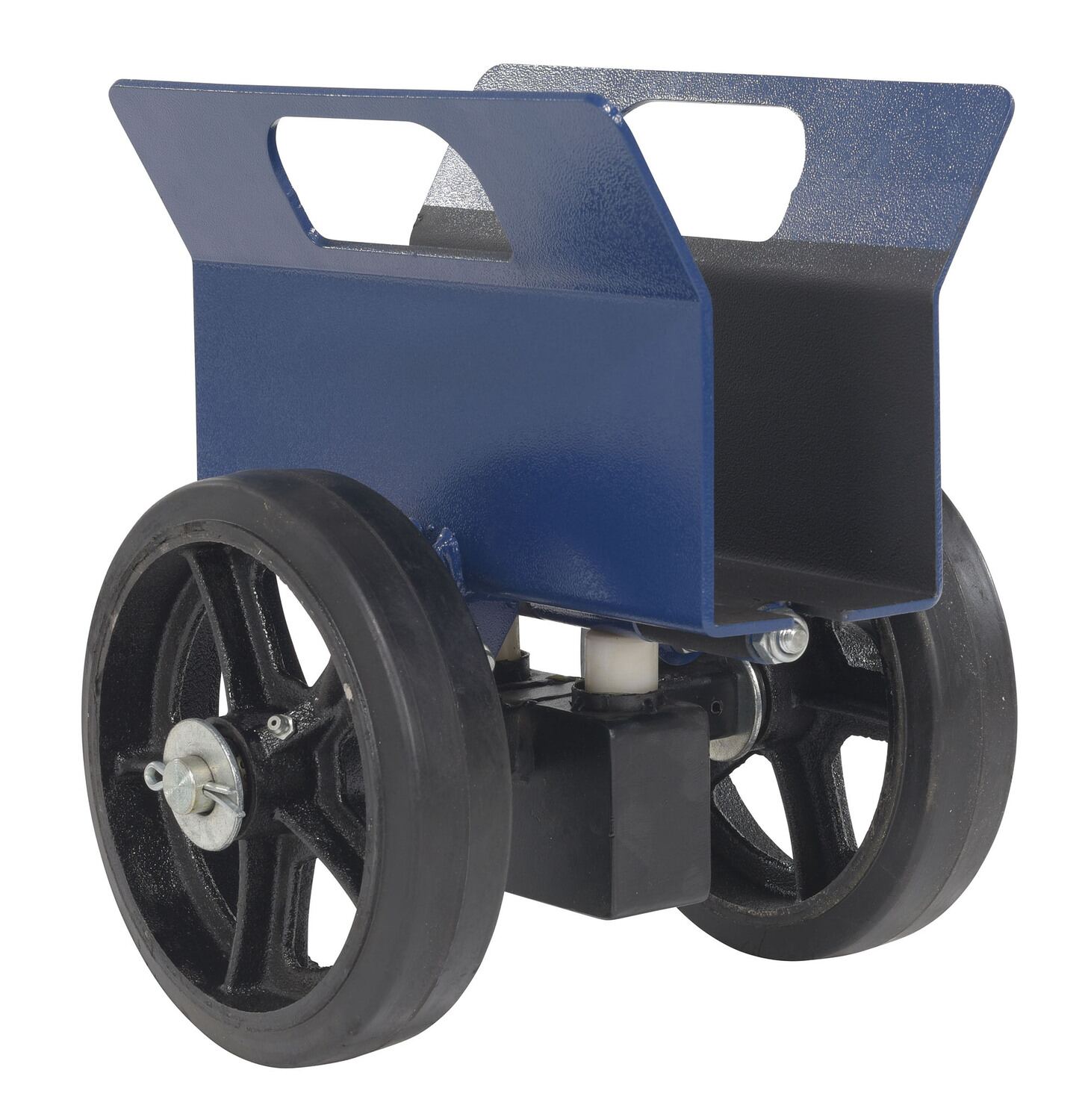

PLDL-HD-4-8MR PLDL-HD-4-8MR30 Days Limited WarrantySteel Heavy Duty Adjustable Panel Dolly With Mold On Rubber Casters 12 In x 12-1/4 In x 12-1/4 In 1200 Lb. Capacity BlueUniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
28

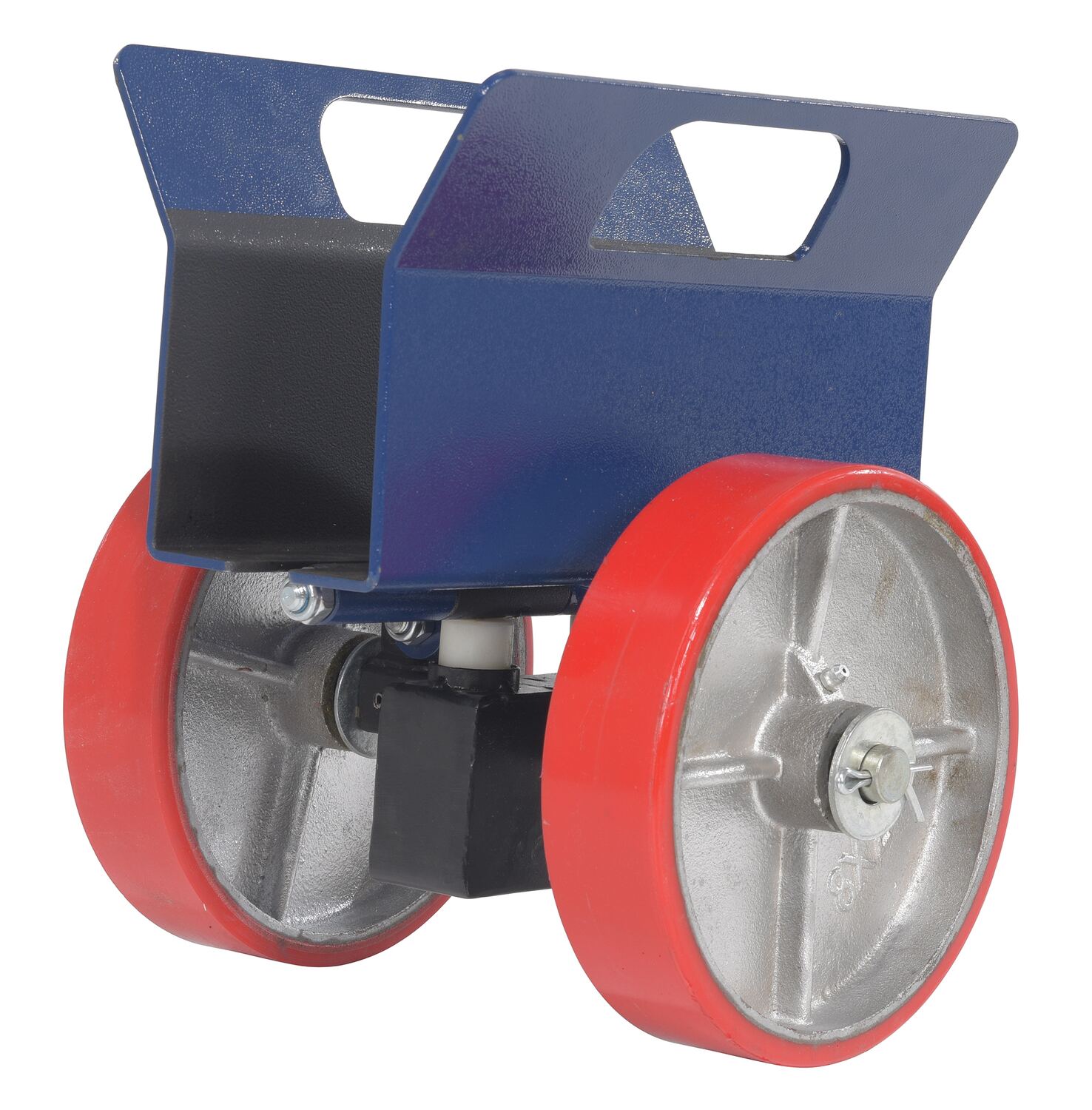

PLDL-HD-4-8PS PLDL-HD-4-8PS30 Days Limited WarrantySteel Heavy Duty Adjustable Panel Dolly With Poly-On-Steel Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity BlueUniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
28

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PLDL-HD-4-10FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2

PLDL-HD-4-10PN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Uniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2

PLDL-HD-4-8GFN
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2

PLDL-HD-4-8MR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
Uniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2

PLDL-HD-4-8PS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
Uniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2

Heavy-Duty Plate/Slab Dollies PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


PLDL-HD-4-10FF

PLDL-HD-4-10PN

PLDL-HD-4-8GFN

PLDL-HD-4-8MR

PLDL-HD-4-8PS

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the maximum material width this unit can accept?

A: Maximum usable width is 3 3/4"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Heavy-Duty Plate/Slab Dollies




Heavy-duty plate/slab dolly with auto-clamp feature. Unique design grips plate/slab when weight is added. Opening for use with maximum 4" thick plate/slab. Hand holds are great for carrying. Strap (not included) can also be hooked to hand holds. Several different caster types to choose from.Steel construction with padded inside.

  • Unique design grips when weight is added
  • Auto clamp design provides added security
  • Heavy duty design easily lifts the heaviest loads
  • Caster diameter makes maneuvering simple



Model # Description Attributes Net Wt.
(lbs)
PLDL-HD-4-10FF PLDL-HD-4-10FFSteel Heavy Duty Adjustable Panel Dolly With Foam Filled Wheels 12 In x 12-13/16 In x 13-1/4 In 500 Lb. Capacity BlueUniform Static Capacity (lb.): 500
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
23
PLDL-HD-4-10PN PLDL-HD-4-10PNSteel Heavy Duty Adjustable Panel Dolly Pneumatic Wheels 12 In x 12-15/16 In x 13-1/4 In 750 Lb. Capacity BlueUniform Static Capacity (lb.): 750
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
24
PLDL-HD-4-8GFN PLDL-HD-4-8GFNSteel Heavy Duty Adjustable Panel Dolly With Glass Filled Nylon Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity BlueUniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
24
PLDL-HD-4-8MR PLDL-HD-4-8MRSteel Heavy Duty Adjustable Panel Dolly With Mold On Rubber Casters 12 In x 12-1/4 In x 12-1/4 In 1200 Lb. Capacity BlueUniform Static Capacity (lb.): 1,200
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
28
PLDL-HD-4-8PS PLDL-HD-4-8PSSteel Heavy Duty Adjustable Panel Dolly With Poly-On-Steel Casters 12 In x 12-1/4 In x 12-1/4 In 1500 Lb. Capacity BlueUniform Static Capacity (lb.): 1,500
Wheel Quantity/Diameter/Width (in.): (2) 8 x 2-1/2
28
